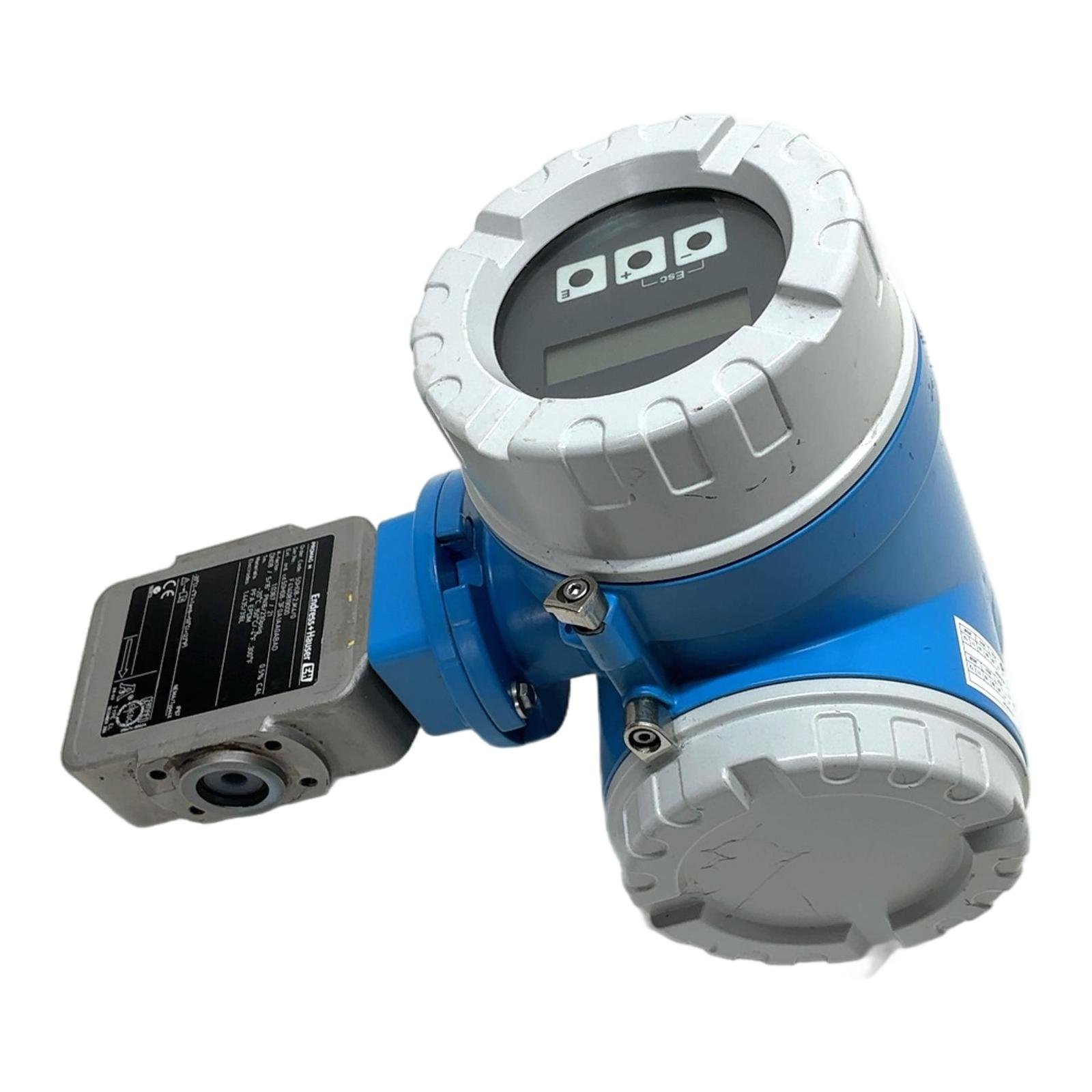

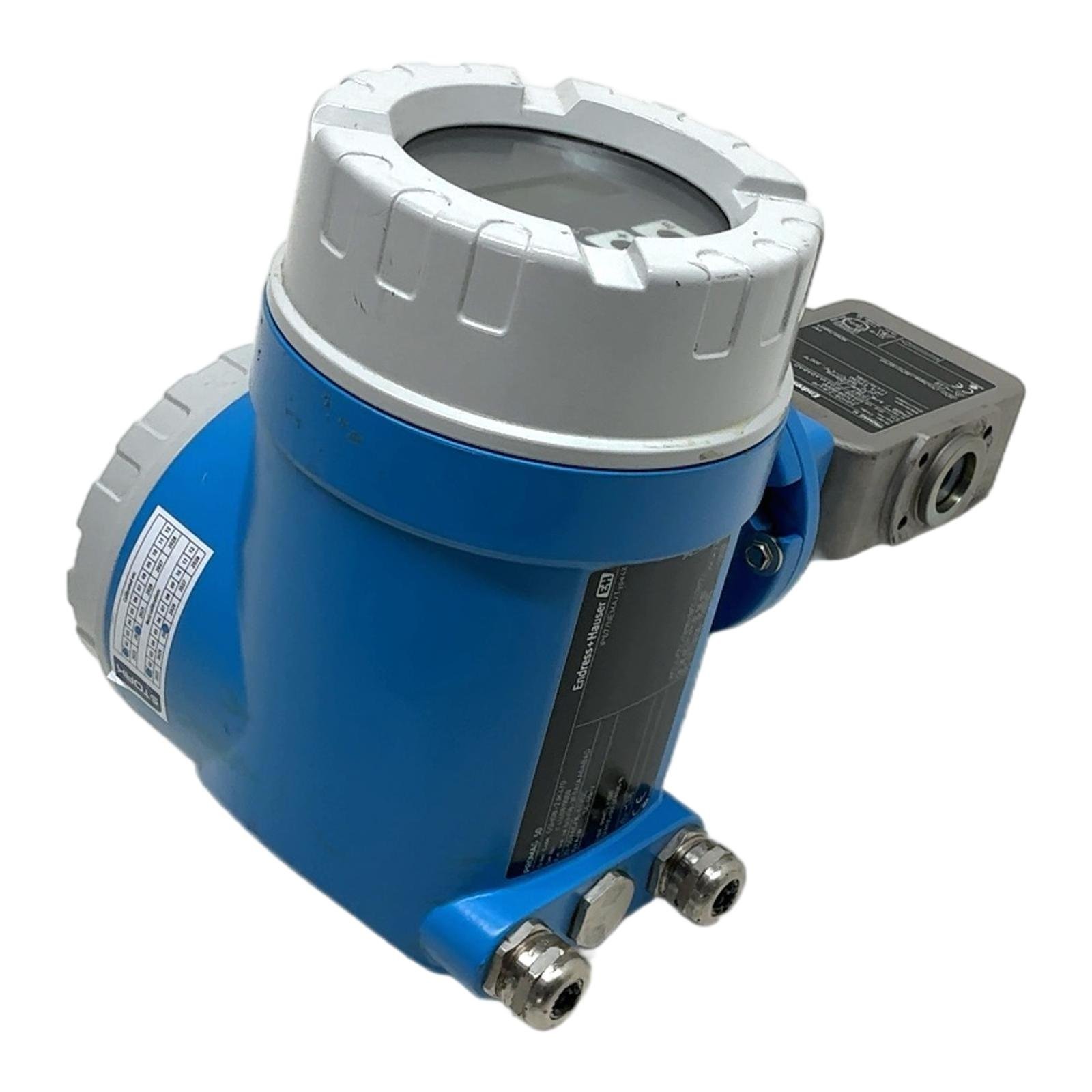

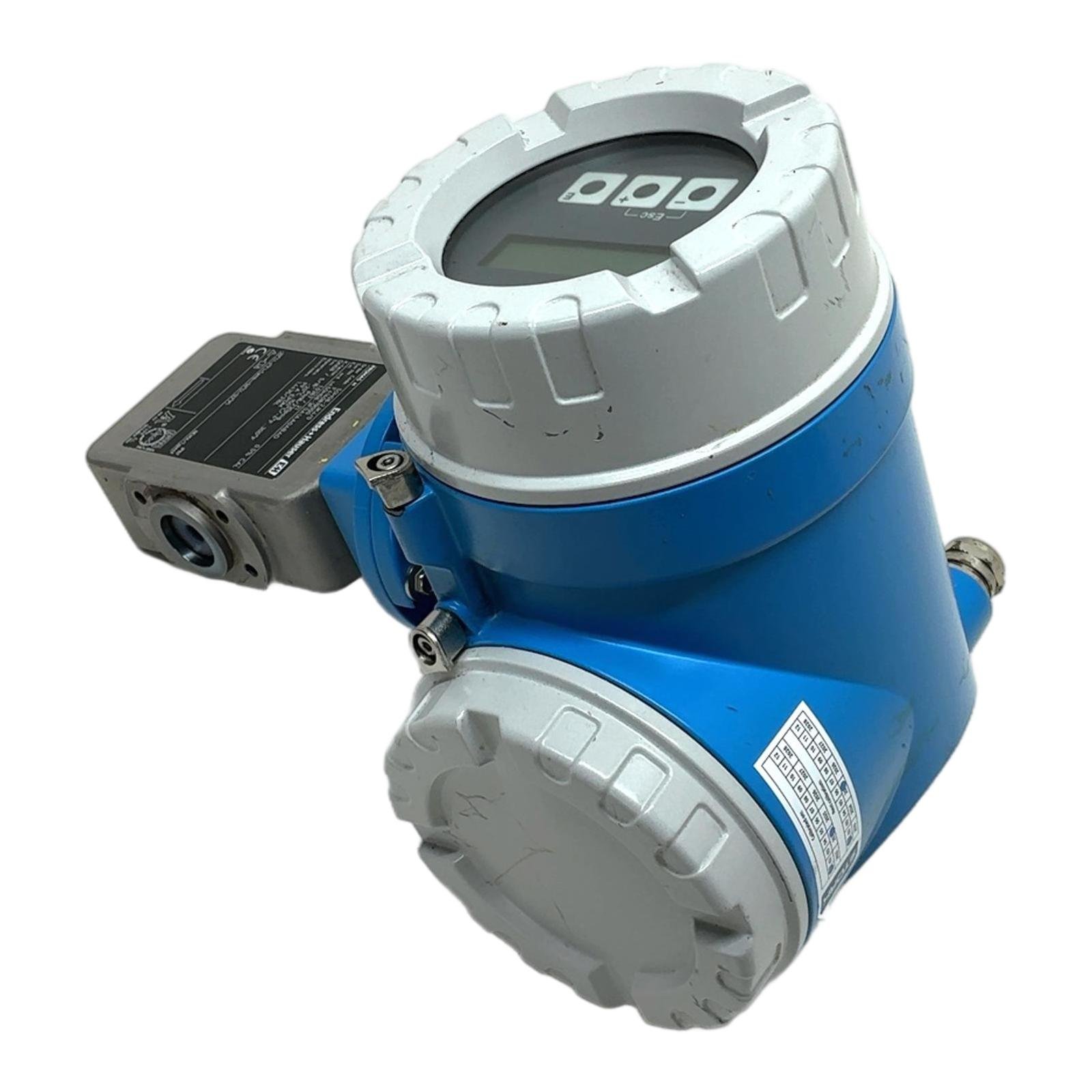

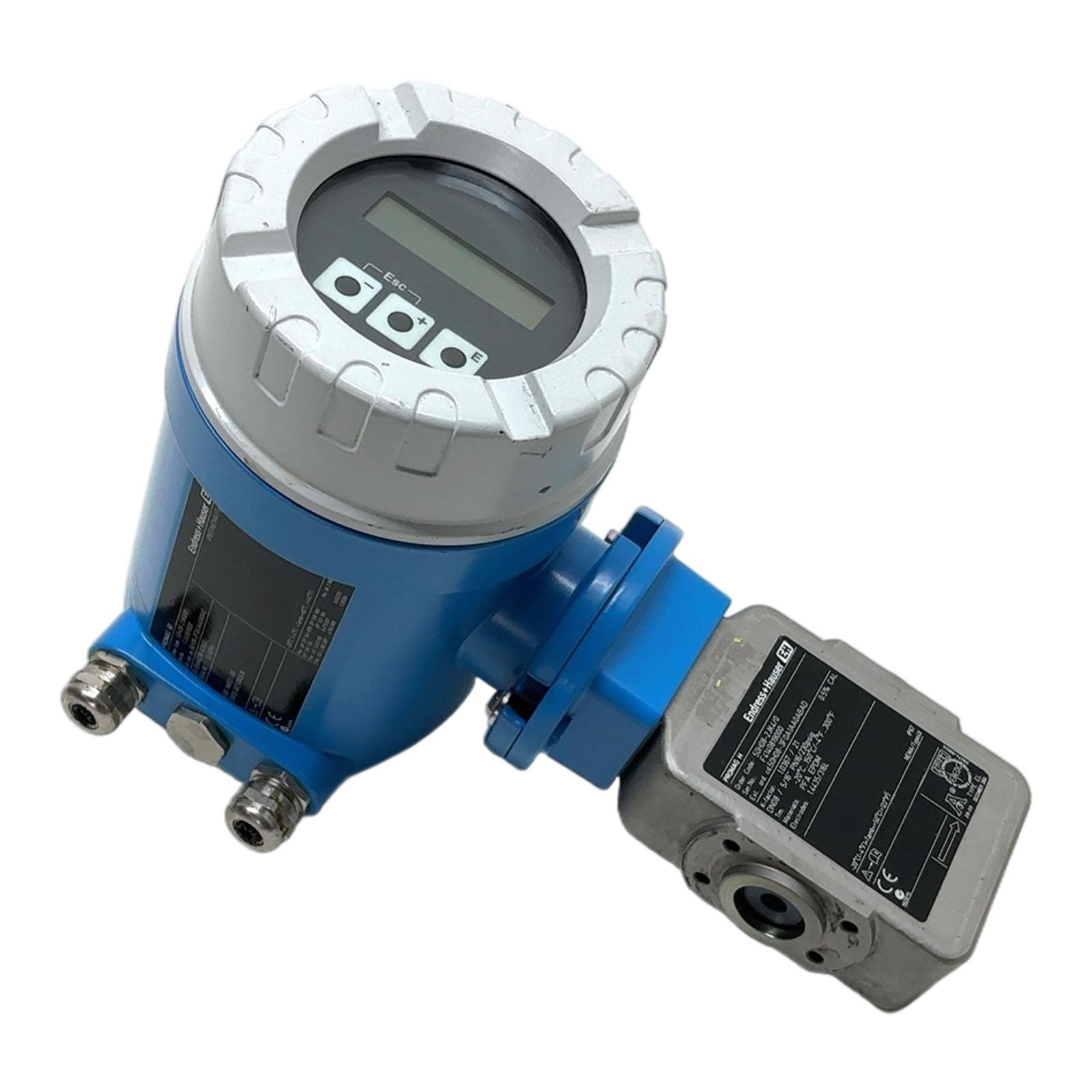

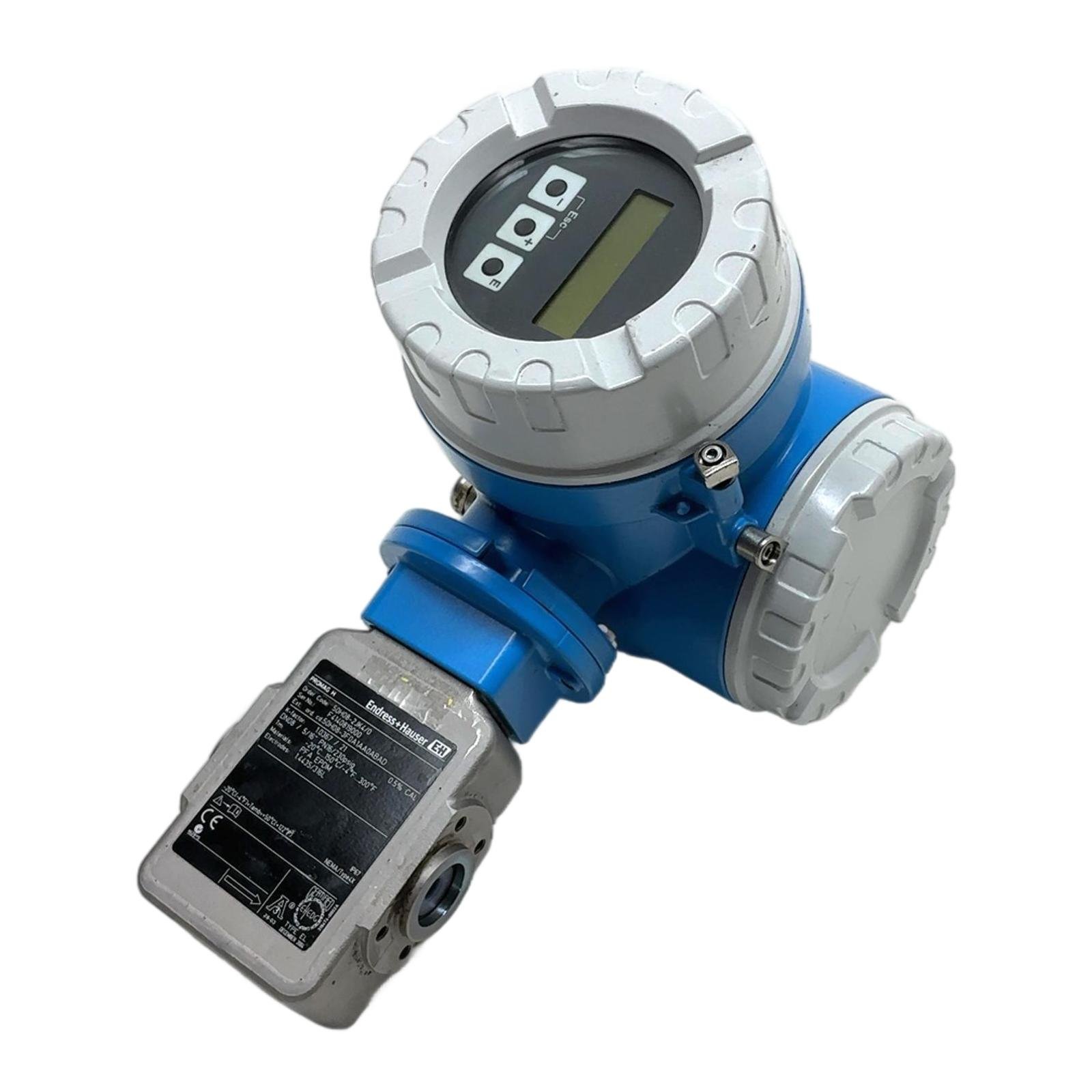

ENDRESS+HAUSER Promag 50H 50H08-2JK4/0

Endress+Hauser Promag 50H Flow Meter Description The Endress+Hauser Promag 50H is a high-precision electromagnetic flow meter designed for demanding hygienic applications. This device provides accurate and repeatable measurement of conductive liquids. It combines the Promag H sensor with the Promag 50 transmitter, featuring a two-line backlit display and push-button operation. This unit is ideal for integration into process control systems via its HART communication protocol. Specifications Manufacturer: Endress+Hauser Model: Promag 50H Order Code: 50H08-2JK4/0 Nominal Diameter: DN8 / 5/16 inch Pressure Rating: PN16 / 230 psig Liner Material: PFA Electrode Material: 1.4435 / 316L Power Supply: 20-55V AC / 16-62V DC, 50-60Hz Output: 4-20mA with HART Protocol Protection Rating: IP67 / NEMA Type 4X Label Info Ser. No.: F4140819000 Ext. ord. cd.: 50H08-3F0A1AA0ABAD Medium Temperature: -20 to 150 deg C Ambient Temperature: -20 to 60 deg C Application This flow meter is perfectly suited for applications in the food and beverage, pharmaceutical, and water treatment industries where sanitary conditions and precise flow measurement are critical. Country of Origin Made in France. CO2 Impact By purchasing this pre-owned item, you are helping to avoid approximately 85 kg of CO2 emissions that would be generated by manufacturing a new one. Availability This is an obsolete item, but it is available from our stock. Order now from profideals for expert support and fast delivery. FAQ Is this flow meter compatible with modern PLC or DCS systems?Yes, this unit uses the 4-20mA signal with HART protocol, which is a widely supported industrial communication standard, ensuring compatibility with most modern control systems. What does the ‘H’ in Promag 50H stand for?The ‘H’ signifies that this model is part of the Hygienic line, designed with materials and construction standards (like PFA liner and EHEDG certification) suitable for sanitary applications in industries like food and pharma. Can this meter measure the flow of deionized water or oils?No. As an electromagnetic flow meter, it requires the fluid being measured to have a minimum level of electrical conductivity. It is not suitable for non-conductive liquids like oils or deionized water. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
