PILZ PNOZ ml 1p 773540

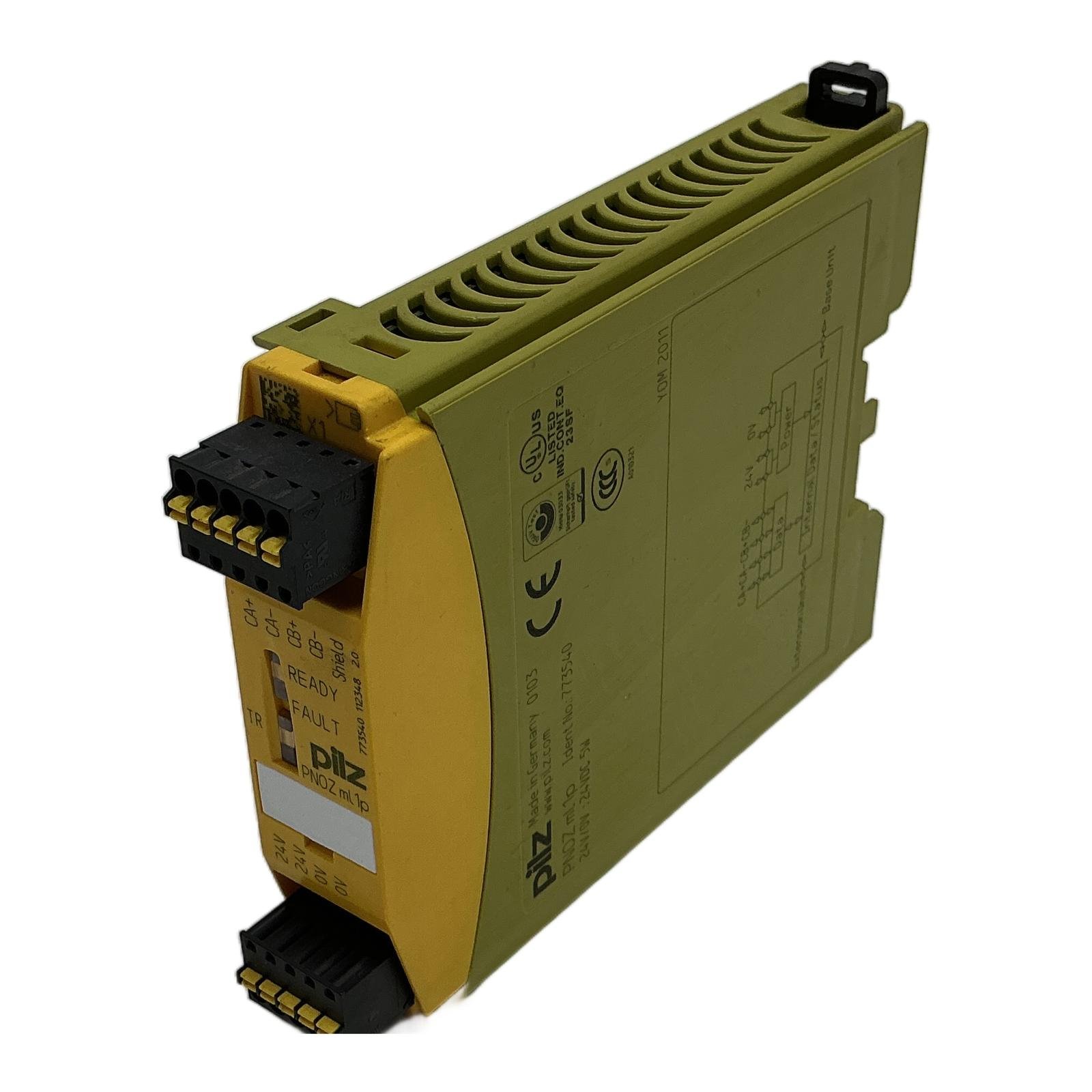

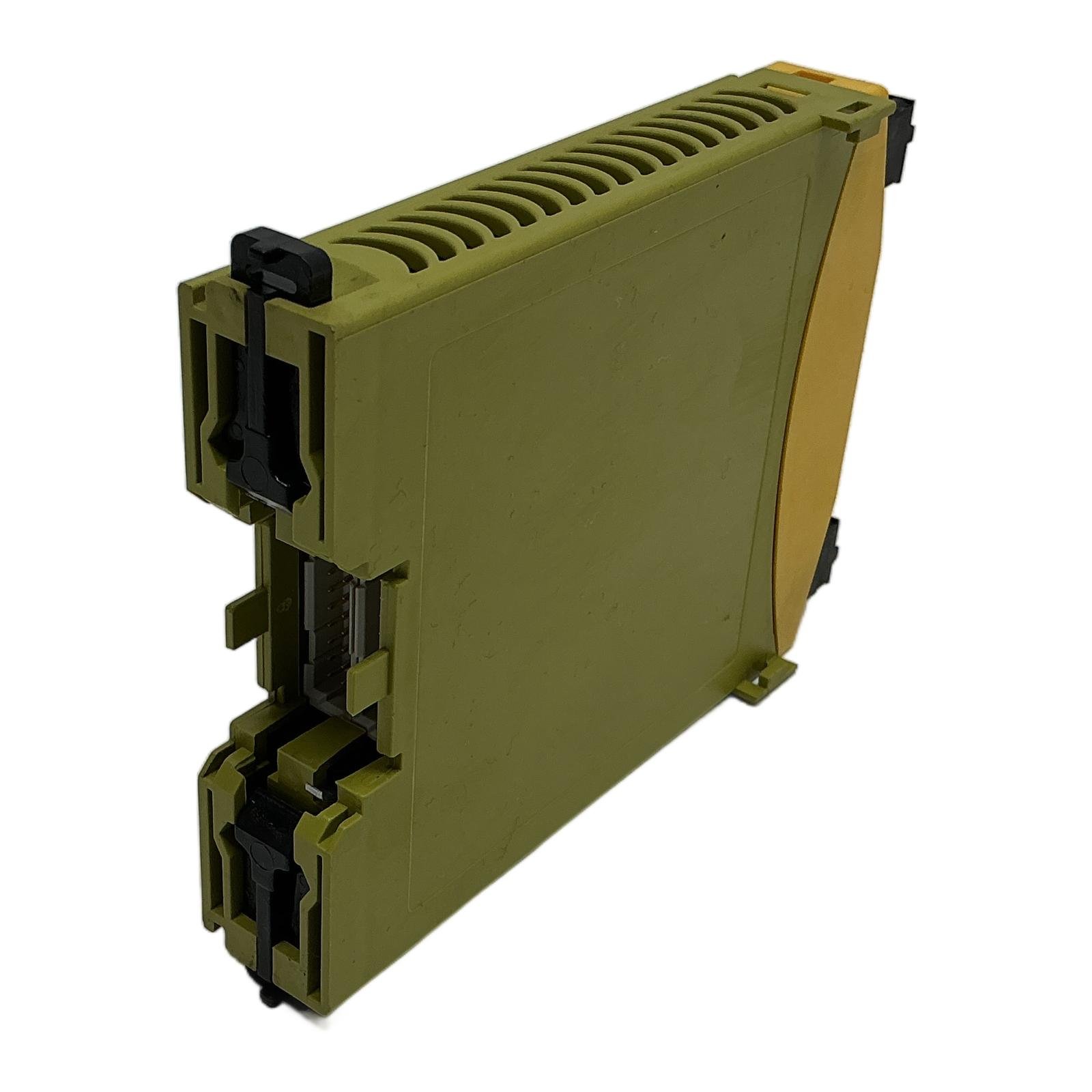

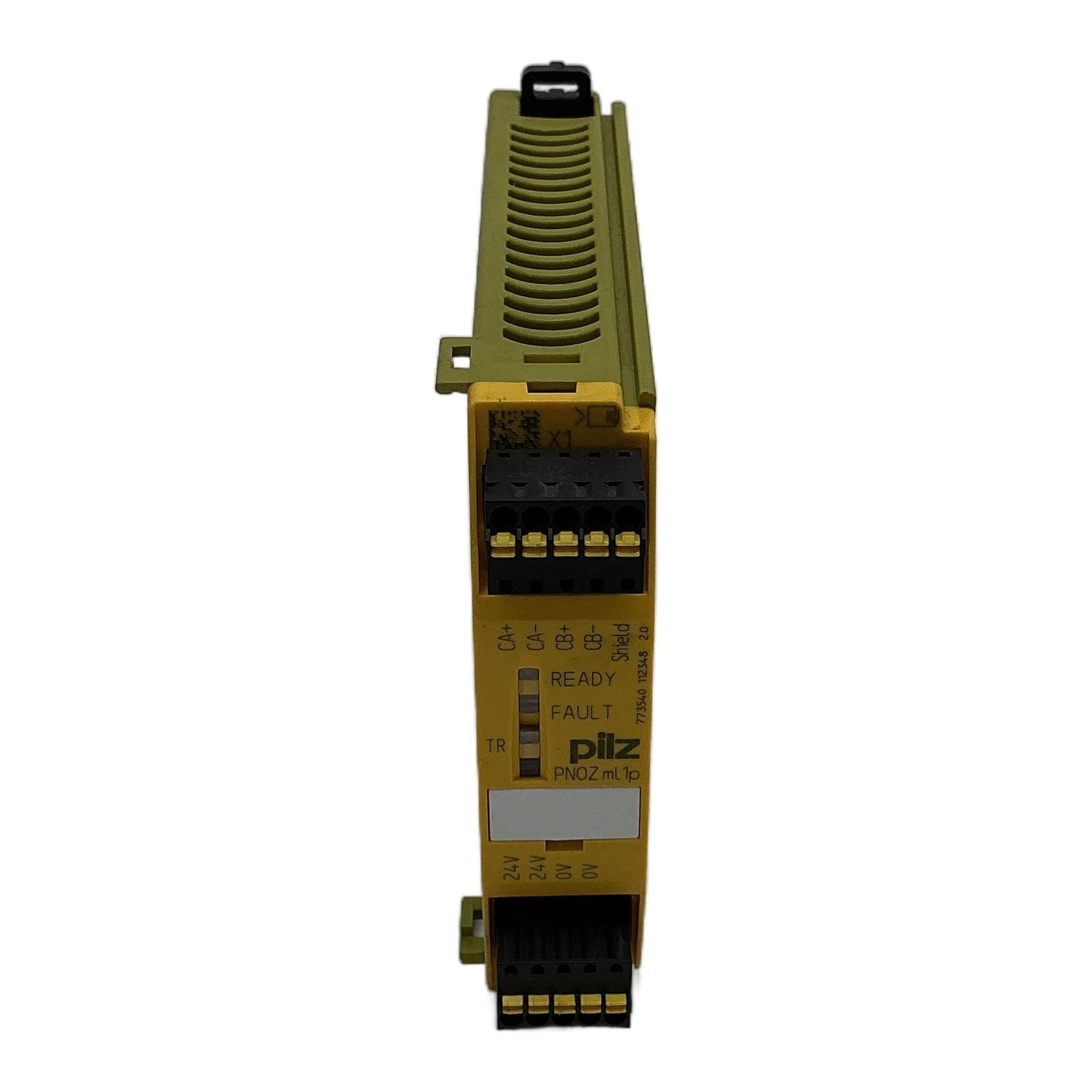

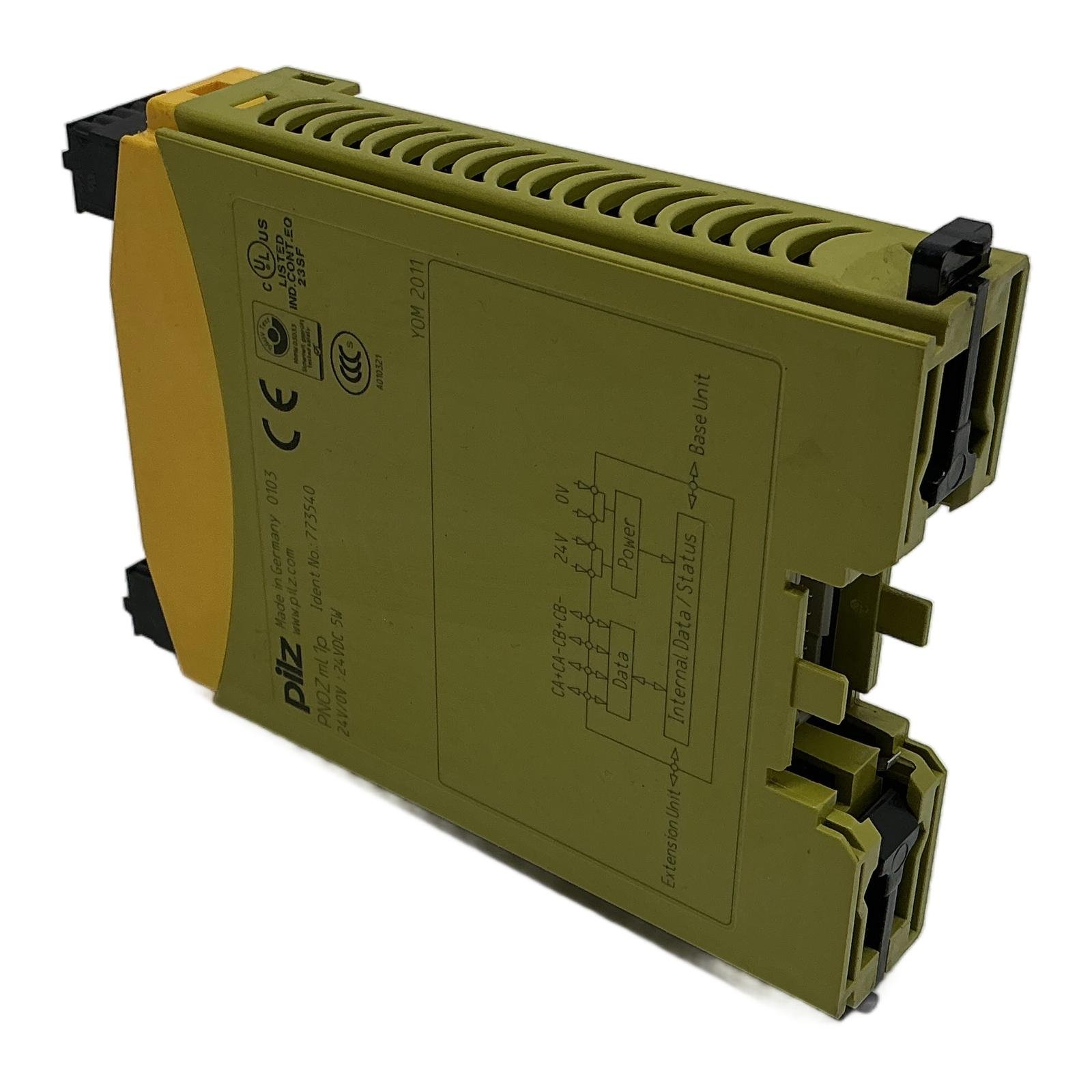

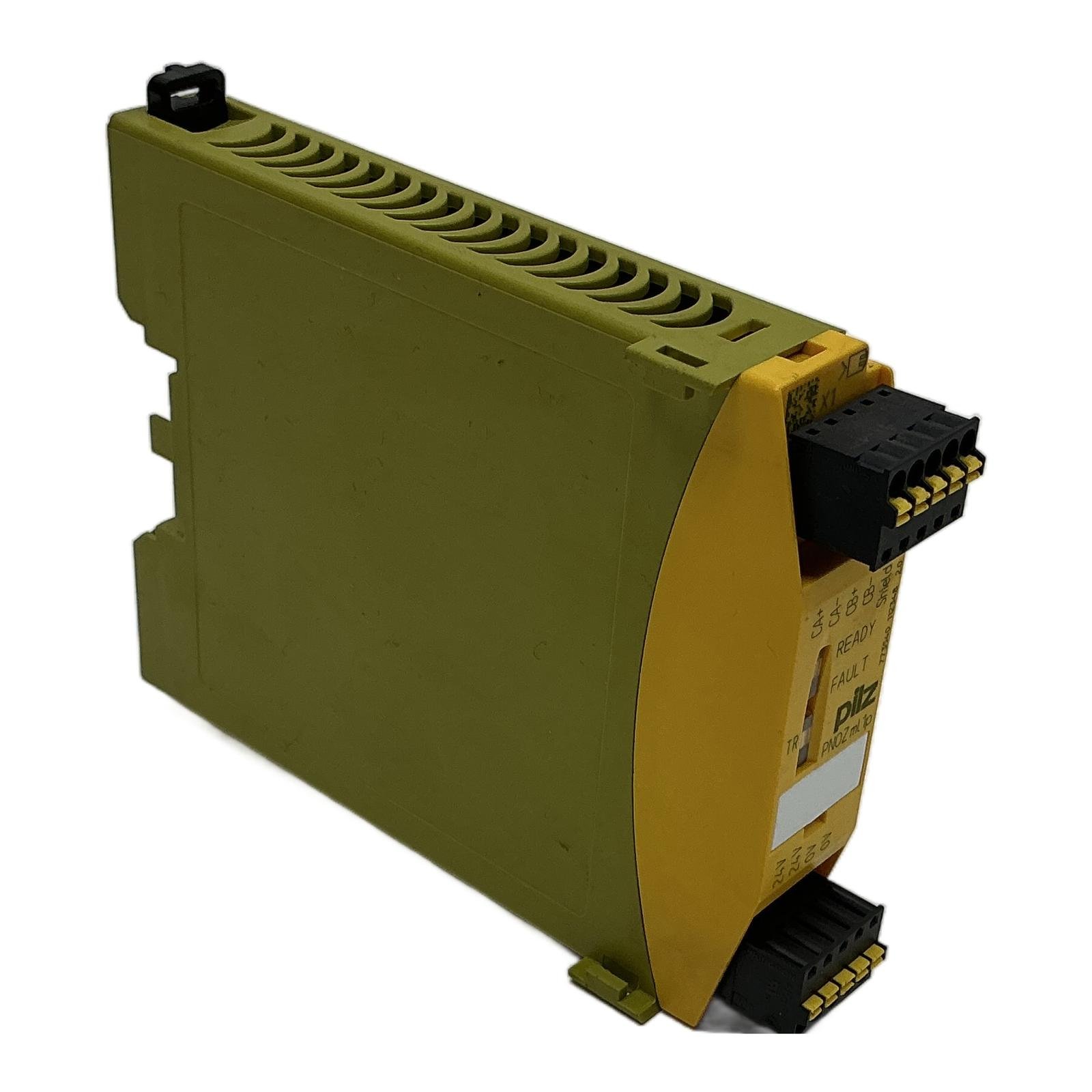

Pilz PNOZ ml 1p 773540 Safety Link Module Description The Pilz PNOZ ml 1p is a safety link module designed for the PNOZmulti configurable safety system. This module facilitates the safe connection of two PNOZmulti base units, allowing for the expansion of safety functions over a larger area. It operates on a 24VDC supply and is an essential component for creating distributed and complex safety applications in industrial automation. This specific unit was manufactured in 2011 and remains a reliable choice for maintaining existing PNOZmulti classic systems. Specifications Manufacturer: Pilz Type: PNOZ ml 1p Ident No.: 773540 System Family: PNOZmulti Function: Safety Link Module Supply Voltage: 24 VDC Power Consumption: 5 W Connection: Plug-in screw terminals Label Info Model: PNOZ ml 1p Ident No.: 773540 Power: 24V/0V : 24VDC 5W Year of Manufacture: 2011 Application This module is used to safely link two PNOZmulti base units, enabling decentralized control architectures. It is ideal for applications where safety functions are distributed across large machines or separate control cabinets, such as in the automotive industry, packaging lines, and material handling systems. Country of Origin Made in Germany. CO2 Impact Opting for this pre-owned module over a new one prevents the emission of approximately 8 kg of CO2, which is equivalent to the carbon captured by a tree over a year. Your choice supports a more sustainable industrial sector. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the maximum distance this module can link two PNOZmulti base units?The PNOZ ml 1p uses a 4-wire shielded cable and can connect base units up to a distance of 100 meters, depending on the cable quality and EMC environment. Is this module compatible with the newer PNOZmulti 2 system?No, the PNOZ ml 1p (773540) is part of the PNOZmulti classic series and is not compatible with PNOZmulti 2 base units. For PNOZmulti 2, you need a module like the PNOZ m EF Multi Link. Does this module require special configuration in the PNOZmulti Configurator software?Yes, when you connect two base units with a PNOZ ml 1p, you must configure the link in the hardware configuration within the PNOZmulti Configurator. This establishes the safe communication link between the controllers. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder. Last Update: Friday, March 13, 2026
