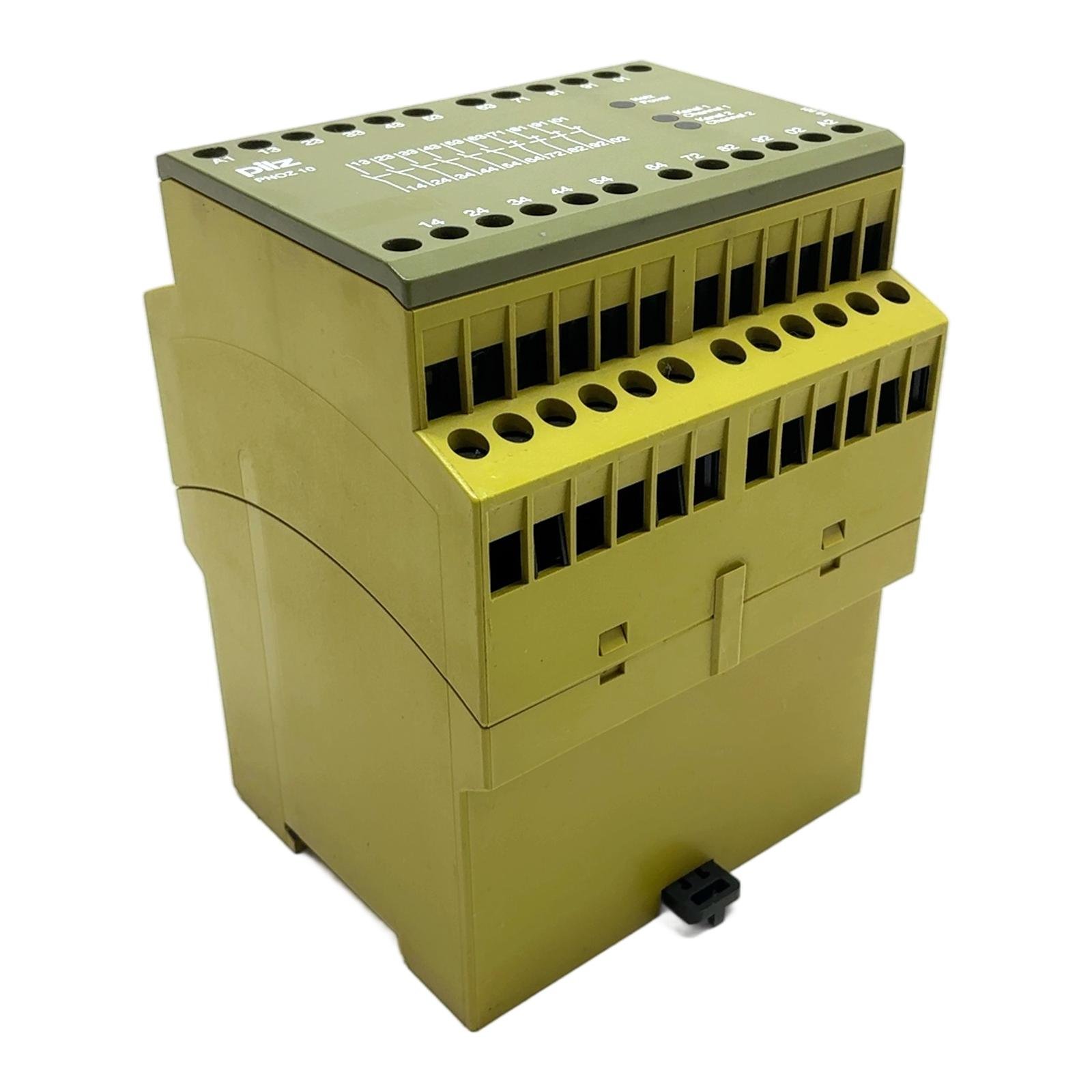

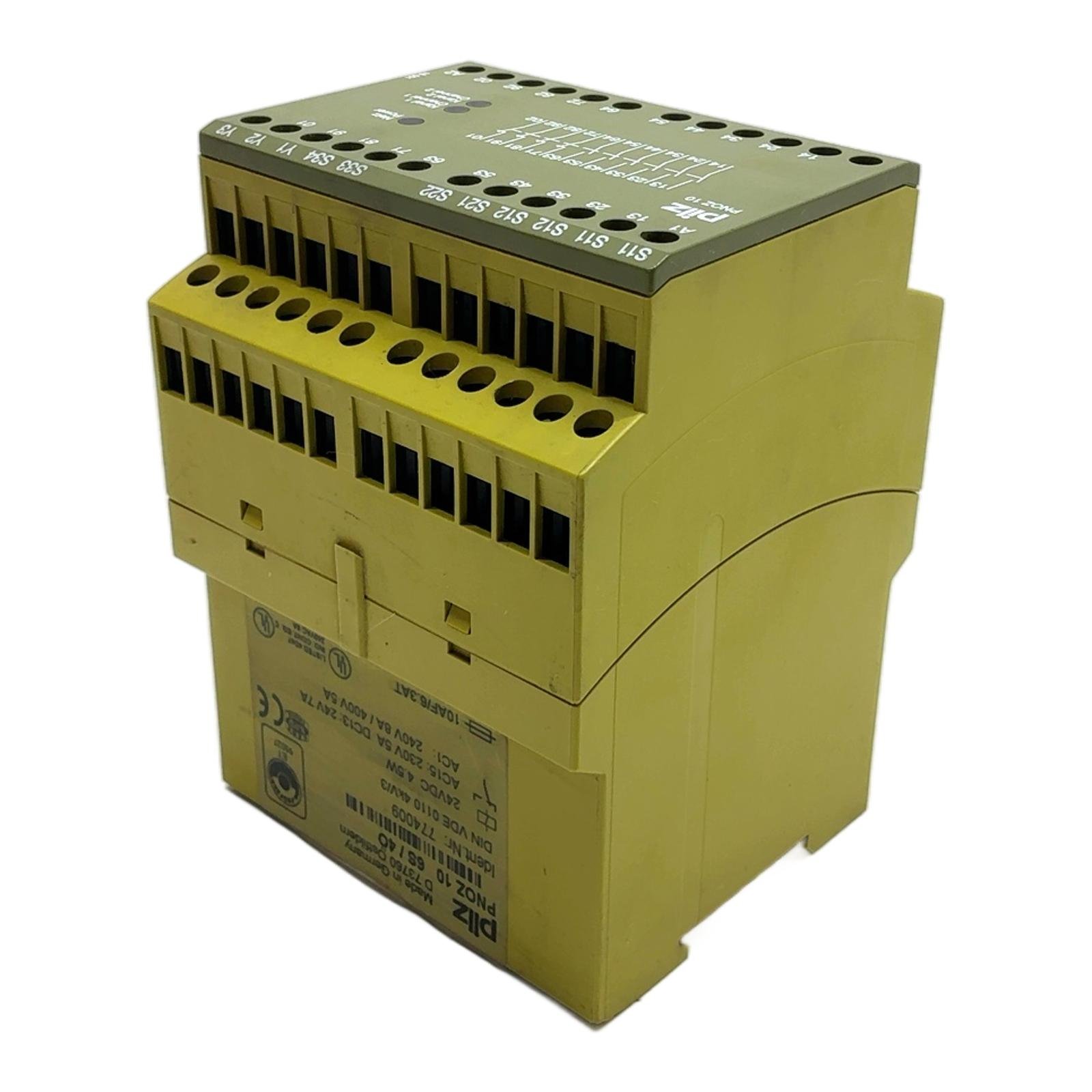

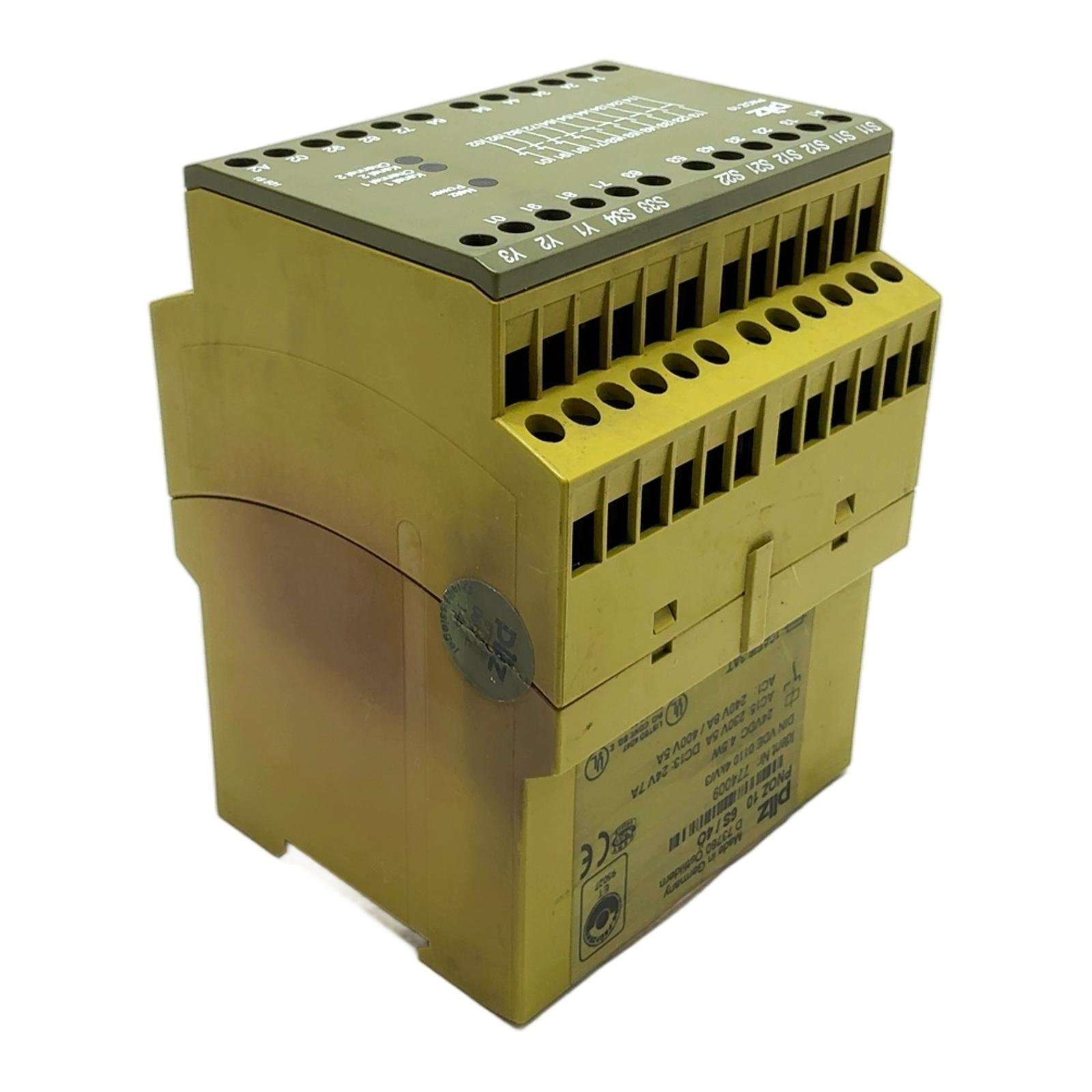

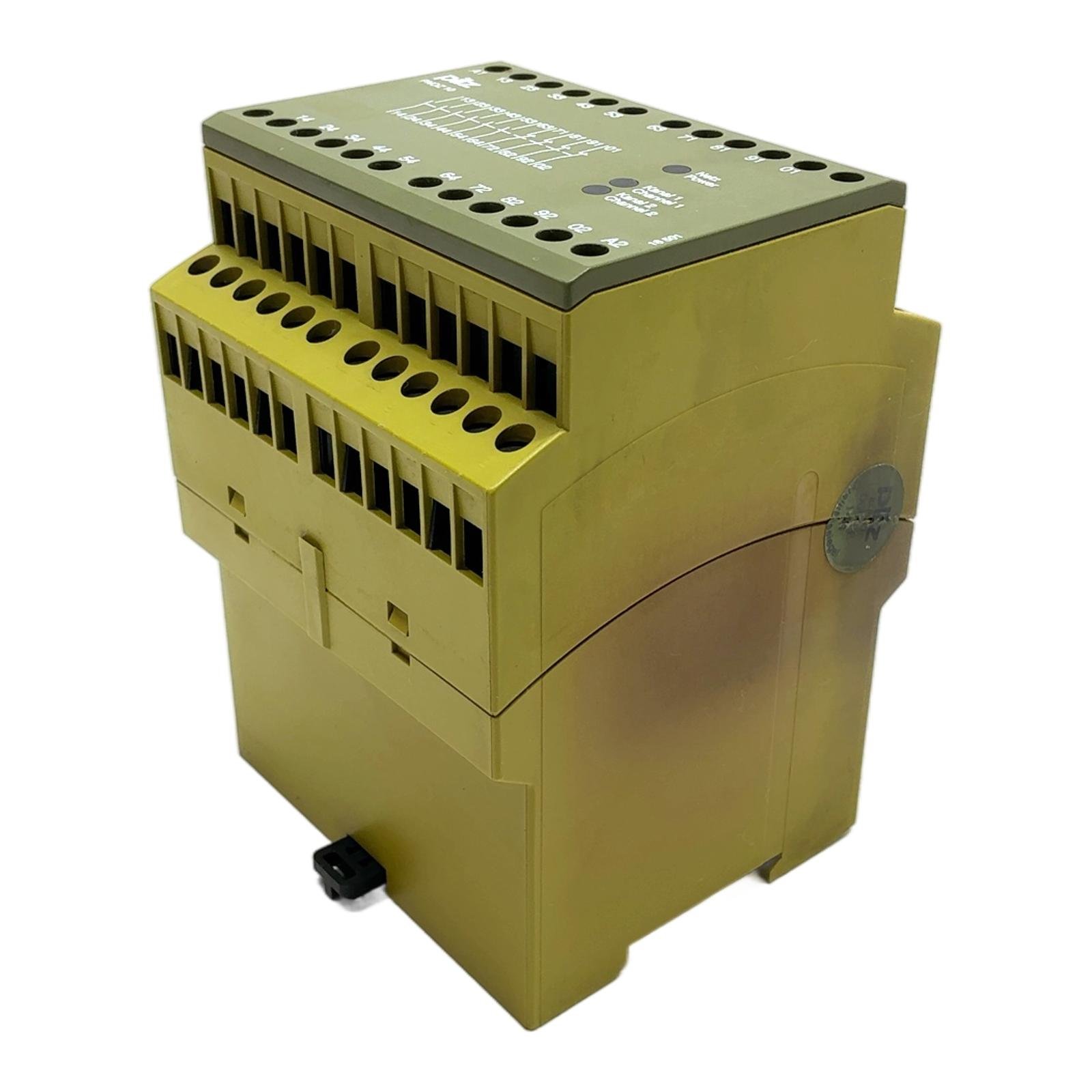

PILZ PNOZ 10 6S/4O 774009

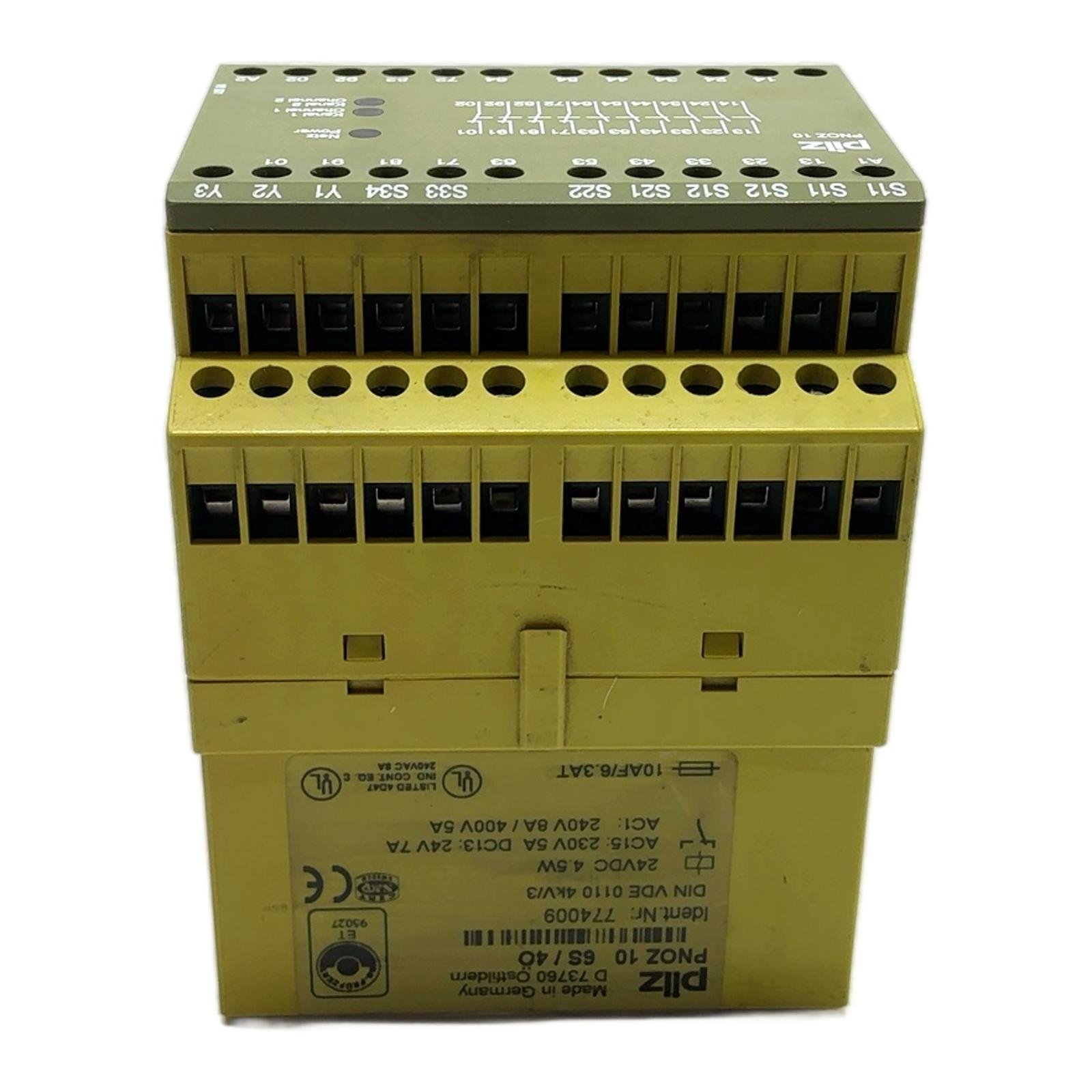

Pilz PNOZ 10 Safety Relay Description The Pilz PNOZ 10 is a versatile safety relay designed for critical safety applications in industrial automation. This unit, model 774009, operates on a 24VDC supply and is engineered to monitor safety functions such as E-STOP pushbuttons, safety gates, and light barriers. Its robust design and proven reliability make it an excellent choice for ensuring machine and operator safety in compliance with international standards. Specifications Manufacturer: Pilz Model: PNOZ 10 6S/4O Ident. Number: 774009 Supply Voltage: 24VDC Power Consumption: 4.5W Safety Contacts: 6 N/O Auxiliary Contacts: 4 N/O Contact Rating (AC15): 230V 5A Contact Rating (DC13): 24V 7A Mounting: DIN Rail Label Info PNOZ 10 6S/4O Ident.Nr: 774009 24VDC 4.5W Made in Germany Application This safety relay is ideal for implementing safety functions in manufacturing plants, processing lines, and on standalone machinery. It is typically used for monitoring emergency stop circuits, interlocking safety guards, and integrating other safety-related control components. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned component, you are actively participating in the circular economy and helping to prevent approximately 12 kg of CO2 emissions that would be generated by manufacturing a new one. Availability This unit is an obsolete model but is available from our stock. Order now from profideals for expert support and fast delivery. FAQ What is the difference between the PNOZ 10 and a standard industrial relay? The PNOZ 10 is a safety relay designed with redundant, force-guided contacts. This ensures that if one contact welds shut, the other will not close, a critical feature for safety circuits that standard relays do not have. Can this PNOZ 10 774009 be used in a single-channel or dual-channel E-stop circuit? Yes, the PNOZ 10 is designed for flexibility. It can be wired to monitor both single-channel and dual-channel safety devices like E-stop buttons or safety gates, providing a high level of safety integrity. Is any specific software or programming required to configure this safety relay? No, the Pilz PNOZ 10 is a hard-wired safety relay. Its logic is determined by the physical wiring of the terminals according to the diagrams provided in the manufacturer’s manual. It does not require any software for configuration. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
