PHOENIX CONTACT PLC-RSC-12DC/21 2966174

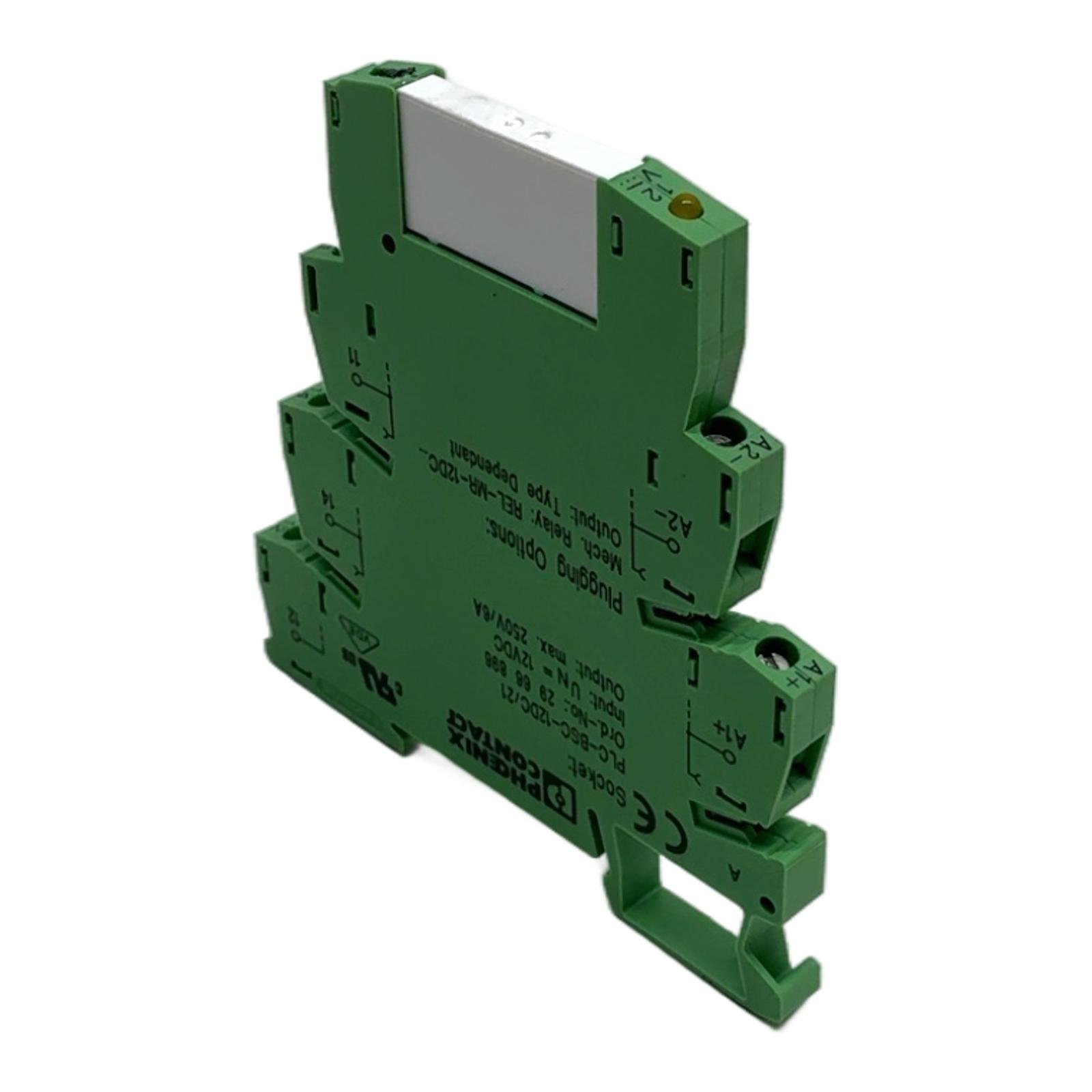

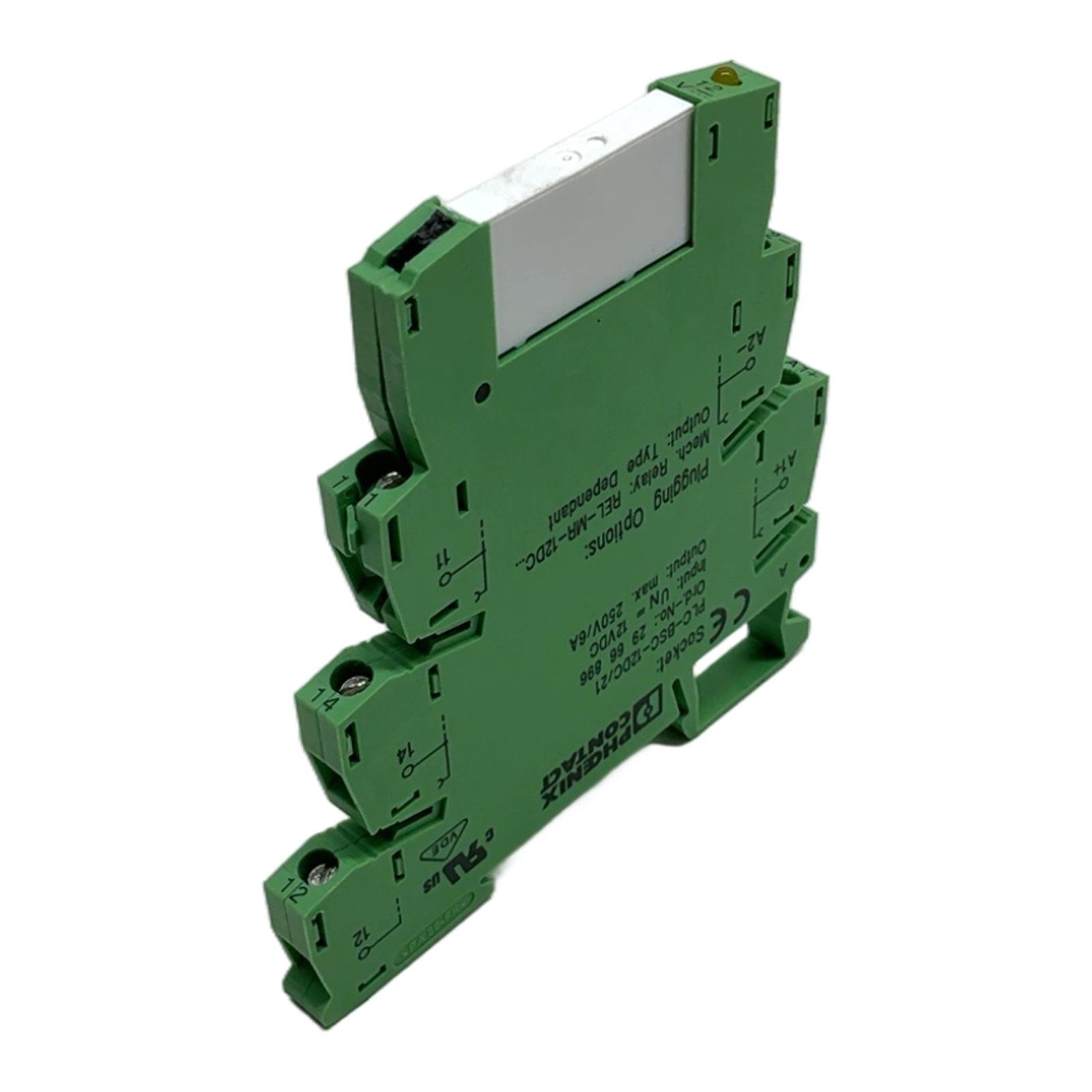

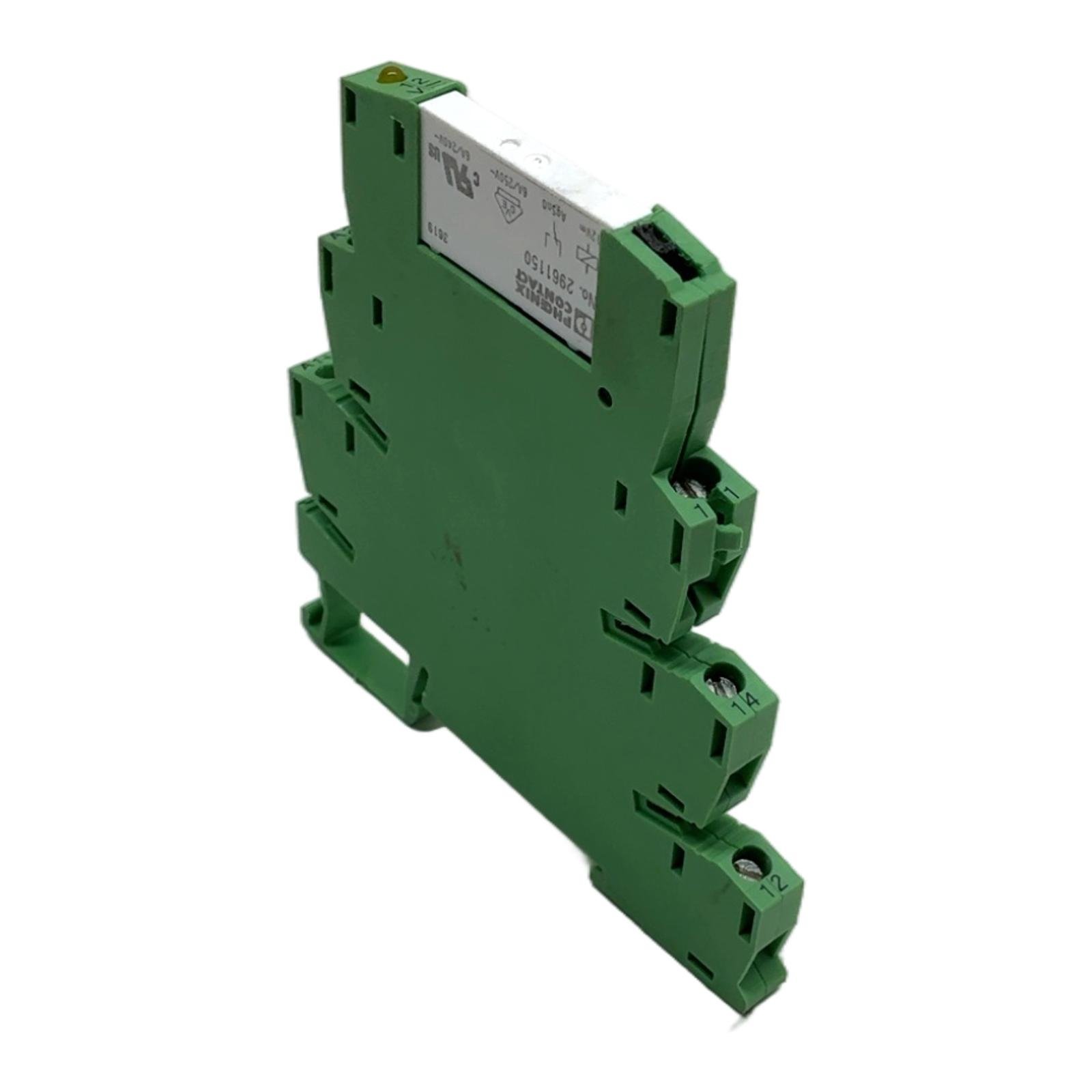

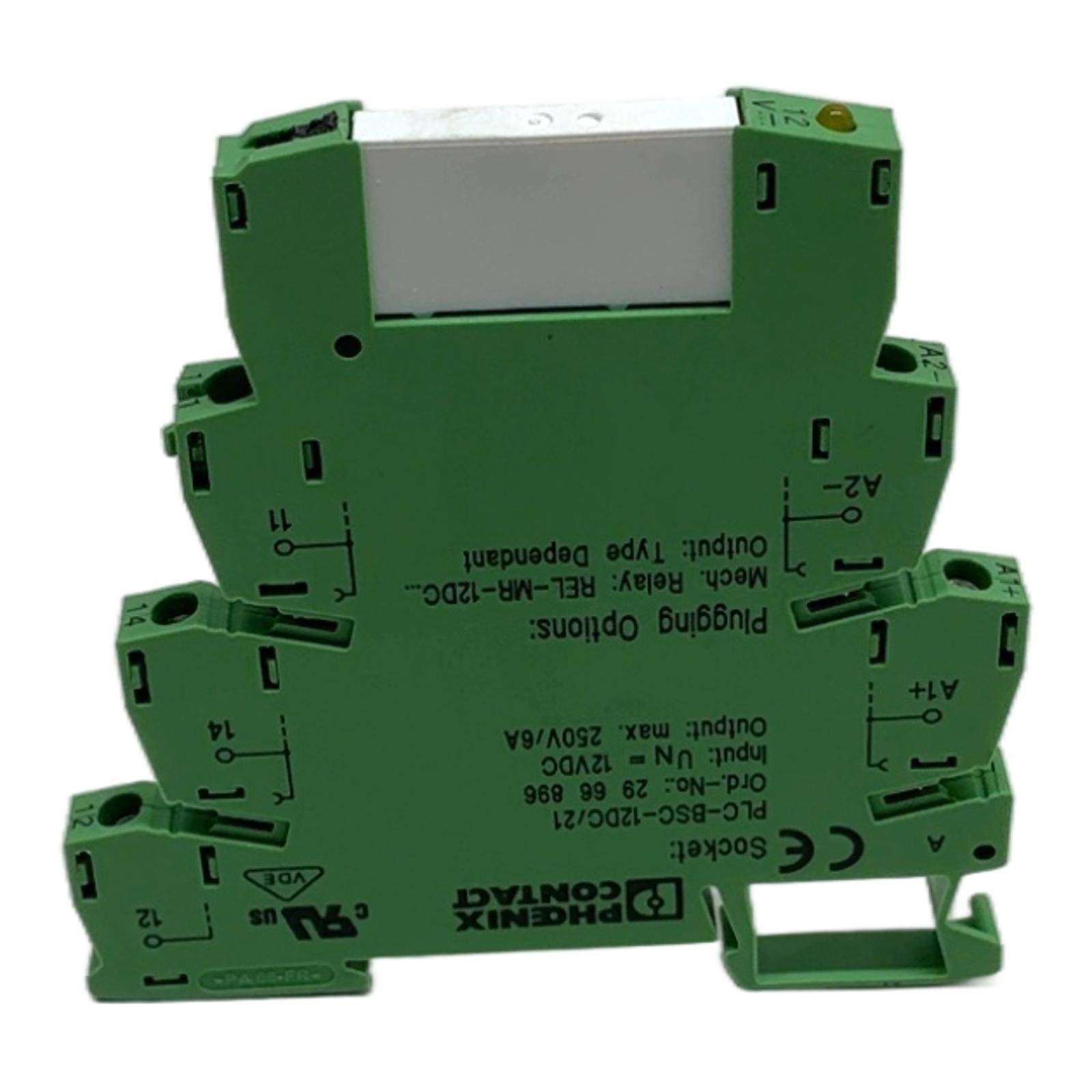

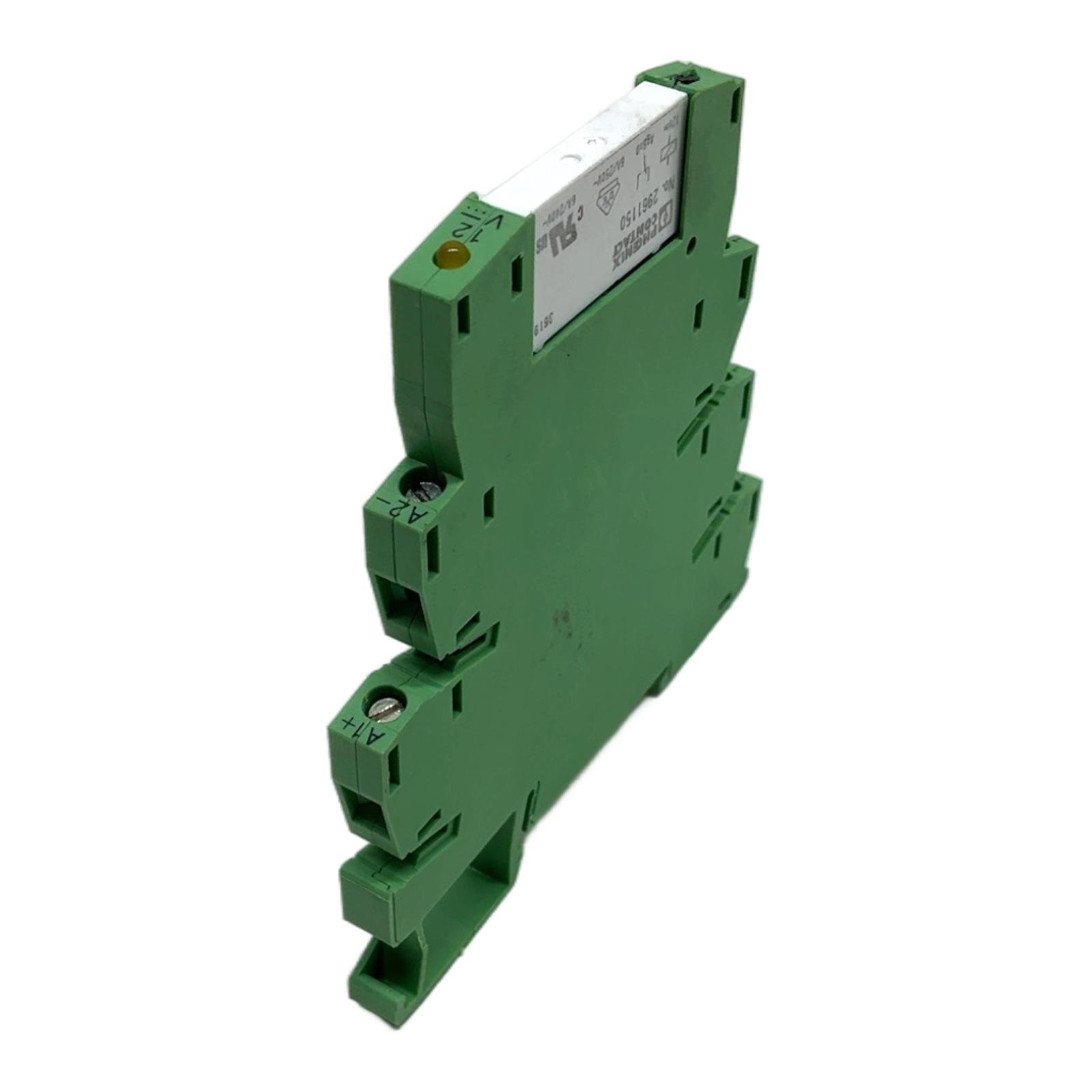

Phoenix Contact PLC Interface Relay Module Description This is the PLC-RSC-12DC/21 from Phoenix Contact, a compact and reliable PLC interface relay module. It combines a relay base with screw terminals and a plug-in miniature relay, providing a complete solution for signal switching and galvanic isolation in industrial automation applications. With its narrow 6.2 mm housing, it is perfectly suited for space-saving installations on a DIN rail. The module is designed for a 12V DC coil voltage and features a powerful changeover contact capable of switching up to 6A. Specifications Manufacturer: Phoenix Contact Model: PLC-RSC-12DC/21 Part Number: 2966174 Input Voltage: 12V DC Output Contact: 1 x Changeover Contact (SPDT) Contact Material: AgSnO Maximum Switching Voltage: 250V AC/DC Maximum Continuous Current: 6 A Connection Type: Screw connection Mounting: DIN rail NS 35/7,5 Label Info Socket: PLC-BSC-12DC/21, Ord.-No. 29 66 896 Relay: REL-MR-12DC/21, No. 2961150 Application Ideal for use as an interface between a PLC and field devices. Applications include galvanic isolation of signals, voltage level conversion, and amplification of digital output signals for driving contactors, lamps, or small motors. Country of Origin Manufactured in Germany. CO2 Impact Choosing this reused component over a new one avoids approximately 1.14 kg of CO2 emissions, contributing to a more sustainable industrial environment. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the life expectancy of the REL-MR-12DC/21 relay contact?The mechanical service life is approximately 2 x 10^7 cycles. The electrical service life is dependent on the switched load; please refer to the manufacturer’s load limit curve in the datasheet for specific application details. Is this module suitable for switching inductive loads?Yes, the AgSnO contact material is well-suited for switching resistive and inductive loads. For high-frequency switching of significant inductive loads, an external protective circuit (e.g., a freewheeling diode) across the load is recommended to suppress voltage spikes and prolong contact life. What is the wire size range for the screw terminals on the PLC-BSC-12DC/21 base?The screw terminals can accommodate a wire size range from 0.14 mm sq to 2.5 mm sq, which corresponds to AWG 26 to AWG 14. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners.
