PHOENIX CONTACT PLC-BSC-12DC/21 2966896

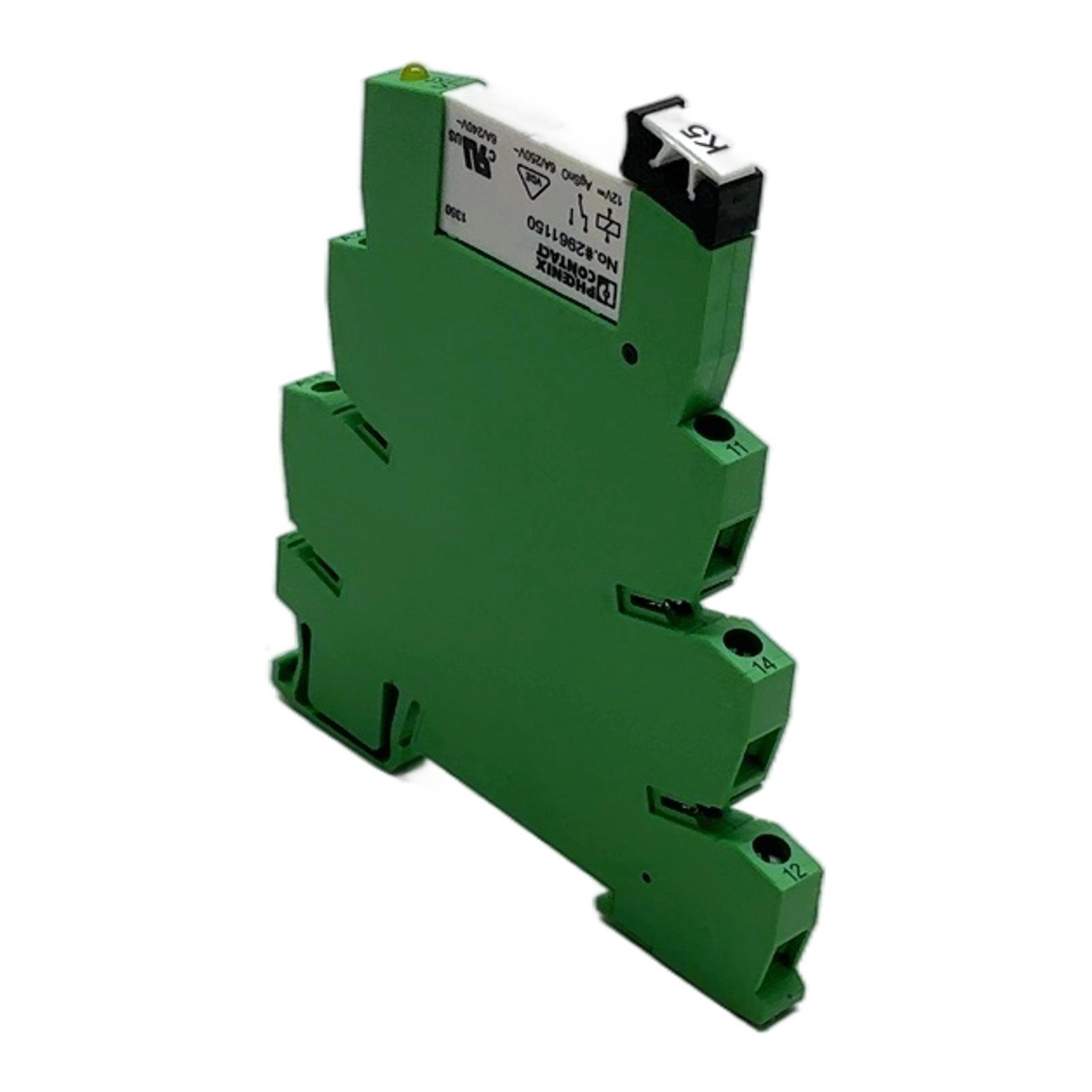

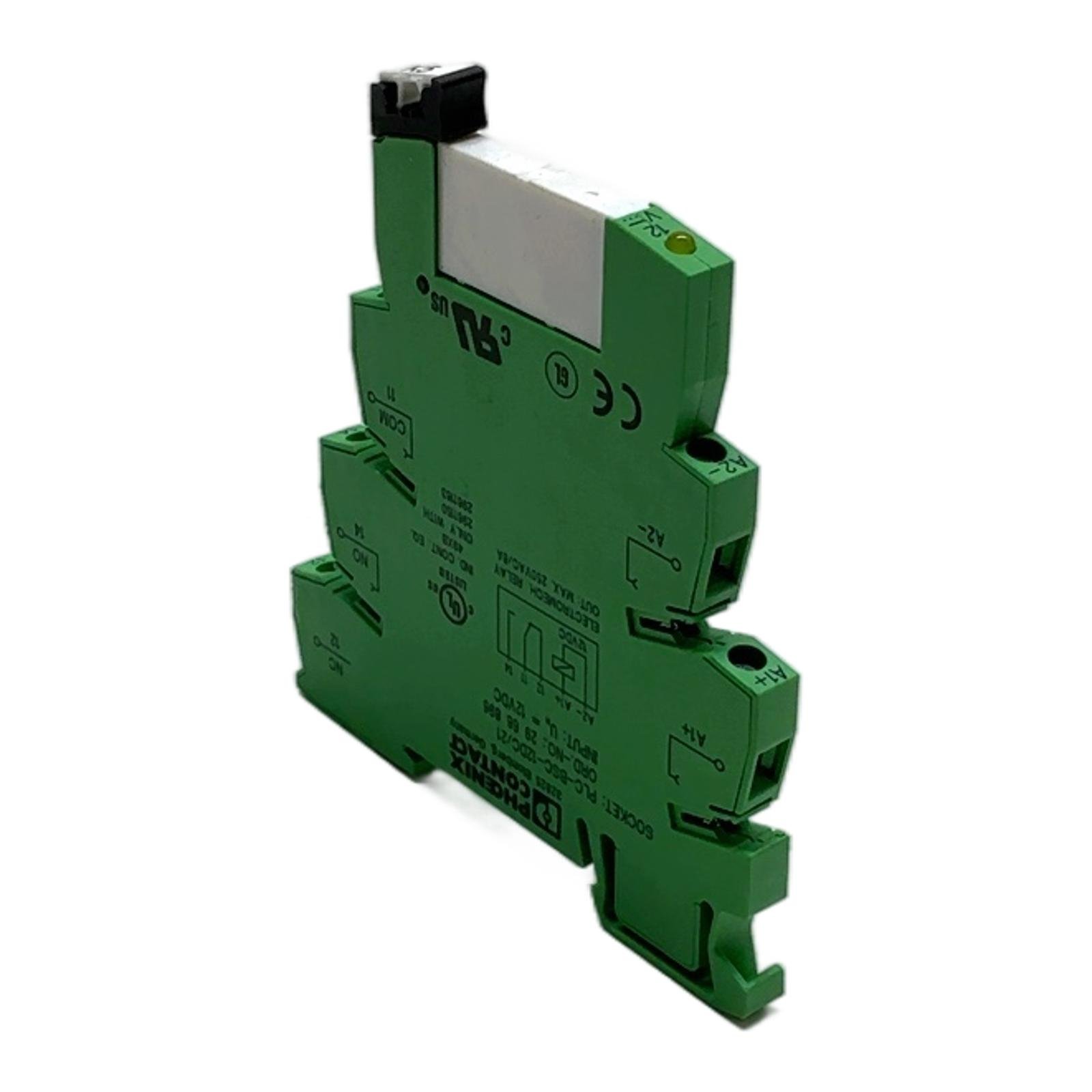

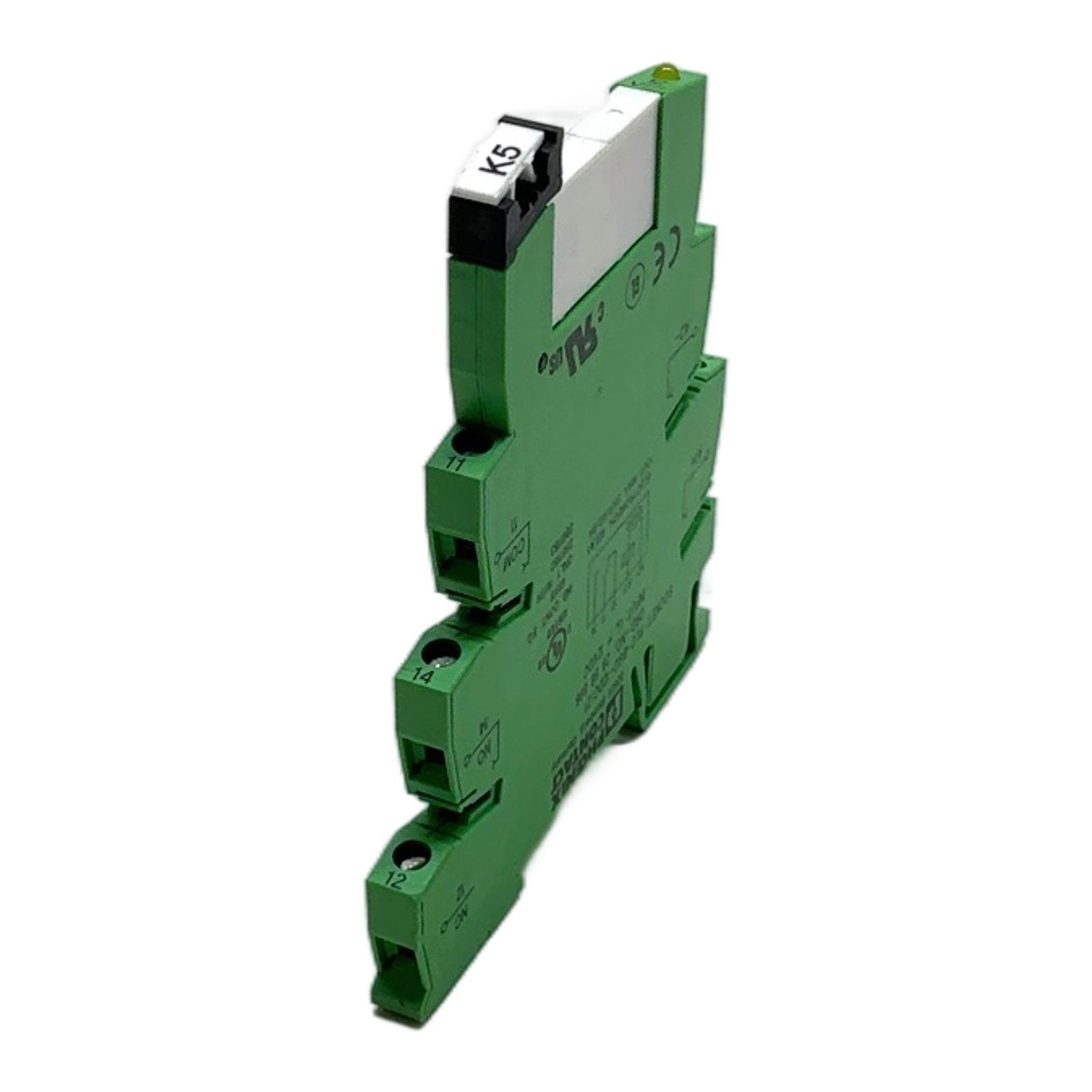

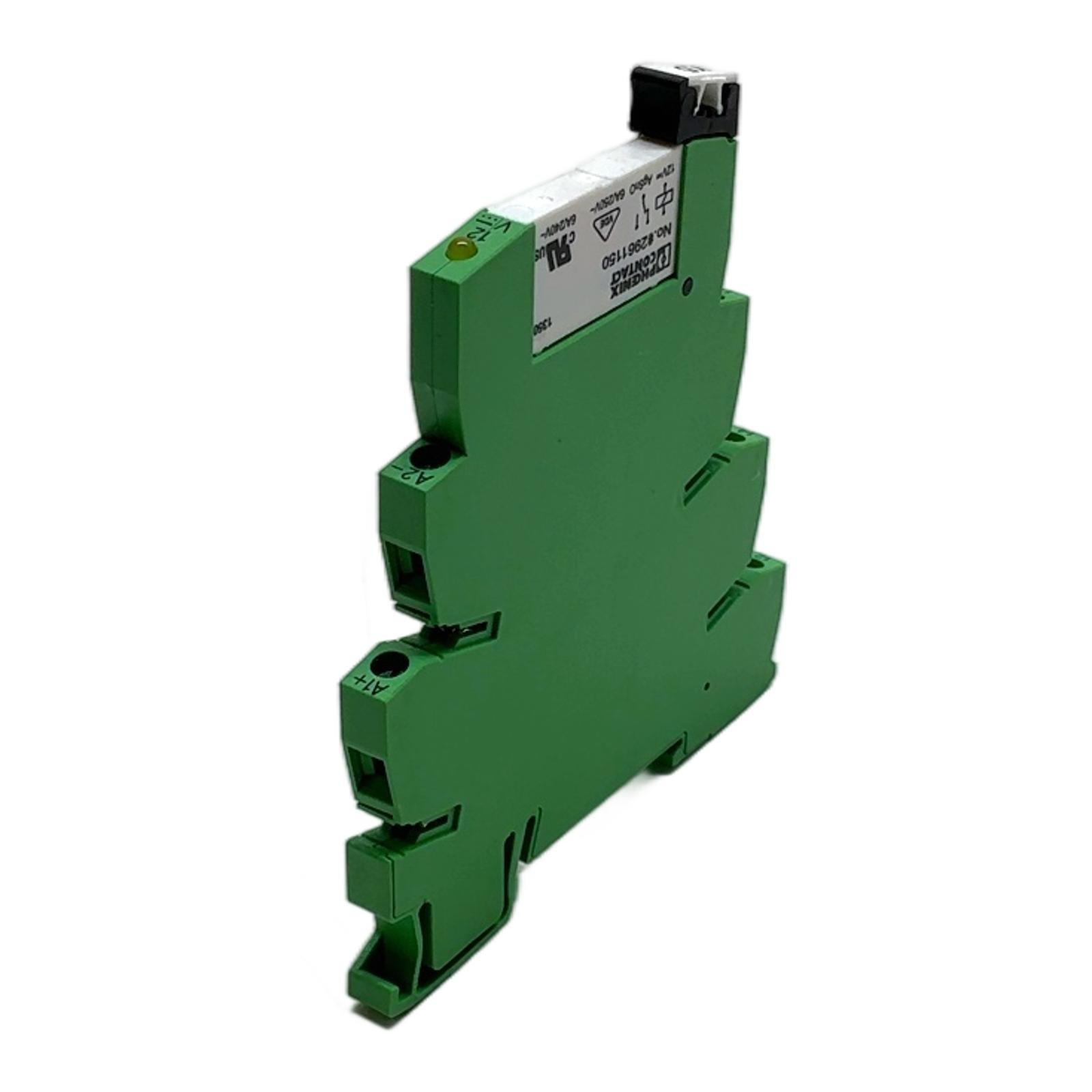

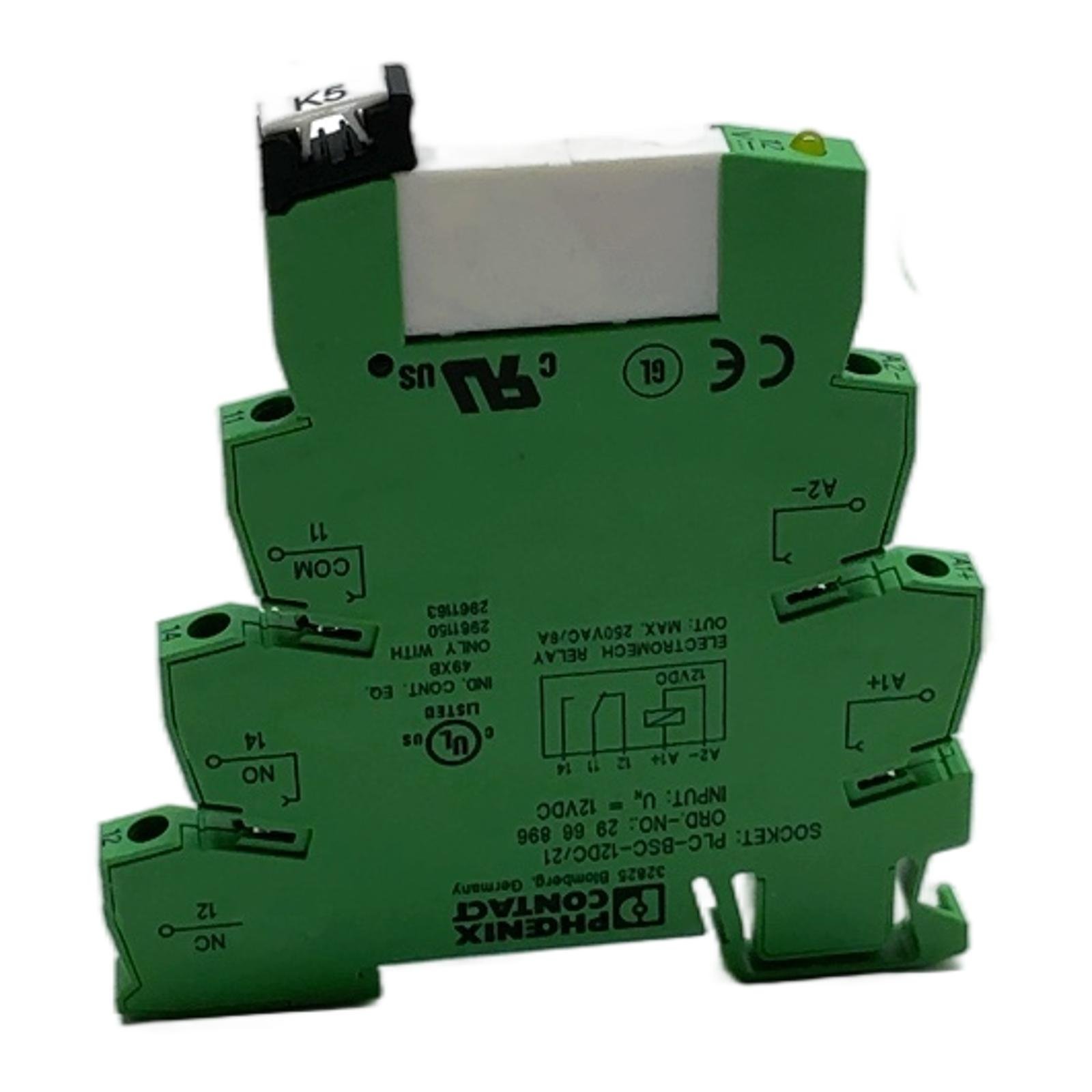

Phoenix Contact PLC Interface Relay 12V DC 6A Description This is a PLC-INTERFACE module from Phoenix Contact, type PLC-BSC-12DC/21 with order number 2966896. It consists of a basic terminal block with screw connections and a plug-in miniature relay with a power contact. This compact relay is designed for universal use in industrial control cabinets to provide galvanic isolation, signal amplification, and interfacing between PLC outputs and field devices. Its slim 6.2 mm design is ideal for high-density applications. Specifications Manufacturer: Phoenix Contact Type: PLC-BSC-12DC/21 Order Number: 29 66 896 Input Voltage: 12V DC Output Contact: 1 x Changeover (SPDT) Contact Material: AgSnO Maximum Switching Voltage: 250V AC/DC Limiting Continuous Current: 6 A Connection Type: Screw terminals Mounting: DIN Rail NS 35/7,5 Label Info Socket: PLC-BSC-12DC/21 (2966896) Relay: 2961150, 12V, 6A/250V~ Application Ideal for use in automation technology, machine building, and process control systems. It serves as a reliable interface for coupling signals from a PLC to actuators like contactors, solenoid valves, or lamps, while protecting the controller’s sensitive outputs. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned item, you help save approximately 1.4 kg of CO2, contributing to a more sustainable industrial environment. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?Is this a complete relay module or just the base?AnswerThis is a complete module, consisting of the PLC-BSC-12DC/21 base (Part No. 2966896) and the pluggable miniature relay REL-MR-12DC/21 (Part No. 2961150). Question?What is the maximum wire size for the screw terminals?AnswerThe screw terminals on the PLC-BSC-12DC/21 base can accommodate a wire cross-section from 0.14 mm squared to 2.5 mm squared (AWG 26 to 14). Question?Can I replace the plug-in relay with a different voltage version?AnswerNo, the base PLC-BSC-12DC/21 is specifically designed for a 12V DC input coil voltage. You must use a compatible 12V DC relay like the included 2961150. Using a different voltage relay will not work and may damage the component. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
