SCHNEIDER ELECTRIC LGY412548

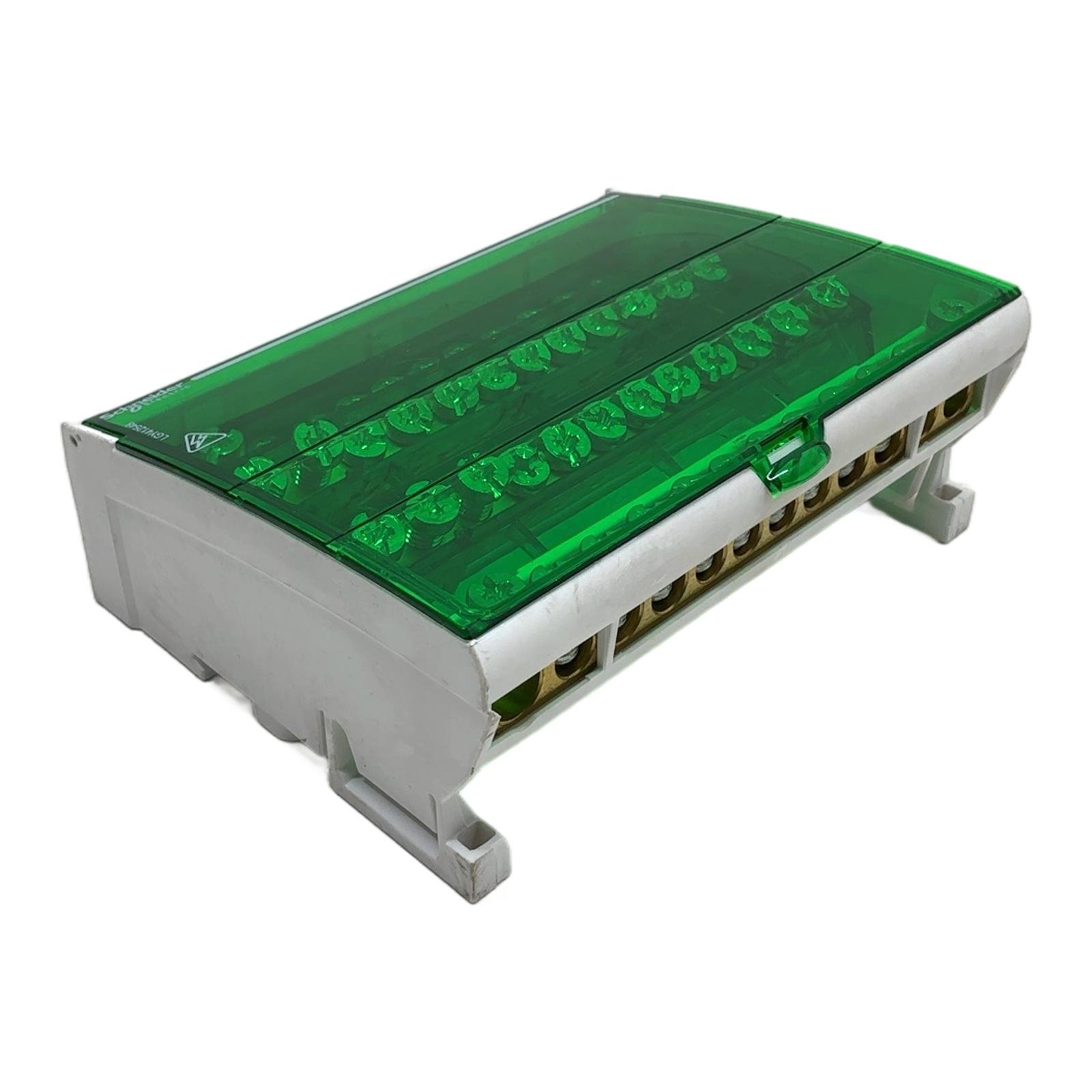

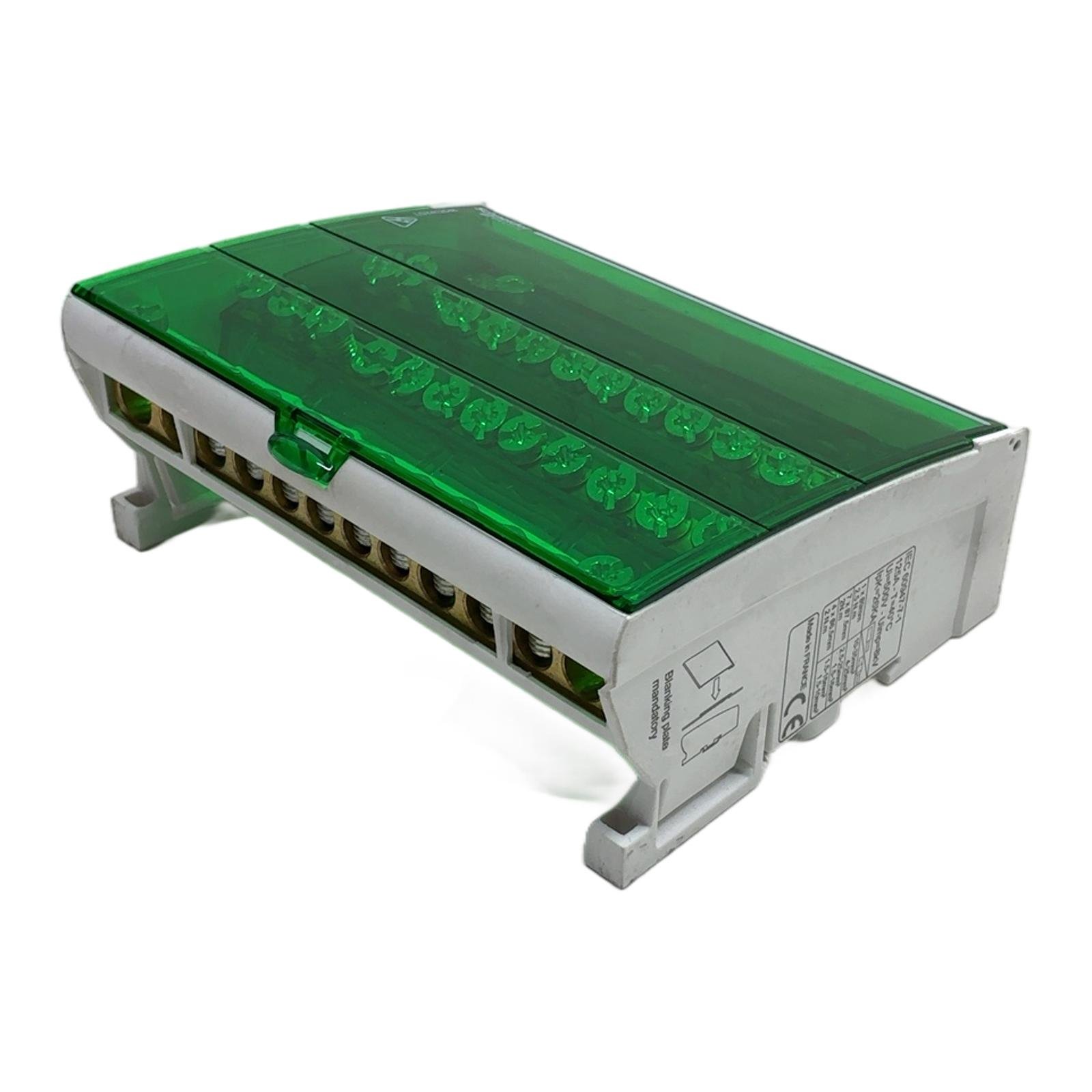

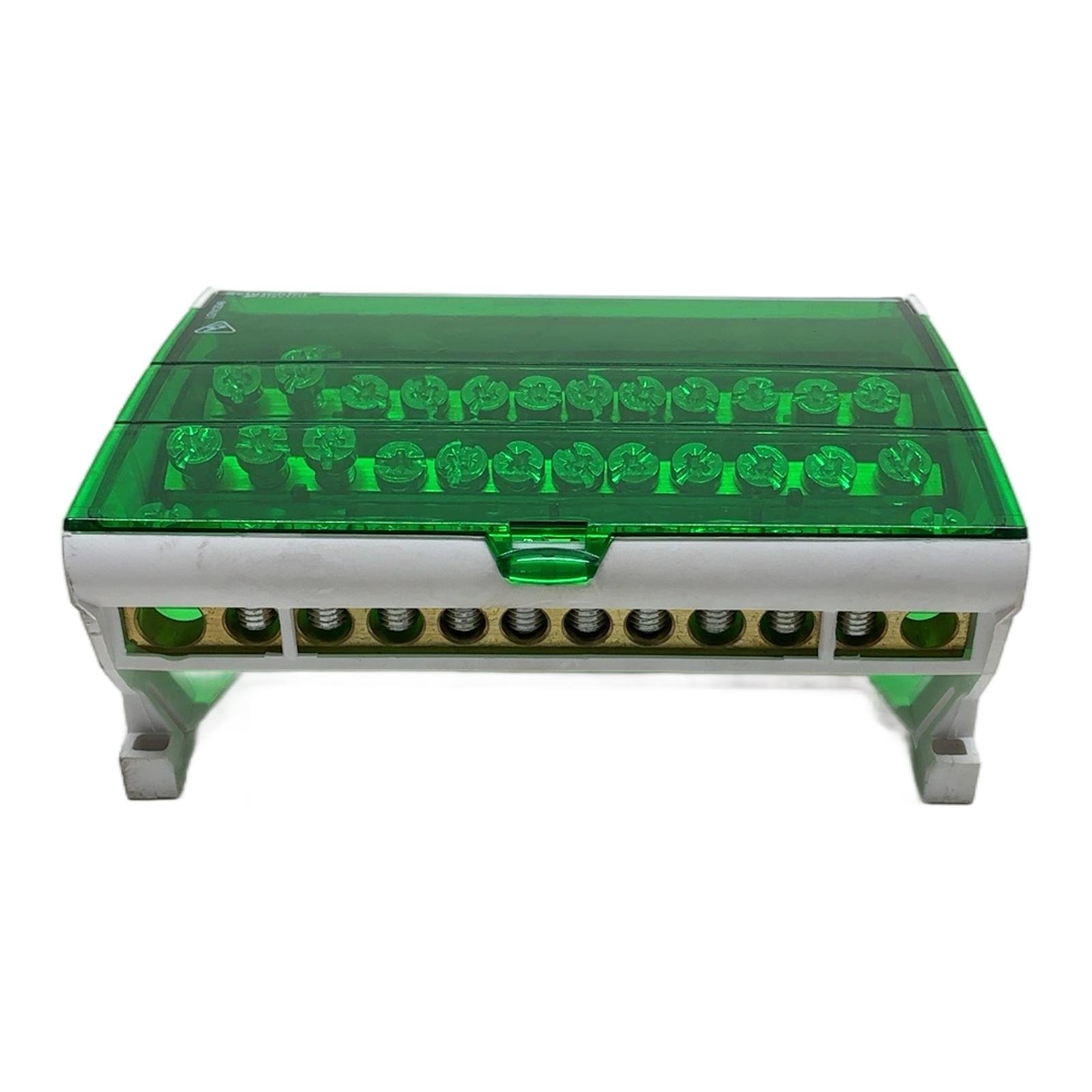

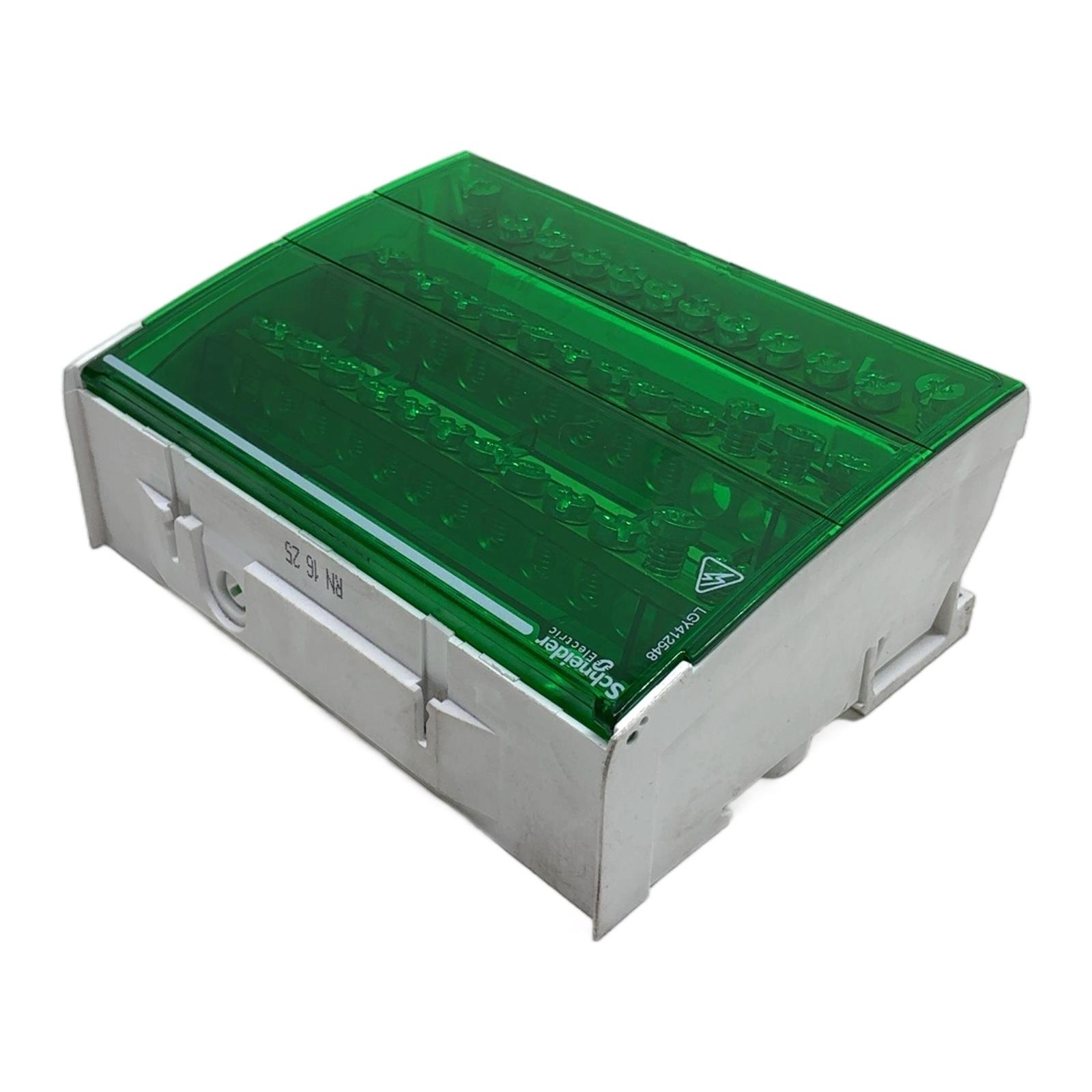

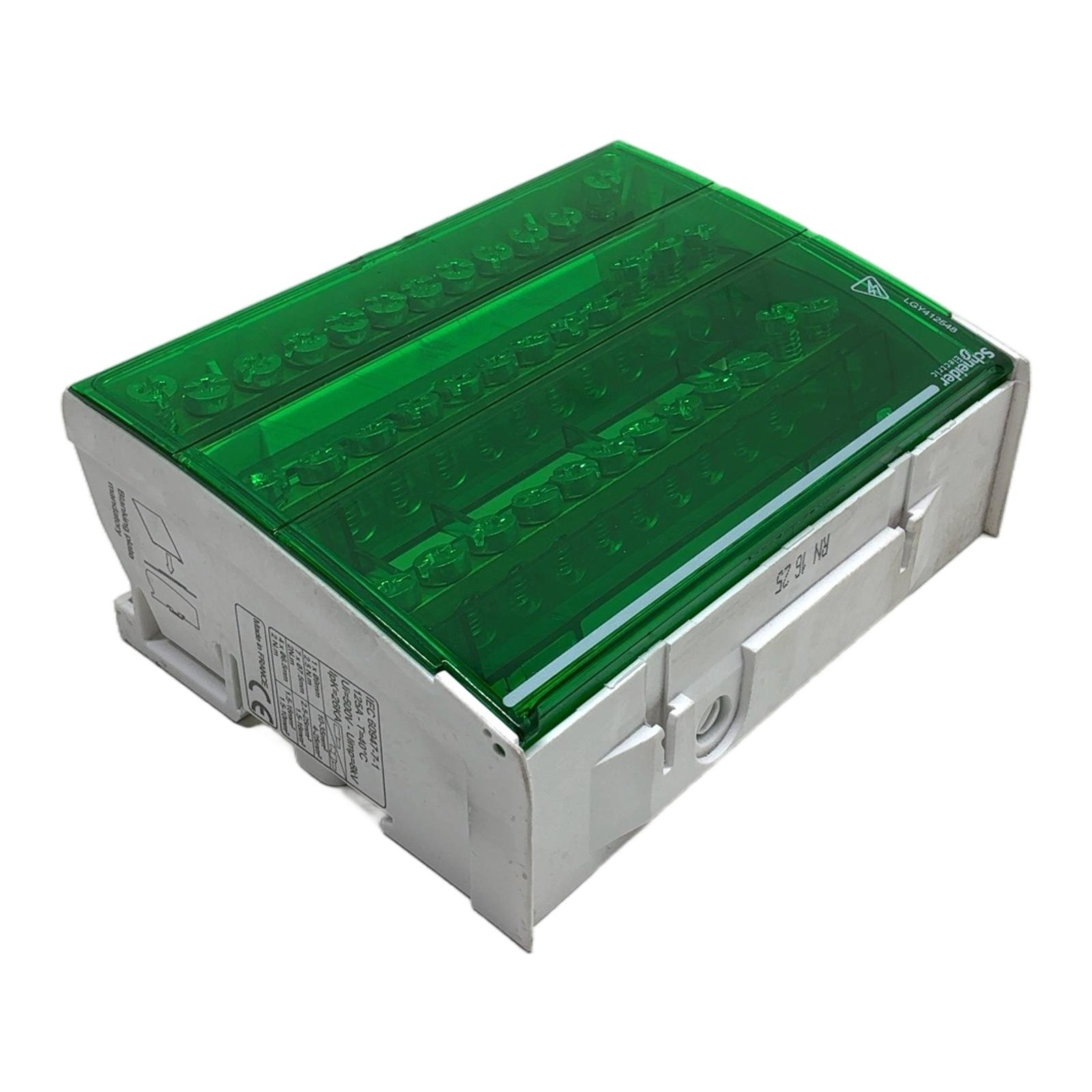

Schneider Electric LGY1125AB Linergy Distribution Block Description The Schneider Electric LGY1125AB is a single-pole modular distribution block from the Linergy series, designed for reliable and organized power distribution in industrial control panels and distribution boards. It supports a current of up to 125A and features a compact design for easy mounting on a standard DIN rail. The transparent protective cover allows for quick visual inspection of the connections while ensuring safety. Specifications Manufacturer: Schneider Electric Model: LGY1125AB Product Range: Linergy Rated Current (Ie): 125 A (at 40 deg C) Rated Insulation Voltage (Ui): 500V AC Rated Impulse Withstand Voltage (Uimp): 8 kV Peak Withstand Current (Ipk): 26 kA Number of Poles: 1 Number of Connections: 12 (1 input, 11 outputs) Mounting: DIN Rail Label Info Input Connection: 1 x 10-35 mm2 Output Connections: 7 x 2.5-25 mm2 Output Connections: 4 x 1.5-16 mm2 Standard: IEC 60947-7-1 Application This distribution block is ideal for use in power distribution applications within electrical cabinets, machinery control panels, and building automation systems where a main circuit needs to be split into multiple smaller circuits safely and efficiently. Country of Origin Made in France. CO2 Impact By purchasing this pre-owned component, you are contributing to a circular economy and avoiding approximately 4.0 kg of CO2 emissions associated with the production of a new unit. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?Can this distribution block be mounted on any standard DIN rail? Answer:Yes, the LGY1125AB is designed with integrated clips for mounting on a standard 35mm DIN rail, which is common in most industrial and commercial electrical panels. Question?What is the maximum torque that should be applied to the connection screws? Answer:The correct torque is crucial for a safe connection. For the main input (10-35mm2), the torque is 2.5 N.m. For the smaller output terminals (1.5-25mm2), the specified torque is 2.0 N.m. Question?Is a blanking plate required for installation? Answer:Yes, the manufacturer’s instructions printed on the device explicitly state that a “Blanking plate mandatory”. This is to ensure IP20 touch-proof safety standards are met when installed in a panel. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
