EATON PKN6-16-1N-C-003-A-MW-FL 1742429

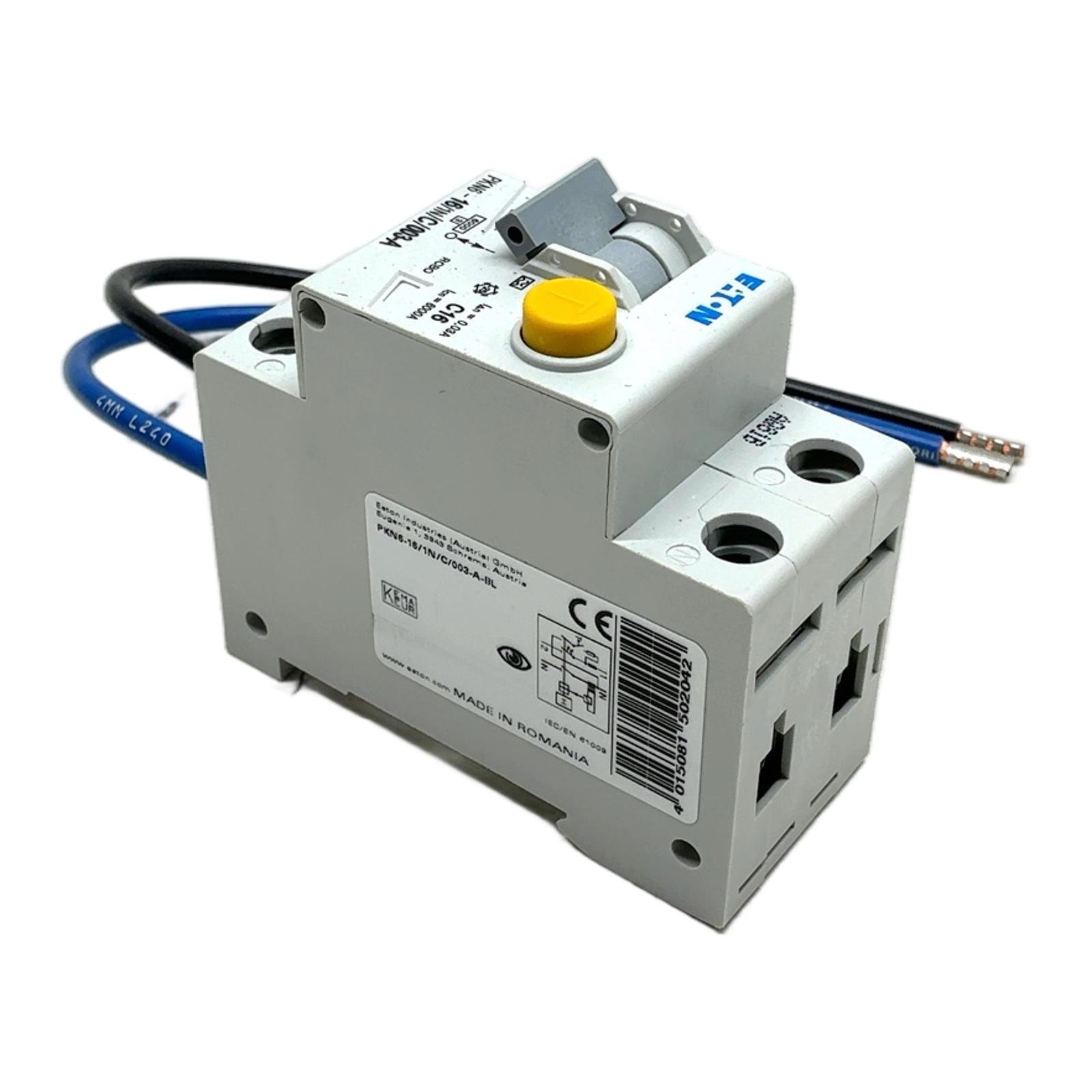

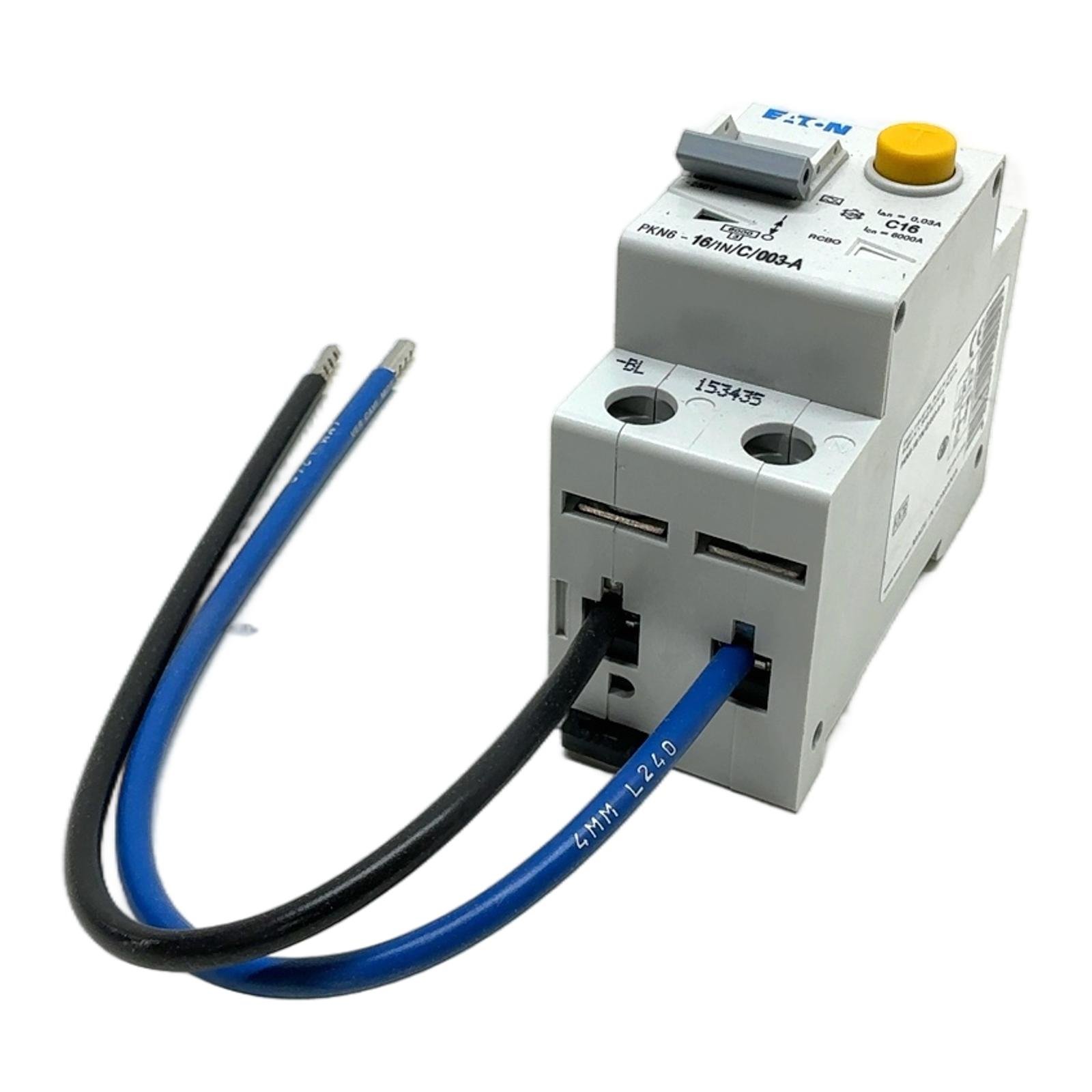

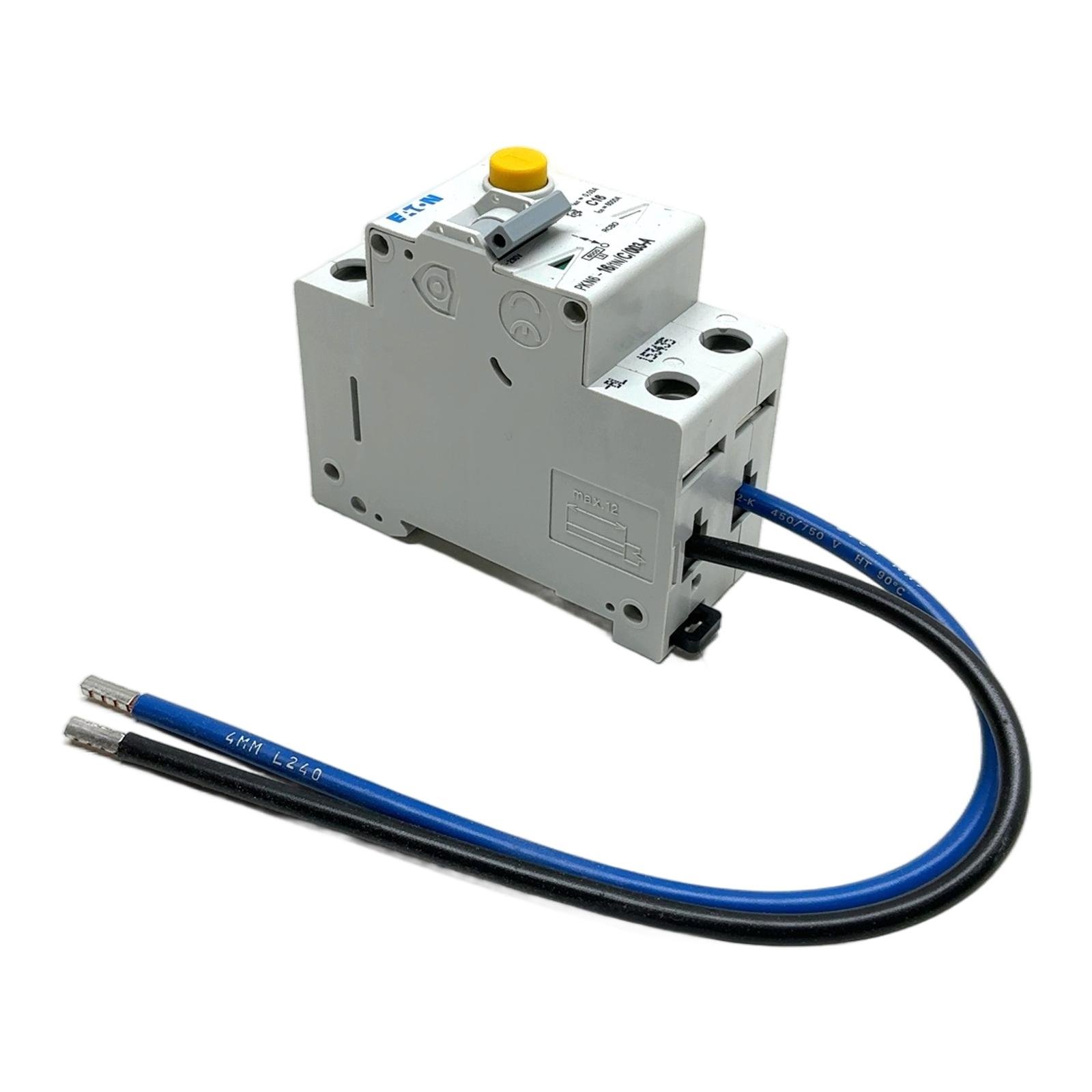

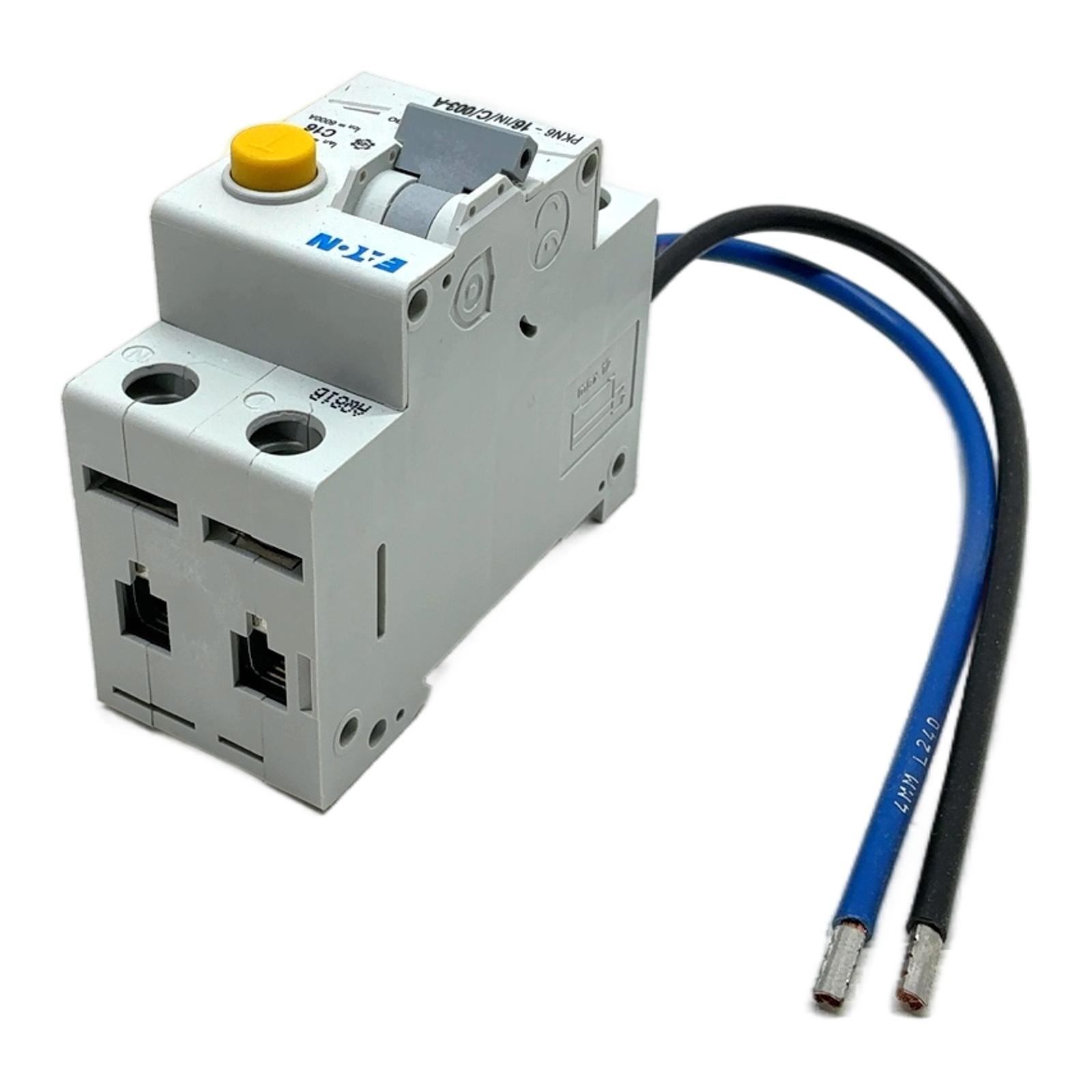

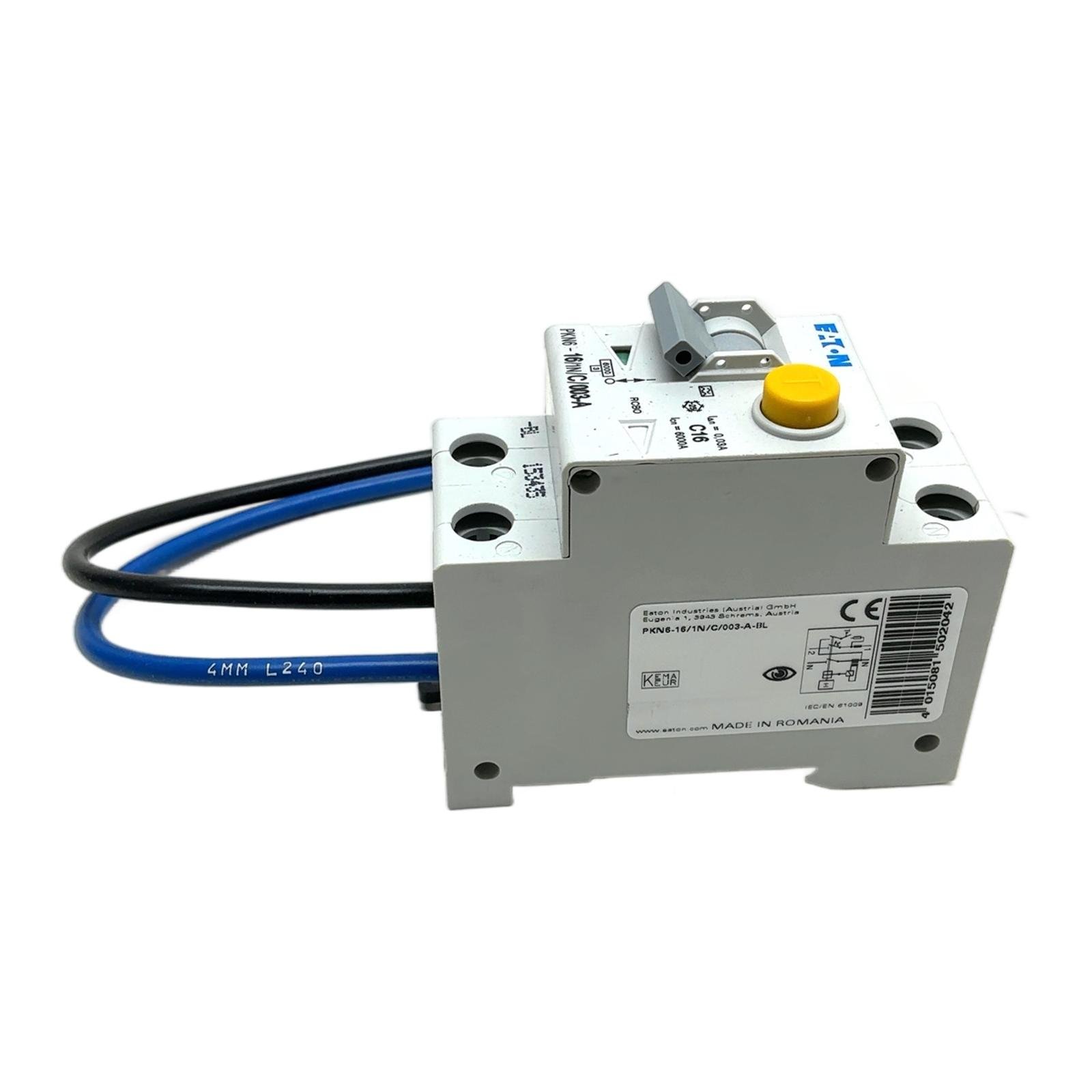

Eaton PKN6 RCBO 16A 30mA Description The Eaton PKN6-16/1N/C/003-A-MW-FL is a high-performance Residual Current Circuit Breaker with Overcurrent Protection (RCBO) designed for comprehensive circuit protection. This device combines earth fault and overcurrent protection in a single, DIN rail mountable unit, saving space and installation time. It is engineered for reliability in demanding commercial and industrial environments. Specifications Manufacturer: Eaton Type: PKN6-16/1N/C/003-A-MW-FL Article Number: 1742429 Rated Current: 16 A Rated Residual Current: 30 mA (0.03 A) Tripping Curve: C Number of Poles: 1P+N (Single Pole + Neutral) Rated Breaking Capacity: 6 kA Rated Voltage: 230V AC Sensitivity: Type A (for AC and pulsating DC fault currents) Label Info EAN: 8711426101326 System: Systeem 55 Flex Application Ideal for final circuit protection in residential, commercial, and light industrial settings where there is a risk of both overcurrent (overload/short-circuit) and earth leakage faults. Suitable for protecting socket outlets, lighting circuits, and equipment with electronic components. Country of Origin This product is Made in Romania. CO2 Impact By purchasing this reused component, you help avoid approximately 8 kg of CO2 emissions associated with the production of a new one. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the difference between Type A and Type AC RCBOs?Type AC RCBOs are designed for purely sinusoidal AC fault currents. Type A, like this model, provides protection for both sinusoidal AC and pulsating DC fault currents, which are common in modern electronic loads like computers, dimmers, and inverters. This makes Type A more versatile for modern installations. What does the ‘C’ in the C16 rating signify?The ‘C’ refers to the tripping characteristic curve. A C-curve breaker is designed for general-purpose applications with moderate inrush currents, such as lighting, sockets, and small motors. It will trip between 5 and 10 times the rated current (16A). Can this RCBO be used in a 3-phase system?This is a single-pole plus neutral (1P+N) device designed for single-phase 230V circuits. It is not suitable for protecting three-phase loads directly, which would require a 4-pole (3P+N) RCBO. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Laatst bijgewerkt: Friday, March 13, 2026
