FESTO KMEB-1-24-5-LED 18684

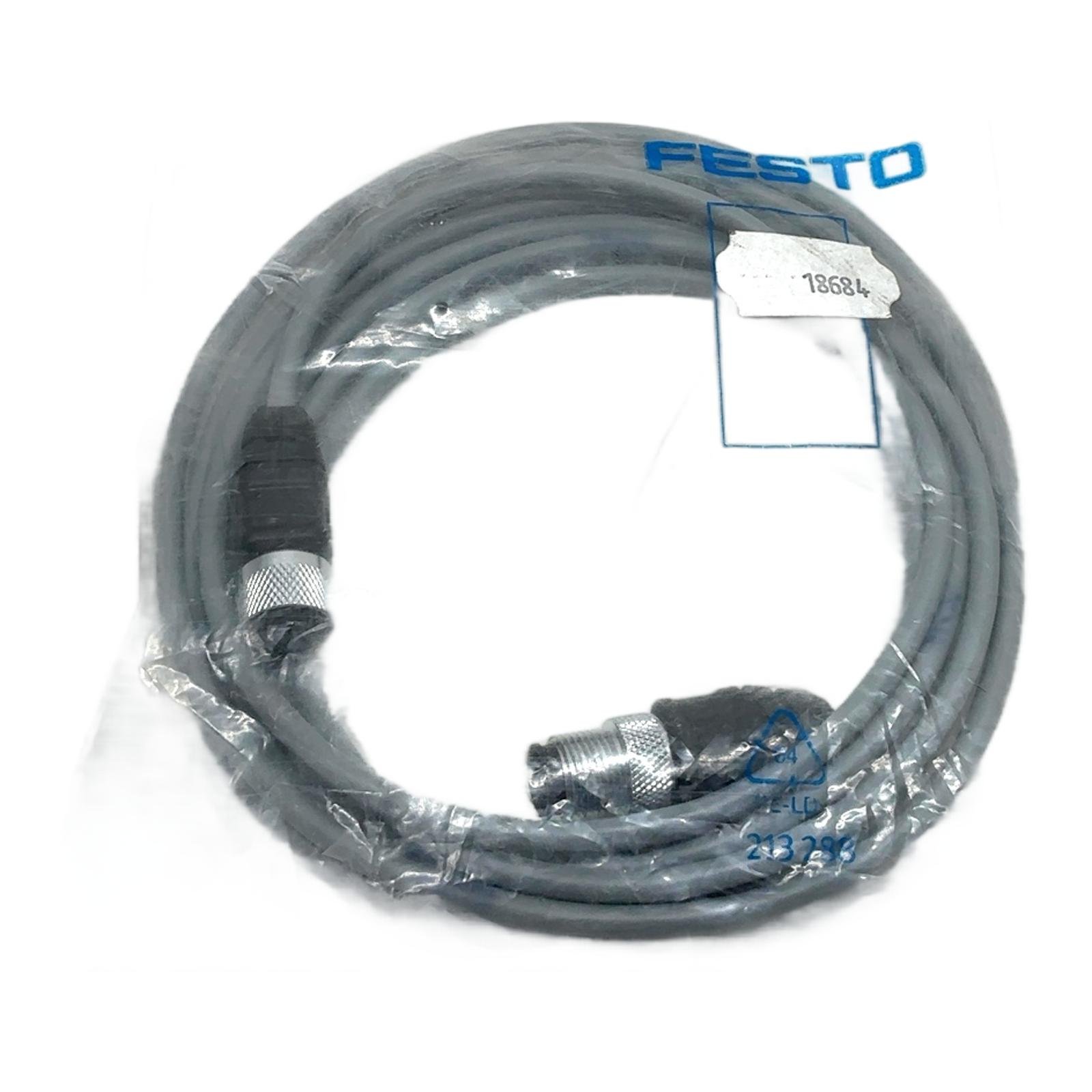

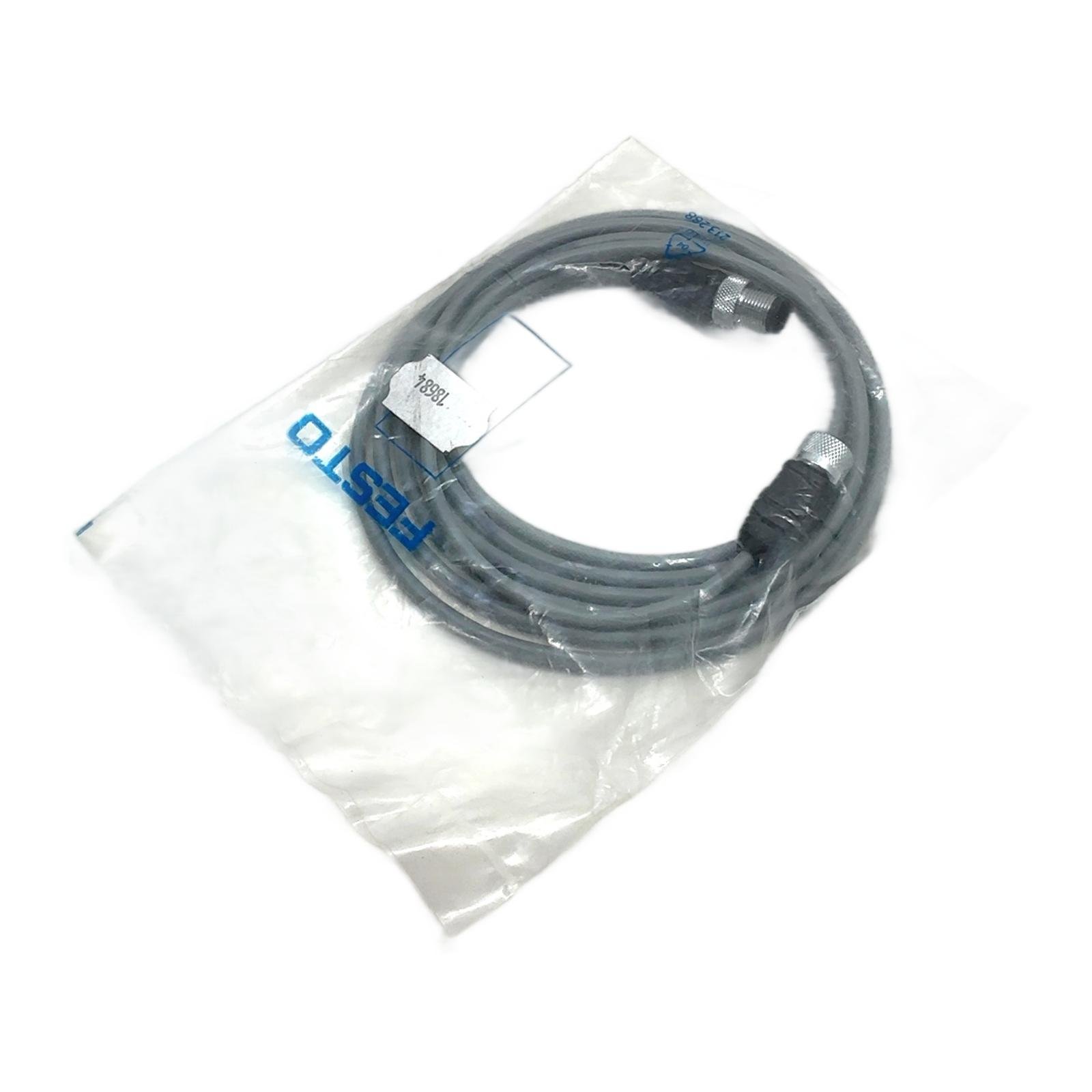

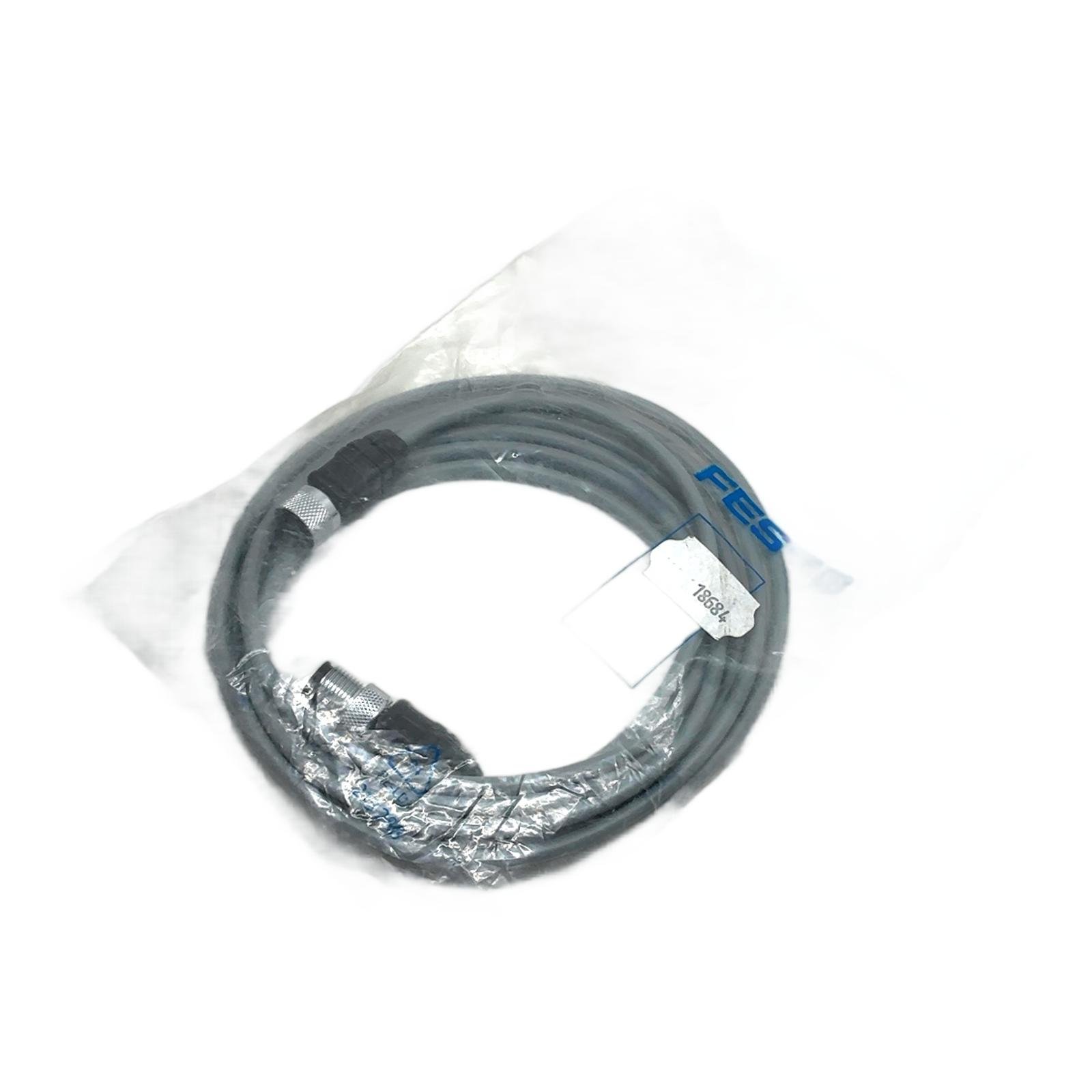

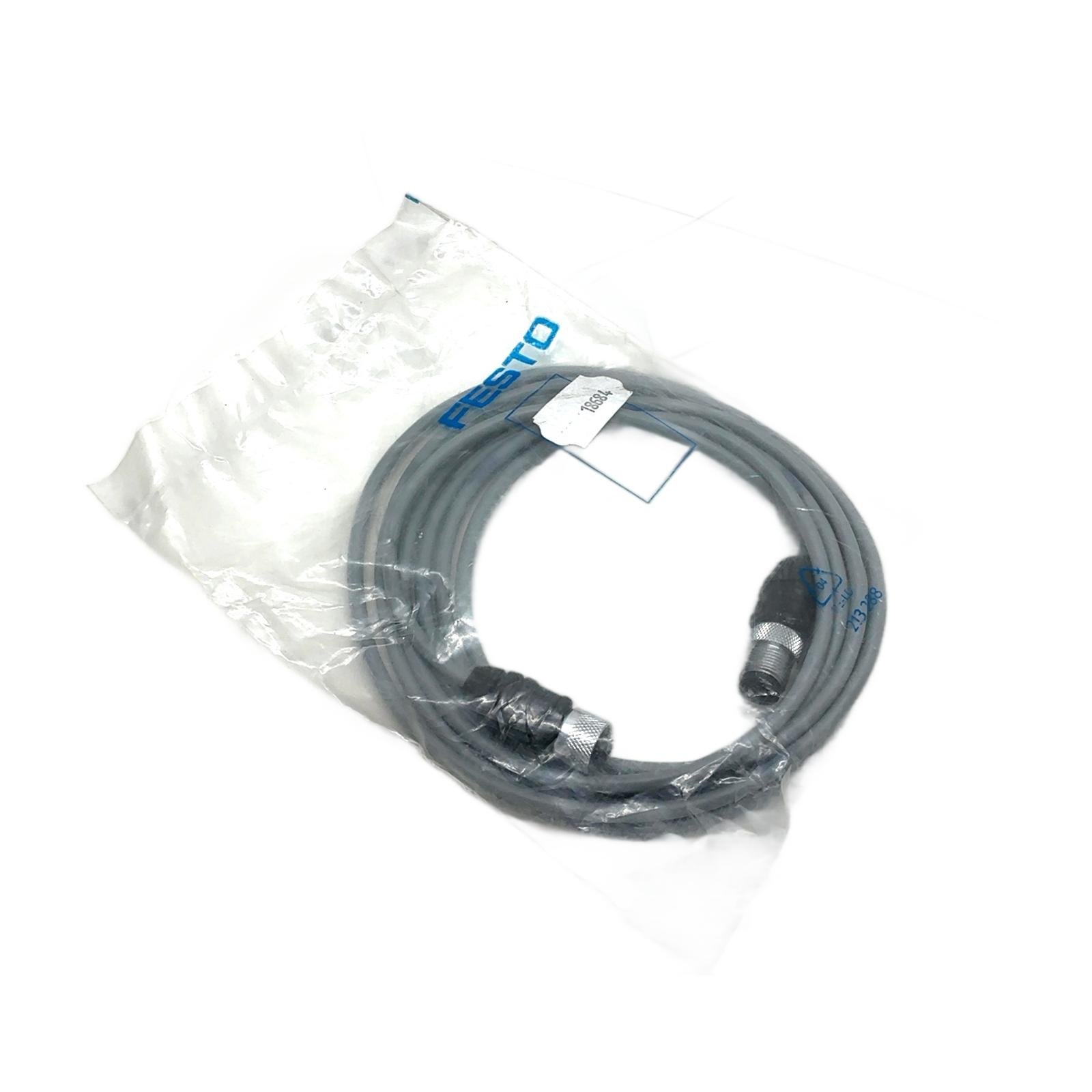

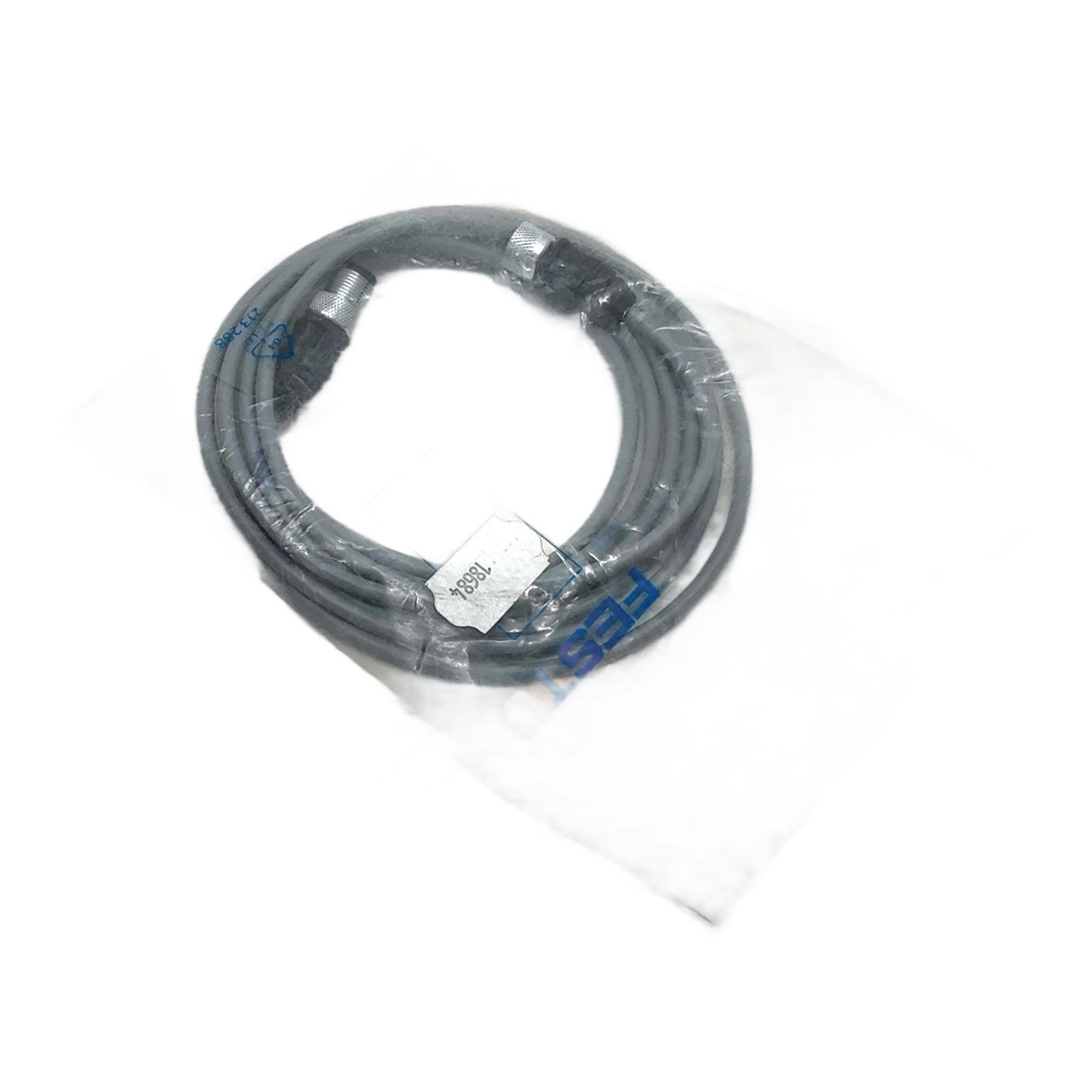

Festo KMEB-1-24-5-LED Connecting Cable Description The Festo KMEB-1-24-5-LED, with part number 18684, is a high-quality connecting cable designed for reliable performance in demanding automation environments. This 5-meter cable is specifically engineered for connecting Festo valve terminals, such as the CPV-SC series, to PLCs or other control interfaces. It features a straight M12 8-pin socket and a straight 9-pin Sub-D plug, ensuring a secure and stable connection. The integrated LED provides immediate visual feedback on the operational status. Specifications Manufacturer: Festo Type: KMEB-1-24-5-LED Part Number: 18684 Cable Length: 5 meters Connection Side 1: M12 Socket, 8-pin, straight Connection Side 2: Sub-D Plug, 9-pin, straight Operating Voltage: 24V DC Status Indicator: Yes, LED Application This cable is primarily used in pneumatic and automation systems to provide power and signal transmission for Festo valve manifolds and terminals, facilitating communication with a central controller. Country of Origin Germany CO2 Impact By choosing this reused industrial part, you are helping to avoid approximately 12 kg of CO2 emissions compared to manufacturing a new one. This saving is equivalent to the emissions from driving a standard car for 60 km. Availability This item is in stock and ready for immediate dispatch. It is a new old stock (NOS) product in its original packaging. Order now from profideals for expert support and fast delivery. FAQ What is the pinout of the M12 to Sub-D9 connection for this cable?The KMEB-1-24-5-LED cable is designed specifically for Festo valve terminals. The pinout is proprietary to this application, connecting specific valve solenoids and sensor inputs to the corresponding pins on the Sub-D connector. Always refer to the Festo datasheet for the specific valve terminal you are connecting for an accurate pinout diagram. Can I use this cable for other non-Festo devices with M12 and Sub-D9 ports?It is not recommended. This cable’s internal wiring is specific to Festo’s CPV-SC valve terminal series. Using it with other equipment could lead to incorrect operation or damage to the connected devices due to mismatched pin assignments. What does the “LED” in the type number signify?The “LED” indicates that there is a light-emitting diode integrated into the M12 connector. This LED serves as a visual indicator for the operating status (e.g., power on) or switching status, which helps in quick diagnostics and troubleshooting directly at the connection point. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
