BASE P-3-AP

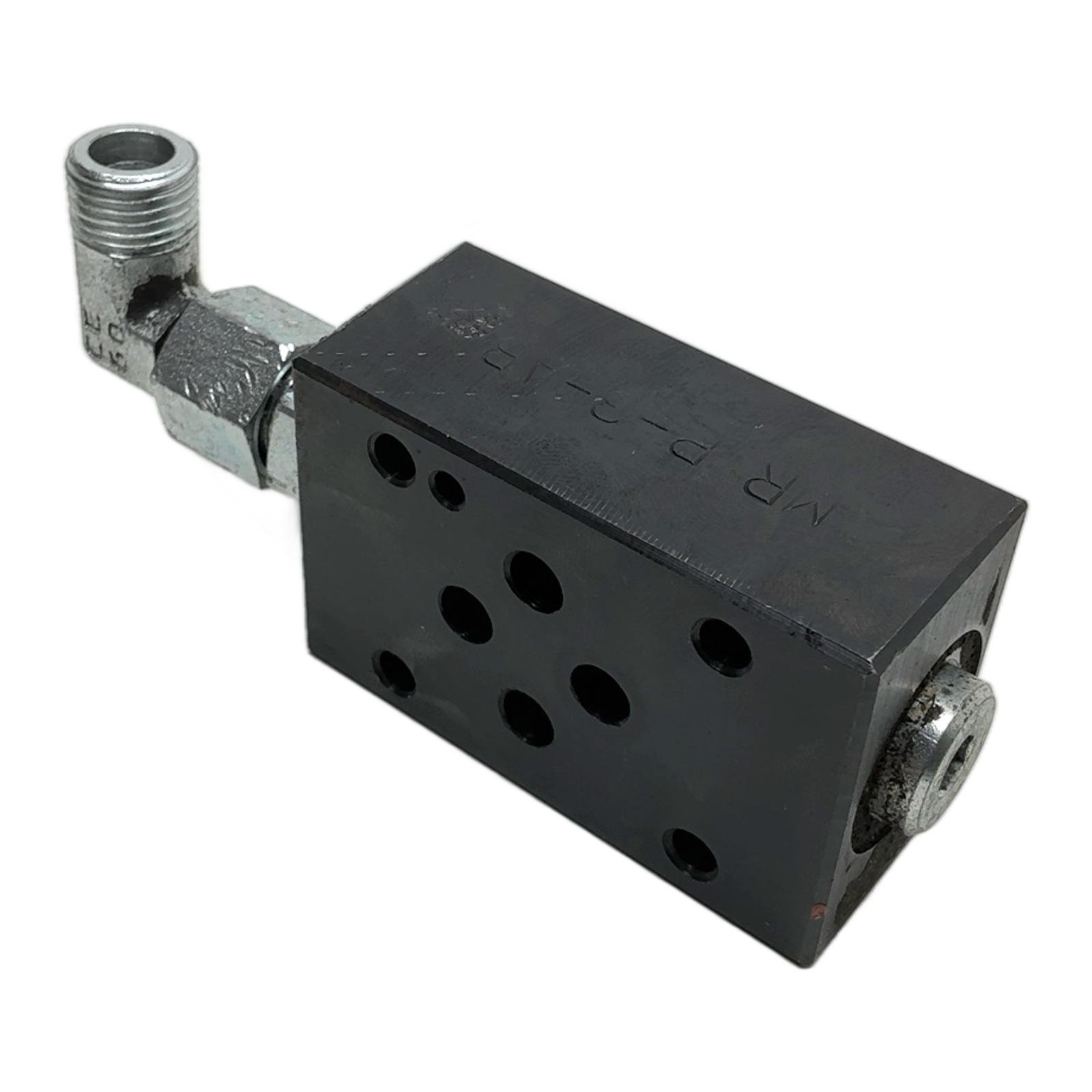

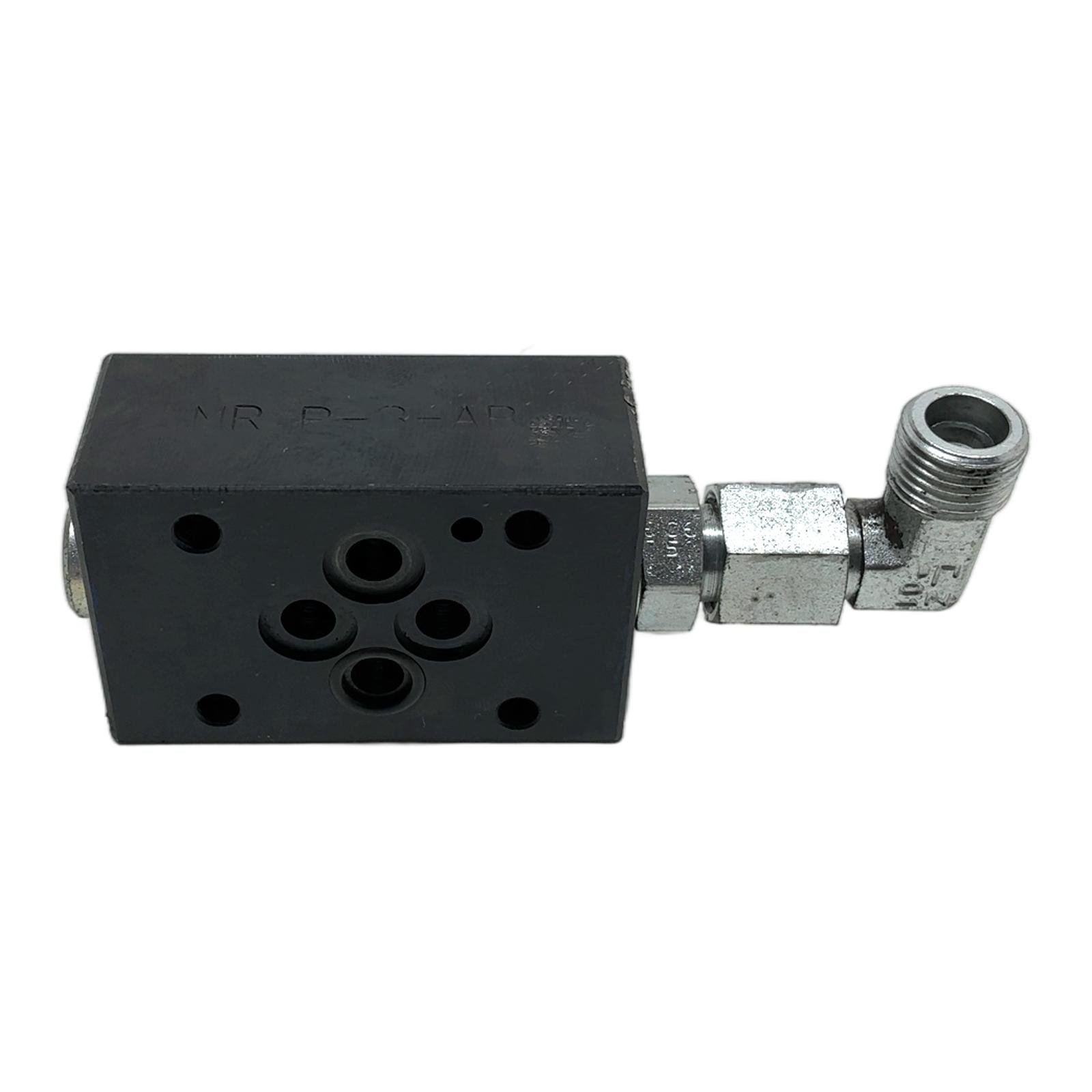

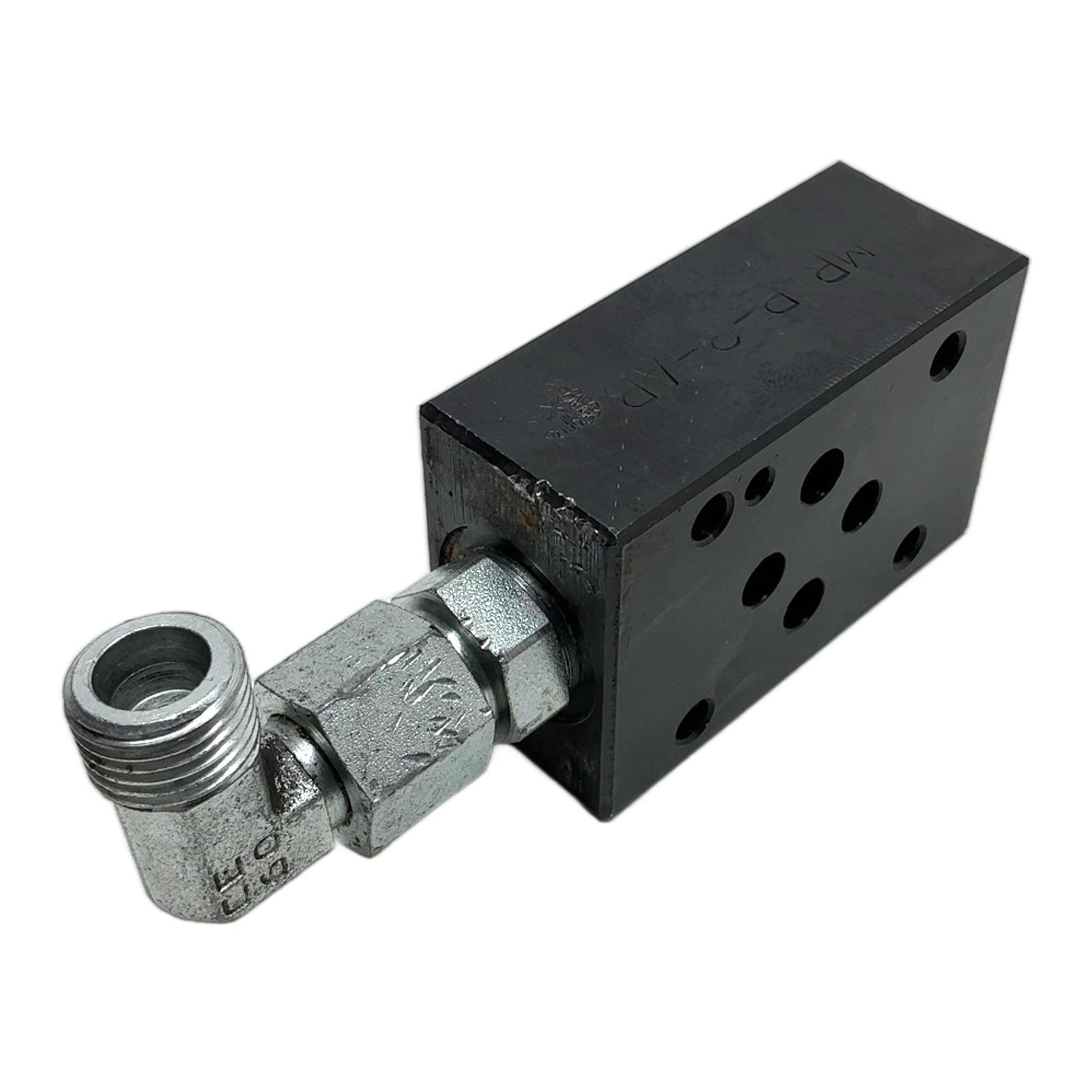

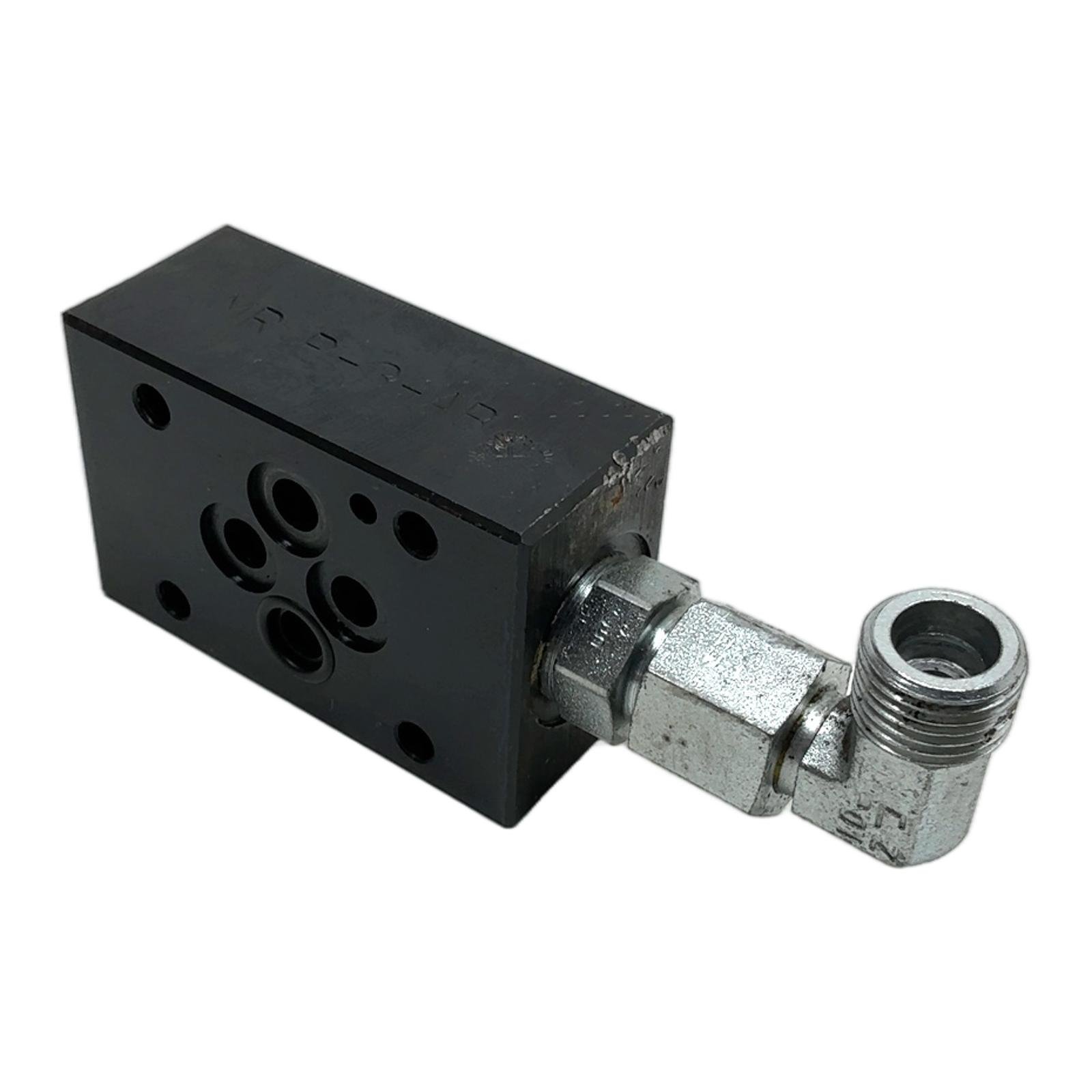

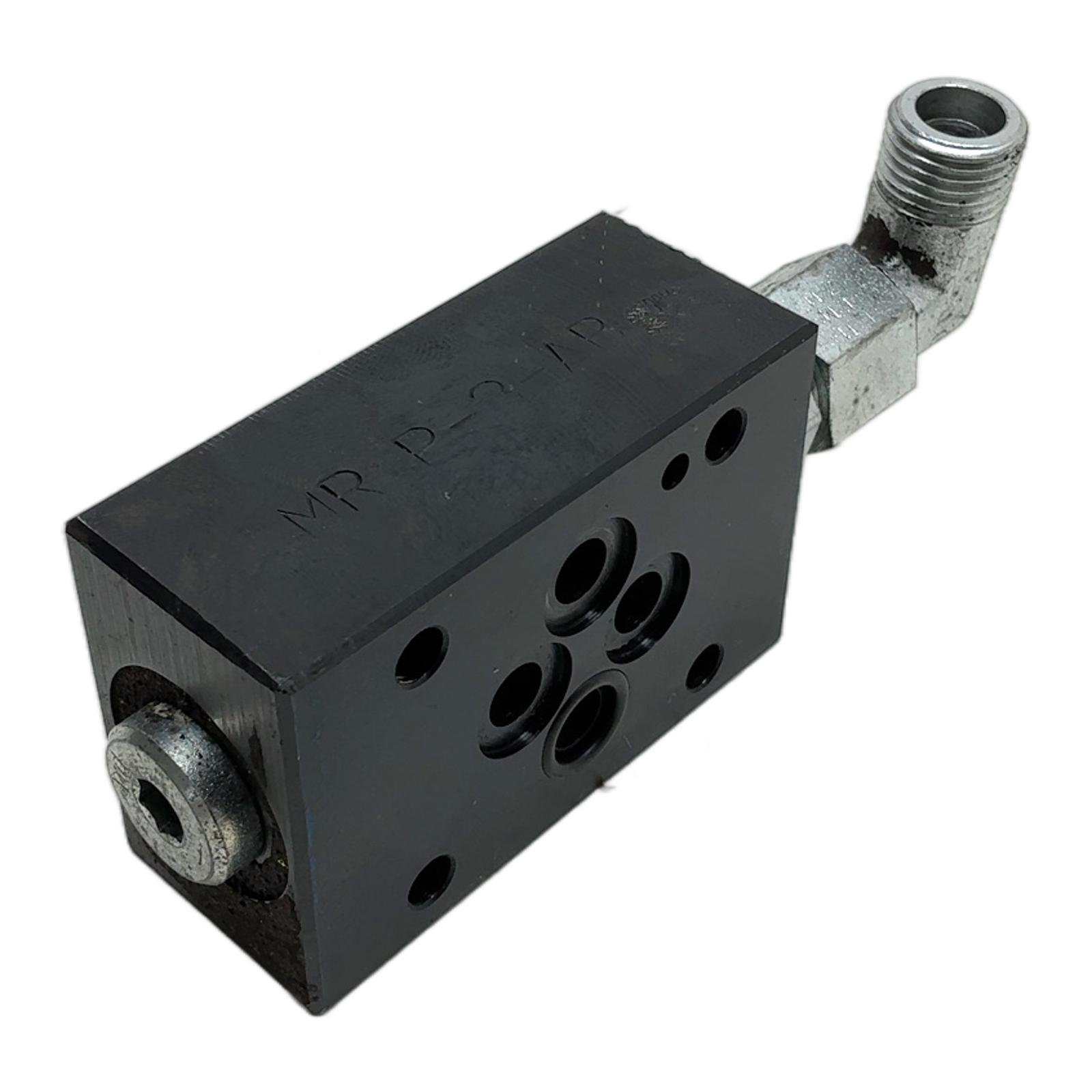

<h2>Marchesini (MR) P-3-AP Hydraulic Subplate</h2> <h3>Description</h3> <p>The Marchesini (MR) P-3-AP is a single-station subplate designed for mounting hydraulic directional control valves. It conforms to the internationally recognized CETOP 3 / NG6 / D03 standard, ensuring wide compatibility. This particular model features a side pressure port (P-port), designated by the ‘AP’ in its model number, which allows for flexible hose and pipe routing. Constructed from solid steel, it provides a durable and stable base for valve operation in demanding industrial hydraulic systems.</p> <h3>Specifications</h3> <ul> <li>Manufacturer: Marchesini (MR)</li> <li>Model: P-3-AP</li> <li>Interface Standard: CETOP 3 / ISO 4401-03 / NG6 / D03</li> <li>Type: Single-station subplate</li> <li>Porting Configuration: Side P-port, bottom A, B, T ports (assumed)</li> <li>Material: Steel</li> </ul> <h3>Label Info</h3> <ul> <li>Stamped on Body: MR P-3-AP</li> </ul> <h3>Application</h3> <p>This subplate is ideal for use in various hydraulic power units and machinery where a single CETOP 3 directional valve is required. Common applications include machine tools, presses, manufacturing lines, and mobile hydraulic equipment.</p> <h3>Country of Origin</h3> <p>Made in Italy.</p> <h3>CO2 Impact</h3> <p>By reusing this durable component, you are saving approximately 2.8 kg of CO2, which is equivalent to the emissions of a car driving 14 kilometers. This promotes a circular economy and reduces industrial waste.</p> <h3>Availability</h3> <p>This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery.</p> <h3>FAQ</h3> <strong>What is the mounting pattern for this P-3-AP subplate?</strong><br><p>This subplate features the standard CETOP 3 / ISO 4401-03 / NG6 / D03 mounting pattern. This ensures compatibility with a wide range of directional control valves from various manufacturers adhering to this international standard.</p> <strong>What is the maximum pressure rating for this component?</strong><br><p>While not explicitly marked, subplates of this type made from steel are typically rated for pressures up to 350 bar (5075 PSI). Always verify this against the specifications of your entire hydraulic system and the valve you intend to mount.</p> <strong>Can the attached 90-degree fitting be removed or replaced?</strong><br><p>Yes, the elbow fitting is a standard threaded hydraulic component. It can be removed and replaced with a different size, type (e.g., straight), or connection standard to suit your specific plumbing requirements. Ensure proper thread sealant is used upon reinstallation to prevent leaks.</p> <p><em>profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.</em></p> <p>Last Update: Friday, March 13, 2026</p>
