ABB OTM2000E3M230C 1SCA022860R2250

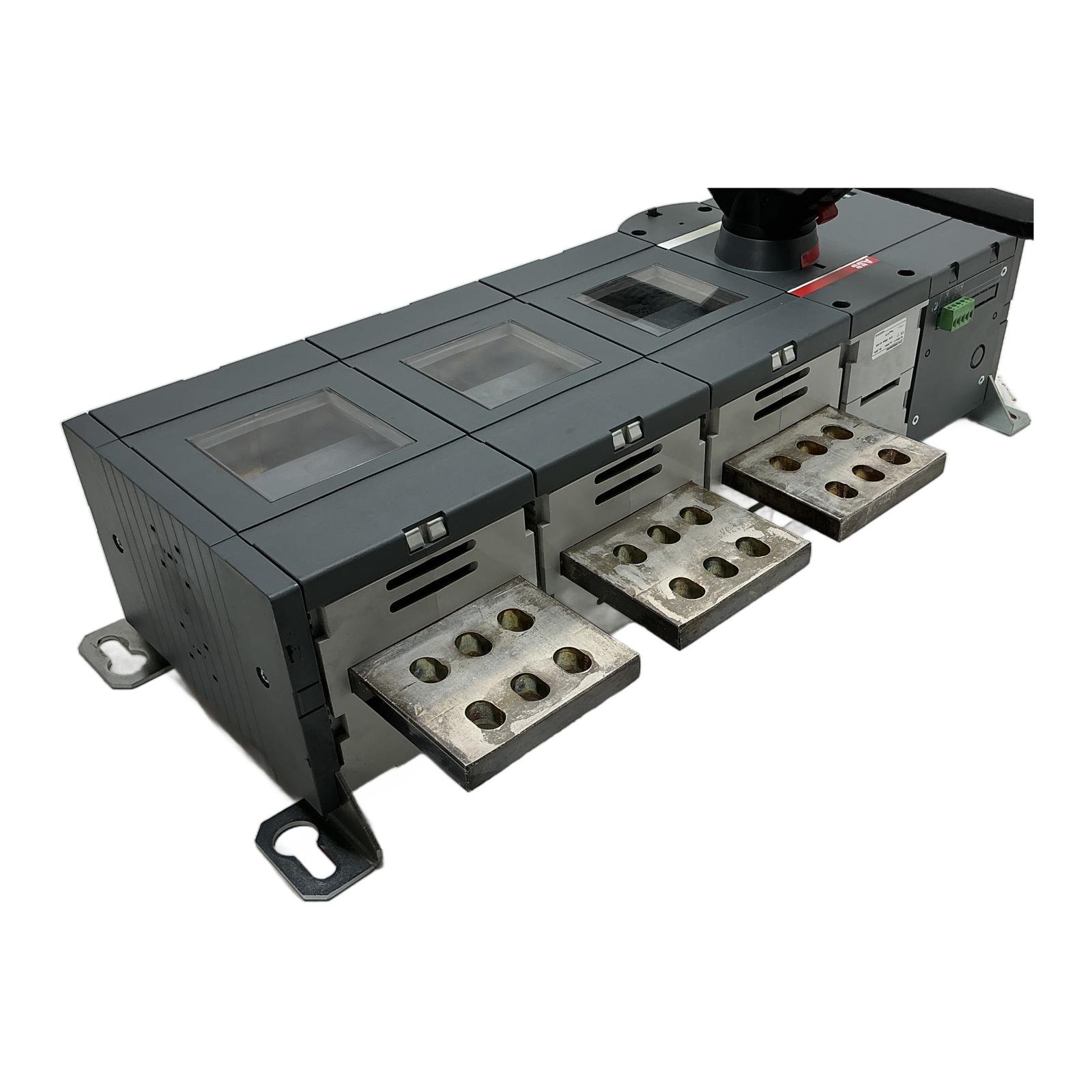

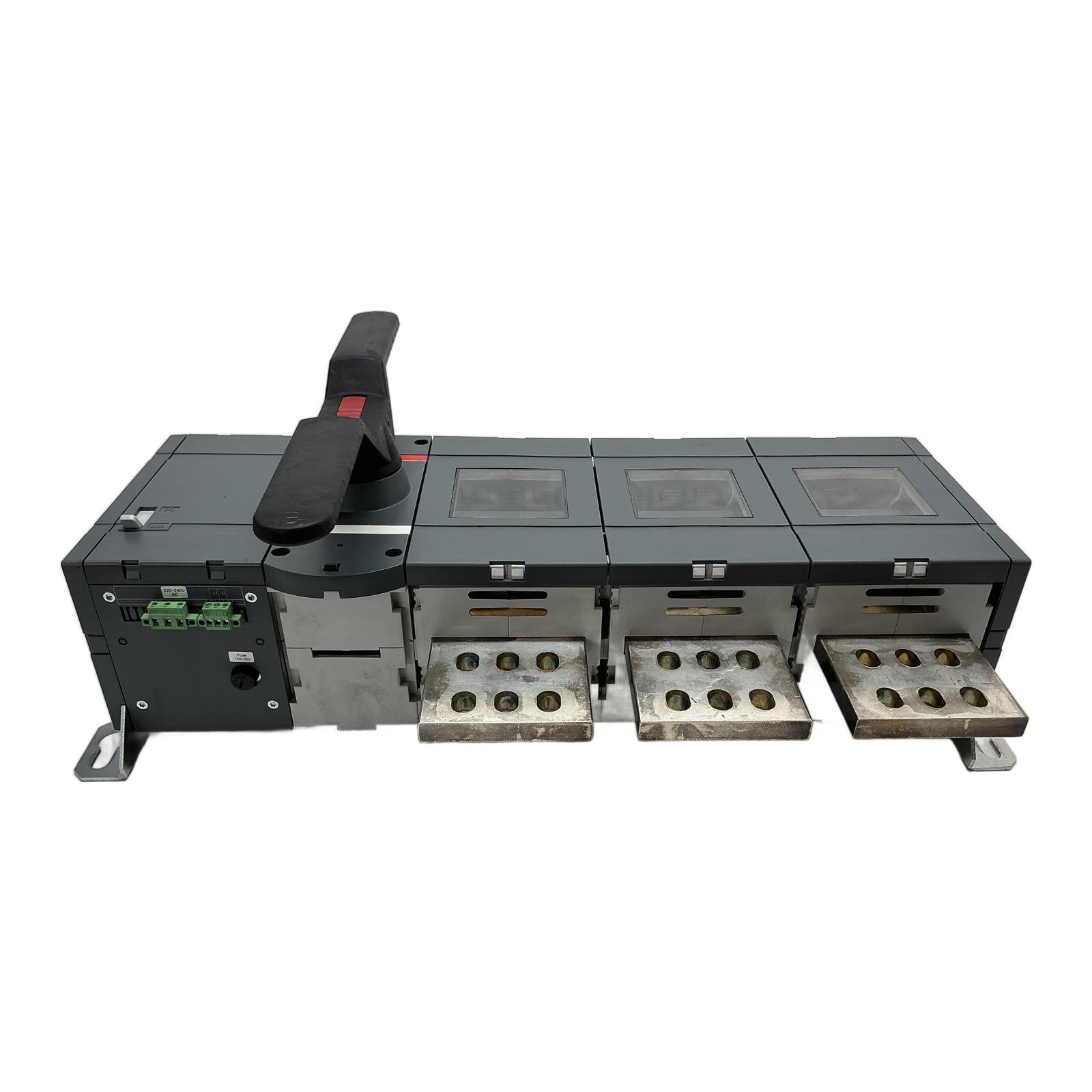

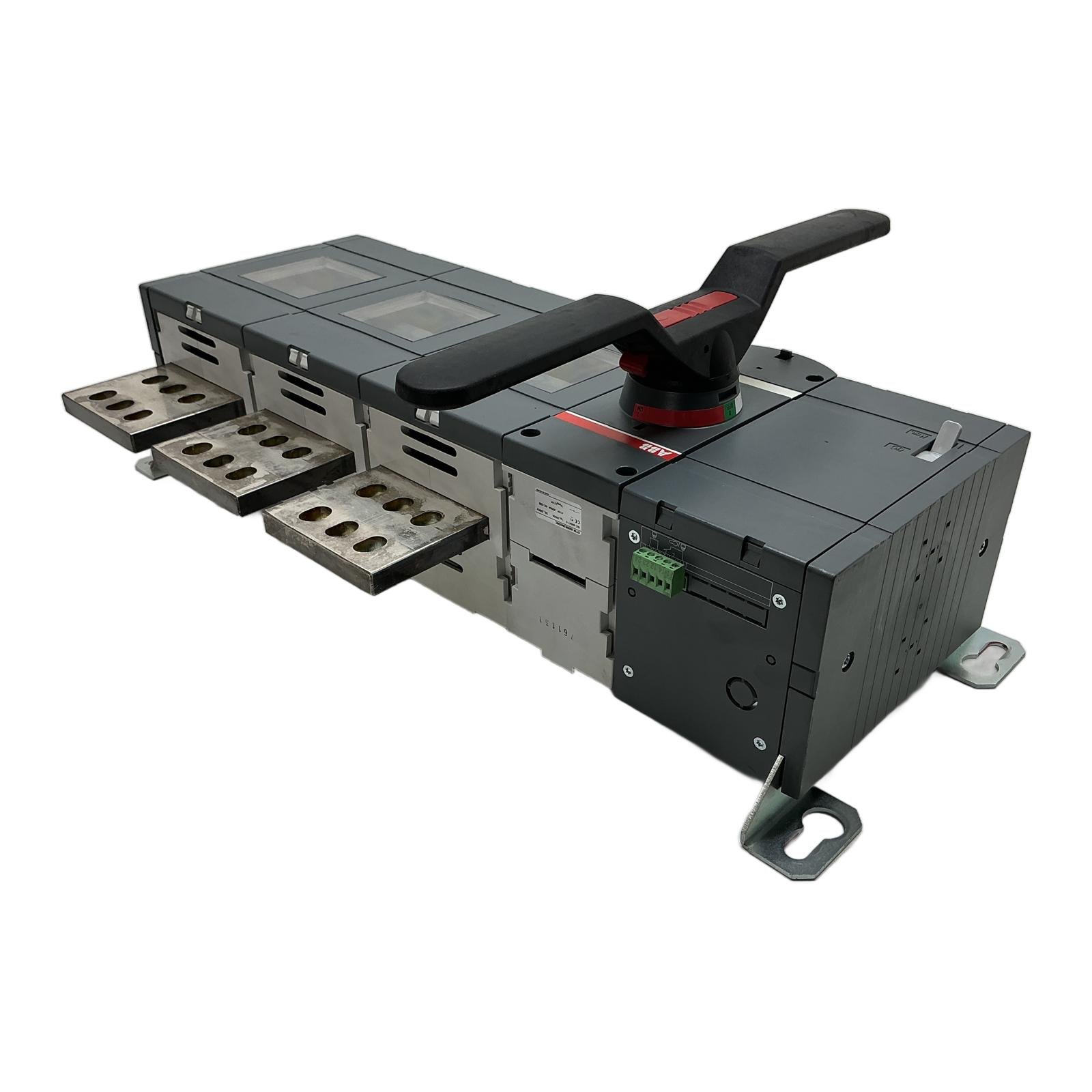

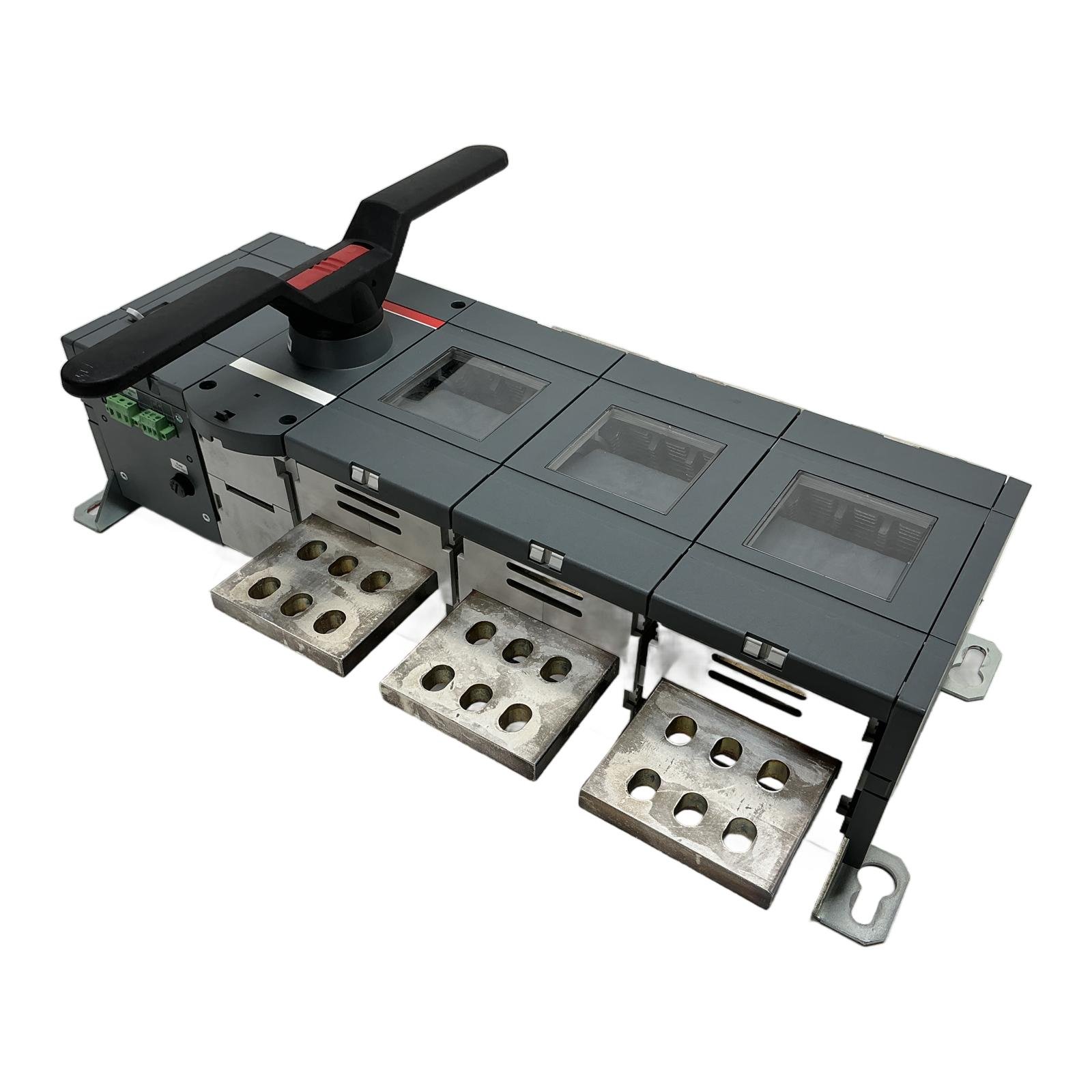

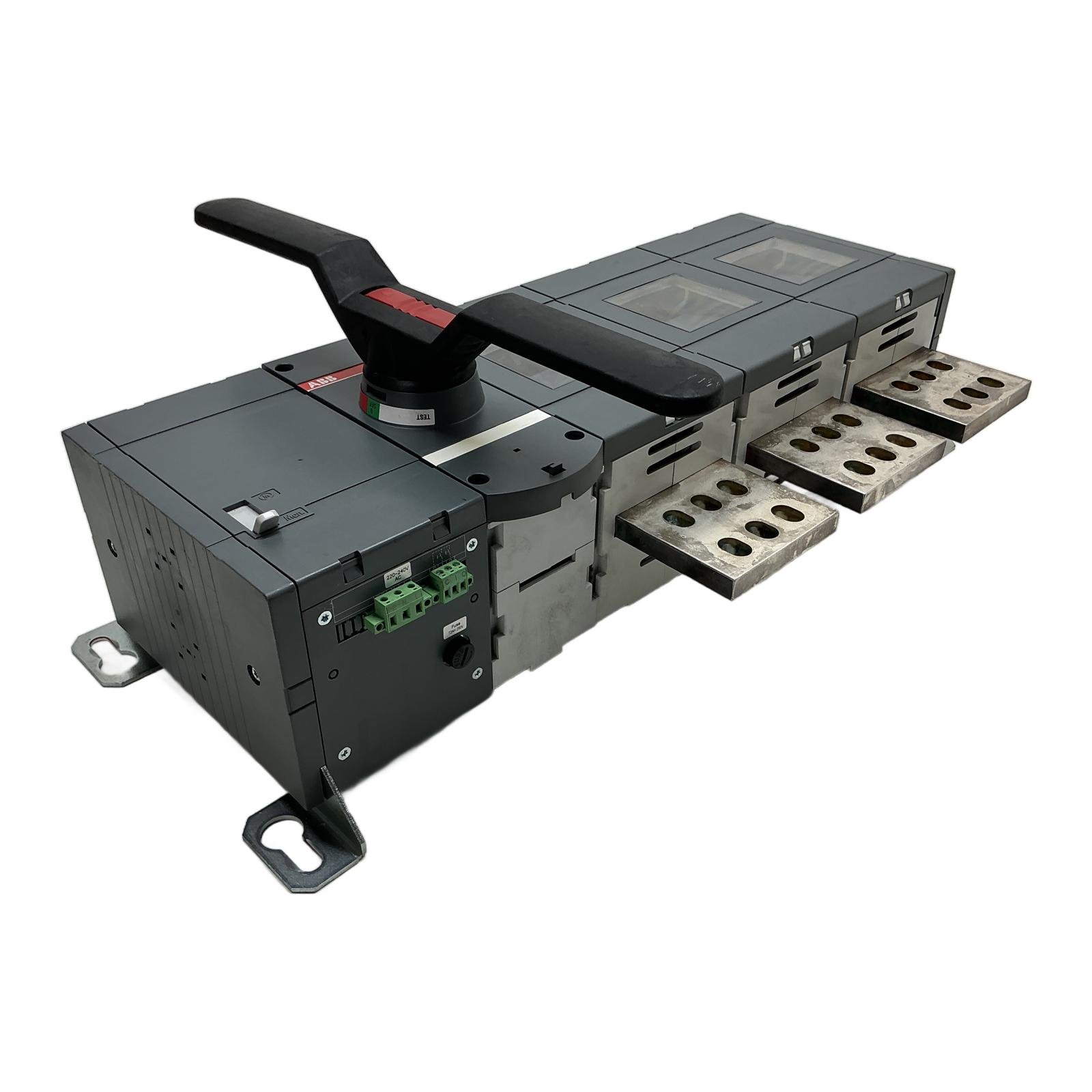

ABB OTM2000E3M230C 2000A Motorized Switch Disconnector Description The ABB OTM2000E3M230C is a robust 3-pole motorized switch disconnector designed for use as a main switch in low voltage switchgear for power distribution. This unit provides reliable performance and safety features for demanding industrial environments. With a current rating of 2000A and a motorized operator, it facilitates remote operation, making it ideal for critical applications where both manual and automatic control are necessary. Specifications Manufacturer: ABB Type: OTM2000E3M230C Order Code: 1SCA022860R2250 Number of Poles: 3 Rated Current (Ith): 2000 A Rated Operational Voltage: 415V AC Motor Operator Voltage: 220-240V AC Frequency: 50/60 Hz Rated Impulse Withstand Voltage (Uimp): 12 kV Label Info Model: OTM 2000E3M230C Standard: IEC 60947-3 Rating: 415V 2000A AC-22B Application This switch disconnector is suitable for a wide range of applications, including industrial power distribution, main switchboards, motor control centers, and as a safety isolation switch for large machinery. Country of Origin Made in Finland. CO2 Impact Opting for this pre-owned unit prevents the emission of approximately 1600 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the CO2 captured by 80 trees in a year. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the required control voltage for the motorized operator on this OTM2000E3M230C?The motorized operator requires a control voltage of 220-240V AC, as indicated by the ‘230C’ in the model number. Can this switch disconnector be operated manually if the motor power fails?Yes, the unit includes a direct-mount handle for manual operation, ensuring you can safely disconnect the circuit even without power to the motor operator. What are the recommended cable lug or busbar dimensions for the 2000A terminals?For a 2000A rating, it is crucial to use appropriately sized busbars or cable lugs that ensure full contact with the terminal pads to prevent overheating. Always consult the official ABB technical datasheet for precise dimensions, tightening torques, and connection requirements based on your specific installation. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
