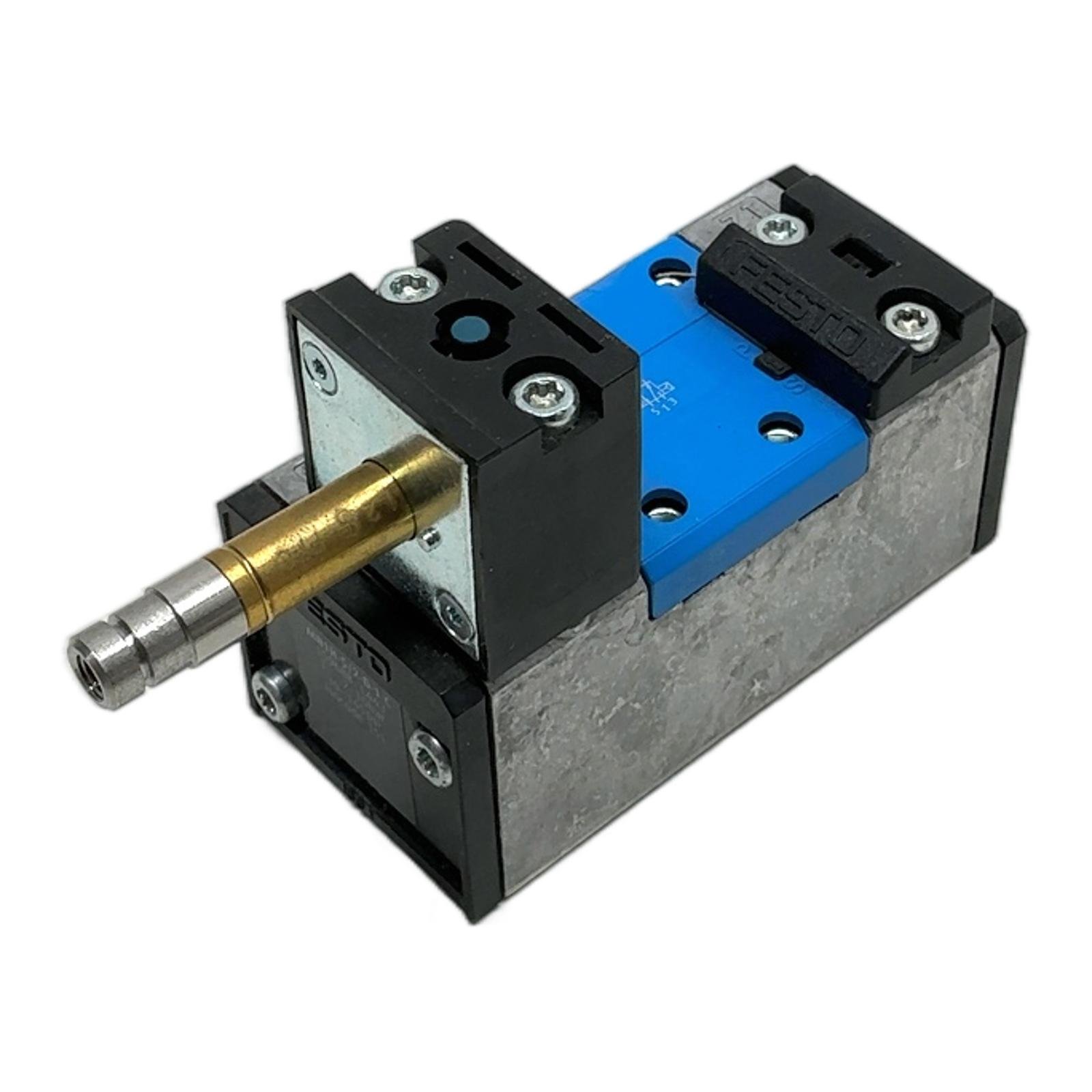

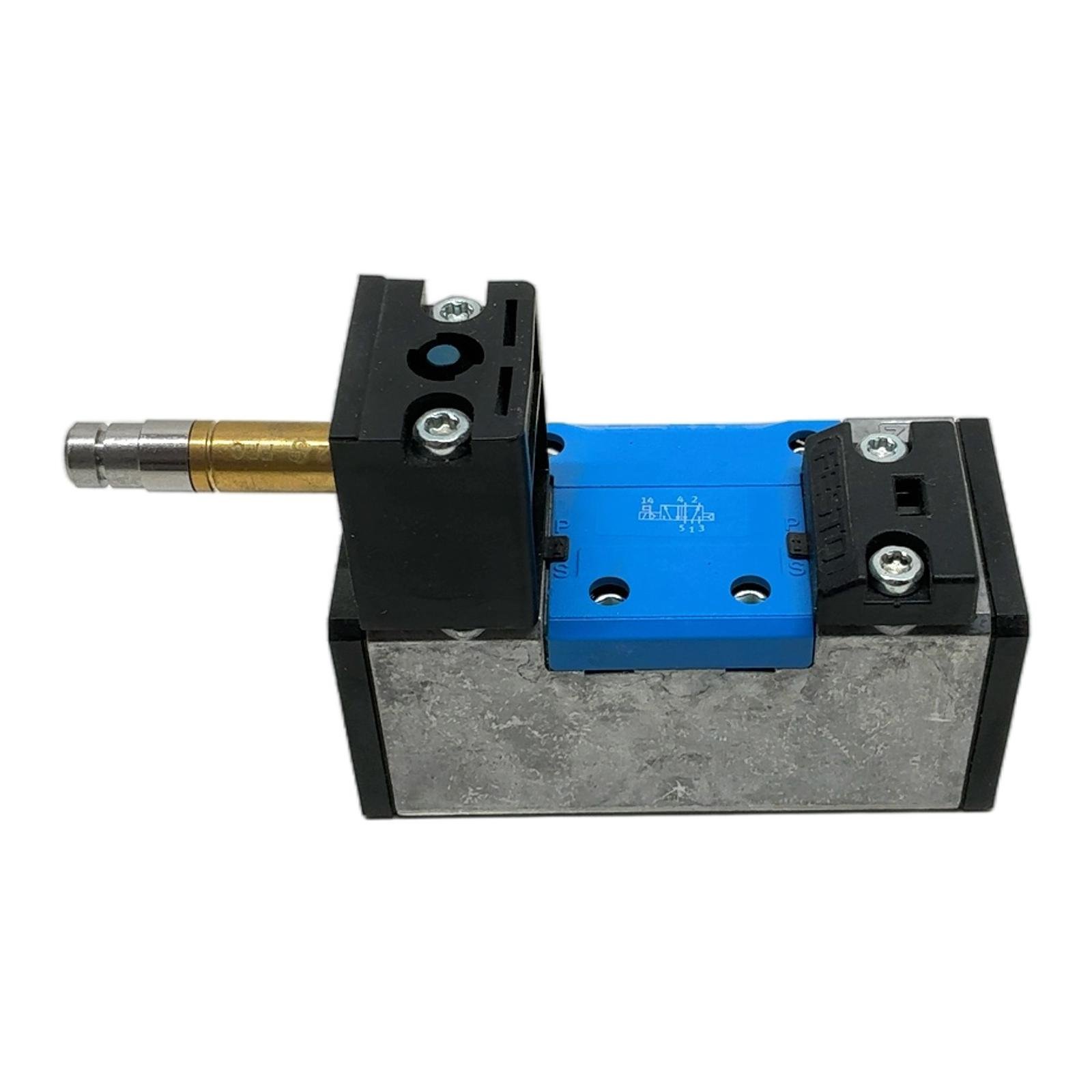

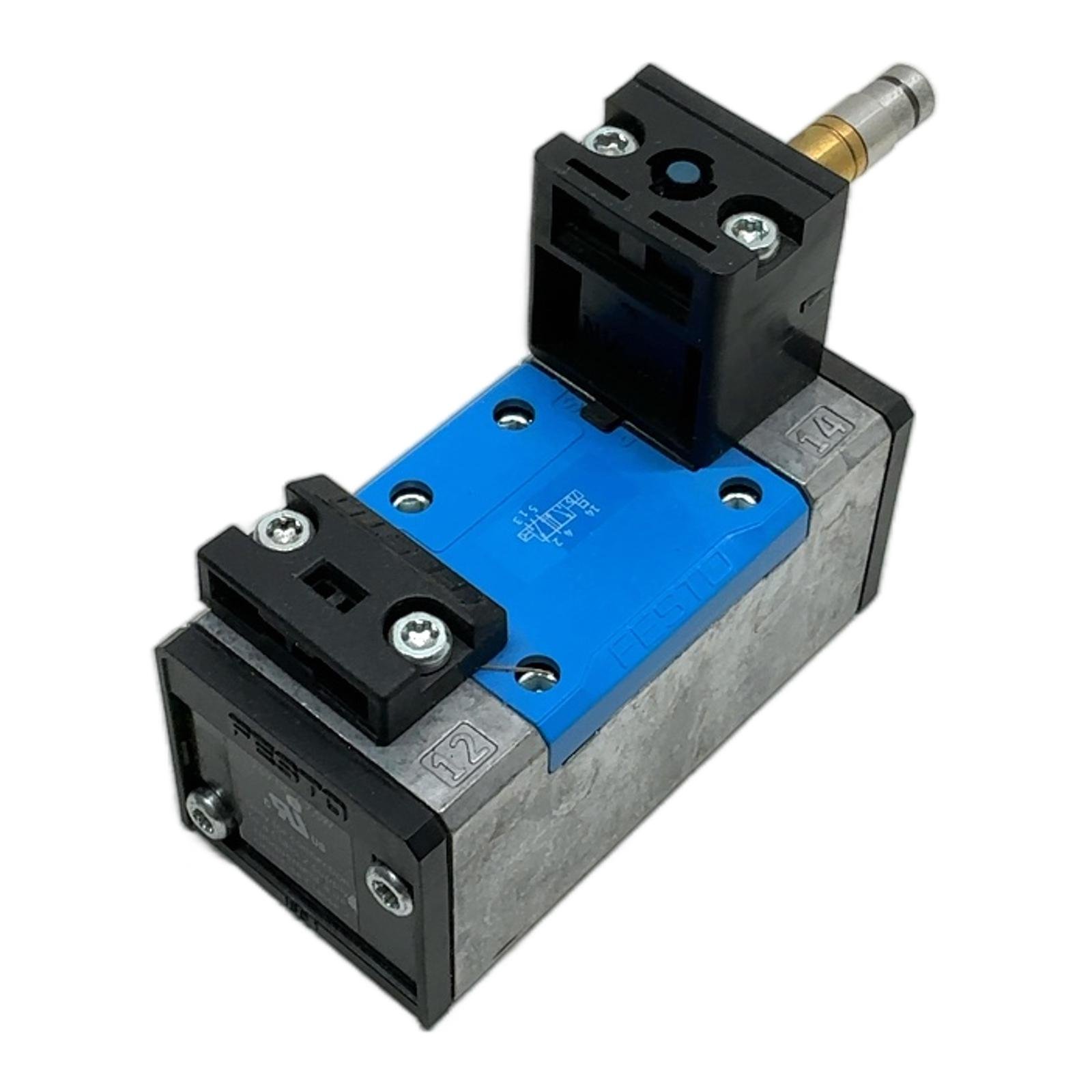

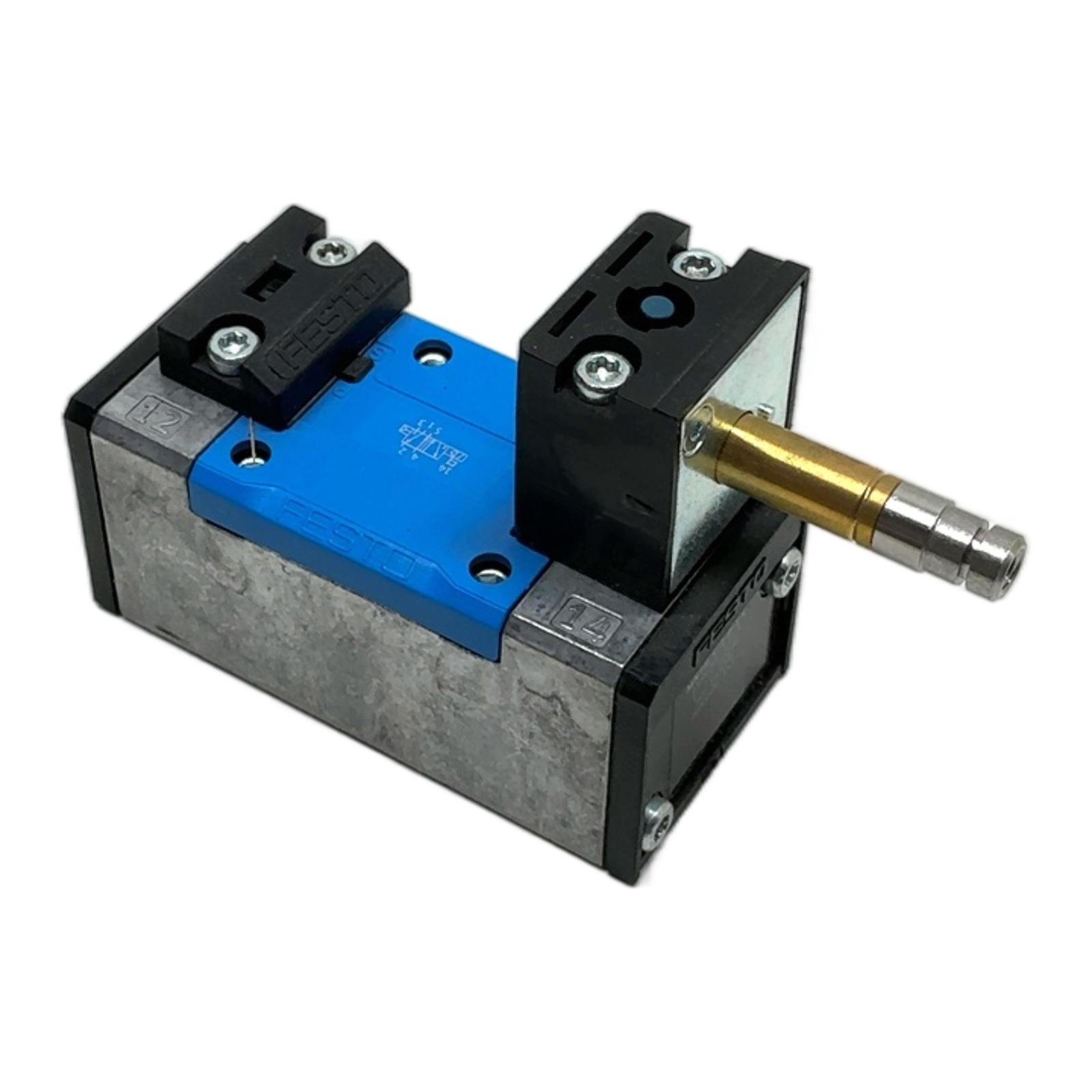

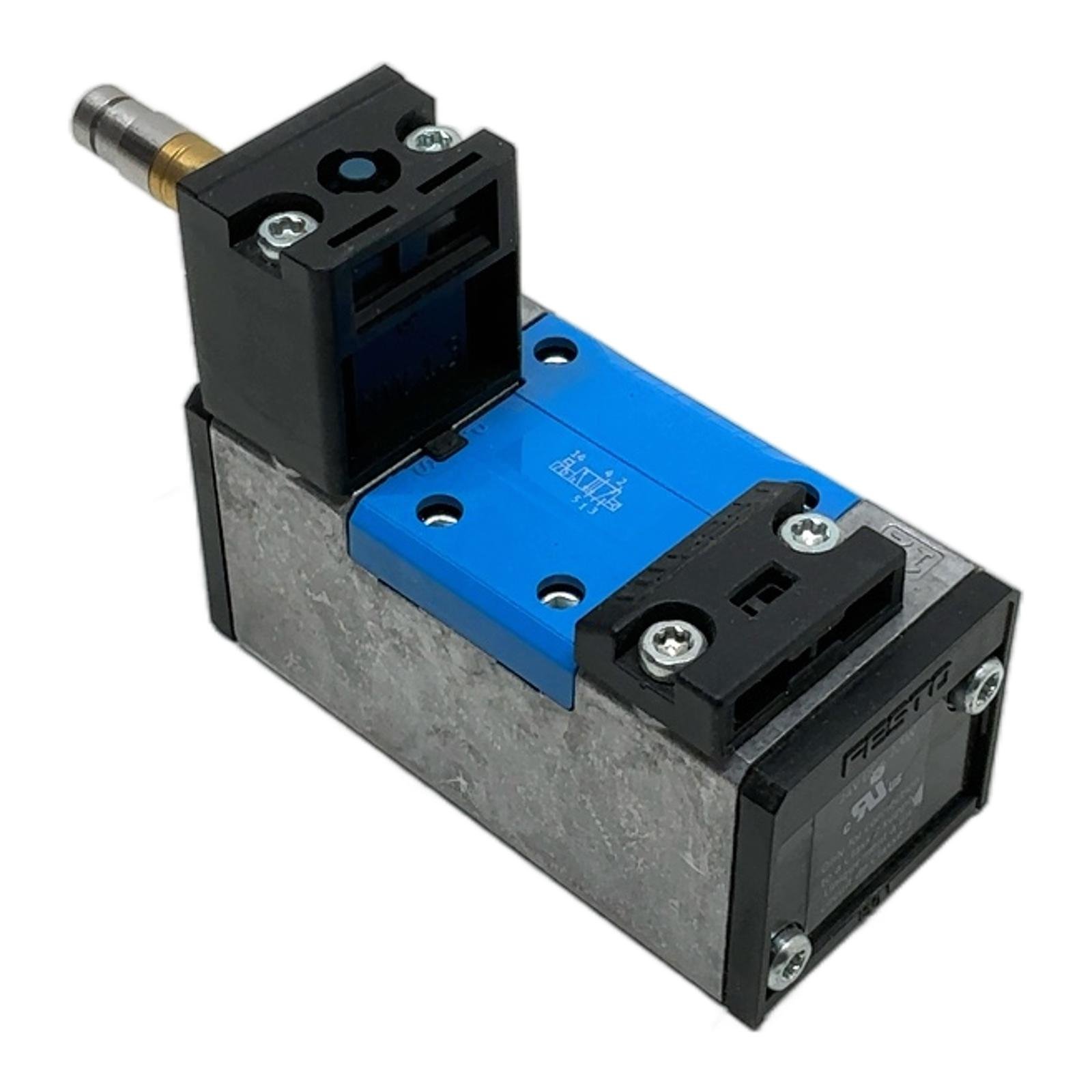

FESTO MN1H-5/2-D-1-C 159688

Festo 5/2-Way Solenoid Valve from the Tiger Classic Series Description The Festo MN1H-5/2-D-1-C is a high-quality single solenoid valve designed for dependable performance in pneumatic systems. As part of the renowned Tiger Classic series, this valve offers robust construction and reliable switching. It is a 5/2-way valve, meaning it has five ports and two positions, making it ideal for controlling double-acting pneumatic cylinders. Please note that this unit is the valve body only and requires a compatible solenoid coil and plug socket for operation. Specifications Manufacturer: Festo Type: MN1H-5/2-D-1-C Part Number: 159688 Valve Function: 5/2-way, single solenoid with mechanical spring return Operating Pressure: 2 to 10 bar (30 to 145 psi) Standard: Conforms to ISO 1 Series: Tiger Classic Label Info FESTO MN1H-5/2-D-1-C Mat.-Nr.: 159688 Serie: L443 Pressure: 2-10bar / 30-145psi Application This solenoid valve is suitable for a wide range of industrial automation tasks, including material handling, packaging machinery, assembly lines, and general pneumatic control circuits where reliable actuation of cylinders is required. Country of Origin Made in Hungary. CO2 Impact By purchasing this pre-owned item, you are contributing to a circular economy and helping to avoid approximately 16.0 kg of CO2 emissions that would have been generated from manufacturing a new one. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What type of solenoid coil and plug socket are compatible with the MN1H-5/2-D-1-C valve?This valve requires a Festo F-solenoid coil. The specific coil model depends on the required voltage (e.g., 24V DC, 110V AC). A compatible plug socket would be a model like the MSSD-F. Always verify compatibility with the Festo datasheet. Is this valve suitable for vacuum applications?No, the MN1H-5/2-D-1-C has a minimum operating pressure of 2 bar. It is not designed for vacuum applications and requires positive pressure to shift the valve spool correctly. What does the ‘C’ at the end of the type number MN1H-5/2-D-1-C signify?The ‘C’ suffix in this Festo type code indicates that the valve has a mechanical spring return. This means it will return to its initial position when the solenoid is de-energized. profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
