SCHRACK MM216376

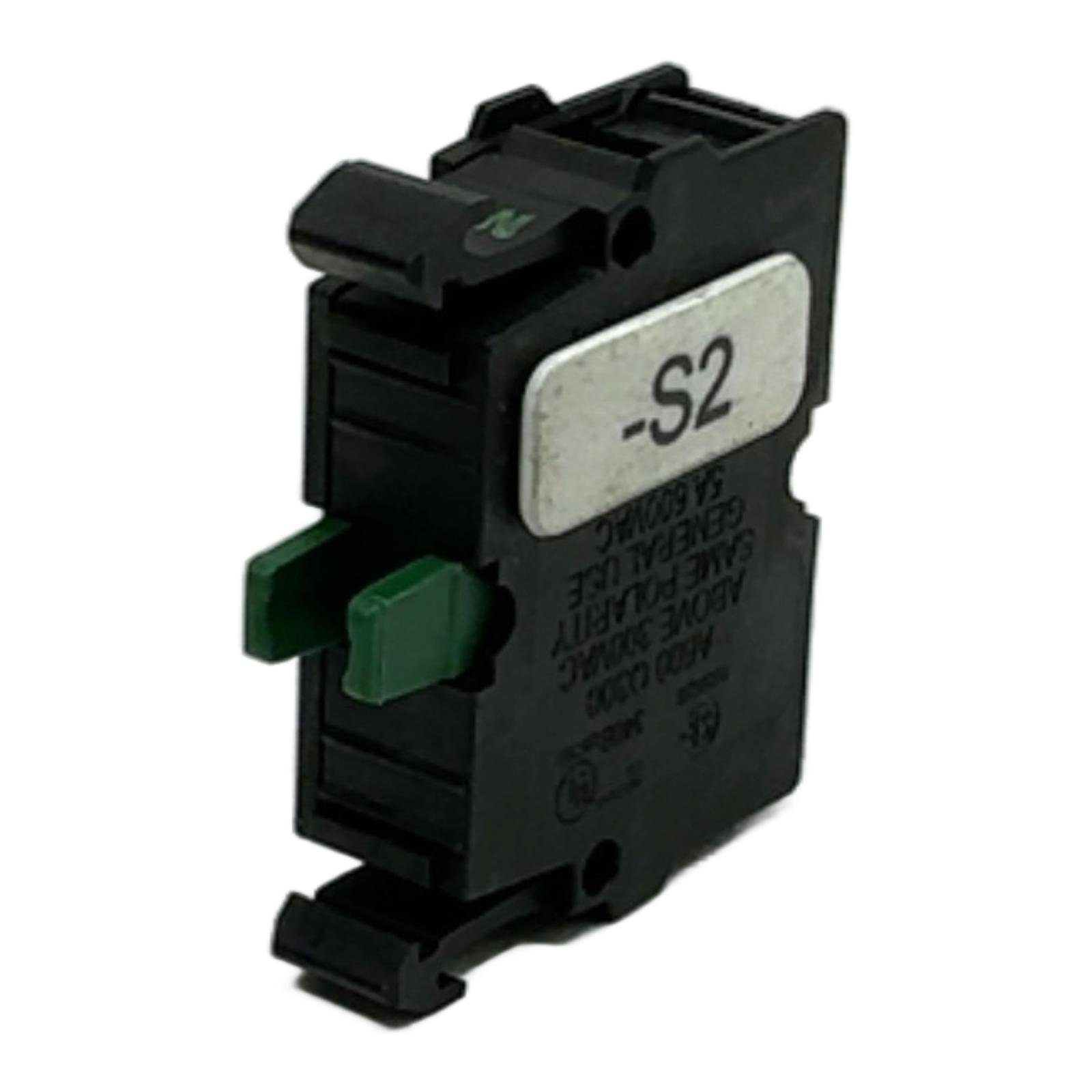

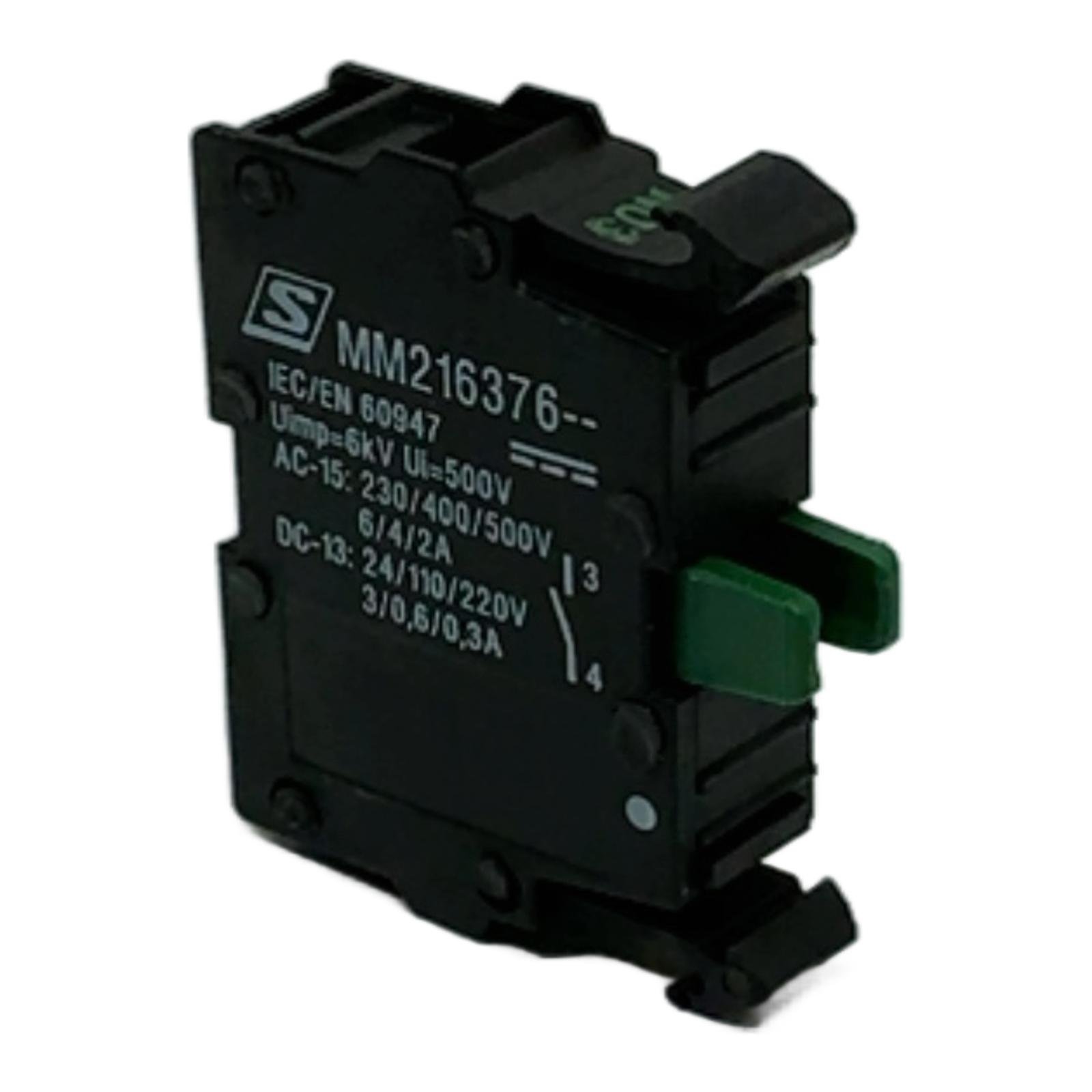

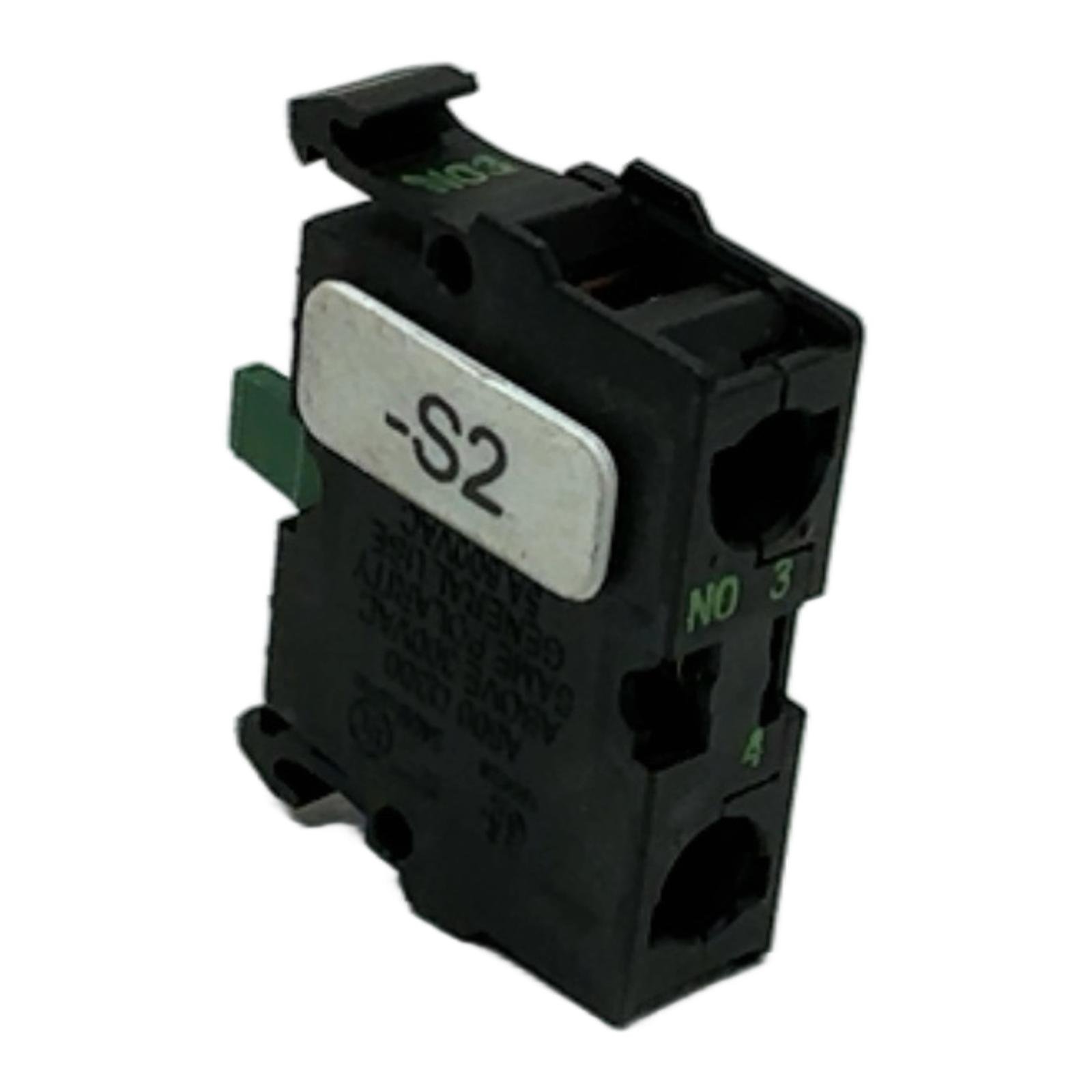

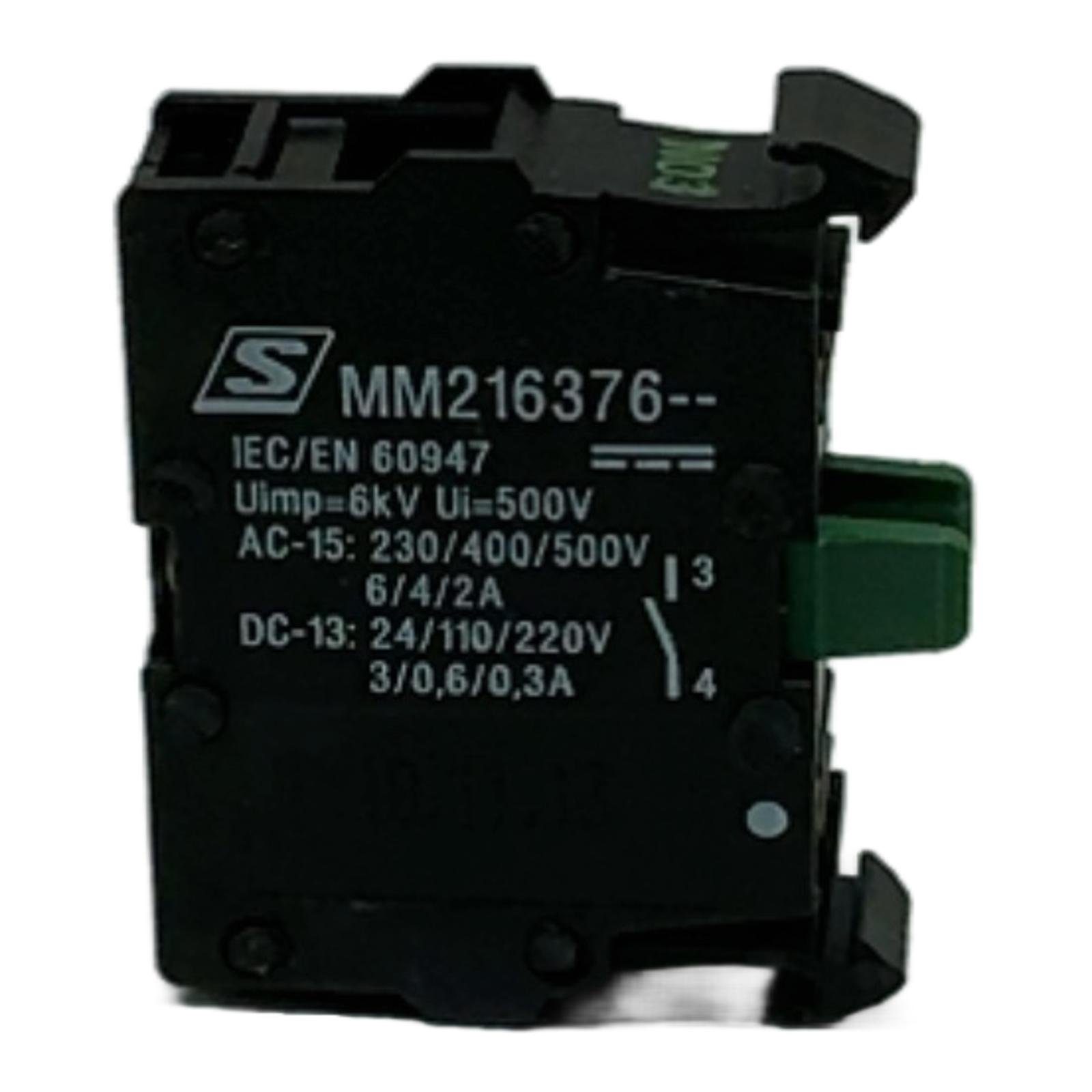

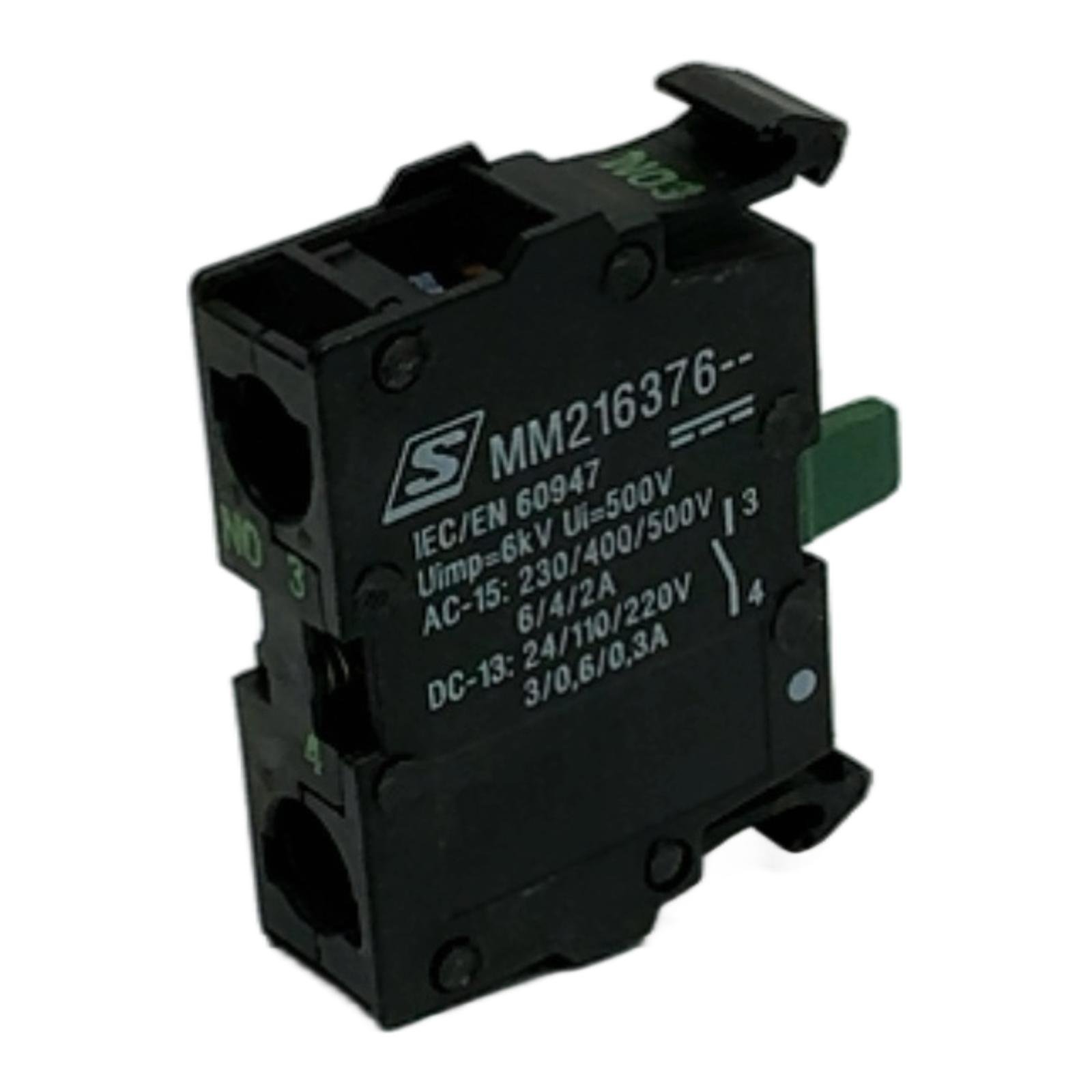

Schneider Electric Auxiliary Contact Block Description This is an MM216376 auxiliary contact block manufactured by Schneider Electric. It is designed to be mounted on circuit breakers or other switchgear to provide an additional signaling contact. This unit features one normally open (1NO) contact, making it ideal for monitoring the open/closed status of the main device within a control panel. Its robust design ensures reliable performance in various industrial environments. Specifications Manufacturer: Schneider Electric Type: MM216376 Contact Configuration: 1 Normally Open (1NO) Standard: IEC/EN 60947 Rated Insulation Voltage (Ui): 500V Rated Impulse Withstand Voltage (Uimp): 6kV AC-15 Utilization Category: 6A/230V, 4A/400V, 2A/500V DC-13 Utilization Category: 3A/24V, 0.6A/110V, 0.3A/220V Label Info Terminals: 3, 4 Type: NO (Normally Open) Application This auxiliary contact is commonly used in industrial control systems, building automation, and machinery for applications such as status indication, electrical interlocking, and signaling to PLCs or remote monitoring systems. Country of Origin Manufactured in France. CO2 Impact By purchasing this pre-owned item, you are helping to avoid the production of a new one, saving approximately 1.2 kg of CO2. This saving is equivalent to the emissions from driving a car for 6 kilometers. Availability This item is a surplus part and may be considered obsolete. Availability is limited. Order now from profideals for expert support and fast delivery. FAQ What series of circuit breakers is this MM216376 contact compatible with?This contact is typically associated with the older Schneider Electric Multi 9 series of modular circuit breakers, such as the C60 and C120 lines. It is important to verify compatibility with your specific device before installation. What do the AC-15 and DC-13 ratings signify?These are utilization categories defined by the IEC 60947 standard. AC-15 refers to the switching of AC electromagnetic loads (like contactor coils), while DC-13 refers to the switching of DC electromagnets. The associated current and voltage values indicate the maximum load the contact can reliably switch for that specific application. Can this NO (Normally Open) contact be converted to an NC (Normally Closed) contact?No, this is a dedicated Normally Open (NO) contact block. The internal mechanism is fixed. If you require a Normally Closed function, you must use a separate NC contact block designed for that purpose. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
