ABB M2QA132M4A 3GQA132301-ASA

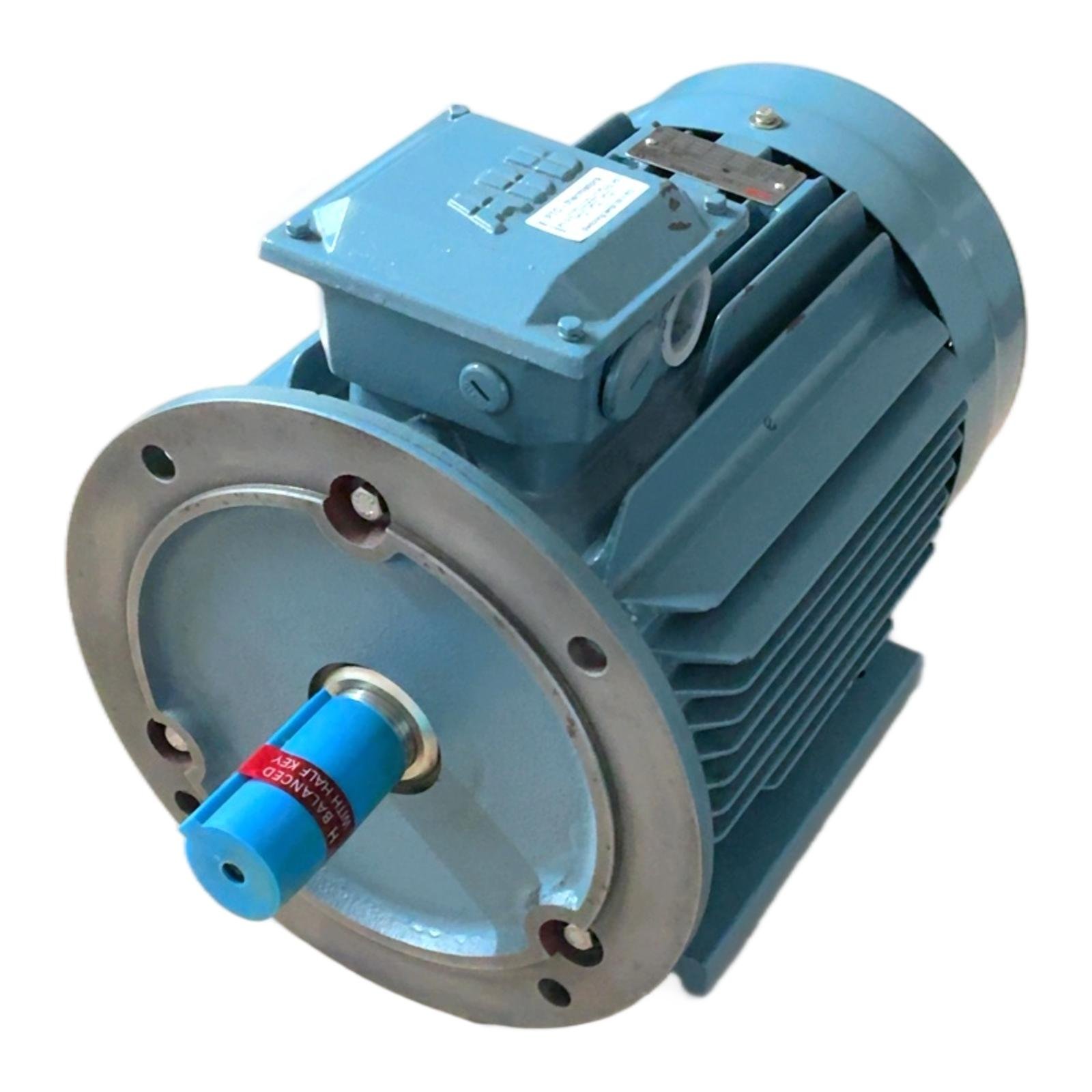

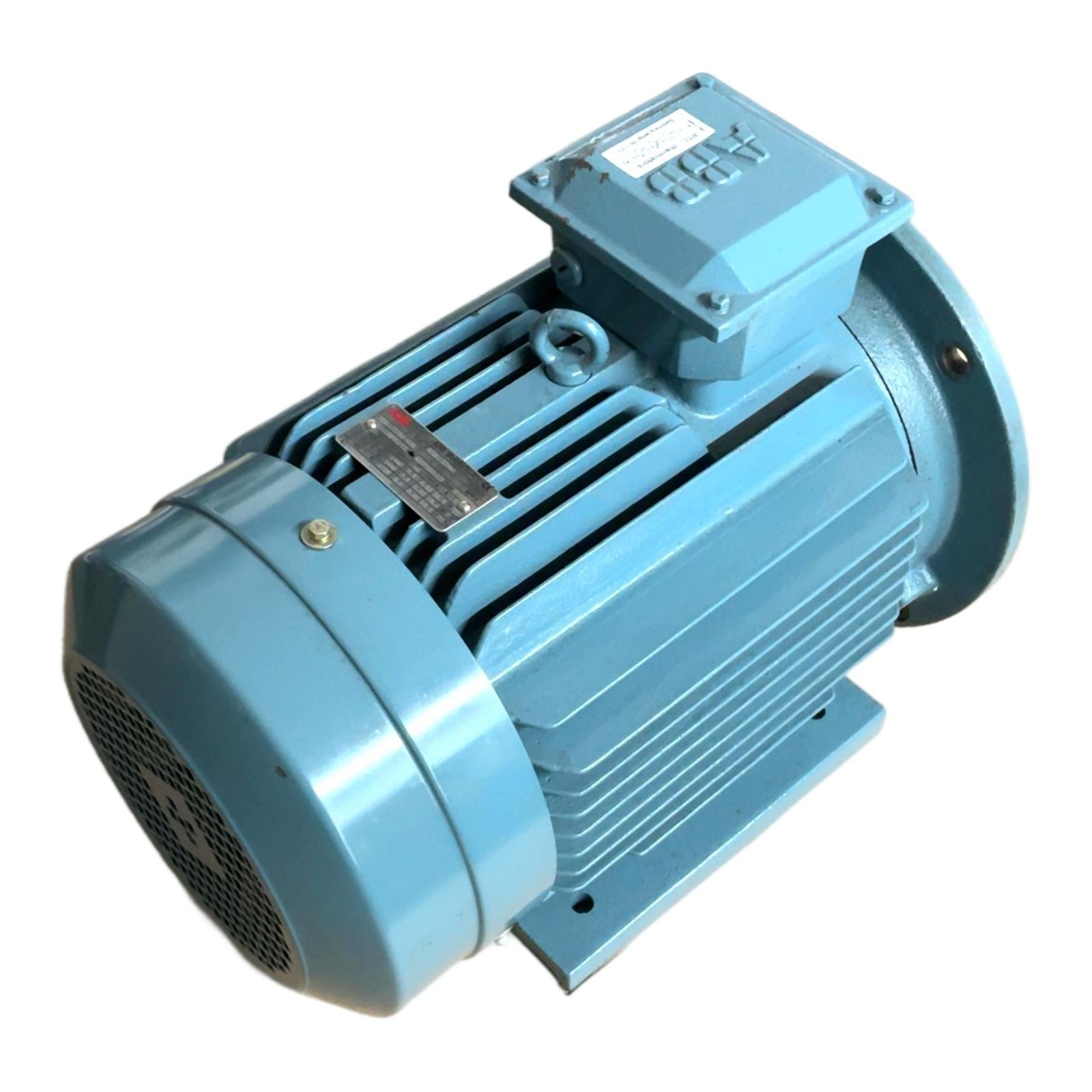

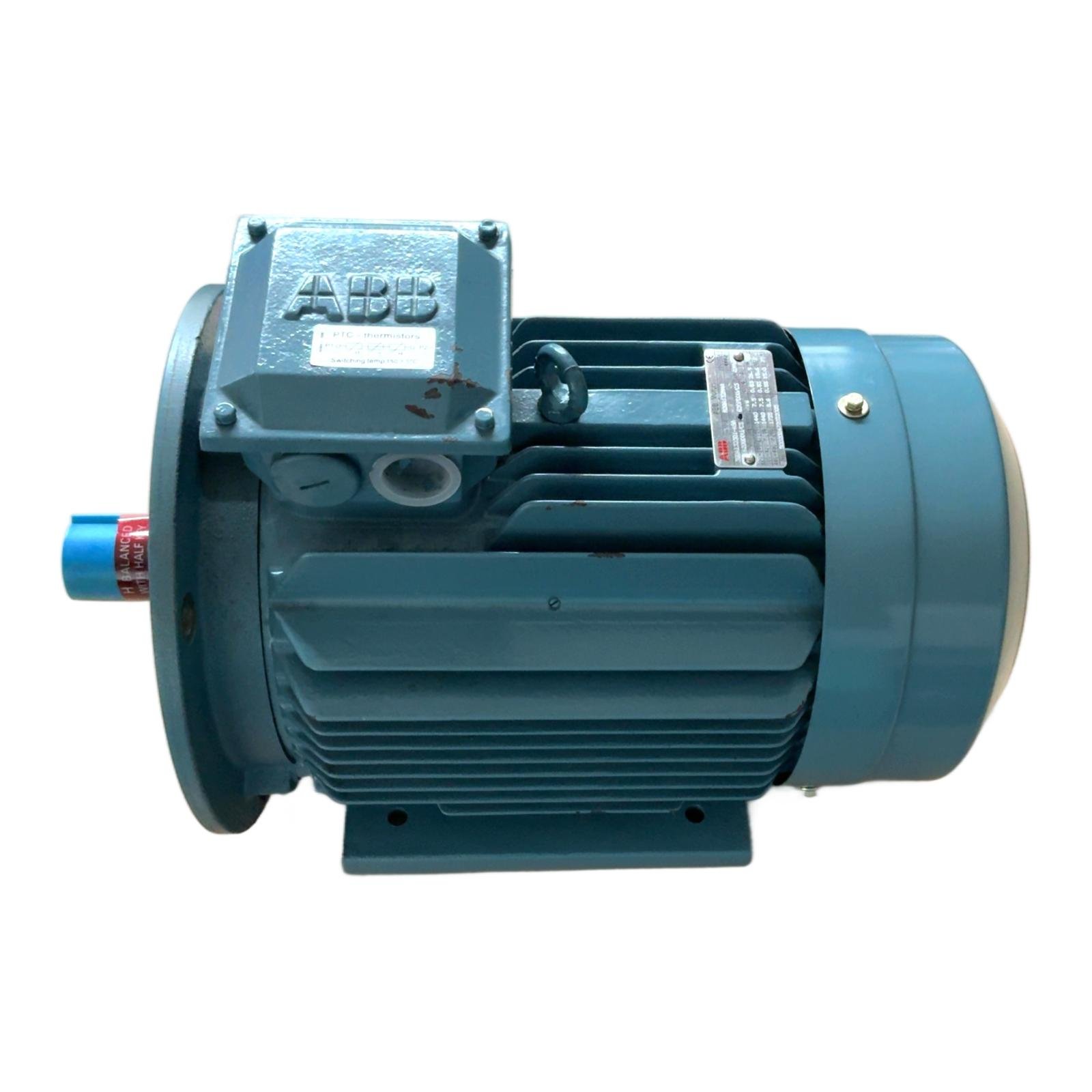

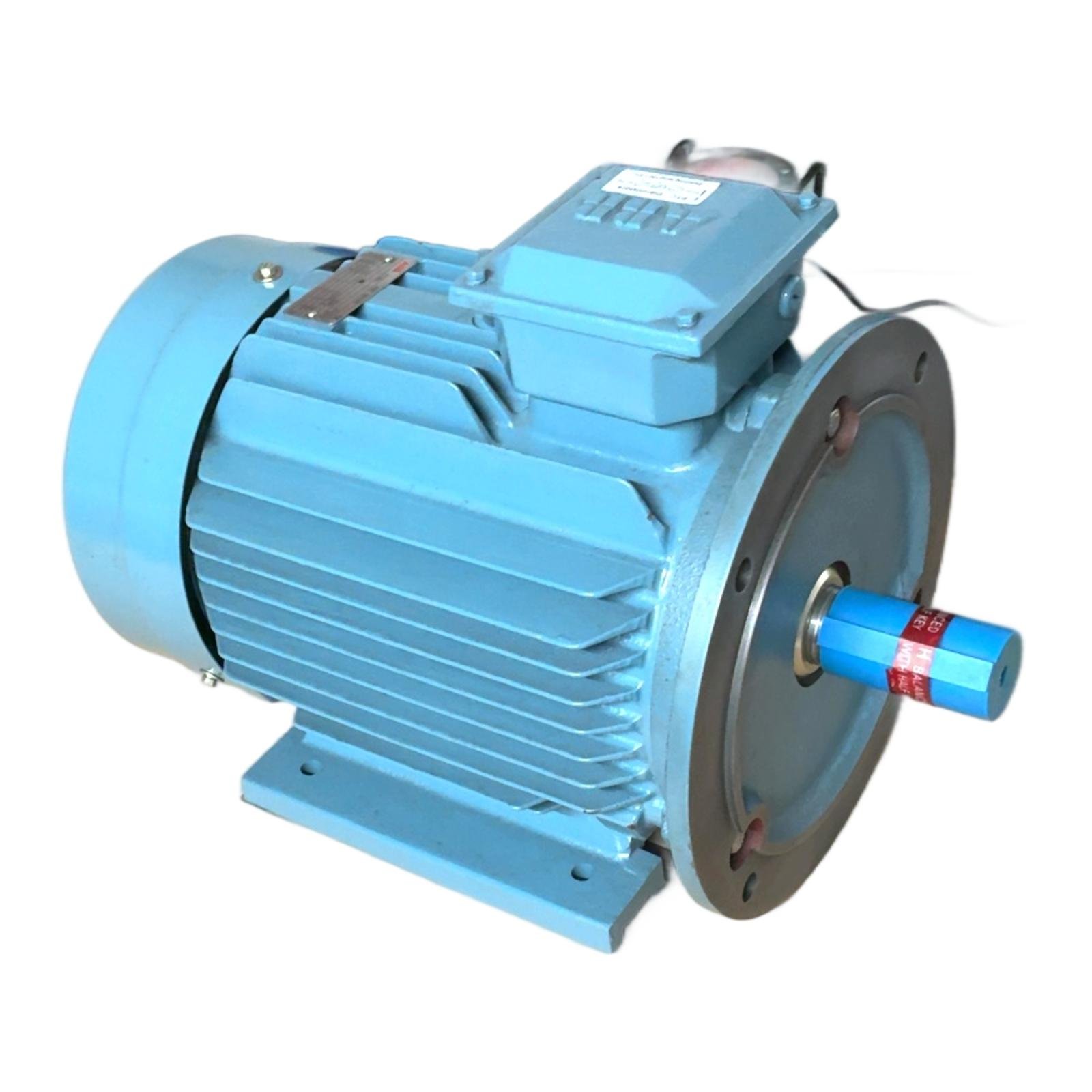

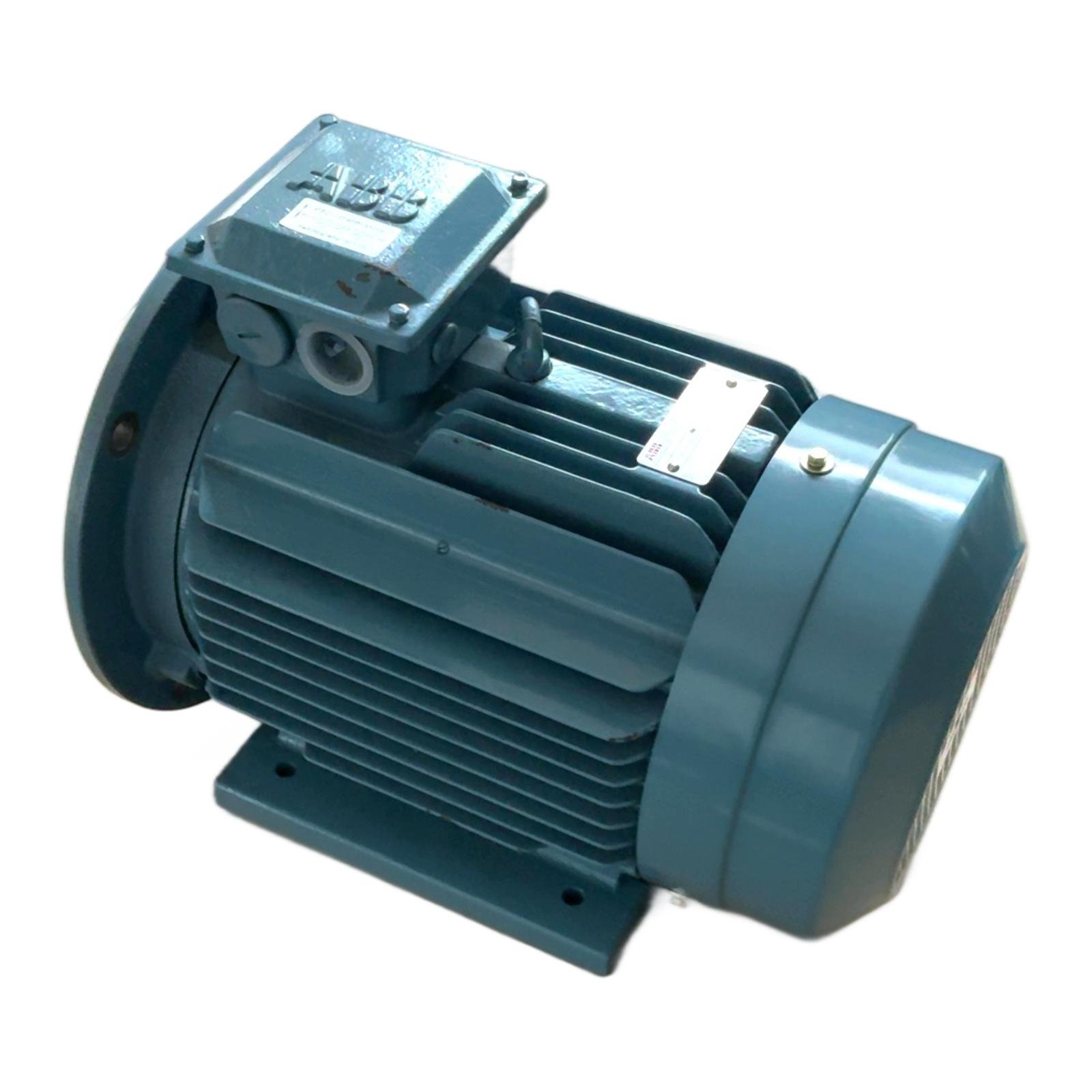

ABB M2QA 132M4A 7.5 kW Three-Phase Electric Motor Description This is an ABB M2QA 132M4A, a high-quality three-phase asynchronous motor designed for general industrial use. With a power output of 7.5 kW at 50 Hz, this 4-pole motor provides reliable performance. It features a robust cast iron frame, IP55 protection against dust and water jets, and Class F insulation. The motor is equipped with PTC thermistors for enhanced thermal overload protection. This unit is unused new old stock, making it an excellent choice as a direct replacement or spare. Order now from profideals for expert support and fast delivery. Specifications Manufacturer: ABB Model: M2QA 132M4A Article Number: 3GQA132301-ASA Power: 7.5 kW (at 50 Hz, 1440 rpm) Voltage: 220-240V Delta / 380-420V Star (at 50 Hz) Current: 26.9 A / 15.6 A (at 50 Hz) Frequency: 50 / 60 Hz Frame Size: 132M Mounting: B35 (Foot and Flange mounted) Protection Class: IP 55 Insulation Class: F Weight: 73 kg Efficiency Class: EFF2 Label Info Serial Number: 500208472032005 Bearings (Drive End): 6208DDU/C3 Bearings (Non-Drive End): 6207DDU/C3 Year of Manufacture: 2009 Application Ideal for a wide range of applications including pumps, fans, conveyors, compressors, and general machinery in various industrial sectors. CO2 Impact By purchasing this reused motor, you are contributing to the circular economy and helping to avoid approximately 146 kg of CO2 emissions associated with the production of a new unit. Availability This item is in stock and ready for immediate dispatch. FAQ What does the ‘B35′ mounting designation mean for this motor?B35 is a standard IEC mounting code that indicates the motor has both mounting feet (B3) and a standard flange with through-holes (B5). This dual mounting option provides flexibility for installation. This motor is rated EFF2. Can I use it as a replacement in a modern system that requires IE3 efficiency?While this motor is a functional replacement, using an EFF2 motor where a higher efficiency class like IE3 is legally required (common in the EU and other regions for new installations) may not be compliant. It is best used as a like-for-like spare in existing systems. Always check your local regulations. The nameplate mentions PTC thermistors. How are these typically connected and used?PTC (Positive Temperature Coefficient) thermistors are embedded in the motor windings. They should be connected to a compatible motor protection relay or a frequency drive’s thermistor input. When the winding temperature reaches a critical point (150 deg C for this motor), the thermistor’s resistance increases sharply, tripping the protection device and stopping the motor to prevent overheating damage. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
