PEPPERL+FUCHS NBN8-18GM50-E2-V1 084197

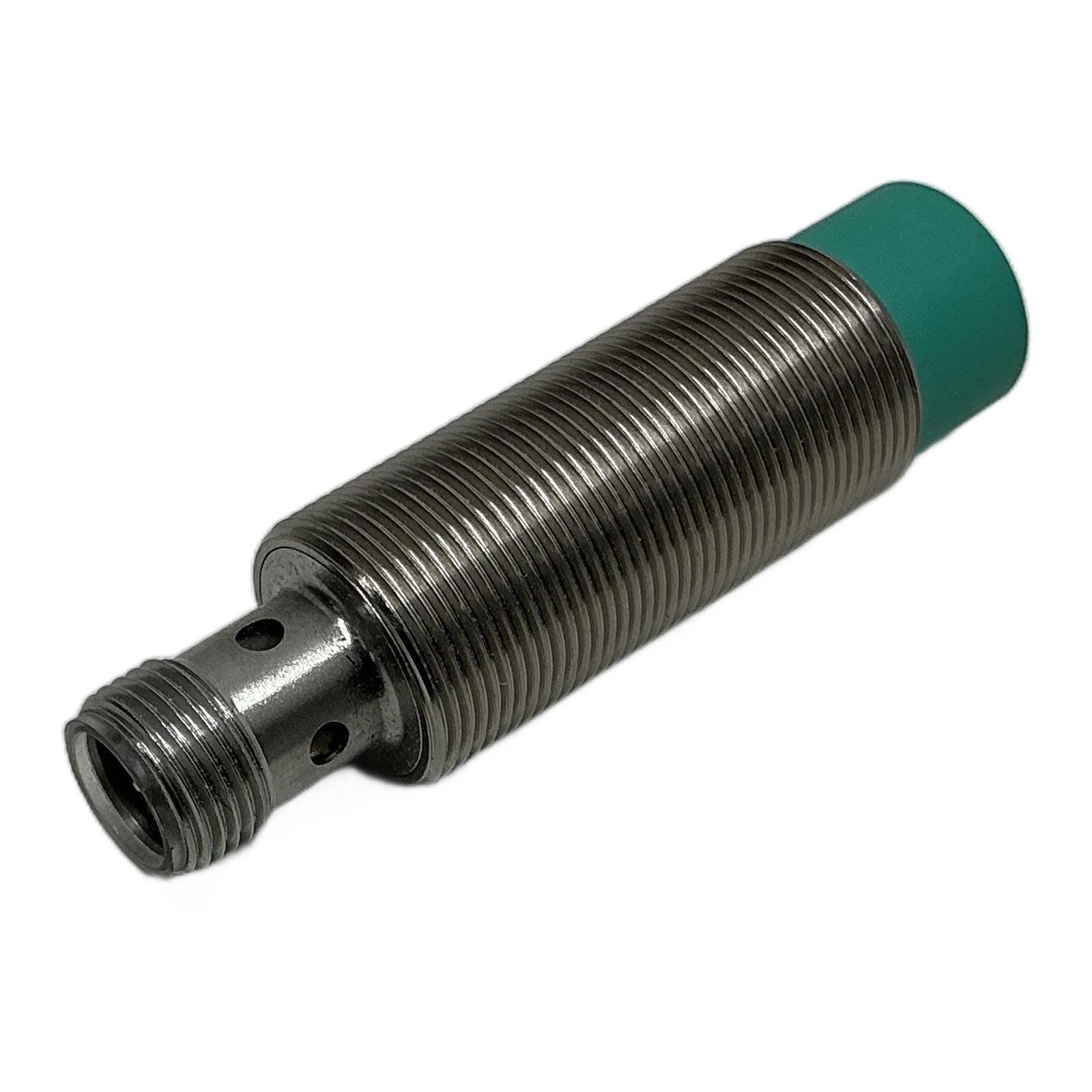

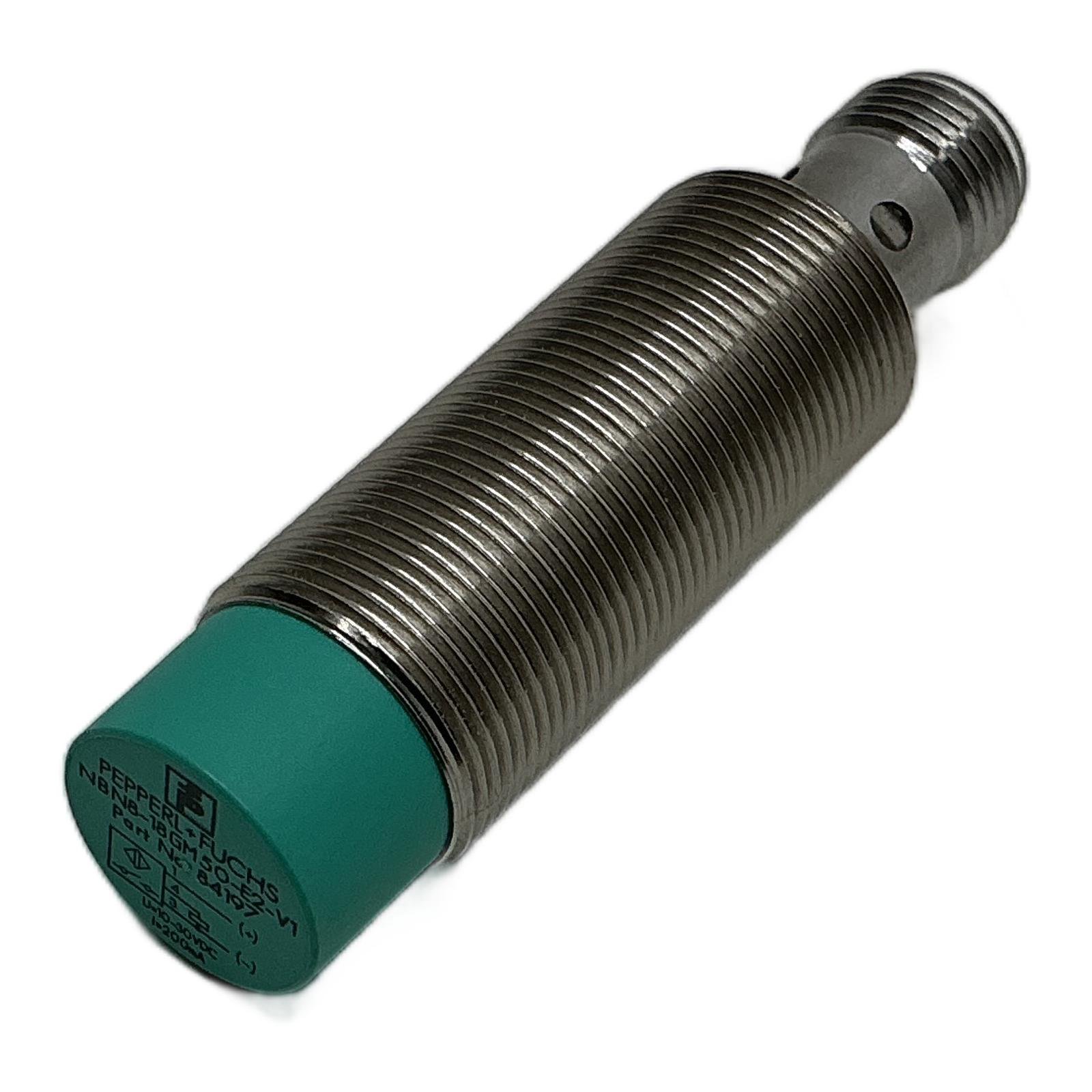

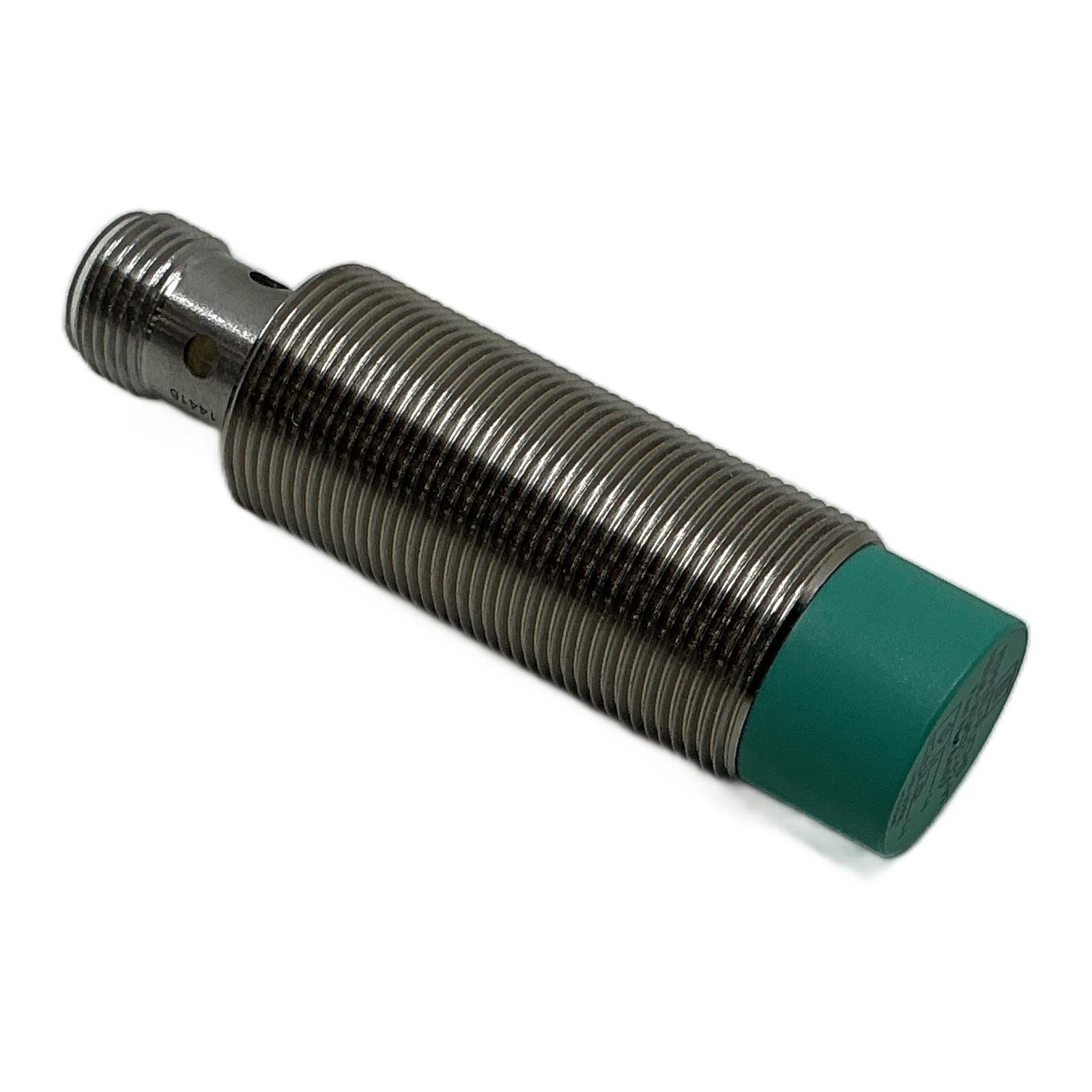

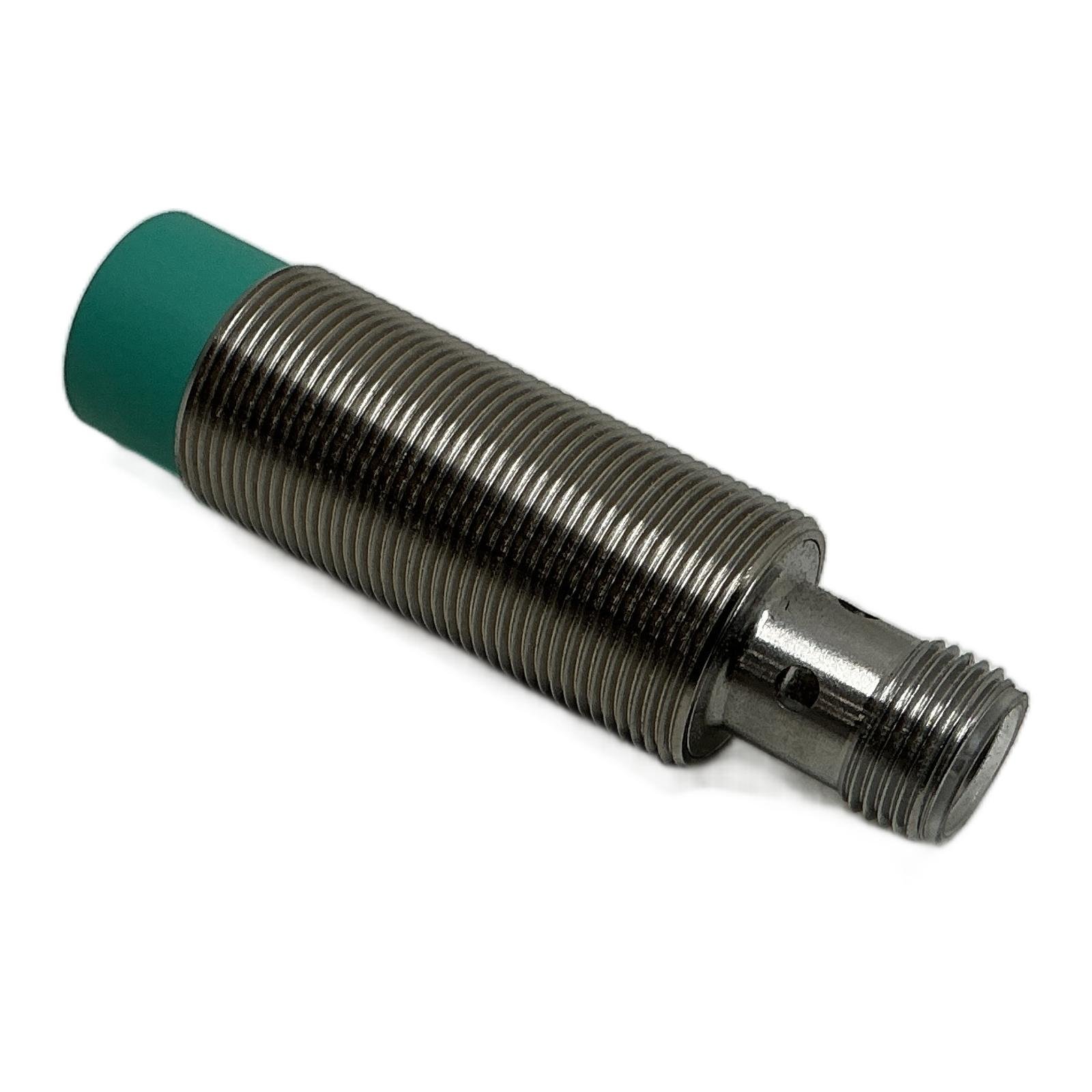

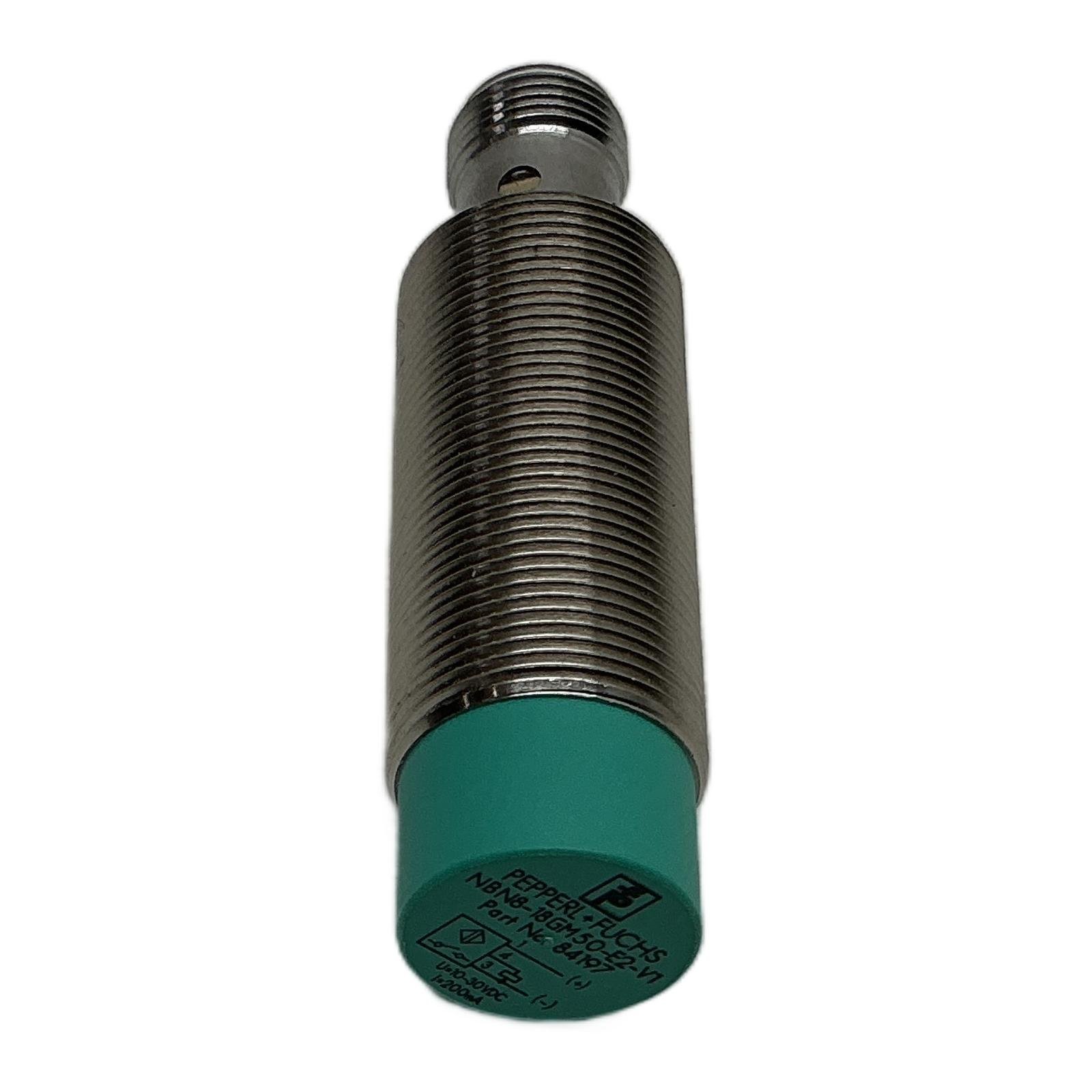

Pepperl+Fuchs Inductive Proximity Sensor NBN8-18GM50-E2-V1 Description The Pepperl+Fuchs NBN8-18GM50-E2-V1 is a high-performance inductive proximity sensor designed for non-contact detection of metal targets in industrial automation applications. It features a standard M18 threaded barrel for easy mounting and a non-flush installation that allows for an extended sensing range of 8 mm. Its robust brass, nickel-plated housing ensures durability in harsh environments. The sensor operates on a 10-30V DC supply and provides a PNP normally open (NO) output, connecting via a standard M12 connector. Specifications Manufacturer: Pepperl+Fuchs Model: NBN8-18GM50-E2-V1 Sensing Range: 8 mm Installation: Non-flush Output Type: 3-wire PNP, Normally Open (NO) Operating Voltage: 10 to 30V DC Housing: M18 x 1 Threaded Barrel, Brass nickel-plated Connection: M12 Connector, 4-pin Label Info Type: NBN8-18GM50-E2-V1 Part No.: 084197 Voltage: U=10-30VDC Current: I
