SCHNEIDER ELECTRIC LRD06 034676

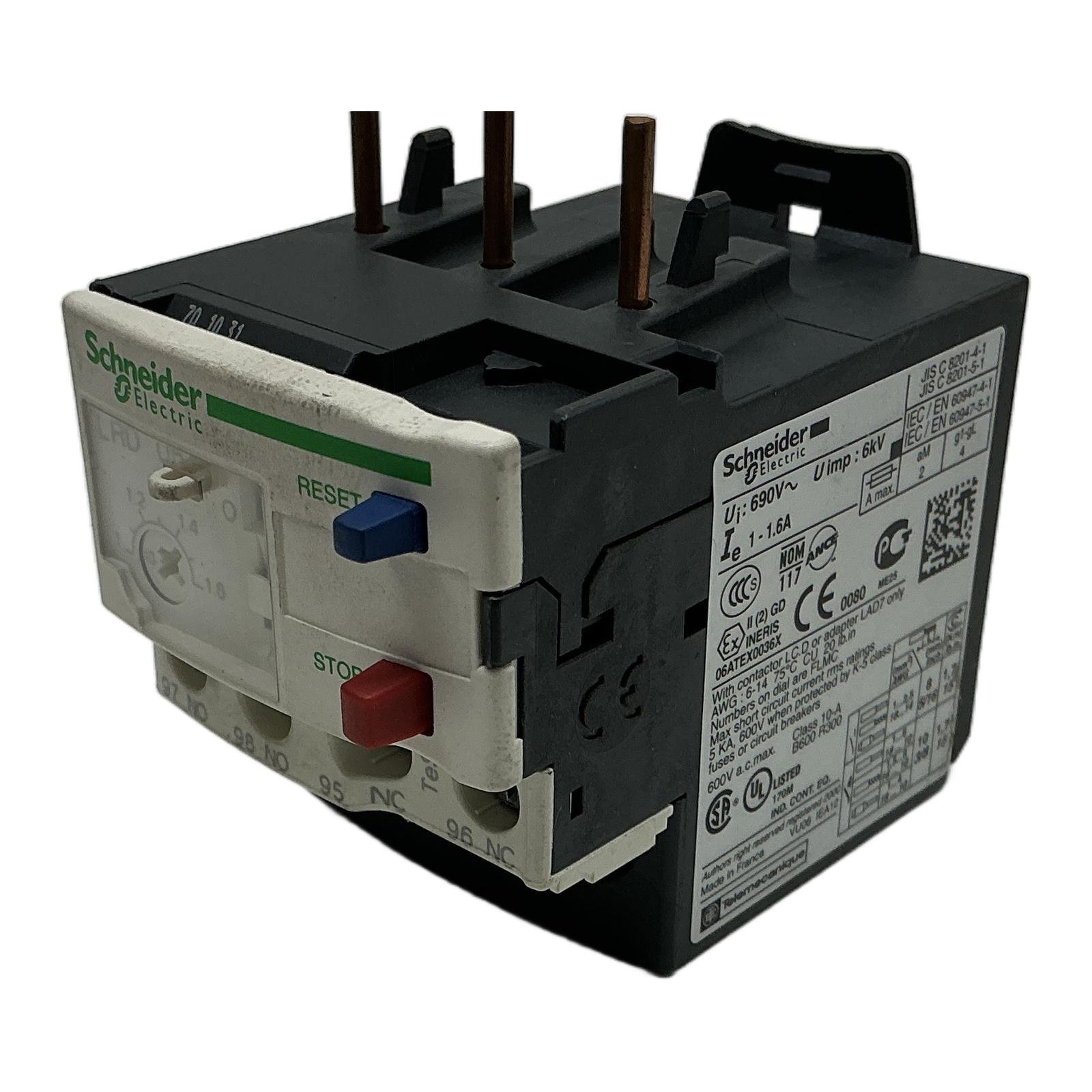

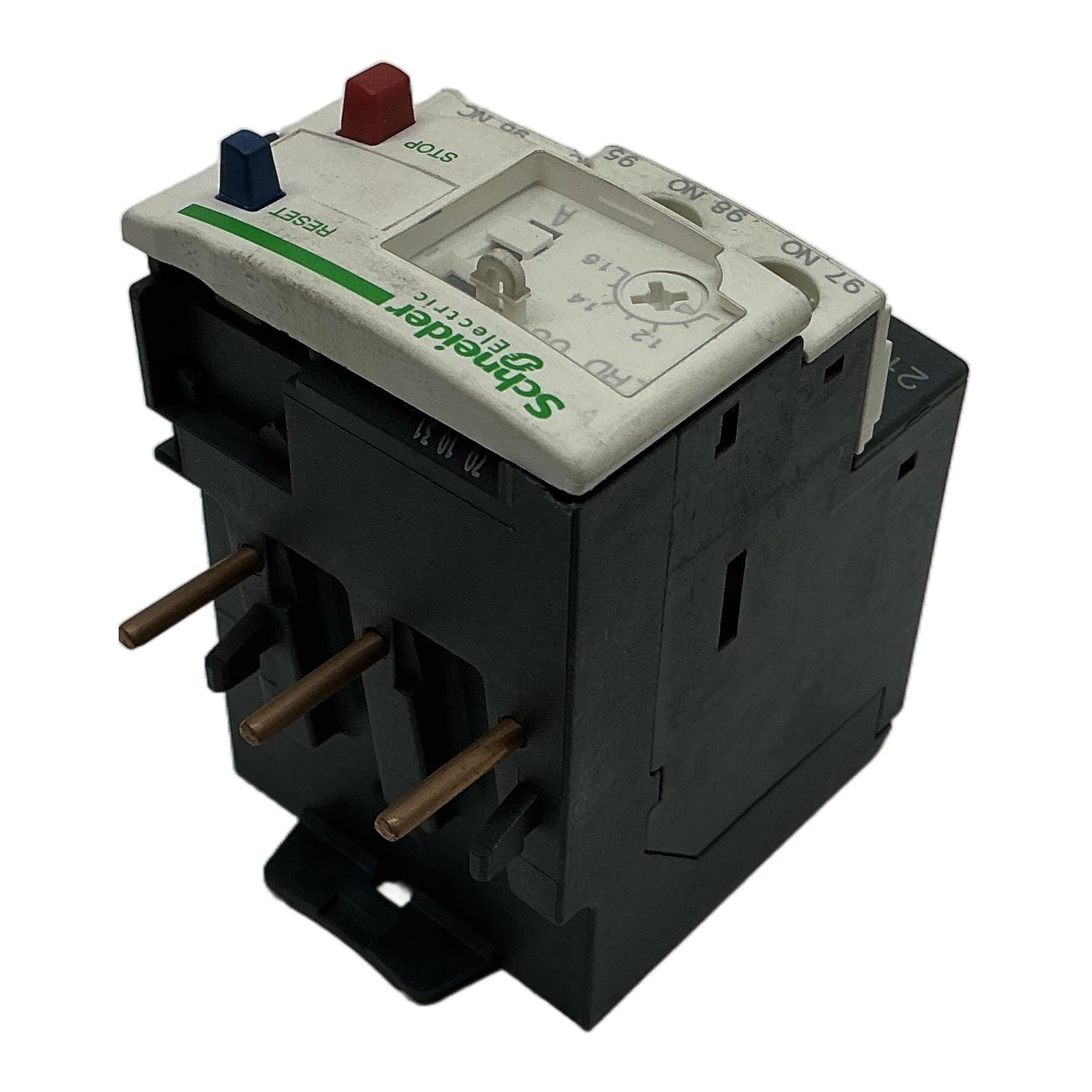

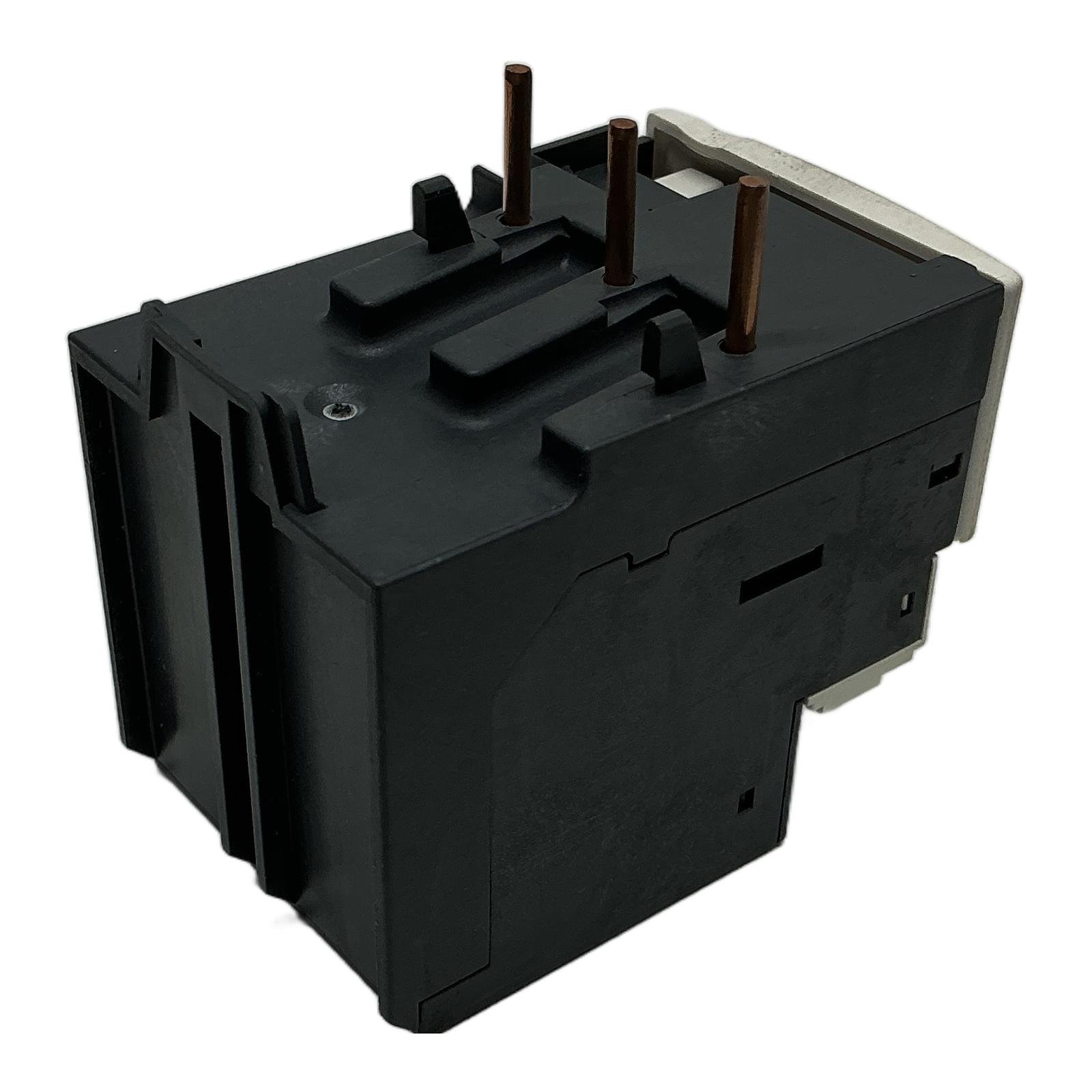

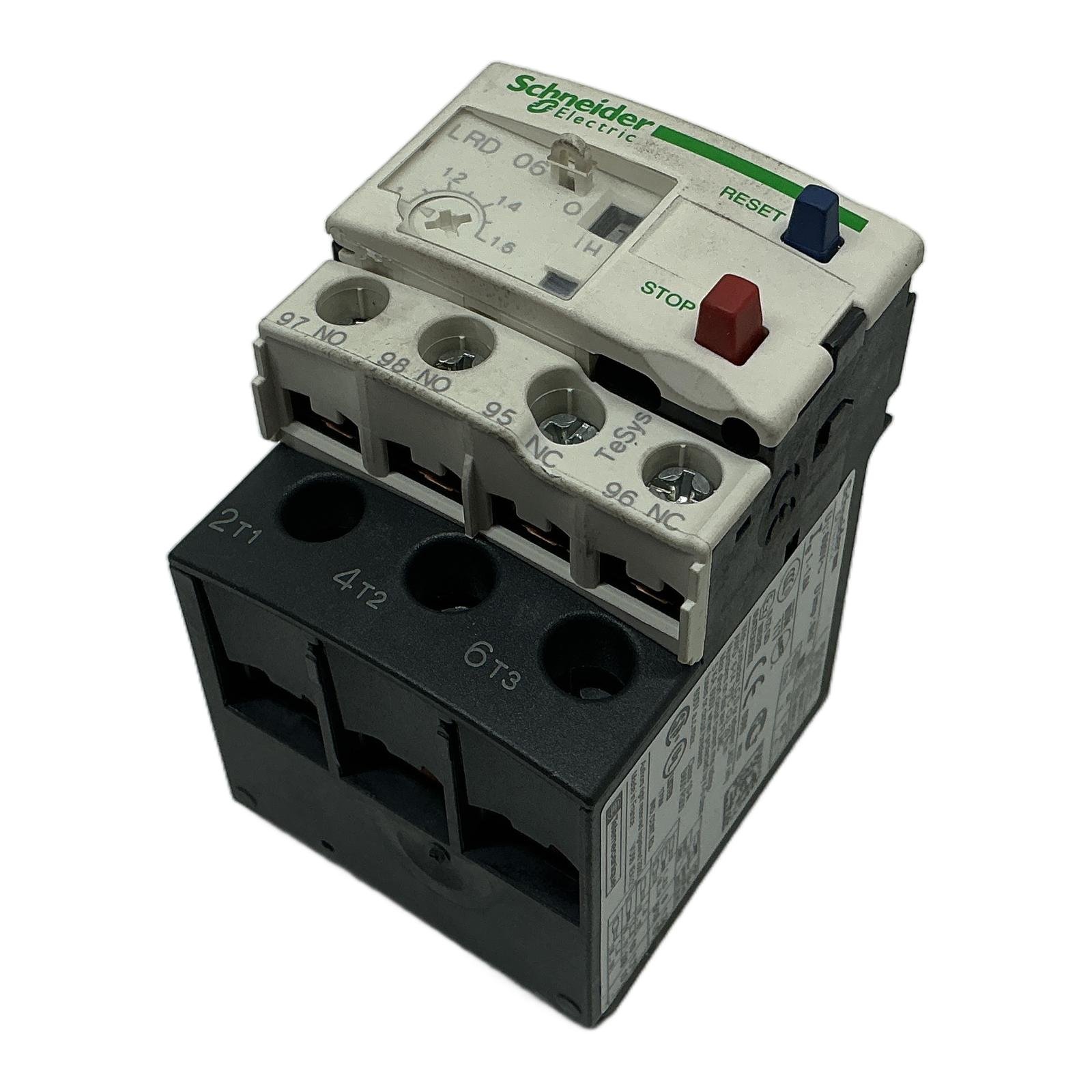

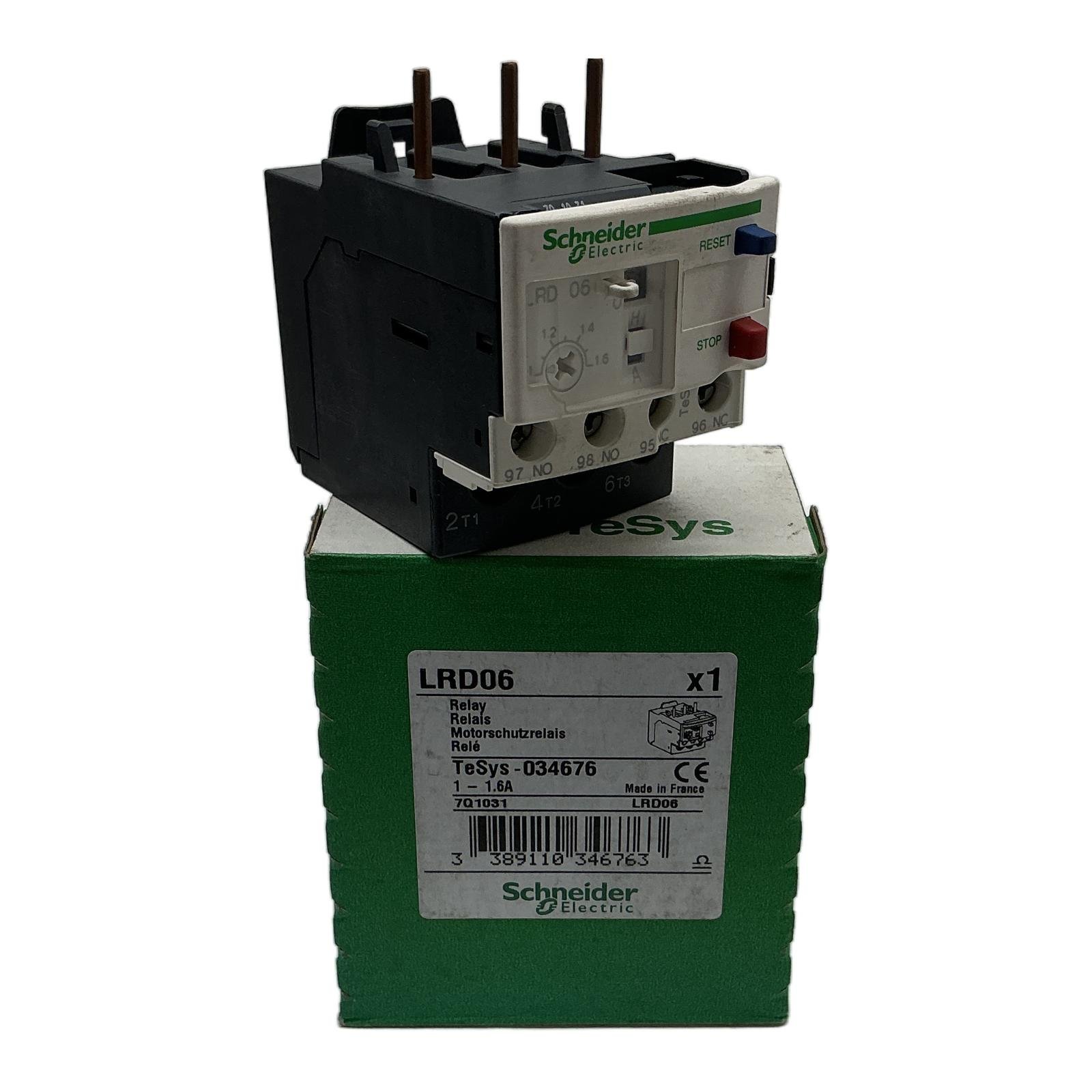

Schneider Electric TeSys LRD06 Thermal Overload Relay Description The Schneider Electric LRD06 is a high-performance differential thermal overload relay from the TeSys Deca range. It is engineered to provide precise and reliable protection for motors against thermal overloads, phase failure, and phase imbalance. With an adjustable current setting range of 1A to 1.6A, this relay is ideal for a variety of industrial applications. It is designed for direct mounting onto TeSys D contactors (LC1D09 to LC1D38), ensuring a compact and seamless installation. Specifications Manufacturer: Schneider Electric Product Range: TeSys Deca (formerly TeSys D) Product Type: Differential thermal overload relay Model: LRD06 Order Code: 034676 Thermal Protection Adjustment Range: 1…1.6 A Rated Insulation Voltage [Ui]: 690 V AC 50/60 Hz Network Type: AC Trip Class: Class 10A conforming to IEC 60947-4-1 Mounting Support: Plate, Rail, Direct on contactor Label Info Manufacturer: Schneider Electric Type: LRD06 Part Number: 034676 Current Range: 1 – 1.6A EAN: 3389110346763 Application This thermal overload relay is primarily used in industrial automation and control systems for motor protection in applications such as conveyors, pumps, fans, and mixers. Its differential mechanism makes it particularly suitable for applications where phase loss could cause significant damage. Country of Origin Made in France. CO2 Impact Opting for this reused Schneider Electric LRD06 relay prevents the emission of approximately 6.0 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the CO2 absorbed by a mature tree over several months. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the trip class of the LRD06 relay?The Schneider Electric LRD06 has a trip class of 10A according to IEC 60947-4-1, which is suitable for standard motor starting conditions. Can the LRD06 be mounted separately from a contactor?Yes, while it is designed for direct mounting on TeSys D contactors, it can also be mounted separately using the LAD7B106 terminal block accessory. Does this relay have built-in phase failure protection?Yes, the LRD06 is a differential thermal overload relay, which means it includes built-in protection against phase failure or imbalance, helping to prevent motor damage. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder. Laatst bijgewerkt: Friday, March 13, 2026
