LUTZE LOCC-Box-FB 7-6401 716401

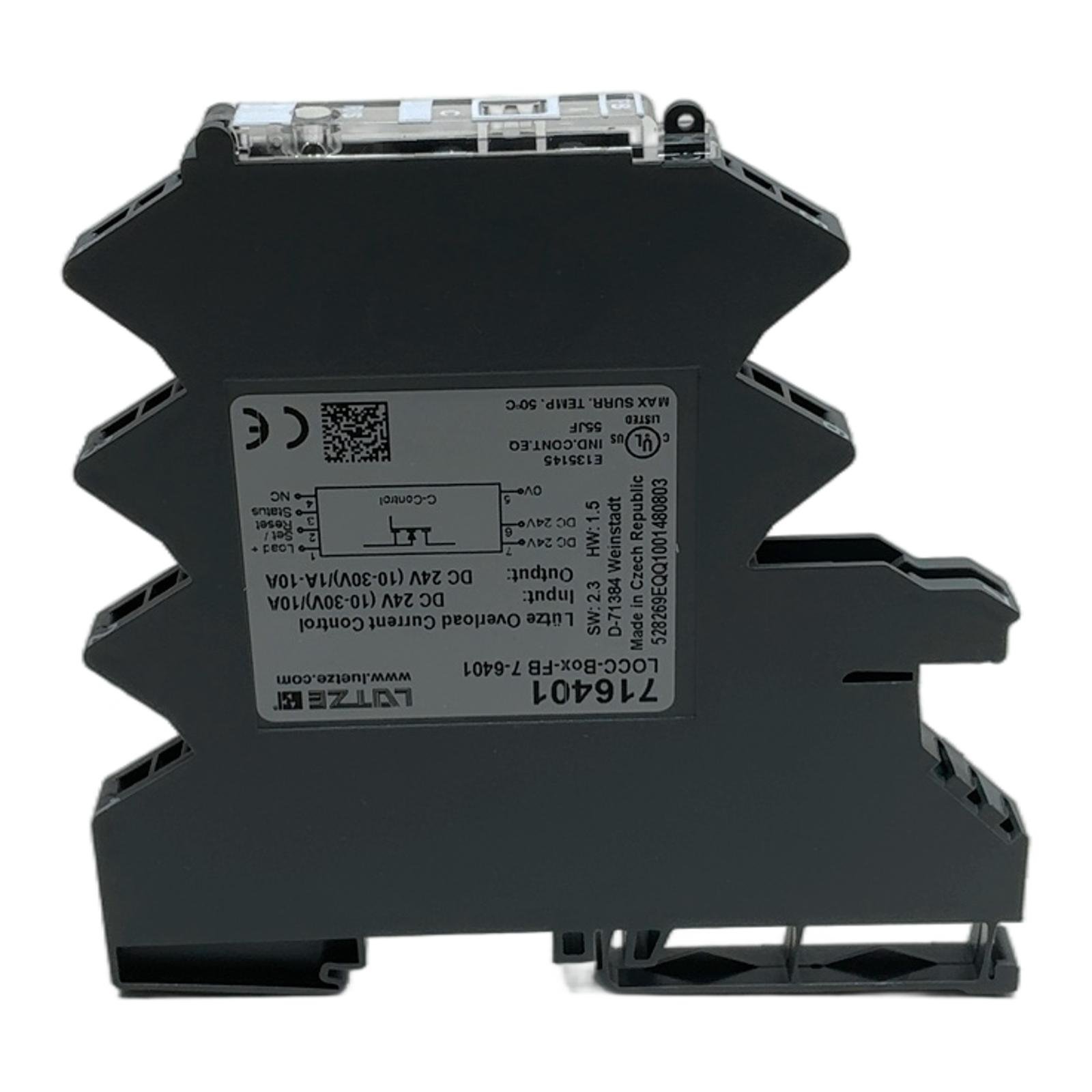

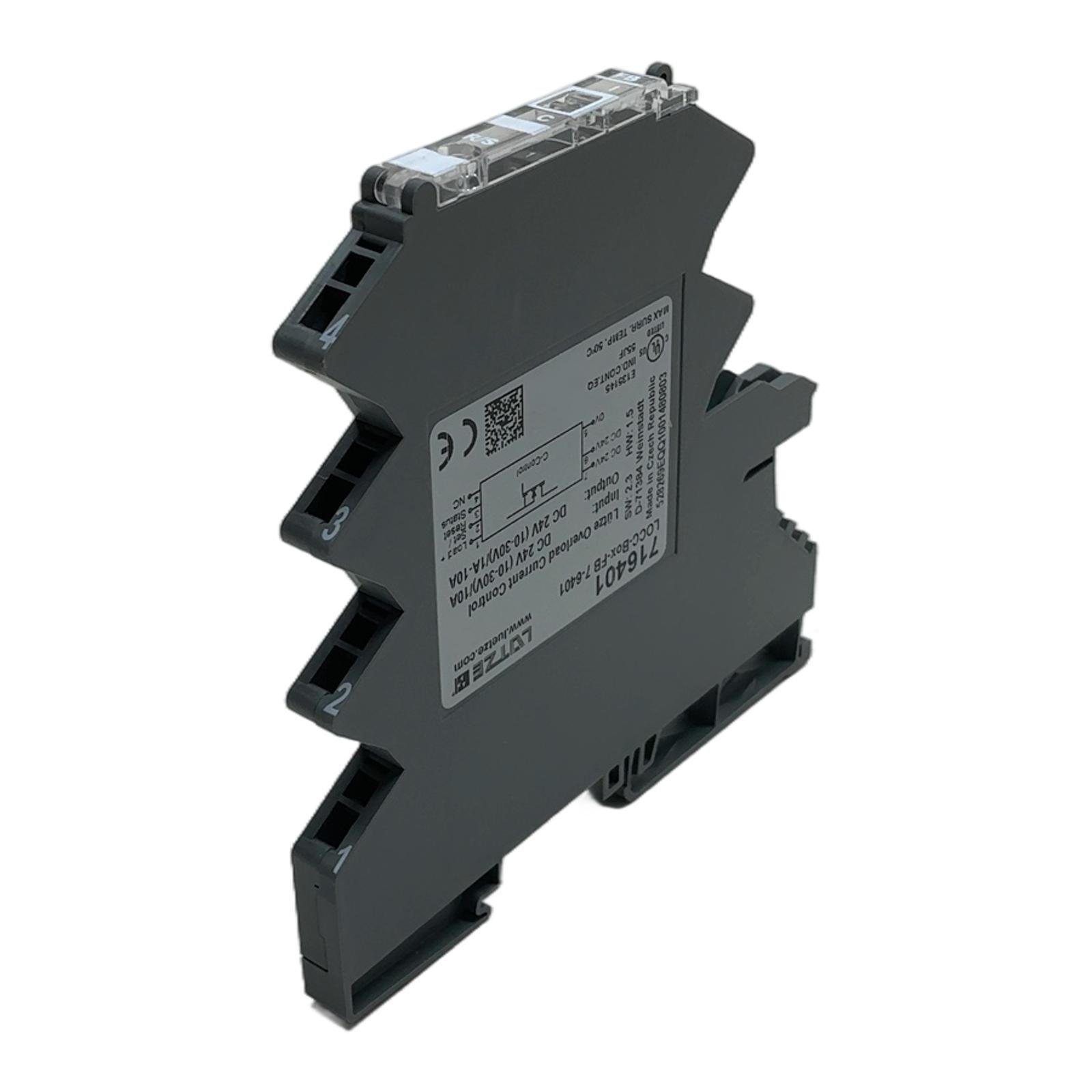

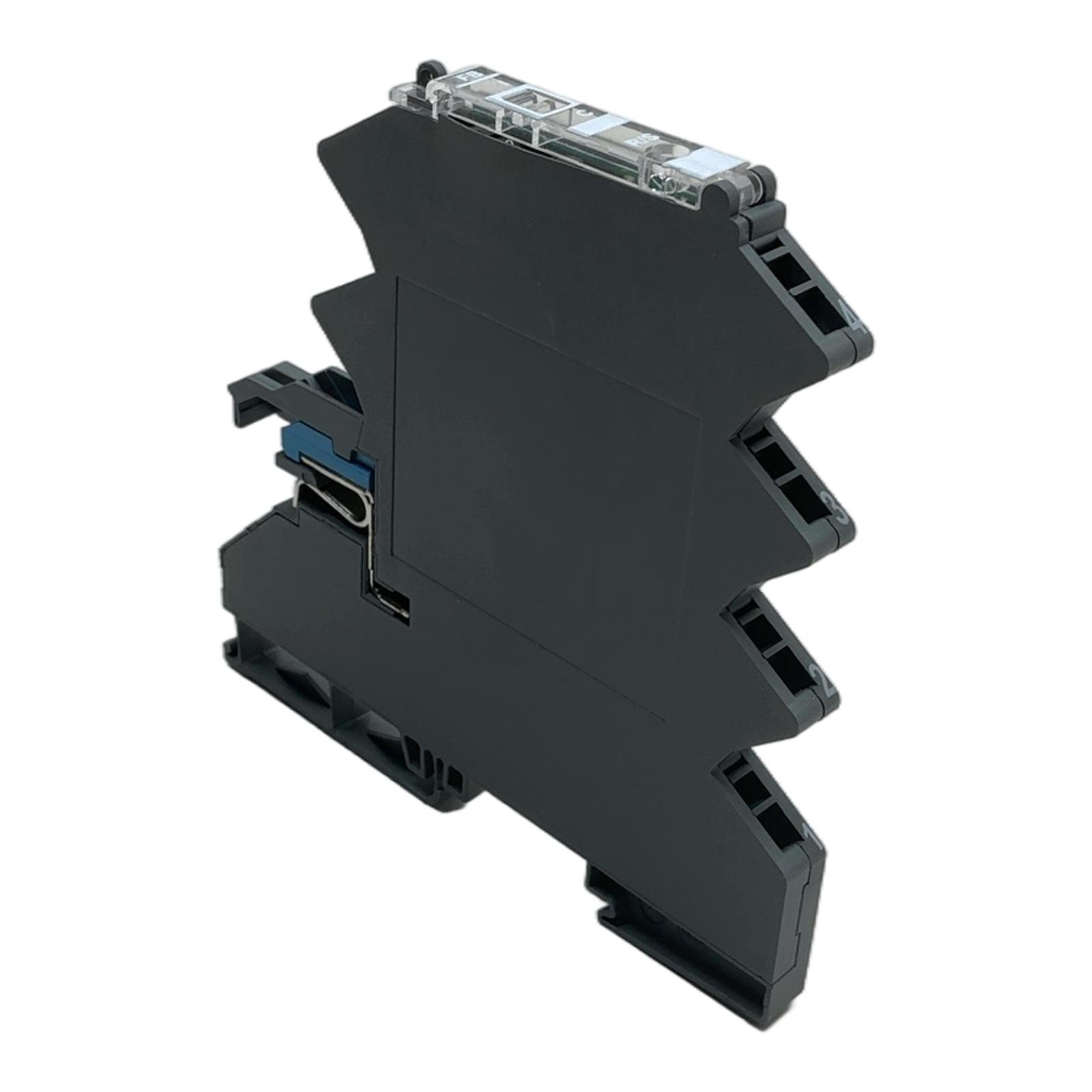

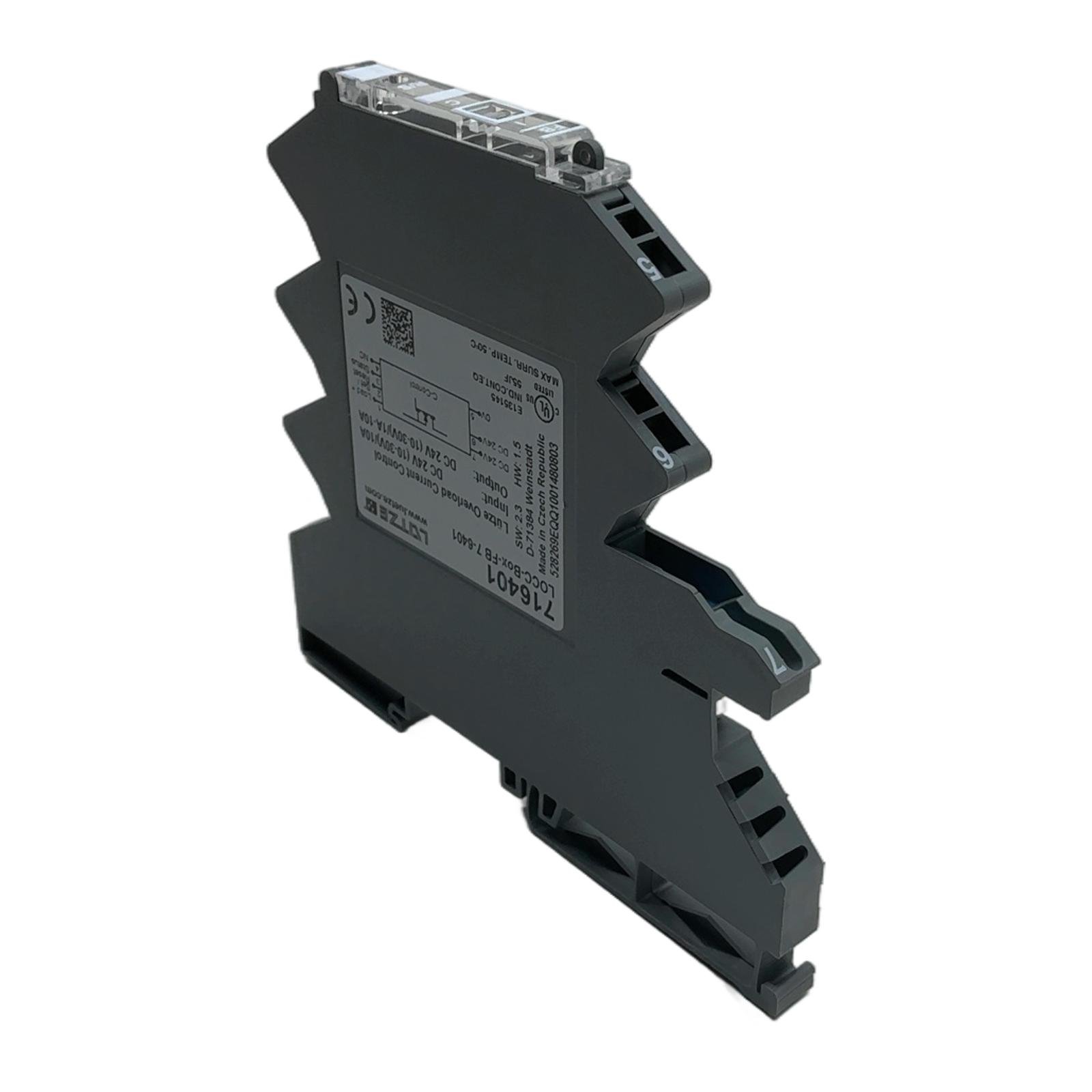

<h2>Lutze 716401 LOCC-Box-FB Current Control Module</h2> <h3>Description</h3> <p>The Lutze LOCC-Box-FB, part number 716401, is an intelligent electronic circuit breaker designed for overload and short-circuit protection in 24V DC control circuits. This module features a selectable current range from 1A to 10A, providing versatile protection for a wide variety of industrial applications. Its compact design allows for easy installation on a standard DIN rail, saving valuable cabinet space while enhancing system reliability and safety.</p> <h3>Specifications</h3> <ul> <li>Manufacturer: Lutze</li> <li>Type: LOCC-Box-FB 7-6401</li> <li>Part Number: 716401</li> <li>Input Voltage: 24V DC (10V to 30V)</li> <li>Output Current: 1A to 10A, selectable</li> <li>Mounting: DIN Rail</li> <li>Operating Temperature: Max 50 deg C</li> </ul> <h3>Label Info</h3> <ul> <li>SW: 2.3</li> <li>UL Listed: E135145, IND.CONT.EQ, 55JF</li> </ul> <h3>Application</h3> <p>This module is ideal for protecting sensors, actuators, PLCs, and other control components in automation systems, machine building, and process control environments where precise and reliable current protection is critical.</p> <h3>Country of Origin</h3> <p>Made in Czech Republic.</p> <h3>CO2 Impact</h3> <p>By purchasing this reused component, you are helping to avoid the CO2 emissions associated with new manufacturing, contributing to a more sustainable industrial sector.</p> <h3>Availability</h3> <p>This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery.</p> <h3>FAQ</h3> <strong>How do I select the current rating on the LOCC-Box-FB 716401?</strong><br><p>The current rating is set via a switch accessible on the device, typically labelled SW 2.3 as seen on the label. This allows for precise settings between 1A and 10A to match your specific load requirements.</p> <strong>What is the purpose of the ‘C-Control’ input?</strong><br><p>The C-Control input allows for remote resetting of a tripped channel or remote on/off control. This feature enables integration into automated control sequences, improving system management and reducing manual intervention.</p> <strong>Is this device suitable for circuits with high inrush currents, like those with capacitive loads?</strong><br><p>Yes, the LOCC-Box system is specifically designed to manage high inrush currents from capacitive loads or power supplies without causing nuisance trips, ensuring stable and reliable operation.</p> <p><em>profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.</em></p> <p>Last Update: Friday, March 13, 2026</p>
