FESTO LFR-D-5M-MIDI-A 162729
FESTO LFR-D-5M-MIDI-A 162729
€ 68,95
1 op voorraad
1 op voorraad
Betaalmethode:
Specificatie
| Gewicht | 7,00 kg |
|---|---|
| Packing Quantity |
1 Unit(s) |
| Unit of Measure |
Unit(s) |
| Brand |
FESTO |
| Category |
Compressed Air Preparation |
| Description |
Pneumatic Filter Regulator |
| MPN |
LFR-D-5M-MIDI-A 162729 |
| Other Notations |
LFR-D-5M-MIDI-A 162729 ,LFR-D-5M-MIDI-A162729 ,LFRD5MMIDIA 162729 ,LFRD5MMIDIA162729 |
| Fabr. Art. Nr. |
LFRD5MMIDIA 162729 |
- Ophalen in ons magazijn
Roosendaal
Vandaag
- Standaard levering
Nederland
België
1-2 dagen
1-2 dagen
Omschrijving

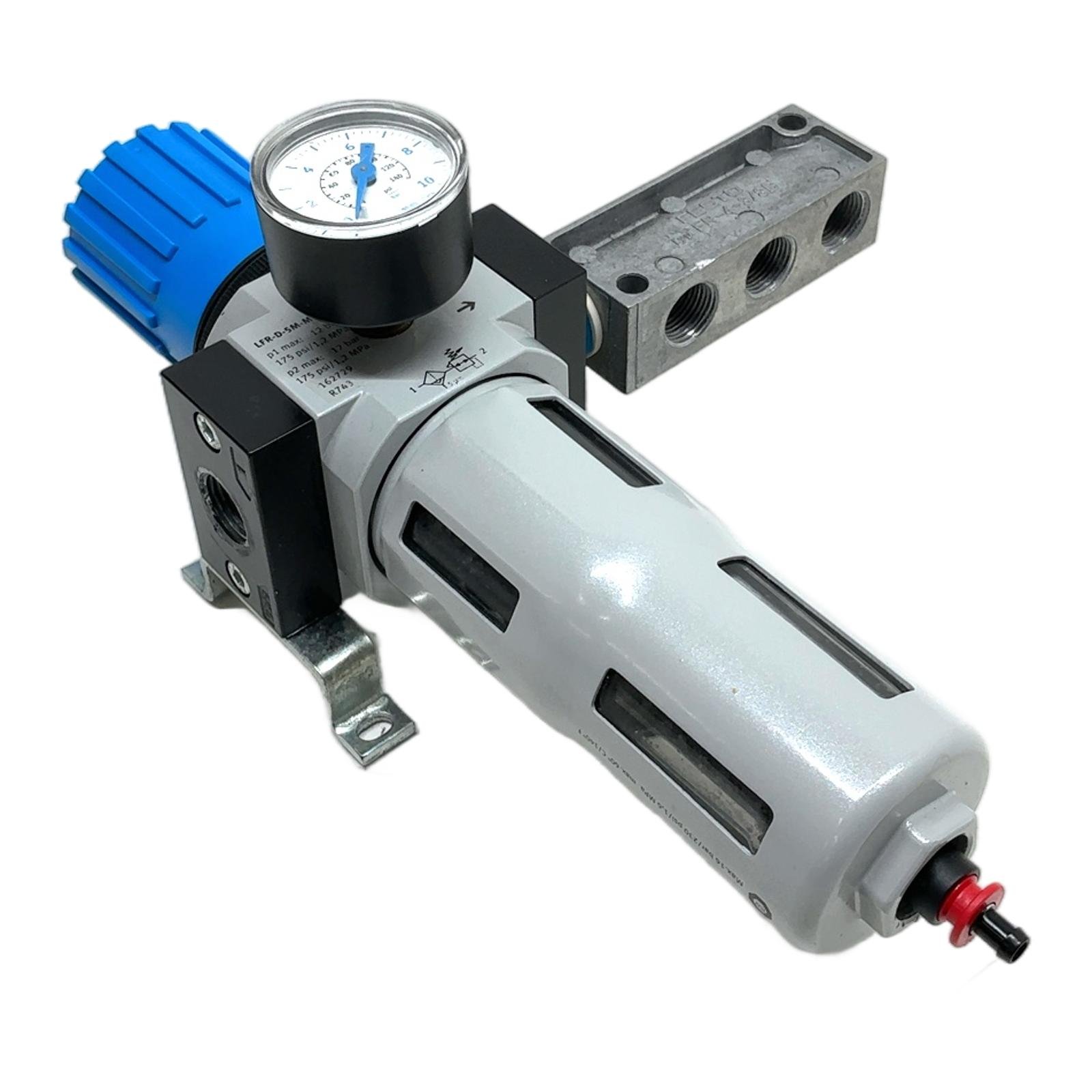

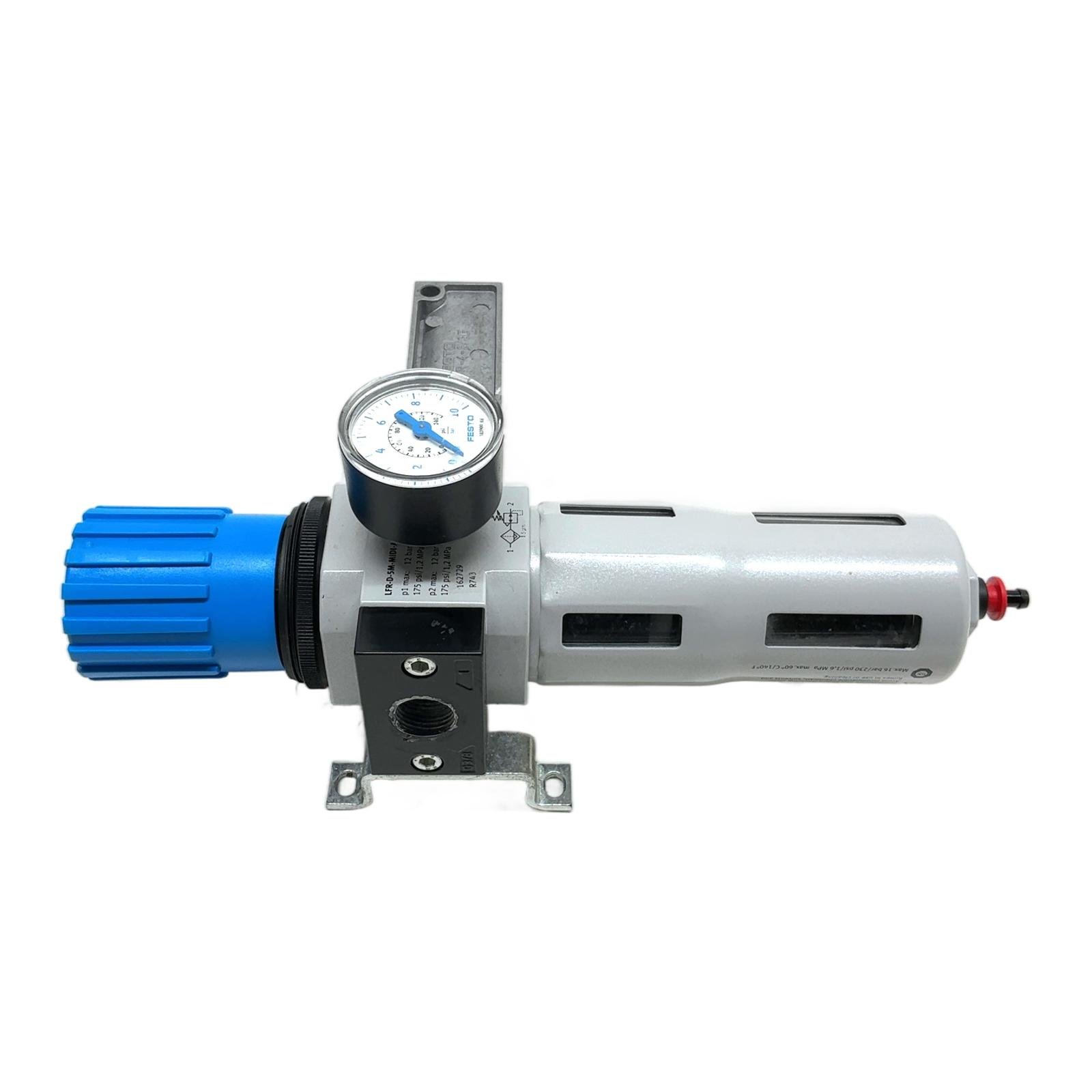

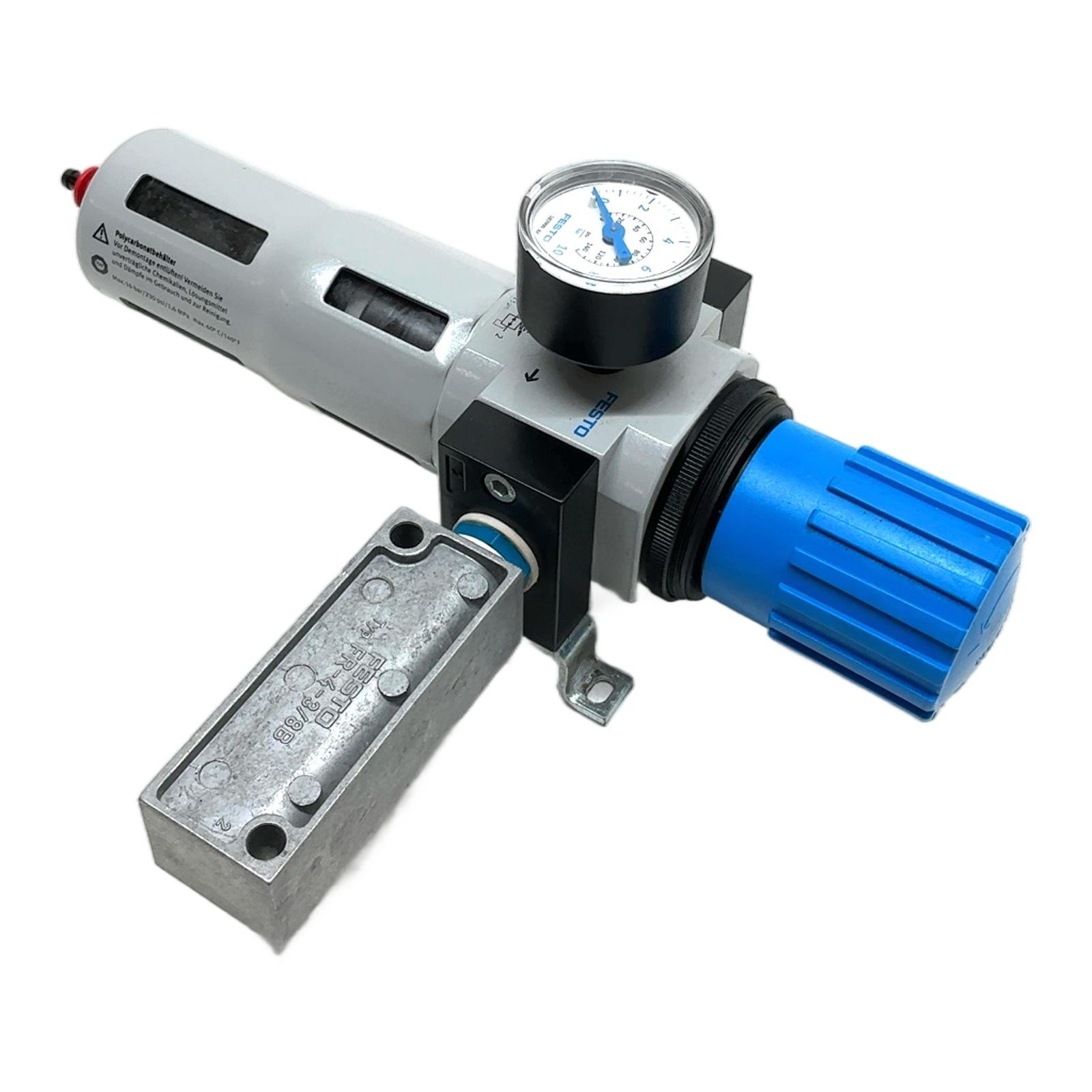

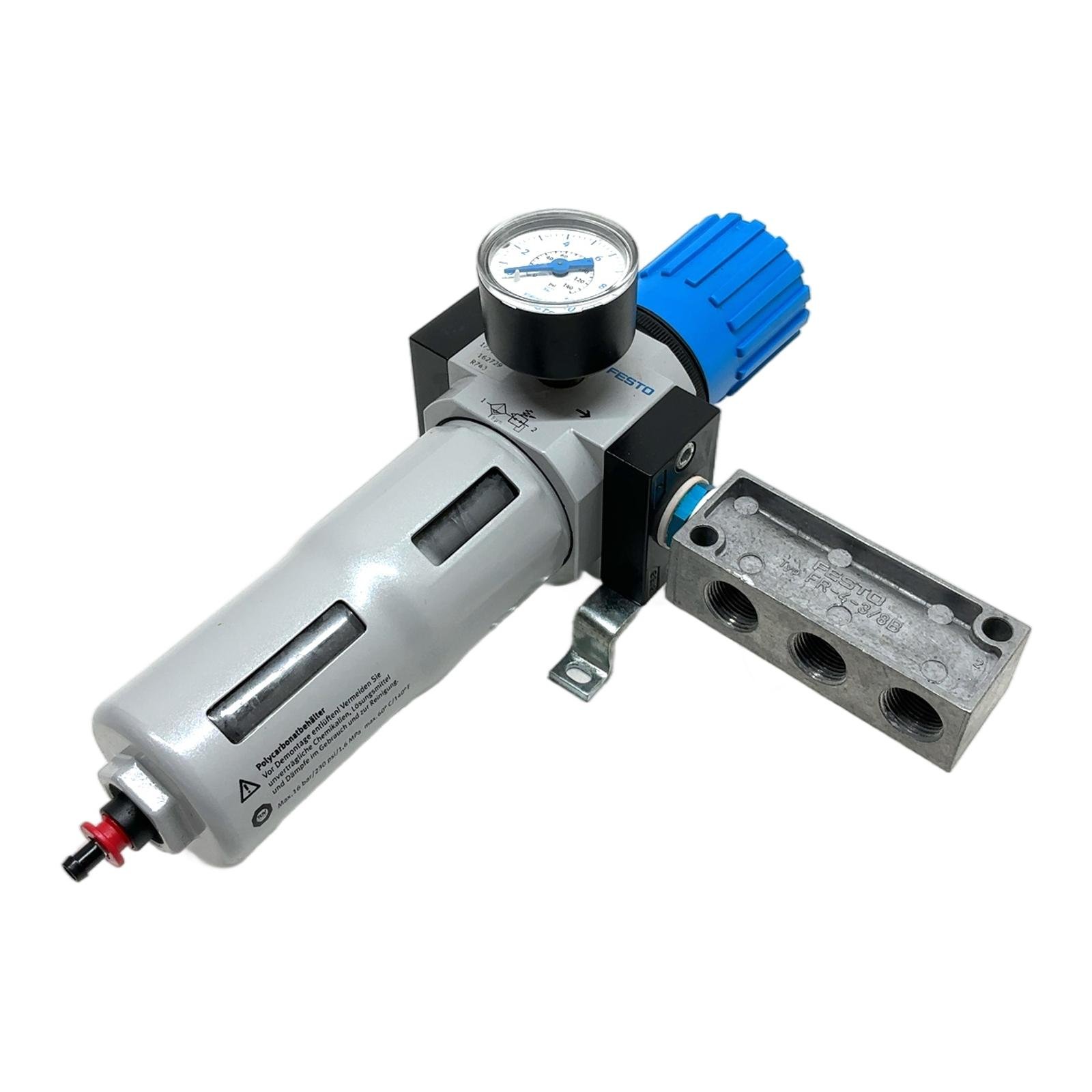

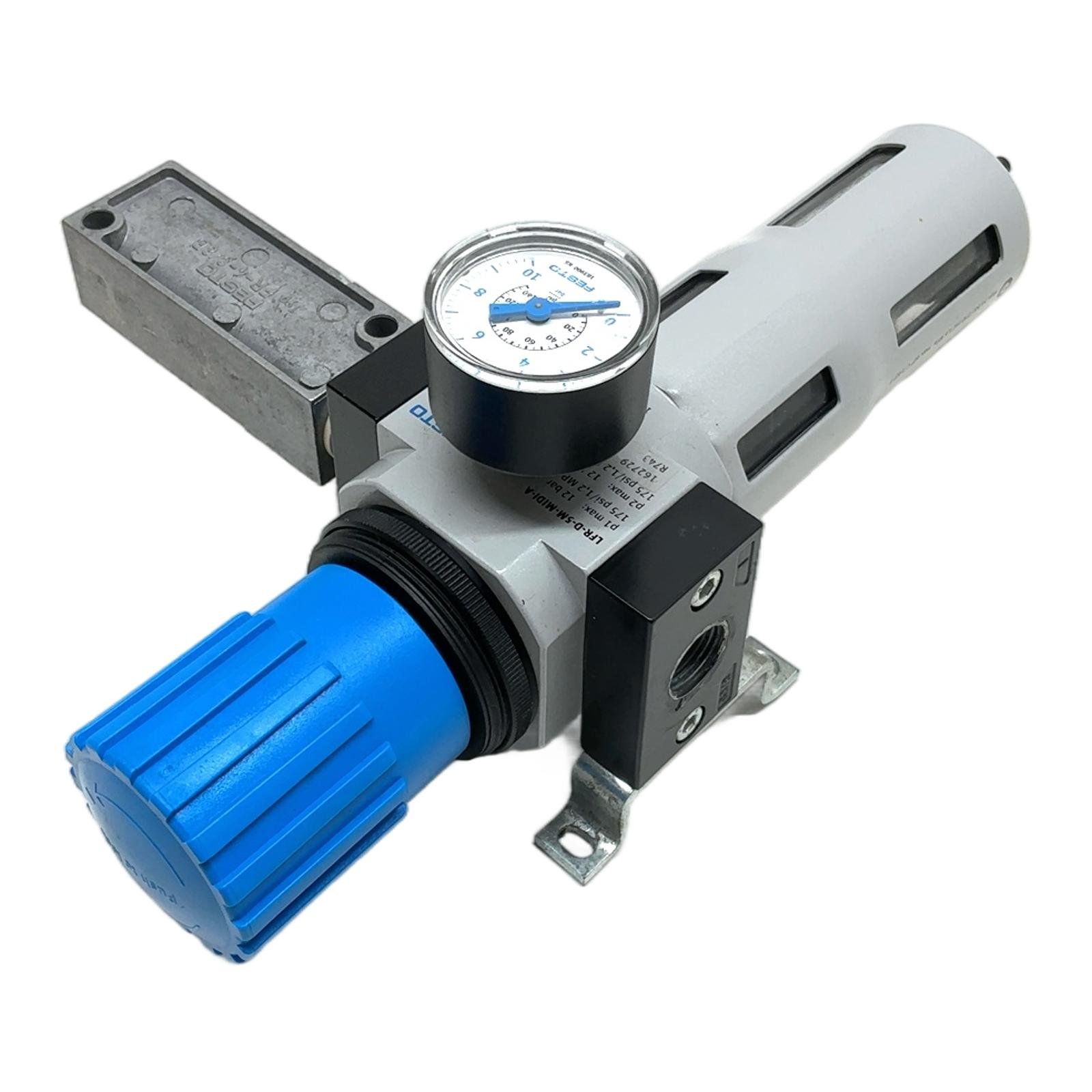

Festo D-Series Filter Regulator Unit Description This is a complete filter regulator assembly from Festo’s proven D-series, part number 162729. The LFR-D-5M-MIDI-A provides excellent particle separation and high flow rates with precise pressure regulation. This unit comes pre-assembled with a pressure gauge (0-10 bar / 0-140 psi), mounting brackets, and an FR-4-3/8B distributor block, offering a ready-to-install solution for your compressed air system. Its metal bowl guard ensures durability in demanding industrial environments. Specifications Manufacturer: Festo Type: LFR-D-5M-MIDI-A Part Number: 162729 Series: D-Series, MIDI size Maximum Inlet Pressure: 12 bar / 1.2 MPa Pressure Regulation Range: 0.5 to 12 bar Port Connection: G3/8 (via distributor block) Filter Grade: 5 um Condensate Drain: Manual rotary knob Gauge Part Number: 183900 (MA-40-10-1/8-EN) Distributor Block Part Number: FR-4-3/8B Application Ideal for general pneumatic applications requiring clean, regulated compressed air, such as controlling pneumatic cylinders, valves, and air tools. Suitable for machine building, automation lines, and workshop air supply systems. Country of Origin Made in Germany. CO2 Impact By reusing this component, you are avoiding the emission of approximately 14.4 kg of CO2. This saving is comparable to the amount of CO2 produced by driving a car for 72 km. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the filtration rating of this unit?This filter regulator has a filtration grade of 5 micrometers (5 um), as indicated by the ‘5M’ in its type number. This is suitable for standard pneumatic applications. How is the condensate drained from the filter bowl?This specific model is equipped with a manual condensate drain. Condensate can be removed by turning the red knob at the bottom of the filter bowl. Can the pressure gauge be mounted on the other side?Yes, the D-series regulators feature G1/8 ports on both the front and back faces, allowing the pressure gauge to be mounted on either side for maximum installation flexibility. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
