SCHNEIDER ELECTRIC LC1D8011

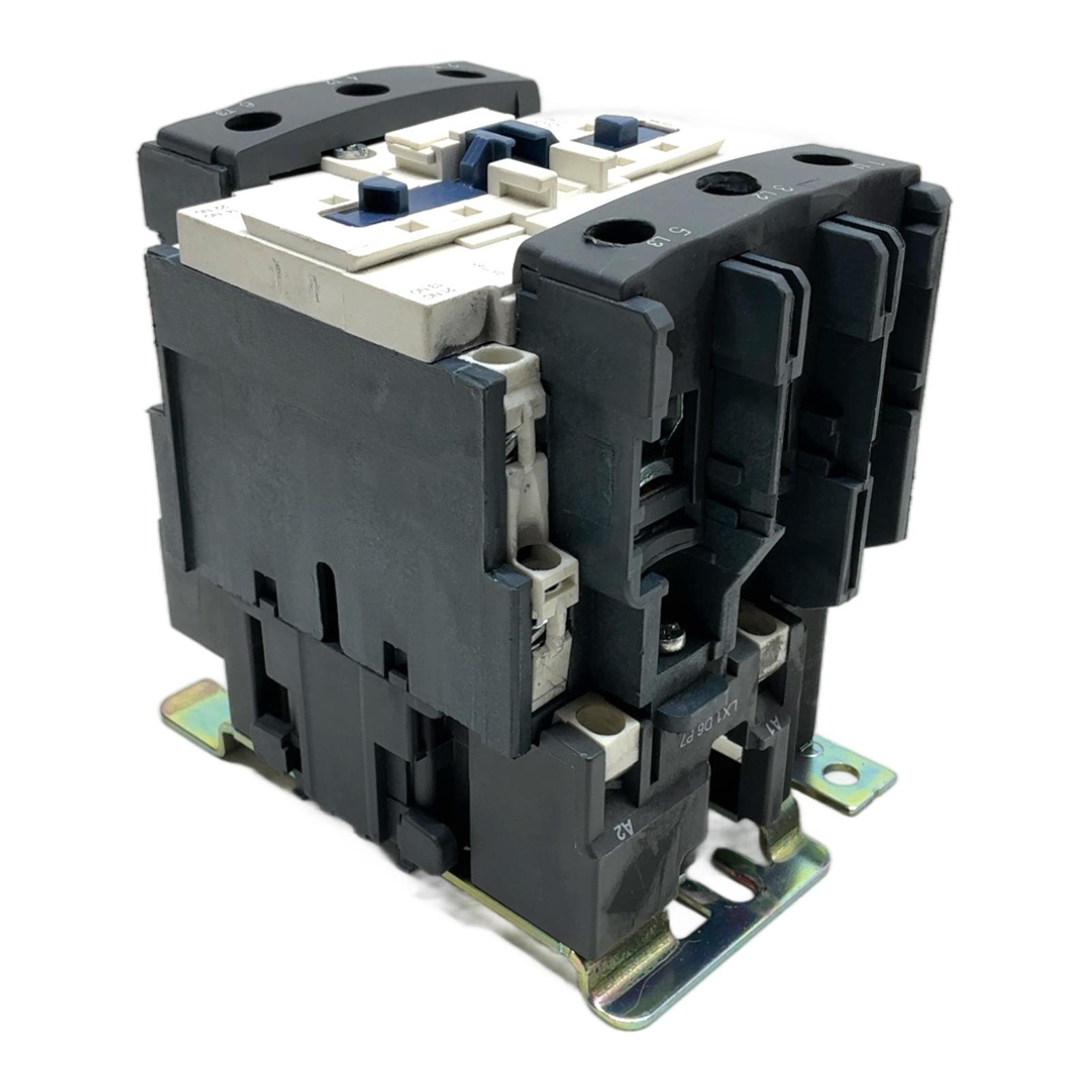

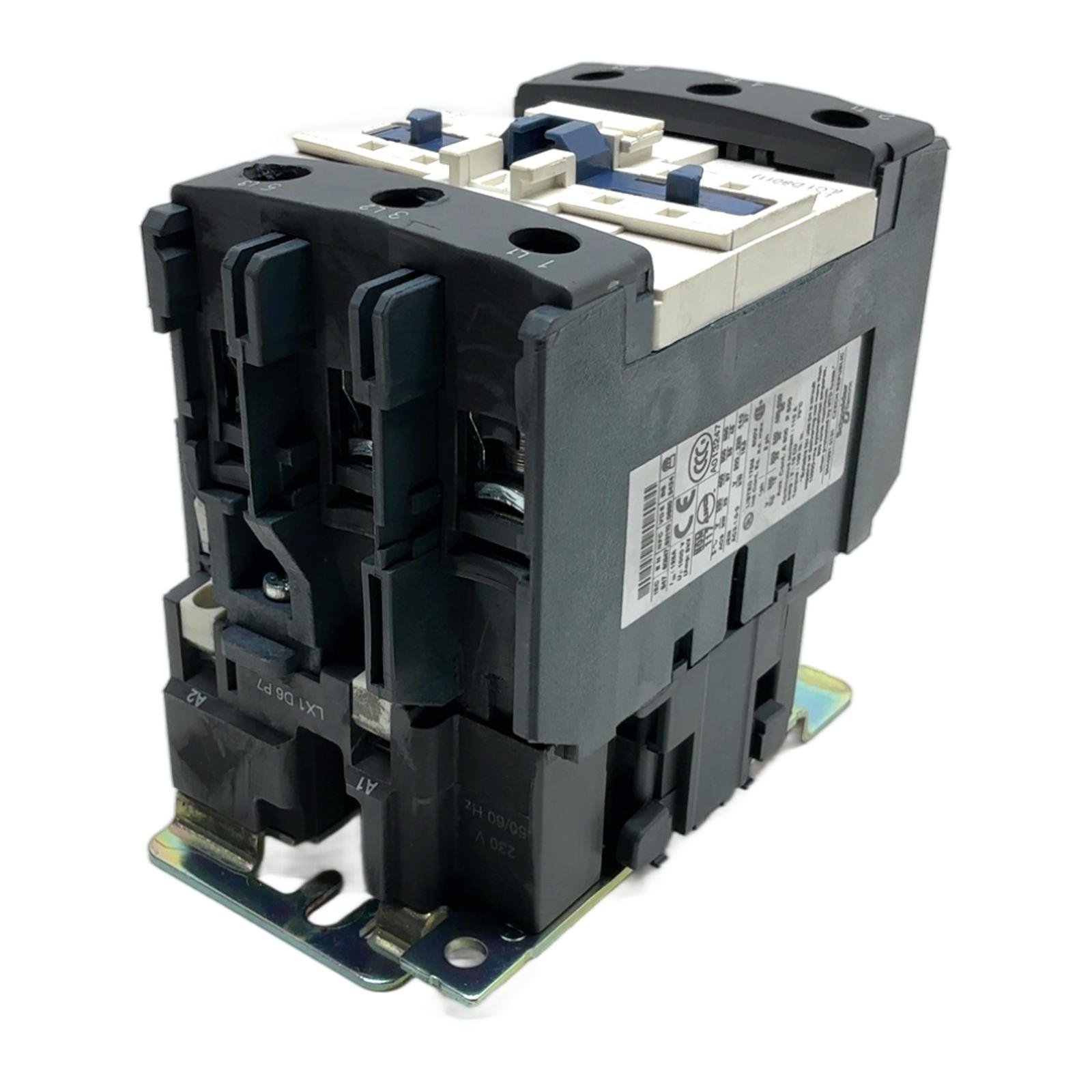

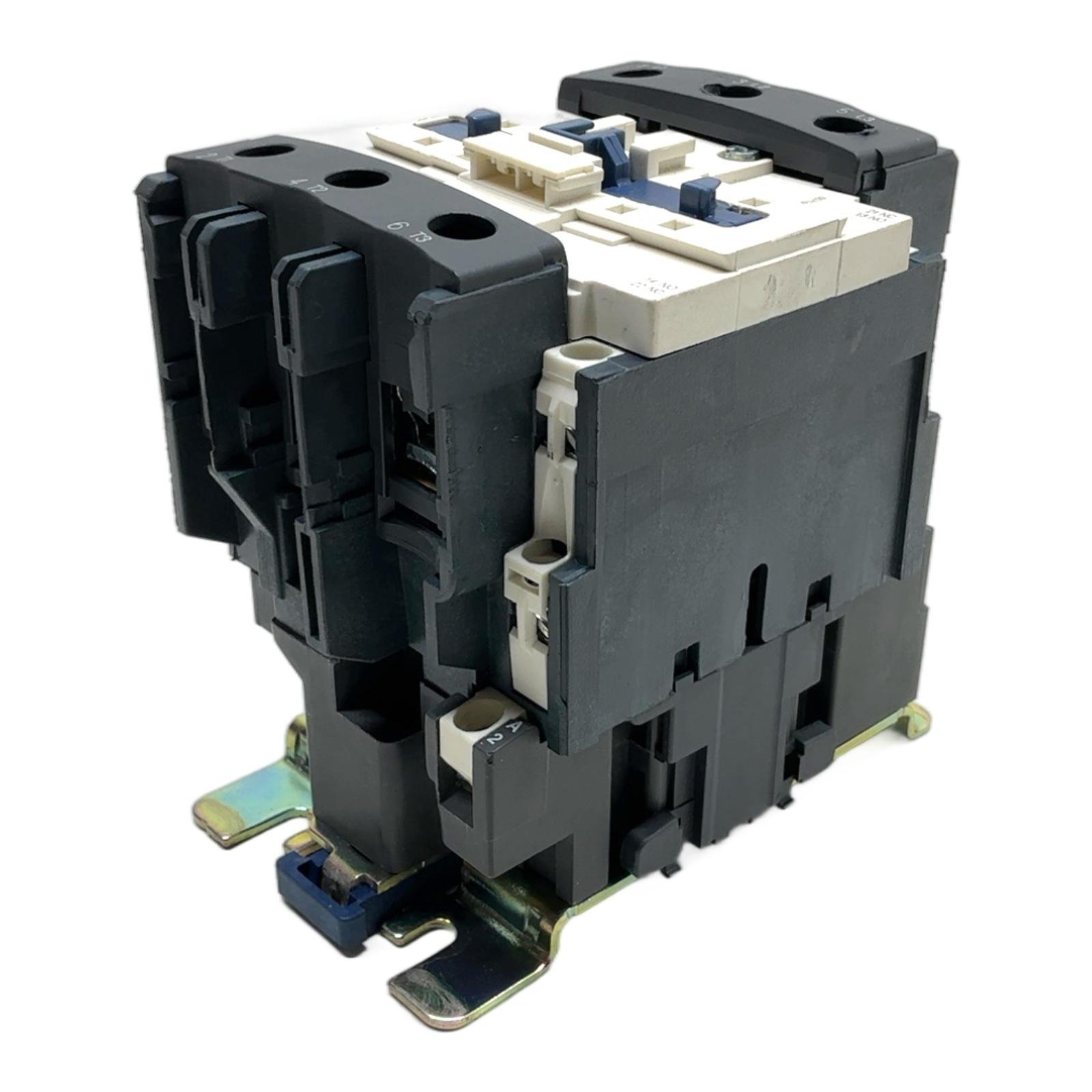

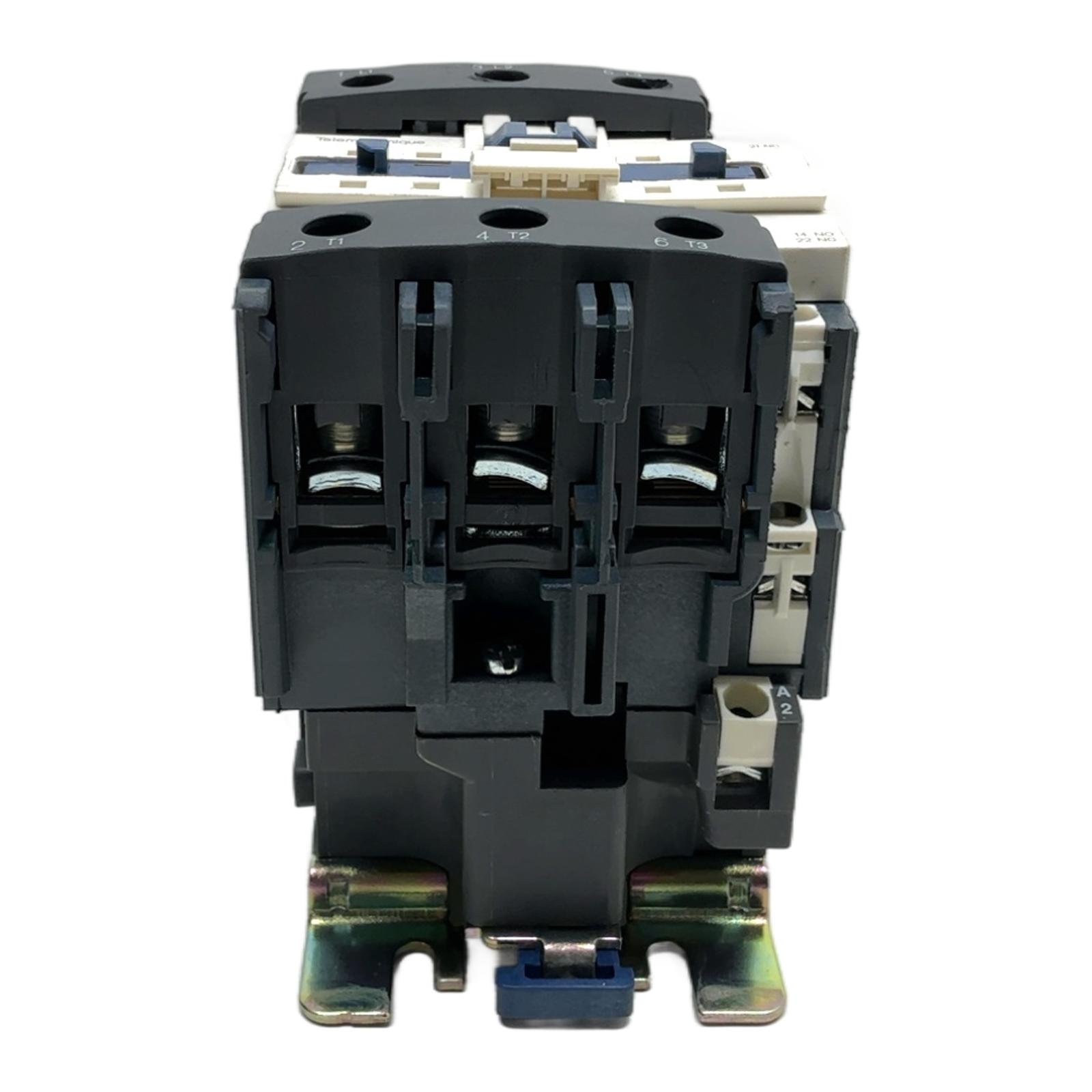

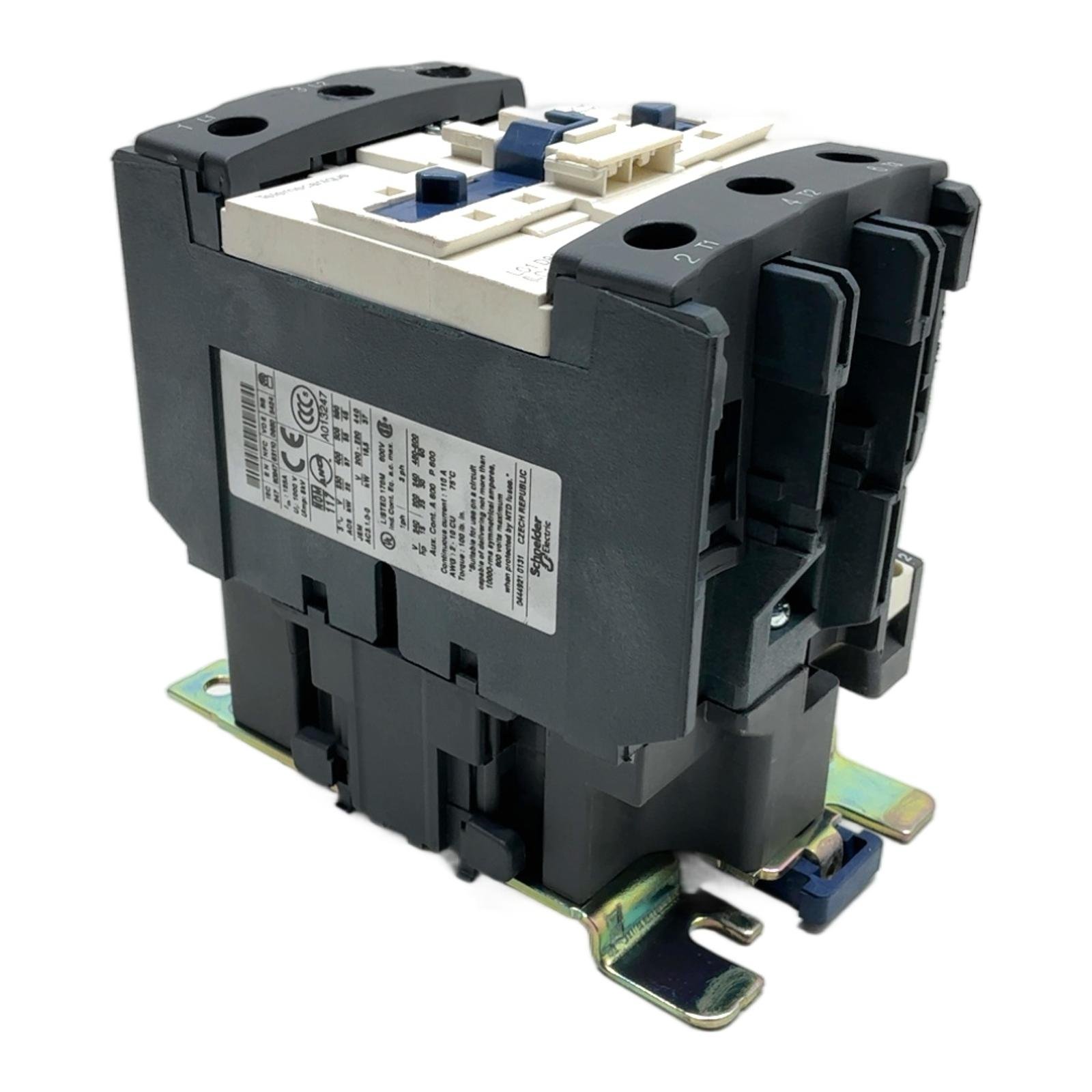

Schneider Electric TeSys D 3-Pole Contactor Description The Schneider Electric LC1D8011 is a high-performance 3-pole contactor from the renowned TeSys D series. It is designed for controlling motors in AC-3 applications, as well as for other switching tasks in industrial settings. With its robust construction and proven reliability, it ensures a long operational life even in demanding environments. This model features integrated auxiliary contacts for enhanced control circuit functionality. Specifications Manufacturer: Schneider Electric Brand: Telemecanique Model: LC1D8011 Product Type: 3-Pole Contactor Rated Power (AC-3, 400V): 37 kW Conventional Thermal Current (Ith): 125 A Rated Insulation Voltage (Ui): 1000 V Rated Impulse Withstand Voltage (Uimp): 8 kV Auxiliary Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC) Label Info Continuous Current: 110 A UL/CSA Horsepower Rating (480-600V, 3ph): 60 hp Standards: IEC/EN 60947, UL, CSA, CCC Application Ideal for motor control applications in HVAC systems, conveyor belts, pumps, compressors, and general industrial machinery. Its high endurance makes it suitable for both starting and switching resistive loads. Country of Origin Made in the Czech Republic. CO2 Impact By purchasing this pre-owned contactor, you help avoid the emission of approximately 63.2 kg of CO2, which would be generated during the production of a new one. This is a significant contribution to a more sustainable industrial practice. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the coil voltage for this specific LC1D8011 contactor?The full part number, which includes the coil voltage (e.g., LC1D8011M7 for 220V AC), is not fully specified on the main label. The coil is a replaceable module, so please verify the voltage of the installed coil or specify your required voltage upon ordering. Can I add more auxiliary contact blocks to this TeSys D contactor?Yes, the TeSys D series is modular. You can easily add front or side-mounted auxiliary contact blocks (such as the LADN or LADC series) to expand its signaling and interlocking capabilities. What is the recommended wire size and tightening torque for the main power terminals?According to the UL specifications on the label, the wire gauge is AWG 2-10 CU (Copper). The recommended tightening torque is 100 lb.in. Always refer to the official Schneider Electric datasheet for the most accurate installation instructions. profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners. Laatst bijgewerkt: Friday, March 13, 2026
