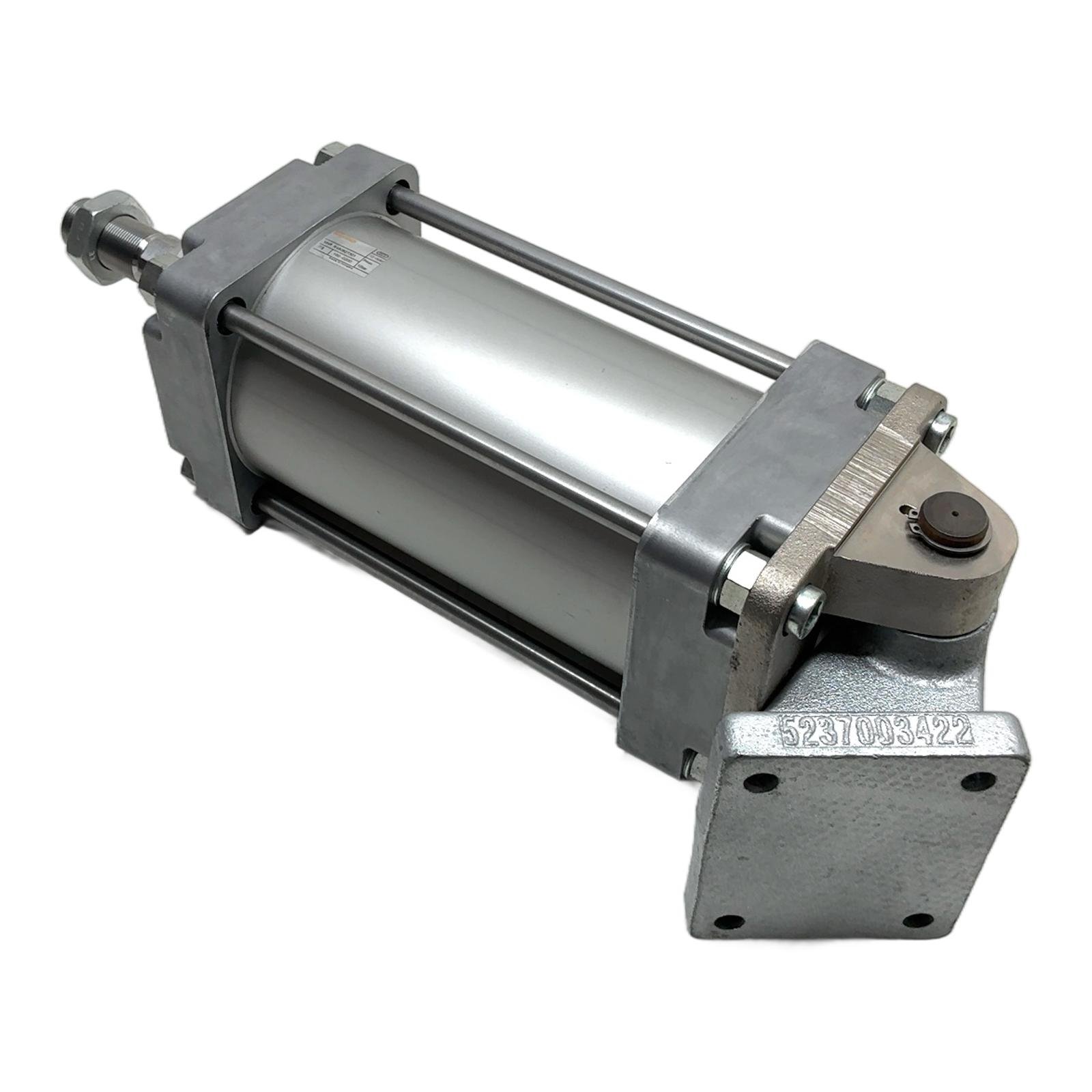

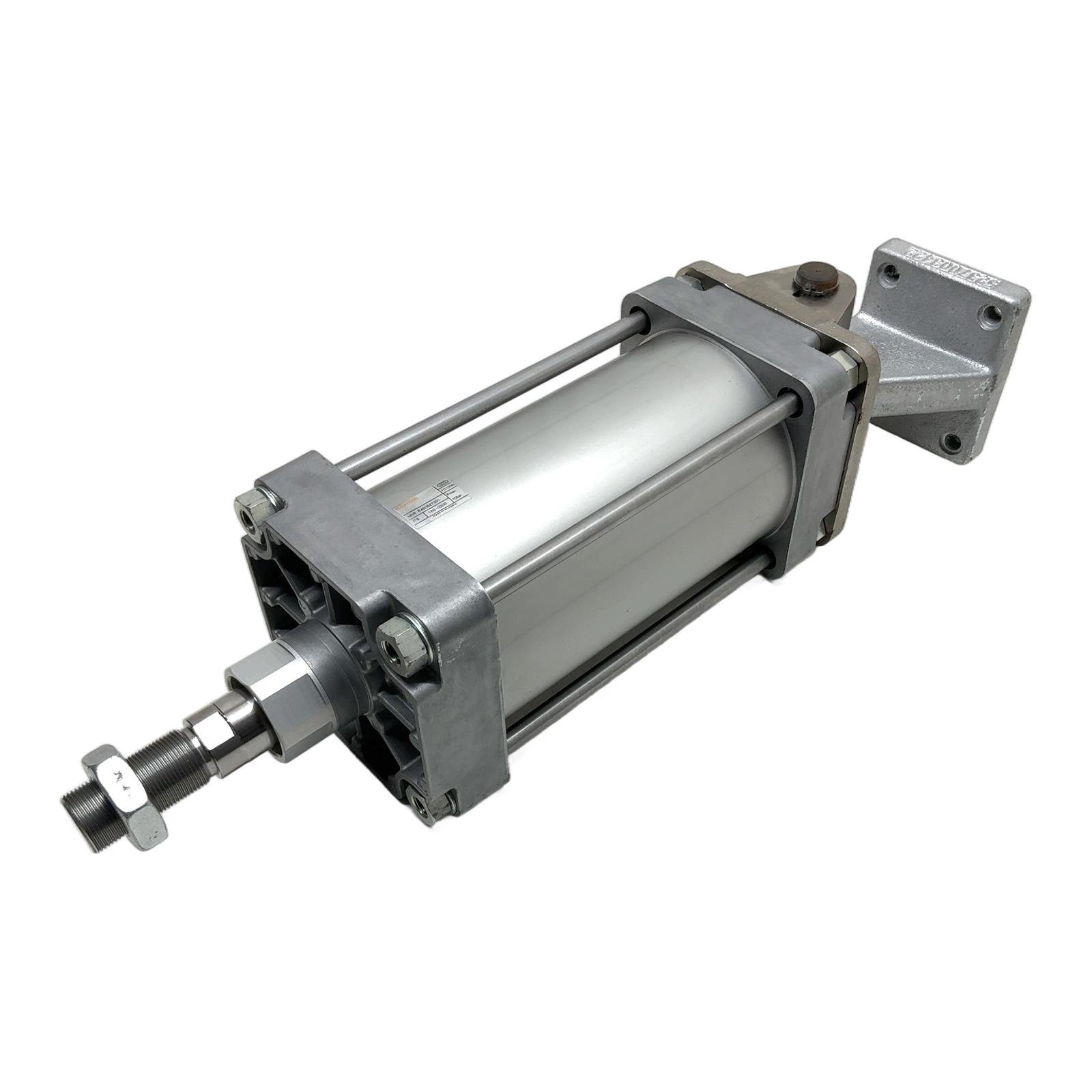

REXROTH ITS 160-0200 R480627301

Rexroth ITS Series Pneumatic Tie Rod Cylinder Description This is a robust and reliable pneumatic tie-rod cylinder from Rexroth, part of their proven ITS series. With a large 160 mm bore and a 200 mm stroke, this double-acting cylinder is engineered for heavy-duty applications requiring significant force and precision. It conforms to the ISO 15552 standard, ensuring interchangeability and a wide range of mounting options. The adjustable pneumatic cushioning at both ends allows for smooth deceleration, reducing shock and vibration in your machinery. Specifications Manufacturer: Rexroth Part Number: R480627301 Series: ITS Type: Double-Acting Tie Rod Cylinder Bore Diameter: 160 mm Stroke Length: 200 mm Maximum Operating Pressure: 10 bar Standard Compliance: ISO 15552 Cushioning: Pneumatic, adjustable at both ends Label Info MNR: R480627301 FD: 13W48 Pmax: 10bar Model: ITS 160-0200 Application Ideal for use in factory automation, material handling, pressing, clamping, and other industrial applications where high force and reliable linear motion are required. Country of Origin Made in Hungary. CO2 Impact By purchasing this pre-owned cylinder, you are preventing the emission of approximately 140 kg of CO2 associated with the production of a new one. This choice supports a sustainable circular economy. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the significance of the ISO 15552 standard for this cylinder?The ISO 15552 standard defines the main mounting dimensions for pneumatic cylinders. This ensures that this Rexroth cylinder is dimensionally interchangeable with cylinders from other manufacturers that also adhere to this standard, simplifying retrofitting and design. Can the pneumatic cushioning on this ITS cylinder be adjusted?Yes, the cylinder is equipped with adjustable pneumatic cushioning at both ends. This allows you to fine-tune the deceleration of the piston at the end of its stroke, which helps to minimize impact, reduce noise, and prolong the life of the cylinder and machinery. What type of sensor mounting is compatible with this cylinder body?This tie-rod style cylinder typically accommodates sensors that are mounted via brackets attached to the tie rods. Various types of reed or solid-state sensors can be used to detect the piston’s position for control system feedback. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Laatst bijgewerkt: Friday, March 13, 2026
