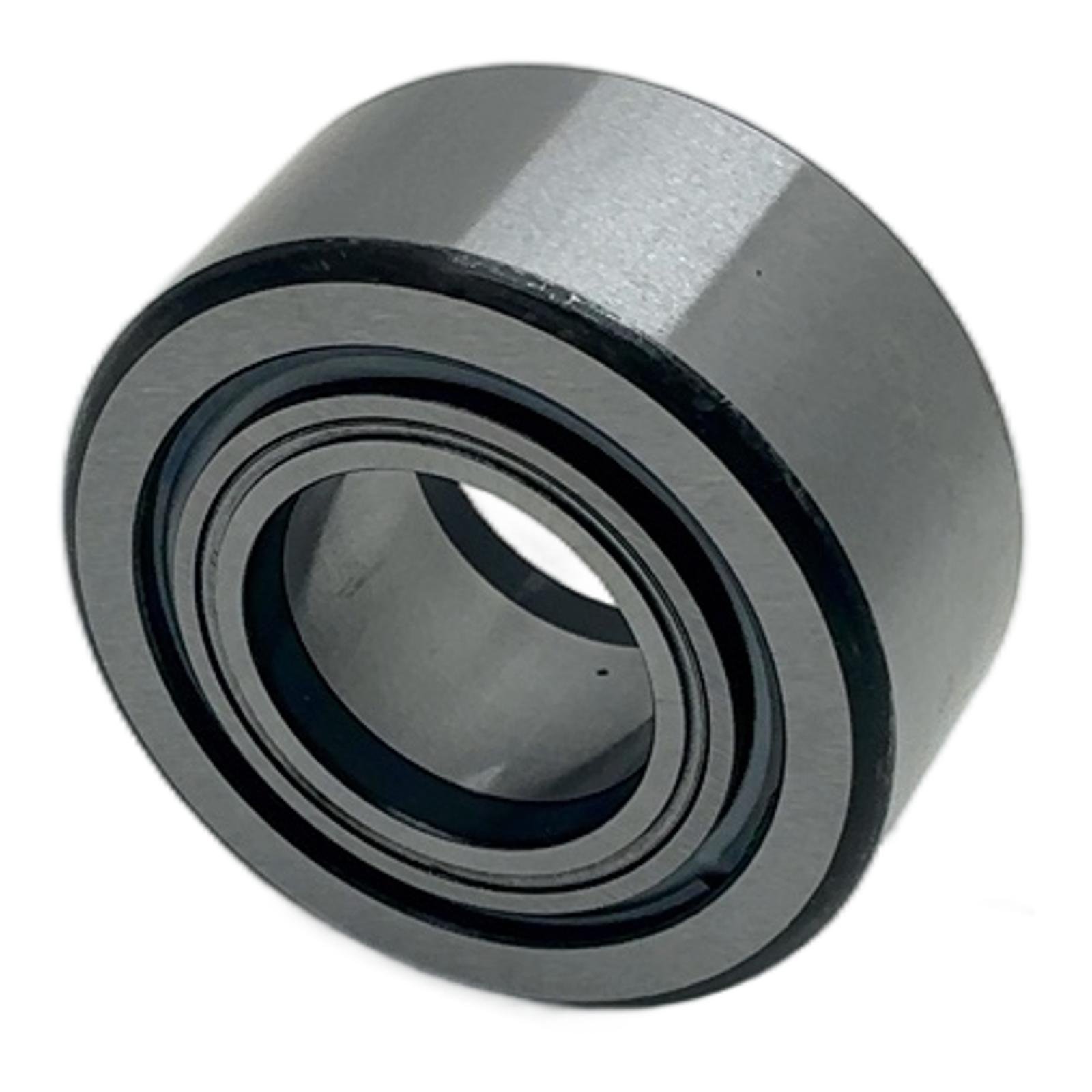

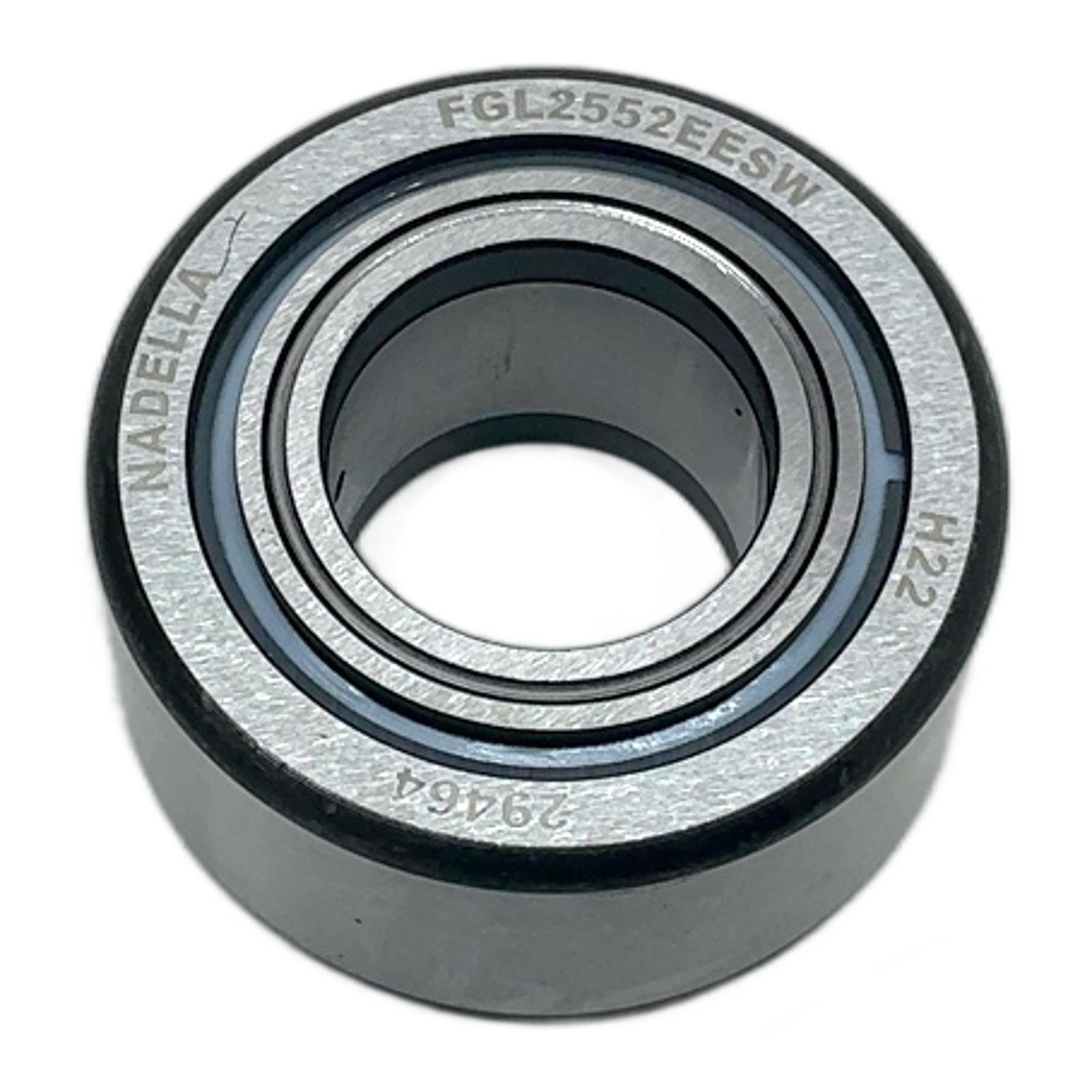

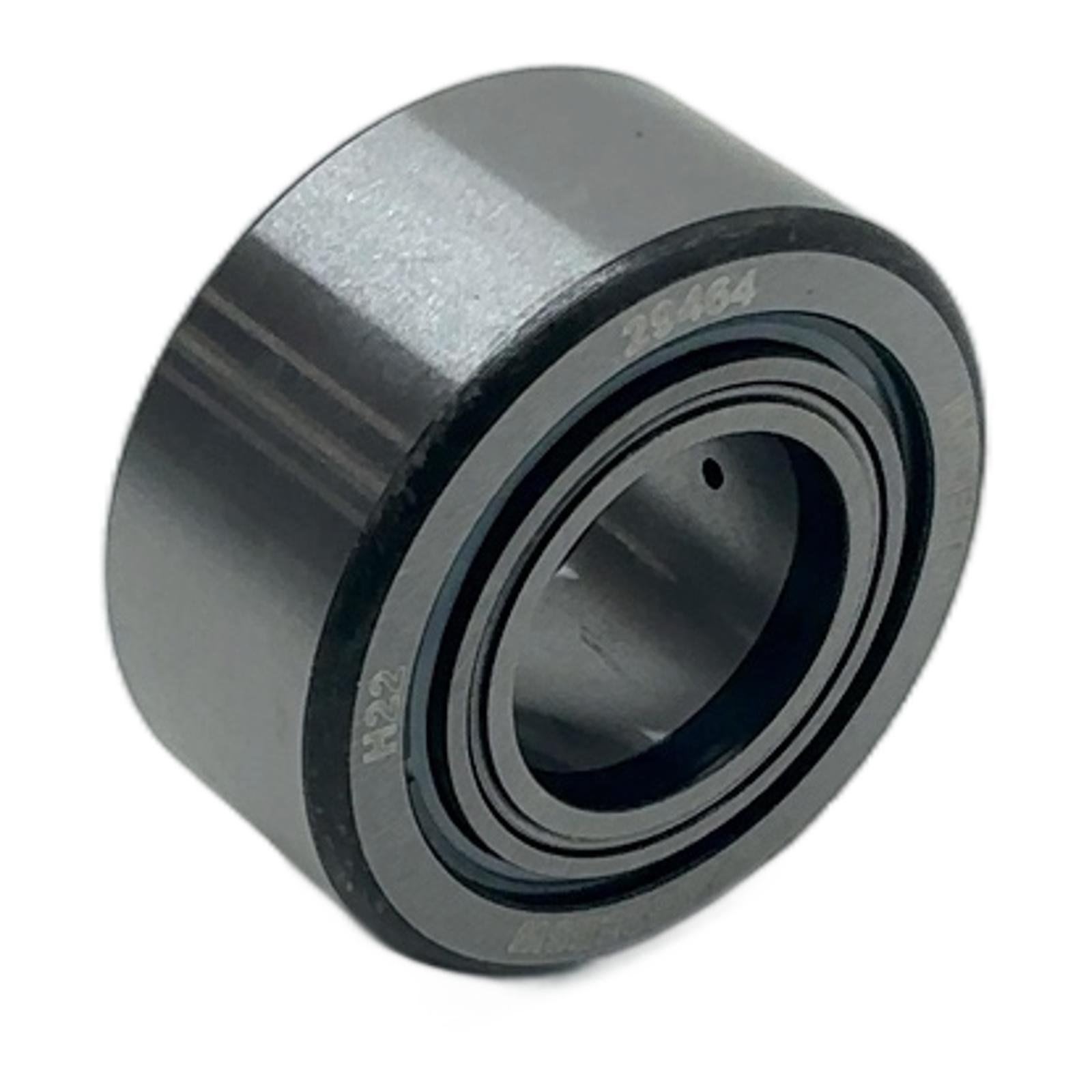

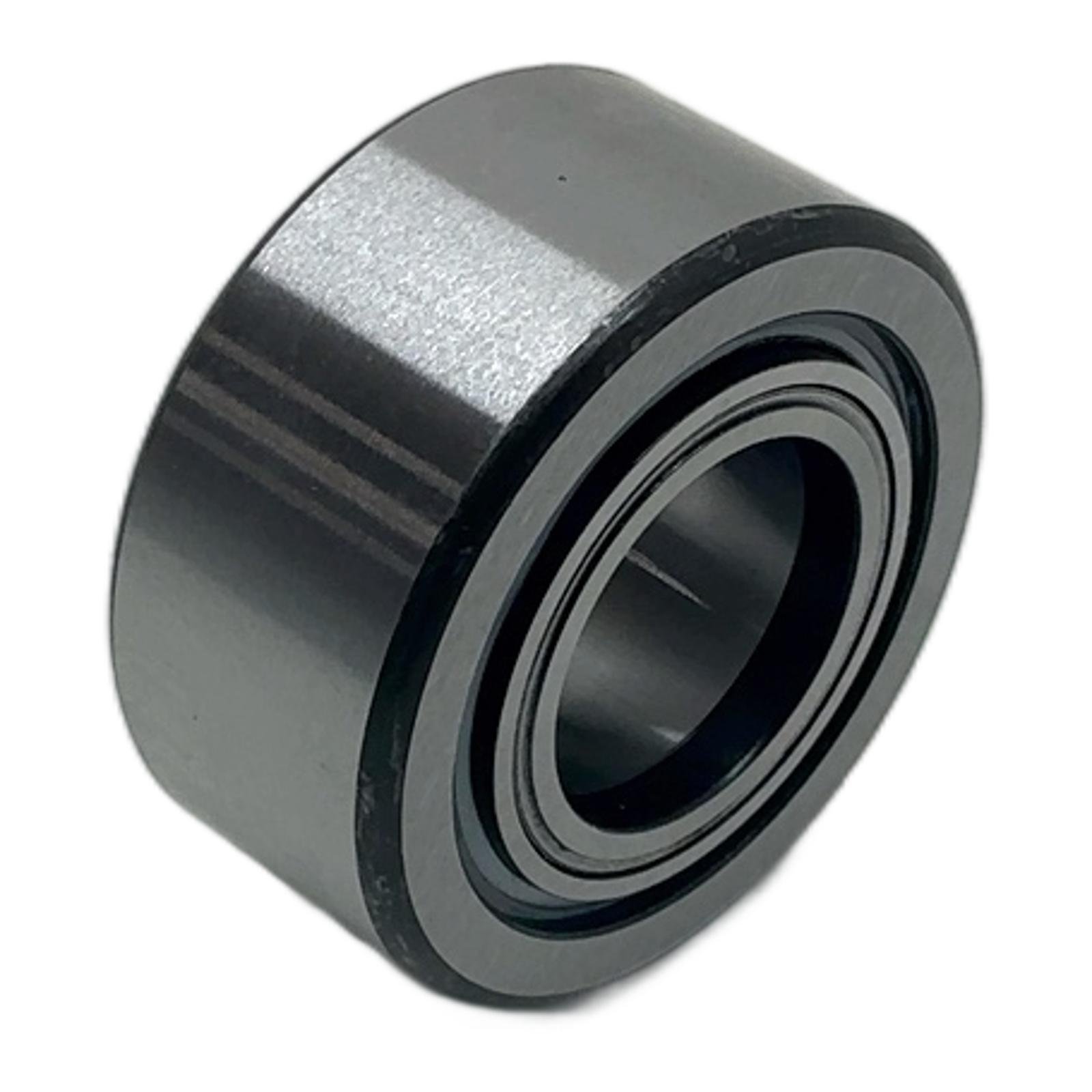

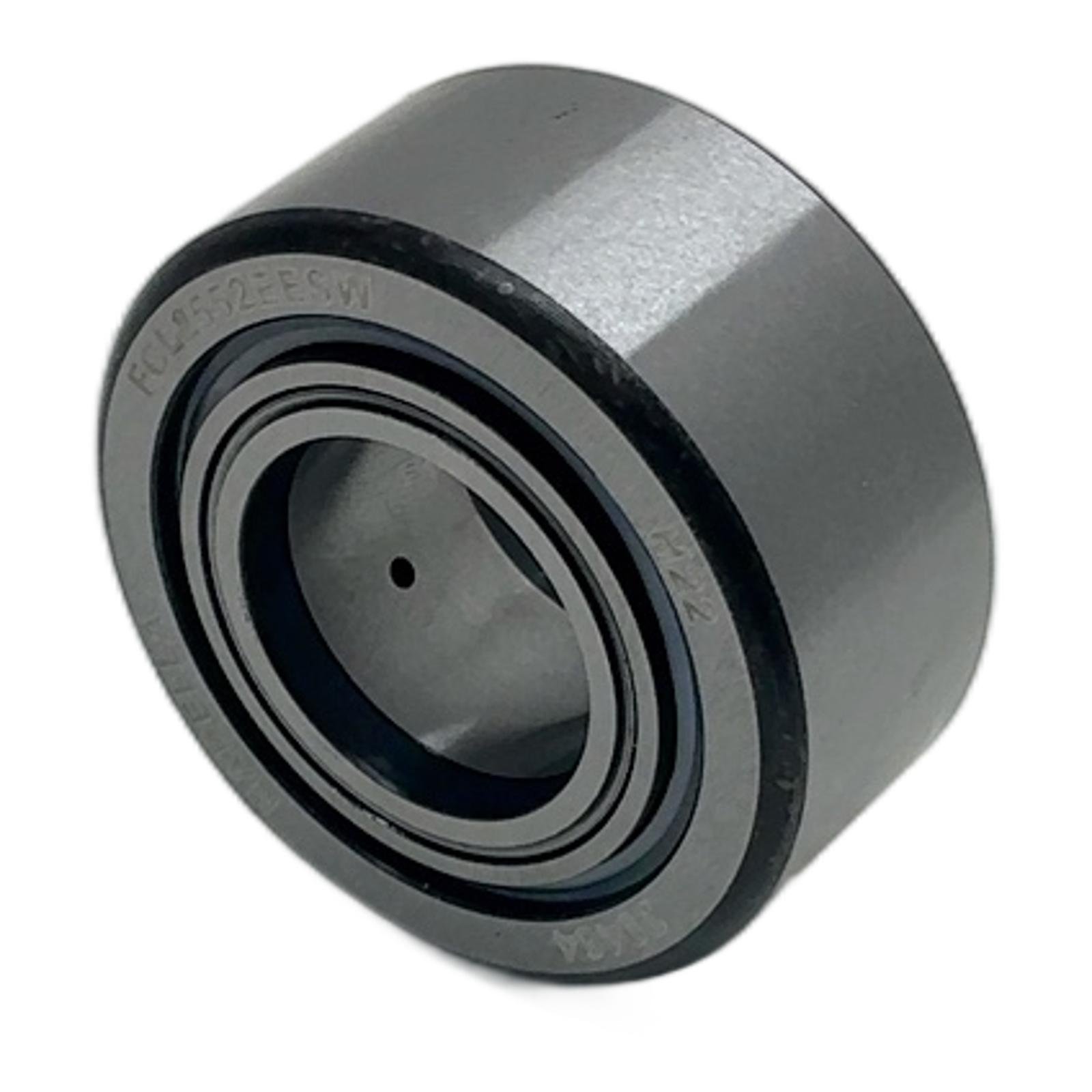

NADELLA FGL 2552EE SW

Nadella FGL 2552EE SW Cam Follower Description The Nadella FGL 2552EE SW is a high-precision cam follower with an integrated stud, designed for demanding automation and linear motion systems. This model features an eccentric collar, allowing for fine adjustment of its position against a track or cam, ensuring optimal contact and minimal wear. Its robust construction provides high load capacity and long service life. Specifications Manufacturer: Nadella Type: FGL 2552EE SW Stud Diameter: 25 mm Outer Diameter: 52 mm Overall Length: 72 mm Sealing: Double lip seal (Suffix EE) for excellent protection against dust and moisture Mounting Feature: Hexagon socket on both stud ends (Suffix SW) for easy and secure installation Label Info Brand: Nadella Model: FGL 2552EE SW Lotto: N322077114 Application This cam follower is ideal for use in conveyor systems, packaging machinery, material handling equipment, and various automated production lines where precise, guided linear motion is required. Country of Origin Made in Italy. CO2 Impact By choosing this pre-owned but new-in-box component, you contribute to a circular economy. The production of a new steel bearing of this size would typically generate around 0.48 kg of CO2. Your purchase avoids these emissions, which is comparable to saving the CO2 produced by driving a standard passenger car for 2.4 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What does the ‘SW’ suffix signify in the FGL 2552EE SW model?The ‘SW’ designation indicates that the stud has a hexagon socket on both ends. This allows for easy mounting and holding with a standard Allen key, preventing the stud from turning while the locking nut is tightened. Is the eccentric collar adjustable on this cam follower?Yes, the FGL series, including this model, features an eccentric collar. This allows for precise adjustment of the roller’s height and preload against the running surface, compensating for manufacturing tolerances in the assembly. What type of lubrication is recommended for this sealed bearing?This is a sealed-for-life bearing, pre-lubricated at the factory with a high-quality, long-life grease. Under normal operating conditions, it does not require re-lubrication, making it a maintenance-free component. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners.
