PEPPERL+FUCHS IQT1-F61-IO-V1 299928

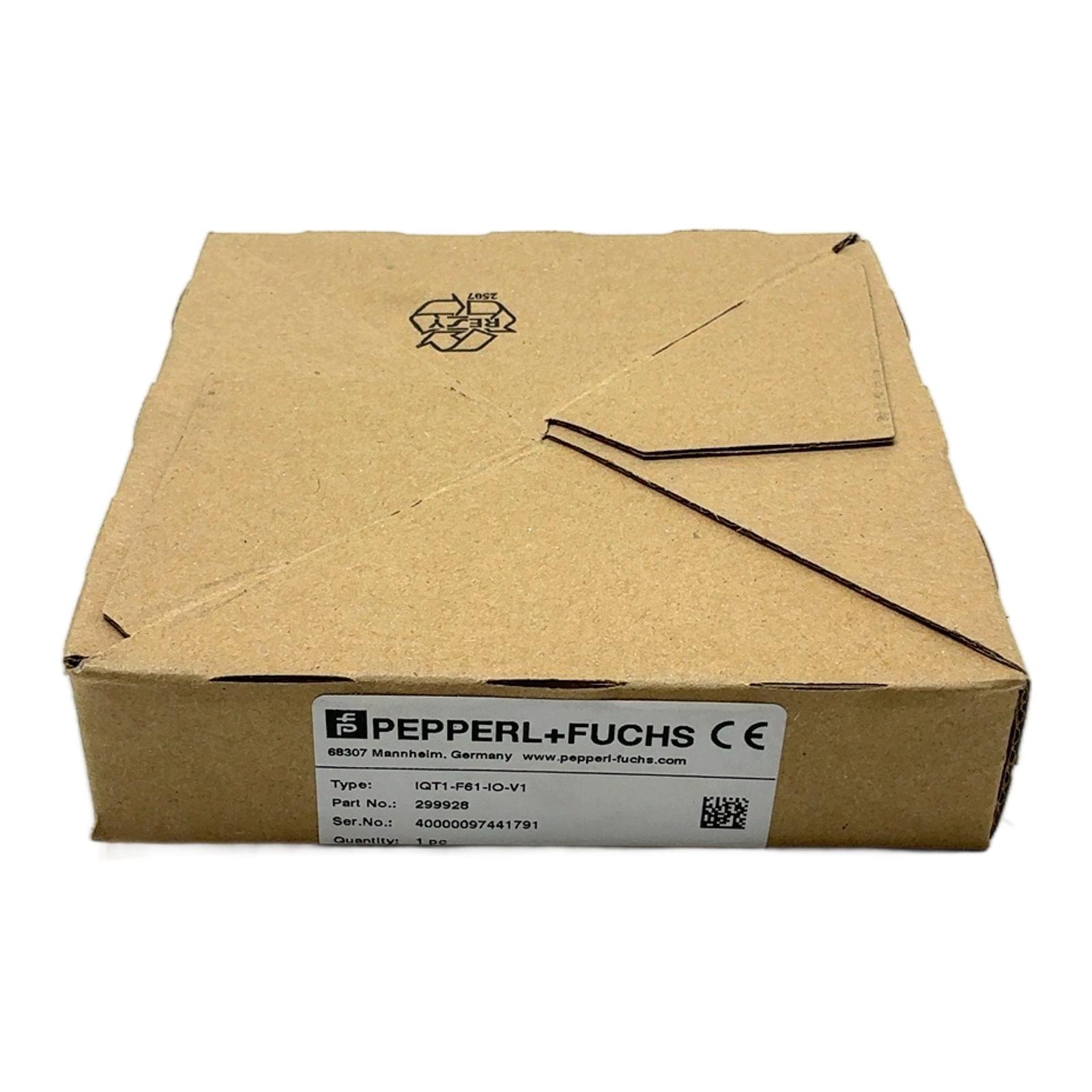

Pepperl+Fuchs IQT1-F61-IO-V1 Inductive Read/Write Head Description The Pepperl+Fuchs IQT1-F61-IO-V1 is a high-performance inductive read/write head designed for industrial identification systems (RFID). It facilitates reliable detection and data exchange with passive transponders. Featuring a standard IO-Link interface, this device offers easy integration into modern automation architectures, providing both event-driven and cyclical data transfer. Its compact and robust F61 housing ensures durability in demanding industrial environments. Specifications Model: IQT1-F61-IO-V1 Part Number: 299928 Type: Inductive Read/Write Head Interface: IO-Link V1.1 Sensing Range: 0 to 55 mm Operating Frequency: 125 kHz Connection: M12 Connector, 4-pin Housing: Rectangular, F61 Degree of Protection: IP67 Operating Voltage: 18 to 30V DC Label Info Manufacturer: Pepperl+Fuchs Type: IQT1-F61-IO-V1 Part No.: 299928 Ser.No.: 40000097441791 Application This read/write head is ideal for applications in factory automation, material handling, and logistics. Common uses include tracking products on conveyor belts, identifying tool carriers in machine building, and managing assets in automated storage and retrieval systems. Country of Origin Made in Singapore. CO2 Impact By purchasing this component, you are contributing to a circular economy and have helped avoid approximately 4.0 kg of CO2 emissions, which is comparable to the amount produced by driving a standard car for 20 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the maximum read/write distance for the IQT1-F61-IO-V1?The effective sensing range is from 0 to 55 mm, depending on the transponder type and orientation. Is this read/write head compatible with all IO-Link masters?Yes, as it conforms to the IO-Link V1.1 specification, it is compatible with any standard IO-Link master from any manufacturer. Can this device be used in harsh industrial environments with exposure to dust and water?Absolutely. The IQT1-F61-IO-V1 has an IP67 protection rating, meaning it is fully protected against dust ingress and can withstand temporary immersion in water. profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
