IKO K35X42X20

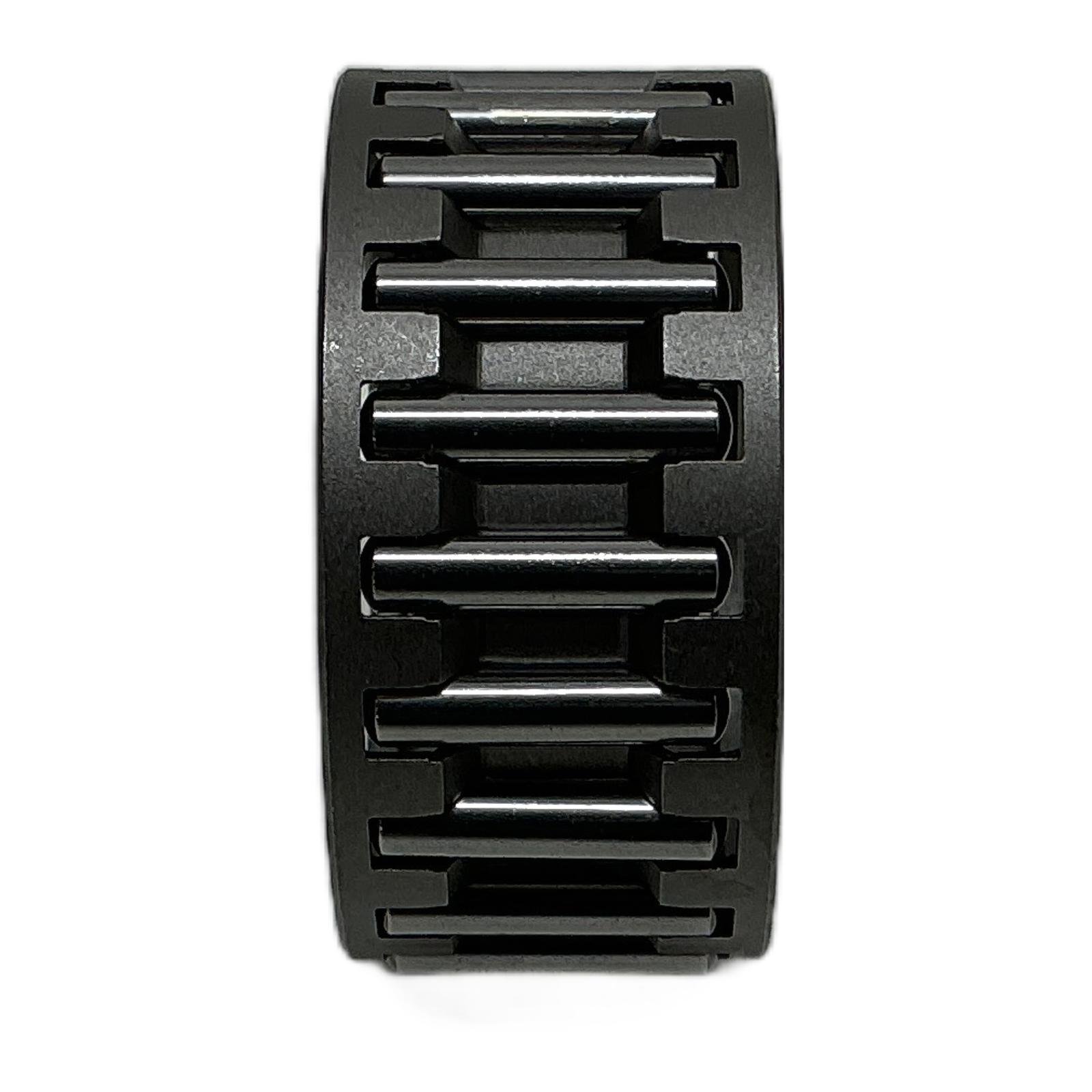

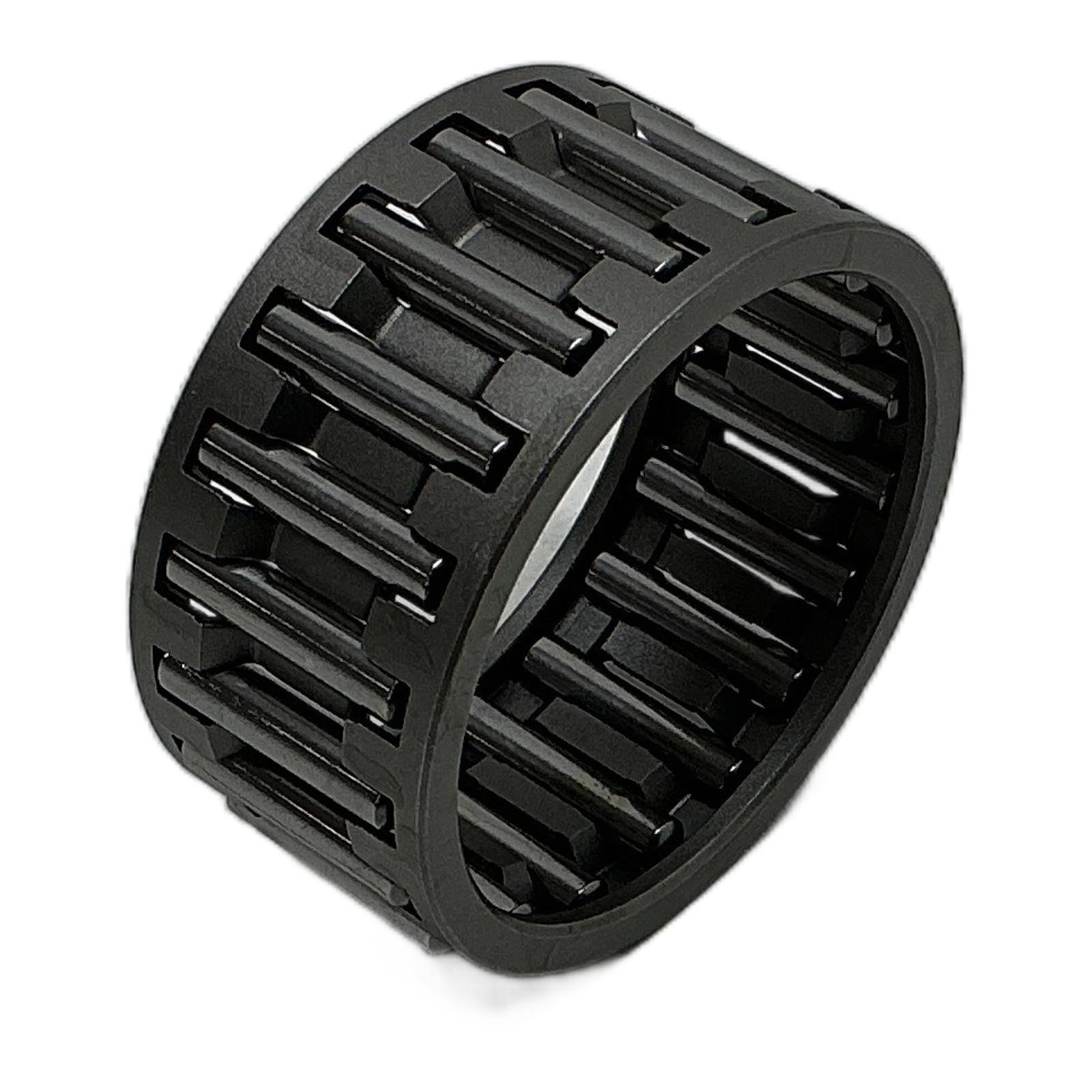

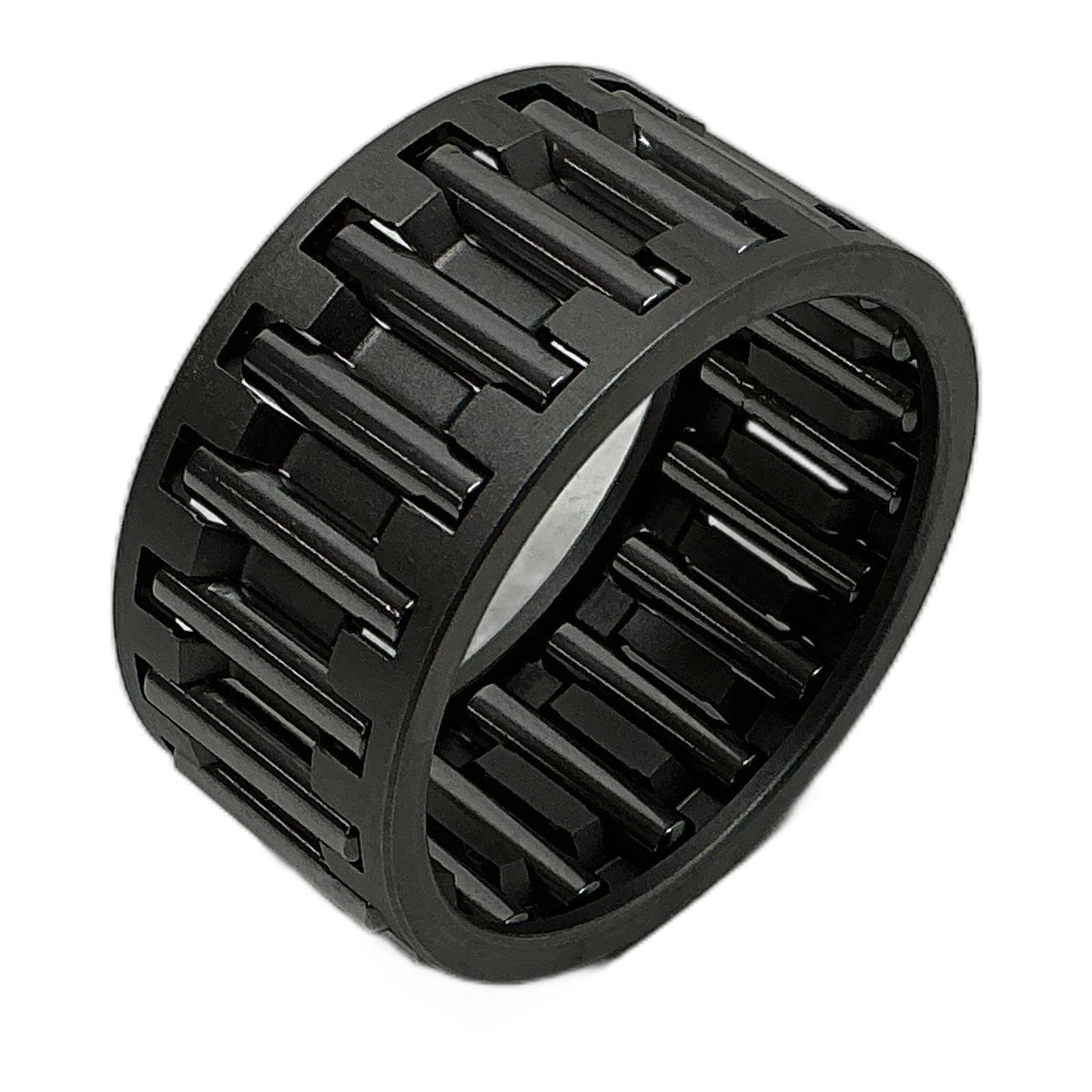

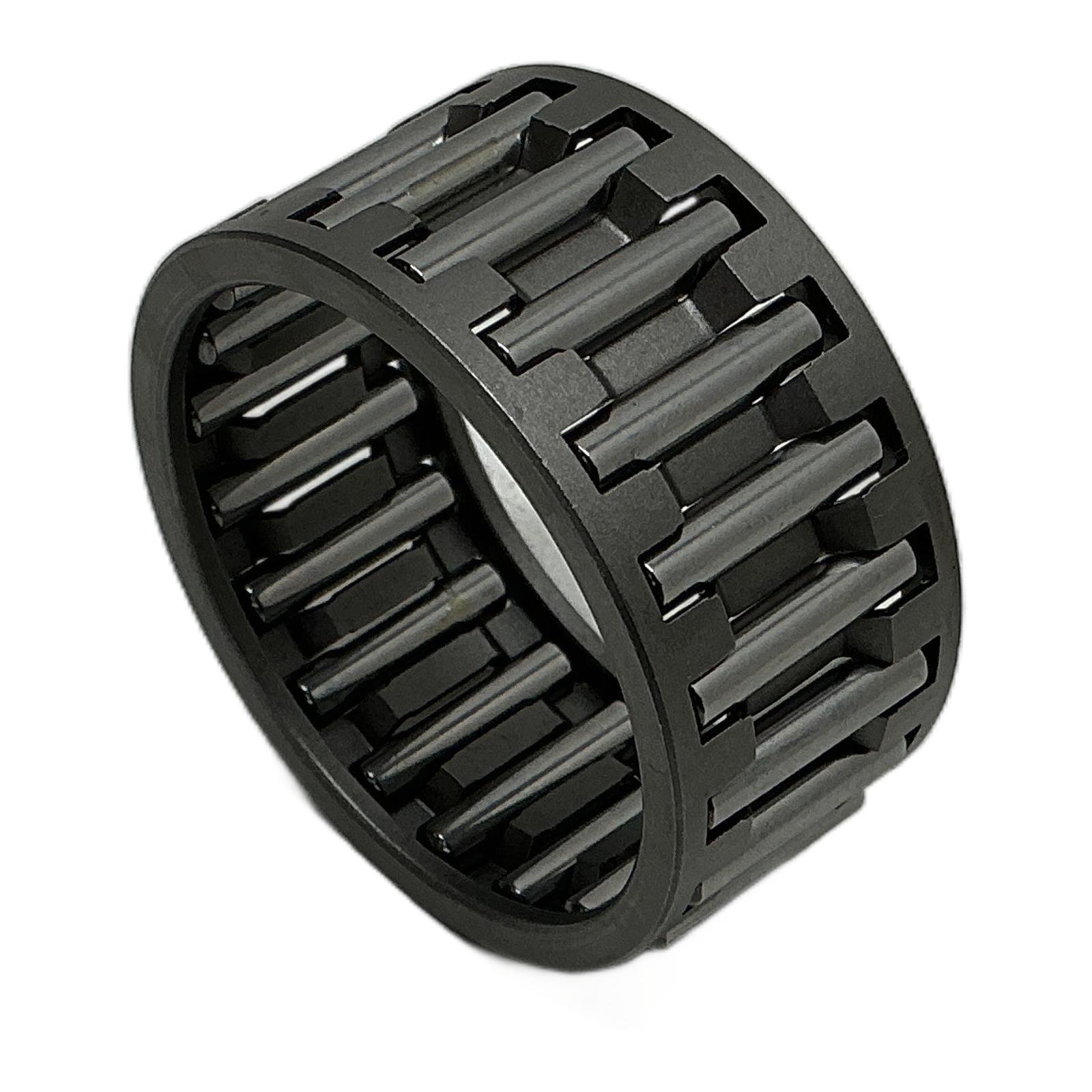

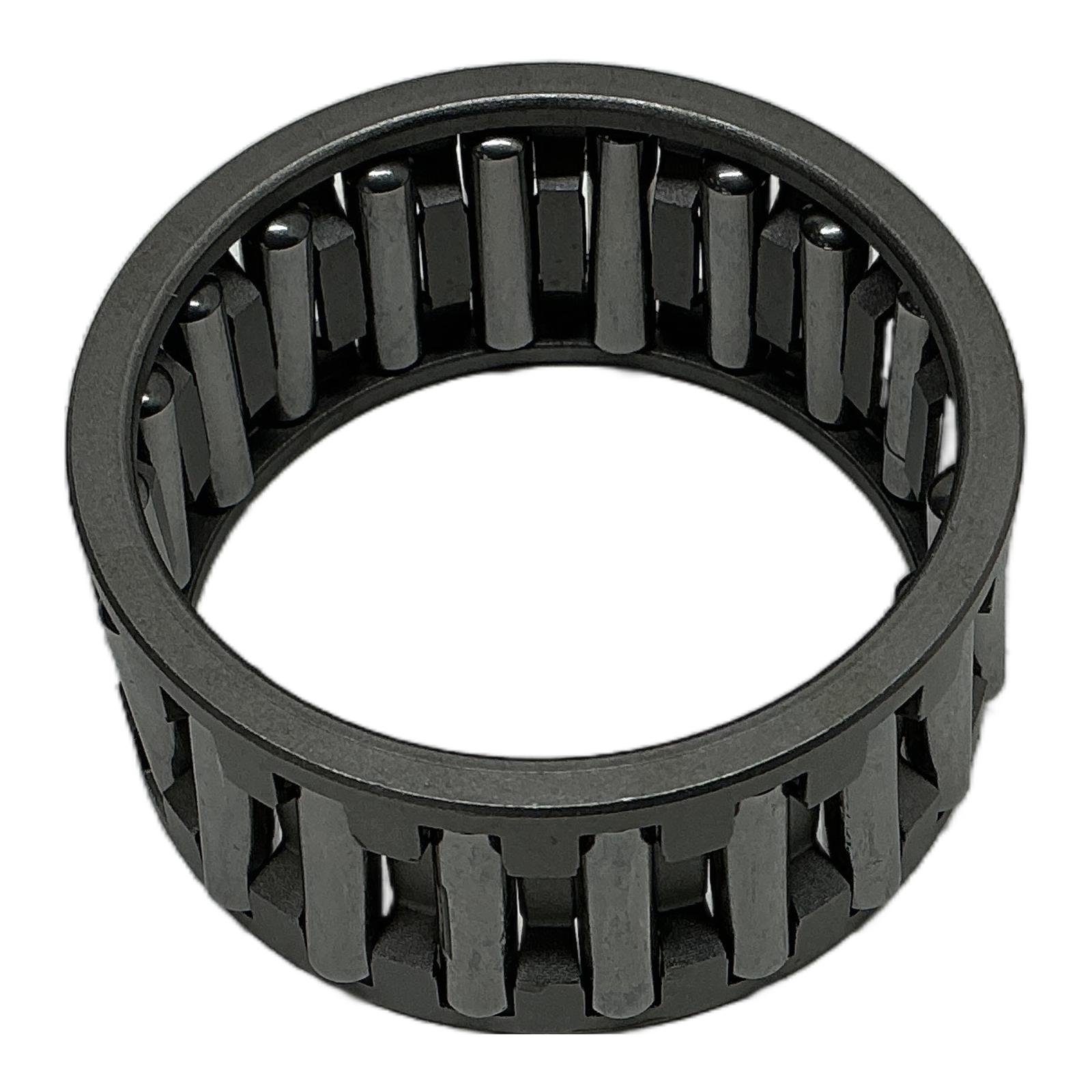

IKO K 35X42X20 Needle Roller Cage Assembly Description A high-precision needle roller and cage assembly from IKO, model K 35X42X20. This component is designed to handle high radial loads in applications with minimal radial space. The cage provides guidance and retention for the needle rollers, ensuring optimal performance and durability. It is a critical component for applications in transmissions, engines, and various industrial machinery. Specifications Brand: IKO Type: K 35X42X20 Category: Needle Roller and Cage Assembly Bore Diameter (d): 35 mm Outer Diameter (D): 42 mm Width (B): 20 mm Material: High-carbon chromium bearing steel Label Info The label from the distributor Brammer indicates the part number IKO K 35X42X20 NAALDKRANS and the article number 03311527. Application Suitable for automotive transmissions, two-stroke engines, universal joints, and industrial gearboxes where high load capacity and a compact design are essential. Country of Origin Manufactured in Japan. CO2 Impact By choosing this reused, as-new bearing, you save approximately 0.08 kg of CO2. This is equivalent to the energy needed for about 10 smartphone charges, contributing to a more sustainable industrial practice. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What type of lubrication is recommended for the K 35X42X20 assembly?This bearing typically operates with oil or grease lubrication. The choice depends on the operating speed, load, and temperature. For high-speed applications, oil lubrication is preferred. Always consult your machine’s manual for specific lubricant requirements. Can this needle cage assembly be used without an inner or outer ring?Yes, the ‘K’ series is designed to run directly on a hardened and ground shaft and in a hardened and ground housing bore, which serve as the raceways. Ensure the shaft and housing raceway surfaces meet the required hardness (HRC 58-64) and surface finish specifications. What are the main advantages of a needle roller and cage assembly compared to a full complement bearing?A cage assembly, like this K 35X42X20, allows for higher operating speeds than a full complement version because the cage prevents roller-to-roller friction. While full complement bearings offer higher load capacity, the caged design provides a better balance of speed capability, load capacity, and lubricant retention. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
