KEYENCE IG-028

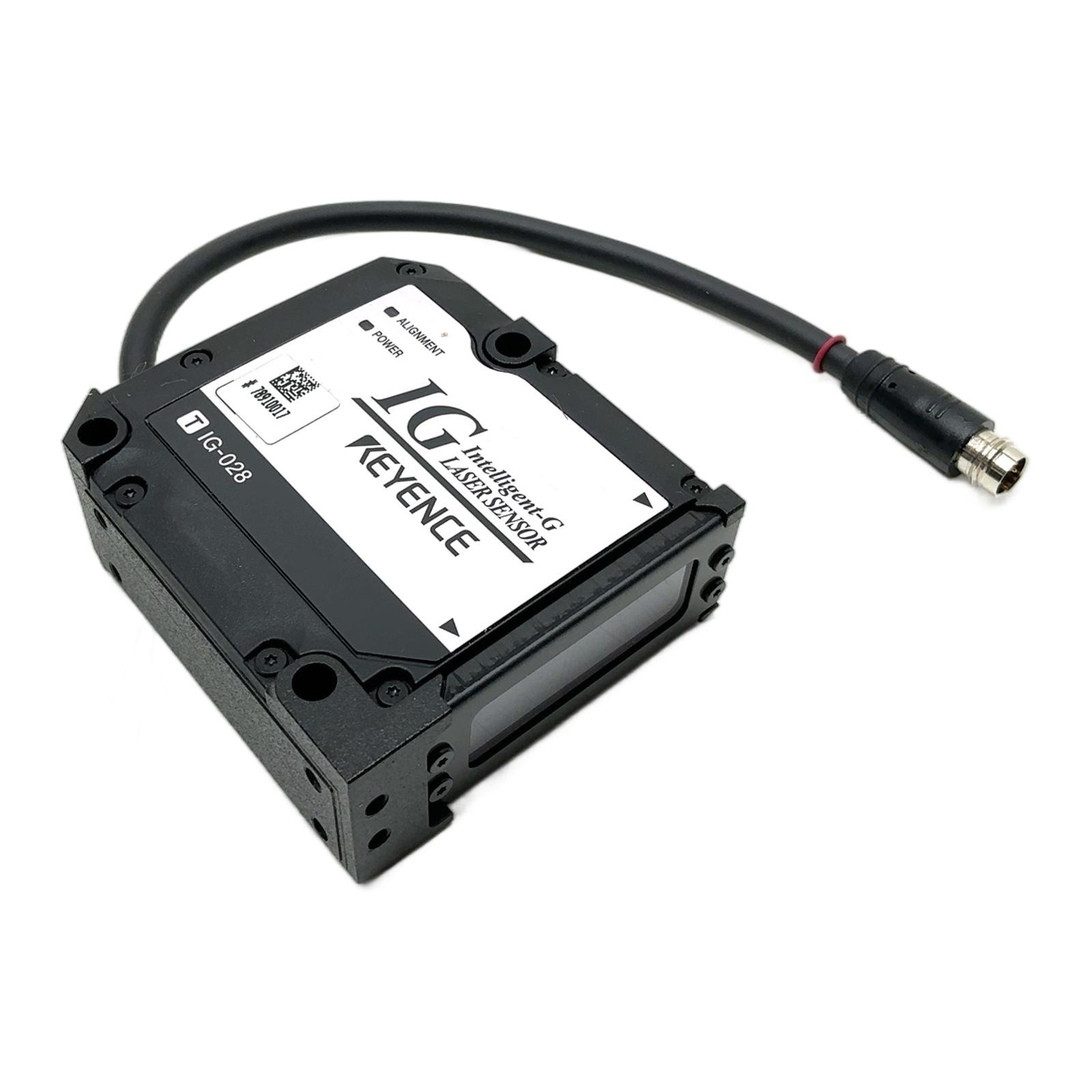

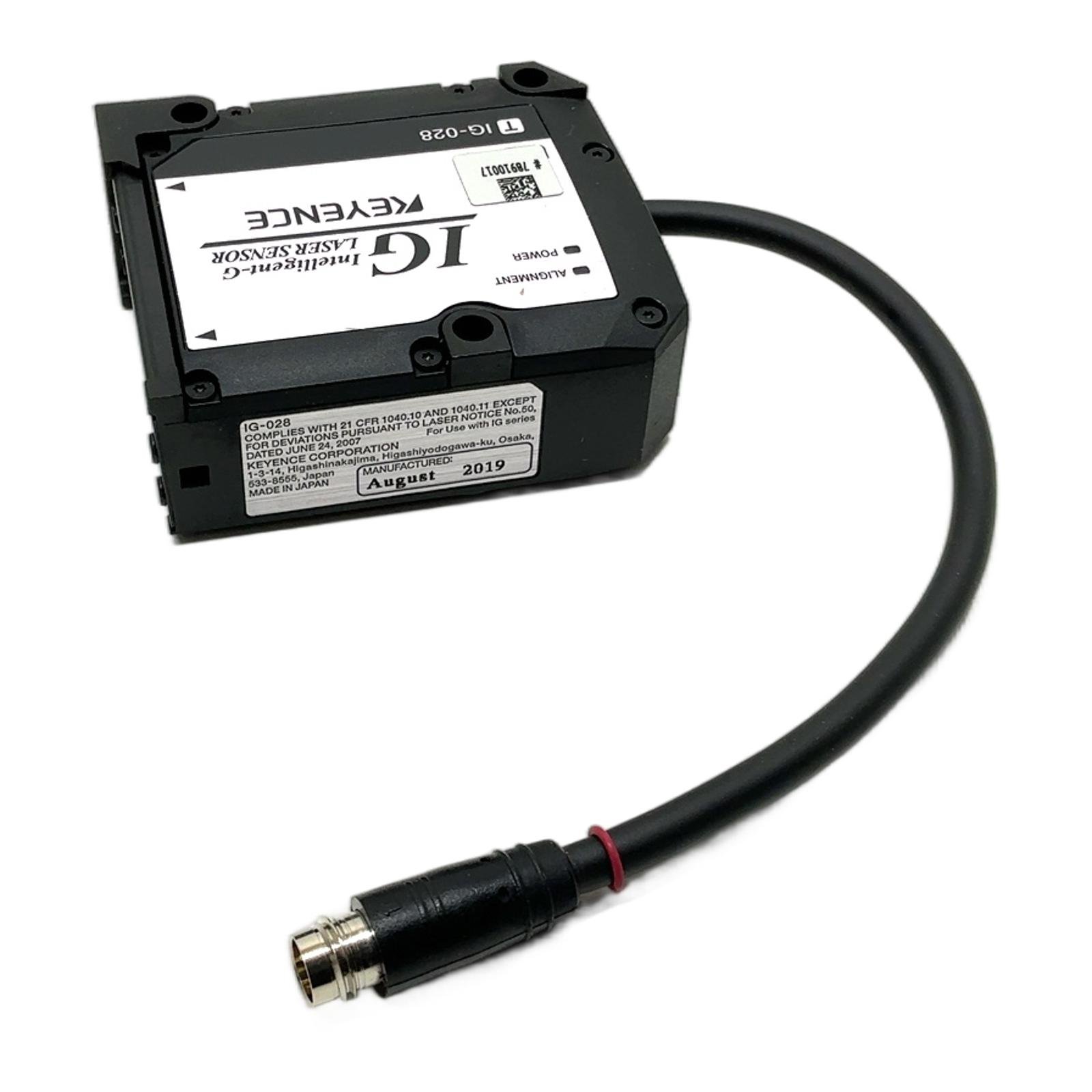

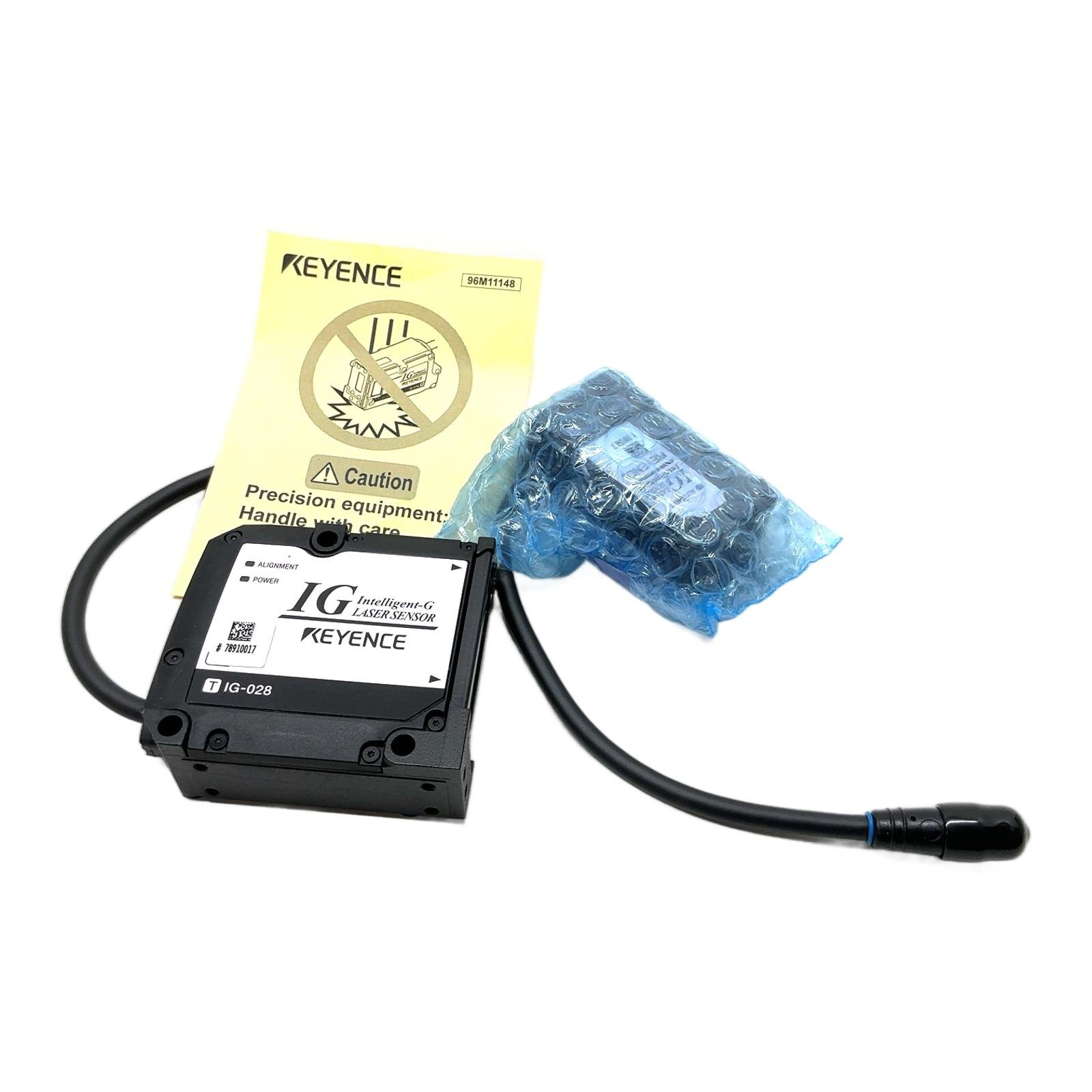

Keyence Intelligent-G Laser Sensor IG-028 Description The Keyence IG-028 is a high-performance CCD laser micrometer sensor head designed for non-contact dimensional and positional measurements. Part of the IG Series, it provides exceptional accuracy and stability for a wide range of industrial applications, from diameter measurement to gap control. Its robust construction ensures reliability in demanding factory environments. This unit is a sensor head and requires a compatible IG-series controller for operation. Specifications Manufacturer: Keyence Model: IG-028 Product Type: Multi-Purpose CCD Laser Micrometer Sensor Head Measuring Range: 2 to 30 mm Standard Reference Distance: 130 mm Light Source: Red semiconductor laser (650 nm) Laser Class: Class 2 Laser Product (IEC60825-1) Repeatability: 5 um Enclosure Rating: IP67 Label Info Brand: KEYENCE Type: IG-028 Serial Number: 78910017 Year of Manufacture: August 2019 Application Ideal for quality control and automation processes such as measuring the outer diameter of extrusions, positioning of parts, detecting edges, and verifying gaps with high precision. Country of Origin Made in Japan. CO2 Impact Opting for this component helps save approximately 20 kg of CO2 emissions compared to a new purchase, which is comparable to driving a car for 100 km. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the typical application for the Keyence IG-028?The IG-028 is a high-accuracy CCD laser micrometer ideal for non-contact dimensional measurement. Common applications include checking the outer diameter of wires or rods, measuring gaps, and verifying component positioning on a production line. Does the IG-028 require a separate amplifier or controller?Yes, the IG-028 is a sensor head and requires a compatible IG series amplifier/controller, such as the IG-1000 or IG-1500, for operation, data processing, and output signaling. What is the measuring range and repeatability of this sensor head?The Keyence IG-028 has a measuring range of 28 mm (from 2 to 30 mm). It boasts a high repeatability of 5 micrometers (um), ensuring precise and consistent measurements. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
