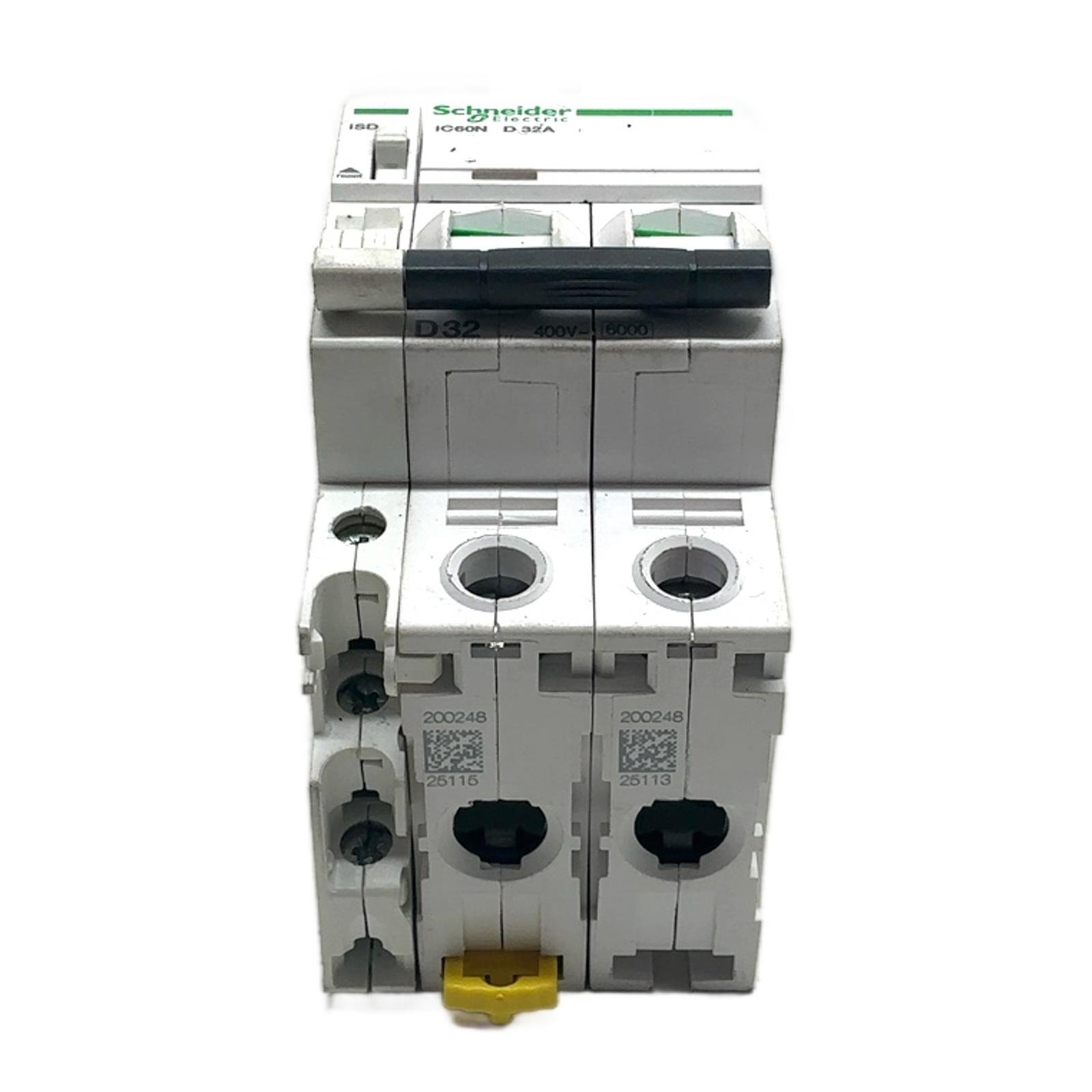

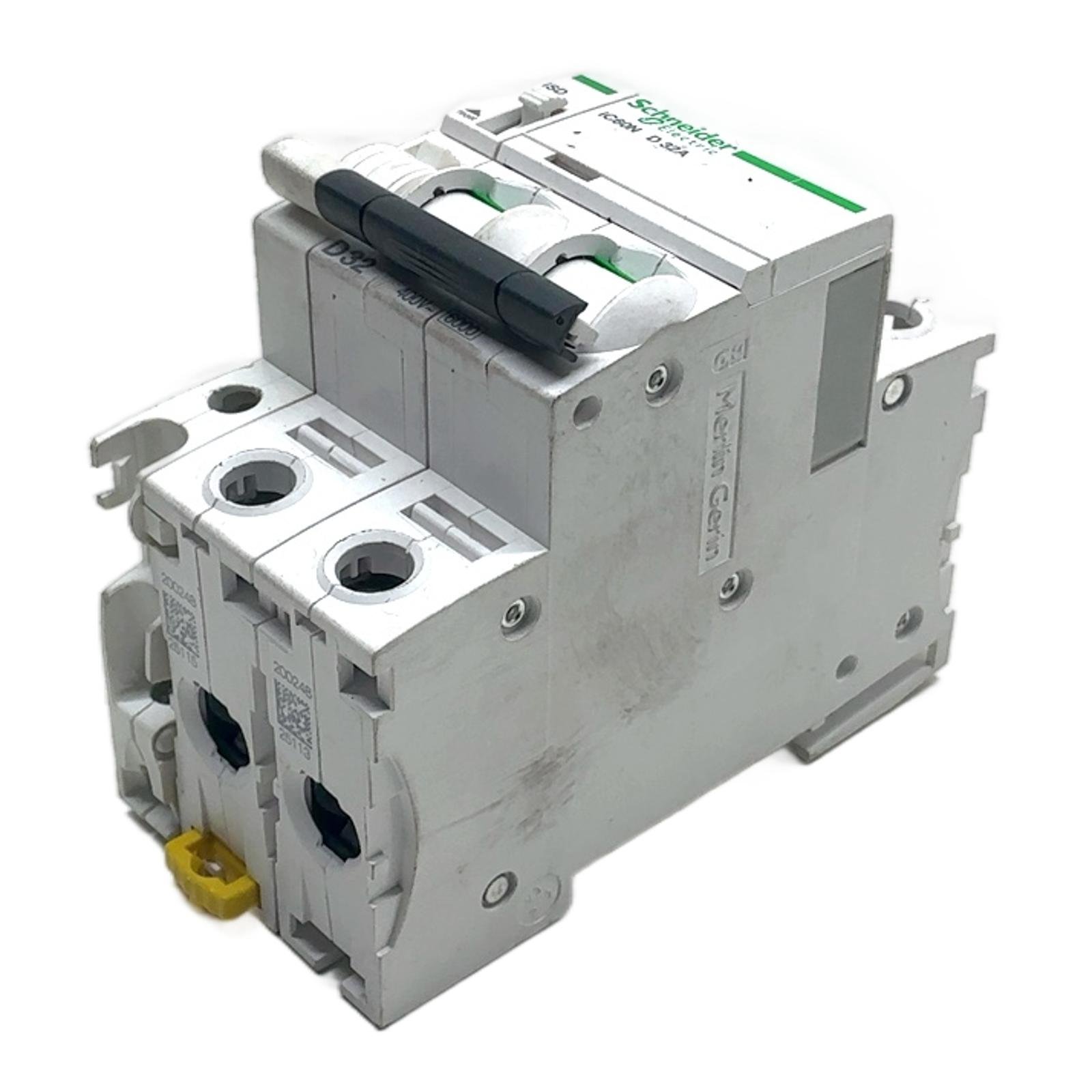

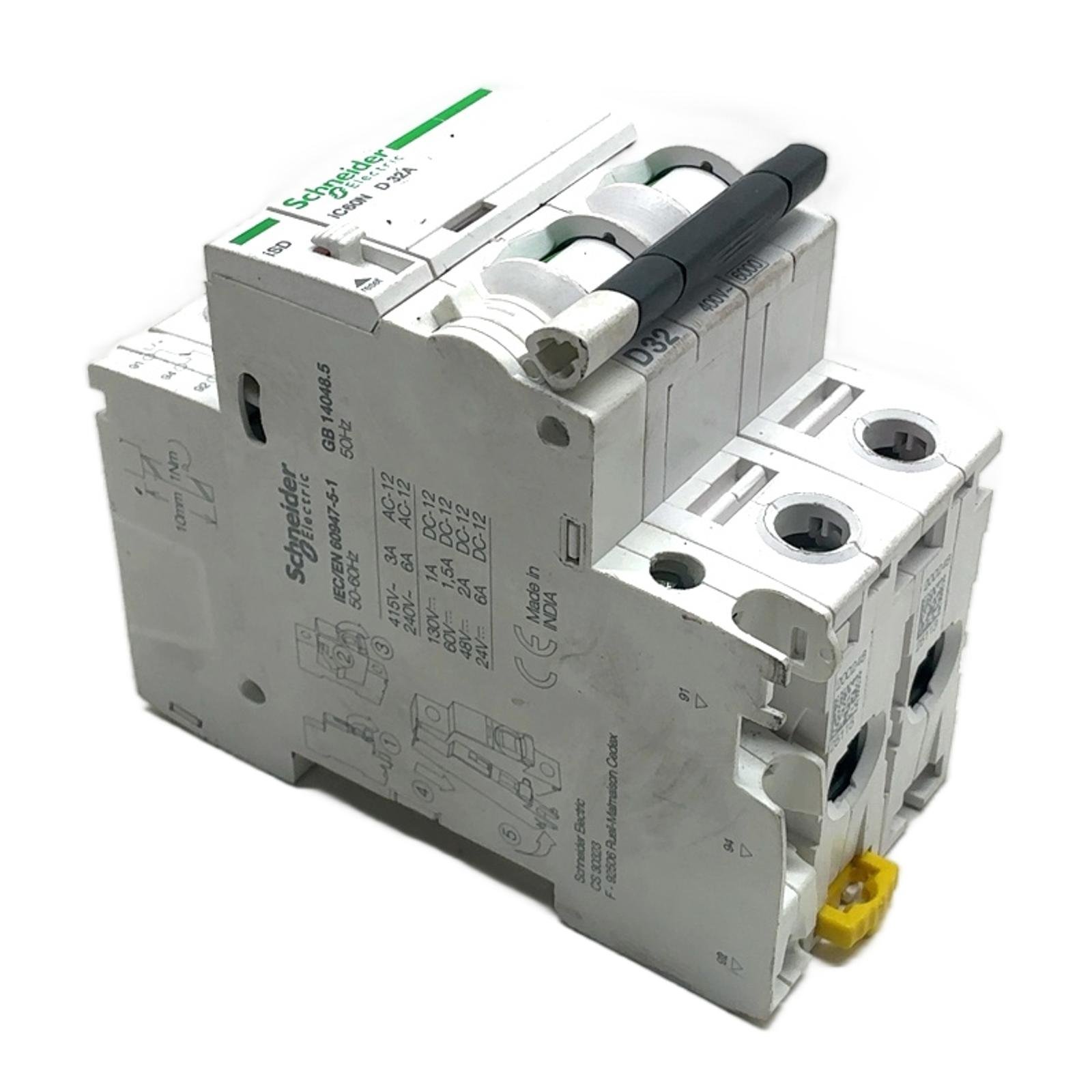

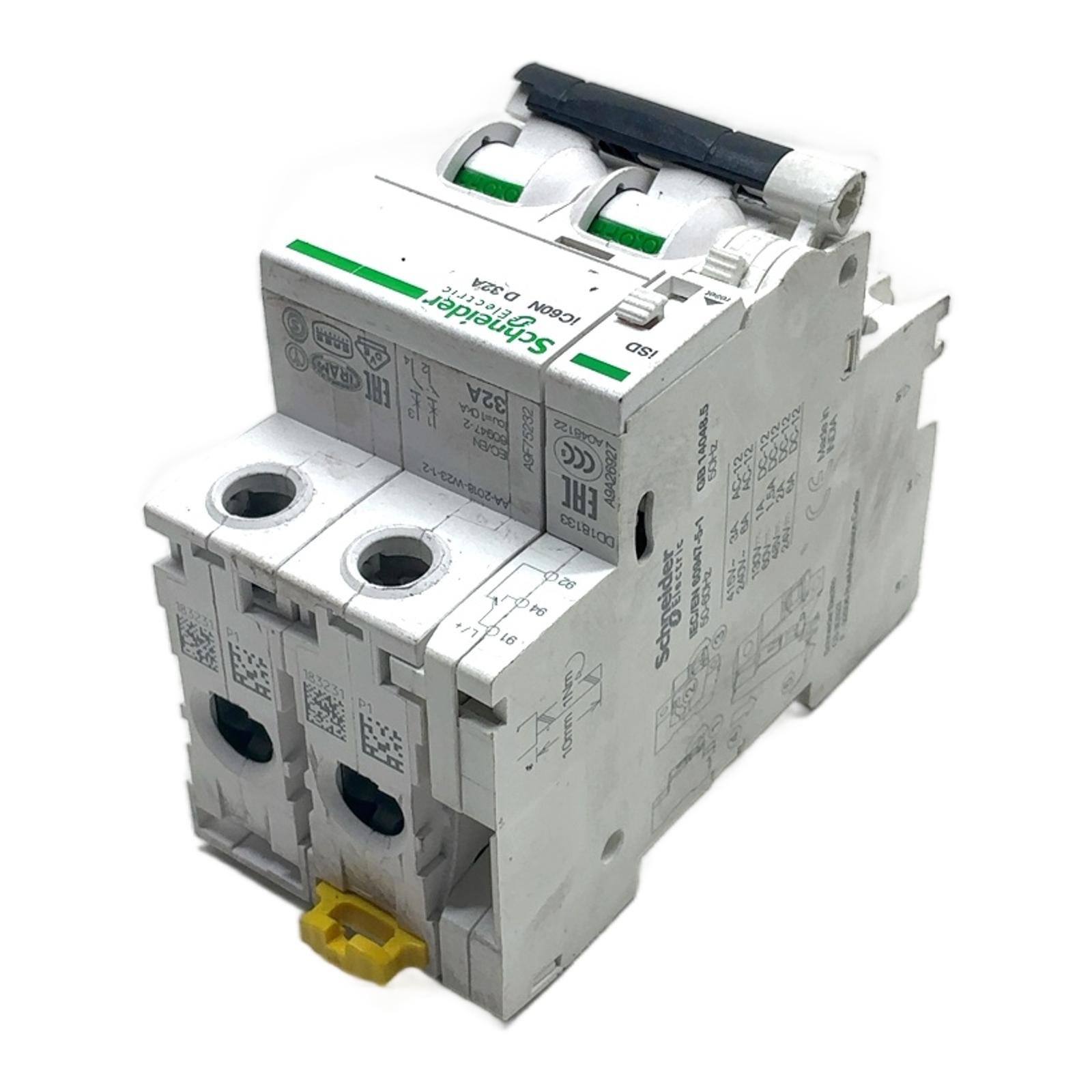

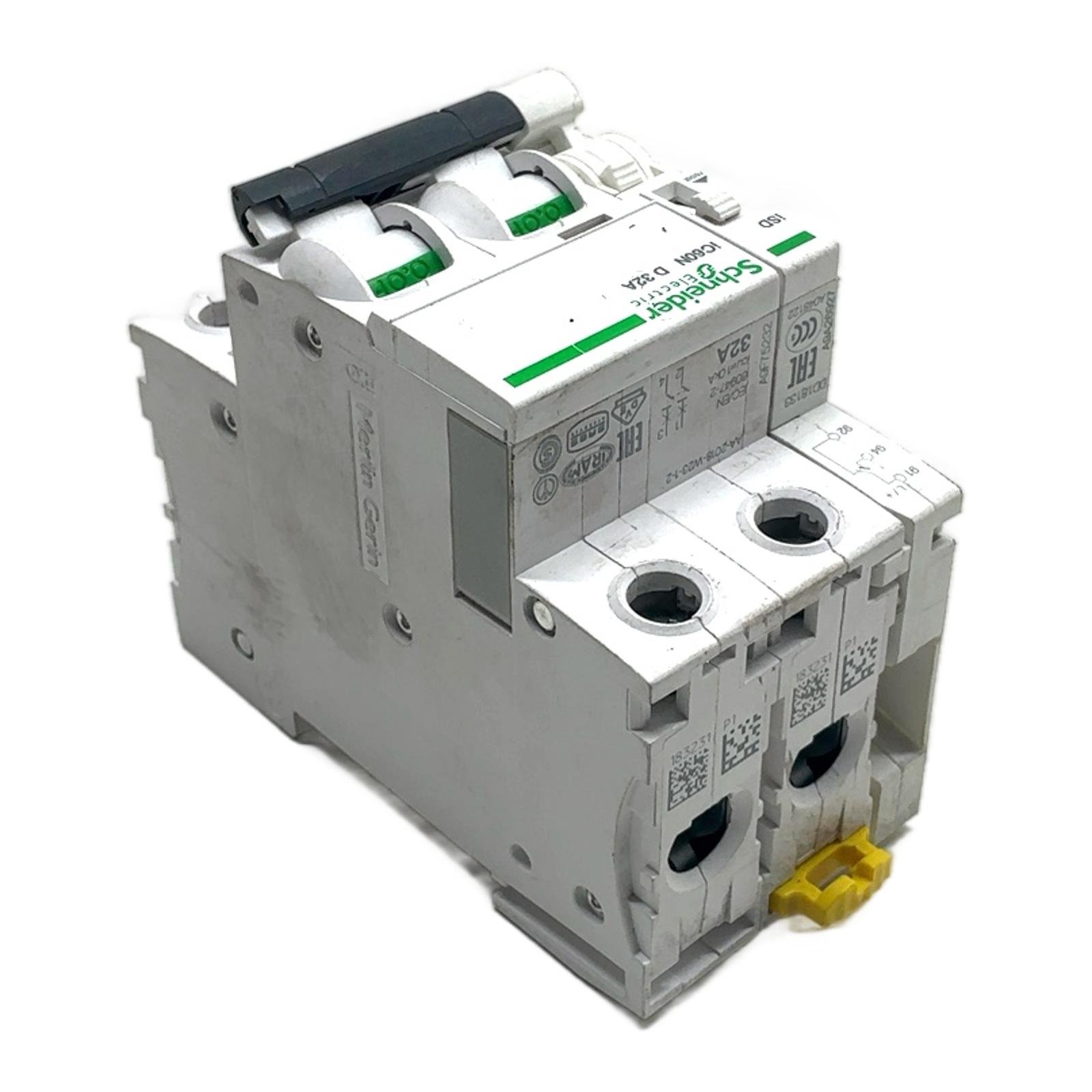

SCHNEIDER ELECTRIC iC60N D32A A9F75232

Schneider Electric iC60N 32A 2P Miniature Circuit Breaker Description The Schneider Electric A9F75232 is an Acti9 iC60N miniature circuit breaker (MCB) designed for superior circuit protection in demanding industrial and commercial environments. This 2-pole device features a 32A current rating and a D-type tripping curve, making it ideal for protecting circuits with high inrush currents. This unit comes with a pre-installed iSD auxiliary contact for remote fault indication. The Acti9 series is known for its safety features, reliability, and ease of installation. Specifications Brand: Schneider Electric Model: iC60N D32A Part Number: A9F75232 Number of Poles: 2P Rated Current: 32 A Tripping Curve: D Rated Voltage: Up to 400V AC Breaking Capacity: 10 kA (IEC 60898-1) Attached Module: iSD Auxiliary Fault Contact Label Info Manufacturer: Schneider Electric Type: iC60N D 32A Compliance (Auxiliary): IEC/EN 60947-5-1, GB 14048.5 Application This MCB is specifically designed for the protection of circuits that power motors, transformers, and other equipment with high starting currents. It prevents damage from overloads and short-circuits in distribution boards within industrial plants, commercial buildings, and infrastructure projects. Country of Origin Made in India. CO2 Impact By purchasing this reused component, you are actively contributing to a circular economy. You’ve helped avoid the emission of approximately 10.0 kg of CO2, which is comparable to the emissions from driving a car for 50 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the difference between a D-curve and a C-curve circuit breaker?A D-curve breaker is designed for circuits with very high inrush currents, such as those with large motors, transformers, or capacitor banks. It trips at 10 to 20 times the rated current. A C-curve breaker is more common and trips at 5 to 10 times the rated current, suitable for general loads and small motors. What is the function of the attached iSD auxiliary contact?The iSD is a fault signal contact. It changes its state (opens or closes a separate low-voltage circuit) only when the circuit breaker trips due to a fault (overload or short-circuit). It does not change state during manual on/off operation, allowing for remote monitoring of electrical faults. Is this iC60N breaker compatible with other Acti9 accessories?Yes, the iC60N is part of the modular Acti9 system. It is compatible with a wide range of accessories, including Vigi residual current add-on blocks, various auxiliary contacts (iOF, iSD), shunt trips (iMX), and under-voltage releases (iMN). Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
