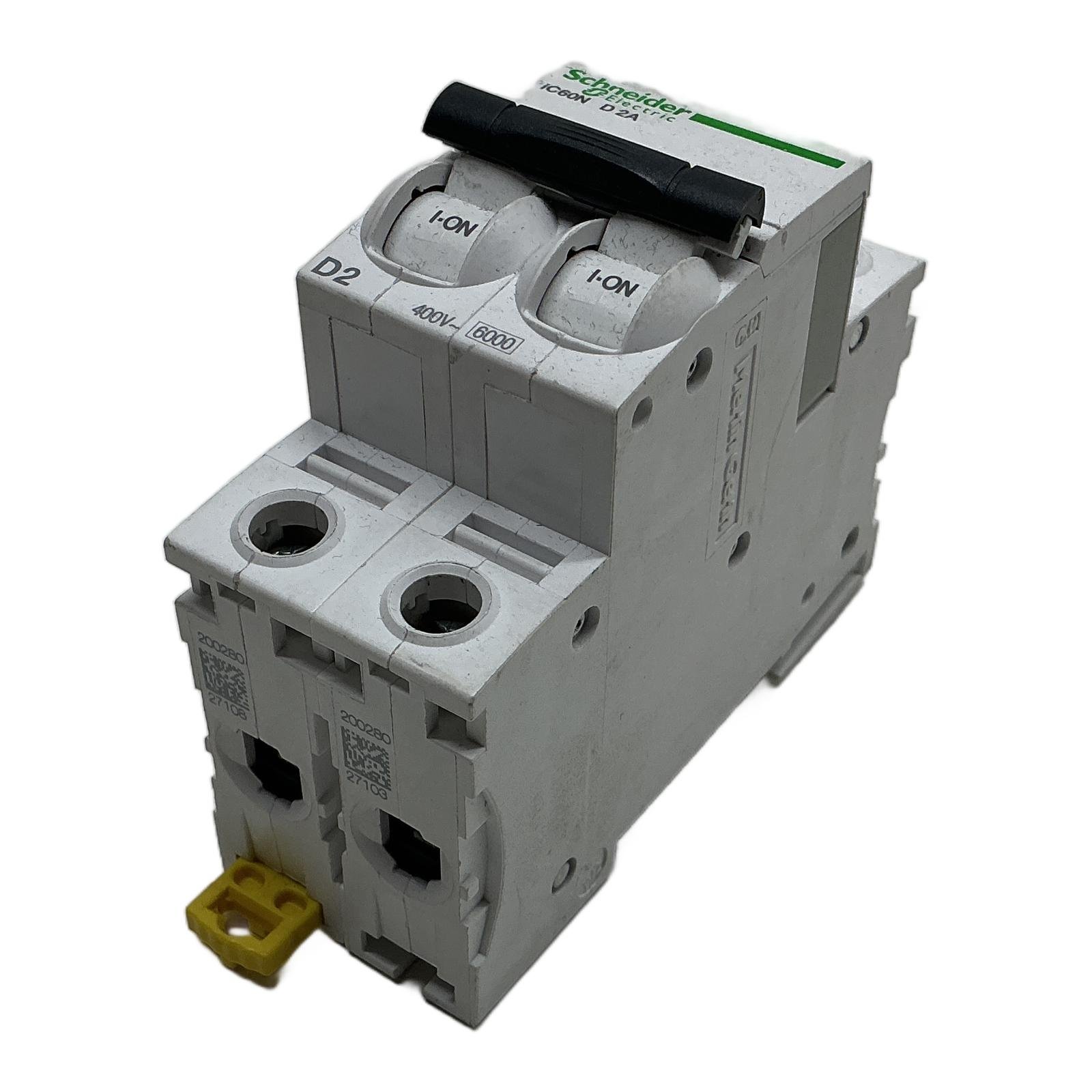

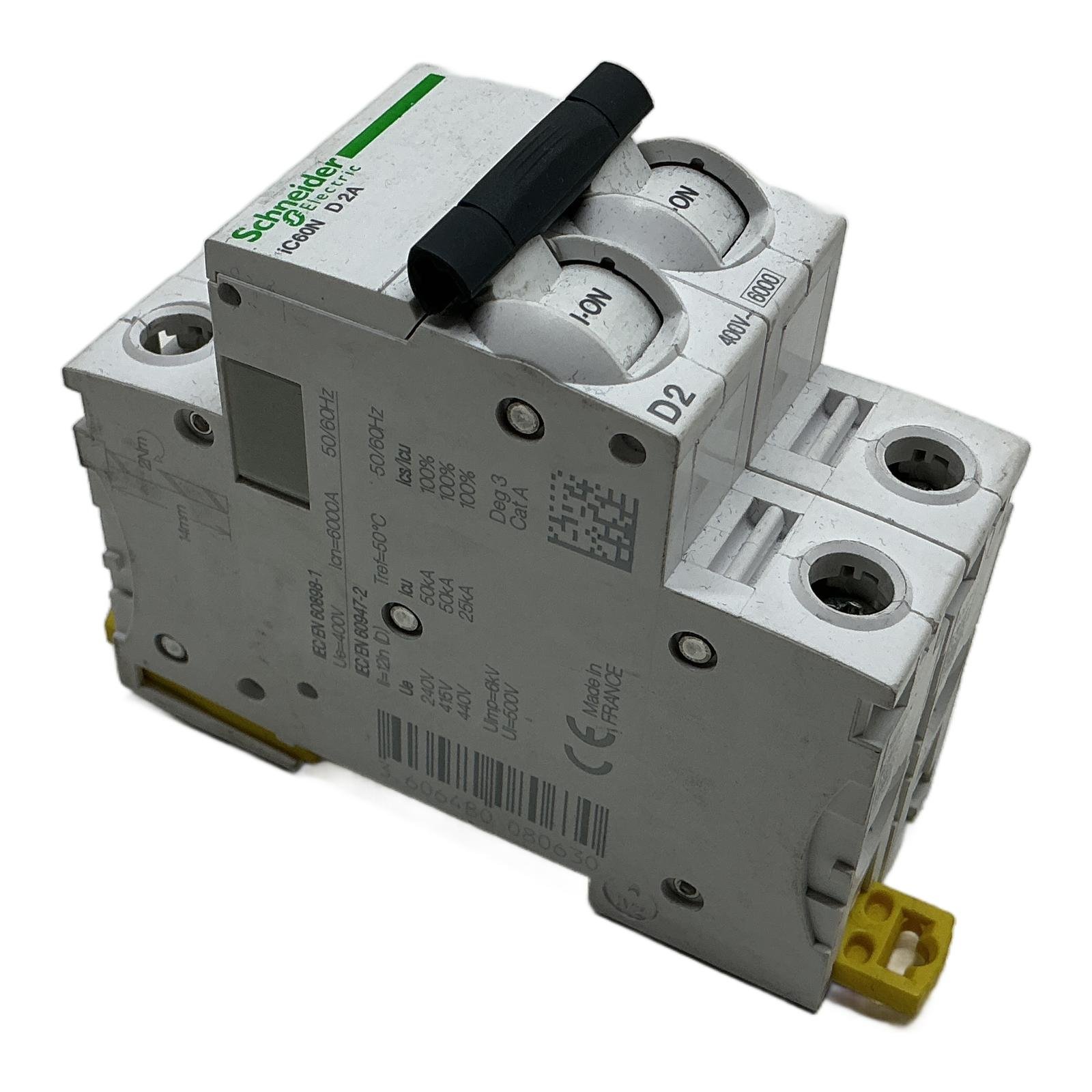

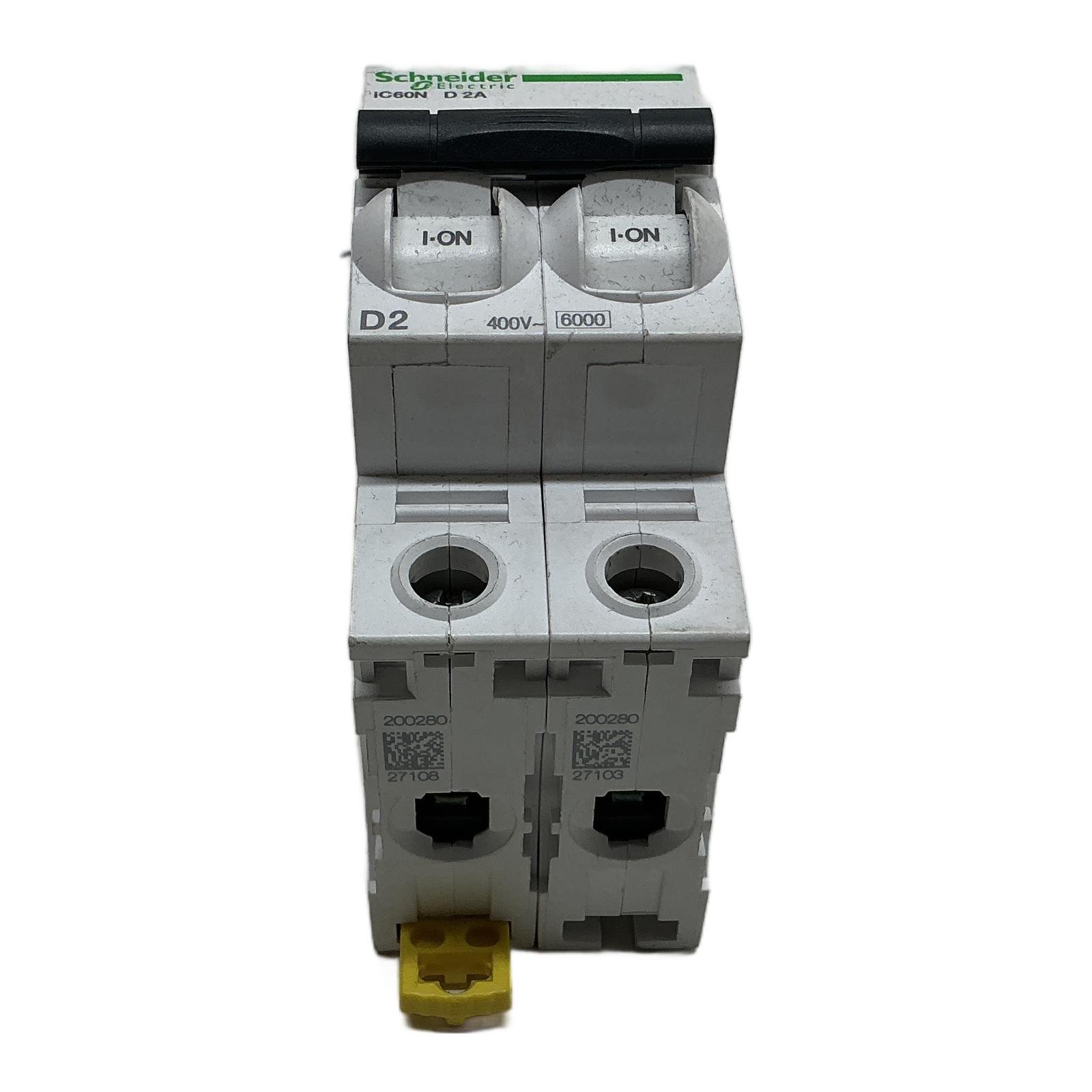

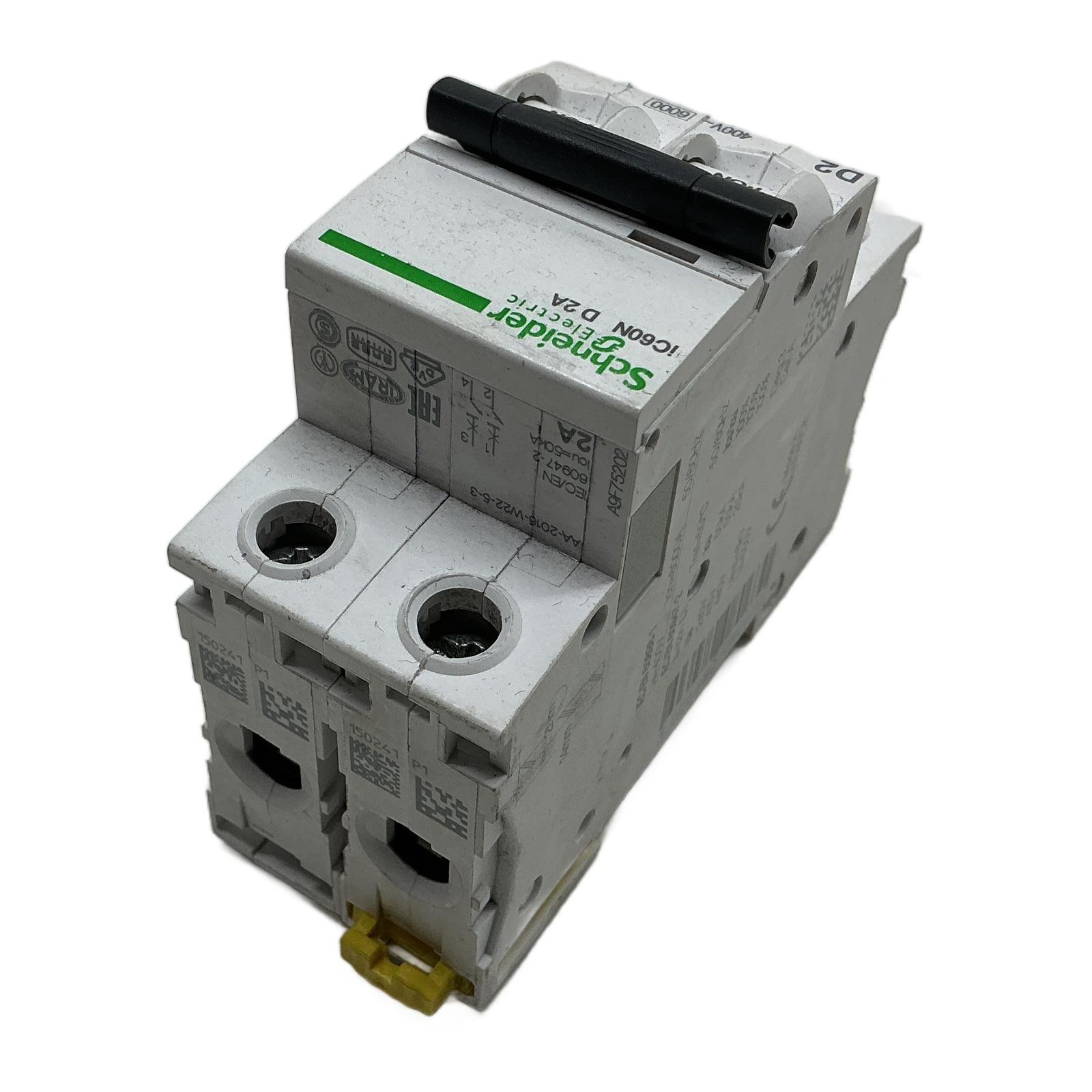

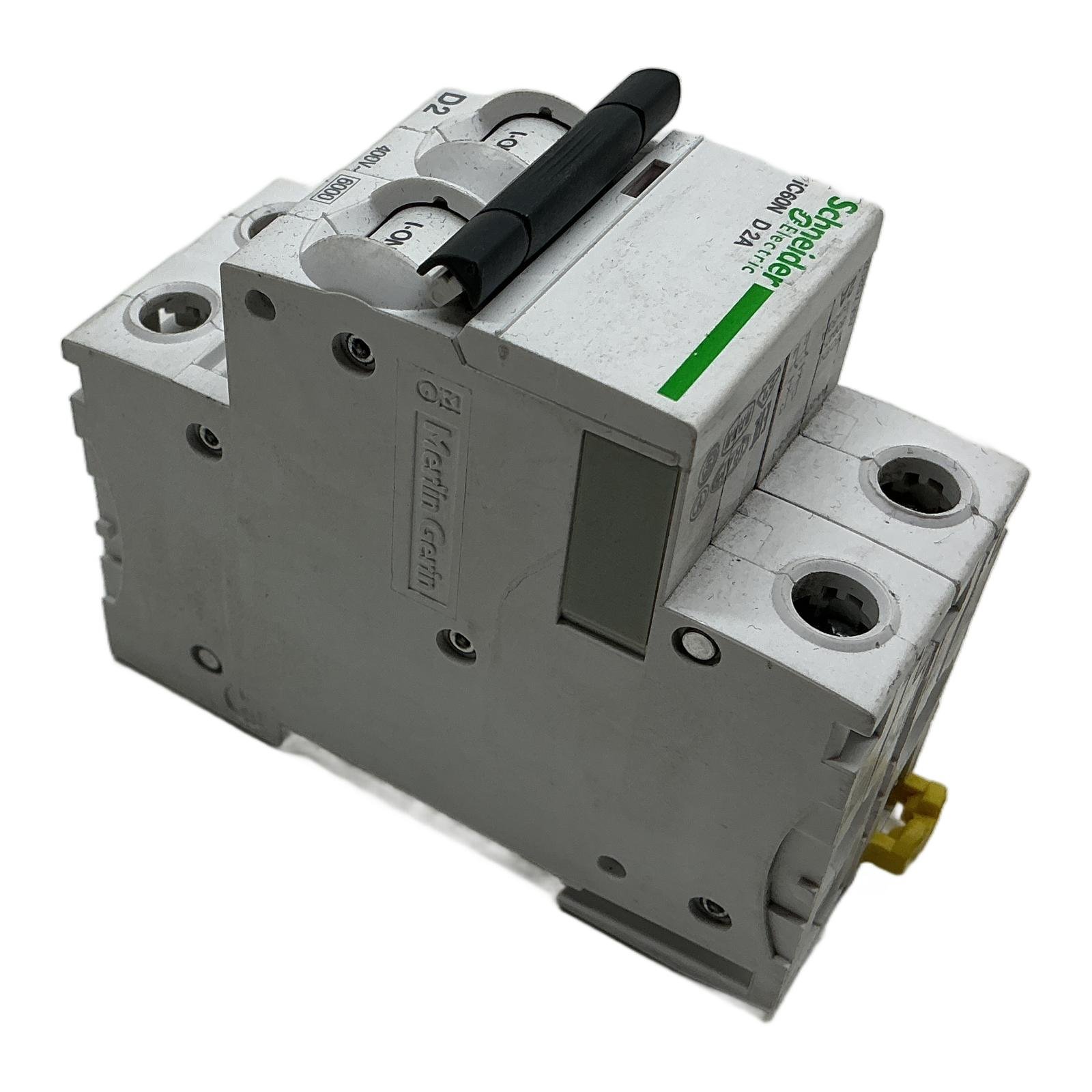

SCHNEIDER ELECTRIC iC60N D2A A9F05202

Schneider Electric iC60N D2A Miniature Circuit Breaker Description The Schneider Electric A9F05202 is a high-performance miniature circuit breaker (MCB) from the renowned Acti9 series. This 2-pole device provides robust protection for electrical circuits with a rated current of 2A. Its D-curve characteristic makes it perfectly suited for applications with high inrush currents, such as motor starting or transformer energization, preventing nuisance tripping while ensuring safety against overloads and short circuits. Specifications Manufacturer: Schneider Electric Series: Acti9 iC60N Part Number: A9F05202 Type: Miniature Circuit Breaker (MCB) Number of Poles: 2P Rated Current: 2 A Tripping Curve: D Rated Voltage (Ue): up to 400V AC 50/60Hz Breaking Capacity (Icn): 6000A at 400V AC (IEC/EN 60898-1) Mounting: DIN Rail Label Info Uimp: 6kV Ui: 500V Standard: IEC/EN 60898-1, IEC/EN 60947-2 Application Ideal for use in industrial control panels, commercial buildings, and machinery for protecting circuits that power motors, transformers, and other inductive loads that cause high start-up currents. Country of Origin Made in France. CO2 Impact By purchasing this pre-owned component, you are contributing to a circular economy and helping to avoid approximately 10 kg of CO2 emissions associated with the production of a new unit. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is a D-curve characteristic and where is it used?A D-curve tripping characteristic is designed for very high inrush currents, typically 10 to 20 times the rated current. It is primarily used to protect circuits with transformers, motors, or large capacitor banks where the initial current surge is very high. What is the breaking capacity of this iC60N MCB?This MCB has a breaking capacity (Icn) of 6000A according to the IEC/EN 60898-1 standard for residential/commercial installations. For industrial applications under IEC/EN 60947-2, it has a higher ultimate breaking capacity (Icu) of 50kA at 240/415V. Can this MCB be used in both AC and DC systems?While primarily designed for AC systems as per the label, many Acti9 MCBs have a DC rating. It is crucial to consult the official Schneider Electric datasheet for the specific DC voltage and breaking capacity ratings for part number A9F05202 before using it in a DC application. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
