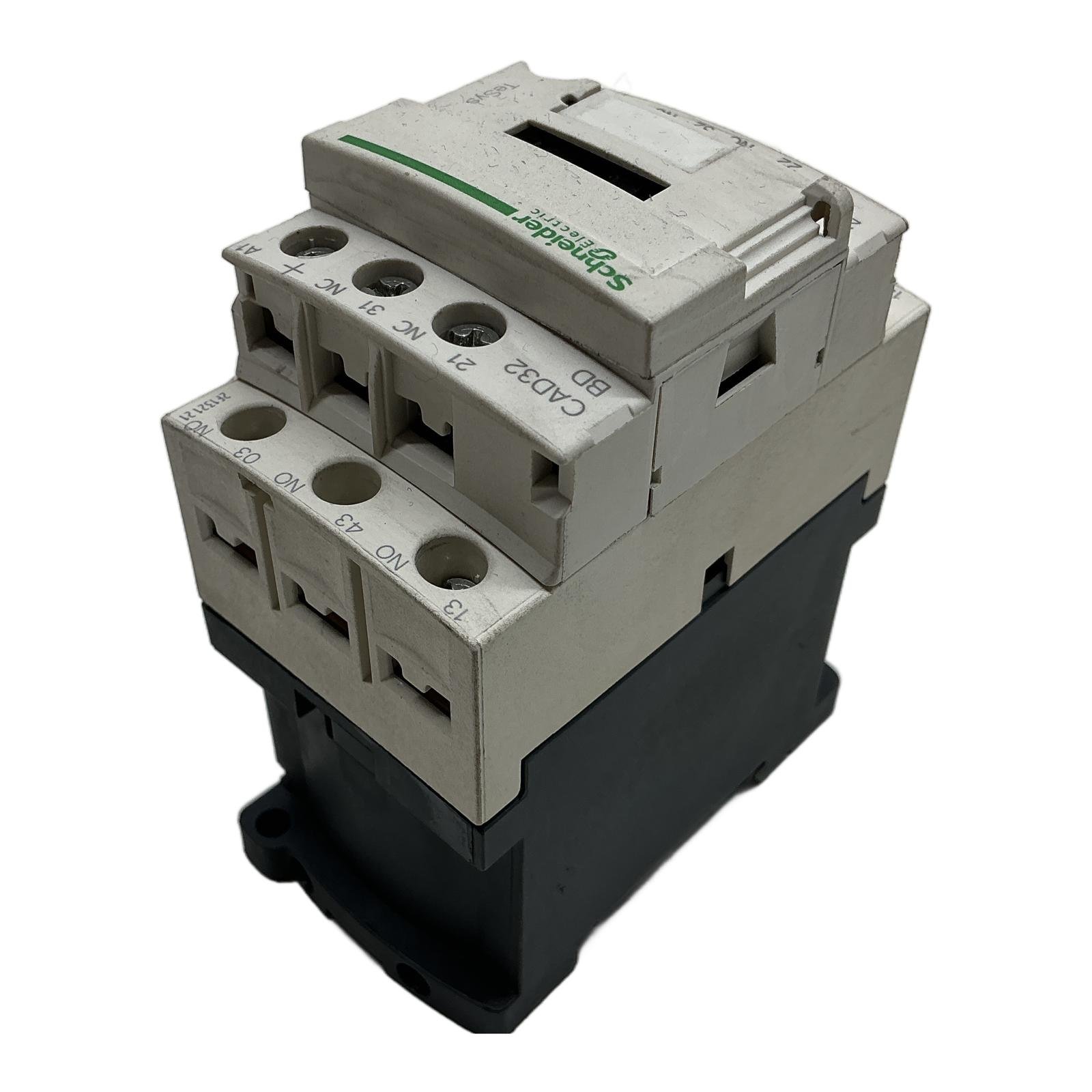

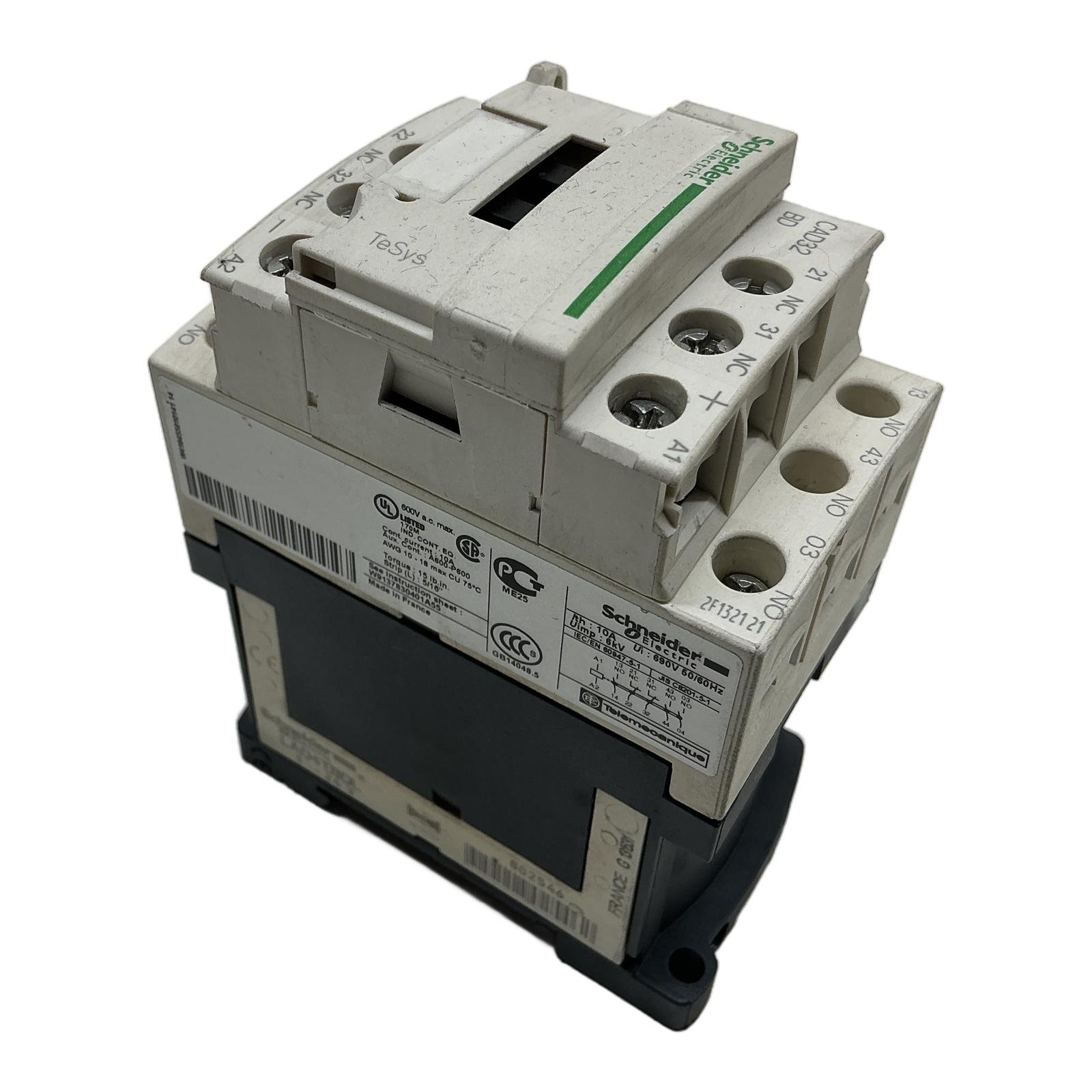

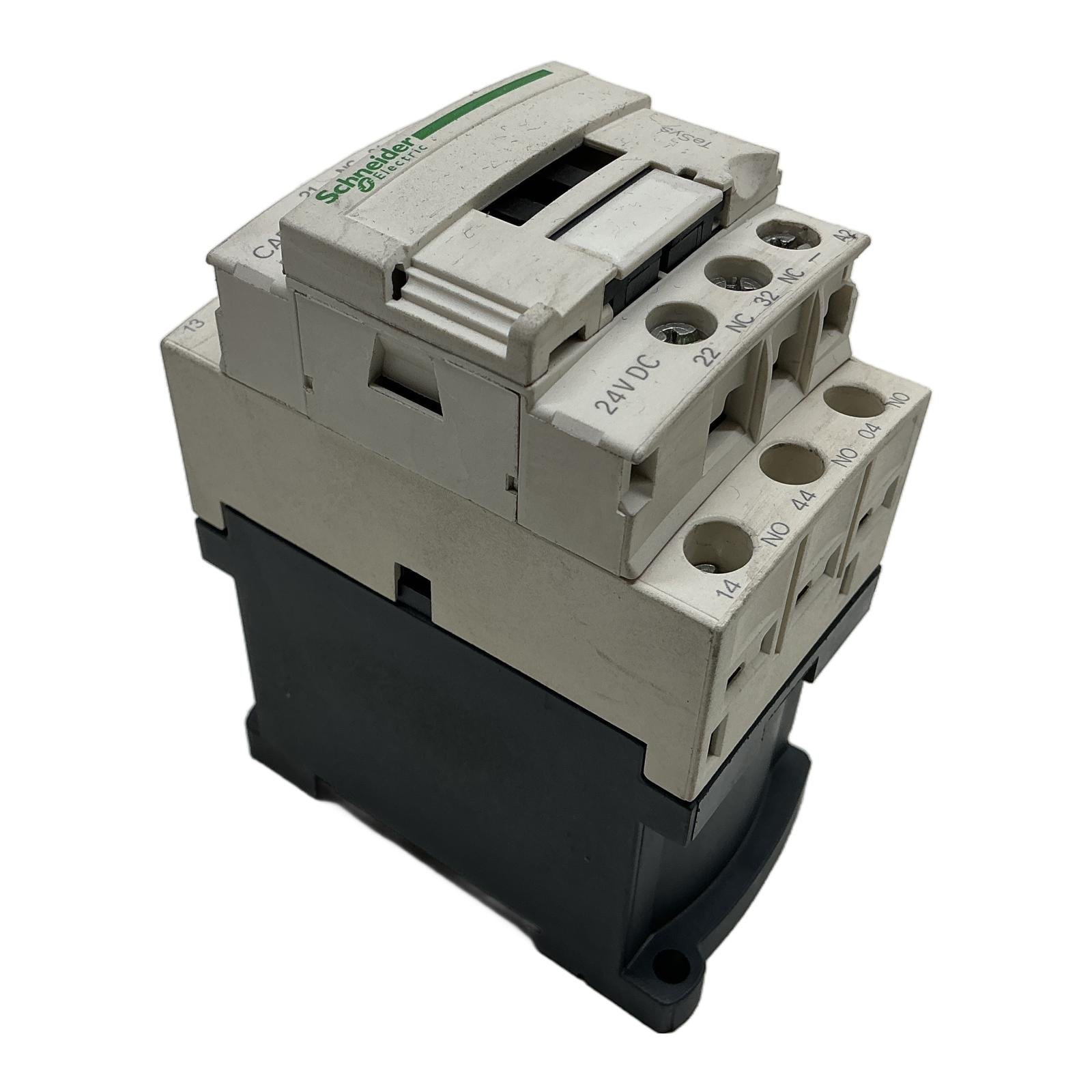

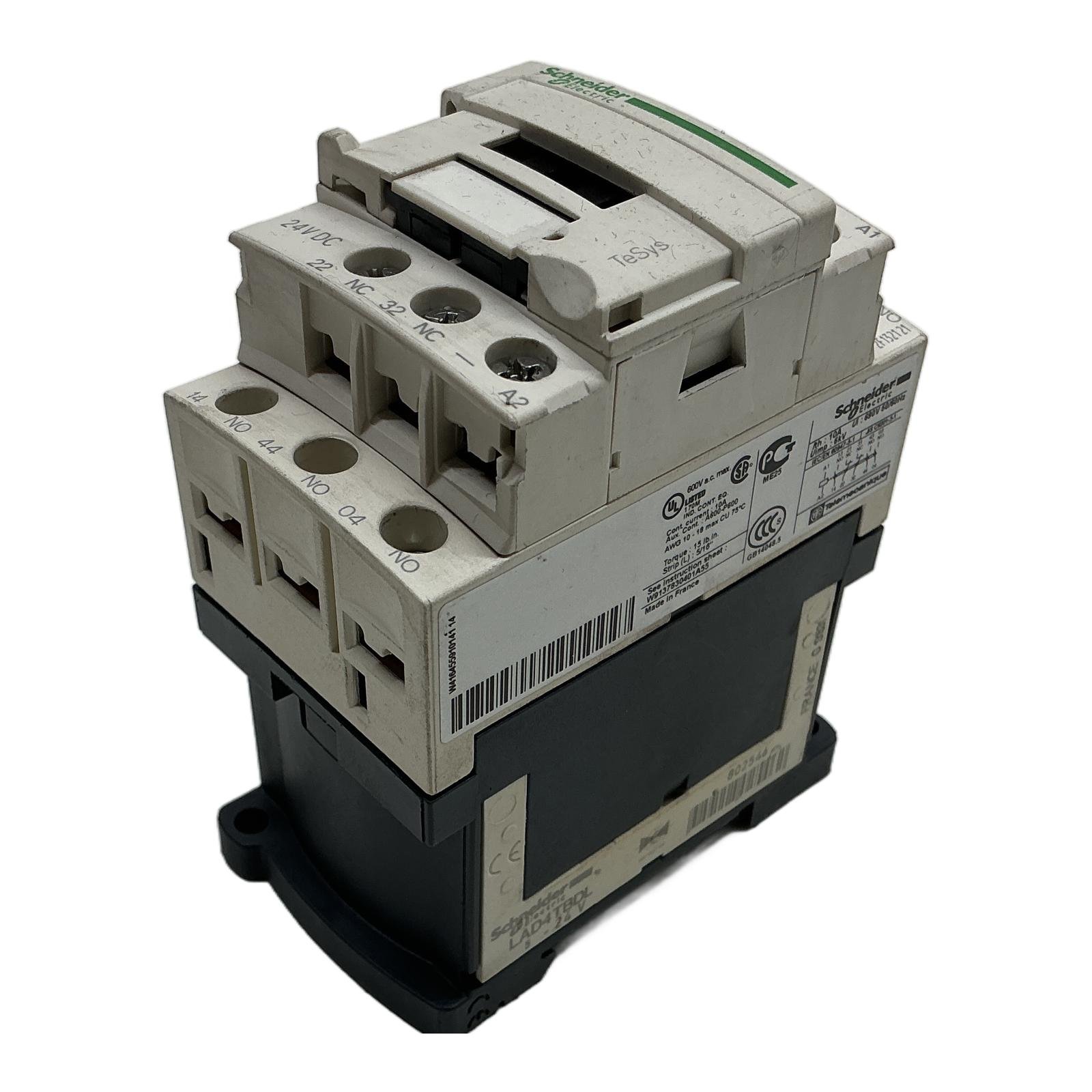

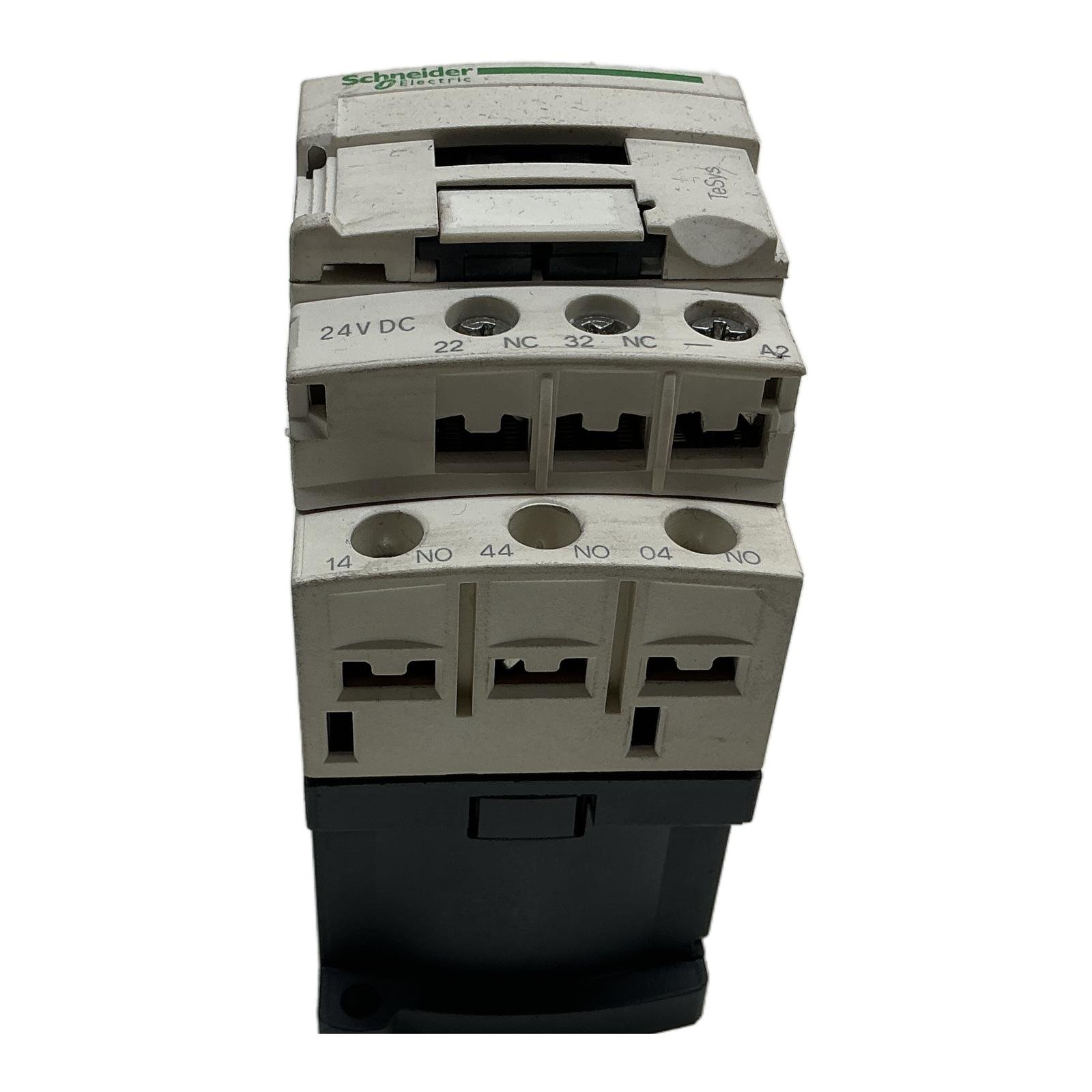

SCHNEIDER ELECTRIC CAD32BD LAD4TBDL

Schneider Electric TeSys D Control Relay Description The CAD32BD is a high-performance control relay from Schneider Electric’s renowned TeSys D series. It is designed for switching control circuits in industrial automation systems. This model features a 24V DC low-consumption coil and a 3 NO + 2 NC contact arrangement. This unit also includes an LAD4TBDL surge suppressor module, which protects the coil against voltage transients, increasing the product’s lifespan and reliability. Specifications Manufacturer: Schneider Electric Series: TeSys D Model: CAD32BD Coil Voltage: 24V DC Contact Configuration: 3 Normally Open (NO), 2 Normally Closed (NC) Conventional Free Air Thermal Current (Ith): 10 A Rated Insulation Voltage (Ui): 690 V Included Accessory: LAD4TBDL Surge Suppressor Module (5-24V) Label Info Standards: IEC/EN 60947-5-1, UL 508, CSA C22.2 No 14 Application Ideal for use in control panels for motors, lighting, heating, and general automation tasks where reliable signal switching is critical. Country of Origin Made in France. CO2 Impact Choosing this pre-owned component saves approximately 16.0 kg of CO2 compared to a new one, contributing to a more sustainable industrial operation. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the purpose of the LAD4TBDL module included with this contactor?The LAD4TBDL is a bidirectional diode surge suppressor module. It is fitted across the coil terminals (A1/A2) to clip voltage spikes that occur when the DC coil is de-energized, protecting both the contactor and other sensitive electronics in the control circuit. What does the ‘BD’ suffix in CAD32BD signify?The ‘BD’ suffix in Schneider Electric’s nomenclature for TeSys relays indicates a low-consumption 24V DC coil, which is compatible with PLC outputs and requires less power to operate compared to standard DC coils. Is this TeSys D contactor compatible with other TeSys accessories?Yes, the TeSys D range is highly modular. This CAD32BD control relay is compatible with a wide range of accessories, including additional front or side-mounted auxiliary contact blocks, mechanical interlocks, and pneumatic timer modules. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
