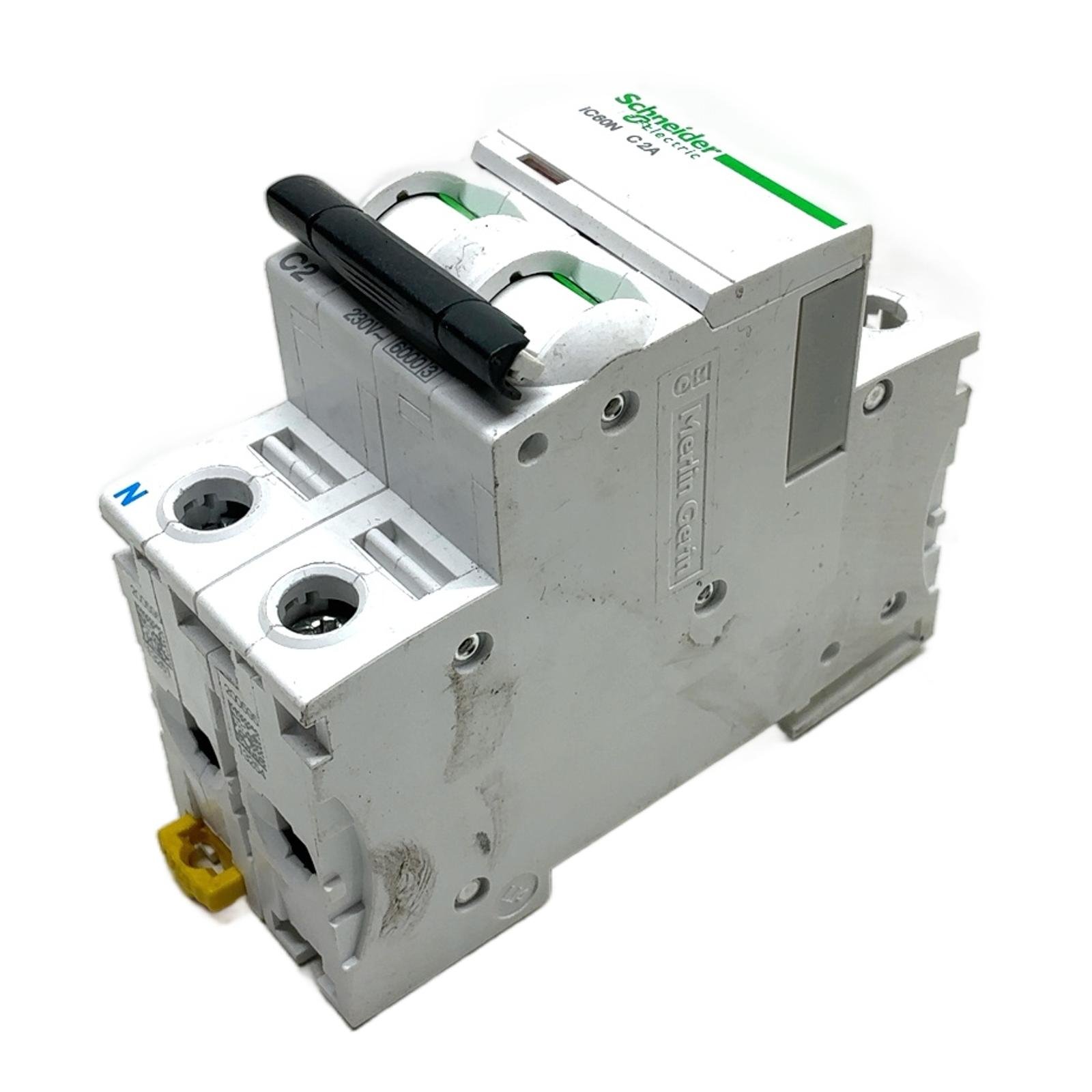

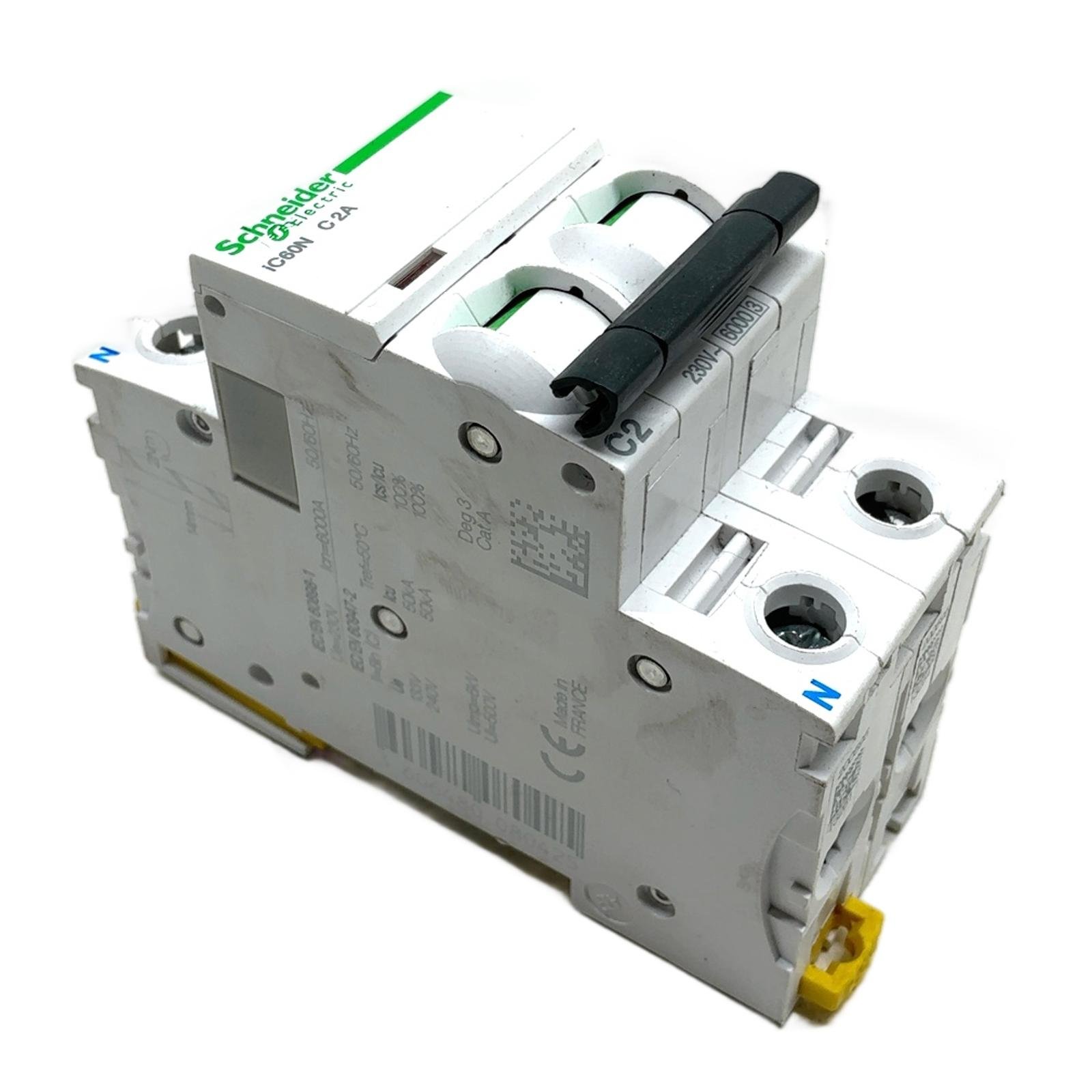

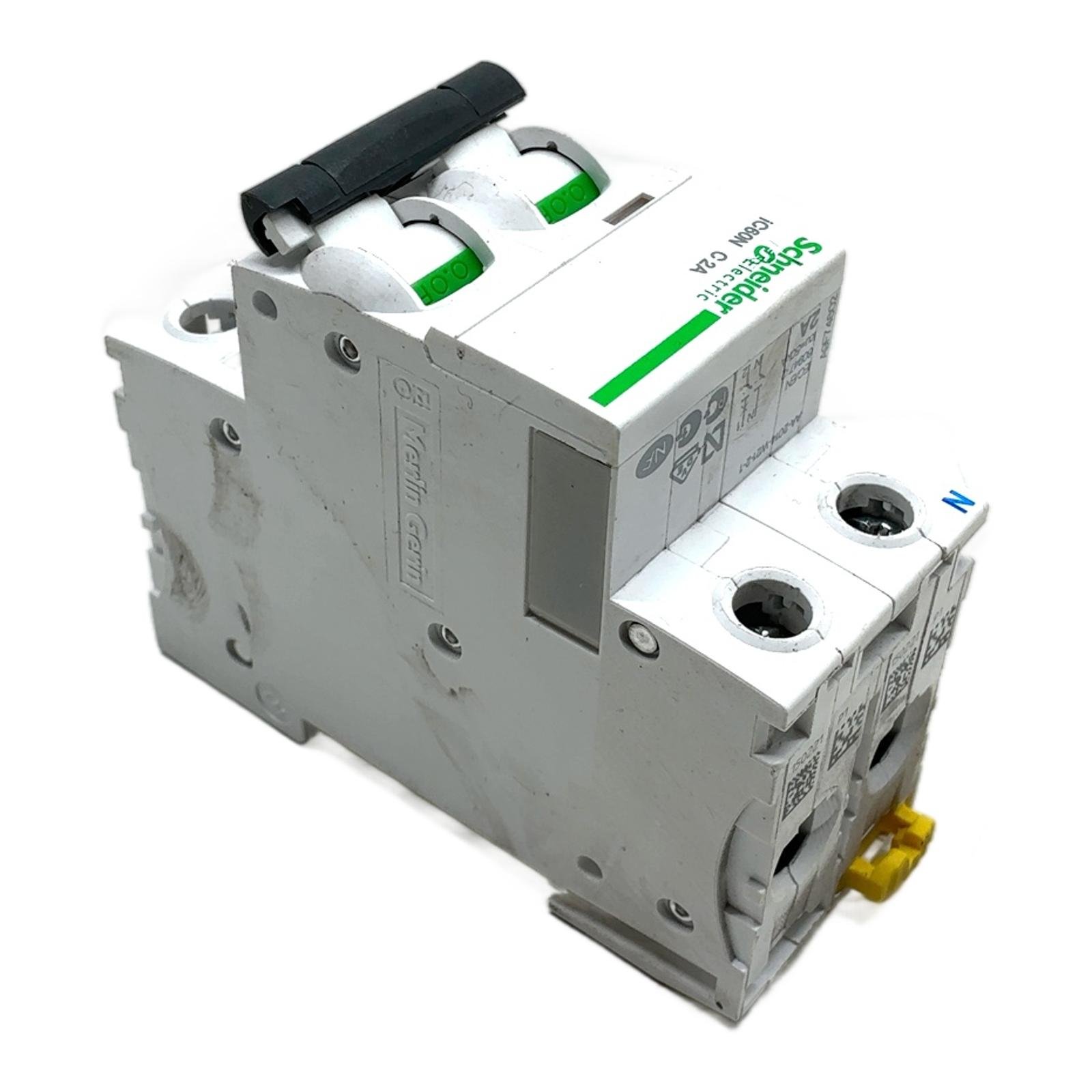

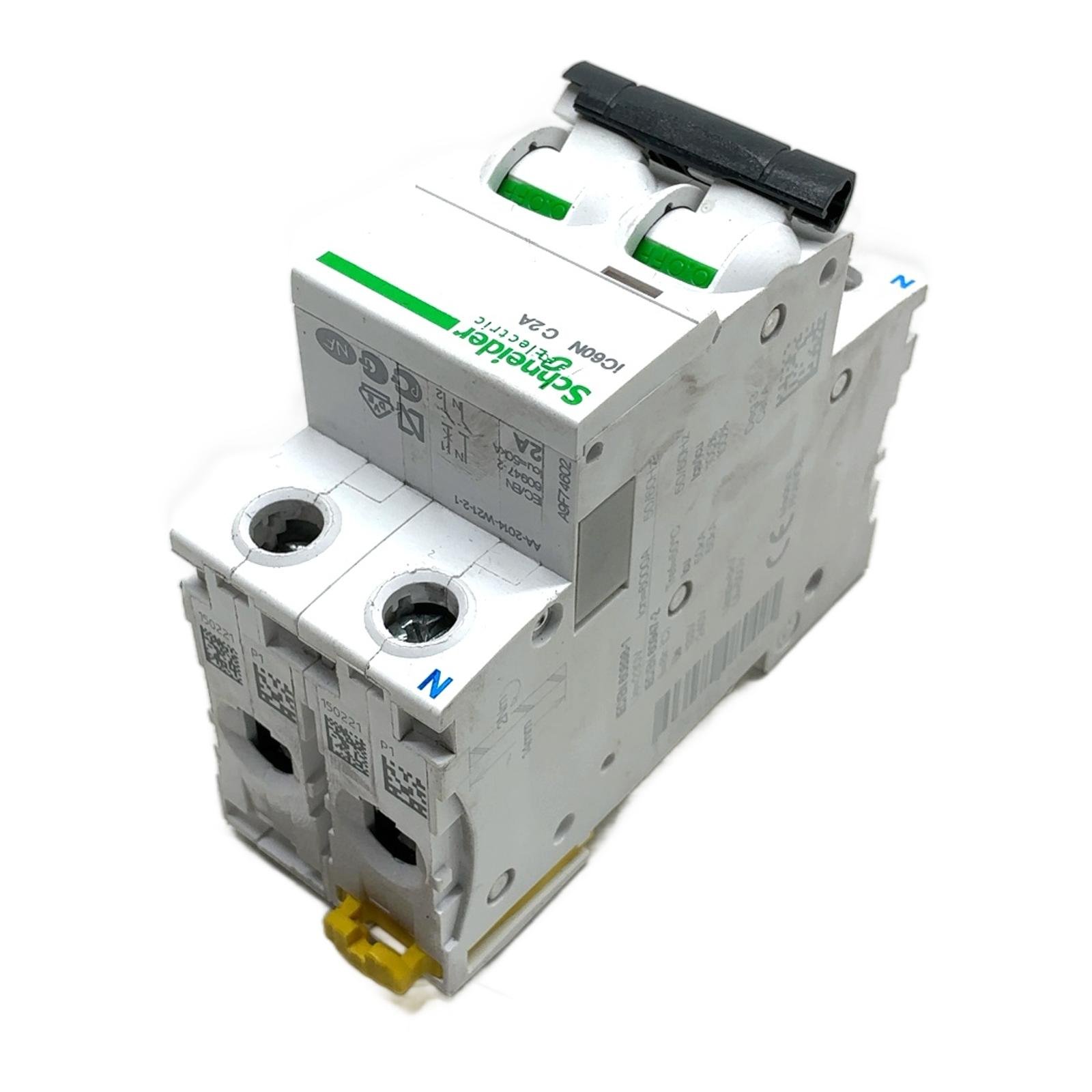

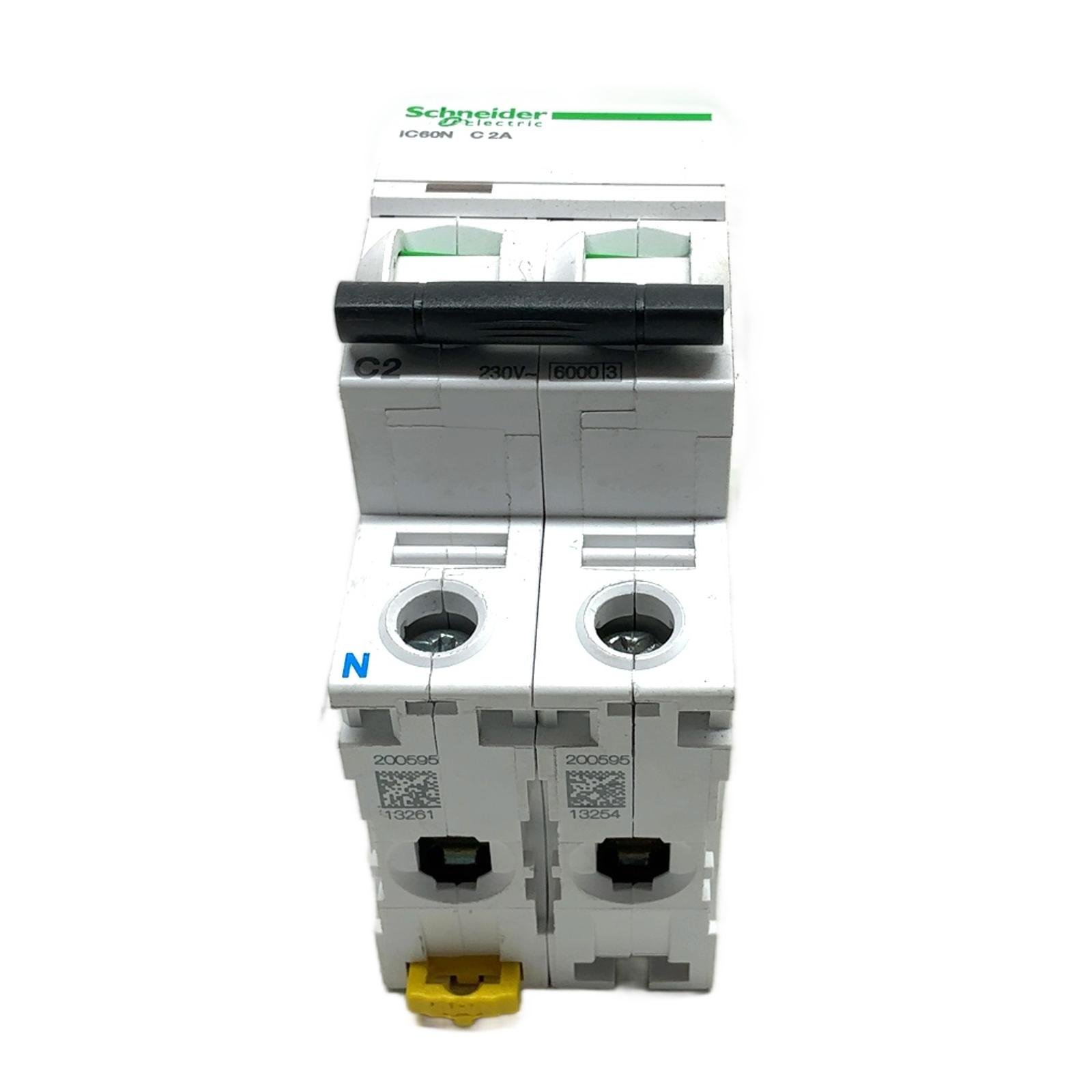

SCHNEIDER ELECTRIC iC60N C2A A9F04202

Schneider Electric iC60N C2A Circuit Breaker Description The Schneider Electric A9F04202 is a high-performance miniature circuit breaker (MCB) from the Acti9 iC60N series. This 1P+N device provides essential overcurrent and short-circuit protection for electrical circuits. With a 2A rating and C tripping curve, it is ideal for a wide range of applications in both industrial and commercial settings, ensuring operational safety and reliability. Specifications Manufacturer: Schneider Electric Part Number: A9F04202 Model: iC60N C2A Poles: 1 Pole + Neutral (1P+N) Rated Current: 2 A Tripping Curve: C Rated Voltage (Ue): 230V AC at 50/60 Hz (per IEC/EN 60898-1) Breaking Capacity (Icn): 6000 A Rated Impulse Withstand Voltage (Uimp): 6 kV Mounting: DIN Rail Label Info Standard: IEC/EN 60898-1, IEC/EN 60947-2 EAN: 3606480080425 Application Designed for final distribution circuits, this MCB is suitable for protecting lighting systems, control circuits, and general-purpose socket outlets against thermal overloads and short circuits. Its DIN rail compatibility allows for easy installation in standard distribution boards and control panels. Country of Origin Made in France. CO2 Impact By purchasing this reconditioned component, you contribute to a circular economy and avoid approximately 8.8 kg of CO2 emissions associated with the production of a new unit. This saving is equivalent to the emissions from driving a standard car for 44 kilometers. Availability This item is a tested, pre-owned component in good working condition. It is available for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the difference between the iC60N and iC60H series?The primary difference is the breaking capacity. The iC60N series, like this model, typically has a breaking capacity of 6kA (6000A), while the iC60H series offers a higher breaking capacity of 10kA, making it suitable for applications with higher potential fault currents. What does the ‘C’ curve rating signify for this A9F04202 breaker?The ‘C’ tripping curve indicates that the breaker will trip magnetically between 5 and 10 times its rated current (in this case, between 10A and 20A). This makes it ideal for general-purpose applications with moderate inrush currents, such as resistive and inductive loads like lighting and small motors. Can this 1P+N breaker be used on a single-phase system without a neutral?No, a 1P+N breaker is specifically designed for single-phase circuits that have both a phase (live) and a neutral conductor. The neutral pole is not protected but is switched along with the phase pole, ensuring full isolation of the circuit when the breaker trips or is manually switched off. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
