ABB PS DH110 1SFA884305-BNL

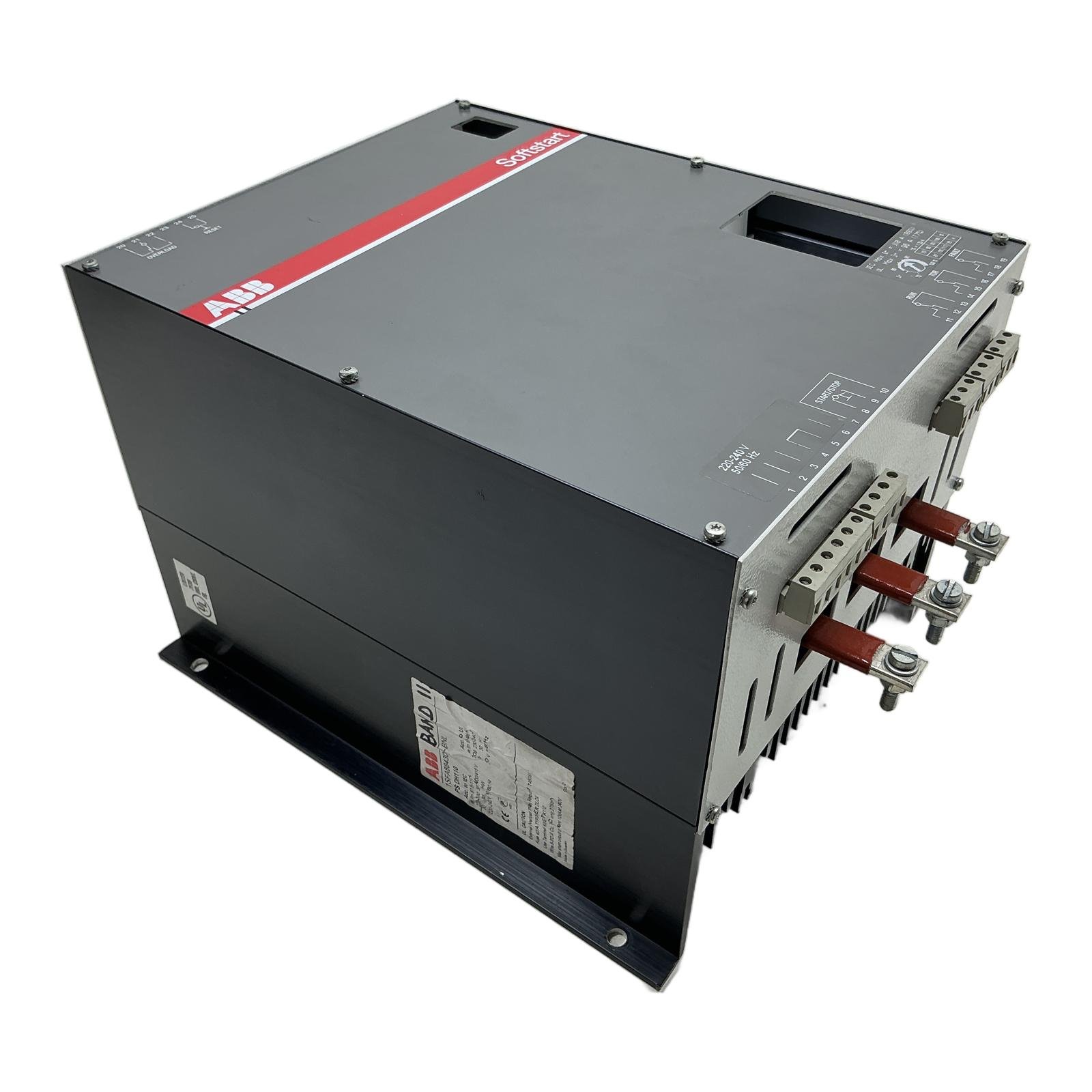

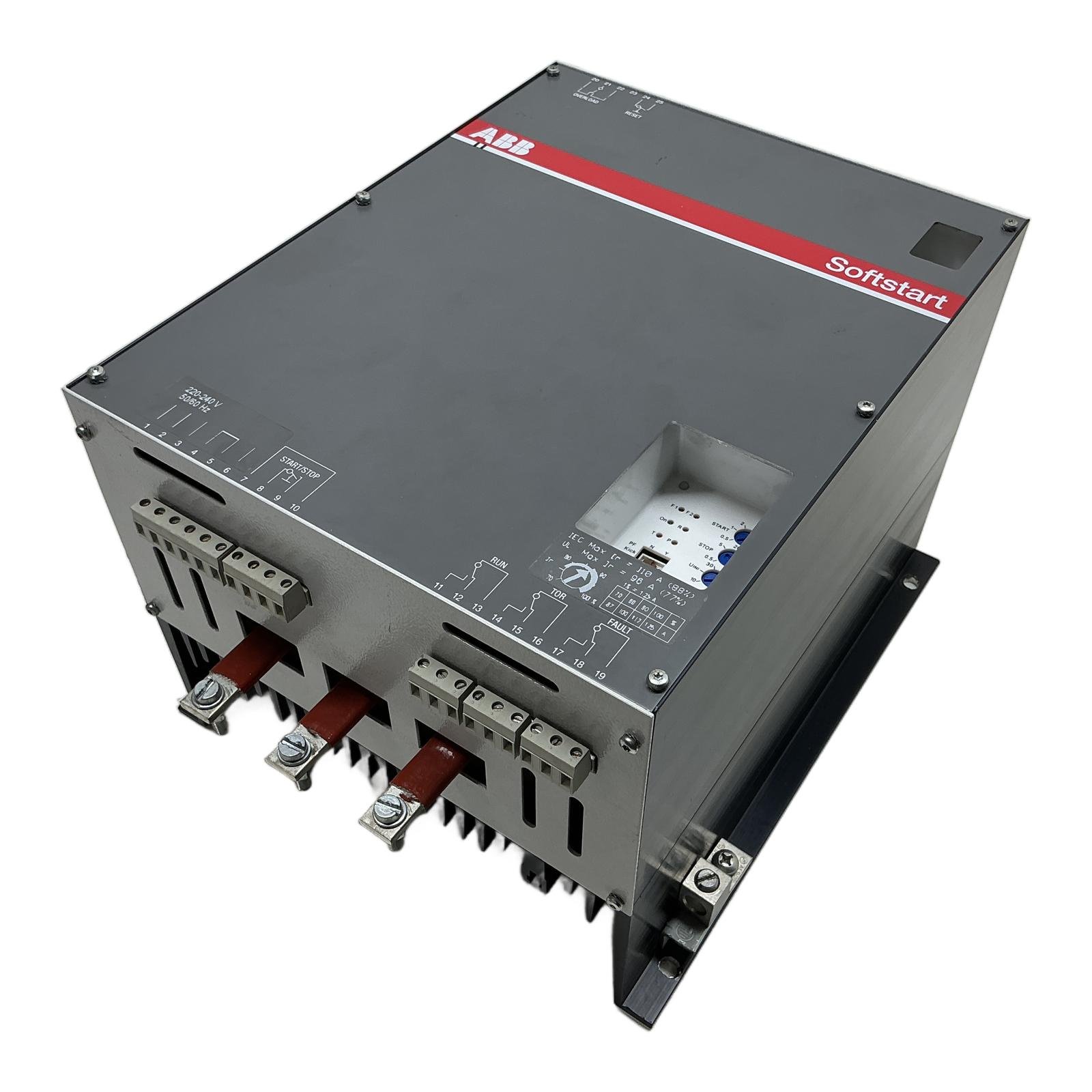

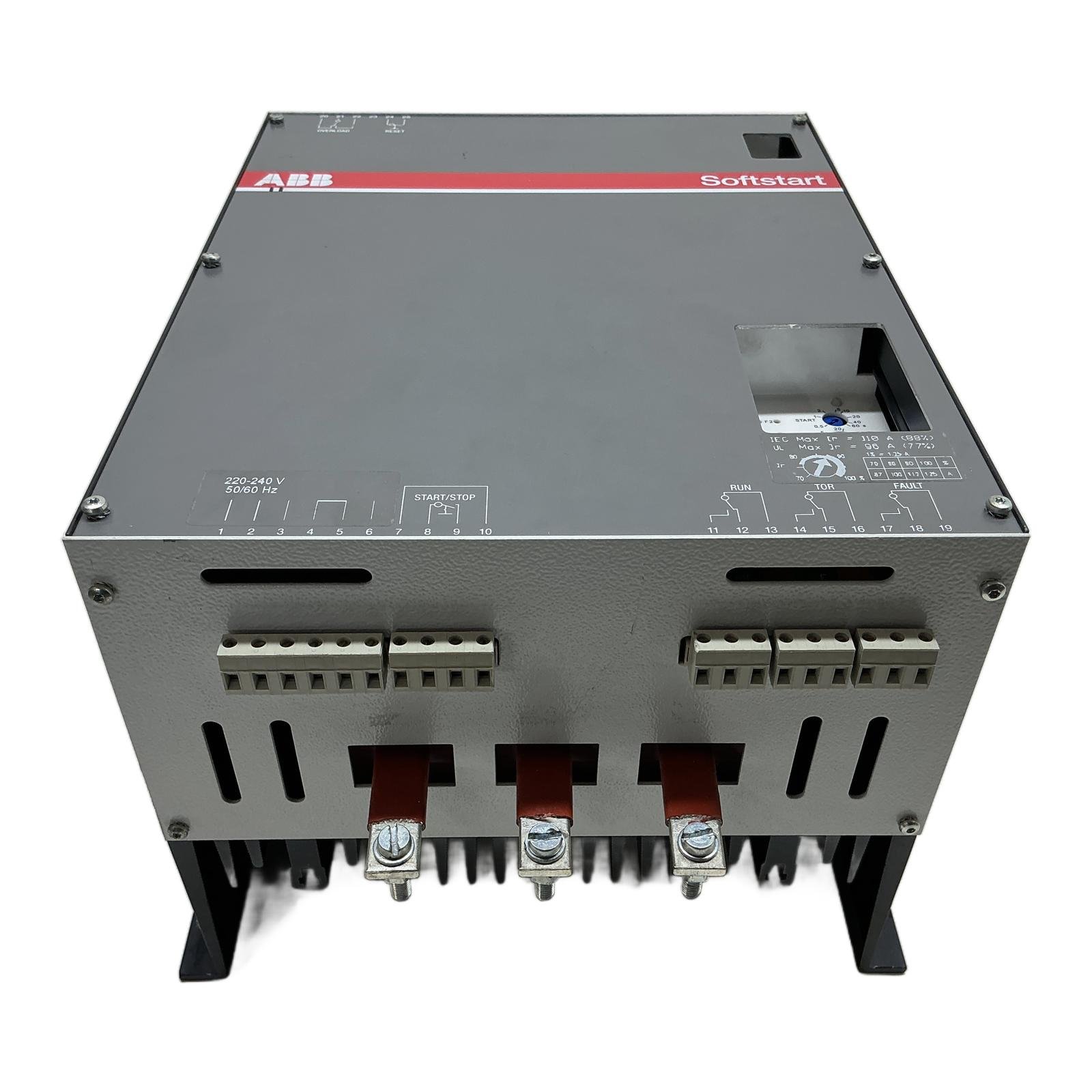

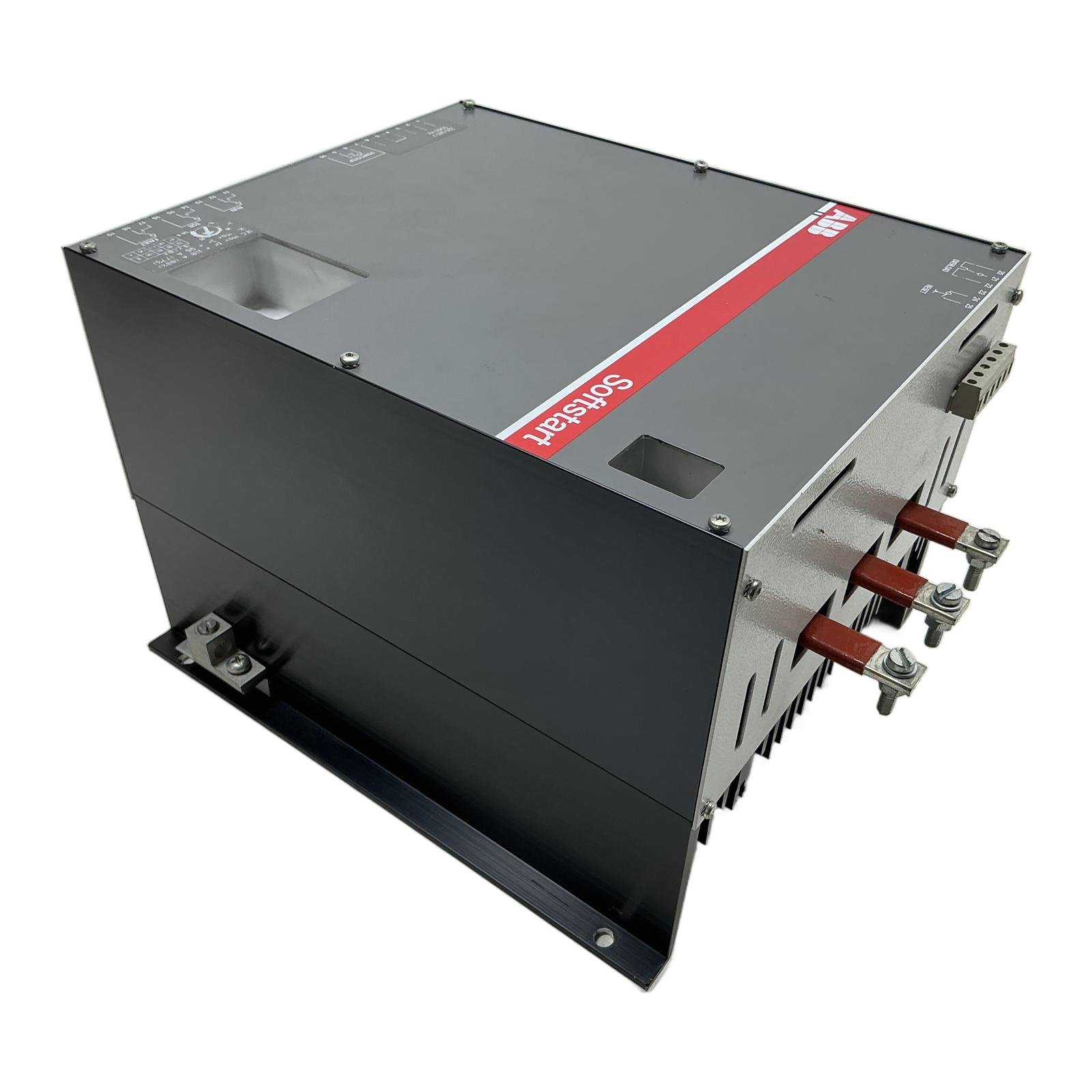

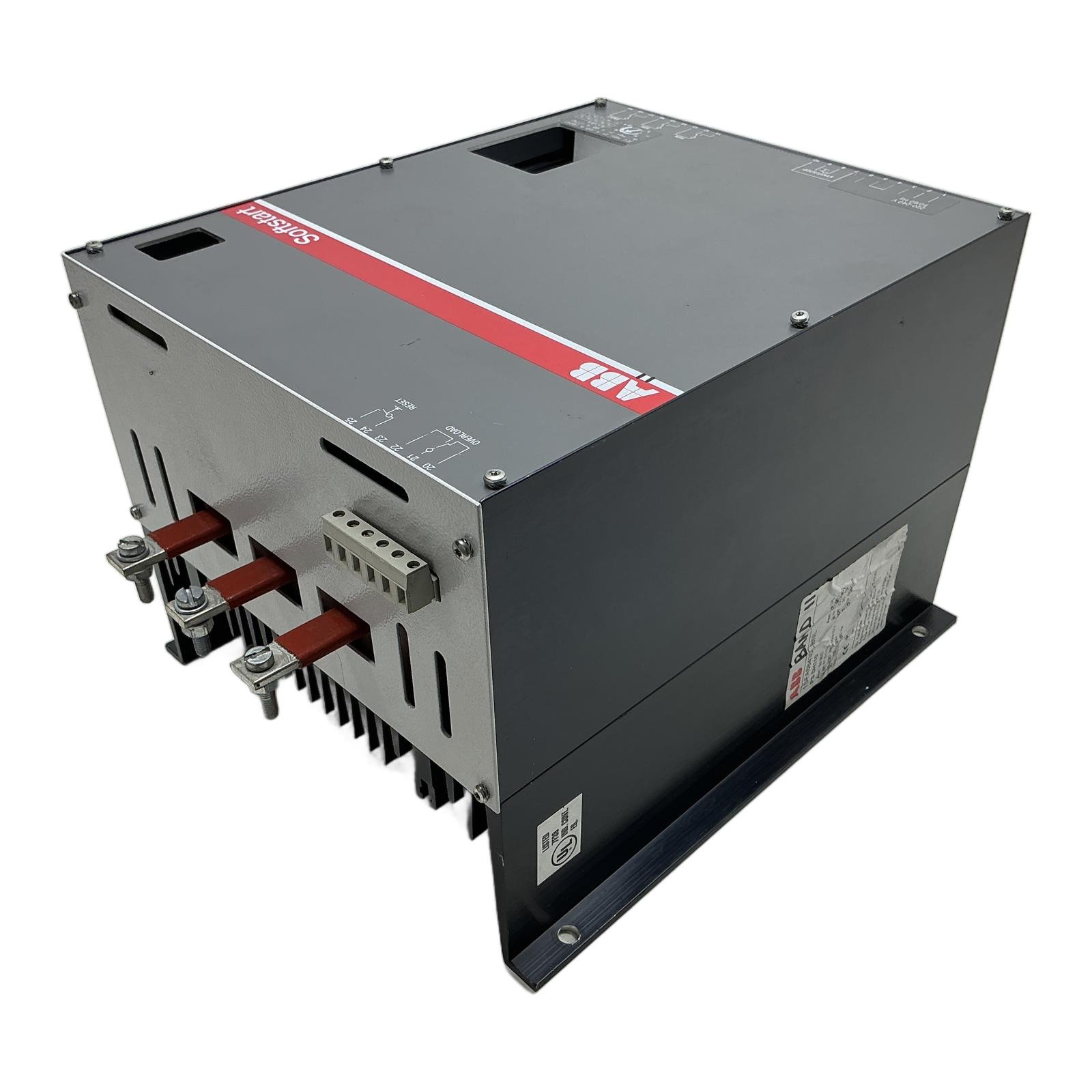

ABB PS DH110 Soft Starter for Industrial Motors Description The ABB PS DH110 is a high-performance soft starter designed to provide smooth acceleration and deceleration for three-phase induction motors. By controlling the voltage ramp, it minimizes mechanical shock and electrical current peaks during startup and shutdown. This unit is ideal for applications where reliability and extended equipment life are critical. Specifications Manufacturer: ABB Model: PS DH110 Part Number: 1SFA884305-BNL Rated Power (IEC, 400V): 55 kW Rated Current (IEC, Ith): 87.5 to 110 A Main Voltage: 208-415 VAC Control Supply Voltage: 220-240 VAC, 50/60 Hz Adjustable Settings: Start ramp, stop ramp, initial voltage, current limit, torque control Label Info Acc. to IEC: 30 kW at 230V, 55 kW at 400/415V Acc. to UL: 30 Hp at 208V, 30 Hp at 230/240V Application This soft starter is suitable for a wide range of industrial applications, including pumps, fans, compressors, conveyors, and mixers, where controlled motor starting is essential to protect the system. Country of Origin Made in Sweden. CO2 Impact Opting for a refurbished ABB PS DH110 prevents the emission of approximately 360 kg of CO2 compared to producing a new unit. This saving is comparable to the emissions from driving a car over 1800 kilometers. Availability This is an obsolete item, but it is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Can this PS DH110 soft starter be used for ‘inside-delta’ connection?No, the PS series soft starters are designed for standard ‘in-line’ (3-wire) motor connections only. An ‘inside-delta’ (6-wire) connection would require a different type of soft starter rated for 1.73 times the motor’s full load current. Does this unit have an integrated bypass contactor?No, the standard ABB PS series, including the PS DH110, does not have a built-in bypass contactor. For applications requiring a bypass function to increase efficiency and reduce heat after the motor is at full speed, an external bypass contactor must be installed and controlled separately. What is the purpose of the ‘TOR’ (Torque Control) setting on the front panel?The Torque Control feature is primarily used for optimizing the stopping of pumps. When enabled, it helps to eliminate the ‘water hammer’ effect by controlling the motor’s deceleration torque, ensuring a smooth and gradual stop of the fluid flow. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
