SCHNEIDER ELECTRIC GV2ME08

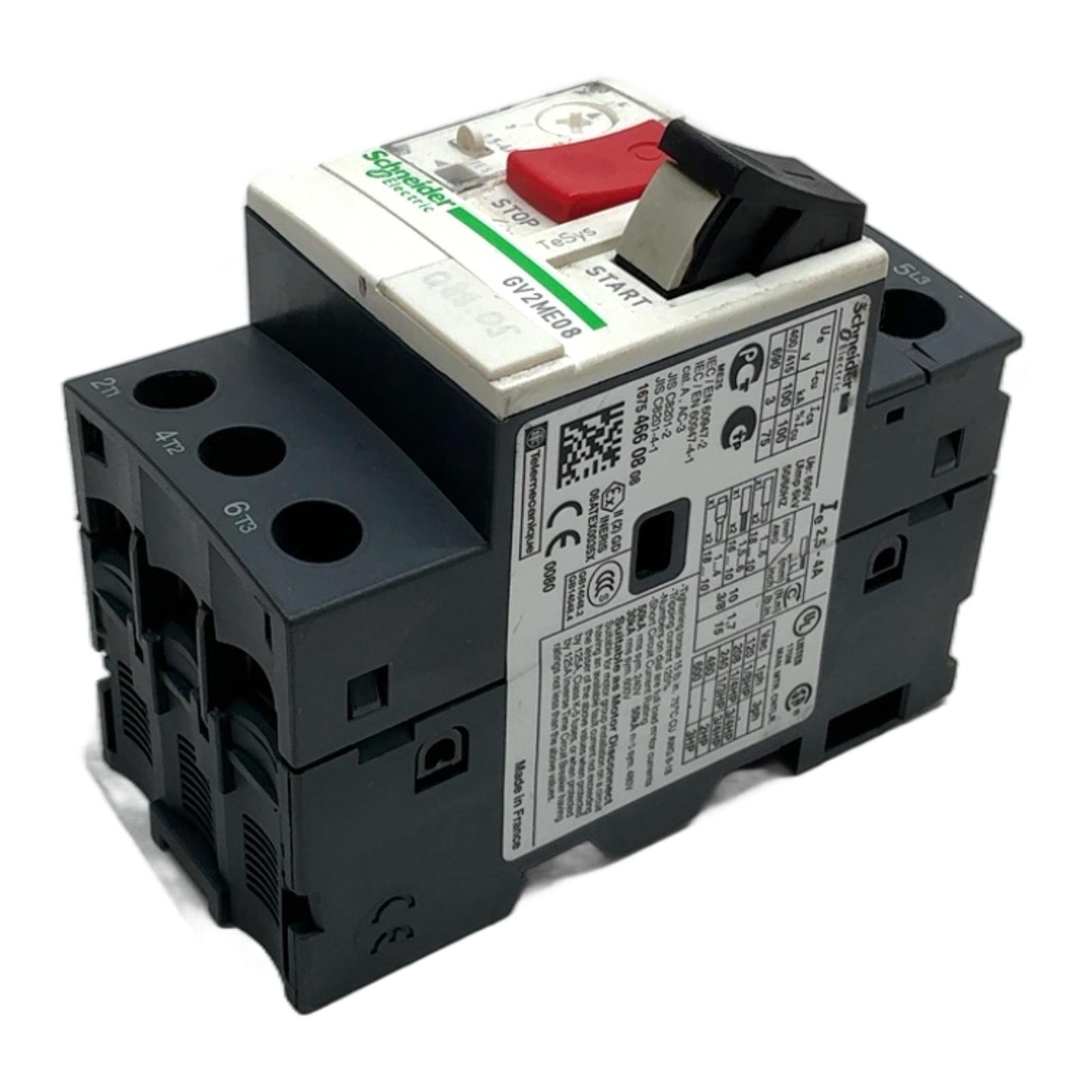

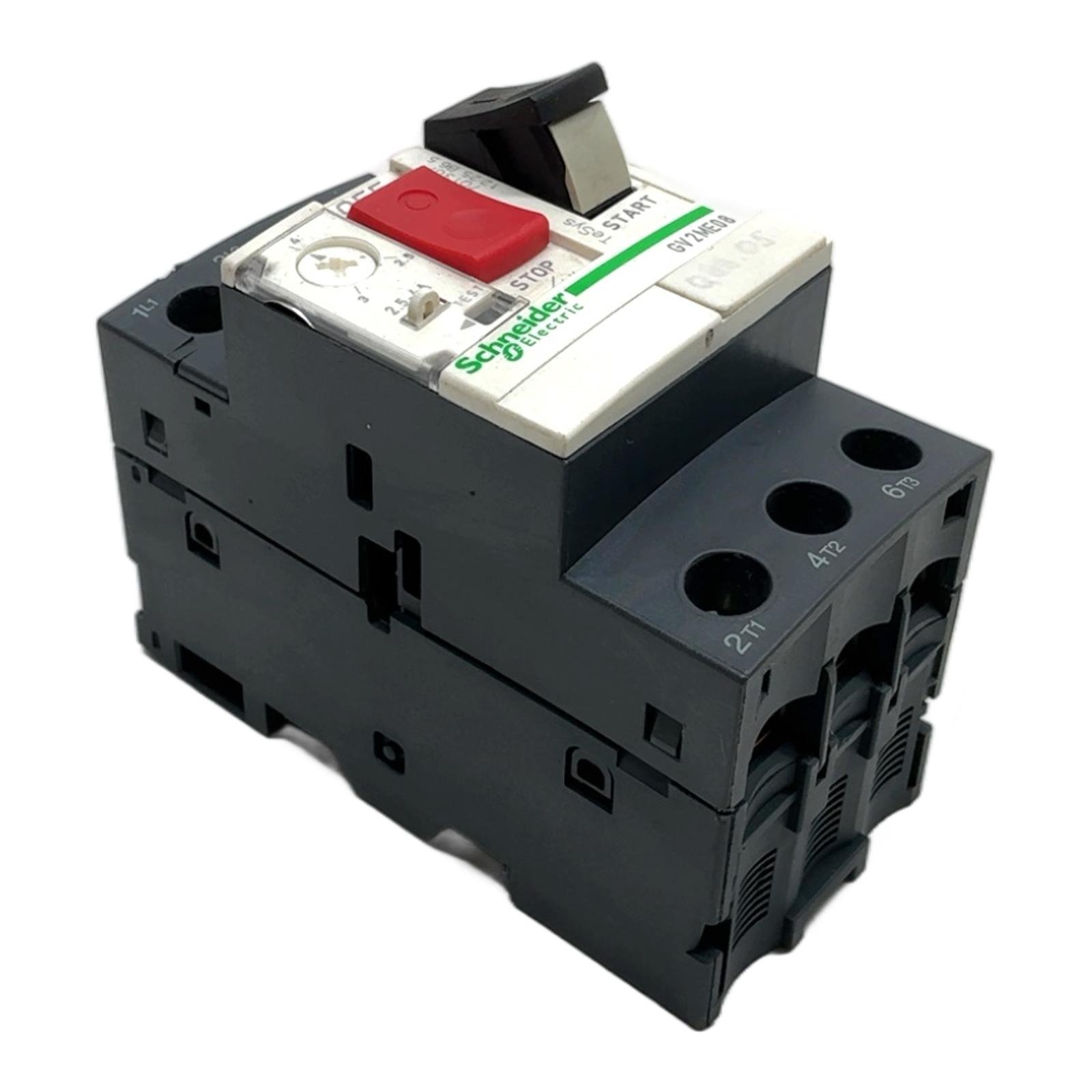

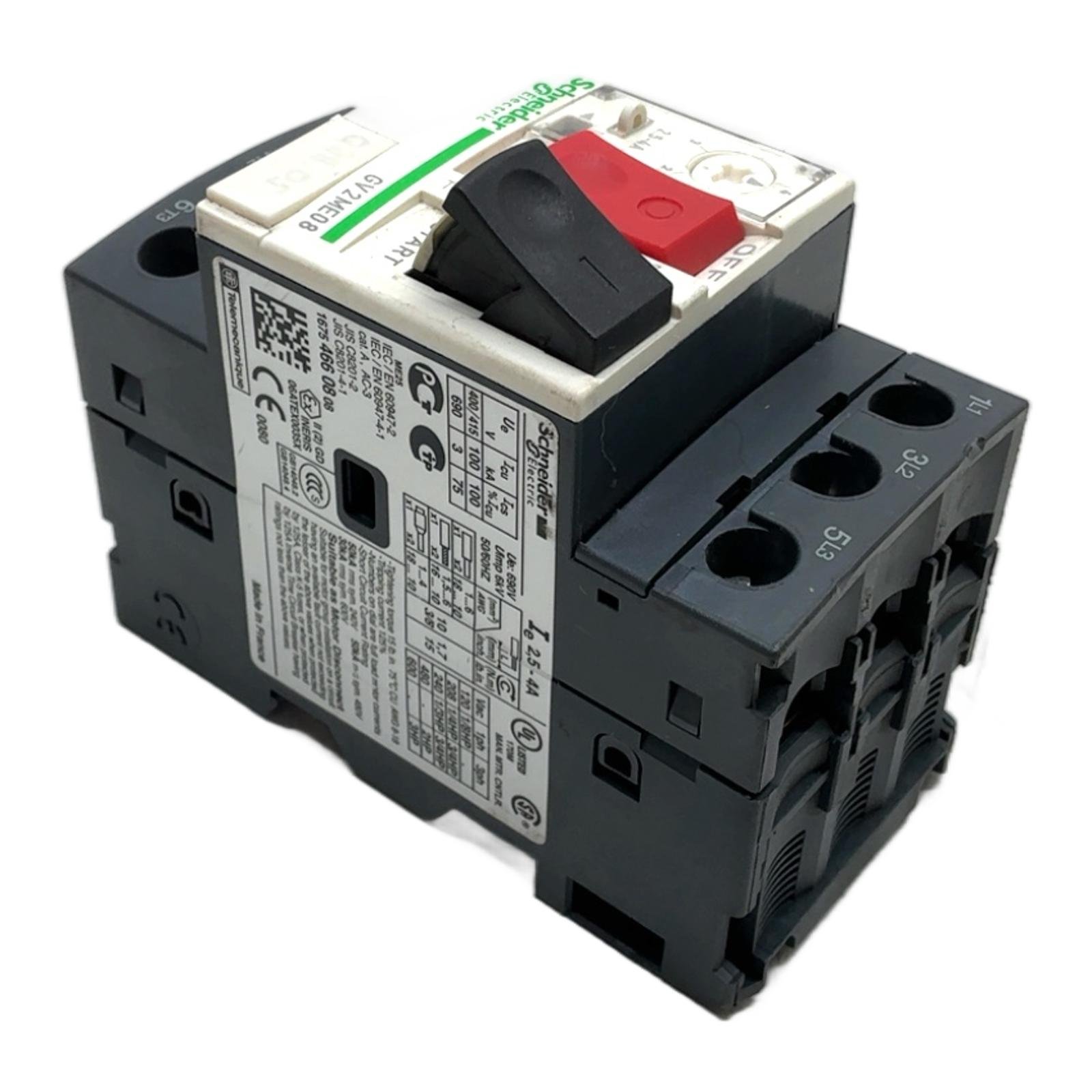

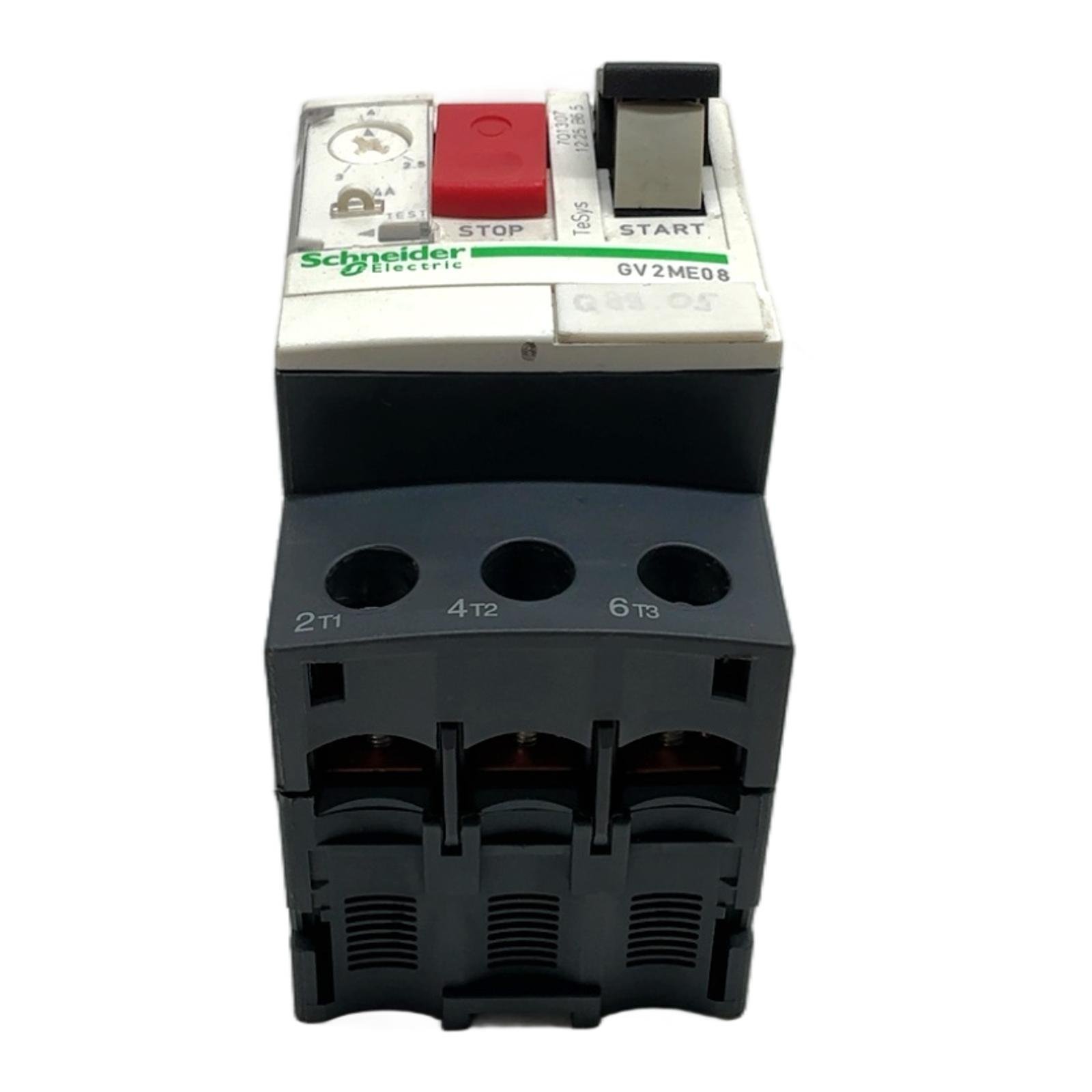

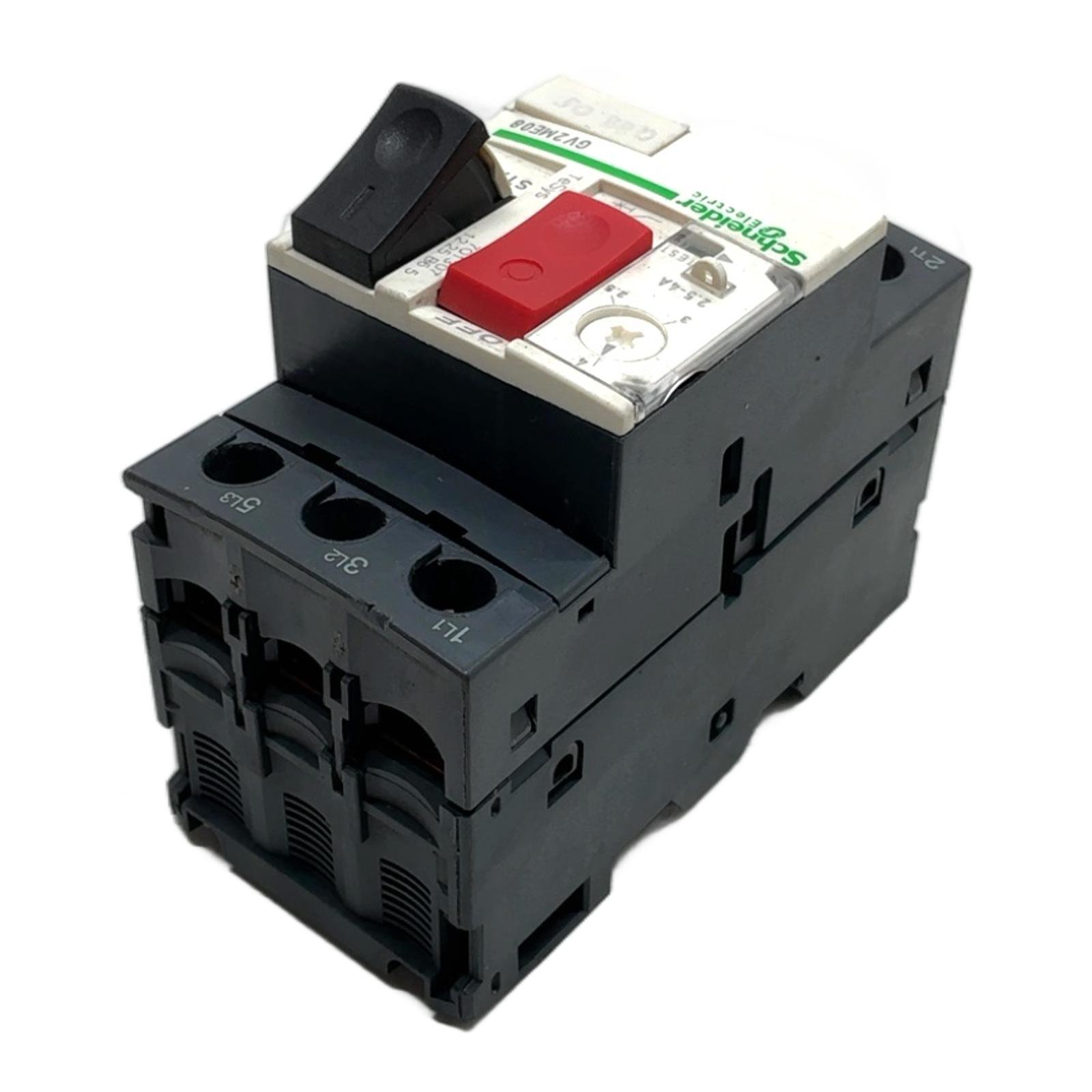

Schneider Electric TeSys GV2ME08 Motor Protection Circuit Breaker Description The GV2ME08 is a compact and reliable motor protection circuit breaker from Schneider Electric’s TeSys range. It offers integrated thermal-magnetic protection for three-phase motors. This device is designed to safeguard motors from thermal overloads, short circuits, and phase failures. Its push-button operation allows for easy manual control, and the adjustable thermal trip setting from 2.5 to 4 A provides precise protection tailored to your motor’s full load current. Ideal for direct motor control and protection in industrial machinery, HVAC systems, and conveyor applications. Specifications Manufacturer: Schneider Electric Part Number: GV2ME08 Product Range: TeSys GV2 Component Type: Motor Protection Circuit Breaker (MPCB) Thermal Protection Range: 2.5 to 4 A Number of Poles: 3 Rated Operational Voltage (Ue): up to 690V AC 50/60 Hz Breaking Capacity (Icu): 100 kA at 400/415V AC Control Type: Push-button (Start/Stop) Mounting: DIN Rail Terminals: Screw Clamp Label Info Model: GV2ME08 Current Range (Ie): 2.5-4A Standards: IEC/EN 60947-2, IEC/EN 60947-4-1 Application This MPCB is suitable for a wide range of applications requiring motor protection, including pumps, fans, compressors, and material handling systems. Its robust design ensures reliable operation in demanding industrial environments. Country of Origin Made in France. CO2 Impact By purchasing this reconditioned component, you are avoiding the production of a new one, saving an estimated 10.4 kg of CO2 emissions. This is equivalent to the carbon sequestered by over 170 tree seedlings grown for one year. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the main function of the GV2ME08?The GV2ME08 is a manual motor starter that combines three functions in one device: motor disconnect, short-circuit protection, and thermal overload protection for three-phase motors. How do I set the thermal overload protection on this device?You can set the thermal protection by turning the white dial on the front of the unit. The dial should be adjusted to match the full load ampere (FLA) rating found on your motor’s nameplate, within the 2.5-4A range of this device. Can this MPCB be used for single-phase motor protection?Yes, it can be used for single-phase applications. To do so, you must wire the input and output poles in series according to the manufacturer’s instructions to ensure all three thermal elements are part of the circuit for proper overload detection. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
