TELEMECANIQUE GK1-DC

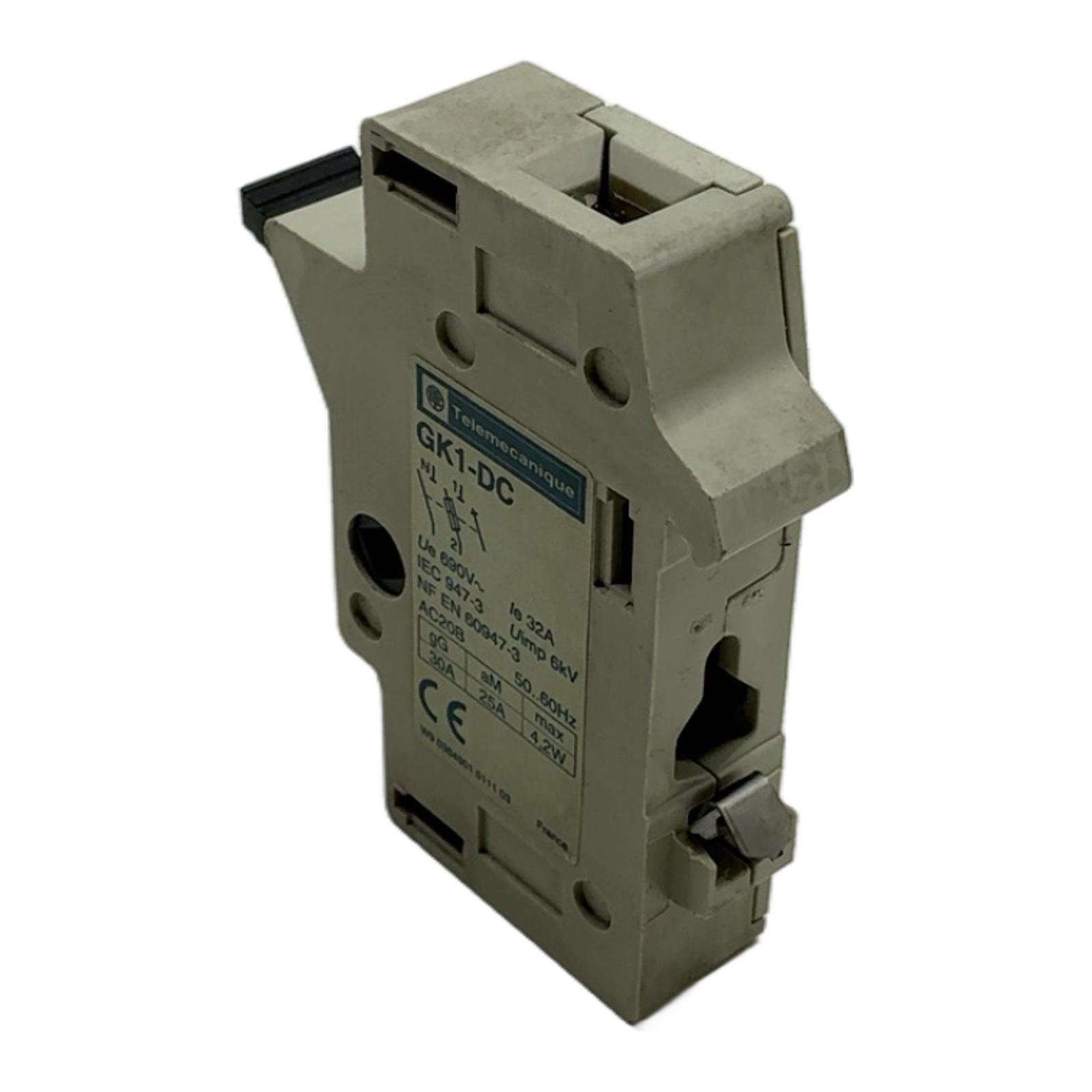

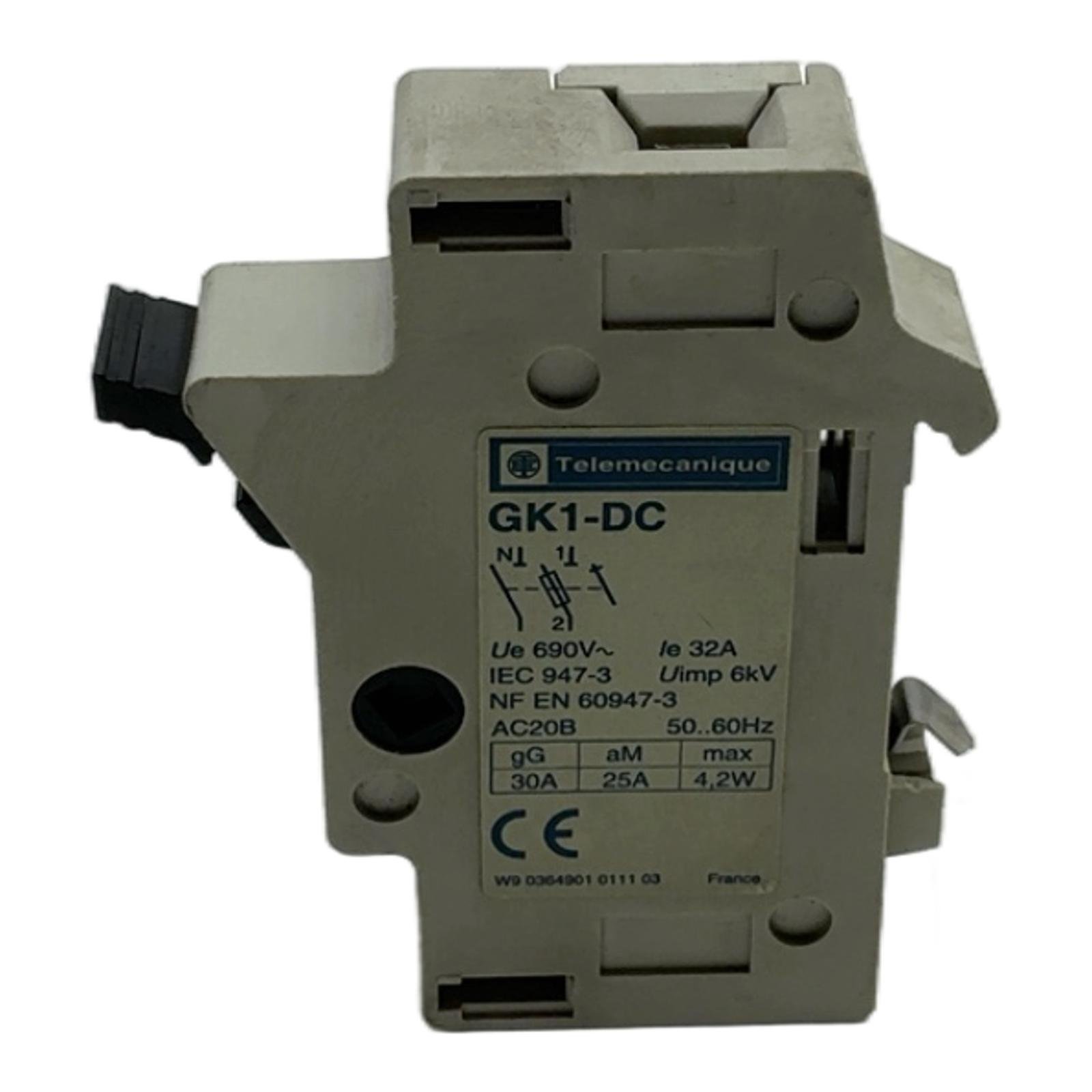

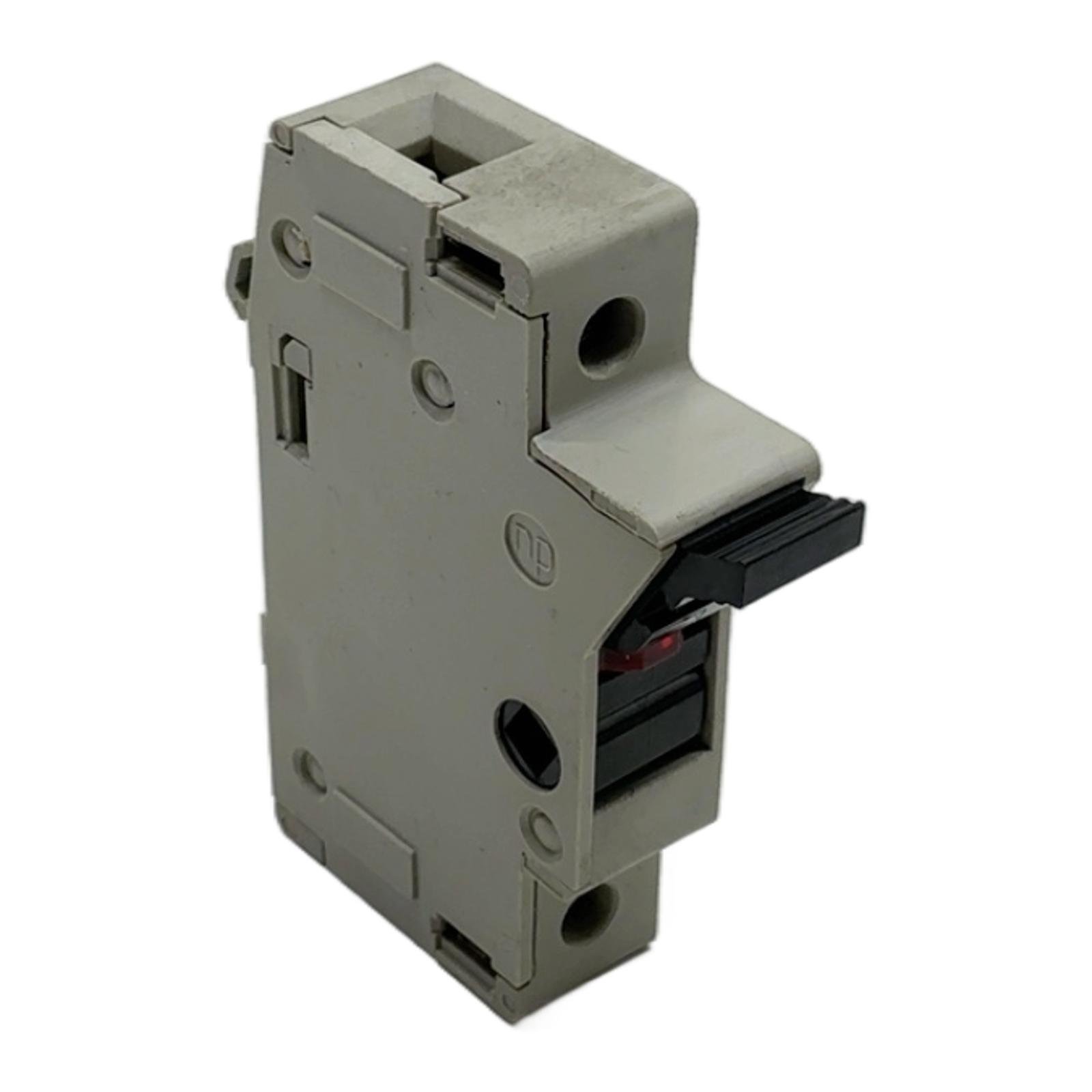

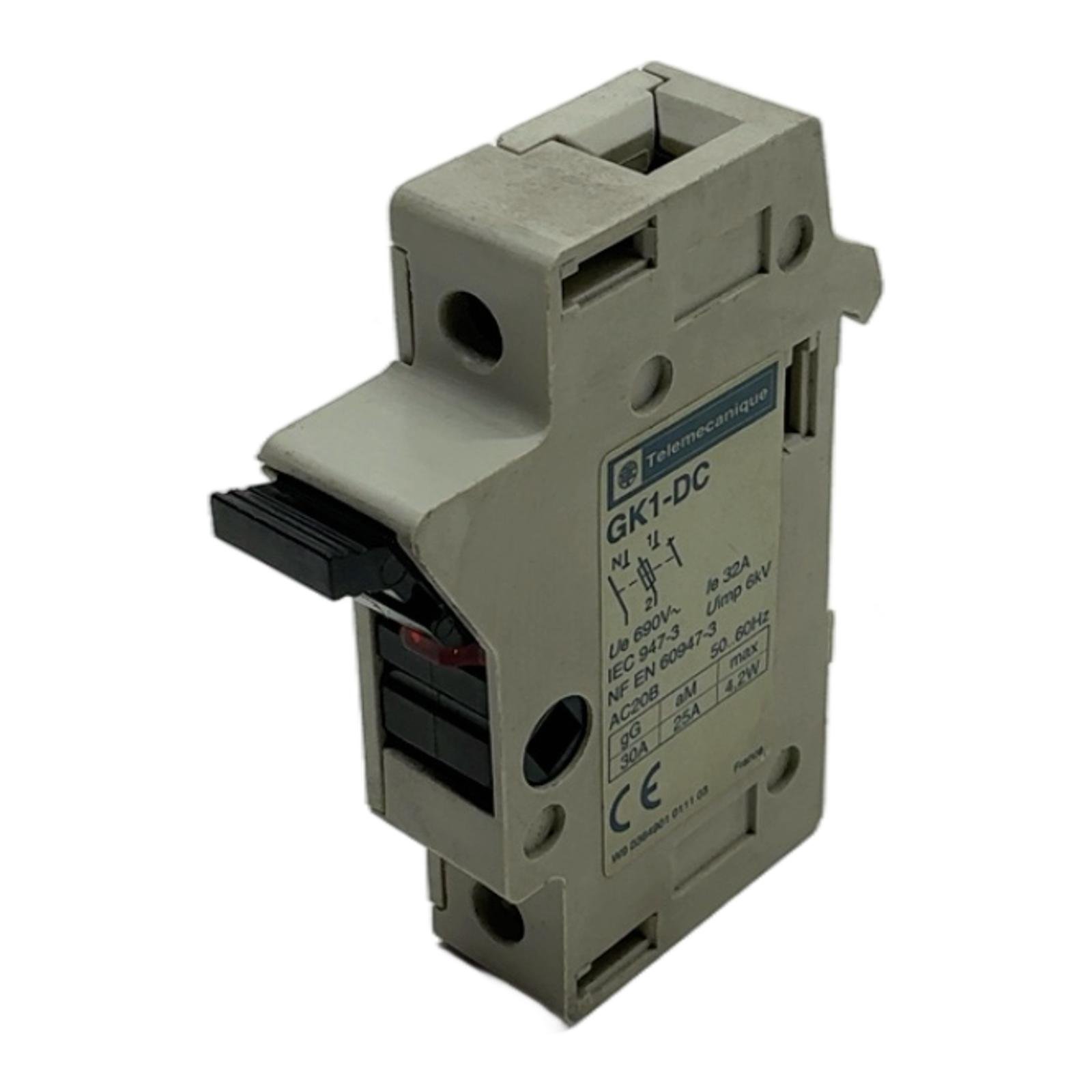

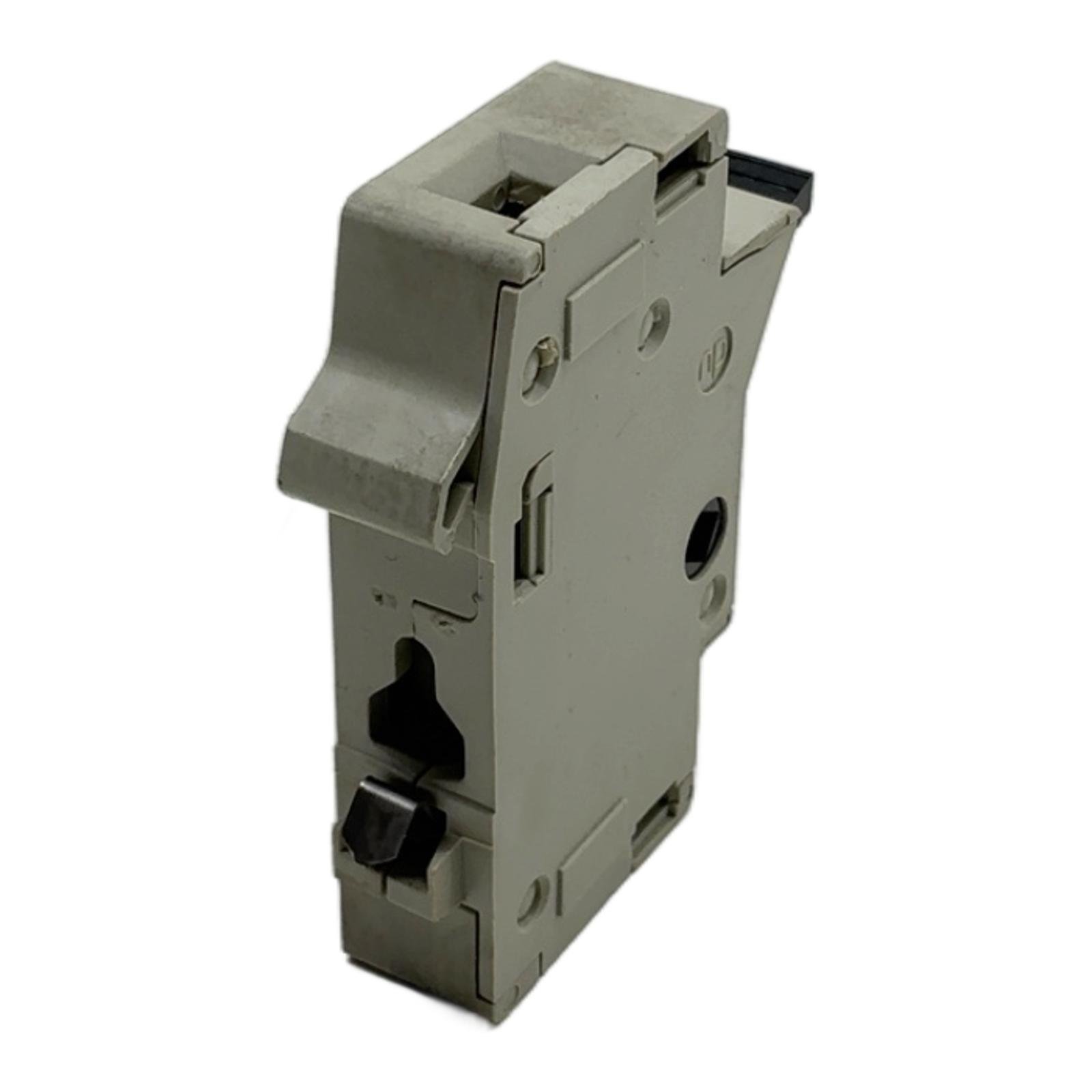

Telemecanique GK1-DC Fuse Disconnector Description The Telemecanique GK1-DC is a robust and reliable single-pole fuse disconnector designed for protecting industrial electrical circuits. It is rated for a continuous current of 32A and a voltage of up to 690V. This unit is compatible with 10x38mm cylindrical fuses and provides a safe means of circuit isolation for maintenance purposes. Its durable construction ensures long-lasting performance in demanding environments. Specifications Manufacturer: Telemecanique (Schneider Electric) Model: GK1-DC Rated Operational Voltage (Ue): 690V AC Rated Operational Current (Ie): 32A Rated Impulse Withstand Voltage (Uimp): 6kV Frequency: 50/60 Hz Compatible Fuse Size: 10x38mm Recommended Fuse Types: gG (30A max), aM (25A max) Power Dissipation: 4.2W max Standards: IEC 947-3, NF EN 60947-3 Label Info Brand: Telemecanique Type: GK1-DC Serial: W9 0364901 0111 03 Application This fuse disconnector is ideal for use in motor control centers, distribution boards, and machine control panels for overcurrent protection of motors, transformers, and other electrical loads. Country of Origin Made in France. CO2 Impact By choosing this pre-owned component, you are preventing the emission of approximately 2.8 kg of CO2 associated with the production of a new one. This sustainable choice supports the circular economy. Availability This item is an obsolete component but is available from our stock. Order now from profideals for expert support and fast delivery. FAQ What size fuse is compatible with the GK1-DC?The GK1-DC is designed for use with 10x38mm cylindrical fuses. Can this unit be mounted on a standard DIN rail?Yes, the rear of the housing includes a clip for mounting on a standard 35mm DIN rail, and it also features holes for direct panel mounting with screws. What is the main difference between using a ‘gG’ and an ‘aM’ type fuse with this holder?A ‘gG’ fuse provides general purpose protection for resistive loads, while an ‘aM’ fuse is specifically for motor protection, offering protection against short circuits but allowing for the temporary high inrush current when a motor starts. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
