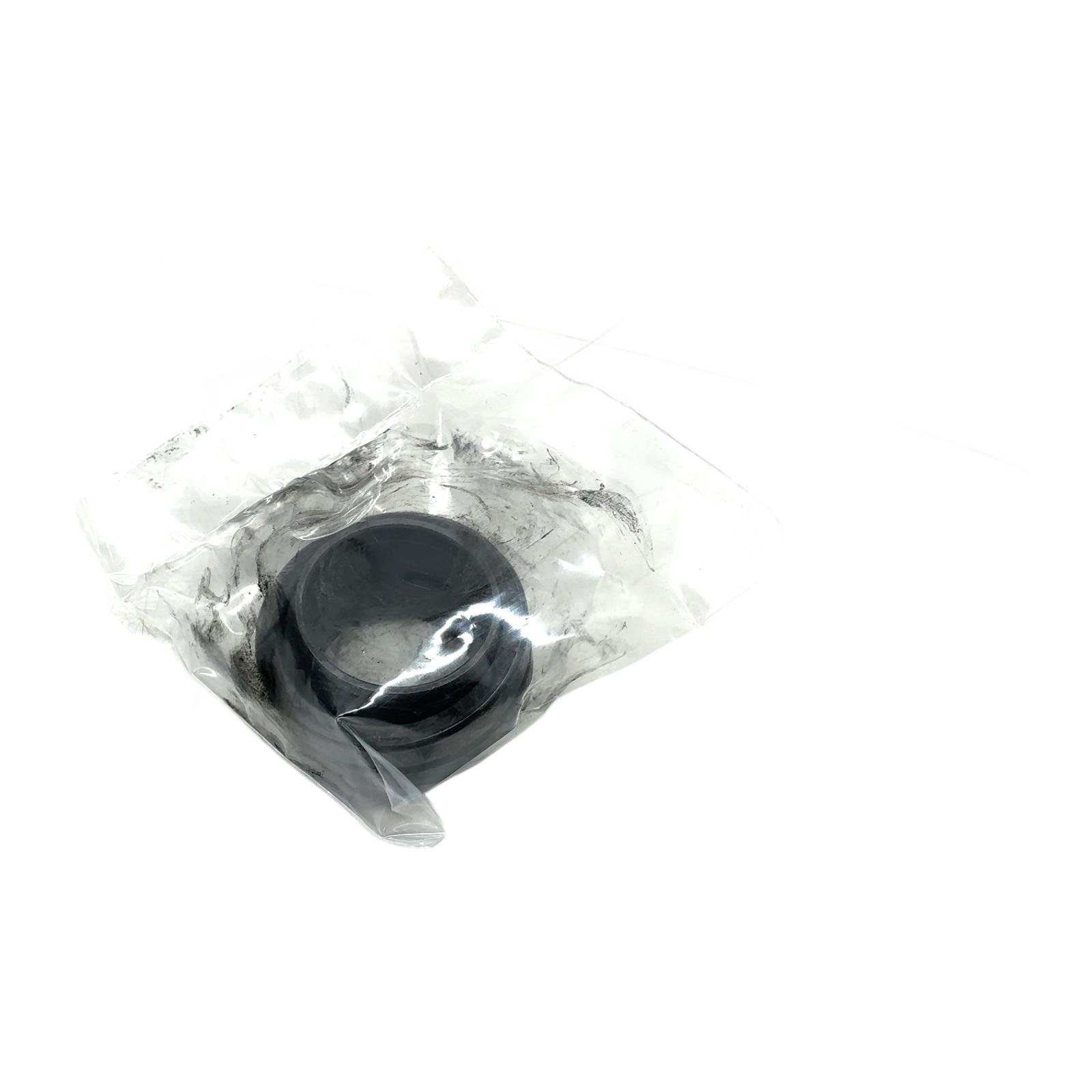

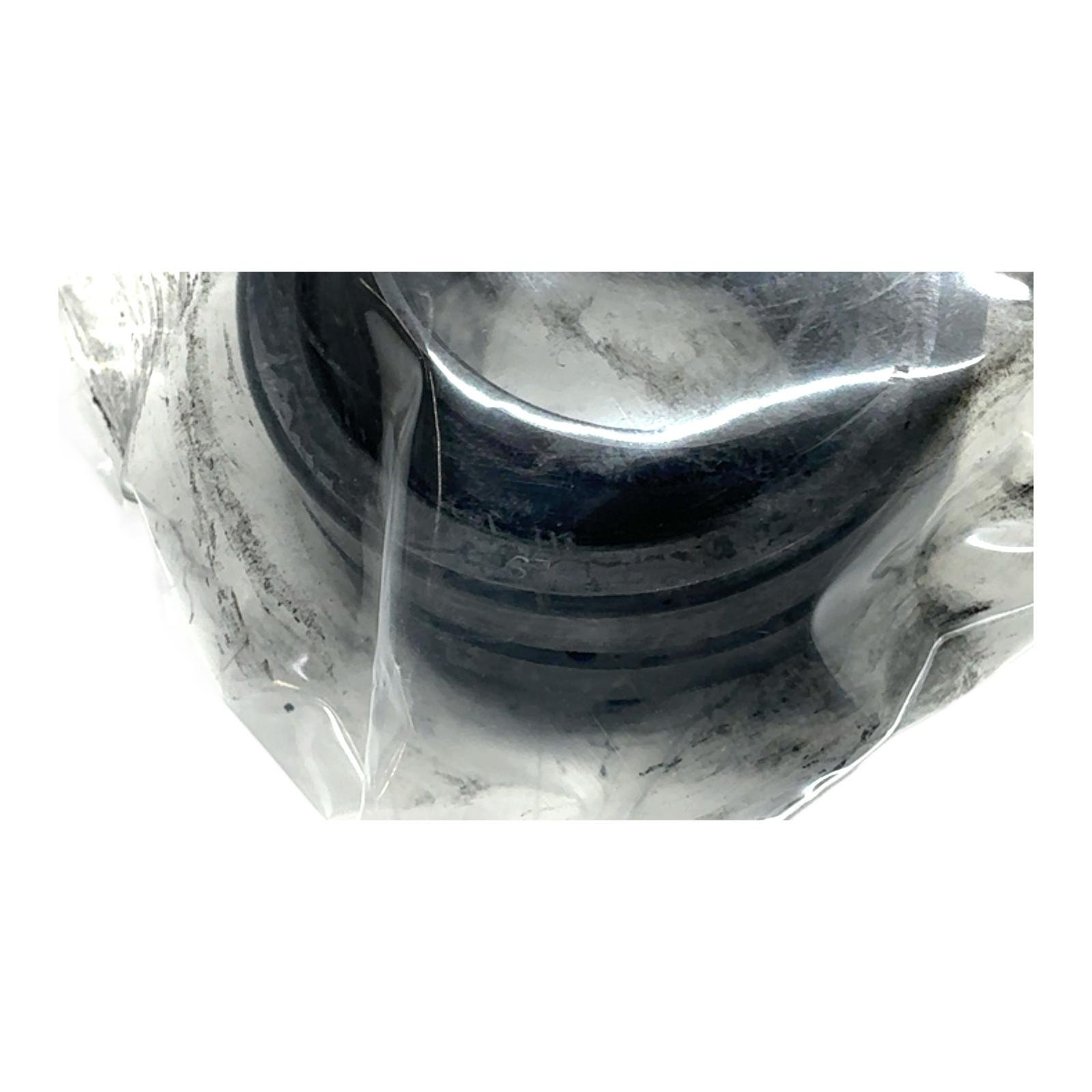

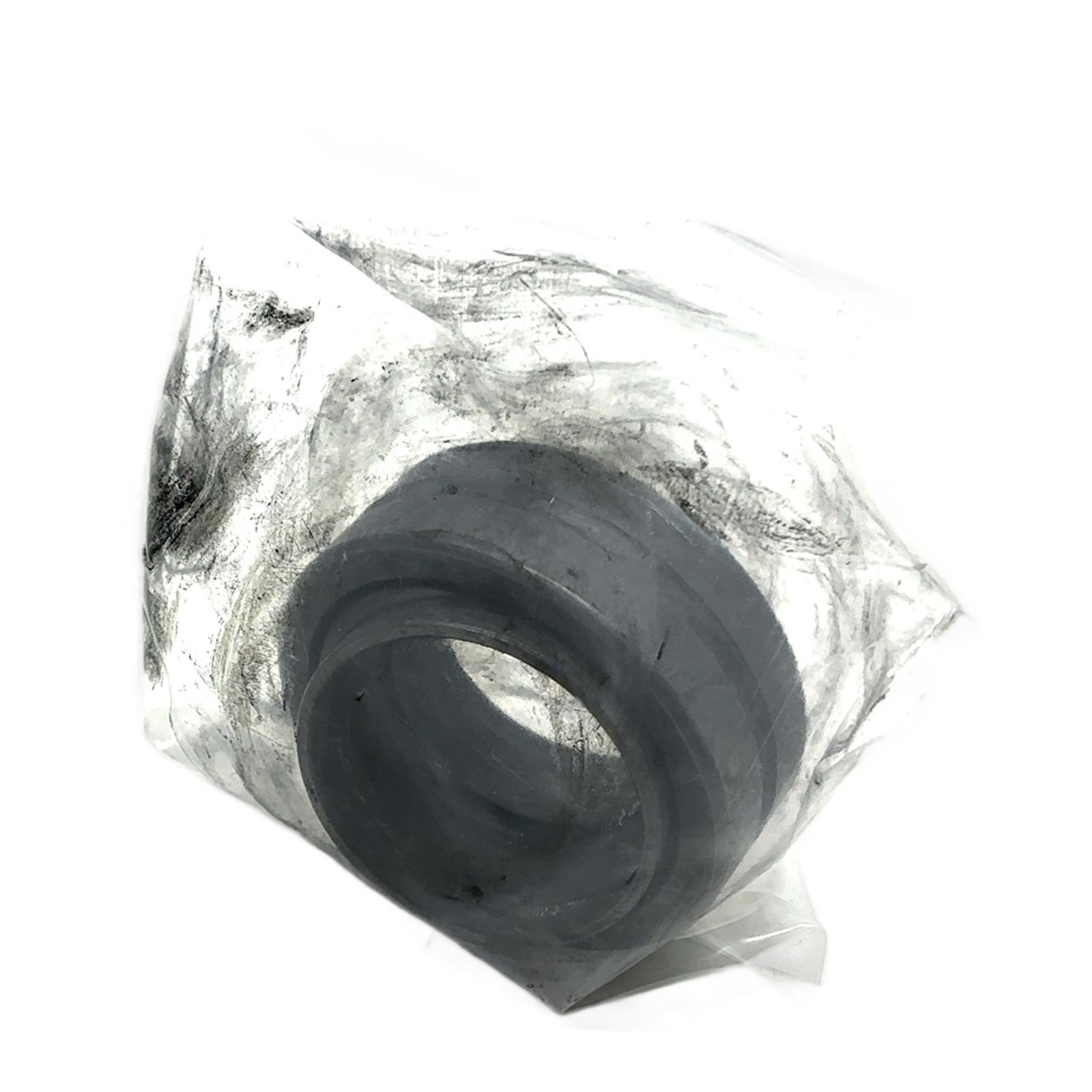

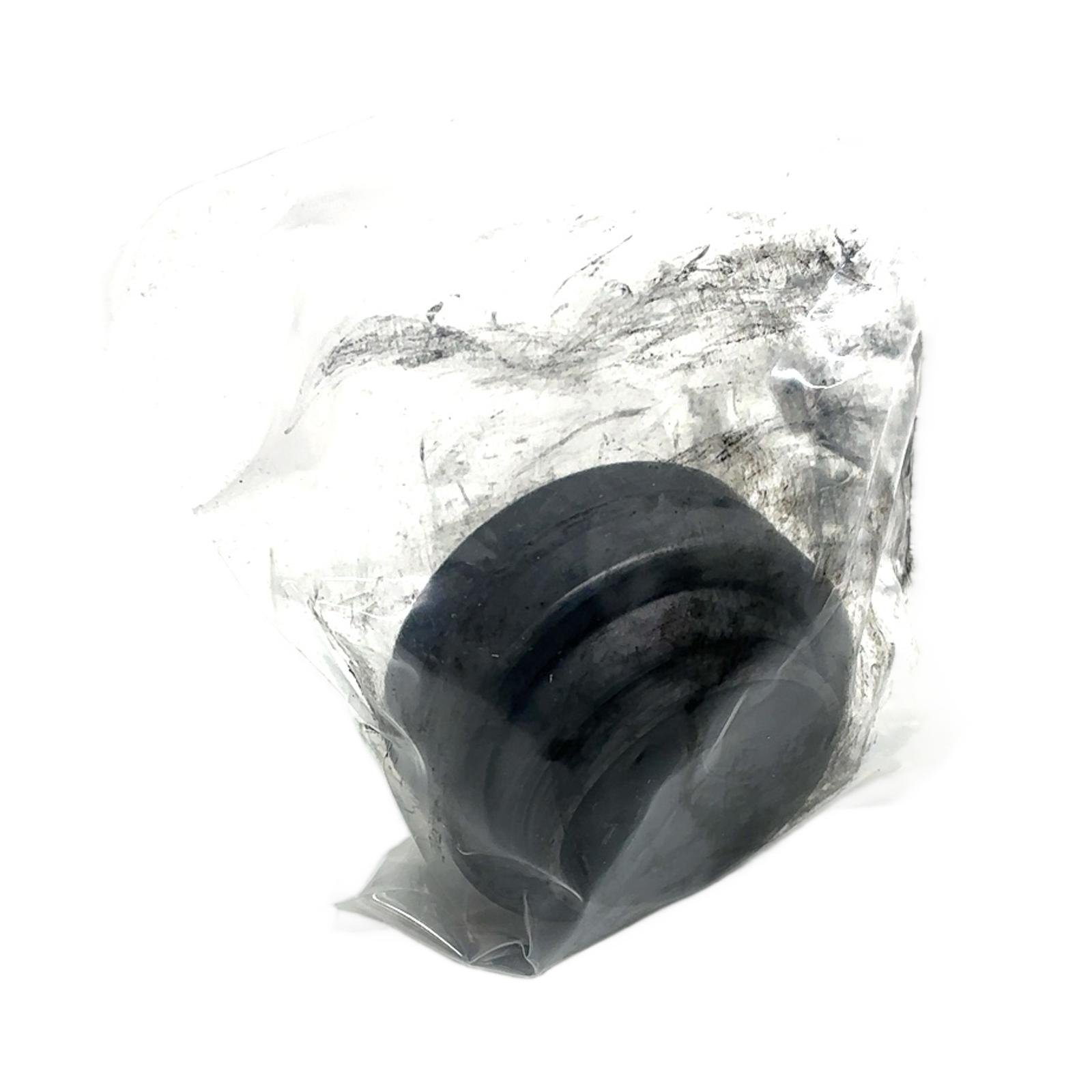

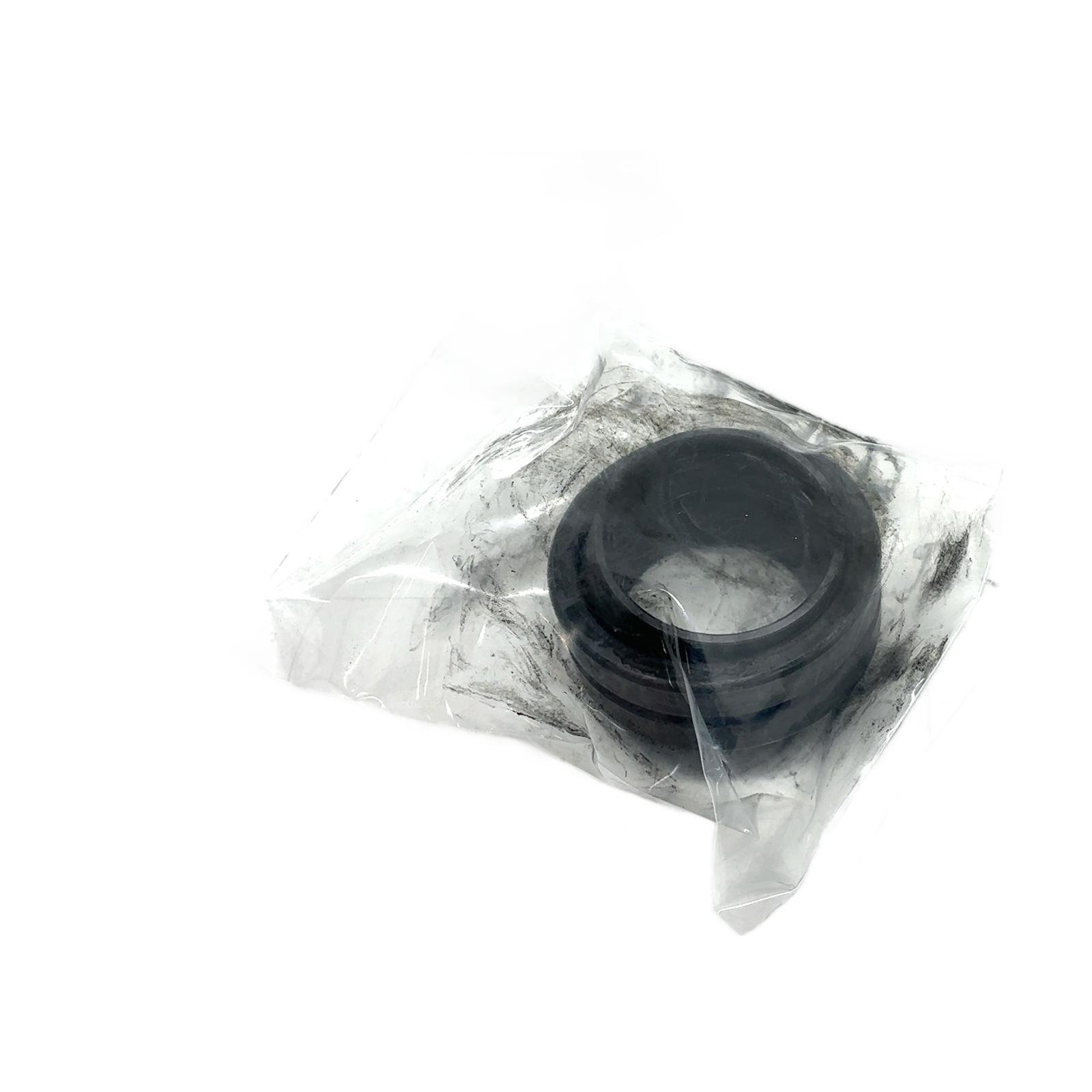

AKN GEG35 ES

AKN Radial Spherical Plain Bearing 35mm GEG 35 ES Description The AKN GEG 35 ES is a high-performance radial spherical plain bearing designed for applications with heavy static and dynamic loads. Its construction allows for the accommodation of misalignment between the shaft and housing. This steel-on-steel bearing requires regular maintenance and lubrication to ensure optimal performance and longevity. It is a standardized component, making it an ideal replacement part in various industrial machines. Specifications Type: Radial Spherical Plain Bearing Bore Diameter (d): 35 mm Outer Diameter (D): 55 mm Width (B): 25 mm Material: Steel/Steel (Maintenance-Required) Suffix ‘ES’: Single split outer ring with lubrication groove and holes Label Info Brand: AKN Type: GEG 35 ES Application This bearing is suitable for oscillating, tilting, and rotating movements at low speeds under heavy load conditions. Common applications include hydraulic cylinder ends, construction equipment linkages, and agricultural machinery. CO2 Impact Opting for this component over a new one prevents the emission of approximately 0.46 kg of CO2. This saving is a direct result of avoiding the energy-intensive steel manufacturing process, contributing to a more sustainable industrial practice. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question? Is this GEG 35 ES bearing pre-lubricated?AnswerThis is a steel-on-steel (maintenance-required) bearing. While it may have a factory preservative coating, it must be lubricated with an appropriate grease upon installation and re-lubricated periodically according to the machine manufacturer’s maintenance schedule. Question? What does the ‘ES’ suffix signify for this bearing?AnswerThe ‘ES’ suffix for this type of spherical plain bearing typically indicates that the outer ring is split once and it includes lubrication grooves and holes to facilitate re-lubrication. This design is standard for maintenance-required bearings. Question? Can this AKN bearing be used as a direct replacement for an SKF or INA GE 35 ES?AnswerYes, the GEG 35 ES designation refers to a standard dimension and type of bearing according to ISO 12240-1. This AKN bearing is dimensionally interchangeable with GE 35 ES or GEG 35 ES models from other manufacturers like SKF, FAG, or INA. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
