SKF GE160 TXA-2RS

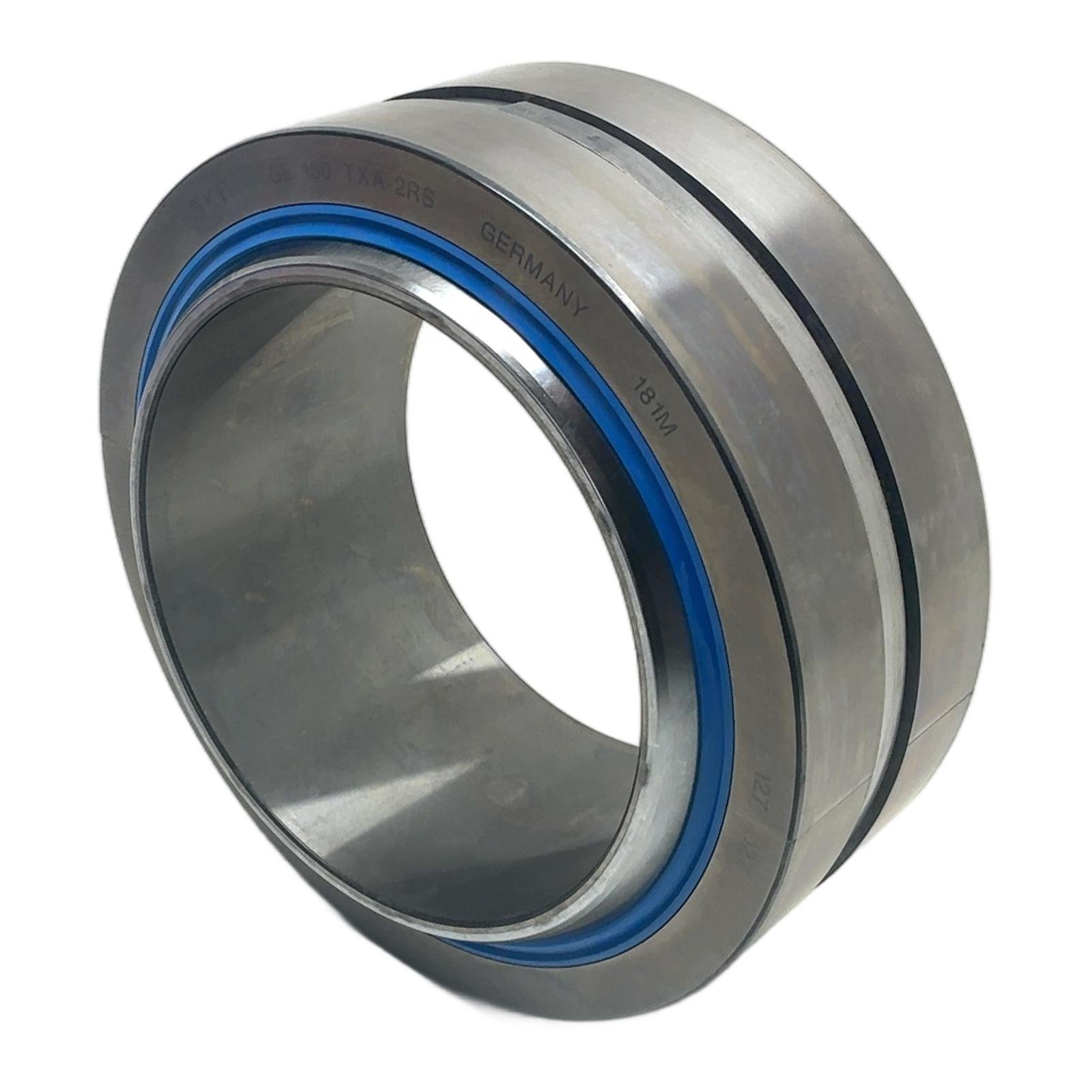

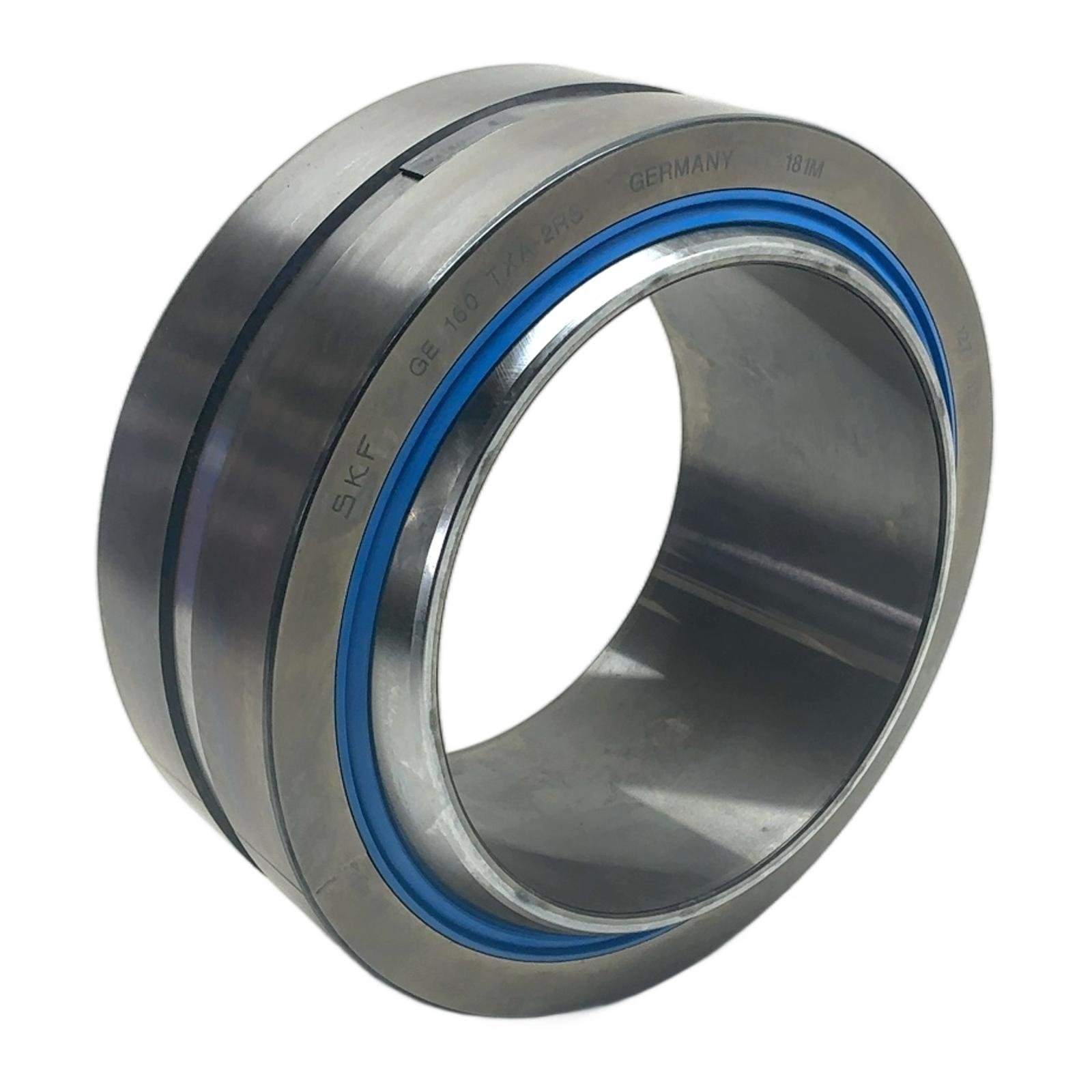

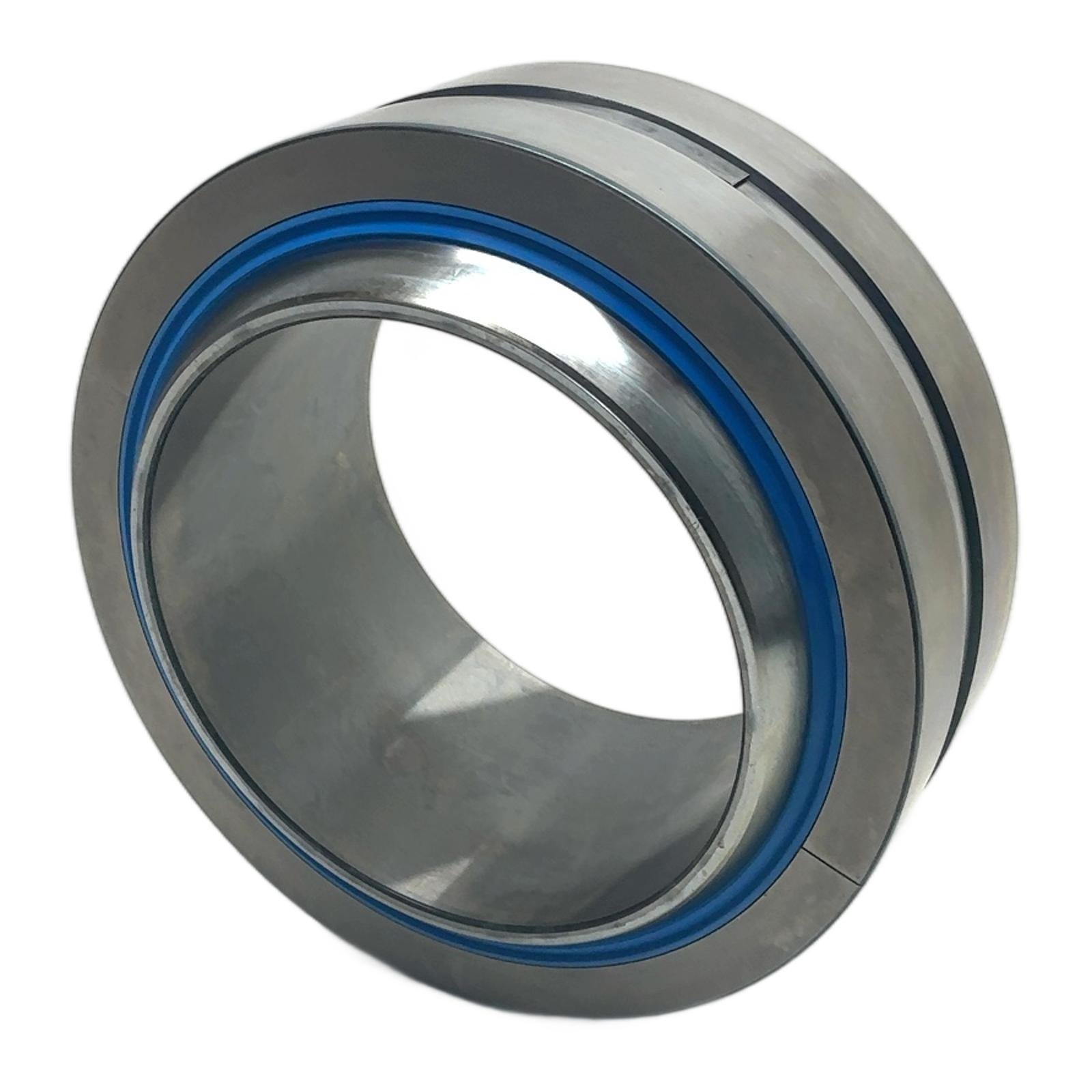

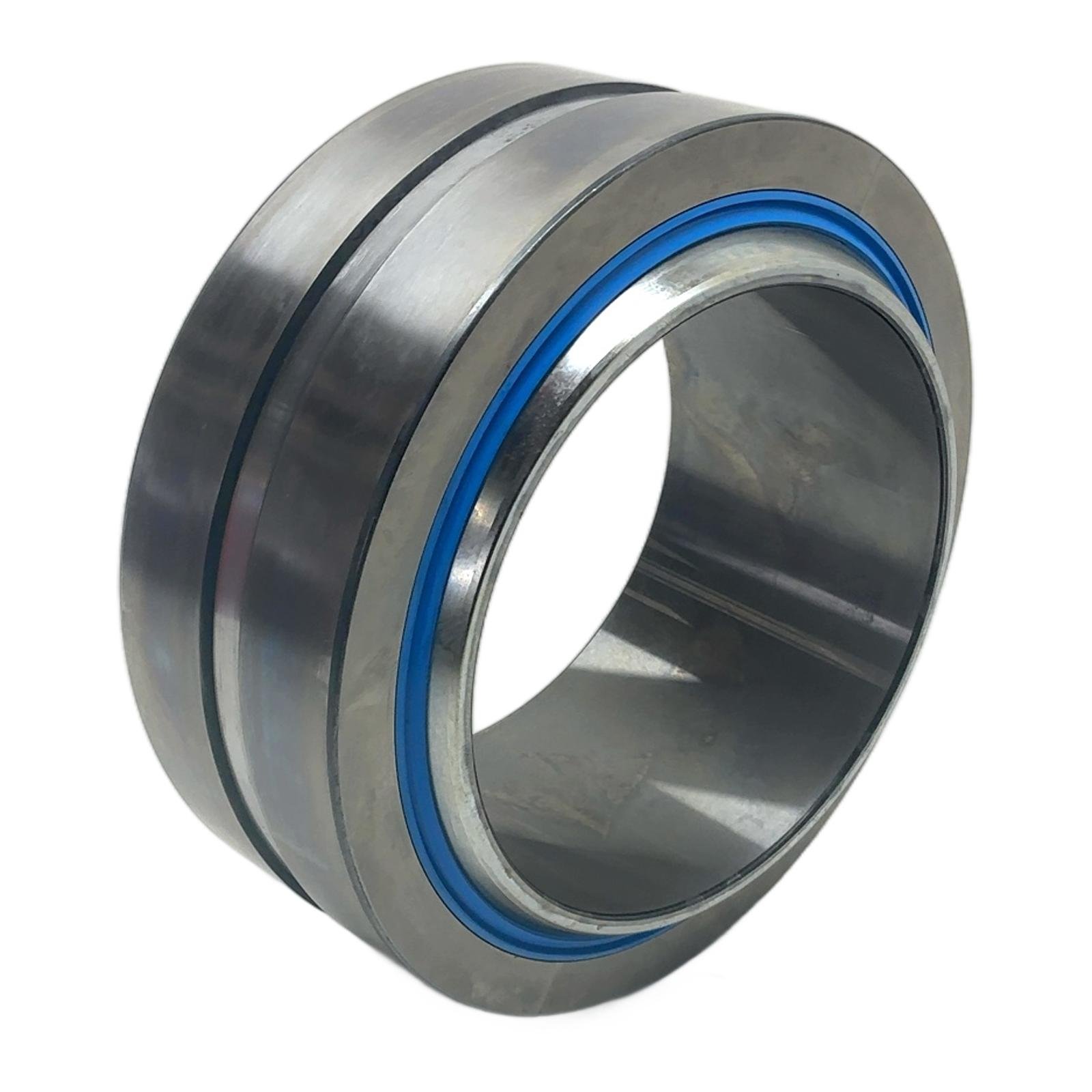

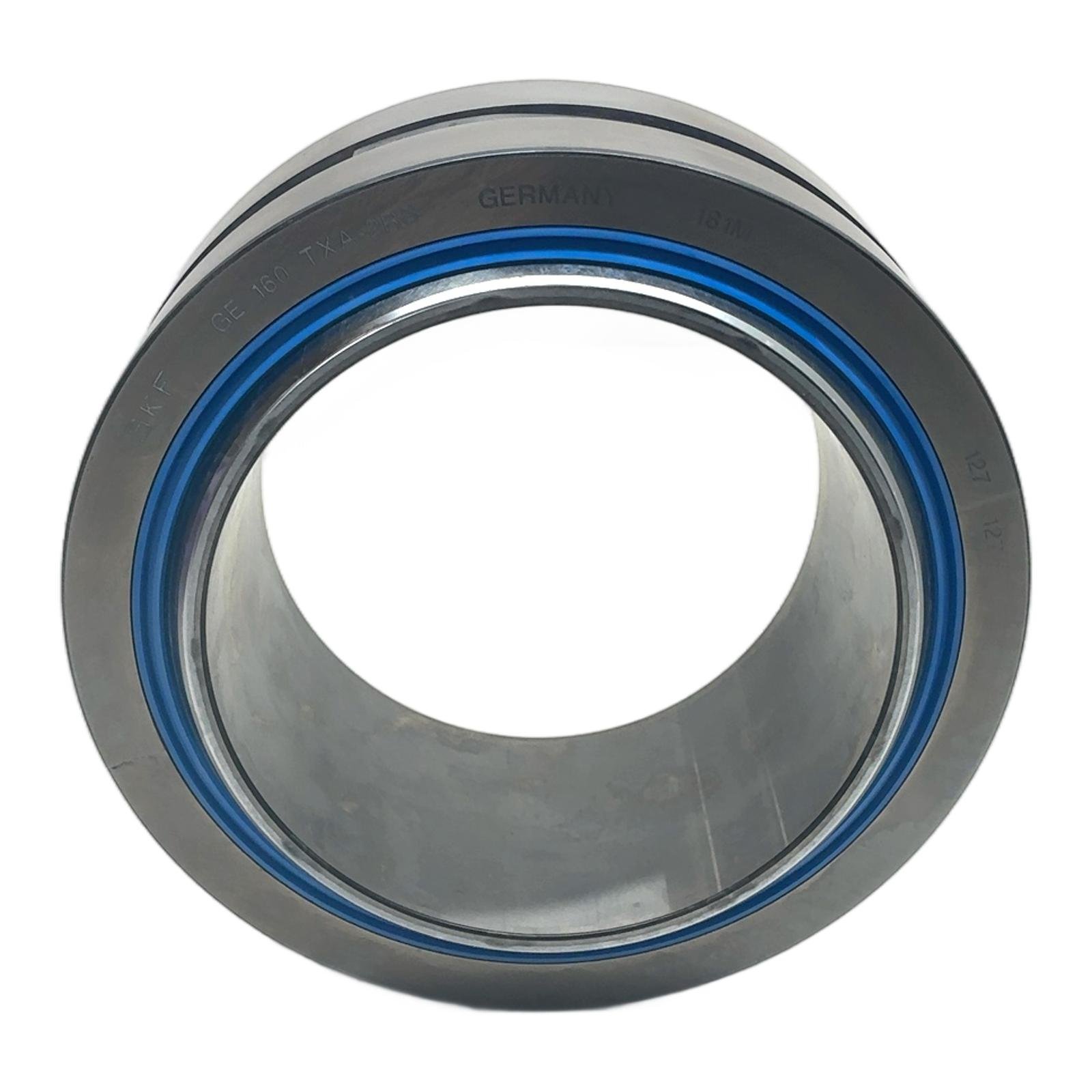

SKF GE 160 TXA-2RS Spherical Plain Bearing Description The SKF GE 160 TXA-2RS is a high-performance, maintenance-free radial spherical plain bearing designed for heavy-duty applications. As part of the SKF Explorer series, it offers enhanced performance, high reliability, and a long service life. This bearing is constructed with a steel-on-steel sliding contact surface and is equipped with contact seals on both sides to protect against contamination and retain lubricant. It is engineered to accommodate misalignment and manage heavy radial and combined loads. Specifications Bore Diameter (d): 160 mm Outside Diameter (D): 230 mm Width (B): 105 mm Sealing: 2RS (Contact seals on both sides) Sliding Contact Surface: Steel/Steel Relubrication Feature: Yes, via groove and holes in the outer ring Weight: 15.6 kg Label Info Manufacturer: SKF Model: GE 160 TXA-2RS EAN: 7316571884127 Other Markings: 18M Application This bearing is ideal for use in demanding industrial environments such as construction machinery, mining equipment, hydraulic cylinders, and other applications requiring robust solutions for oscillating movements and misalignment. Country of Origin Made in Germany. CO2 Impact Opting for this reused component prevents the emission of approximately 31.2 kg of CO2, which is involved in producing a new one. This saving is comparable to the emissions from driving a standard car for 156 kilometers. Availability This item is in stock and ready for immediate dispatch. The bearing is new, though the original packaging shows signs of wear. Order now from profideals for expert support and fast delivery. FAQ Question?What is the significance of the ‘TXA’ suffix in the GE 160 TXA-2RS part number?The ‘TXA’ suffix in SKF nomenclature denotes a specific design and material combination. It indicates a steel/steel sliding contact surface combination with a specific lubrication groove design, optimized for heavy alternating loads and high reliability, belonging to the advanced SKF Explorer series. Question?Can this bearing be relubricated, even though it is sealed with ‘2RS’ seals?Yes, the SKF GE 160 TXA-2RS is designed for relubrication to achieve maximum service life, especially in contaminated environments. The outer ring features an annular groove and lubrication holes, allowing fresh grease to be introduced, which purges old grease and contaminants past the seals. Question?What is the maximum permissible misalignment for the GE 160 TXA-2RS bearing?Spherical plain bearings like the GE 160 TXA-2RS are designed to accommodate misalignment between the shaft and housing. The exact angle depends on the application specifics, but these bearings can typically handle several degrees of static misalignment, making them ideal for applications where shaft deflection or mounting inaccuracies are expected. Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
