SCHNEIDER ELECTRIC LGY412560

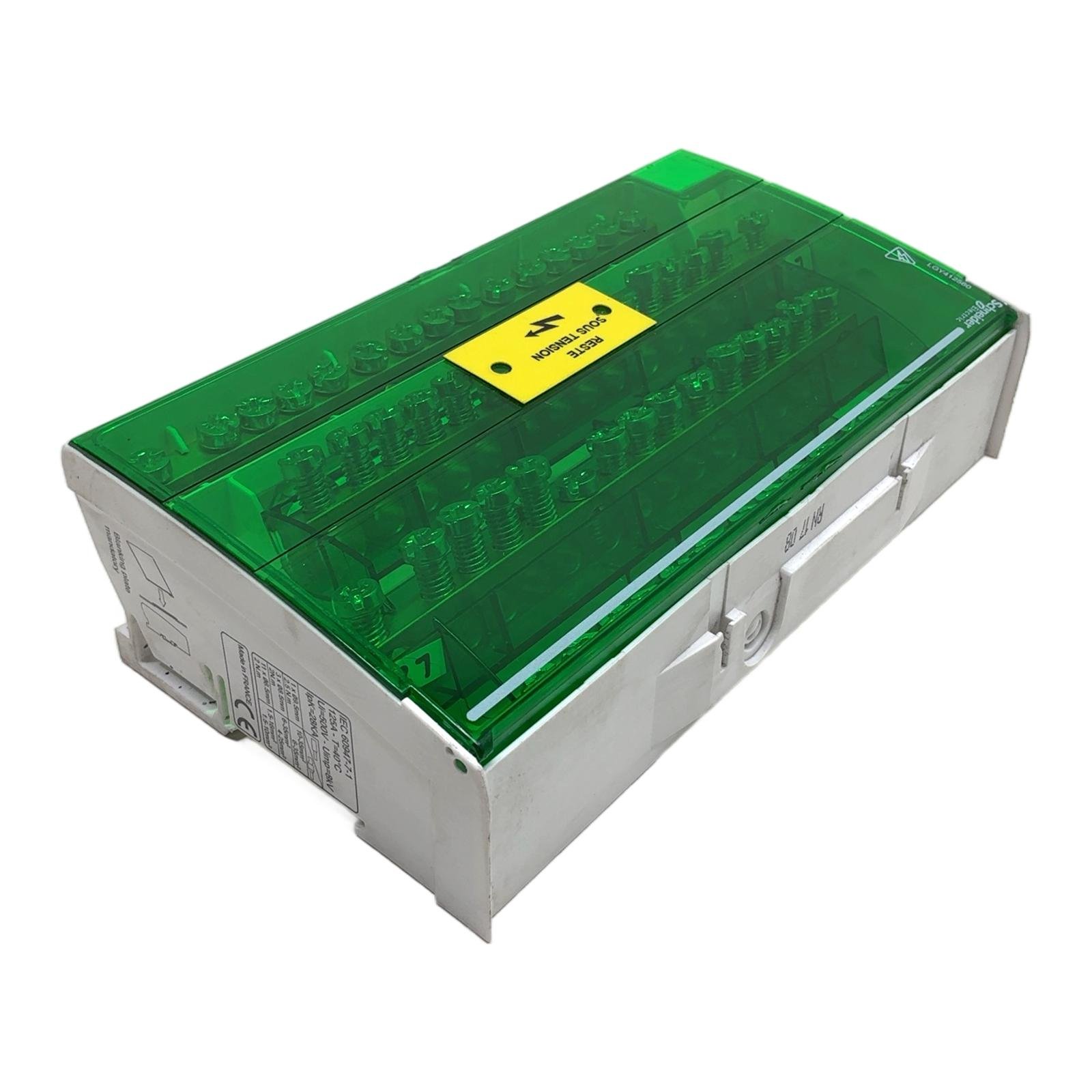

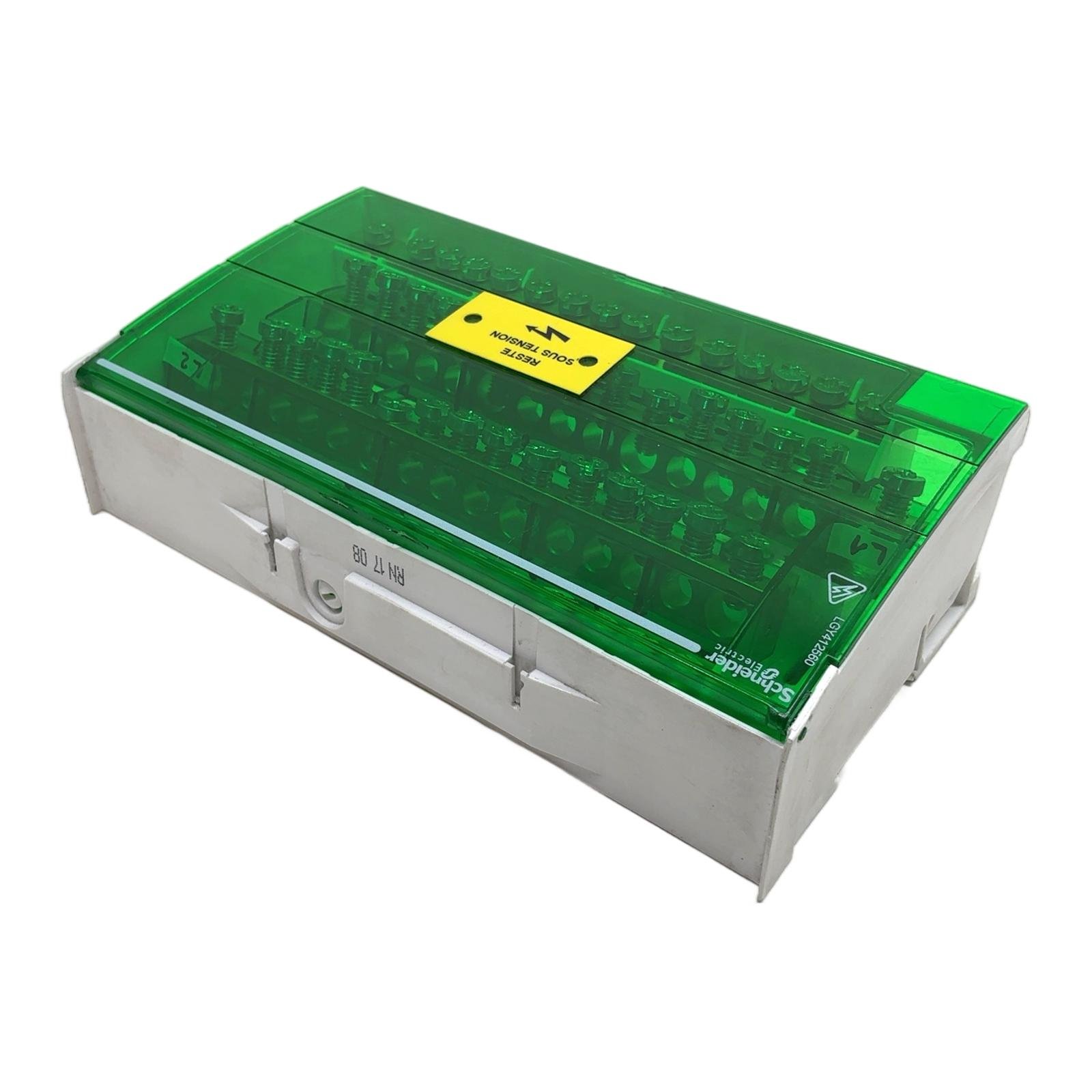

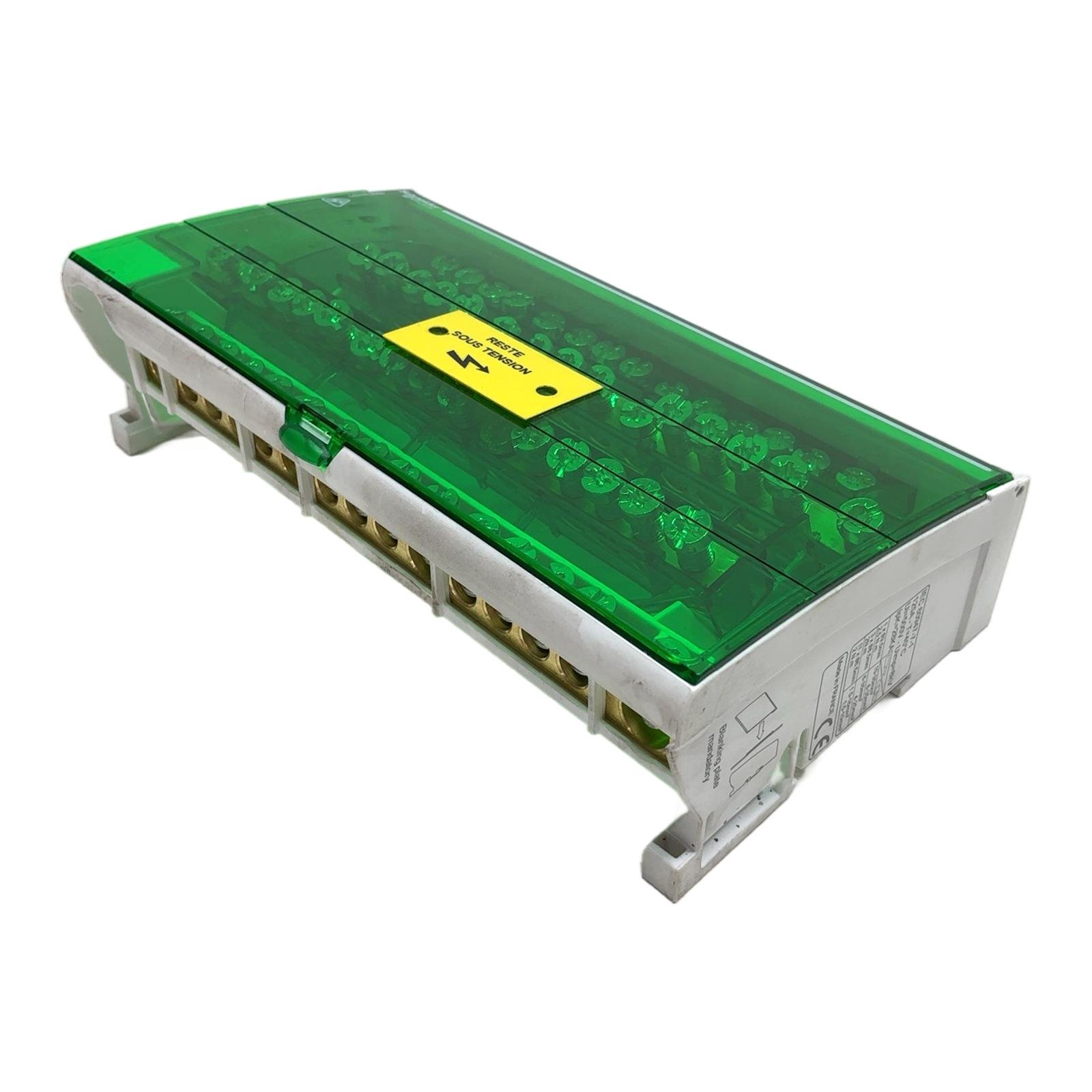

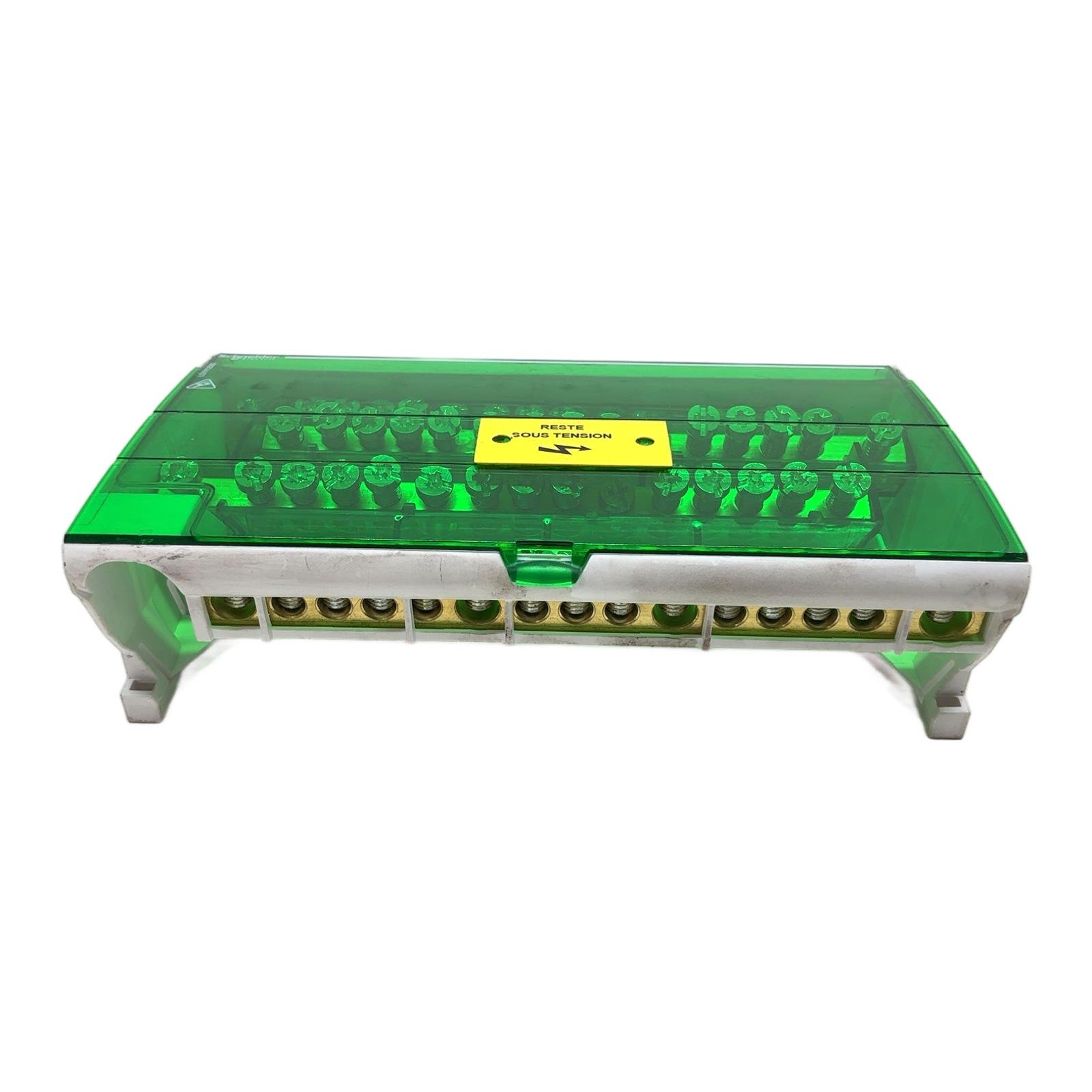

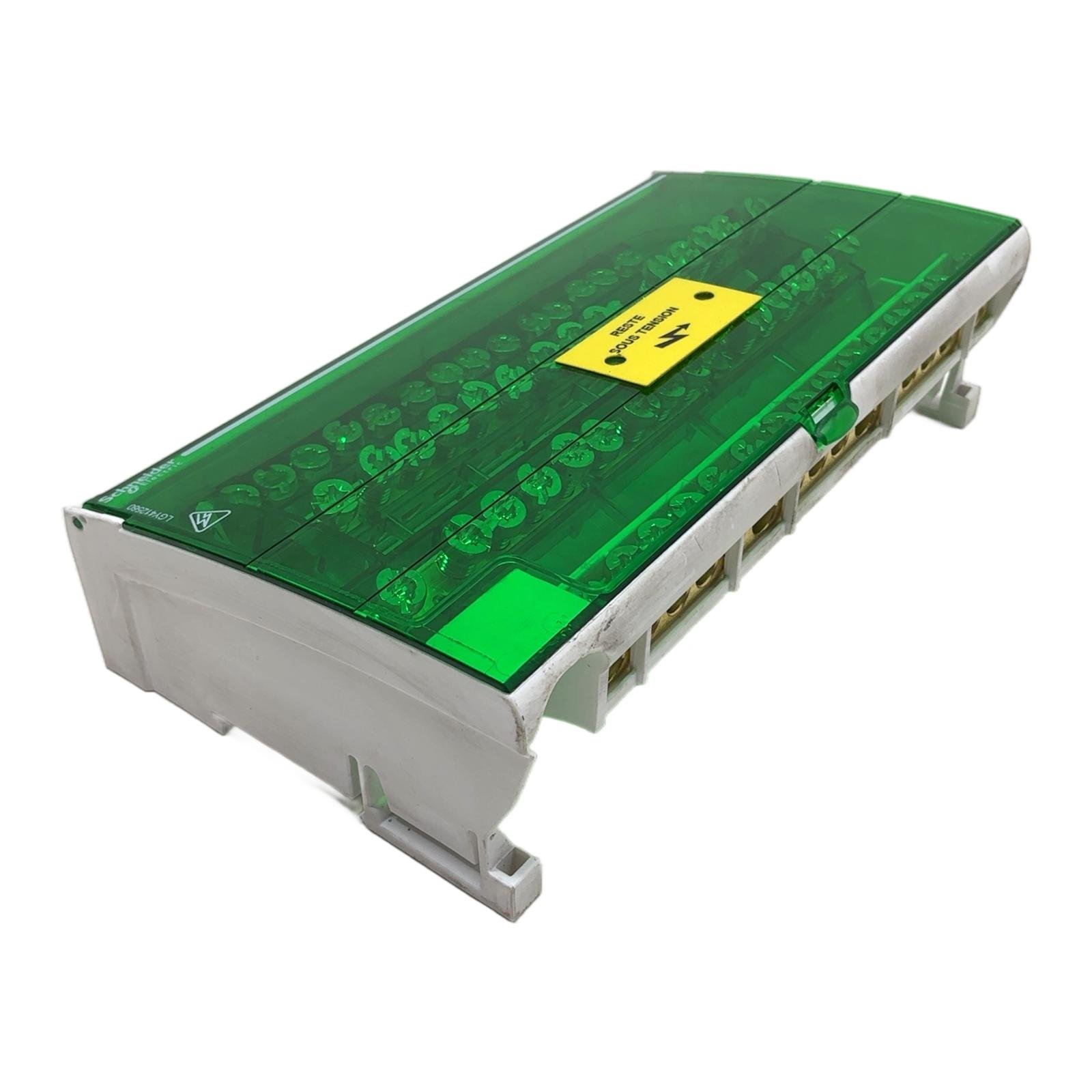

Schneider Electric Linergy FV 4-Pole Distribution Block Description The Schneider Electric LGV412560 is a high-quality, monobloc distribution block from the Linergy FV range. It is designed to provide a secure and organized method for distributing electrical power in control panels and switchboards. With a current rating of 125A and a 4-pole configuration, it is suitable for three-phase applications with a neutral line. Its robust construction and compliance with IEC standards ensure reliable performance in demanding industrial environments. The transparent cover allows for quick inspection of terminals while providing finger-safe protection. Order now from profideals for expert support and fast delivery. Specifications Manufacturer: Schneider Electric Type: LGV412560 Product Range: Linergy FV Number of Poles: 4 Rated Current (Ie): 125 A at 40 deg C Rated Insulation Voltage (Ui): 500V Rated Impulse Withstand Voltage (Uimp): 8kV Peak Withstand Current (Ipk): 28kA Mounting: DIN Rail Standard: IEC 60947-7-1 Label Info 1 x 9.5mm terminal: 10-35mm2 3 x 8.5mm terminals: 6-35mm2 11 x 6.5mm terminals: 1.5-16mm2 Application This distribution block is ideal for power distribution within industrial automation panels, HVAC systems, and commercial building electrical installations where multiple circuits need to be fed from a single source. Country of Origin Made in France. CO2 Impact By reusing this component, you are avoiding the emission of approximately 20.0 kg of CO2, which is a significant contribution to environmental sustainability. Availability This item is a used, tested product in excellent working condition. Available for immediate dispatch. FAQ What is the maximum current rating for the Schneider Electric LGV412560?The maximum operational current is 125 Amperes at an ambient temperature of 40 degrees Celsius, as specified by the manufacturer. What is the IP rating of this distribution block when installed correctly?When installed in an enclosure with the cover closed, this distribution block provides IPxxB protection, meaning it is protected against finger contact with live parts. Can this block be used for both copper and aluminum conductors?This block is primarily designed for use with copper conductors. Always consult the Schneider Electric technical documentation for compatibility with aluminum conductors, as special preparation (e.g., antioxidant paste) may be required. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
