AZBIL FL2-20B6H-L2

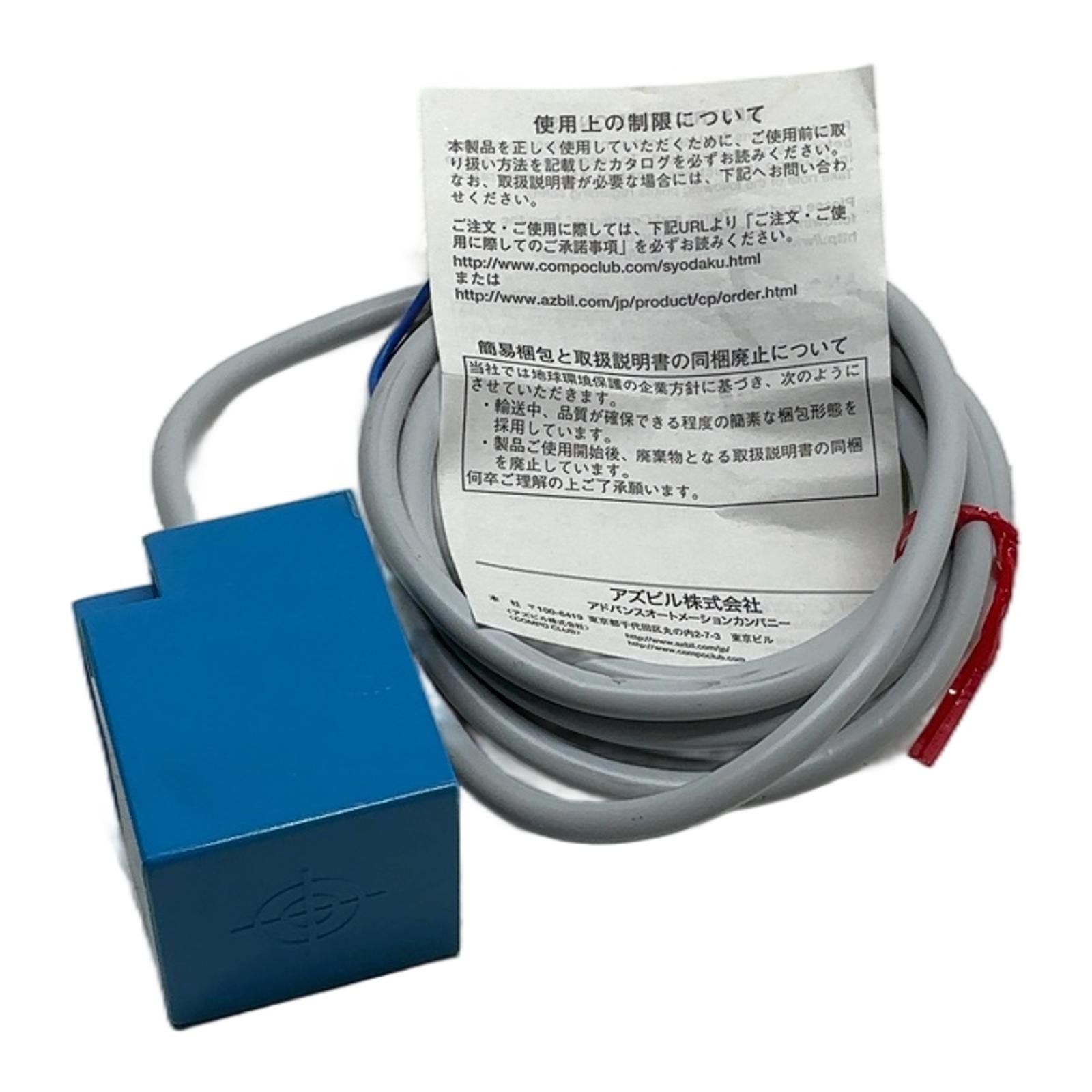

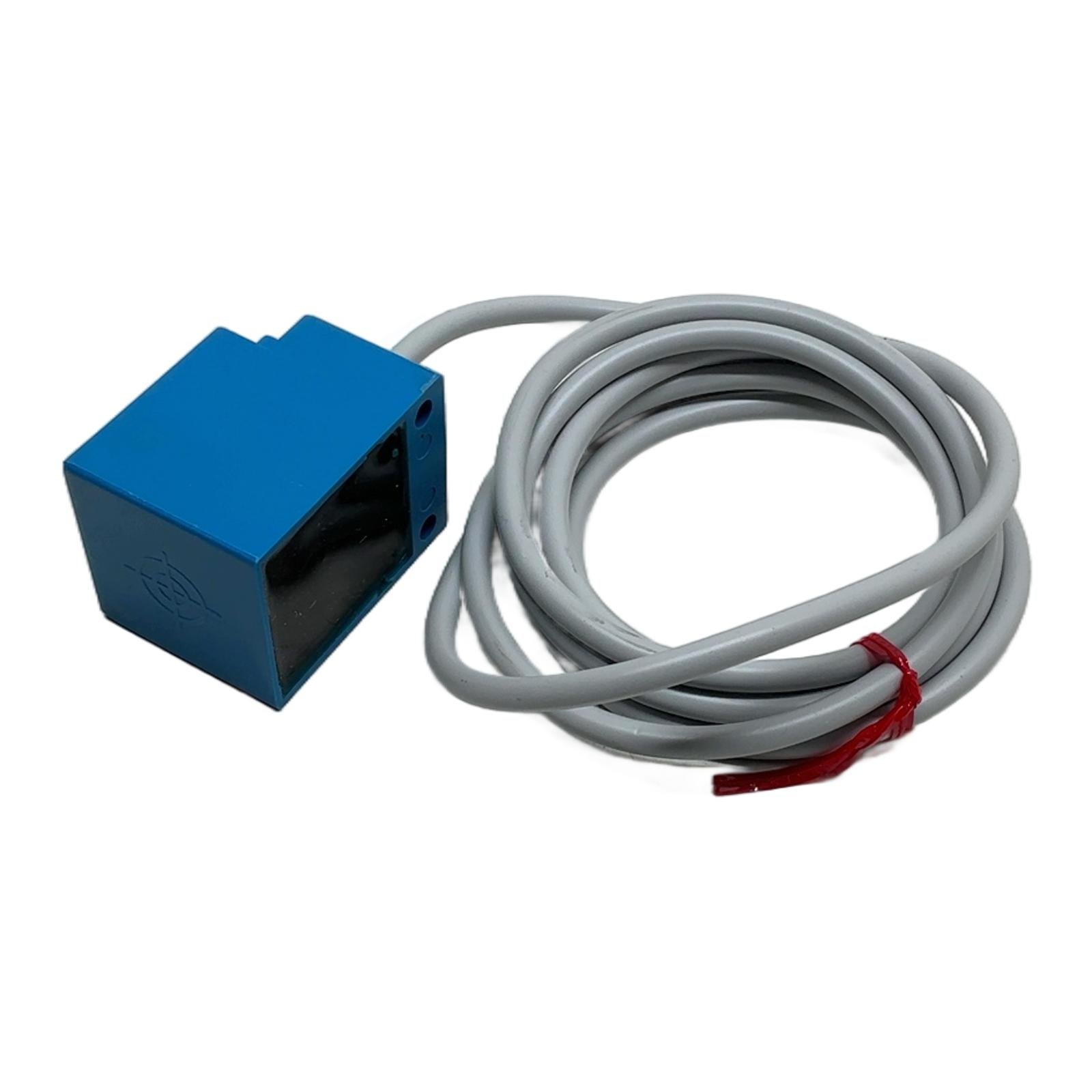

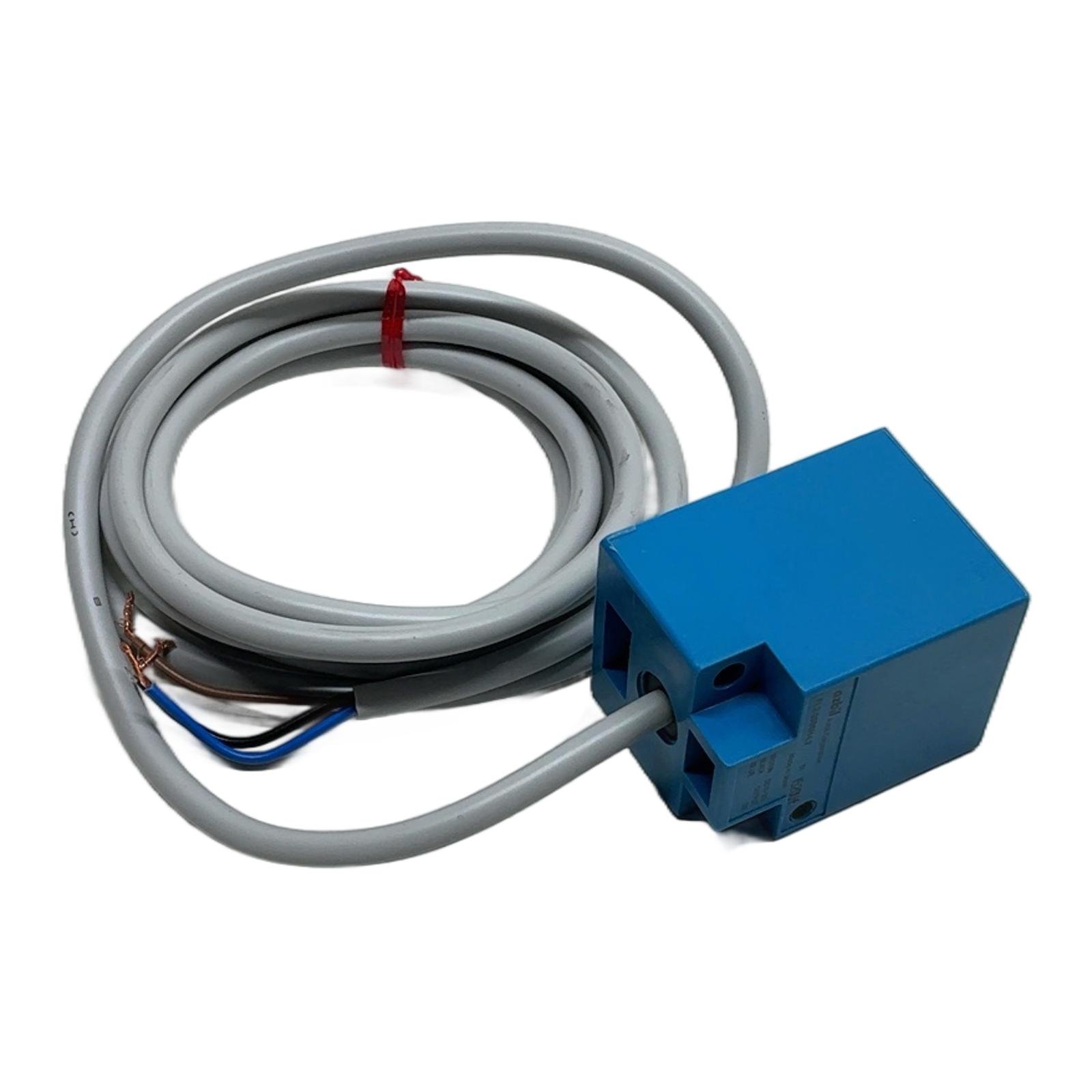

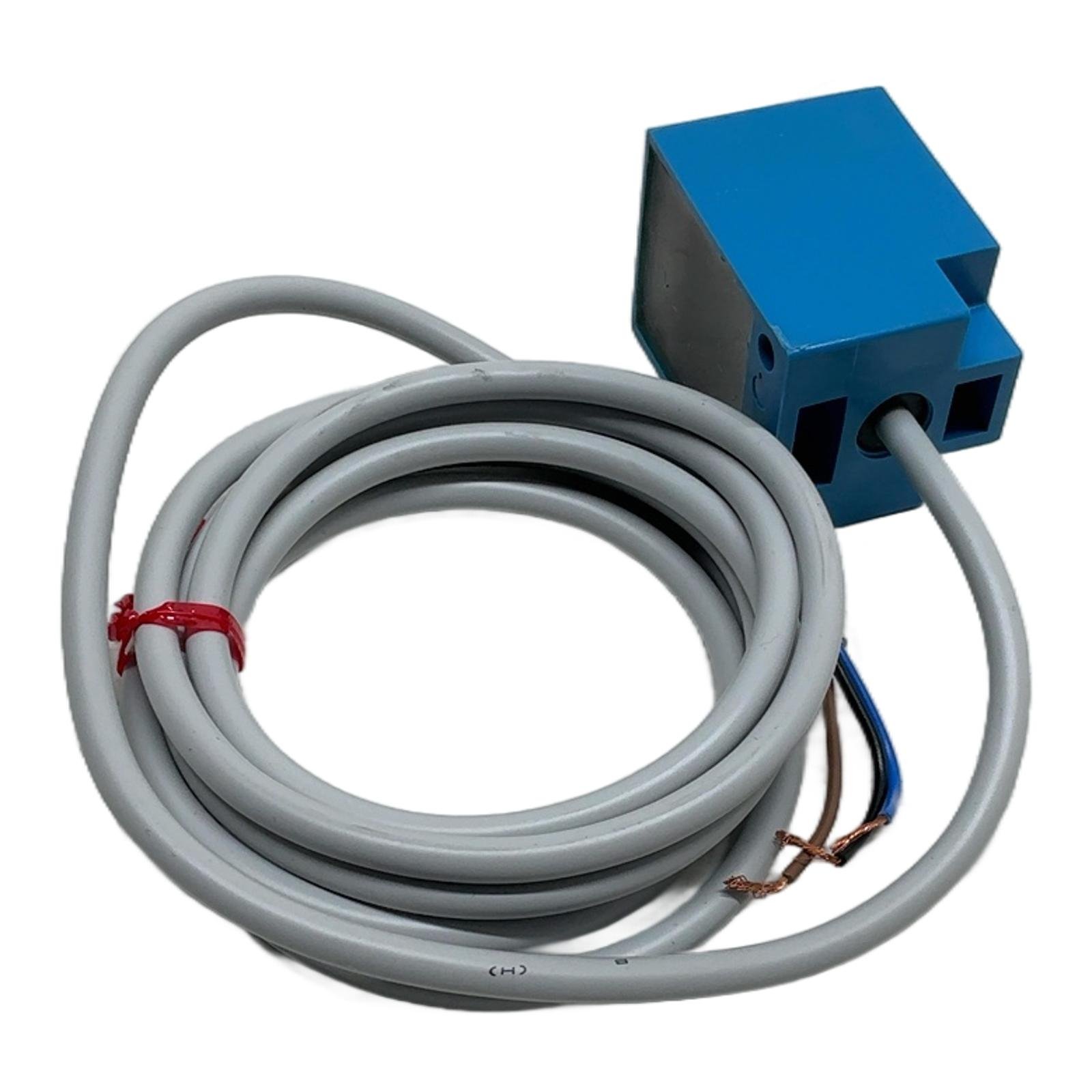

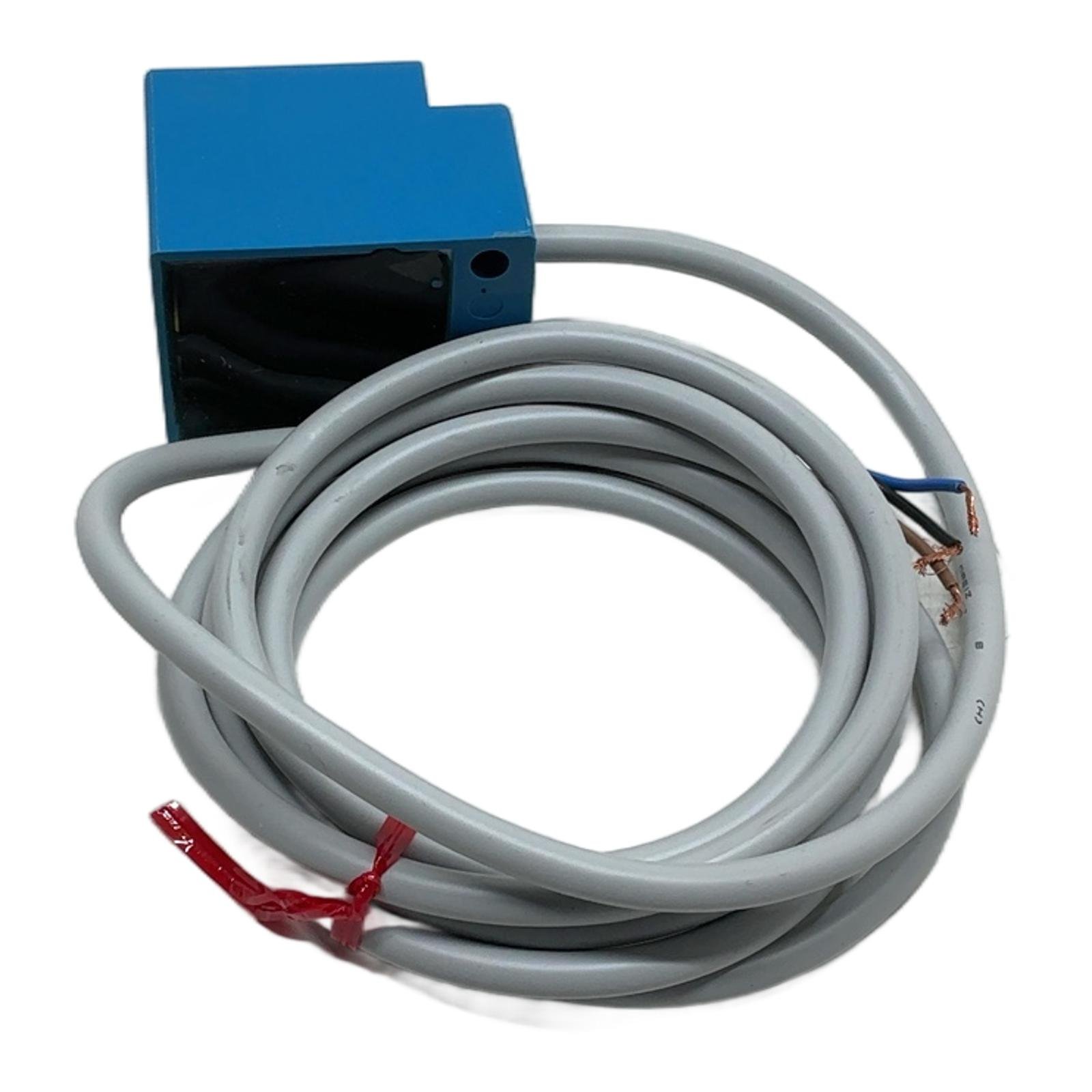

Azbil FL2-20B6H-L2 Proximity Sensor Description The Azbil FL2-20B6H-L2 is a high-performance square-style inductive proximity switch. It is engineered for non-contact detection of metallic objects in various industrial automation environments. This model provides a reliable 20mm sensing distance and features a DC 3-wire NPN normally open output configuration. With its pre-wired 2-meter cable, it allows for straightforward installation. This sensor is an ideal choice for applications requiring precise position sensing, object counting, or limit detection. Specifications Manufacturer: Azbil Series: FL2 Model: FL2-20B6H-L2 Sensing Distance: 20 mm Type: Unshielded, High-Frequency Oscillation Output: NPN, Normally Open (NO) Operating Voltage: 10 to 30 VDC Connection: Pre-wired 2-meter cable Housing Material: Plastic Label Info Catalog List: FL2-20B6H-L2 Application This sensor is commonly used in packaging machinery, conveyor systems, automated assembly lines, and machine tools for detecting the presence or absence of metal parts and components. Country of Origin Made in Japan. CO2 Impact Opting for this component helps save approximately 6.0 kg of CO2 compared to manufacturing a new one, contributing to a more sustainable industrial process. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the difference between an NPN and a PNP output on this sensor? An NPN output (like on the FL2-20B6H-L2) sinks current, meaning it connects the output line to ground (0V) when an object is detected. A PNP output sources current, connecting the output line to the positive supply voltage (+V). Your PLC or control device input must match the sensor’s output type. Can this sensor detect non-metallic objects like plastic or wood? No, this is an inductive proximity sensor. It operates by generating a high-frequency electromagnetic field and can only detect metallic (conductive) objects that disrupt this field. For non-metallic objects, you would need a capacitive proximity sensor. What does the ‘H’ in the model number FL2-20B6H-L2 signify? The ‘H’ indicates that this is a high-frequency oscillation type sensor. This design helps to prevent mutual interference when multiple sensors are mounted close together, ensuring more reliable operation in dense sensing applications. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
