KUEBLER 8.0000.6901.0010.0031

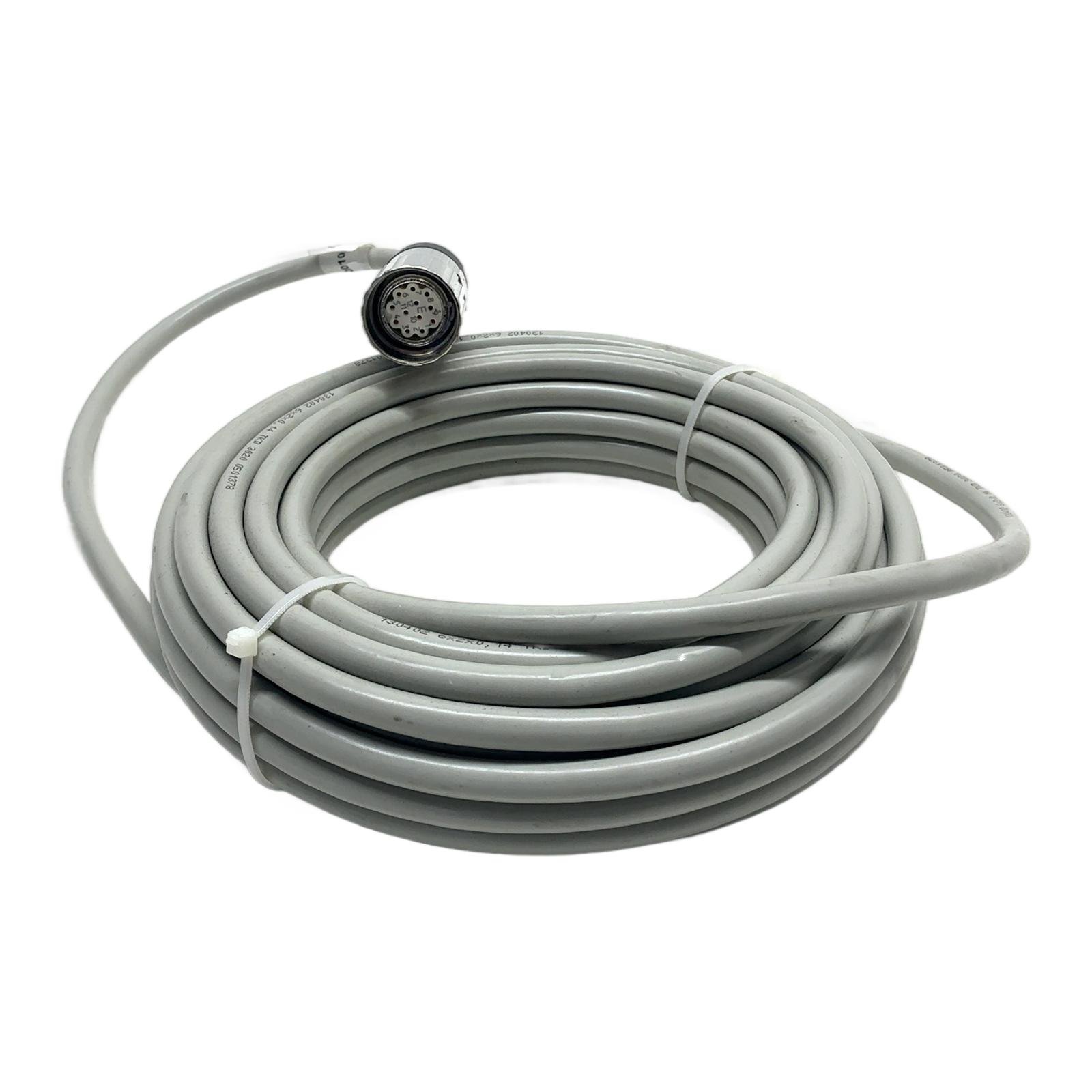

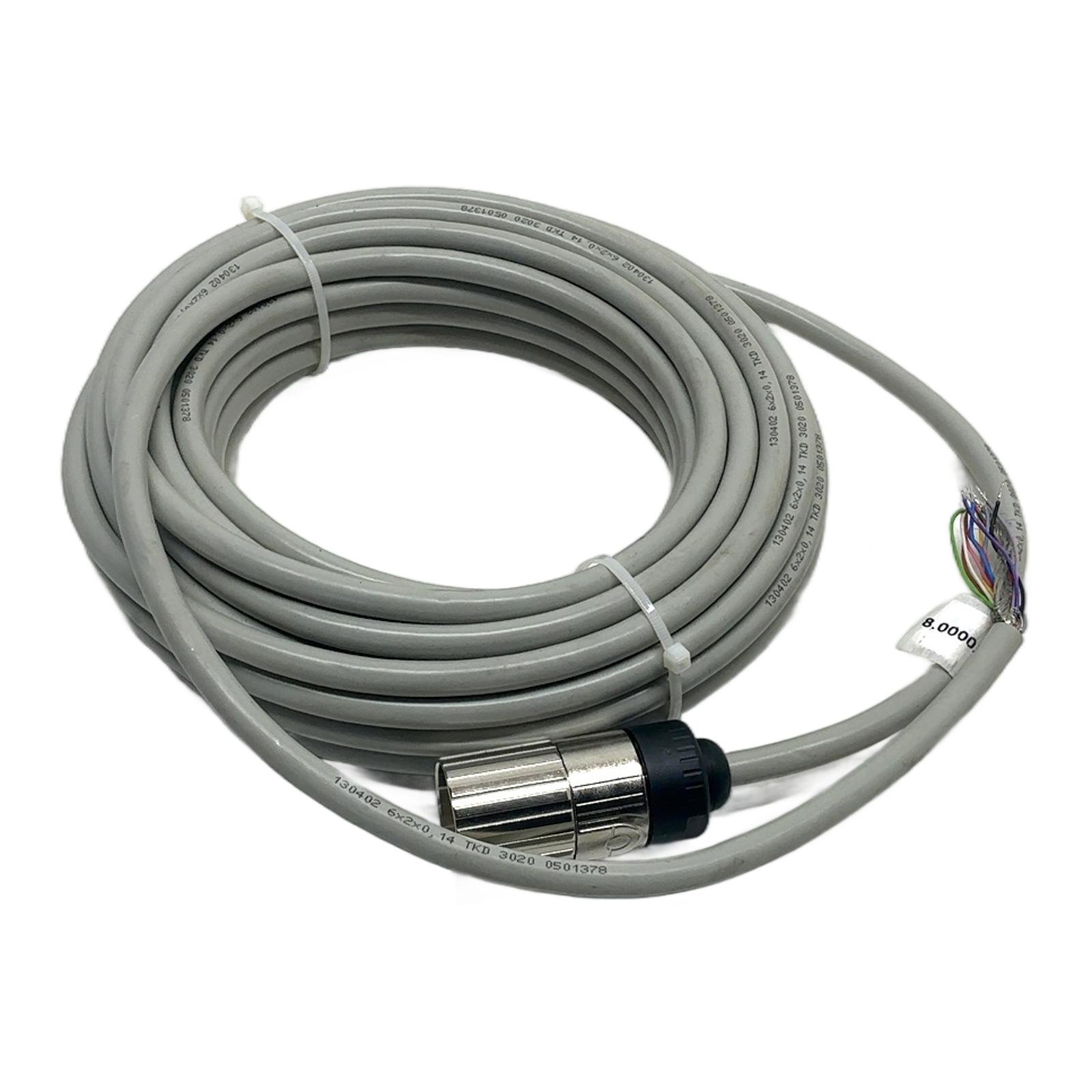

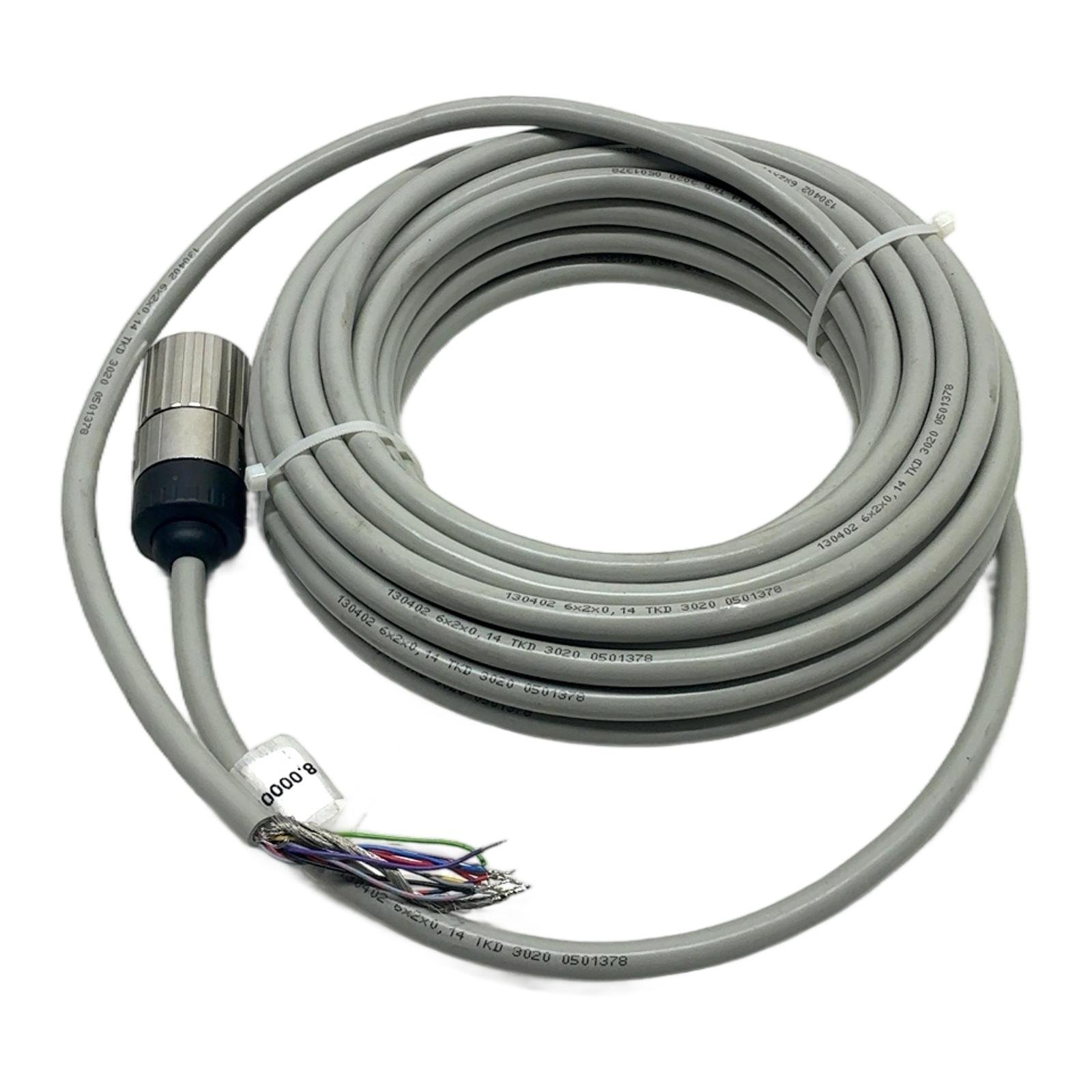

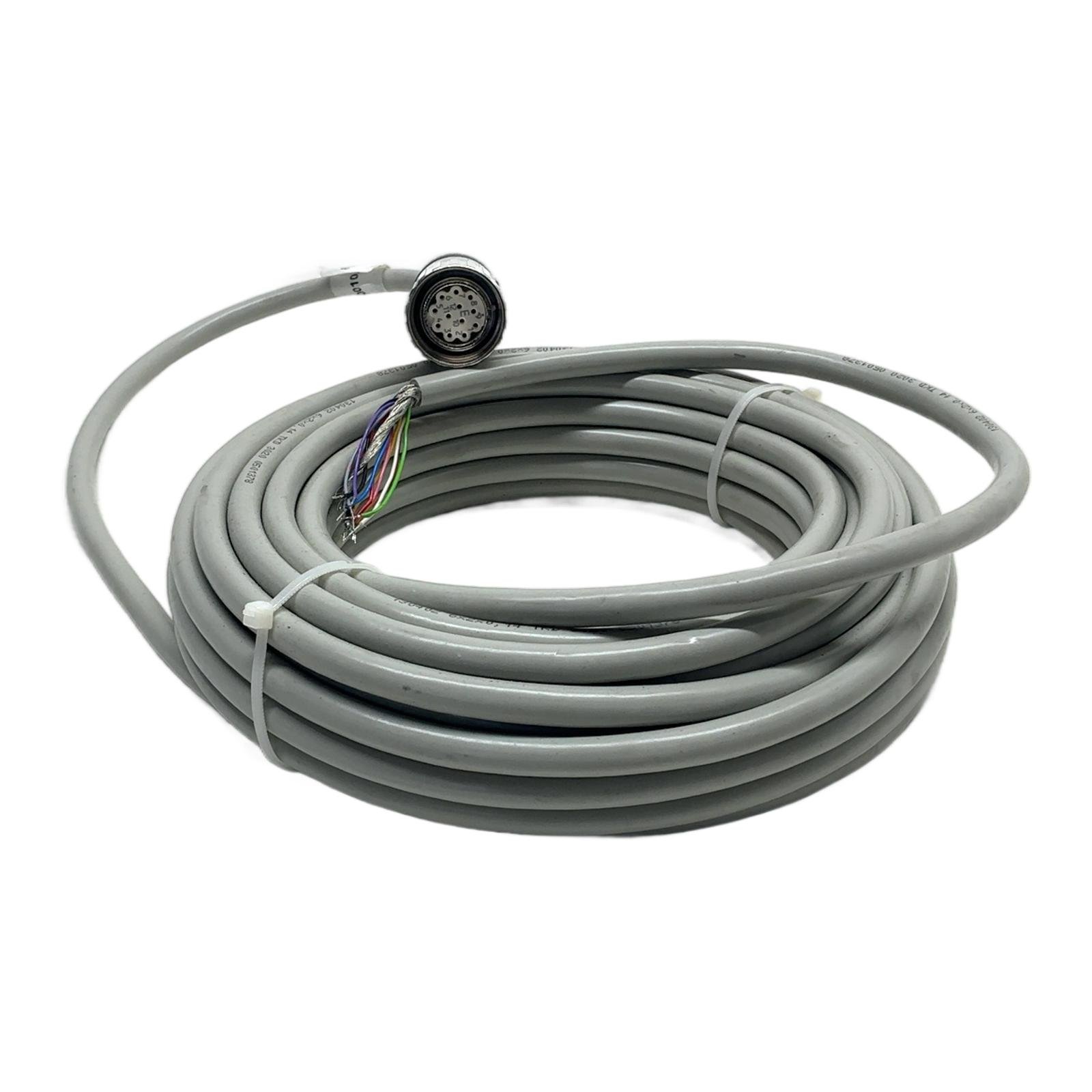

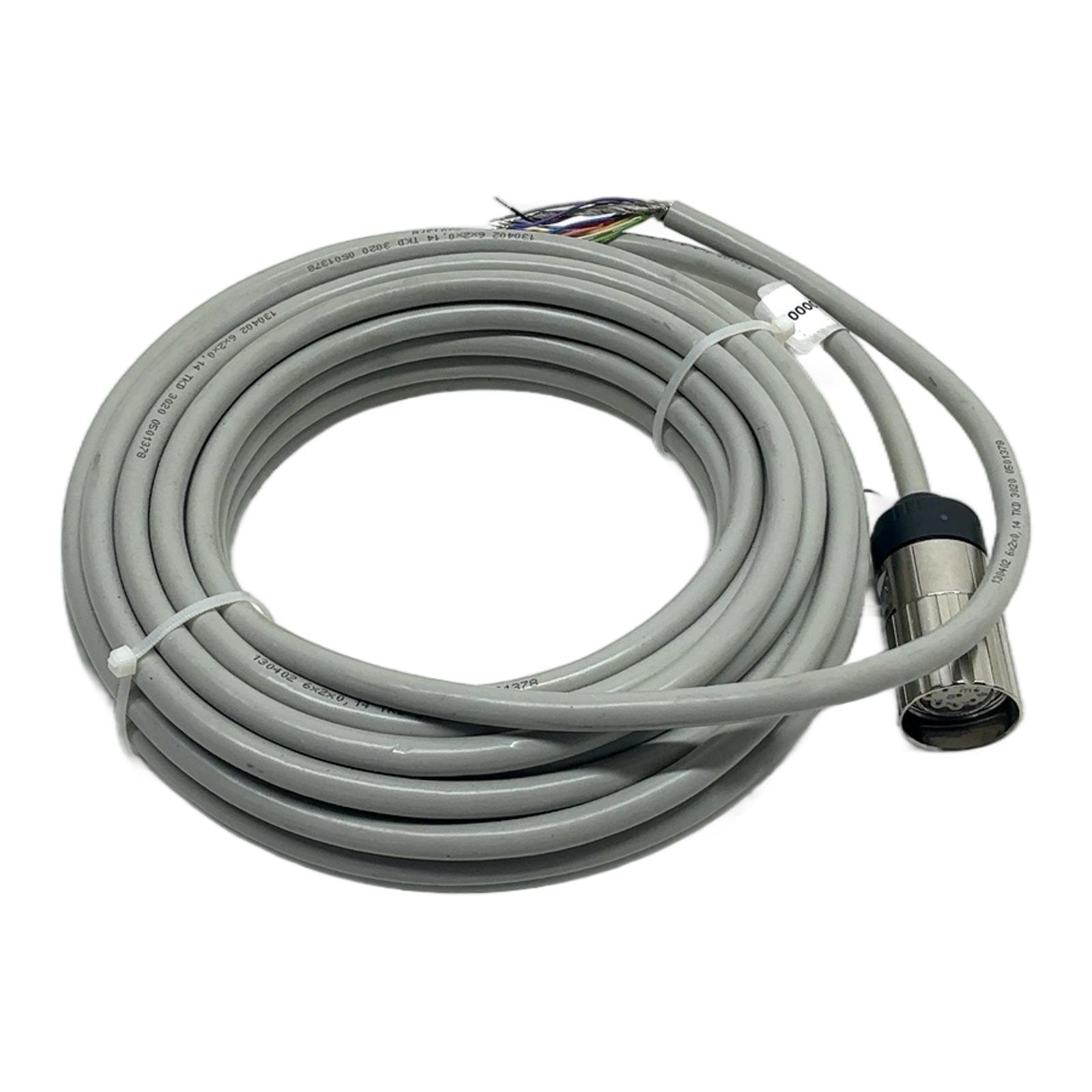

Kuebler 10m M23 12-Pin Encoder Connection Cable Description This is a pre-assembled connection cable from Kuebler, part number 8.0000.6901.0010. It is designed for connecting incremental or absolute encoders in various industrial applications. The cable features a straight, female M23 12-pin connector on one end and open-ended wires on the other, providing flexibility for wiring into control cabinets or terminals. The 10-meter length offers ample reach for most installations. Specifications Manufacturer: Kuebler Part Number: 8.0000.6901.0010 Product Type: Encoder Connection Cable Length: 10 meters Connector Type: M23, 12-pin, Female, Straight Cable Specification: 6x2x0.14 mm2, Shielded Cable Manufacturer: TKD Jacket Material: PVC Label Info On Label: 8.0000.6901.0010.0031 On Cable Jacket: 130402 6x2x0,14 TKD 3020 0501378 Application This cable is ideal for establishing a secure and reliable connection between Kuebler encoders and control systems such as PLCs, servo drives, or frequency inverters. It is commonly used in factory automation, packaging machinery, and material handling systems. Country of Origin Manufactured in Germany. CO2 Impact By purchasing this pre-owned item, you are helping to prevent the emission of approximately 48 kg of CO2, which is equivalent to what is needed to produce a brand new unit. This saving is comparable to driving a car for 240 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Is this cable suitable for dynamic applications like cable chains?The included TKD 3020 cable is a flexible control cable, but it is not specifically rated for high-cycle, continuous flex applications found in drag chains. For such use, a dedicated chain-rated cable would be recommended. What is the pinout for this Kuebler M23 12-pin connector?The pinout is determined by the encoder or device it connects to. Kuebler uses standard assignments for their encoders (e.g., specific pins for A, B, Z signals, 0V, and +V). Always verify the pinout diagram in your encoder’s datasheet to ensure correct wiring before connecting. What is the IP rating of the M23 connector when properly mated?When correctly screwed together with a compatible male counterpart, this type of M23 connector typically achieves an IP67 rating. This ensures it is dust-tight and protected against temporary immersion in water, making it suitable for harsh industrial environments. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
