ATOS DKQ-013/C/2E DC 40 + QV-06/11 60

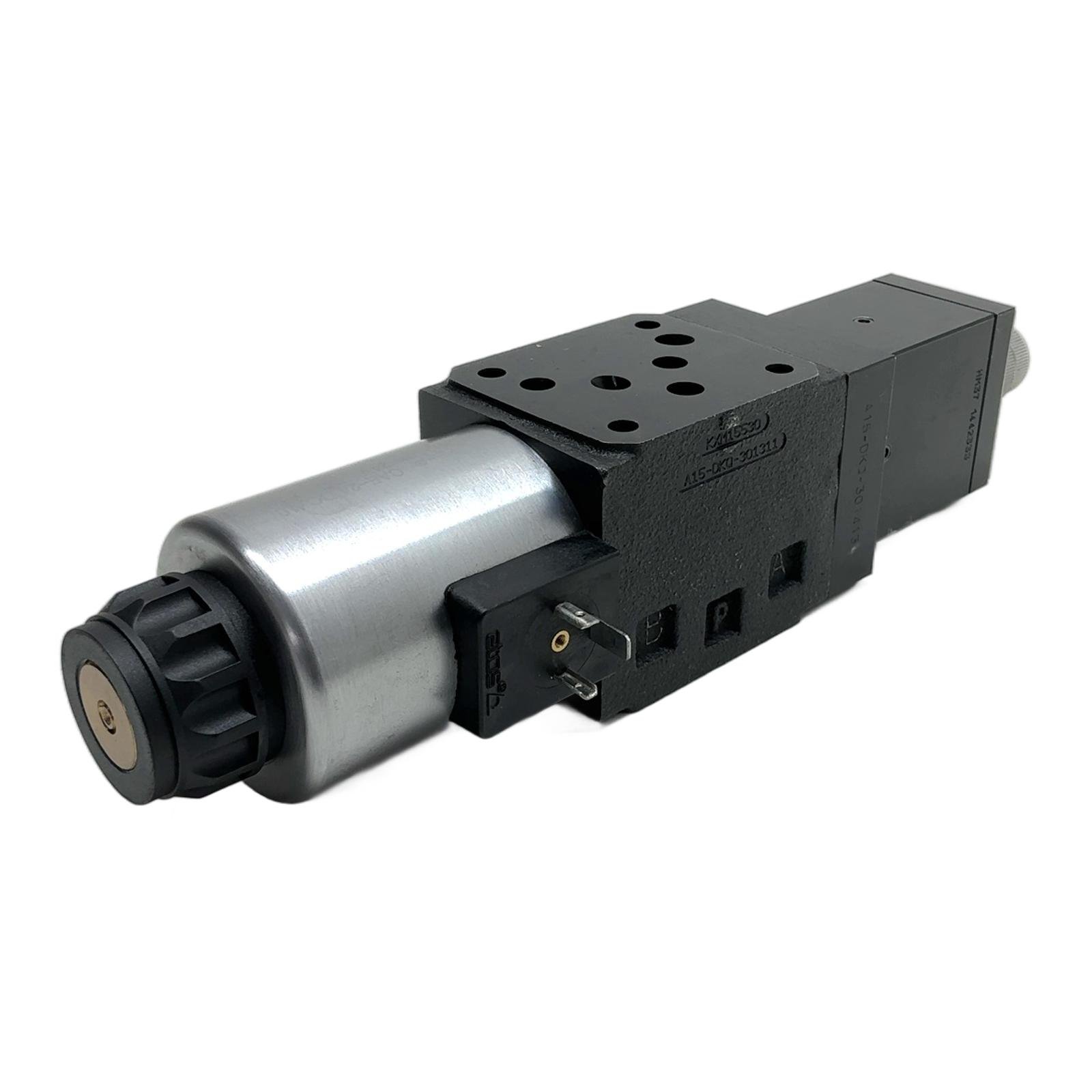

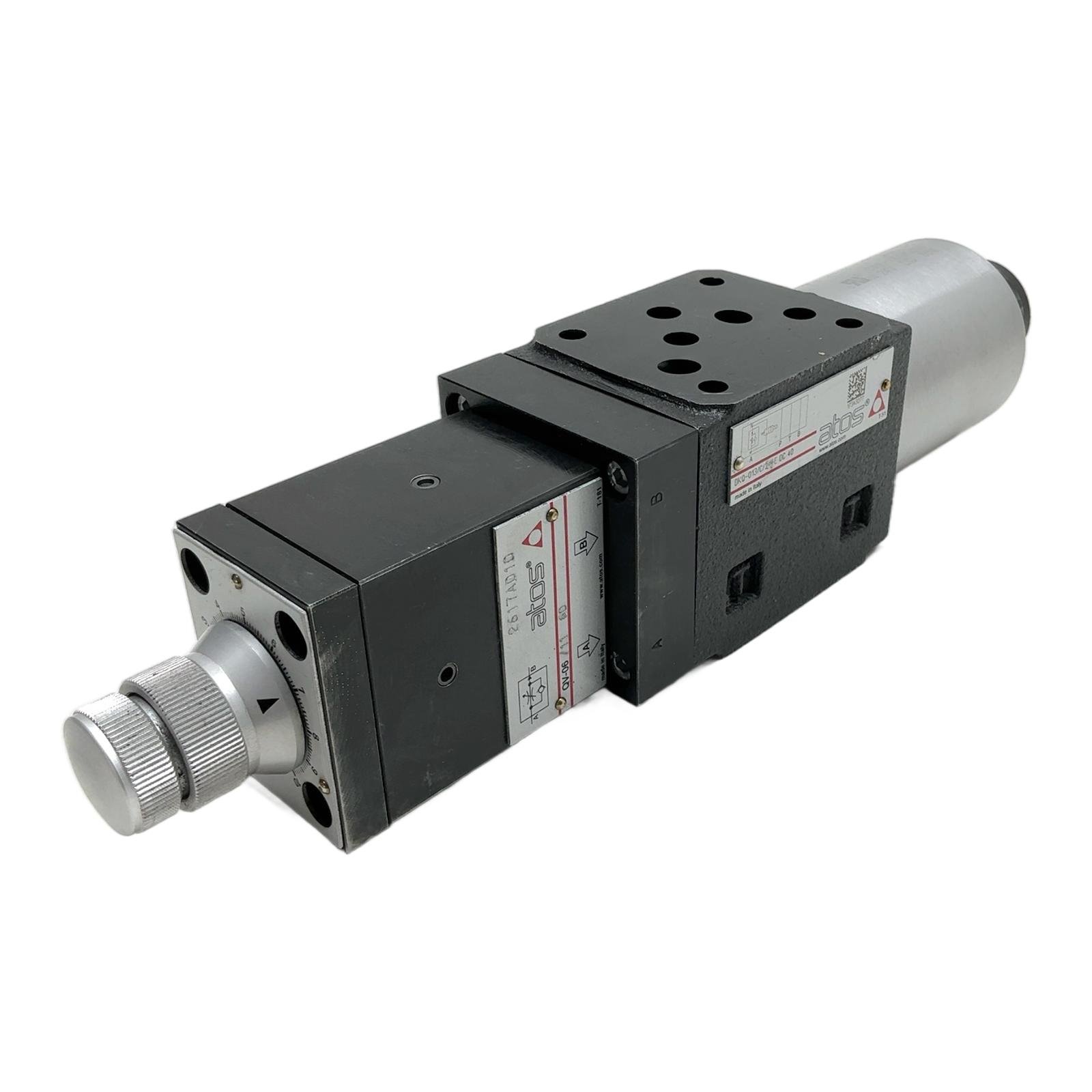

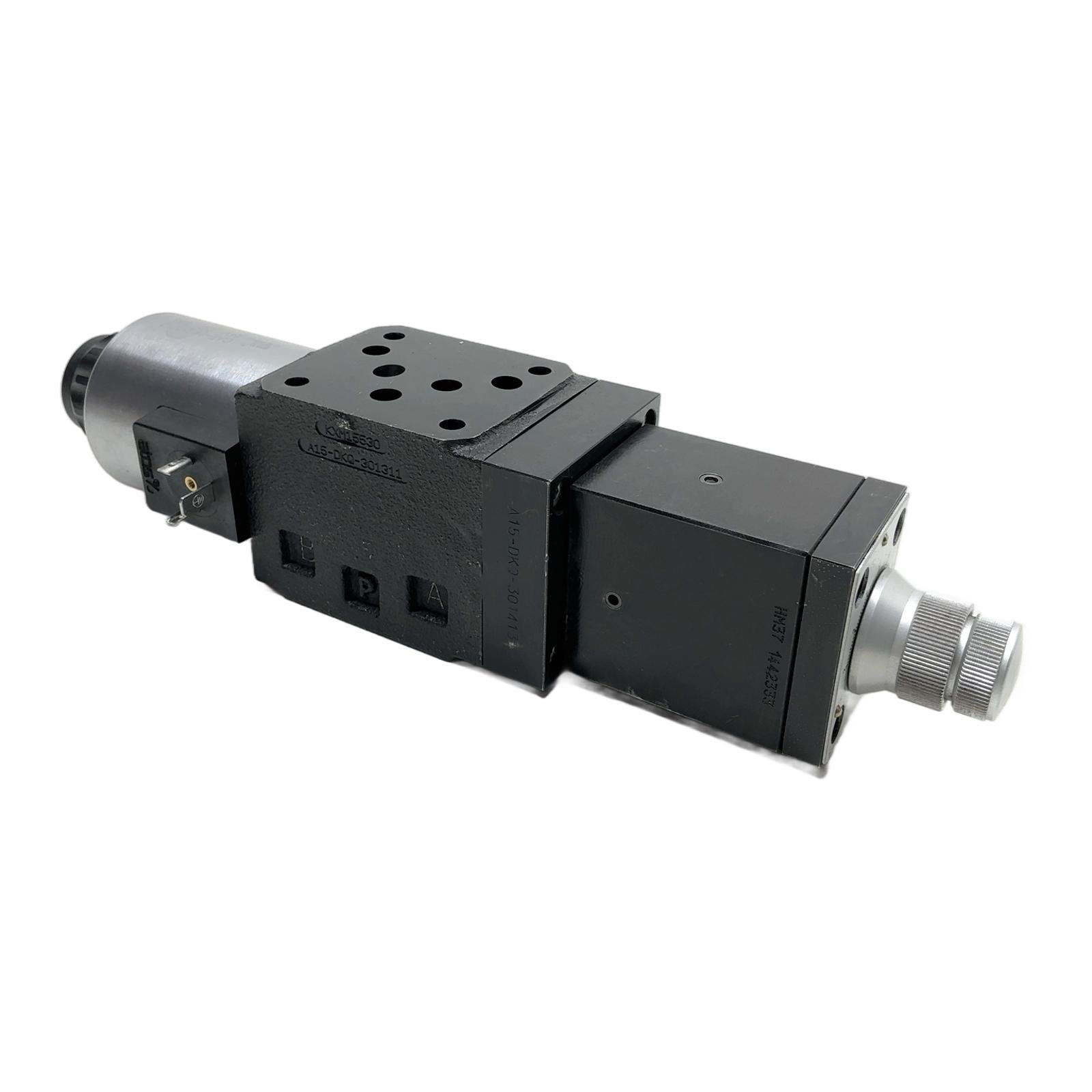

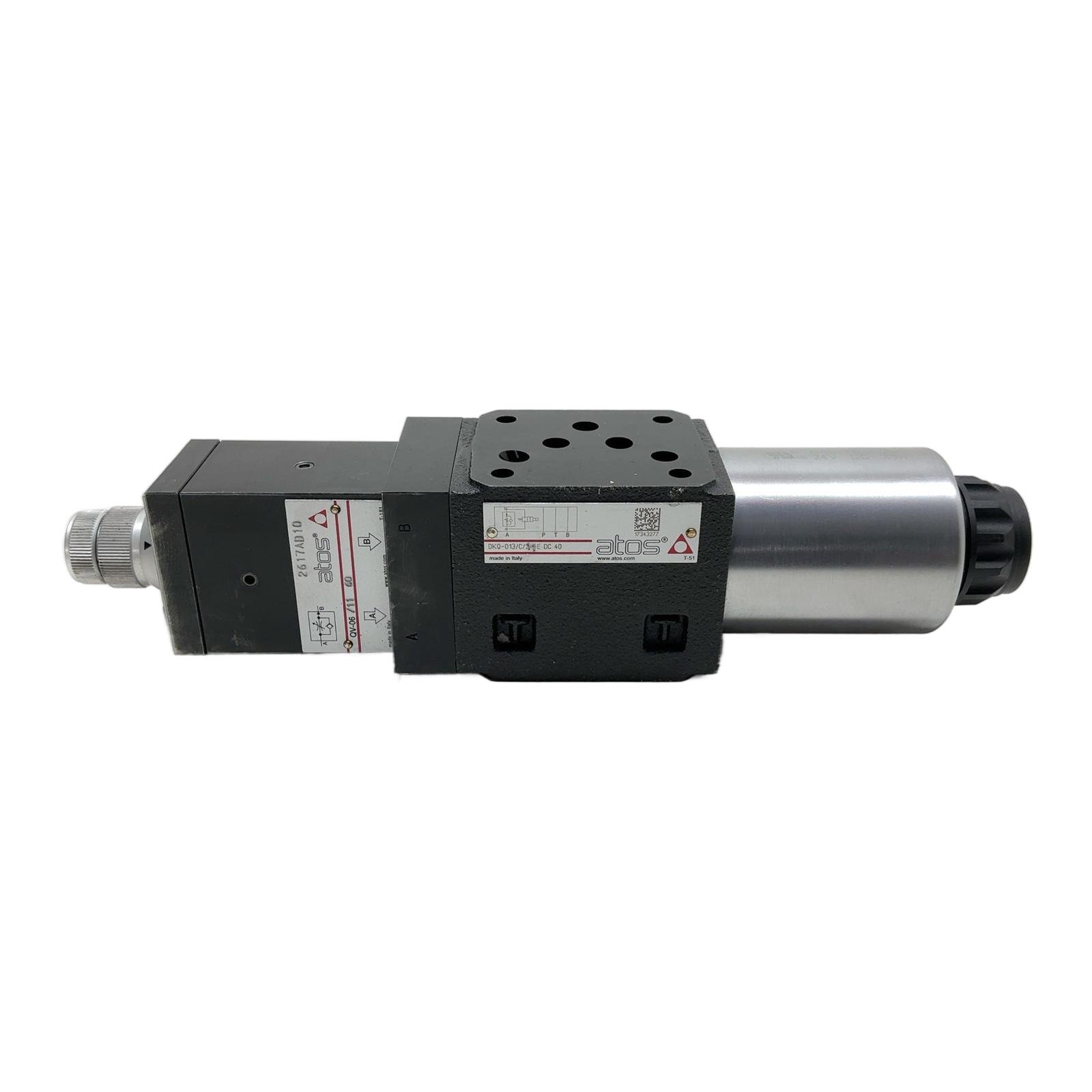

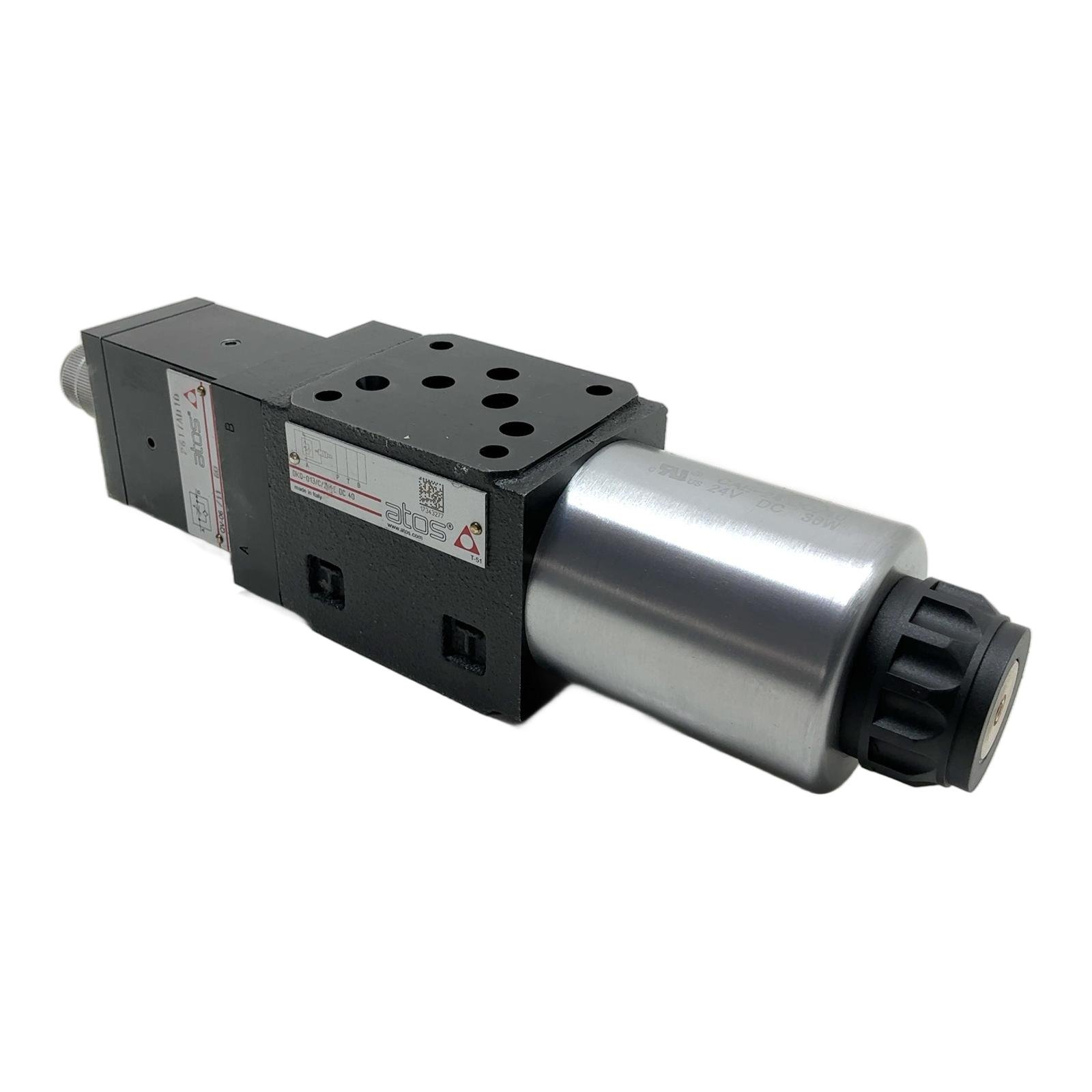

Atos Proportional Directional Control Valve Assembly Description This is a high-performance proportional directional control valve assembly from Atos, model DKQ-013/C/2E, paired with a QV-06/11 modular throttle valve. It is engineered for precise and responsive control of flow and direction in demanding hydraulic systems. The assembly operates on a 24V DC supply and is built to the CETOP 3 (NG6) standard for easy integration. Ideal for applications requiring smooth acceleration/deceleration and accurate positioning of hydraulic actuators. Specifications Manufacturer: Atos Main Valve Type: DKQ-013/C/2E DC 40 Modular Valve Type: QV-06/11 60 Function: Proportional Directional Control Valve with Flow Control Operating Voltage: 24V DC Power Consumption: 36W Mounting Standard: CETOP 3 / NG6 Maximum Pressure: Consult manufacturer datasheet Label Info Solenoid Coil: CAE 24 DC/10 Serial (Main Valve): 17343277 Part Number (Throttle Valve): 2617AD10 Application This valve assembly is suitable for a wide range of industrial machinery, including plastic injection molding machines, metal forming presses, CNC machines, and automated manufacturing lines where precise hydraulic motion control is critical. Country of Origin Made in Italy. CO2 Impact By reusing this component, you are helping to avoid approximately 14 kg of CO2 emissions, which is comparable to the savings from driving a car for 70 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the function of the QV-06/11 module in this assembly? The QV-06/11 is a modular throttle valve. It allows for the fine adjustment of flow speed in one or both of the A and B work ports, providing additional control over the actuator’s movement speed independent of the proportional control. Is a special connector required for the CAE 24 DC/10 solenoid? Yes, this solenoid requires a standard DIN 43650 / ISO 4400 (EN 175301-803) connector. This connector is not included with the valve but is a widely available industrial standard. Can this valve be used with different hydraulic fluids? The standard Atos DKQ valves are designed for use with mineral oil-based hydraulic fluids (HL, HLP) according to ISO 6743-4. For use with other fluids like water-glycol or synthetic esters, you must verify the compatibility of the seals, which may require a different model variant. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
