STAUFF DV-12-P-B 238766

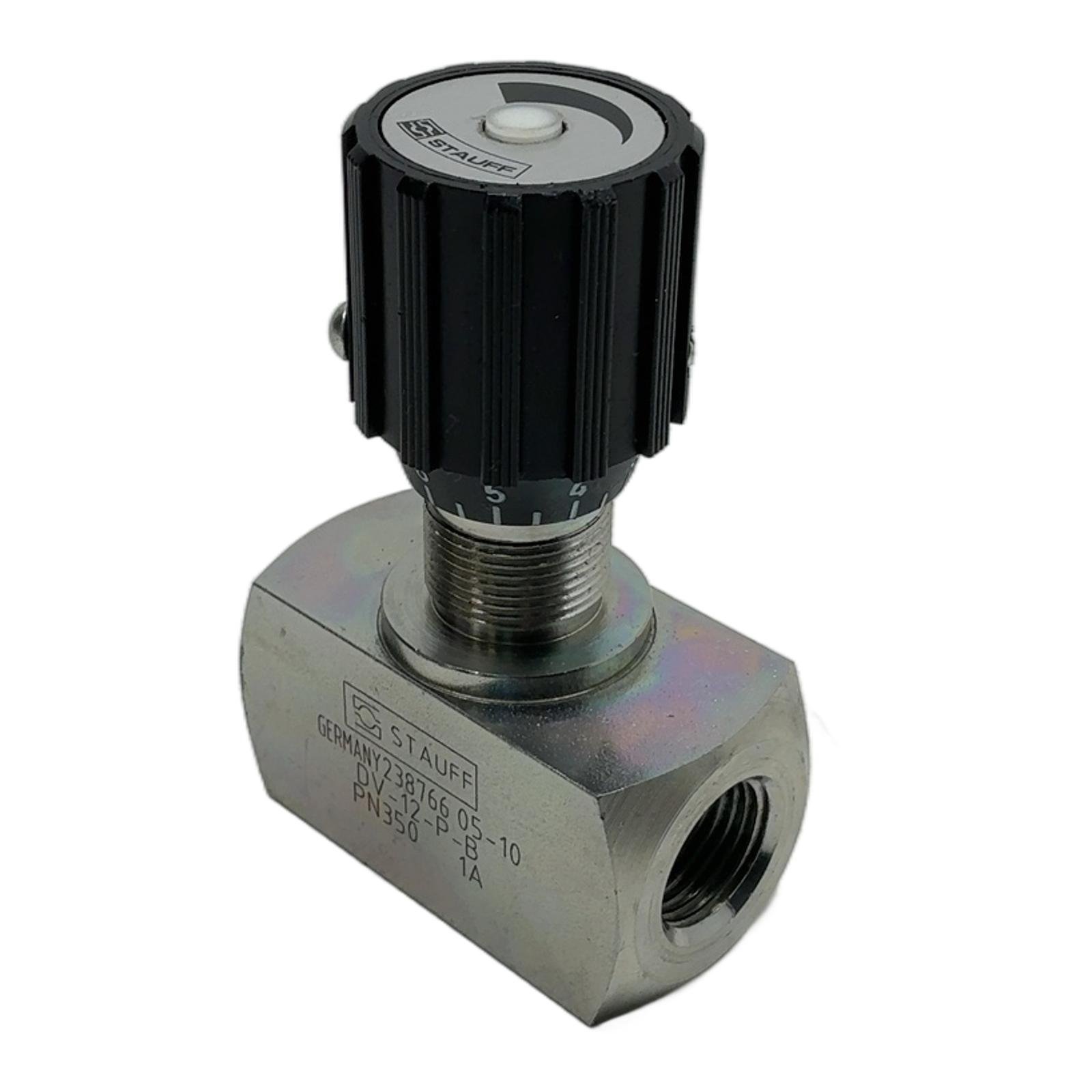

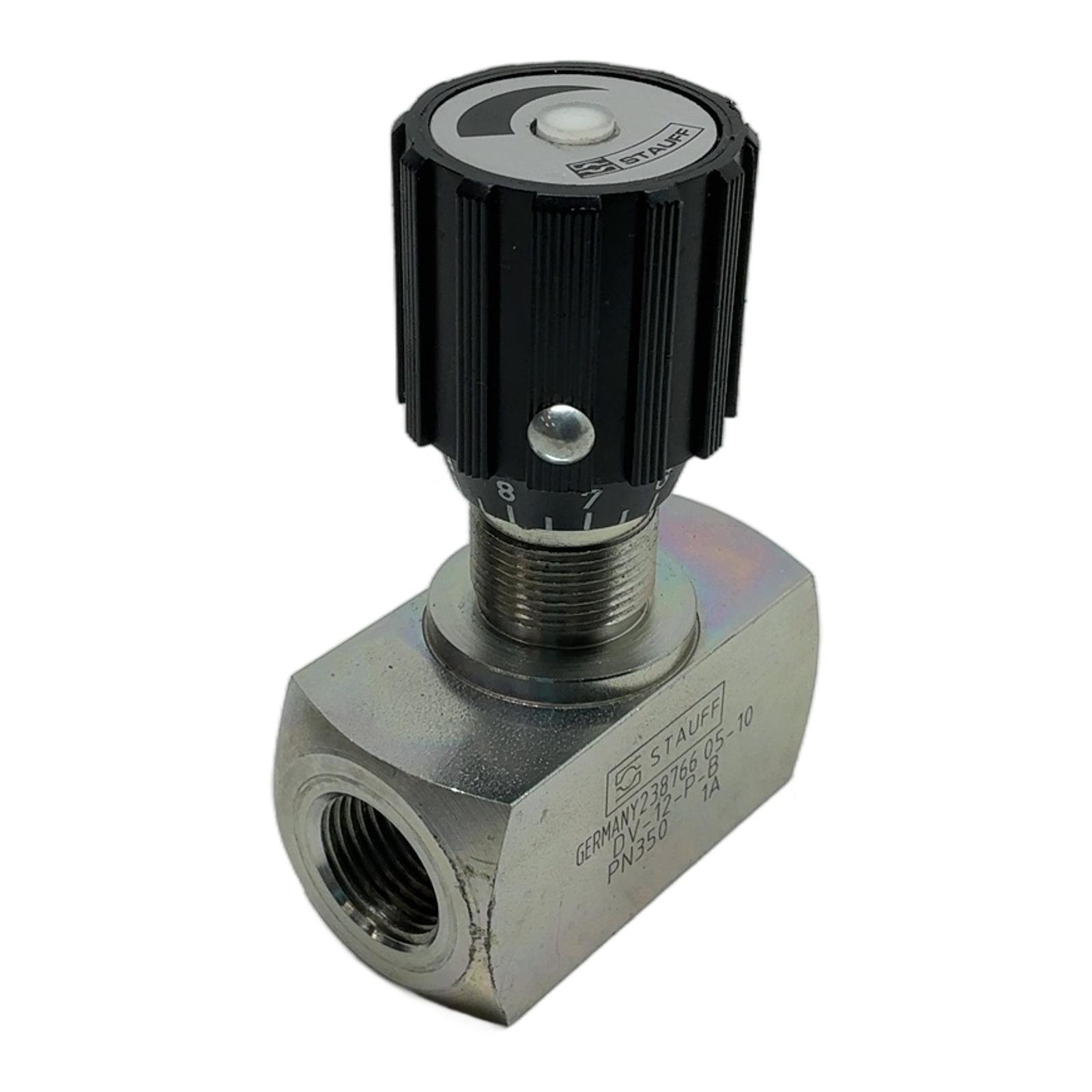

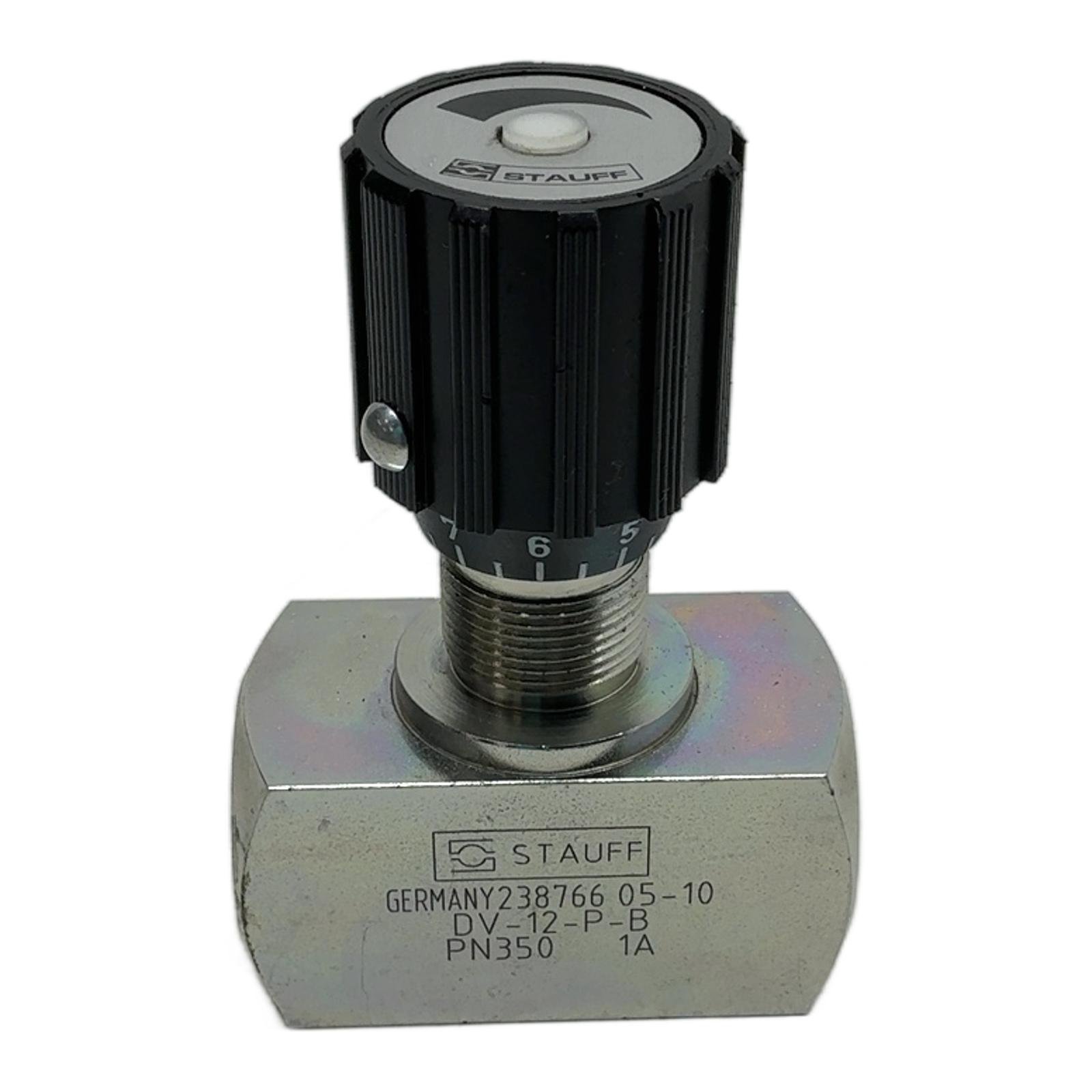

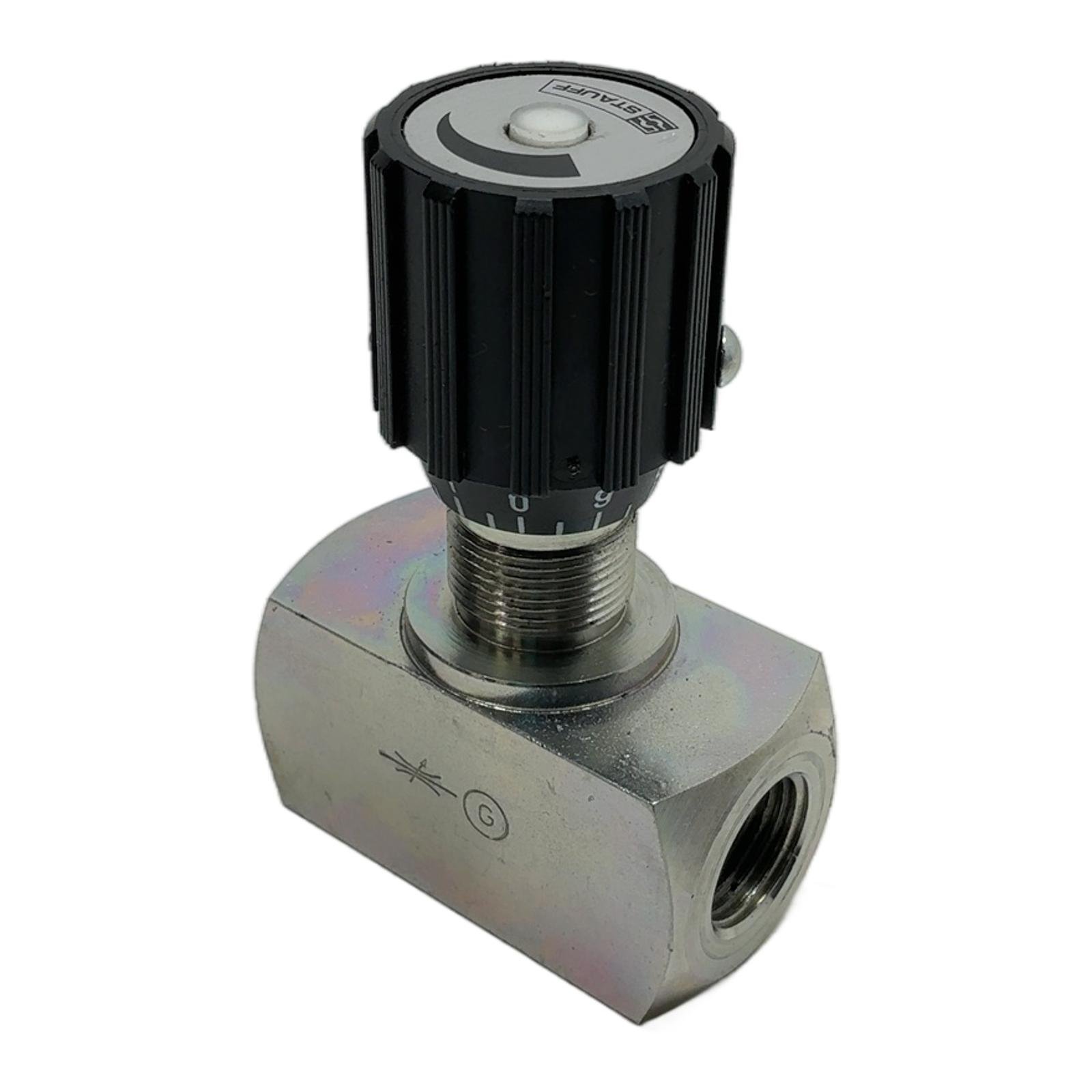

STAUFF DV-12-P-B High-Pressure Flow Control Valve Description This STAUFF DV-12-P-B is a high-quality, manually adjustable flow control valve, also known as a throttle valve. Designed for in-line installation in hydraulic systems, it allows for the precise regulation of flow rates. Its robust steel construction ensures durability and reliable operation under high pressures up to 350 bar (5075 PSI). Manufactured in Germany, this valve is a testament to quality engineering for demanding industrial applications. Specifications Manufacturer: STAUFF Type: In-line Flow Control Valve Model: DV-12-P-B Maximum Operating Pressure: PN350 / 350 bar Connection Type: BSPP (G-thread) Connection Size: G1/2 inch Body Material: Steel, Zinc/Nickel-plated Adjustment: Manual knob with scale Label Info Brand: STAUFF Origin: GERMANY Part Number: 238766 05-10 Model Code: DV-12-P-B Pressure Rating: PN350 Application Ideal for use in various hydraulic circuits where controlling the speed of actuators, such as cylinders or motors, is required. Suitable for mobile hydraulics, industrial machinery, and test benches. Country of Origin Made in Germany. CO2 Impact Opting for this pre-owned steel valve saves approximately 3.0 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the emissions from driving a car for 15 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What type of hydraulic fluid is compatible with this DV-12-P-B valve?This valve is compatible with standard hydraulic fluids based on mineral oil (HL, HLP) according to DIN 51524. For use with other fluids, it is crucial to verify the compatibility of the sealing materials. What is the flow direction for this valve? Is it bidirectional?This is a throttle valve, and for precise control, flow should follow the direction indicated by the arrow symbol on the valve body. While it may allow flow in the reverse direction, its throttling characteristic is designed for one-way operation. How do I correctly install and torque the G1/2 inch BSPP fittings for this valve?For G1/2 inch BSPP (Parallel) threads, it’s essential to use a bonded seal (Dowty washer) or a similar sealing ring. The recommended torque value depends on the fitting material and pressure, but is typically in the range of 45-65 Nm. Always consult the fitting manufacturer’s specifications. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
