FESTO DSNU-25-100-PPV-A 19248

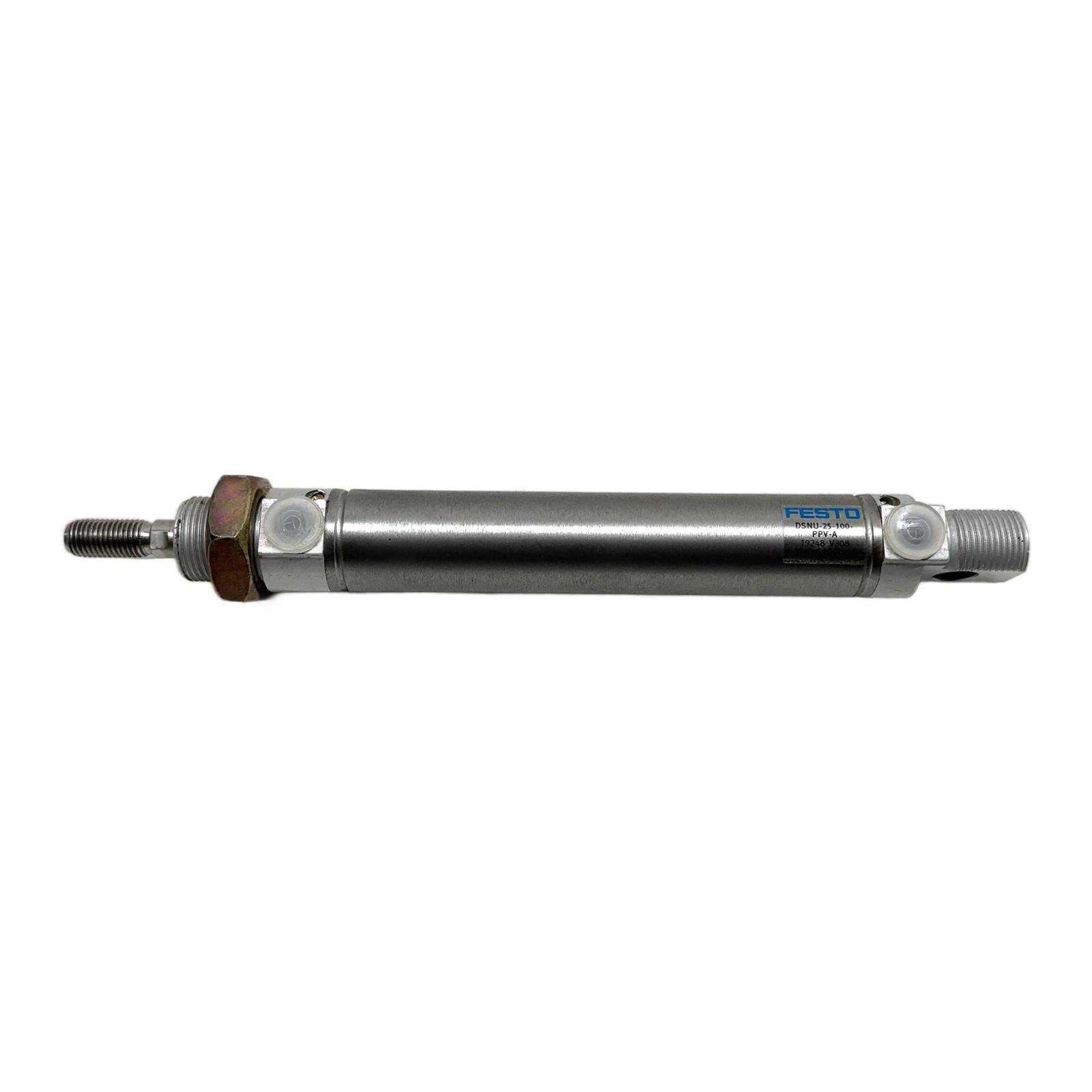

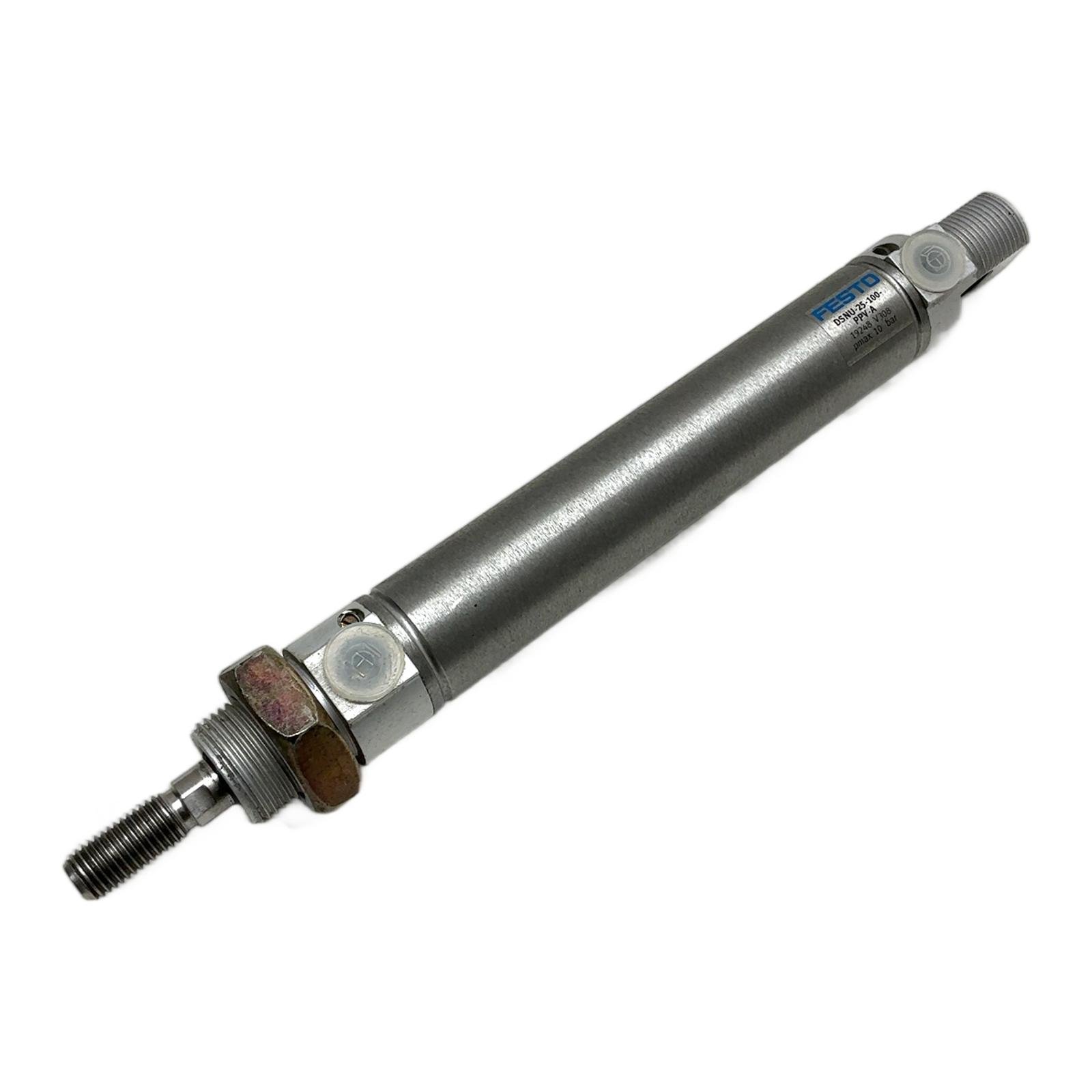

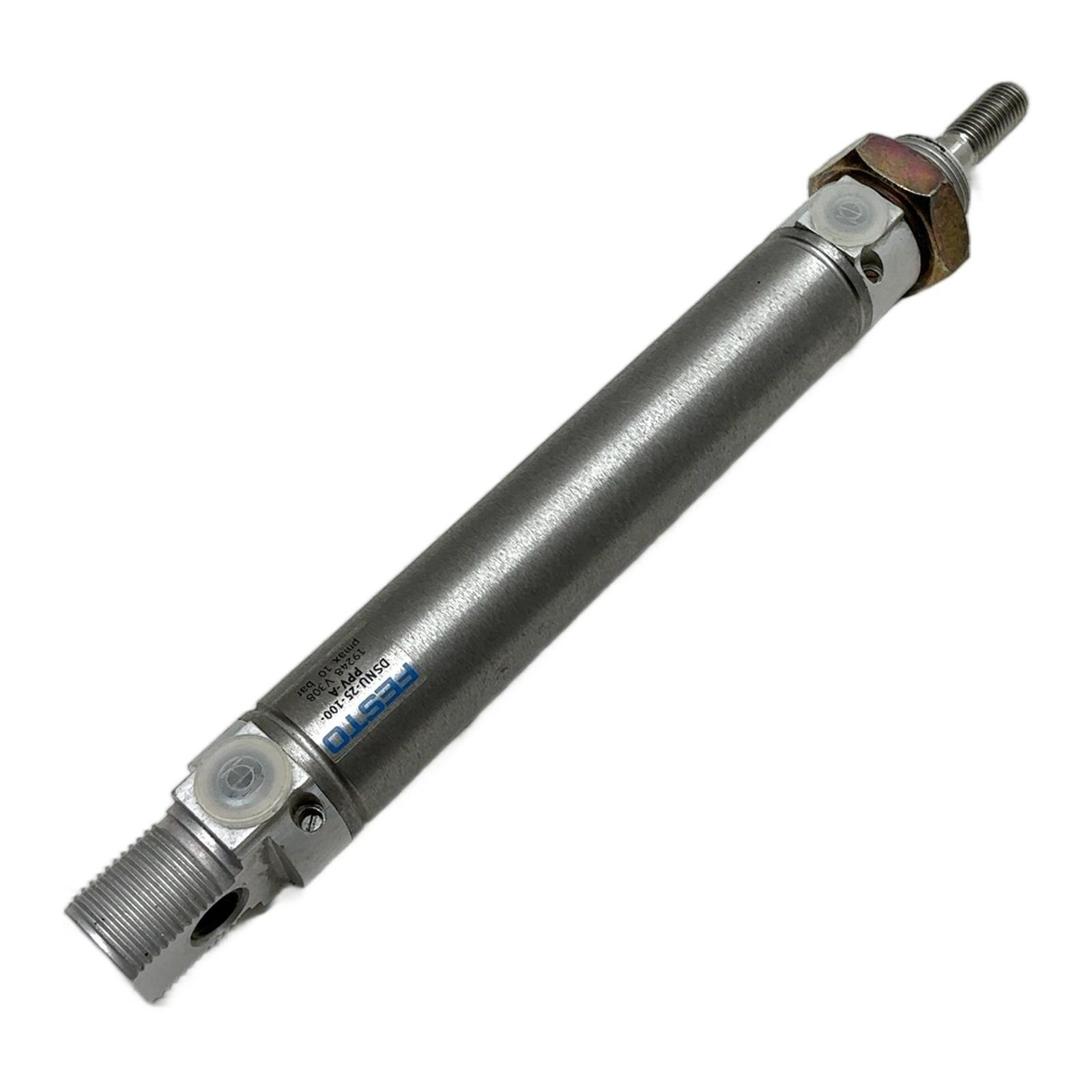

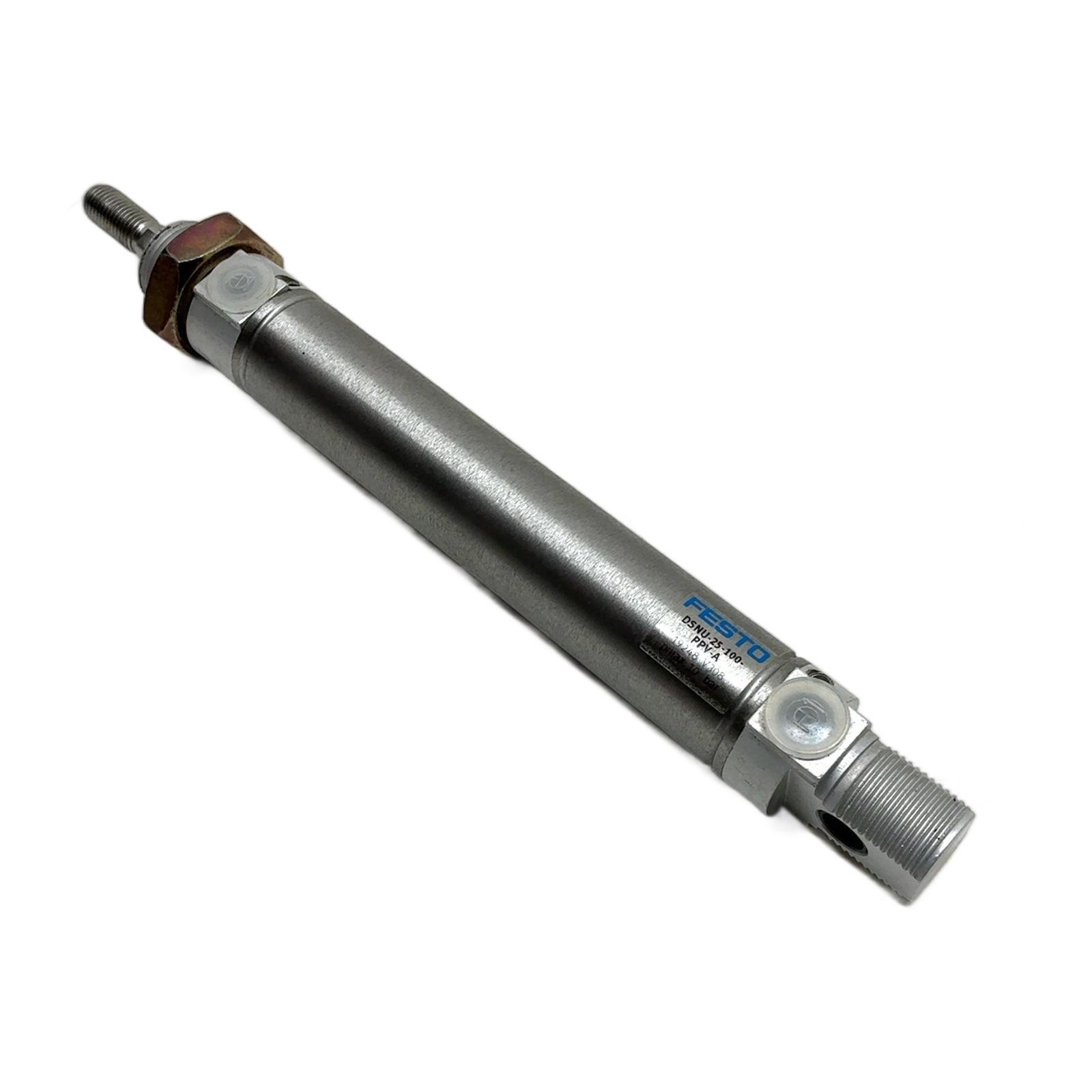

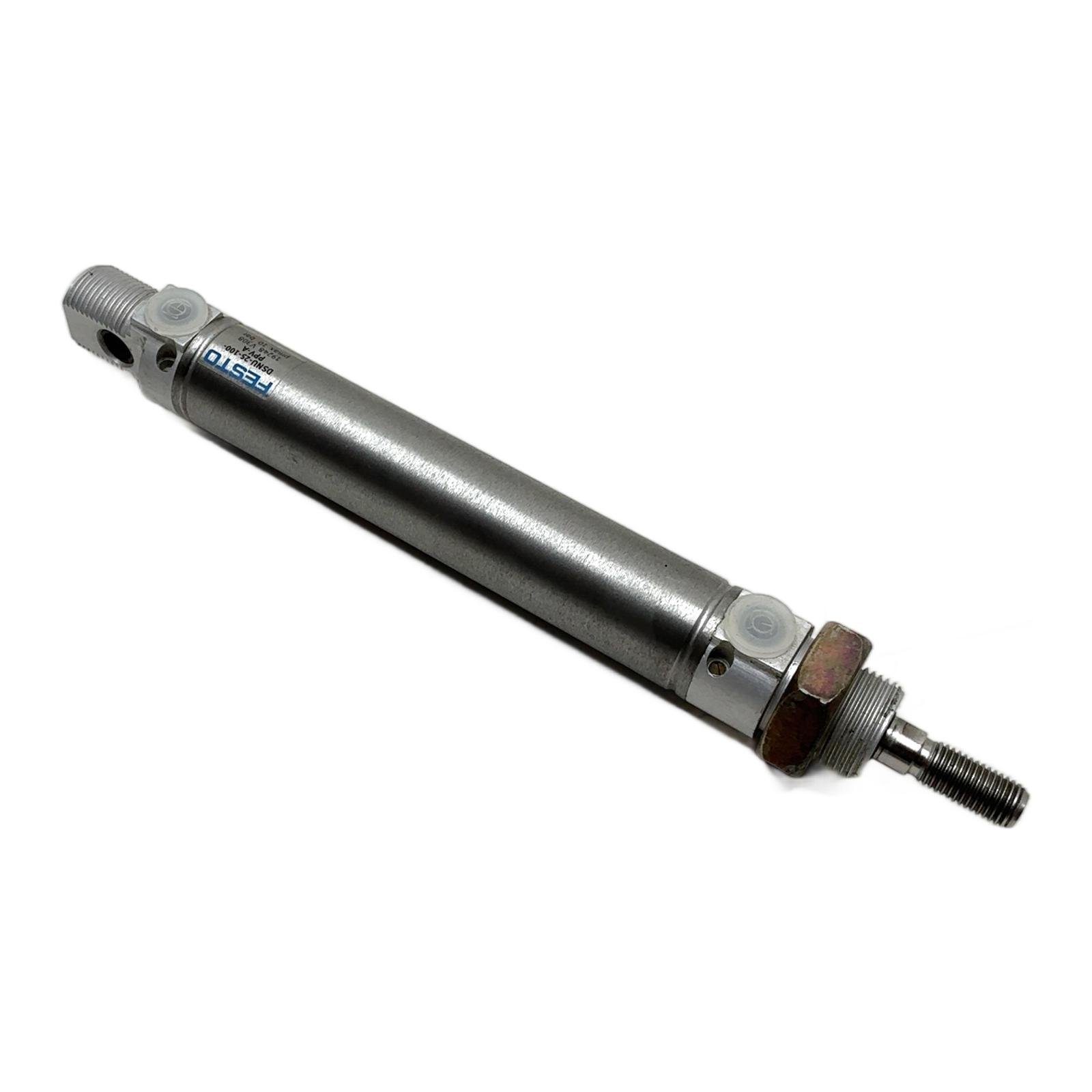

Festo DSNU-25-100-PPV-A Pneumatic Cylinder Description The Festo DSNU-25-100-PPV-A is a standard round cylinder compliant with ISO 6432. It provides reliable linear motion for a wide variety of industrial automation applications. This double-acting cylinder features adjustable pneumatic cushioning at both ends, which allows for smooth deceleration and reduces impact at the end of the stroke, extending the component’s life. A magnetic piston is integrated for position sensing with proximity sensors. Specifications Manufacturer: Festo Type: DSNU-25-100-PPV-A Part Number: 19248 Piston Diameter (Bore): 25 mm Stroke Length: 100 mm Cushioning: Pneumatic, adjustable at both ends (PPV) Position Detection: For proximity sensor (magnetic) Operating Pressure: 0.6 to 10 bar Mode of Operation: Double-acting Piston Rod Thread: M10x1.25 Application Ideal for use in sorting, clamping, feeding, and general handling tasks in manufacturing, packaging, and assembly lines where precise and reliable pneumatic actuation is required. Country of Origin This product is typically manufactured in Germany. CO2 Impact By purchasing this reconditioned item, you are helping to avoid the emission of approximately 4.4 kg of CO2, which is associated with the production of a new unit. This is comparable to driving a car for 22 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the significance of the “PPV-A” designation in the model number?The “PPV” indicates that the cylinder has pneumatic cushioning that is adjustable at both ends of the stroke. This allows for fine-tuning the deceleration of the piston to prevent hard impacts. The “A” signifies that the cylinder is equipped with a magnetic ring on the piston for position sensing via external sensors. Can this cylinder be operated without lubrication?Yes, the Festo DSNU series is designed for both lubricated and non-lubricated operation. If lubricated air is used once, it must be used continuously to ensure a long service life. What type of sensors are compatible with the magnetic piston in this cylinder?This cylinder is compatible with Festo’s range of proximity sensors for T-slot mounting, such as the SMT-8M-A series, or other similar reed switch or solid-state sensors designed for pneumatic cylinders. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
