MERLIN GERIN DPNa vigi 19793

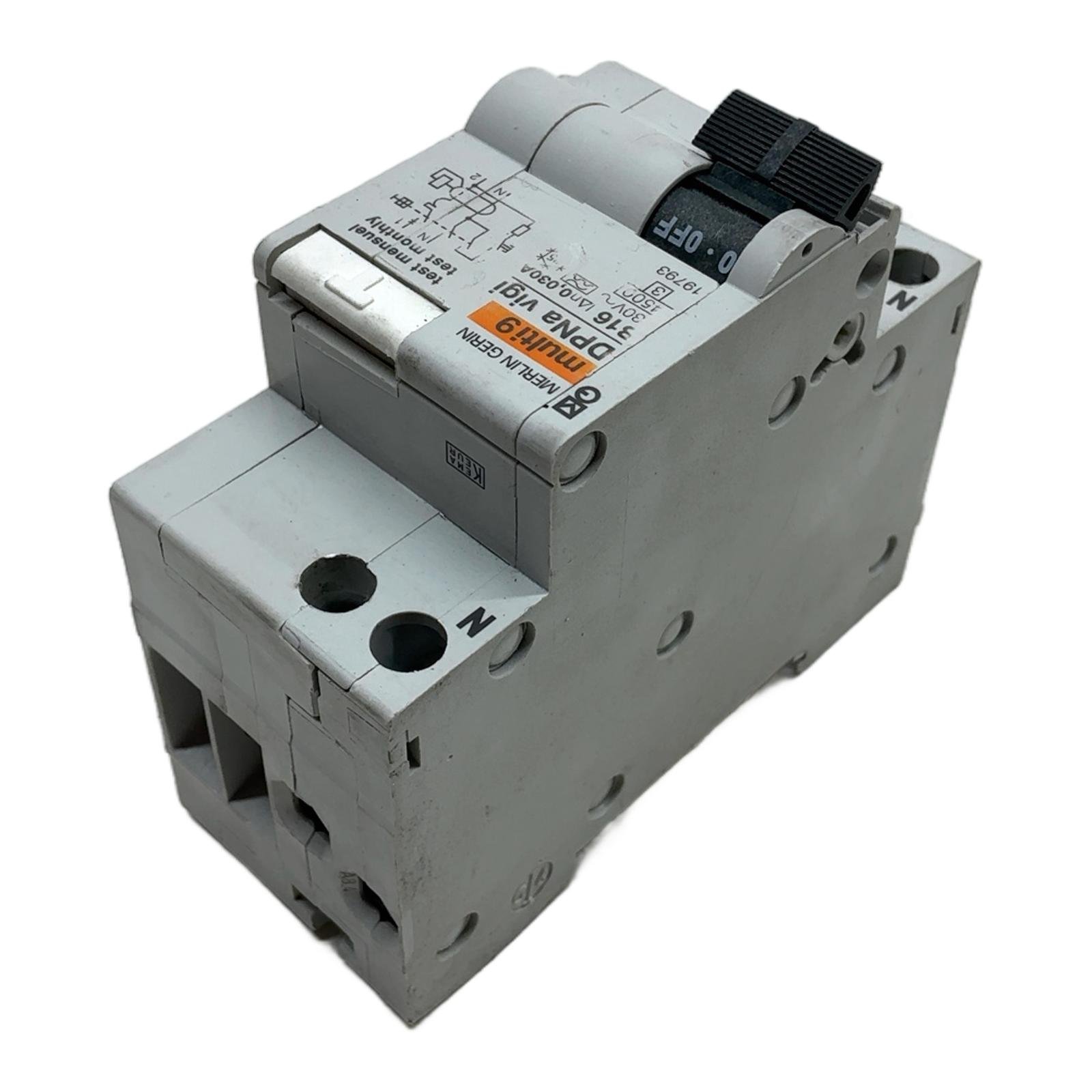

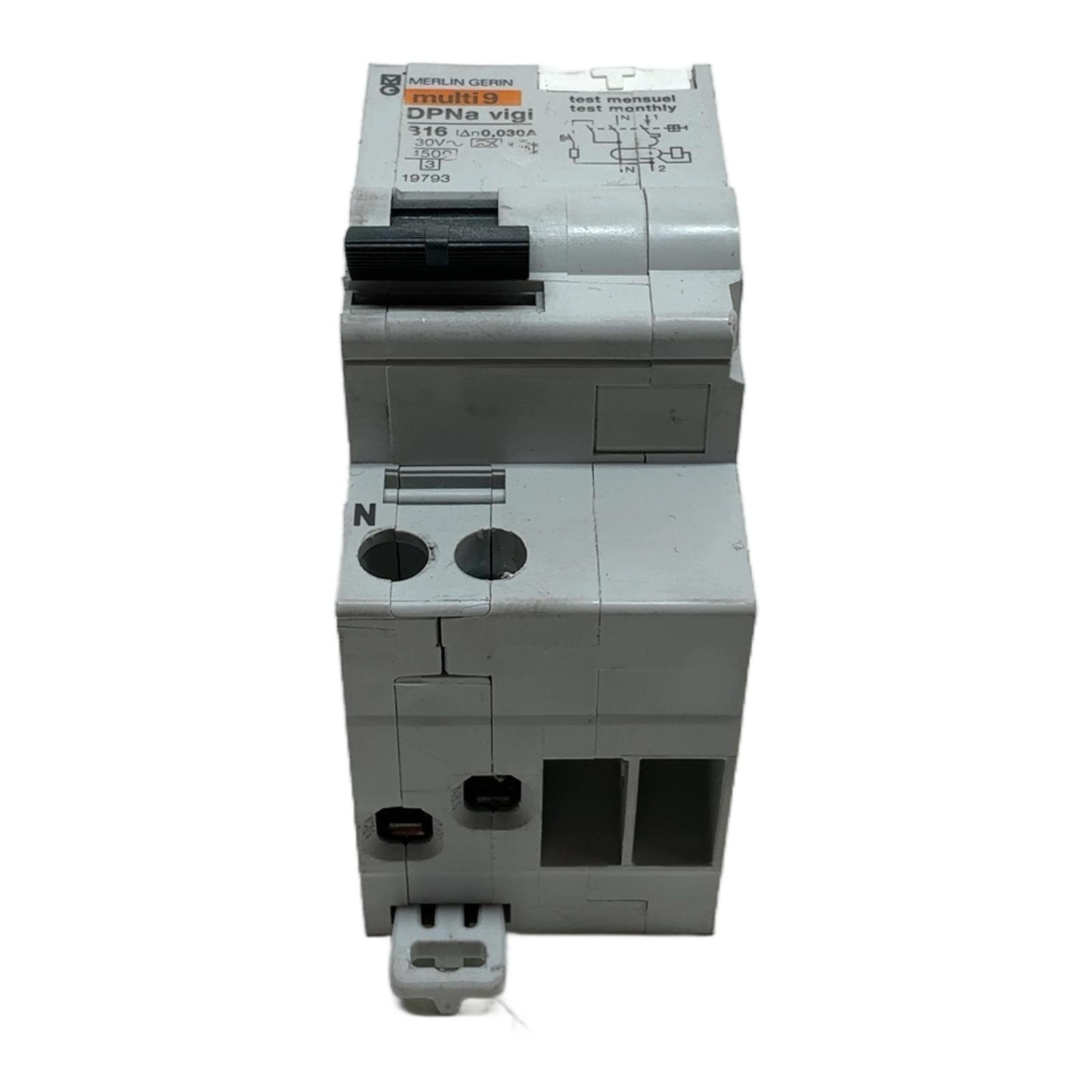

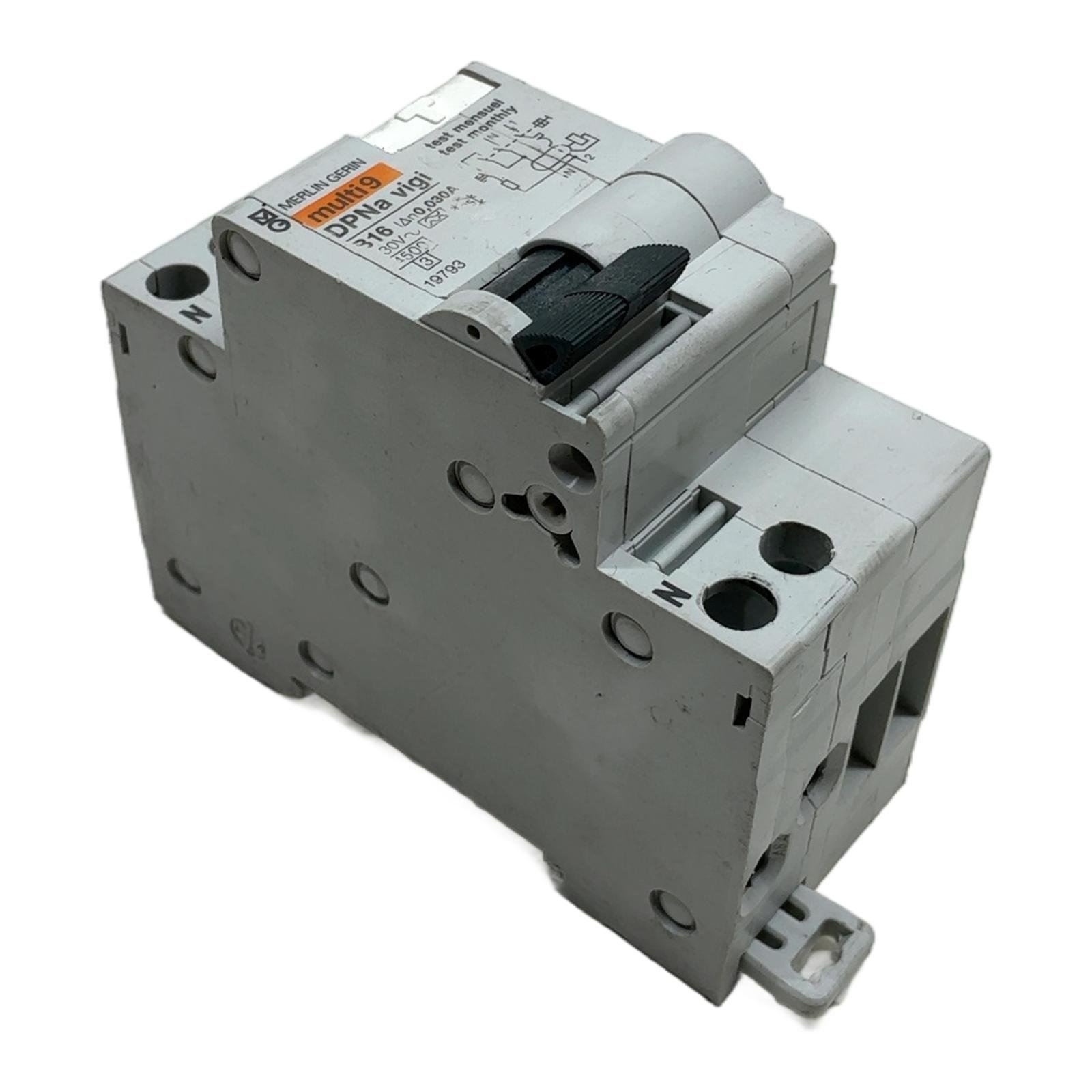

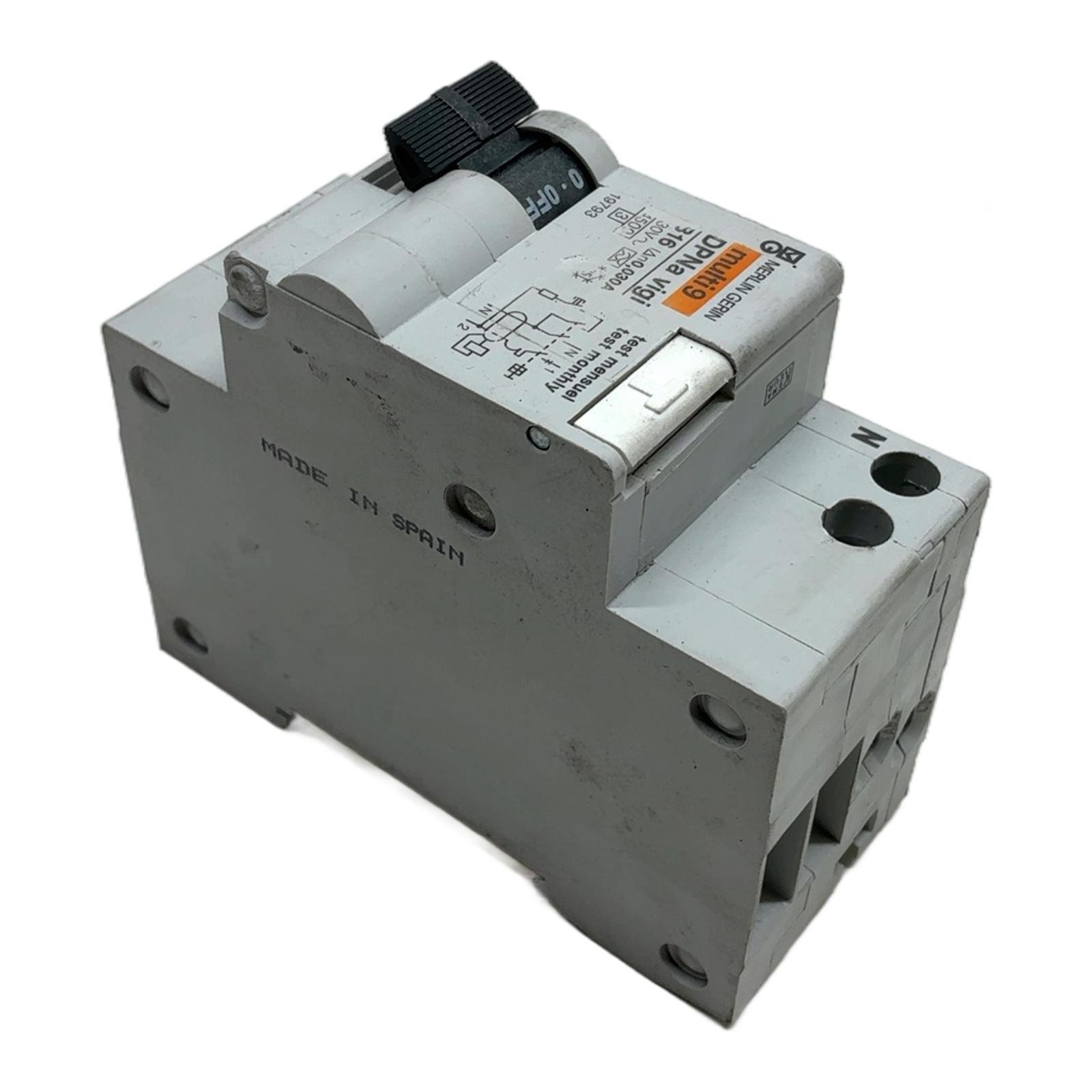

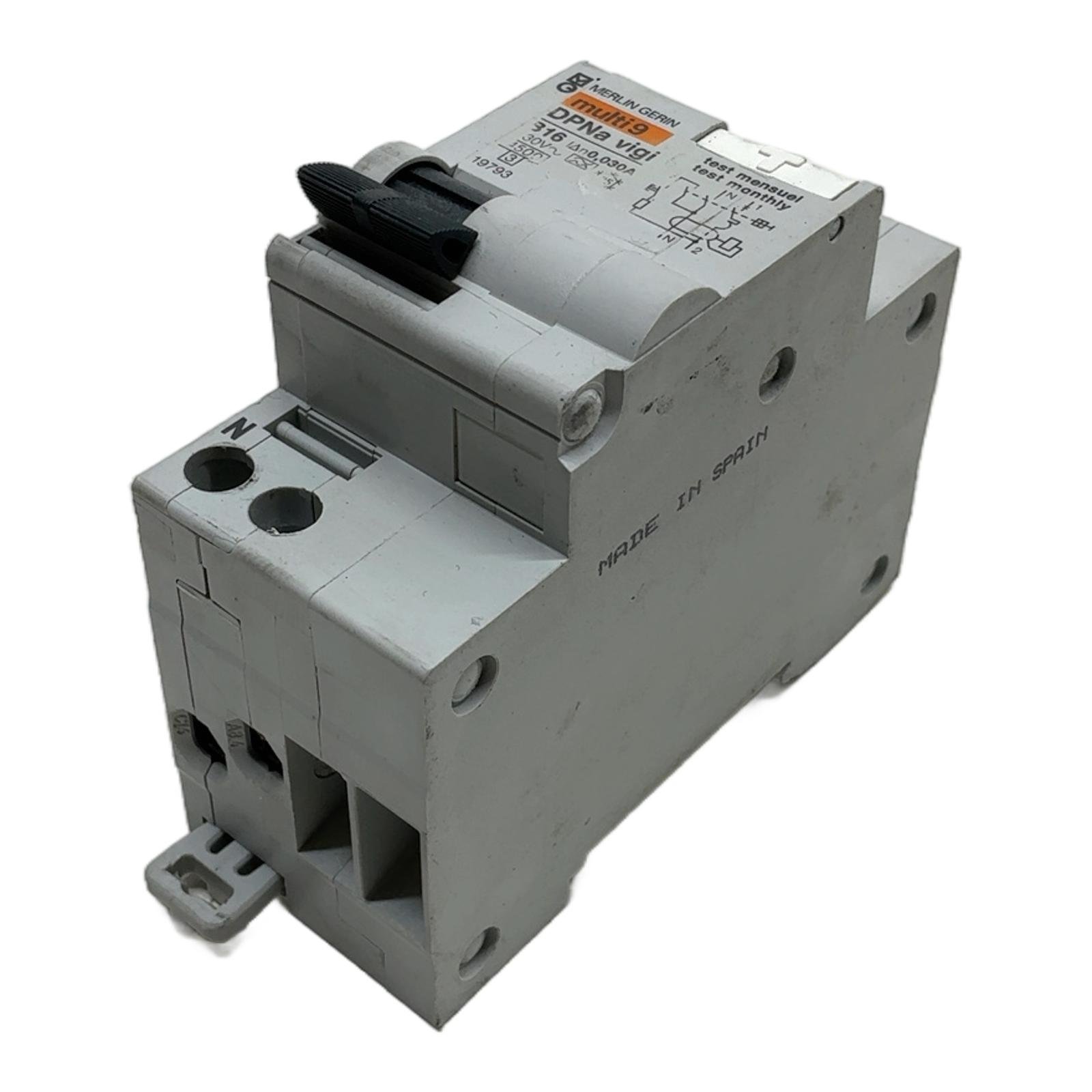

Merlin Gerin DPNa vigi RCBO C16 16A 30mA Description The Merlin Gerin DPNa vigi, part number 19793, is a high-quality Residual Current Circuit Breaker with Overcurrent protection (RCBO) from the renowned multi 9 series. This compact device provides a two-in-one solution for protecting electrical circuits against earth leakage faults, overloads, and short circuits. It is an ideal component for residential and commercial installations requiring robust safety measures. Specifications Manufacturer: Merlin Gerin (now Schneider Electric) Product Line: multi 9 Model: DPNa vigi Reference Number: 19793 Rated Current: 16A Tripping Curve: C Residual Current Sensitivity (IΔn): 30mA (0.030A) Number of Poles: 1P+N Rated Voltage: 230V AC Breaking Capacity: 4500A Mounting: DIN Rail Label Info DPNa vigi C16 IΔn: 0,030A 230V ~ 4500 Application This RCBO is suitable for final circuit protection in various settings, including homes, offices, and light industrial environments. It is specifically designed to protect against electric shock from direct or indirect contact and to prevent electrical fires caused by persistent earth fault currents. Country of Origin Made in Spain. CO2 Impact By purchasing this pre-owned component, you are contributing to a circular economy and avoiding the production of a new one. This saves an estimated 5.0 kg of CO2, which is comparable to the emissions of a 25 km car journey. Availability This is an obsolete item but available from our stock. Ideal for repairs and replacements in existing systems. Order now from profideals for expert support and fast delivery. FAQ What is the difference between a Type AC and Type A RCBO?This DPNa vigi is a Type AC device, designed to detect sinusoidal AC fault currents. Modern equivalents are often Type A, which detect both sinusoidal AC and pulsating DC fault currents, offering broader protection for circuits with electronic equipment. How do I properly test the functionality of this DPNa vigi RCBO?The device features a white ‘T’ button for testing. This test should be performed regularly (as indicated, ’test monthly’) by pressing the button with the circuit live. A correct operation will cause the breaker to trip immediately. If it does not trip, it must be replaced. Can this 4.5kA breaker be used in an installation requiring a 6kA breaking capacity?No. The breaking capacity (rated short-circuit capacity) must be equal to or greater than the prospective short-circuit current (PSCC) at the point of installation. Using a 4.5kA (4500A) breaker in a 6kA system is unsafe and non-compliant with electrical standards. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
