BEI SENSORS DHM5_10//PP59//05000//G6R// DHM510-5000-001

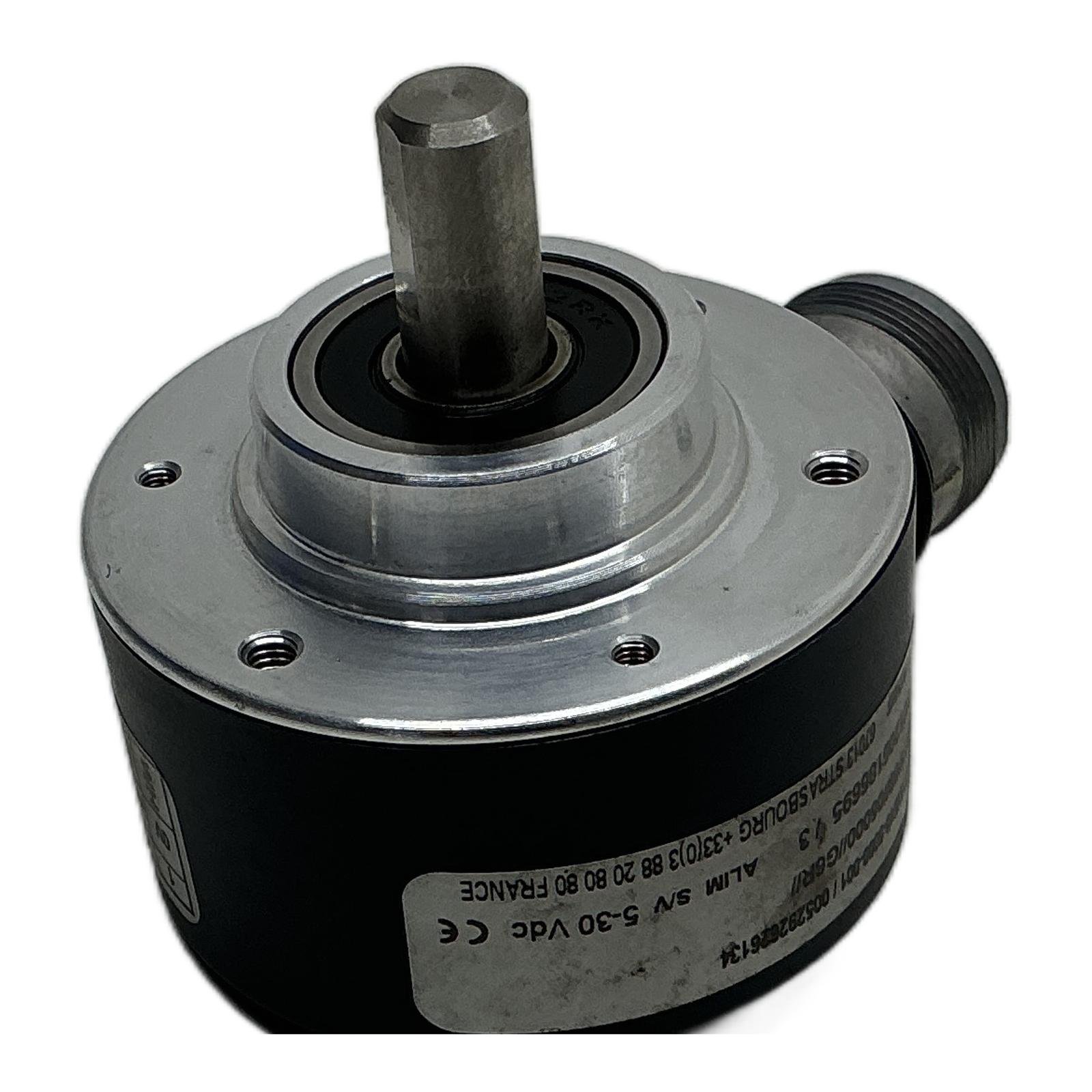

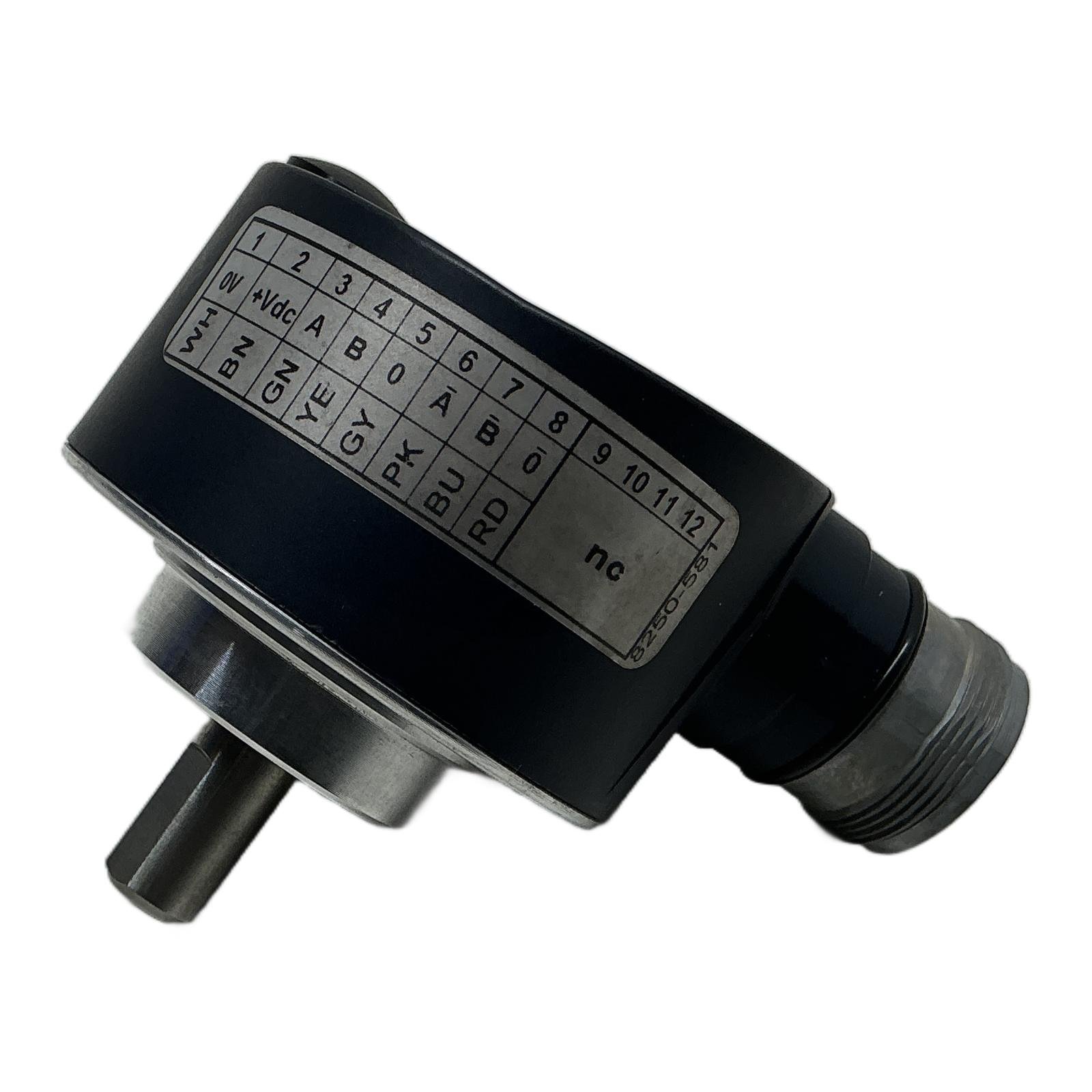

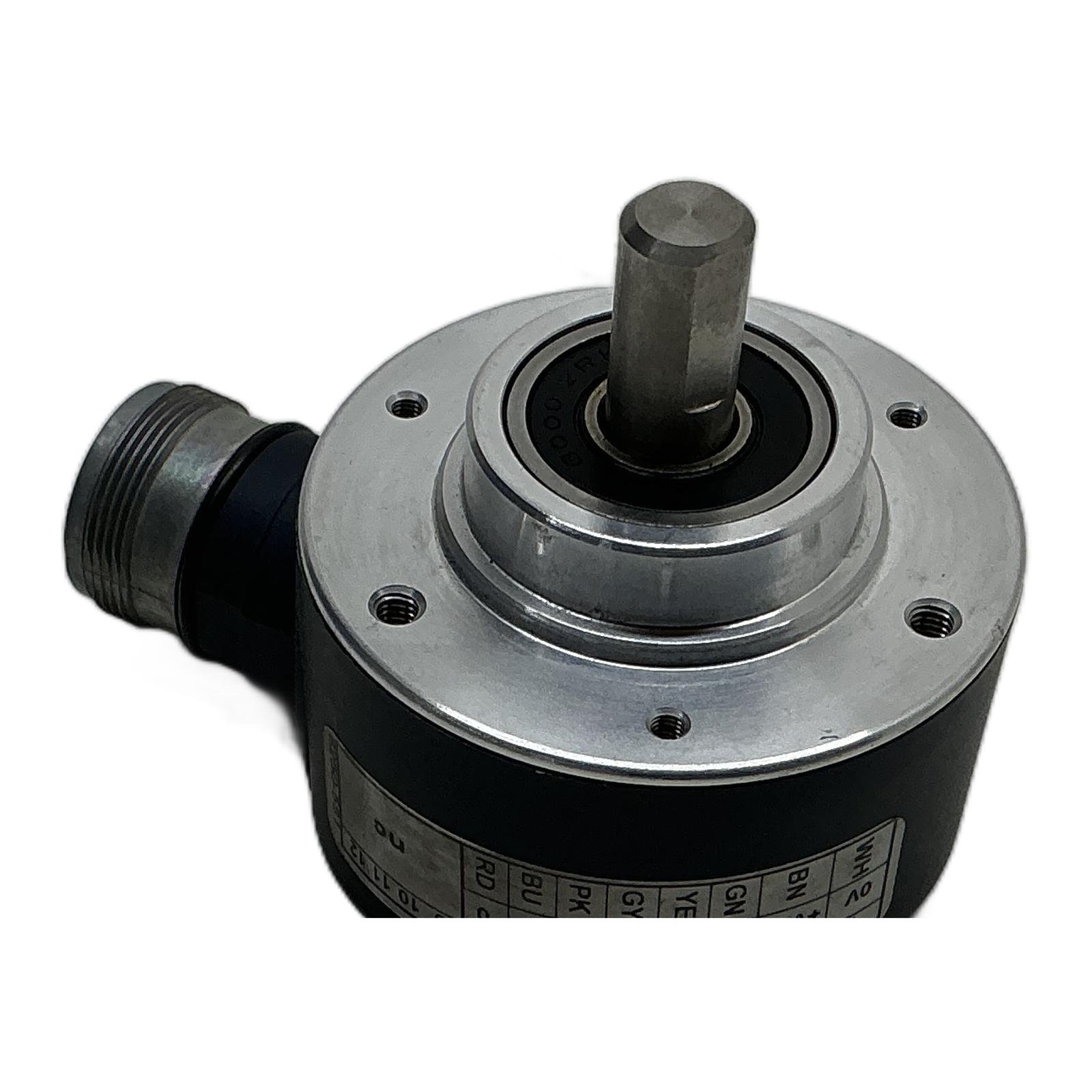

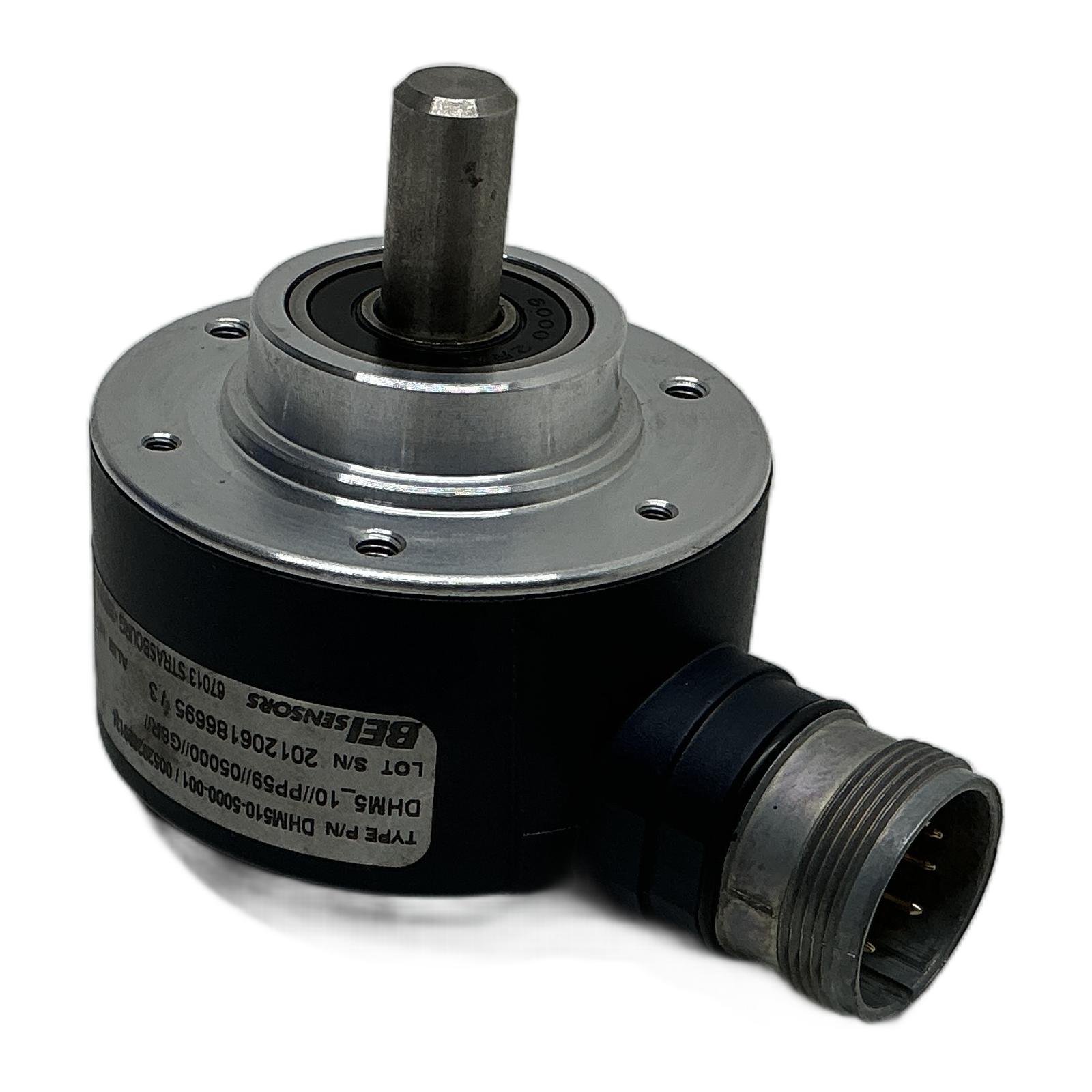

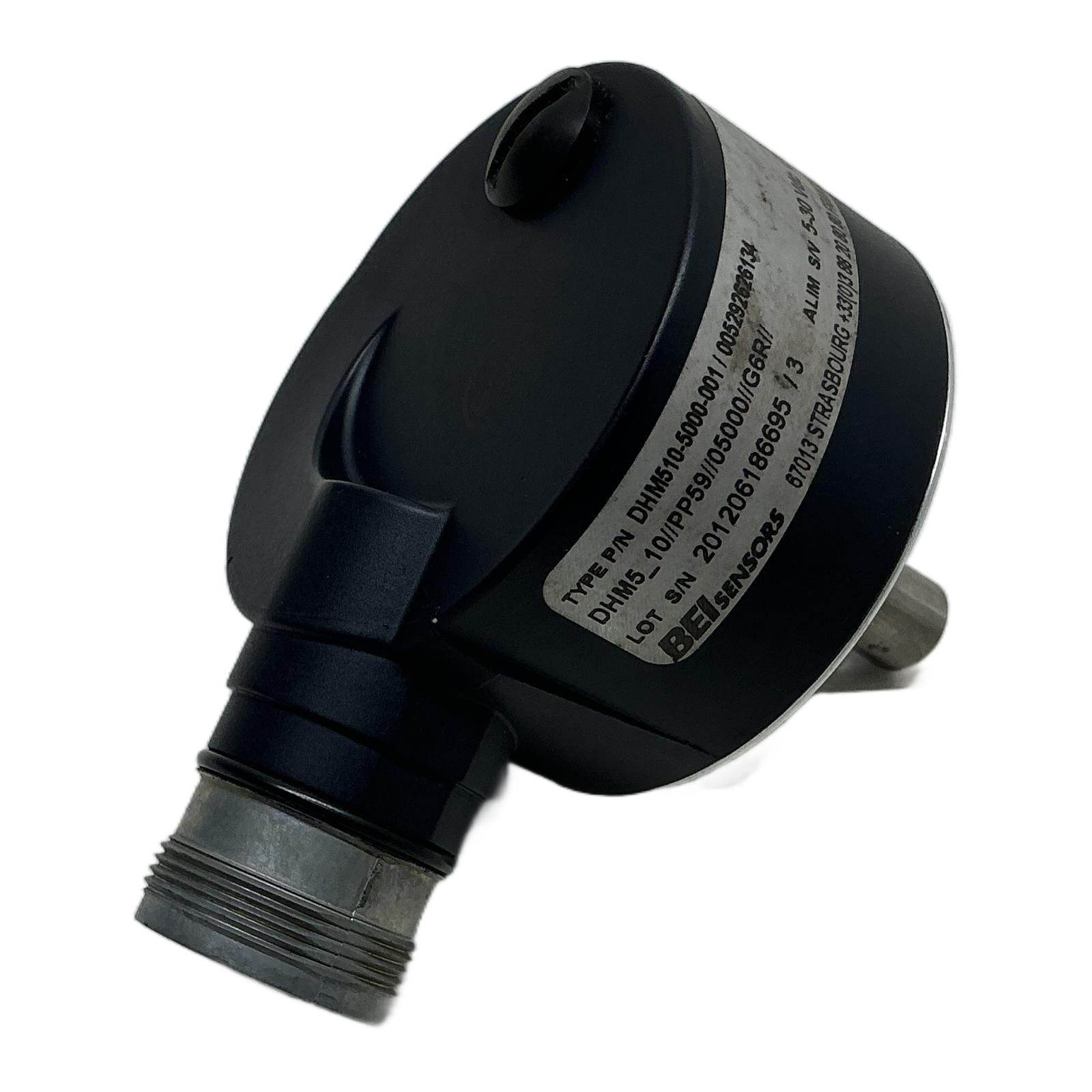

BEI Sensors DHM5 Incremental Rotary Encoder Description The BEI Sensors DHM5_10 is a high-performance incremental encoder designed for industrial motion control systems. It delivers precise measurement with a resolution of 5000 pulses per revolution. With a rugged construction and a wide operating voltage range from 5 to 30 VDC, this encoder is versatile and reliable for applications in robotics, CNC machinery, and general factory automation. The 10mm solid shaft ensures a secure mechanical connection. Specifications Manufacturer: BEI Sensors (now Sensata Technologies) Model: DHM5_10//PP59//05000//G6R// Part Number: DHM510-5000-001 Product Type: Incremental Encoder Resolution: 5000 PPR (Pulses Per Revolution) Supply Voltage: 5 – 30 VDC Shaft Diameter: 10 mm Output Type: Differential Line Driver (indicated by A/A_bar, B/B_bar signals) Connection: M23 12-pin Connector Label Info TYPE P/N: DHM510-5000-001 / 005292626134 DHM5_10//PP59//05000//G6R// LOT S/N: 201206186695 / 3 ALIM S/V: 5-30 Vdc Application This encoder is ideal for applications requiring accurate feedback of angular position, speed, and direction. Common uses include motor feedback systems, material handling equipment, packaging machinery, and automated assembly lines. Country of Origin Made in France. CO2 Impact Opting for this pre-owned component avoids approximately 12 kg of CO2 emissions associated with the production of a new one, contributing to a more sustainable industrial operation. Availability In stock. Order now from profideals for expert support and fast delivery. FAQ What is the output signal type of this encoder?The pinout diagram showing complementary channels (A/A_bar, B/B_bar, 0/0_bar) indicates a differential line driver output. This type of output provides excellent noise immunity, making it ideal for long cable runs and electrically noisy environments. Can this encoder be used with a 5V TTL input?Yes, because the supply voltage range is 5-30 VDC, it can be powered with 5V. When powered with 5V, the output signal levels are typically compatible with standard 5V TTL logic inputs found on many PLCs and motion controllers. What is the typical IP rating for the DHM5 series?The BEI Sensors DHM5 series encoders are generally rated to IP65 for the housing. This provides protection against dust ingress and low-pressure water jets from any direction, making them robust enough for most industrial environments. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
