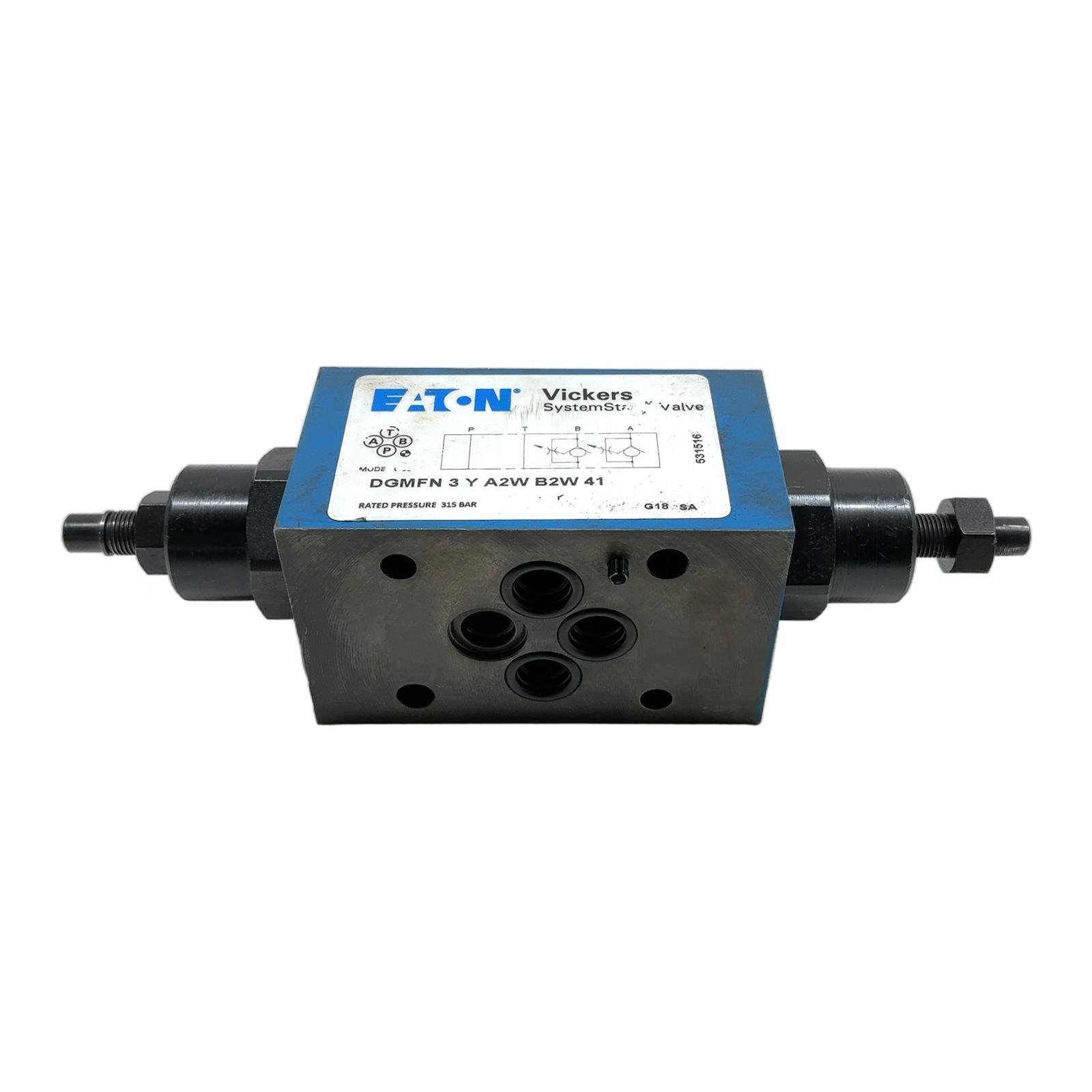

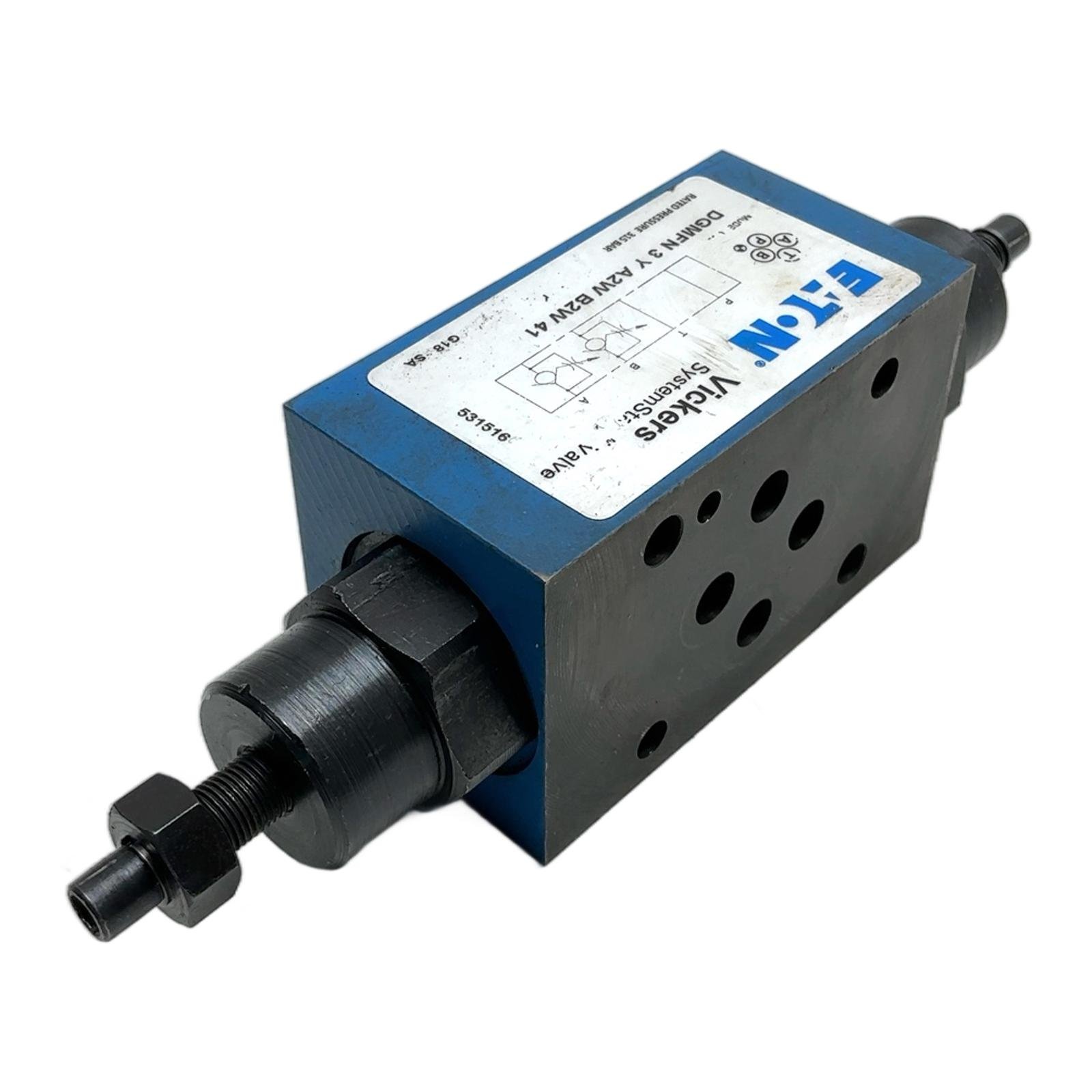

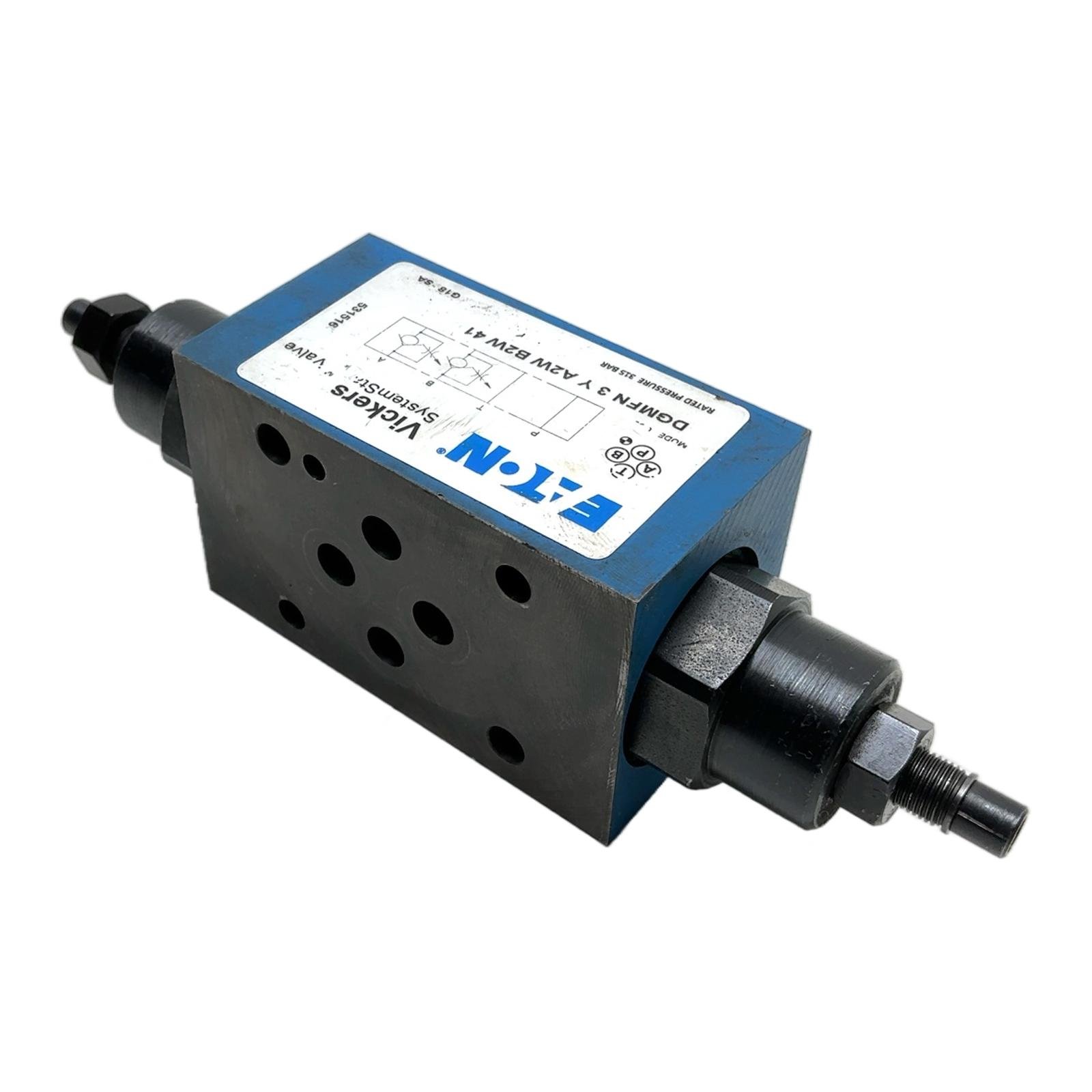

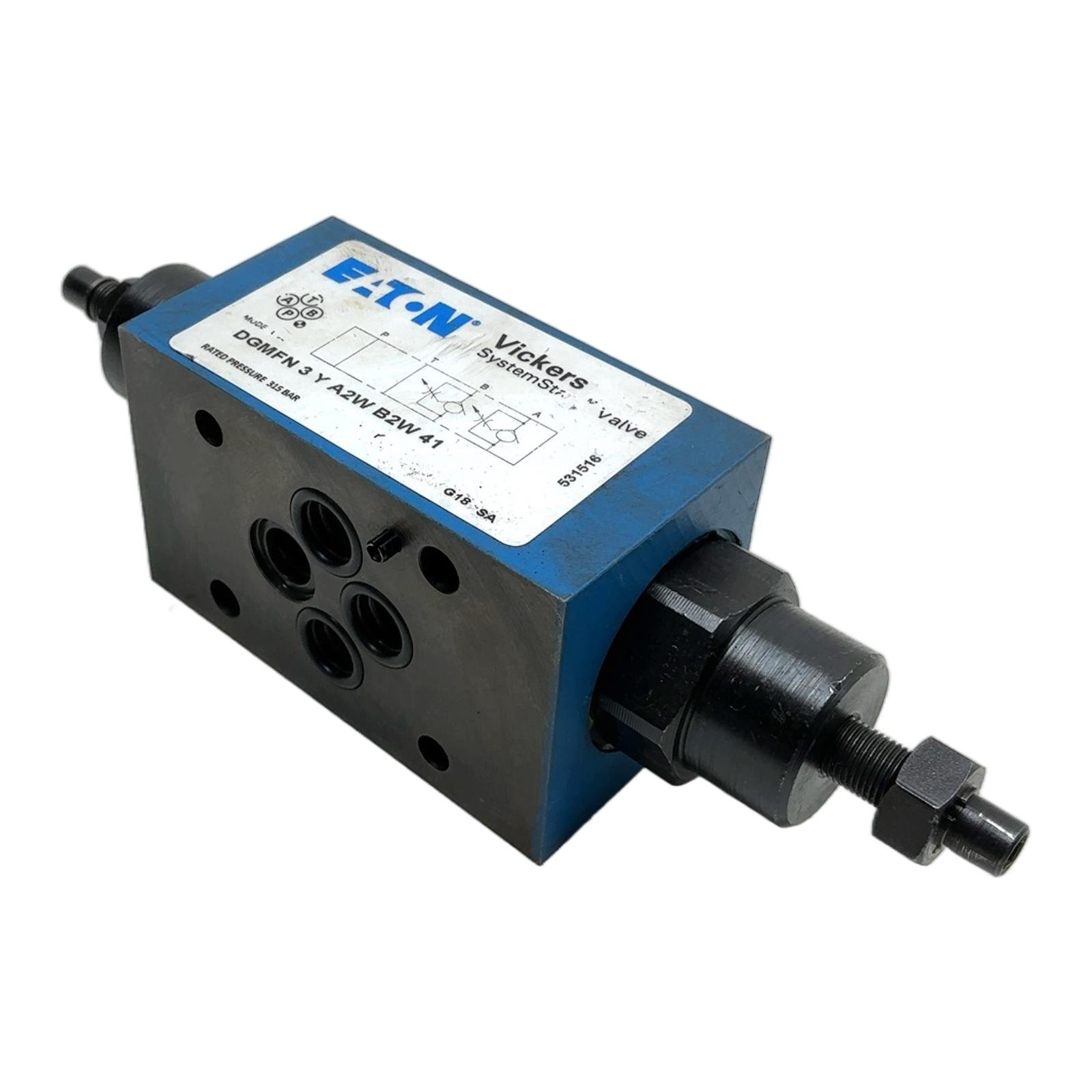

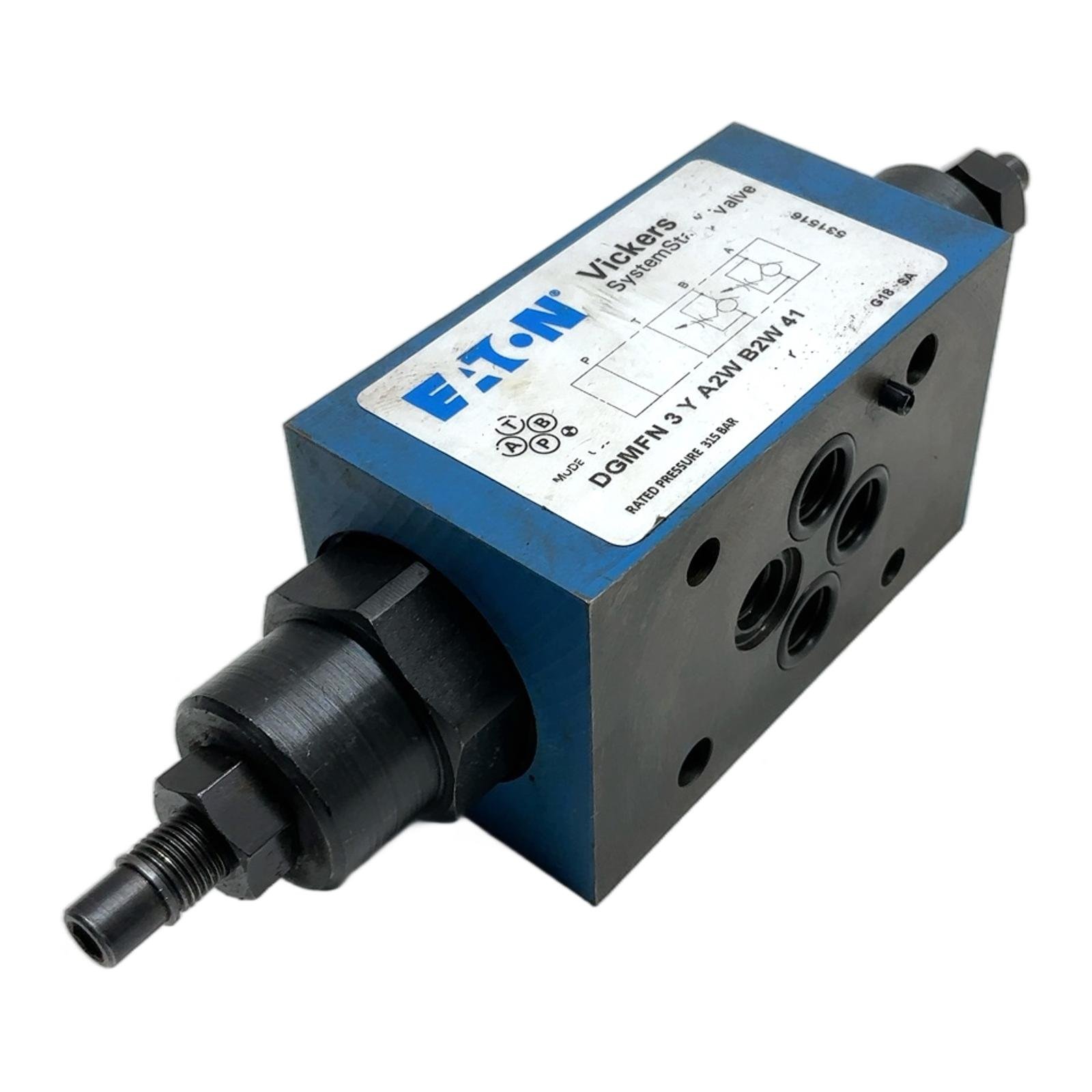

EATON VICKERS DGMFN-3-Y-A2W-B2W-41 531516

Eaton Vickers DGMFN-3 SystemStak Hydraulic Flow Control Valve Description The Eaton Vickers DGMFN-3-Y-A2W-B2W-41 is a high-performance modular flow control valve designed for precise speed control in hydraulic circuits. As part of the renowned SystemStak series, this valve mounts directly between a directional valve and a subplate or manifold (sandwich design), saving space and reducing potential leak points. It provides dual flow control on the A and B ports, allowing for independent adjustment of actuator speed in both directions. Its rugged construction ensures reliability in demanding industrial environments. Specifications Manufacturer: Eaton Vickers Series: SystemStak Model: DGMFN-3-Y-A2W-B2W-41 Interface: CETOP 3 / NG6 / D03 Valve Type: Dual Flow Control, Meter-in / Meter-out Maximum Operating Pressure: 315 bar (4570 PSI) Adjustment Mechanism: Knob with set screw Label Info Model: DGMFN 3 Y A2W B2W 41 Rated Pressure: 315 bar Part Number: 531516 Application This valve is ideal for applications requiring precise control over the speed of hydraulic cylinders and motors. Common uses include machine tools, presses, injection molding machines, and material handling equipment where controlling the extension and retraction speed is critical for process efficiency and safety. Country of Origin Manufactured by Eaton, a company with significant production facilities in the United States. CO2 Impact Choosing this reused component saves an estimated 4.4 kg of CO2 compared to manufacturing a new one. This is equivalent to avoiding the emissions of driving a car for 22 km. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the function of the ‘A2W’ and ‘B2W’ designations in the model number?The ‘A2W’ and ‘B2W’ codes specify the type of flow control for the A and B hydraulic ports, respectively. In this model, it indicates dual meter-in or meter-out control with a specific type of screw adjustment (‘W’). This allows for independent speed control of a hydraulic actuator in both directions of movement. What type of hydraulic fluid is compatible with this DGMFN-3 valve?This valve is typically compatible with standard mineral oil-based hydraulic fluids (like HL, HLP) and some synthetic fluids. It’s crucial to check the seal material compatibility if using non-standard fluids. For this design series, NBR (Nitrile) seals are standard. What are the recommended mounting bolt torque specifications for a CETOP 3 / NG6 valve like this?For a standard CETOP 3 (NG6) interface with grade 10.9 bolts (typically M5), the recommended tightening torque is generally between 6.5 and 7.5 Newton-meters (Nm). Overtightening can warp the valve body, while under-tightening can lead to leaks. Always ensure the mounting surface is clean and flat. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
