VICKERS DGMFN-3-X-A2W-B2W-41

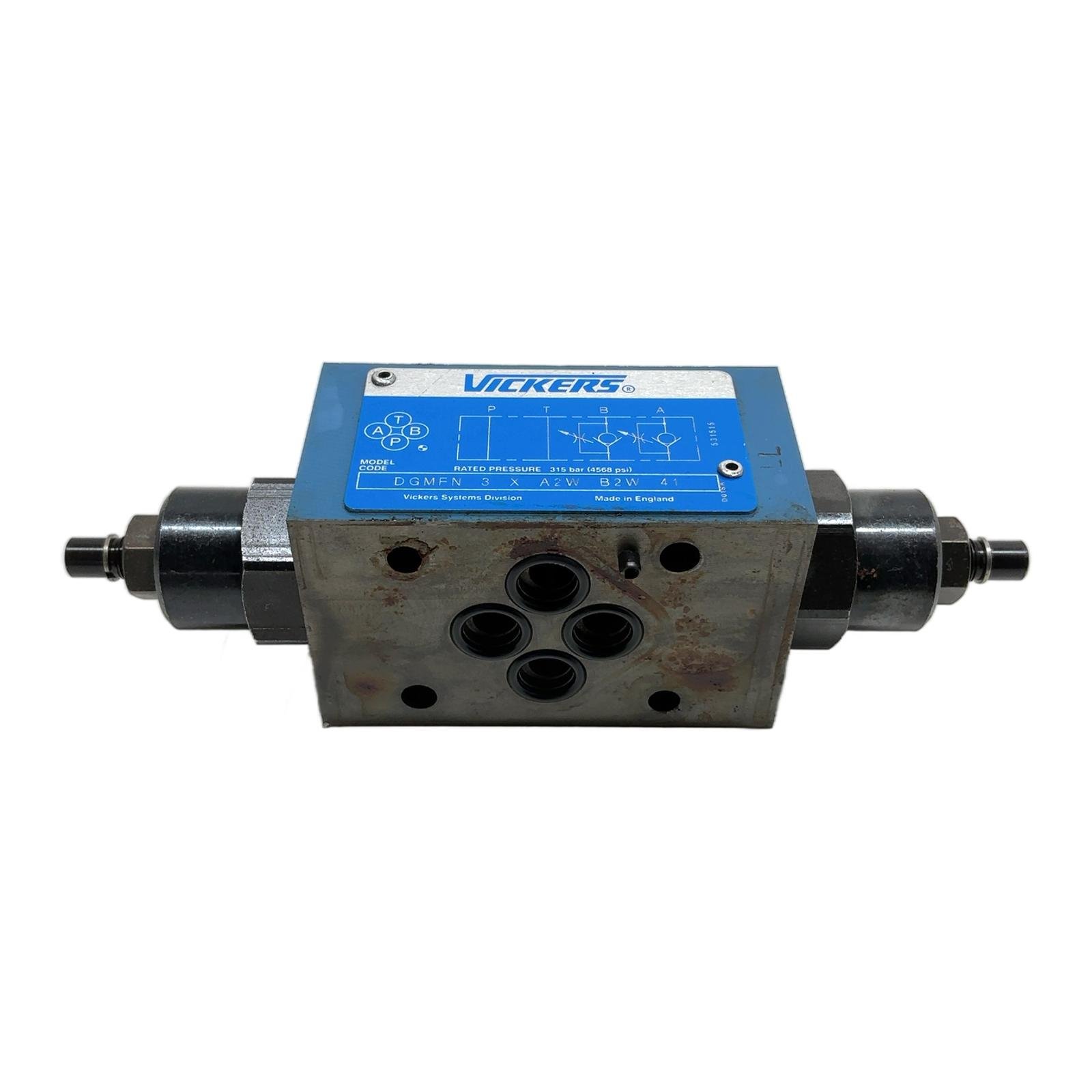

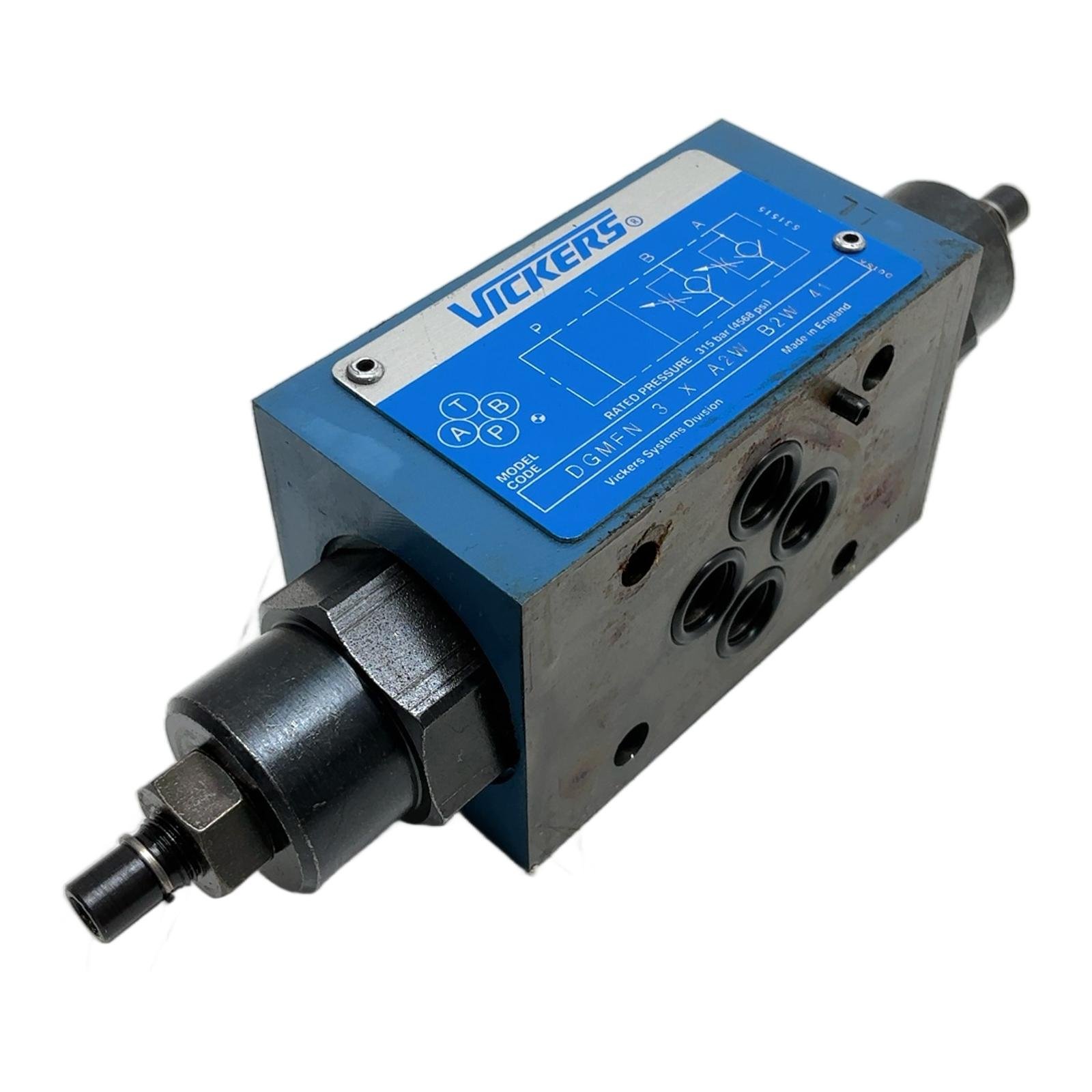

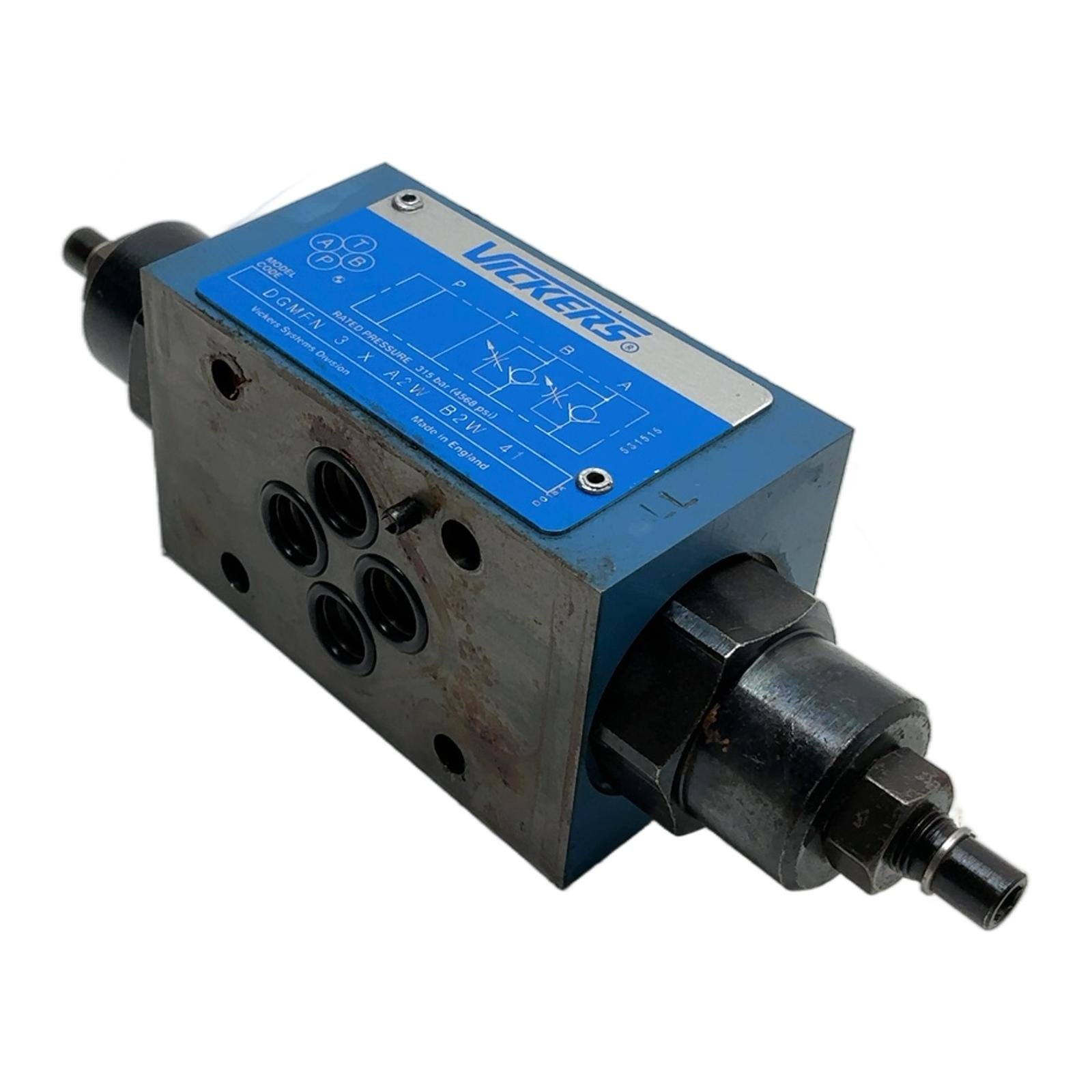

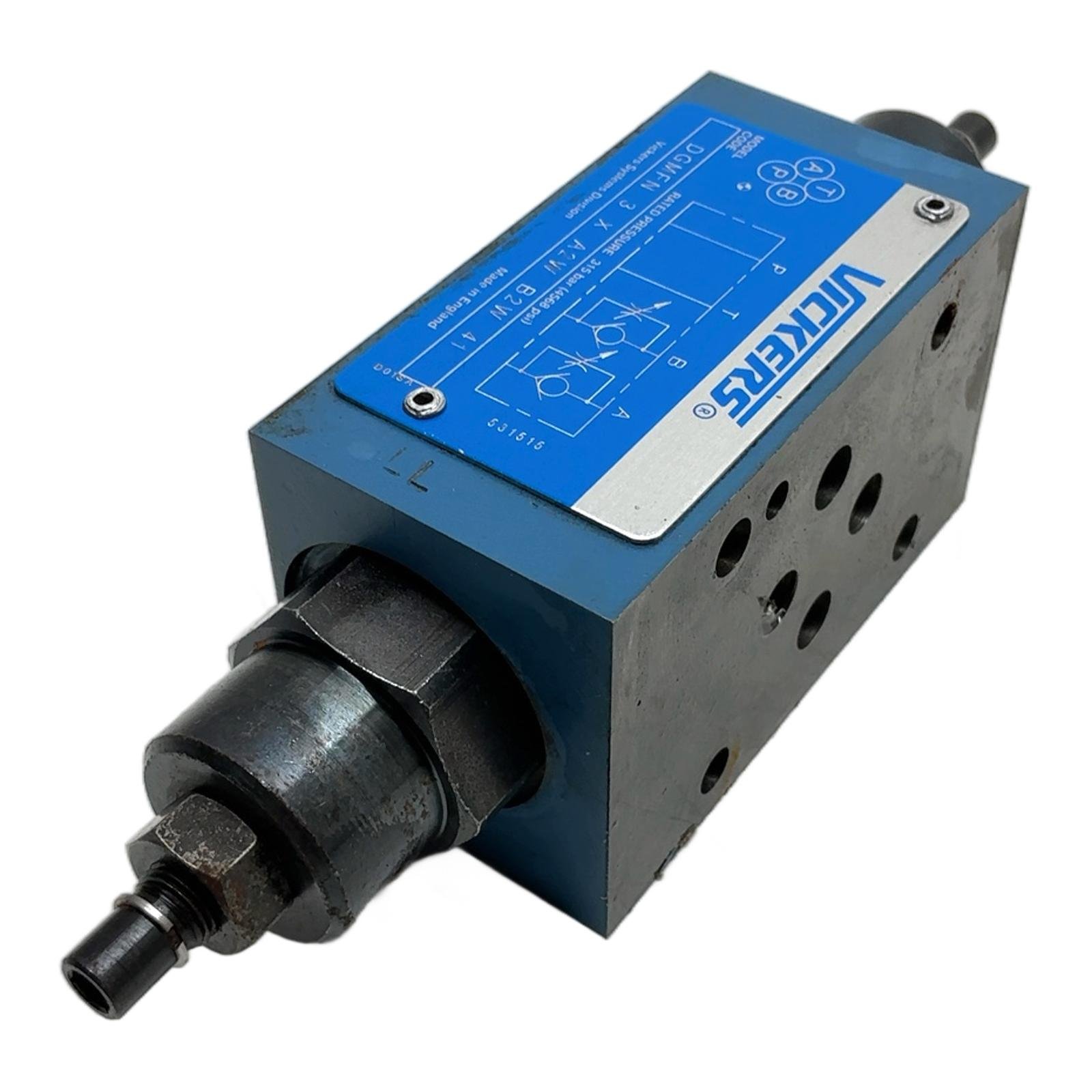

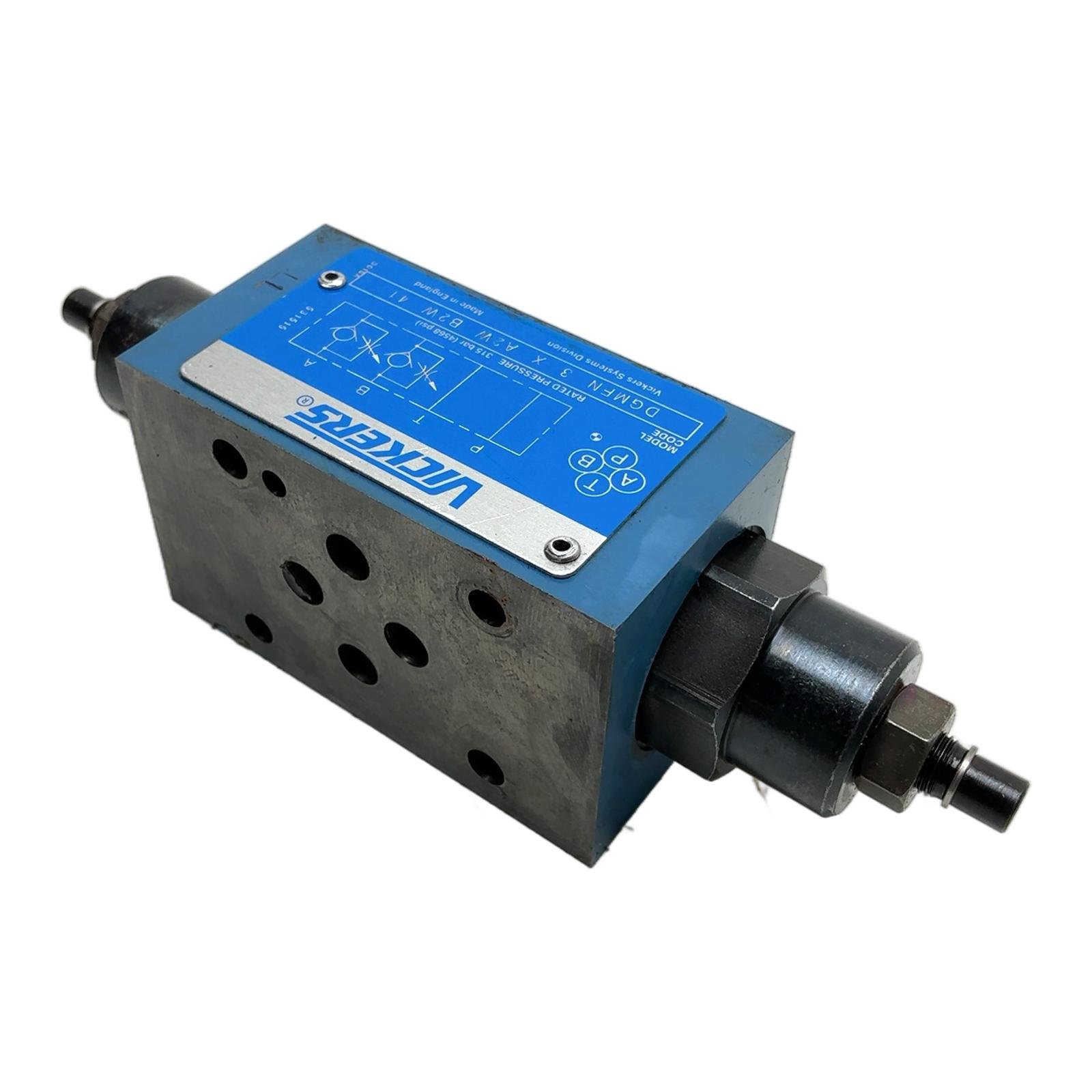

Vickers Modular Flow Control Valve DGMFN-3-X-A2W-B2W-41 Description This Vickers DGMFN-3 series valve is a robust, pressure-compensated modular flow control valve designed for subplate or manifold mounting. It provides precise and adjustable flow control in both the A and B service lines of a hydraulic circuit, making it ideal for controlling the speed of actuators like cylinders and motors. This particular model features meter-in control and includes check valves to allow free reverse flow. Specifications Manufacturer: Vickers (now Eaton) Model: DGMFN-3-X-A2W-B2W-41 Valve Type: Modular Flow Control Valve Mounting Interface: NG6 / CETOP 3 / D03 Maximum Operating Pressure: 315 bar (4568 psi) Control Type: Meter-in on ports A and B Adjustment: Screw with protective cap and locknut Integrated Feature: Check valves for free flow return Label Info Brand: VICKERS Model Code: DGMFN 3 X A2W B2W 41 Rated Pressure: 315 bar (4568 psi) Application This valve is commonly used in industrial hydraulic systems for applications requiring accurate speed control of actuators in both directions. Examples include machine tools, presses, material handling equipment, and injection molding machines. Country of Origin Made in England. CO2 Impact By purchasing this pre-owned valve, you are avoiding the emission of approximately 9.0 kg of CO2, equivalent to the manufacturing of a new unit. This is a sustainable choice for your operations. Availability This is a used item in good working condition. It has been tested and is ready for deployment. Order now from profideals for expert support and fast delivery. FAQ What is the mounting interface for this DGMFN-3 valve?This valve uses a standard NG6 (also known as CETOP 3 or D03) mounting interface, making it compatible with a wide range of standard hydraulic subplates and manifolds. What does “meter-in on A and B ports” mean for my application?Meter-in control means this valve regulates the flow of hydraulic fluid *into* the actuator (like a cylinder or motor) through both the A and B ports. This is used to control the speed of the actuator in both directions of movement. The built-in check valves allow for free return flow. Is this “41” design series compatible with the newer “51” series from Eaton?Yes, the “41” design is functionally and dimensionally interchangeable with the current “51” design series for most applications. The primary differences are internal improvements and material updates made by Eaton over the years. Always verify your system’s specific pressure and flow requirements. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
