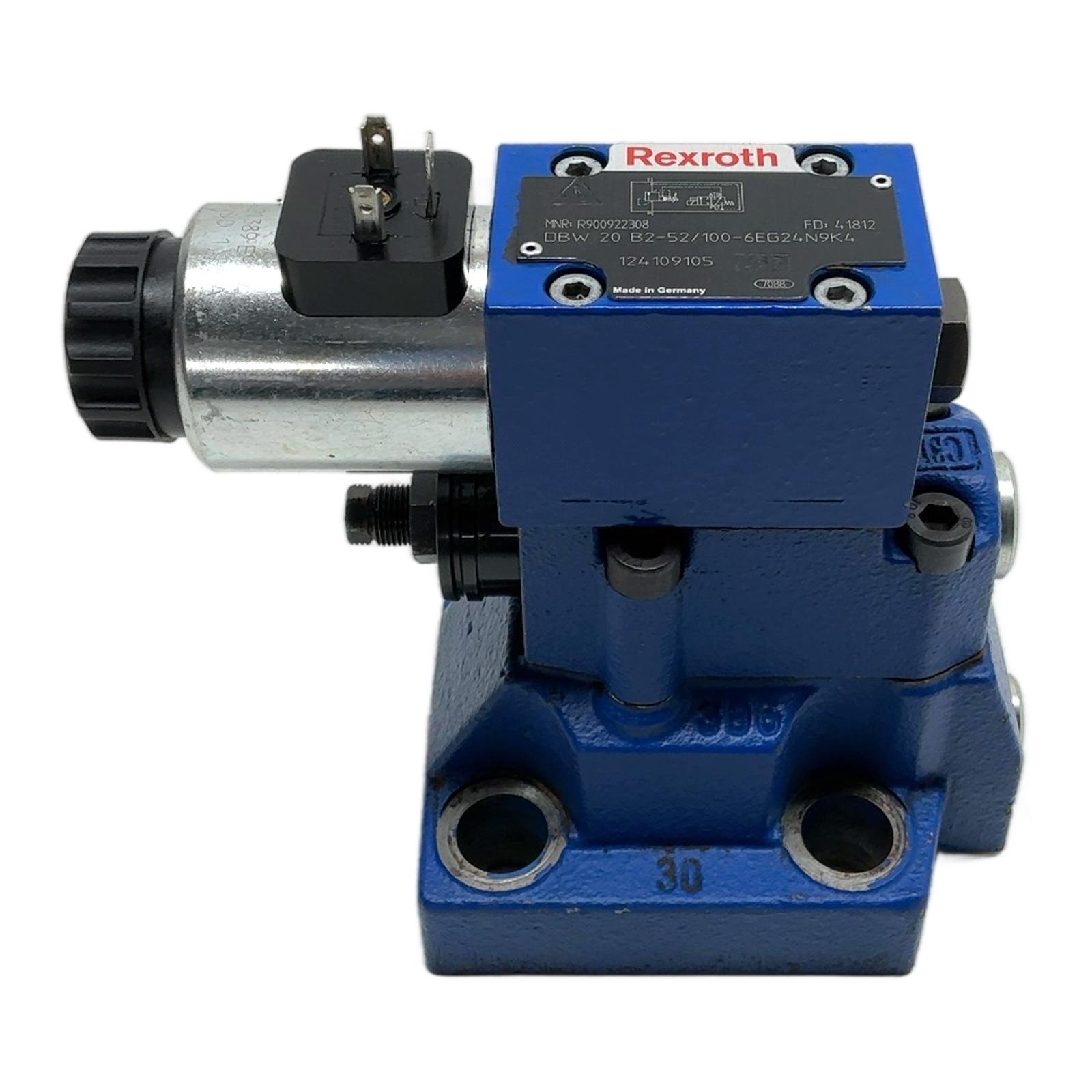

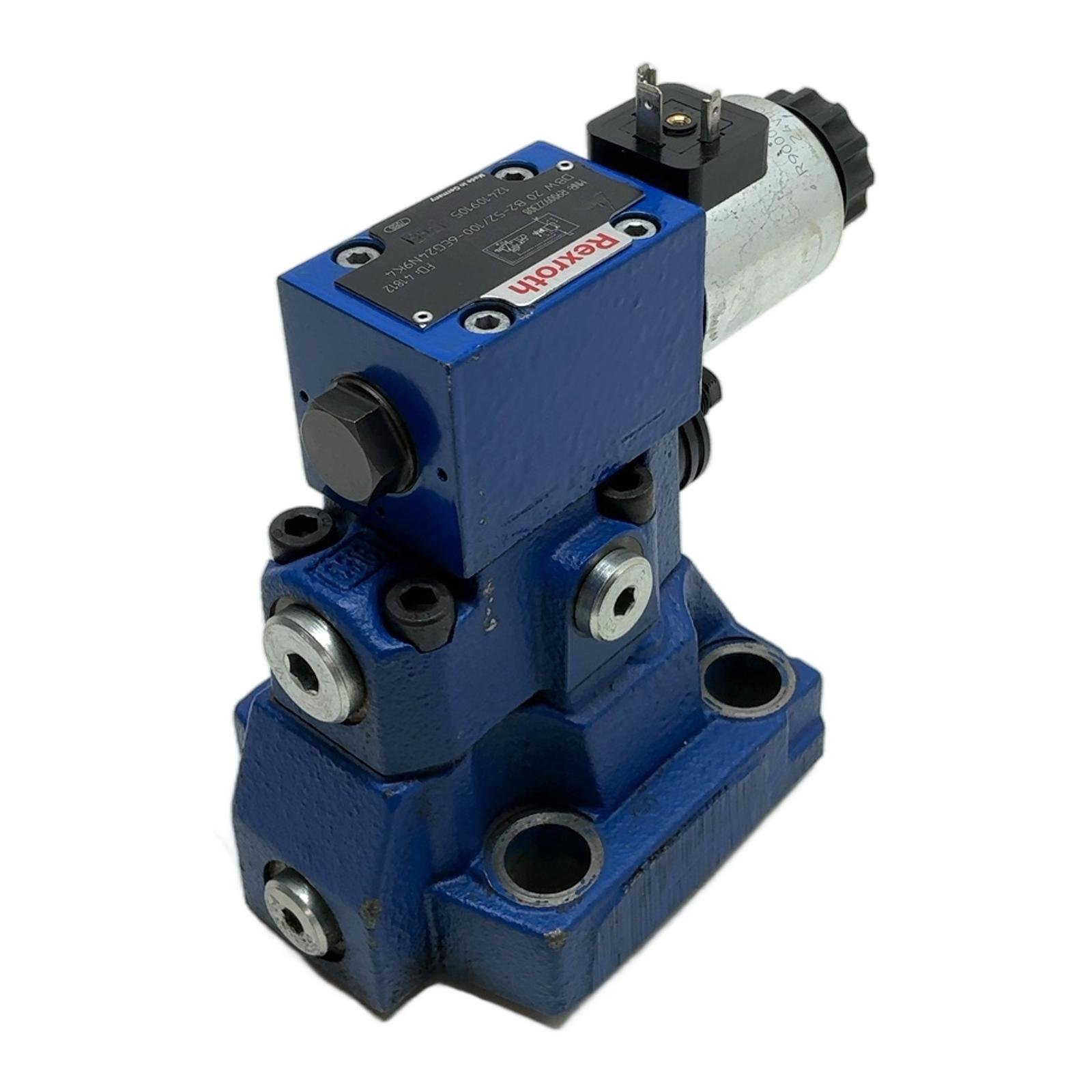

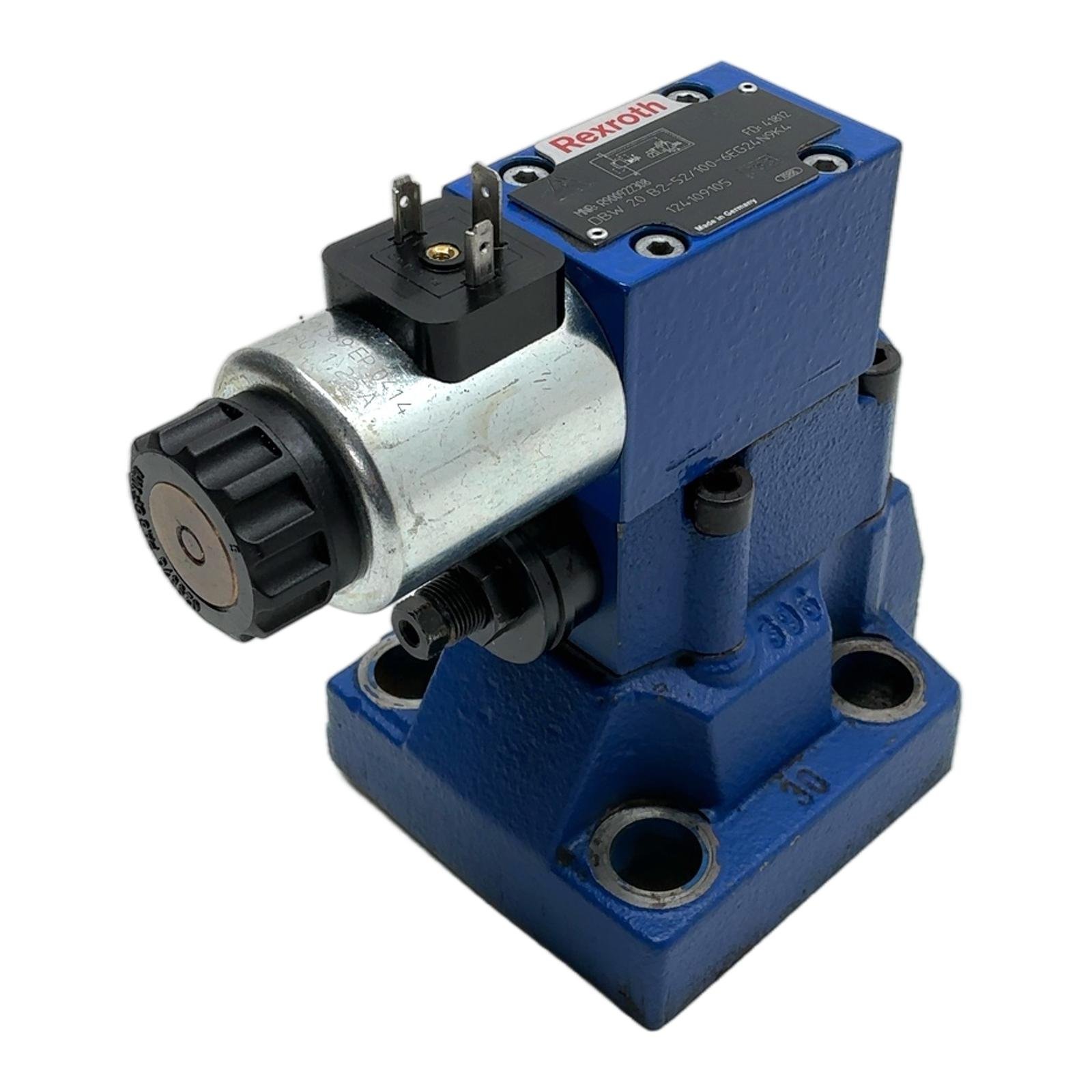

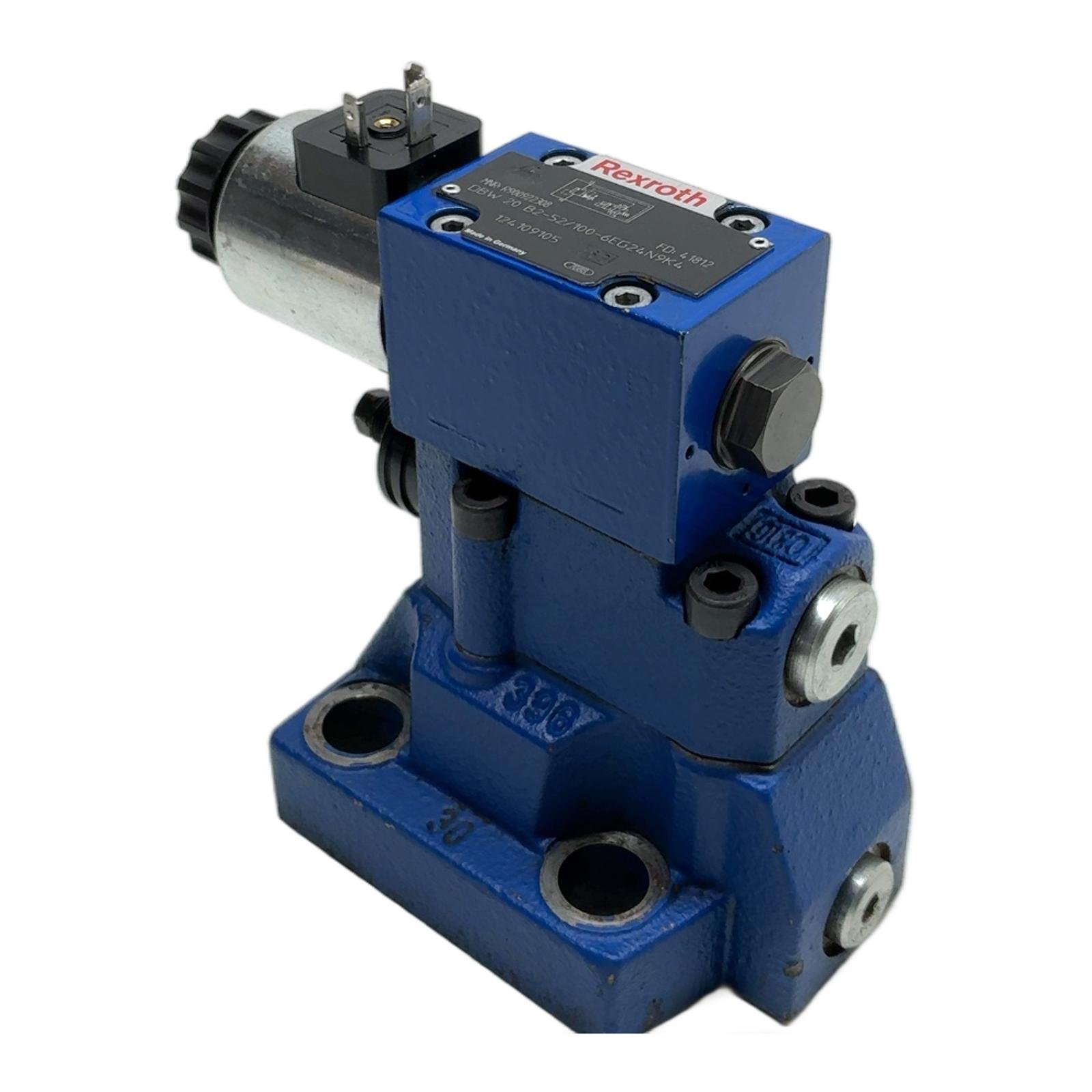

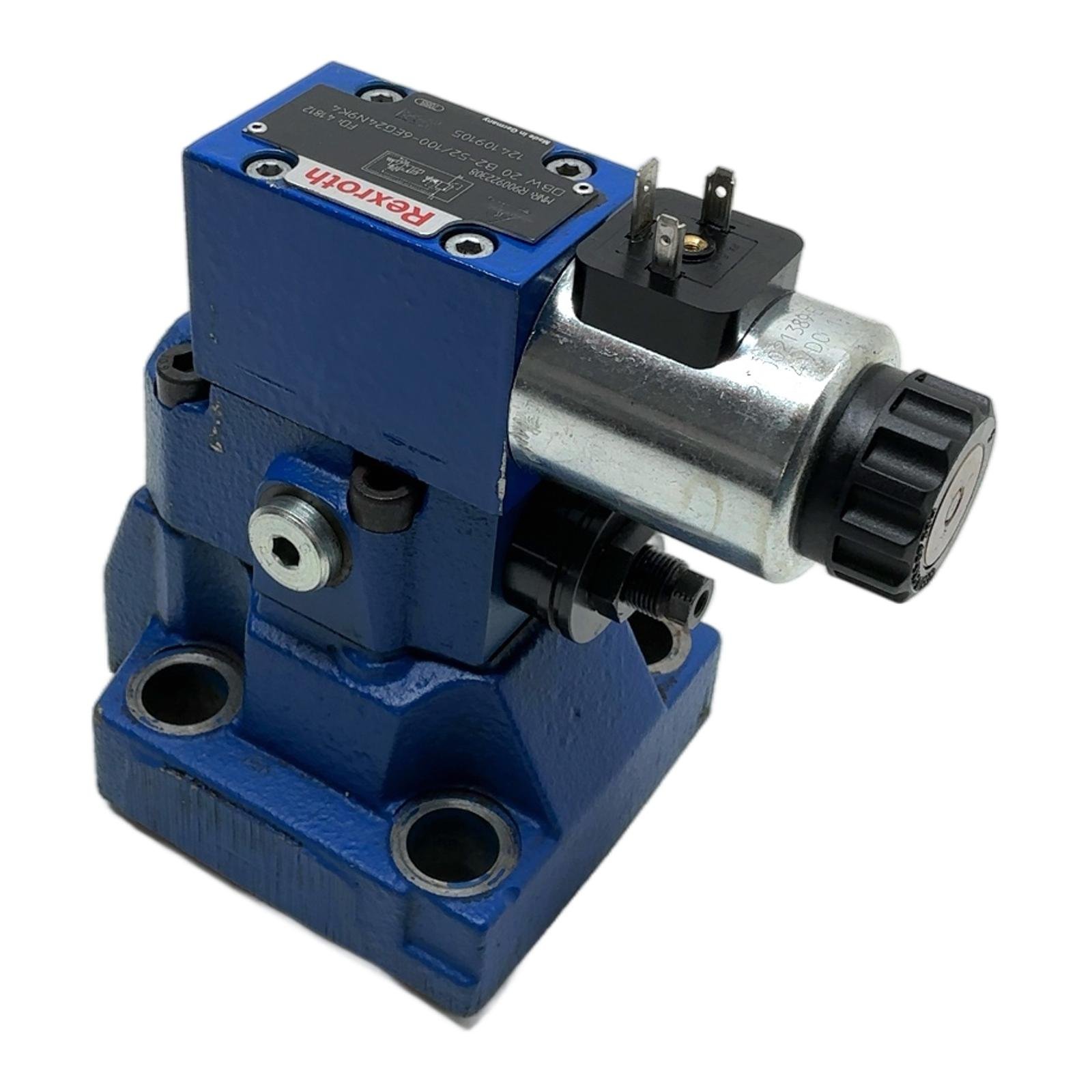

REXROTH DBW 20 B2-52/100-6EG24N9K4 R900922308

Rexroth Pilot-operated Pressure Relief Valve 100 bar 24VDC Description The Rexroth DBW 20 B2-52/100-6EG24N9K4 is a high-quality pilot-operated pressure relief valve, engineered for precise and reliable pressure control in industrial hydraulic systems. This valve is designed to limit the system pressure by diverting flow to the tank when the set pressure is reached. The integrated 24V DC solenoid provides the functionality for electrical unloading or switching between pressure settings, enhancing system flexibility and control. Specifications Manufacturer: Rexroth Type: DBW 20 B2-52/100-6EG24N9K4 Material Number: R900922308 Size: NG20 (CETOP 8) Mounting Interface: ISO 6264 Maximum Pressure Setting: 100 bar Solenoid Voltage: 24V DC Solenoid Current: 1.25 A Electrical Connector: DIN EN 175301-803 Features: With concealed manual override (K4) Label Info MNR: R900922308 FD: 41812 Solenoid Coil P/N: R900021389 Application This valve is widely used in general industrial machinery, machine tools, presses, and plastics processing machinery to protect hydraulic systems from overpressure conditions and to provide remote control over pressure levels. Country of Origin Made in Germany CO2 Impact By purchasing this pre-owned valve, you are avoiding the emission of approximately 37 kg of CO2. This saving is comparable to the emissions from driving a standard car for 185 kilometers. Availability Order now from profideals for expert support and fast delivery. FAQ Question?What is the function of the solenoid on this DBW 20 pressure relief valve?The 24V DC solenoid allows for electrical actuation. When energized, it typically unloads the main valve, causing the system pressure to drop to a minimum, or it can switch between two pre-set pressure levels depending on the circuit design. Question?What does the ‘100’ in the type code DBW 20 B2-52/100-6EG24N9K4 signify?The ‘100’ indicates the maximum pressure setting of the valve in bar. This particular valve can be adjusted to relieve pressure at any point up to a maximum of 100 bar (approximately 1450 PSI). Question?Is it possible to adjust the pressure setting on this valve manually?Yes, the pressure setting is adjustable. The adjustment is typically made via a screw or knob on the main stage of the valve, allowing for fine-tuning of the relief pressure within its specified range. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners.
