FESTO CPE18-M1H-5/3G-1/4 170247

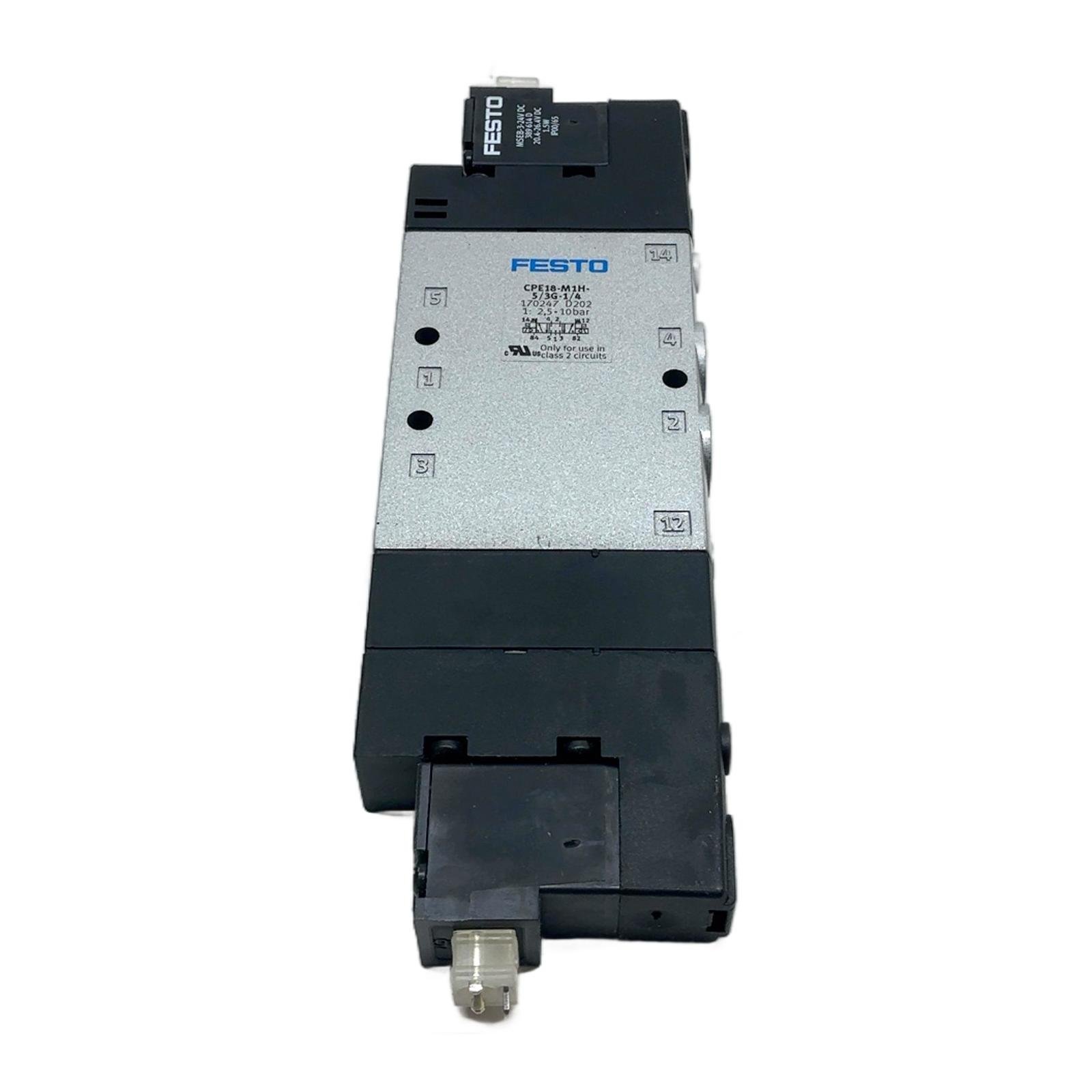

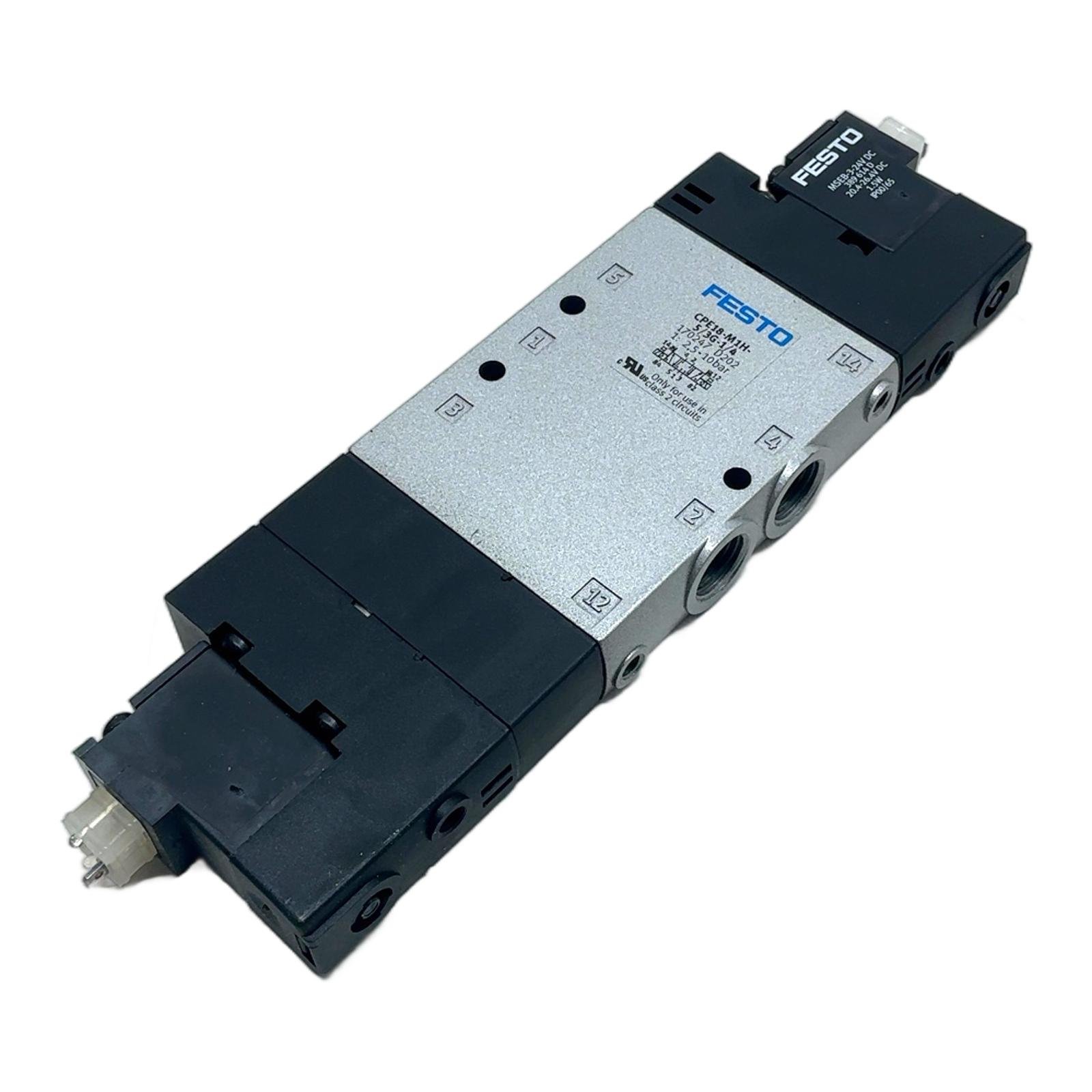

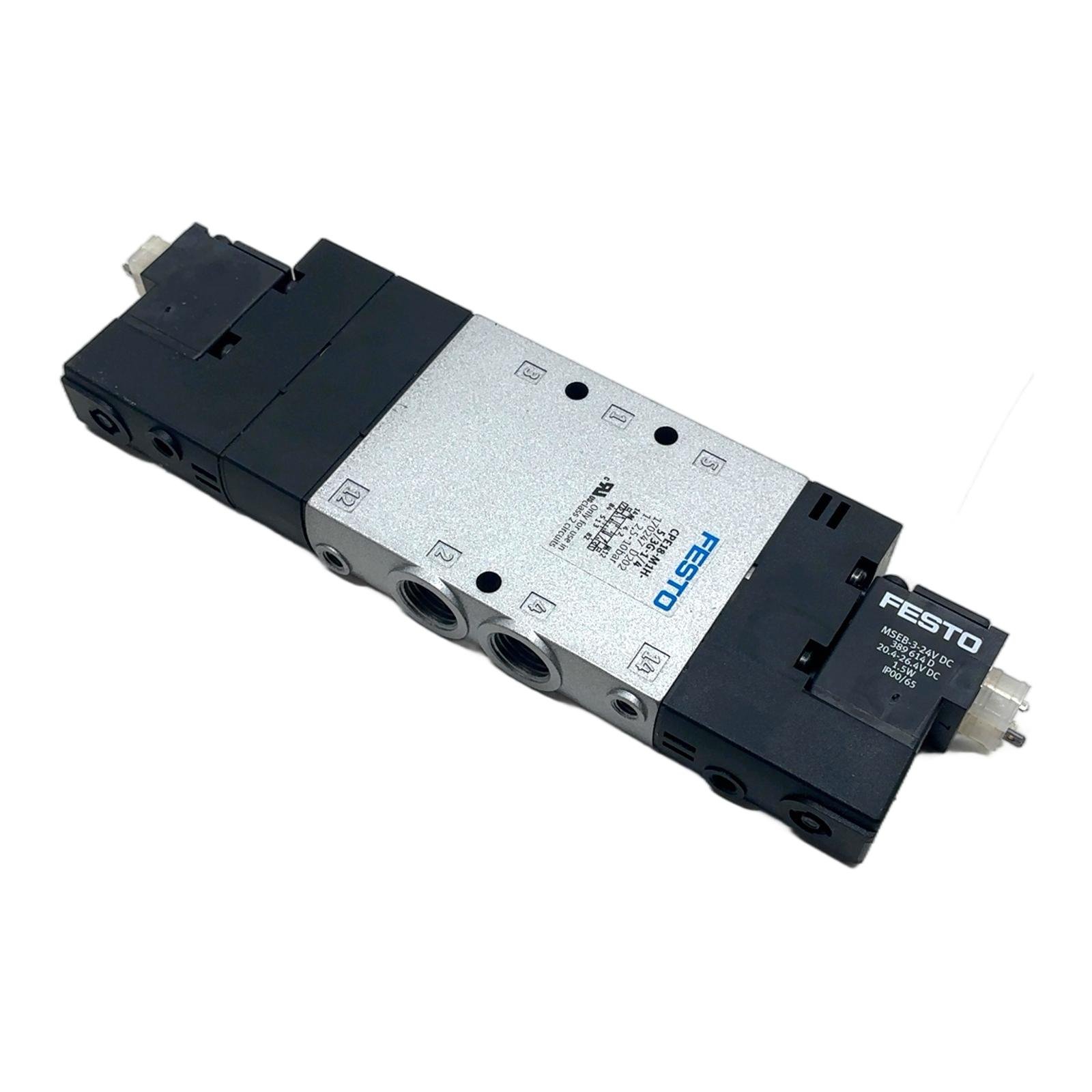

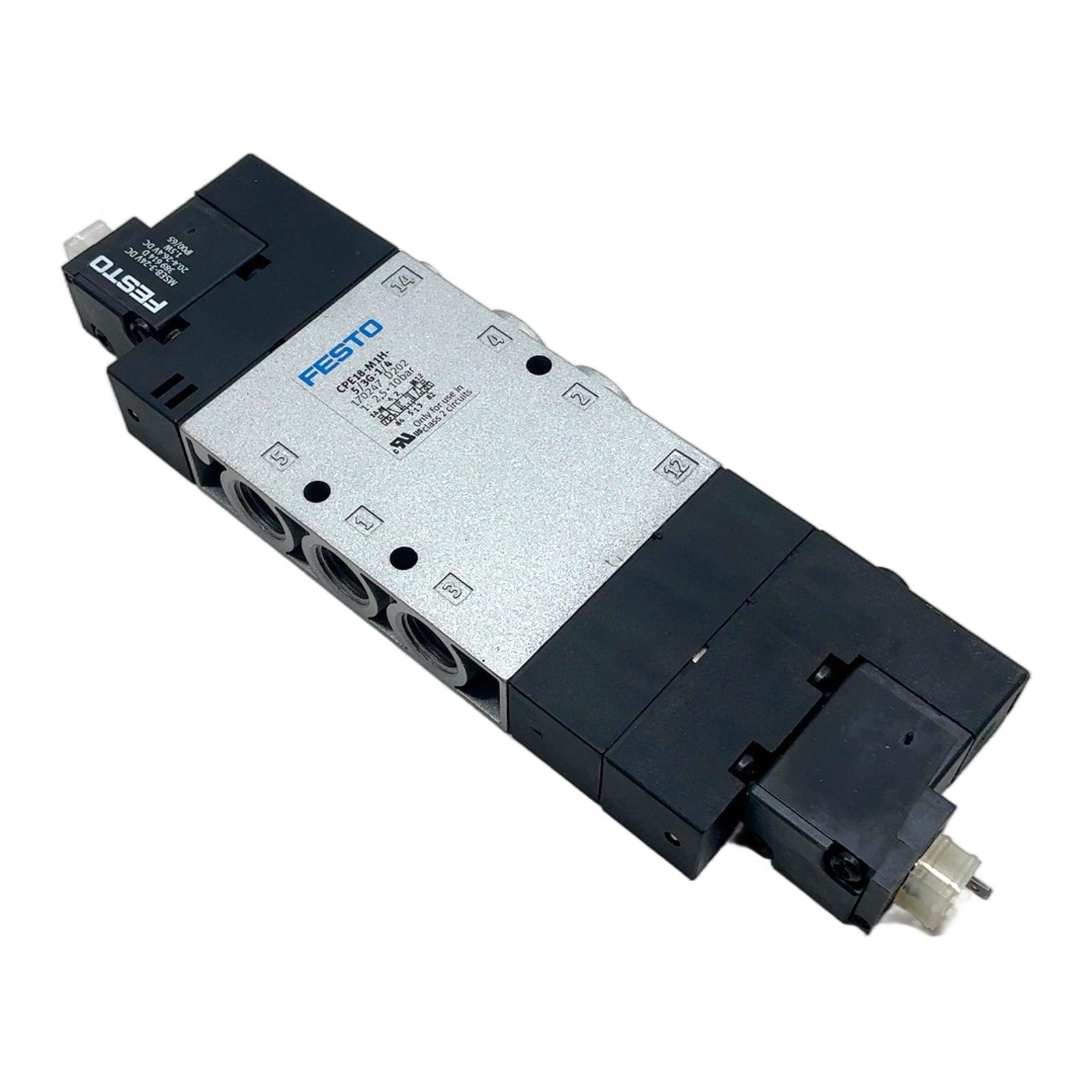

Festo CPE18-M1H-5/3G-1/4 5/3-Way Pneumatic Solenoid Valve Description The Festo CPE18-M1H-5/3G-1/4 is a robust and reliable double solenoid valve designed for precise control in pneumatic systems. As part of the CPE series, it is known for its high flow rates and long service life. This 5/3-way valve with a closed mid-position is ideal for applications requiring actuators to be held in position or for safe stopping functions. Specifications Manufacturer: Festo Part Number: 170247 Model: CPE18-M1H-5/3G-1/4 Valve Function: 5/3-way, mid-position closed (G) Actuation: Electrical, double solenoid Operating Pressure: 2.5 to 10 bar Pneumatic Connection: G1/4 inch Nominal Flow Rate: 1600 l/min Solenoid Coils: 2x MSEB-3-24V DC (24V DC, 1.5W) Label Info CPE18-M1H-5/3G-1/4 170247 D202 Pressure (1): 2,5 – 10 bar Application This valve is widely used in factory automation, material handling, packaging machinery, and process control where reliable pneumatic actuation is critical. Its 5/3G function is particularly useful for positioning and holding cylinders mid-stroke. Country of Origin Made in Germany. CO2 Impact Opting for this component helps avoid approximately 16.0 kg of CO2 emissions compared to manufacturing a new one, supporting sustainable industrial practices. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the function of a ‘5/3G’ valve?A 5/3G valve is a 5-port, 3-position valve. The ‘G’ designation specifies that in the center (unactuated) position, all ports are blocked (closed). This is used to lock a pneumatic cylinder in its current position when both solenoids are de-energized. Can I replace the MSEB-3-24V DC solenoid coils individually?Yes, the solenoid coils on Festo CPE series valves are modular and can be replaced individually. Ensure you use the correct replacement part to maintain performance and safety ratings. What is the required air quality for the CPE18 series valves?For optimal performance and longevity, Festo recommends compressed air quality according to ISO 8573-1:2010 [7:4:4]. This means filtered air (40 micrometer), with options for lubricated or unlubricated operation. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
