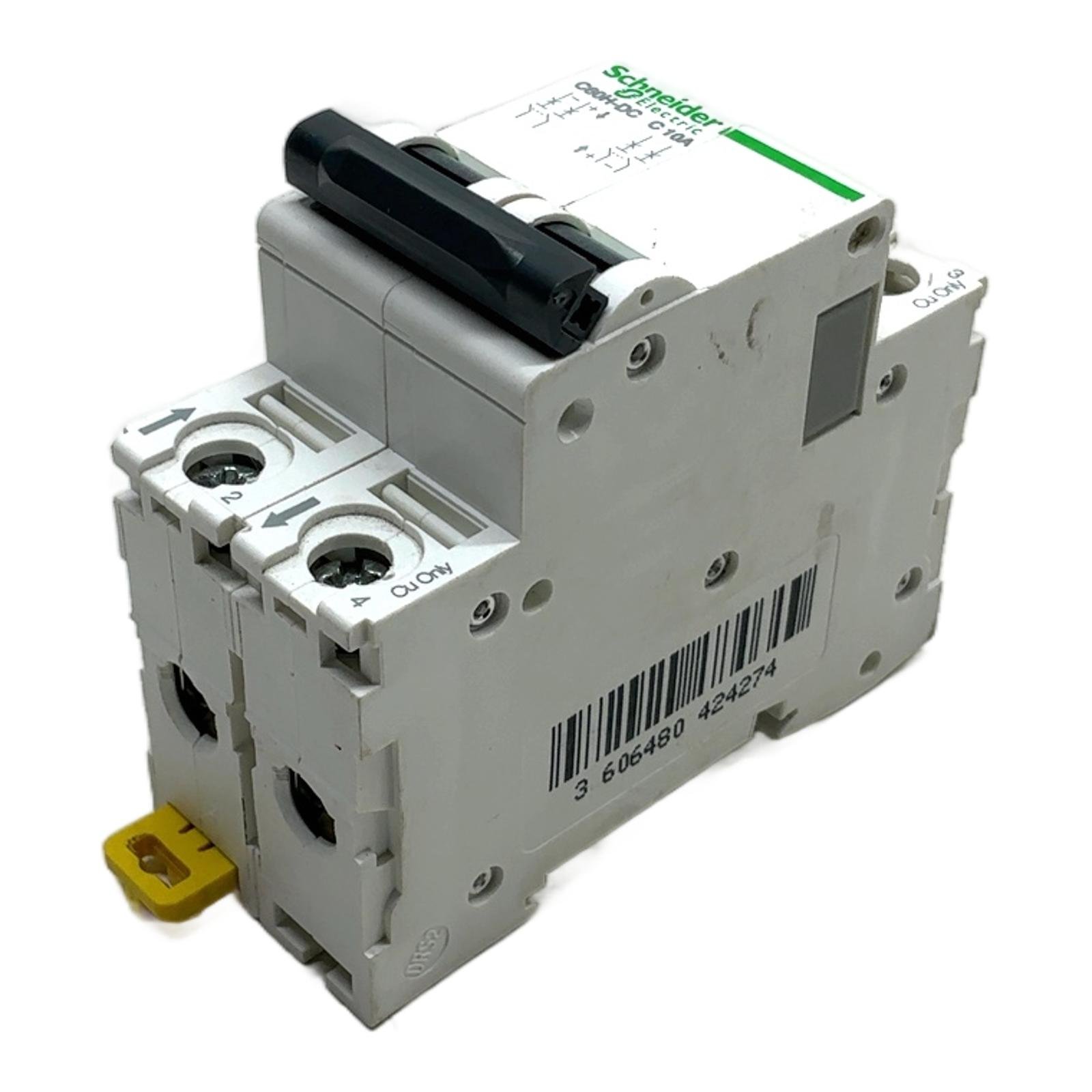

SCHNEIDER ELECTRIC C60H-DC C10A A9N61521

Schneider Electric C60H-DC 10A 2-Pole DC Circuit Breaker Description The Schneider Electric A9N61521 is a robust miniature circuit breaker from the Acti 9 C60H-DC series. It provides essential overcurrent and short-circuit protection for direct current (DC) electrical installations. With a 10A rating and C-curve tripping characteristic, it is a versatile solution for a wide range of DC applications. Specifications Manufacturer: Schneider Electric Product Range: Acti 9 Model: C60H-DC Part Number: A9N61521 Poles: 2-Pole (2P) Rated Current: 10 A Rated Voltage: up to 500 V DC Tripping Curve: C Breaking Capacity: 10 kA (at 220V DC) Mounting Type: DIN Rail Label Info Brand: Schneider Electric Model: C60H-DC C10A EAN: 3606480424274 Application This DC circuit breaker is specifically designed for use in photovoltaic systems, uninterruptible power supplies (UPS), battery storage systems, telecommunication centers, and industrial control circuits that operate on direct current. Country of Origin Made in France. CO2 Impact By purchasing this reused component, you are helping to avoid approximately 10 kg of CO2 emissions associated with the manufacturing of a new unit. This is a smart choice for both your budget and the environment. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?Can this C60H-DC breaker be used for AC applications? Answer:No, this breaker is specifically designed and rated for DC (Direct Current) circuits up to 500V. Using it on AC circuits can be dangerous and will not provide the correct protection. Question?What is the breaking capacity of this A9N61521 circuit breaker? Answer:According to the manufacturer’s datasheet, the C60H-DC series has a breaking capacity (Icu) of 10 kA at 220V DC and 6 kA at 440V DC, conforming to IEC 60947-2 standards. Question?Does the C-curve characteristic make it suitable for protecting motor circuits? Answer:The C-curve is a general-purpose curve that trips between 5 and 10 times the rated current. It is suitable for circuits with moderate inrush currents, like lighting and general loads. For DC motors, a D-curve breaker is often a better choice to handle higher starting currents without nuisance tripping. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
