SCHNEIDER ELECTRIC CAD32BD LAD4TBDL

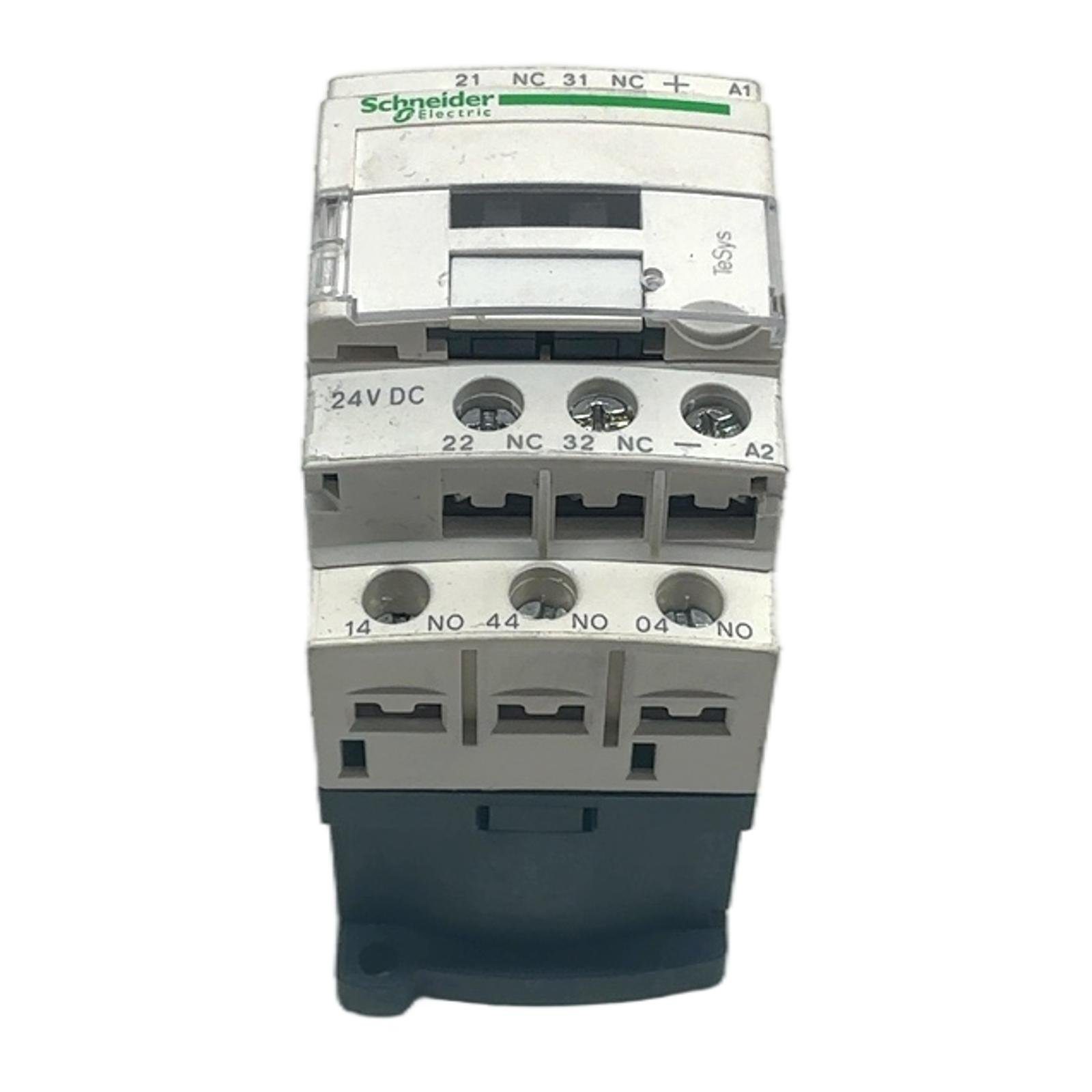

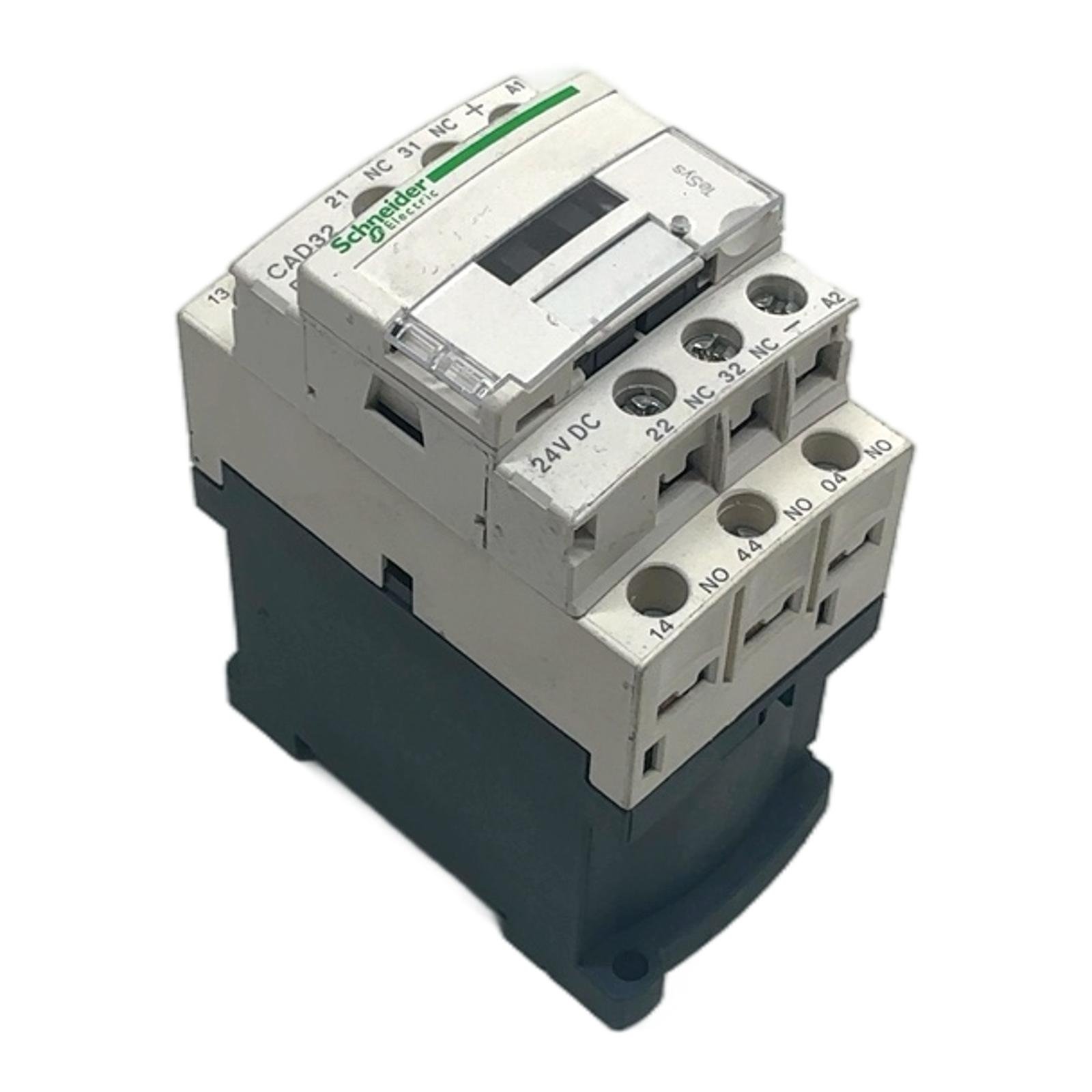

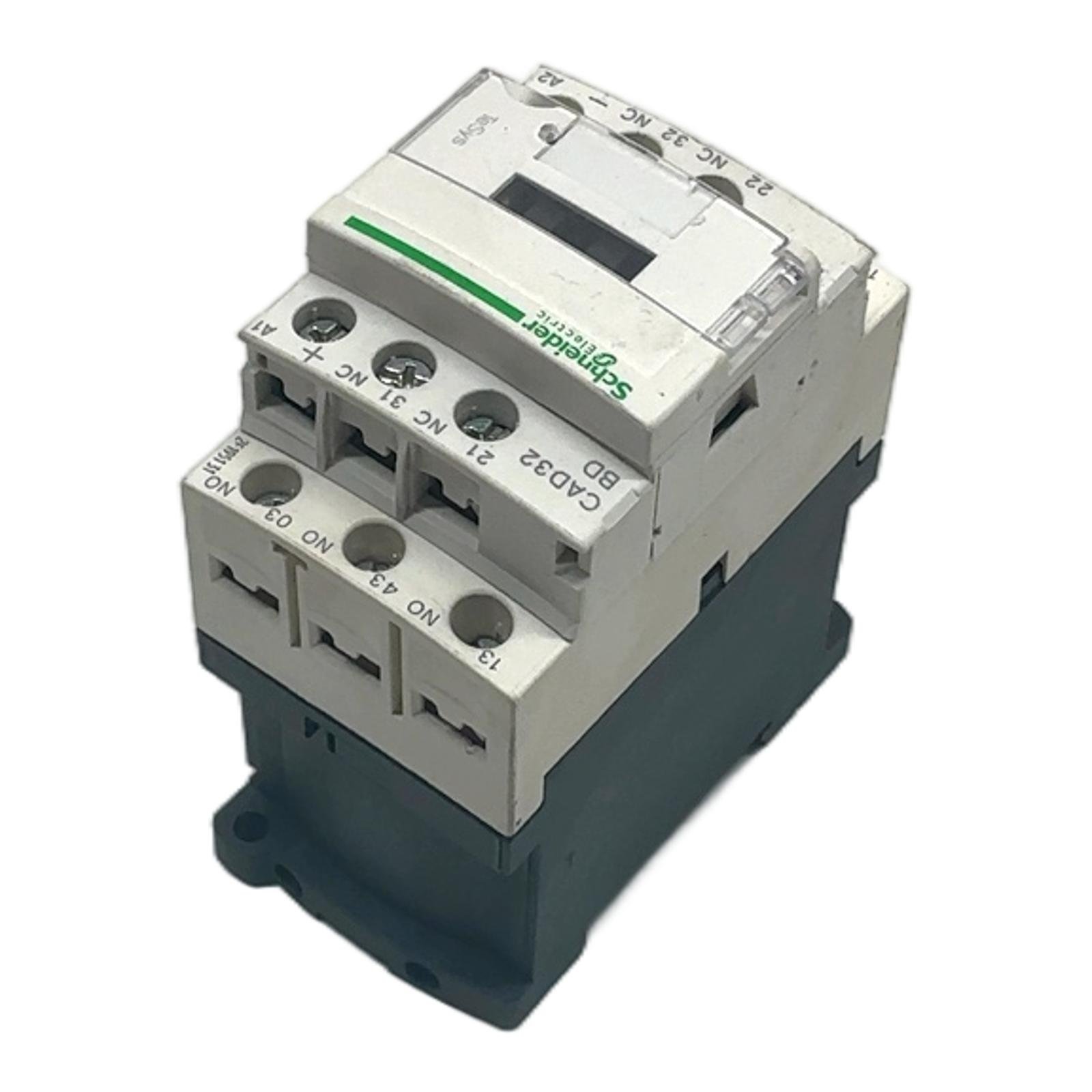

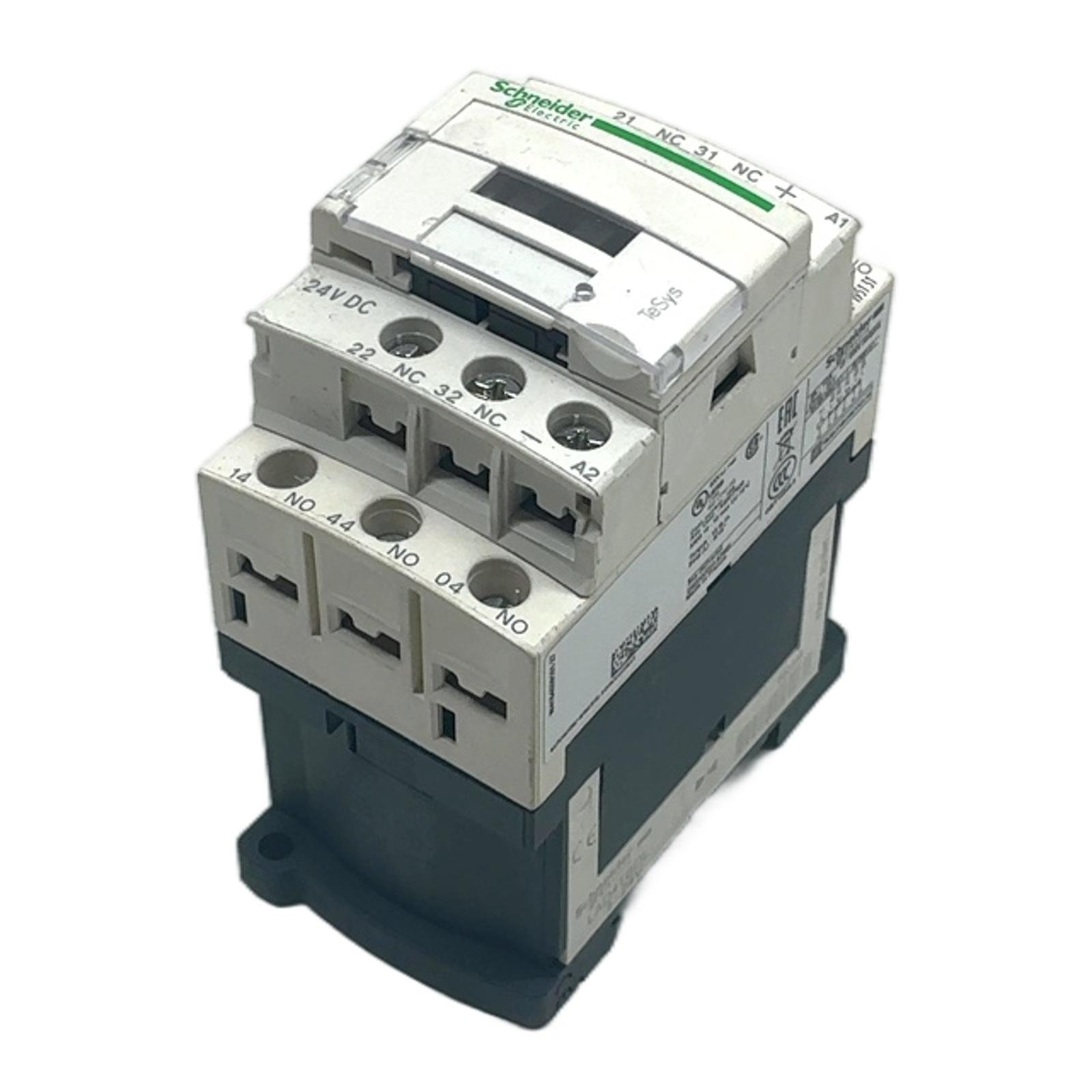

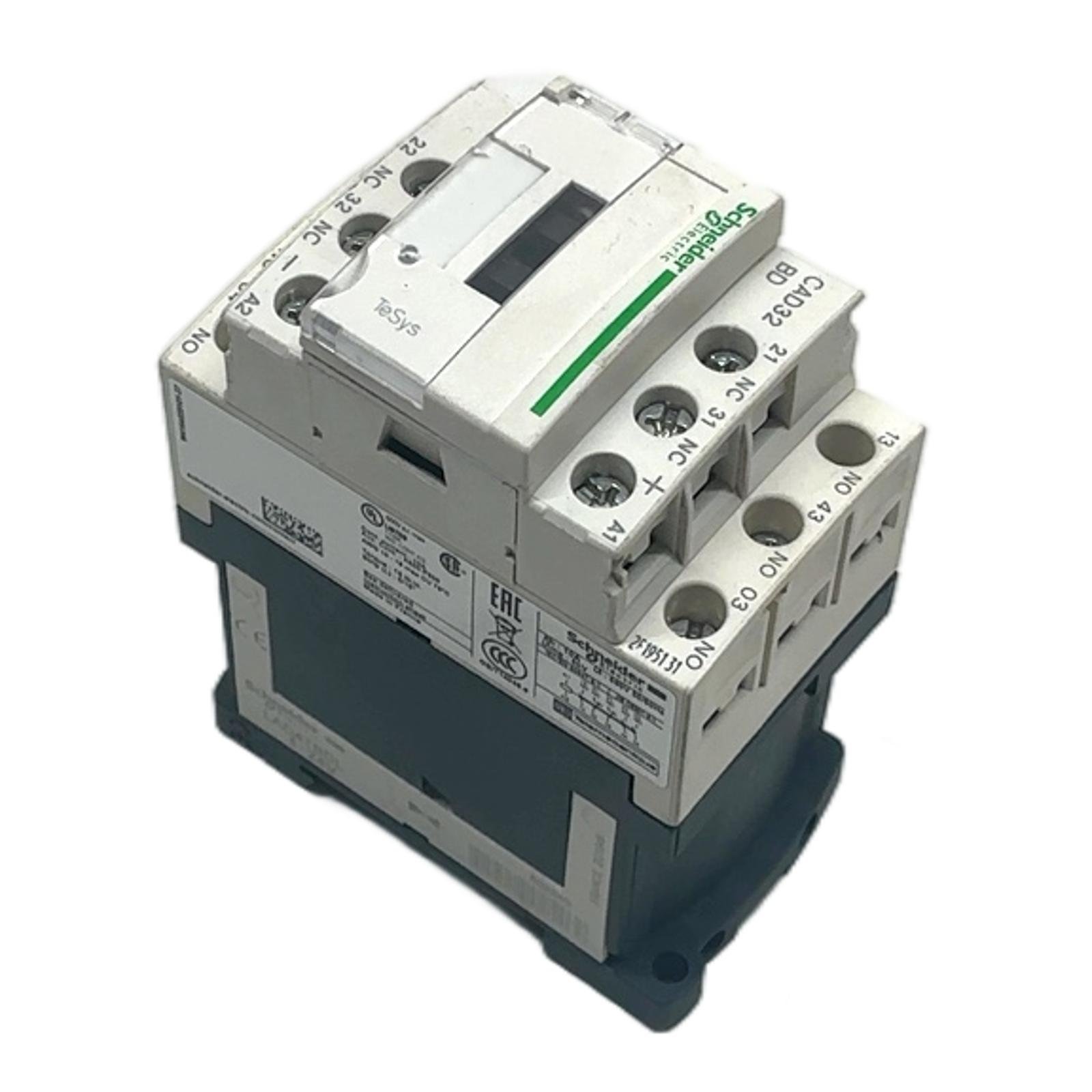

Schneider Electric TeSys D Control Relay Description This is a robust TeSys D control relay, model CAD32BD, from Schneider Electric. It is designed for high-reliability control circuit applications. This unit operates with a 24V DC low consumption coil, making it suitable for direct connection to PLC outputs. While the top is marked CAD32, please note that it is physically configured with 2 Normally Open and 2 Normally Closed contacts. It also integrates features from the LAD4TBDL electronic timer module. Specifications Manufacturer: Schneider Electric Series: TeSys D Model: CAD32BD Associated Module: LAD4TBDL Coil Voltage: 24V DC (Low Consumption) Contact Configuration: 2NO + 2NC Rated Voltage: up to 690V AC Label Info Part Number: CAD32BD with LAD4TBDL base Date Code: 2G1948 (Week 48, 2019) Application Ideal for use in industrial control panels for logic switching, interlocking, and signaling in automation systems, motor control centers, and processing machinery. Country of Origin Made in France. CO2 Impact Opting for this reused control relay saves approximately 10.0 kg of CO2 compared to a new purchase, contributing to a more sustainable industrial operation. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the difference between the CAD32 marking and the actual 2NO+2NC contacts on this relay?The unit is marked as a CAD32, which typically has a 3NO+2NC configuration in the TeSys D series. However, the terminals on this specific device are for a 2NO+2NC setup, which corresponds to a CAD22 model. This could be a special version or a custom assembly. Buyers should verify the contact arrangement meets their application needs. Is the LAD4TBDL a standalone timer or part of this relay?The LAD4TBDL is an electronic timer block designed as an accessory for TeSys D contactors and relays. In this assembly, it appears to be integrated into the base/coil part of the unit, providing timing functions for the relay’s operation. It is not a separate, standalone timer in this configuration. What are the benefits of the low consumption DC coil (indicated by the ‘BD’ in CAD32BD)?The low consumption coil requires significantly less power to actuate and hold the relay, making it ideal for direct control from PLC outputs without needing an interposing relay. This reduces power consumption, heat generation in the control panel, and allows for a smaller power supply unit. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
