SCHNEIDER ELECTRIC CAD32 LAD4VU

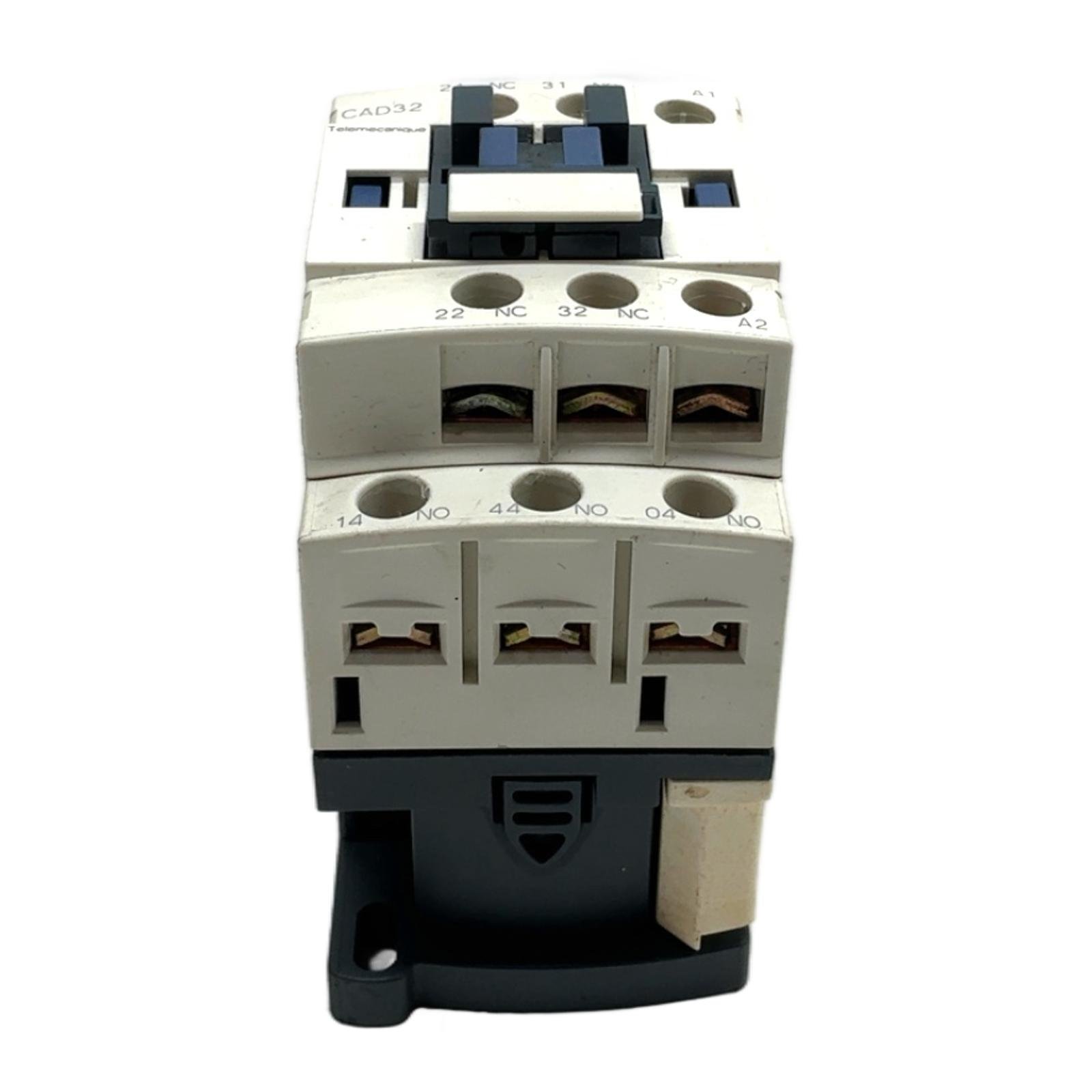

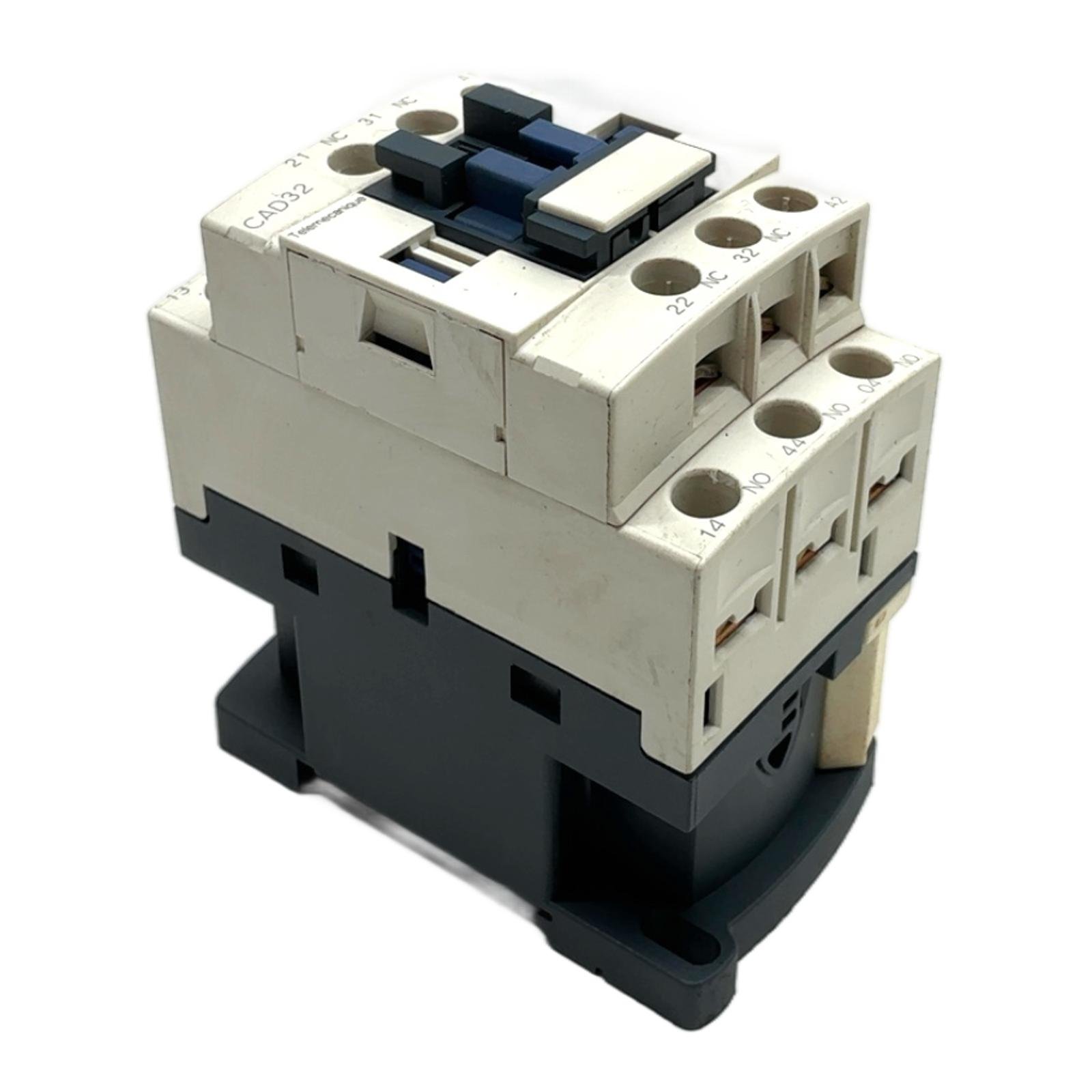

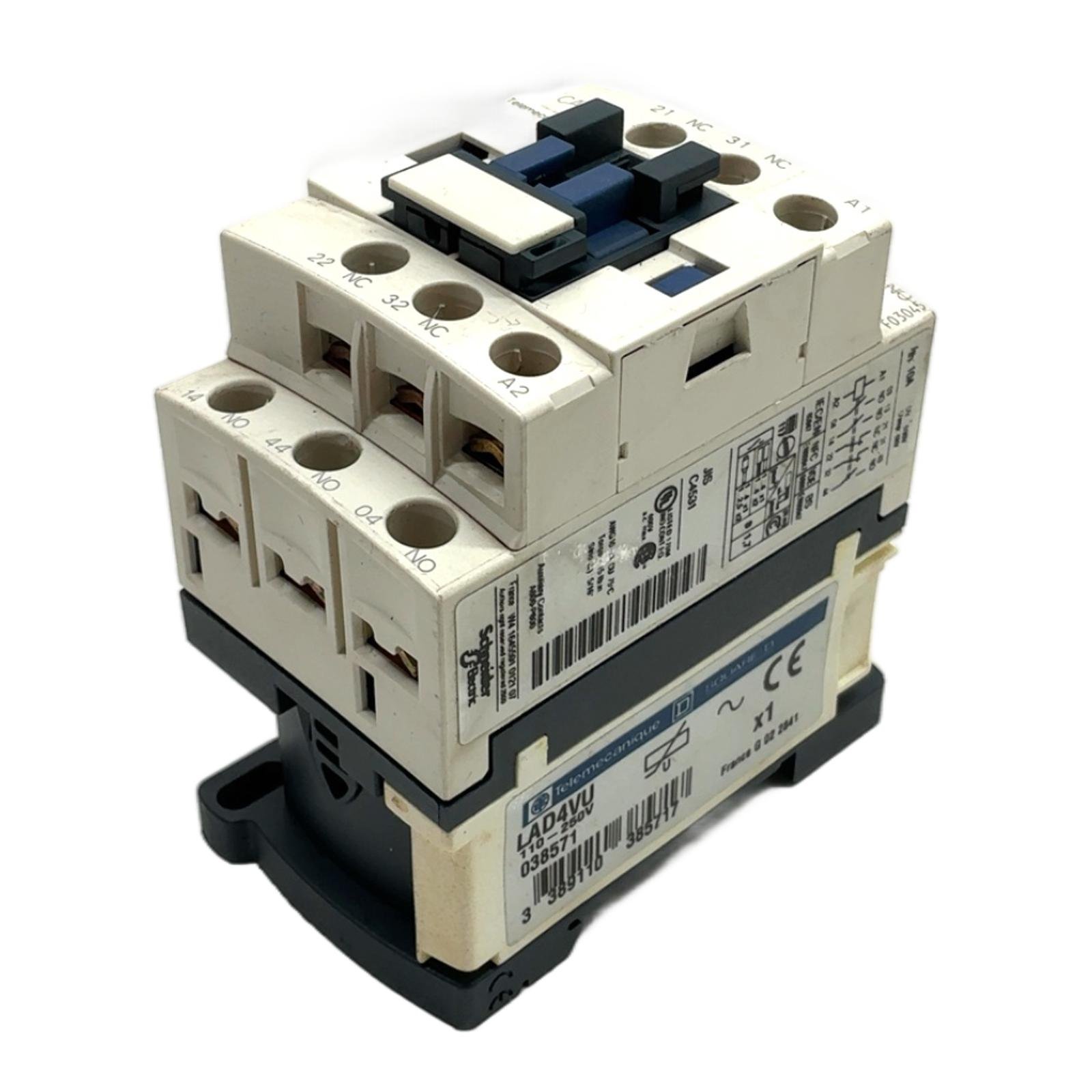

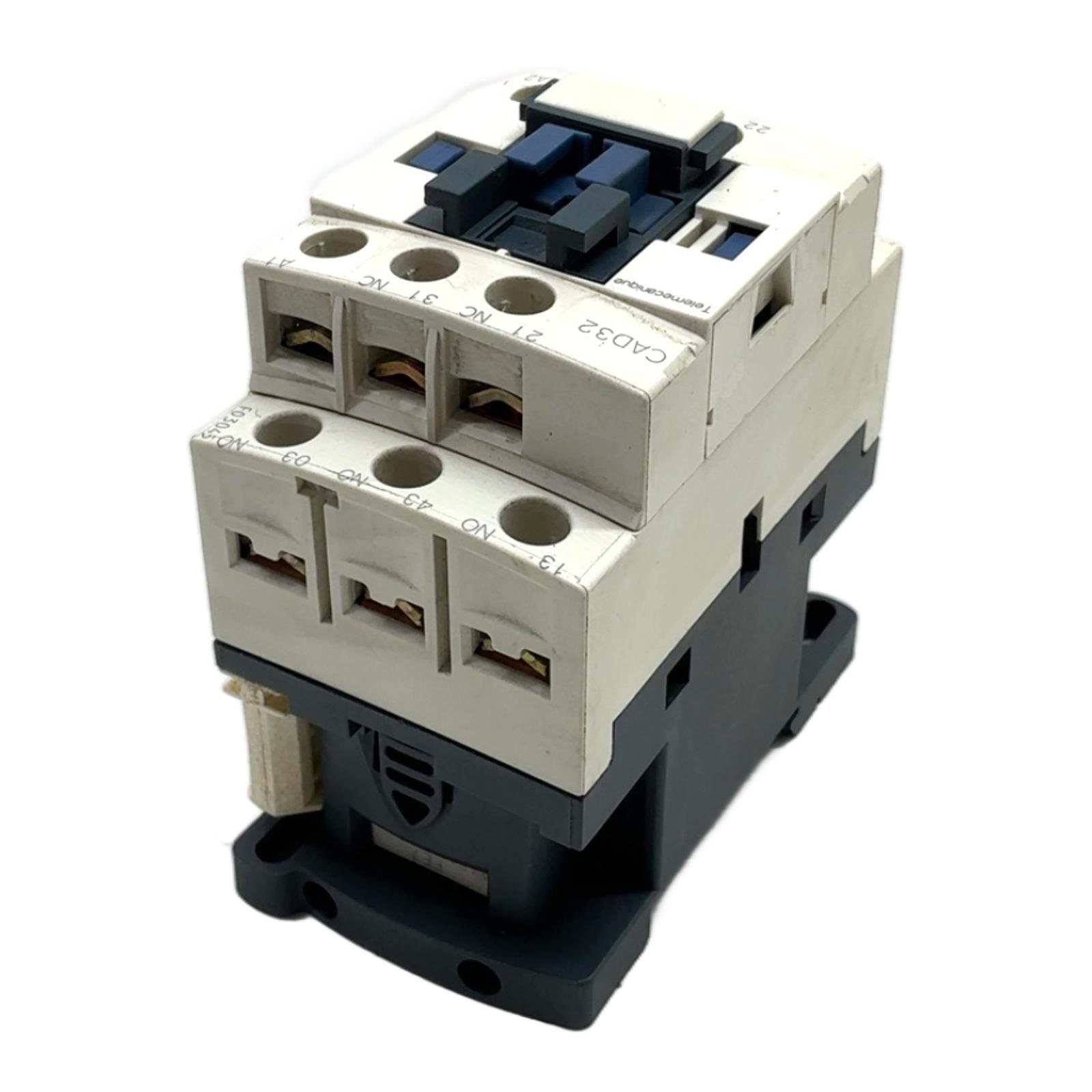

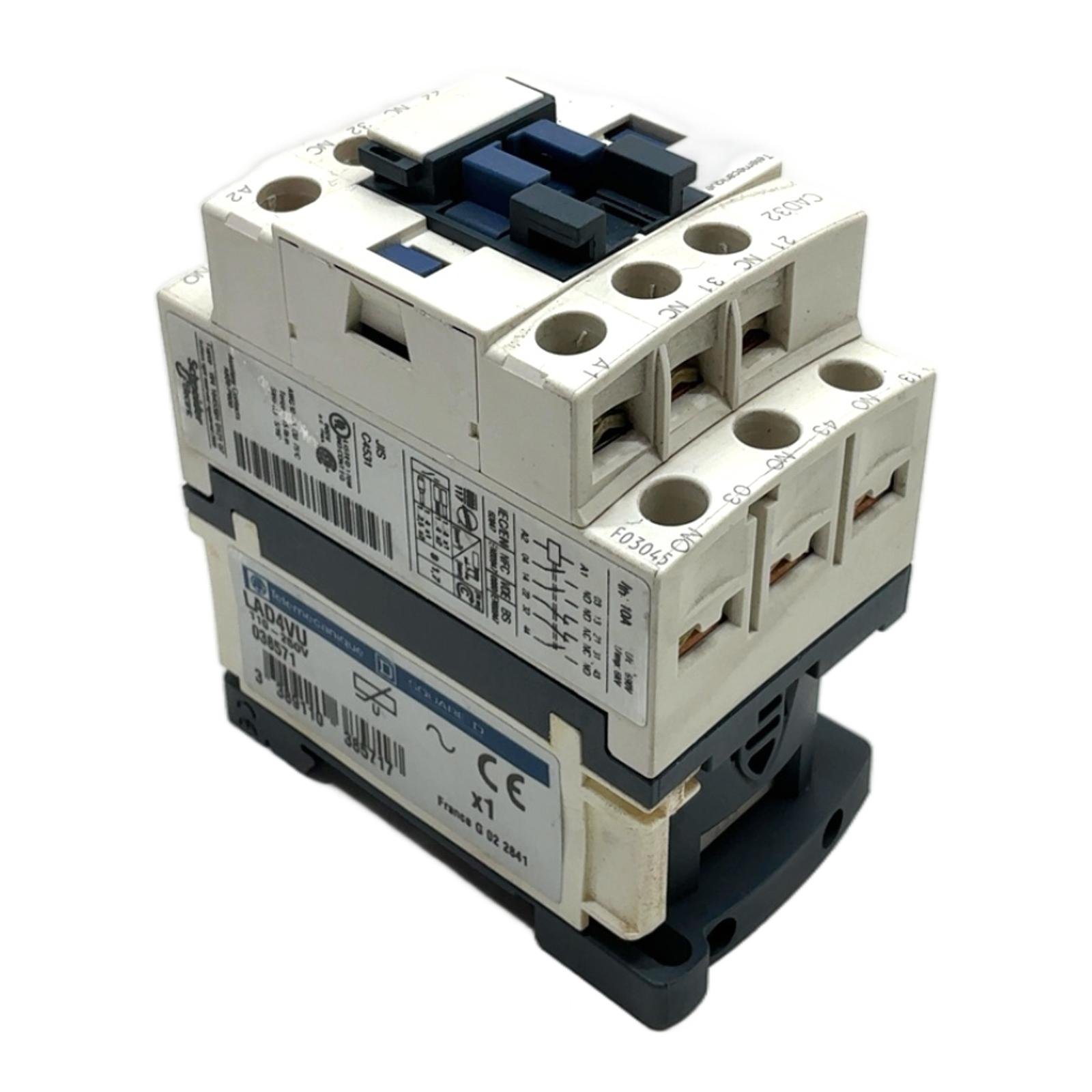

Schneider Electric TeSys D Control Relay Description The Schneider Electric Telemecanique CAD32 is a robust control relay from the renowned TeSys D series, designed for industrial control circuits. This unit features a 3 NO (Normally Open) and 2 NC (Normally Closed) contact configuration, making it versatile for various logic and switching applications. It is rated for a conventional thermal current of 10A. This specific assembly includes an LAD4VU transient voltage suppressor module, offering protection for AC coils in the 110V to 250V range. It is built for reliability and a long electrical lifespan, suitable for demanding automation environments. Specifications Manufacturer: Schneider Electric (Telemecanique) Model: CAD32 Attached Module: LAD4VU (Transient Voltage Suppressor) Contact Configuration: 3 NO + 2 NC Thermal Current (Ith): 10 A Rated Insulation Voltage (Ui): 690 V Rated Impulse Withstand Voltage (Uimp): 6 kV Mounting: DIN Rail or Screw Mount Label Info Part Number (Suppressor): 038571 EAN (Suppressor): 3389110385717 Standards: IEC/EN 60947, NFC, VDE, BS Application Ideal for use in control panels for industrial machinery, HVAC systems, and automation applications where reliable switching of control signals is critical. The 3NO/2NC configuration allows for use in interlocking circuits, signaling, and as an interface relay. Country of Origin Made in France. CO2 Impact By reusing this part, you are saving approximately 9.0 kg of CO2. This is equivalent to the emissions from driving a car for 45 kilometers. Availability This item is a used, tested product in excellent working condition. Order now from profideals for expert support and fast delivery. FAQ Question?What is the exact coil voltage of this CAD32 relay?Answer:The main body of the CAD32 does not have the coil voltage explicitly marked. However, it is fitted with an LAD4VU transient suppressor module, which is designed for use with coils rated from 110V to 250V AC. This strongly suggests the coil voltage falls within this range.Question?What is the purpose of the attached LAD4VU module?Answer:The LAD4VU is an RC (Resistor-Capacitor) circuit suppressor. It is connected in parallel with the coil to limit transient overvoltages that occur when the coil is de-energized, protecting both the coil and other sensitive electronic components in the control circuit.Question?Can this older Telemecanique-branded relay be used with modern Schneider Electric TeSys accessories?Answer:Yes, the TeSys D series has maintained a high degree of dimensional and functional compatibility over the years. This Telemecanique CAD32 relay is generally compatible with current TeSys Deca accessories such as auxiliary contact blocks and timers. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
