LEUZE BCL34SF100 50037228

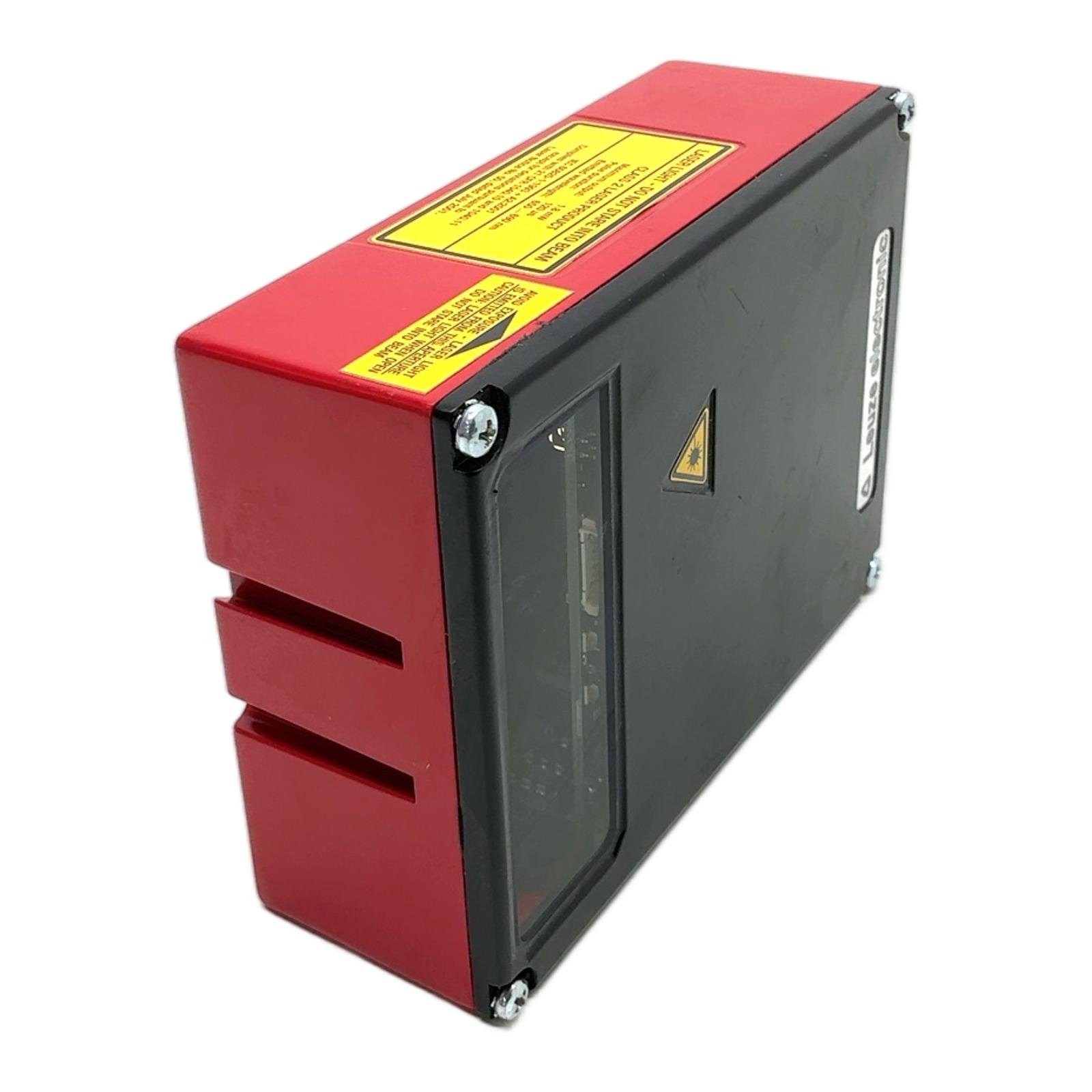

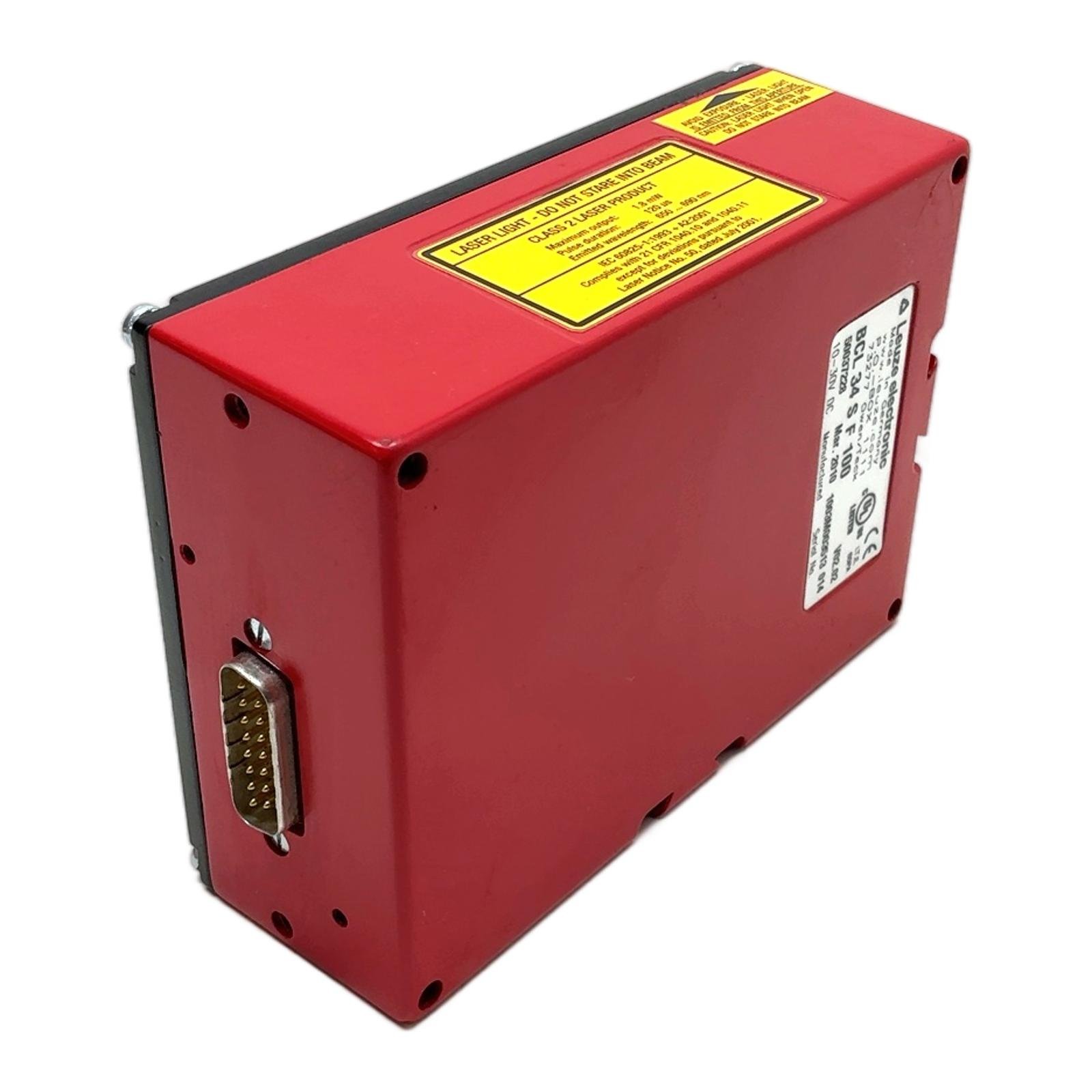

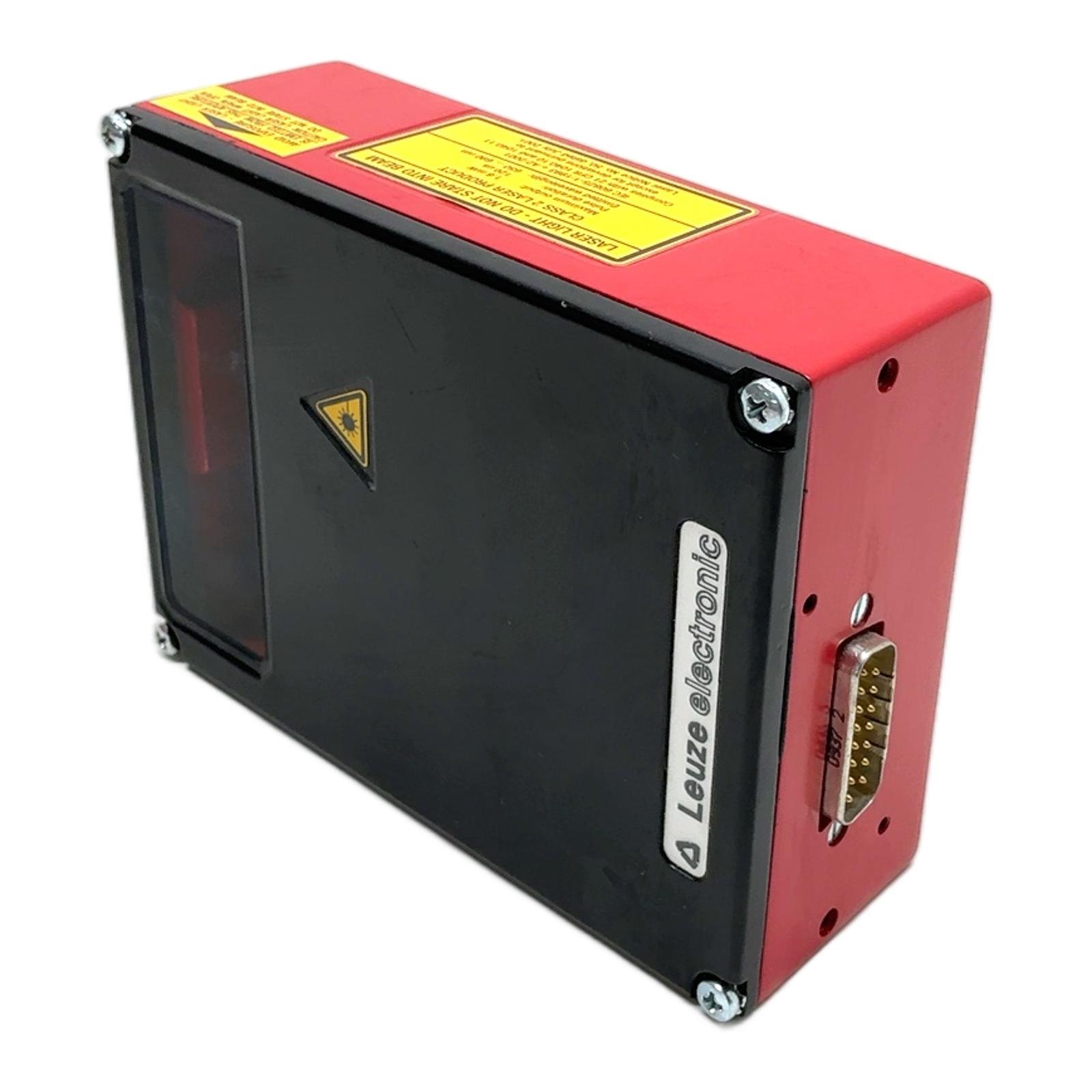

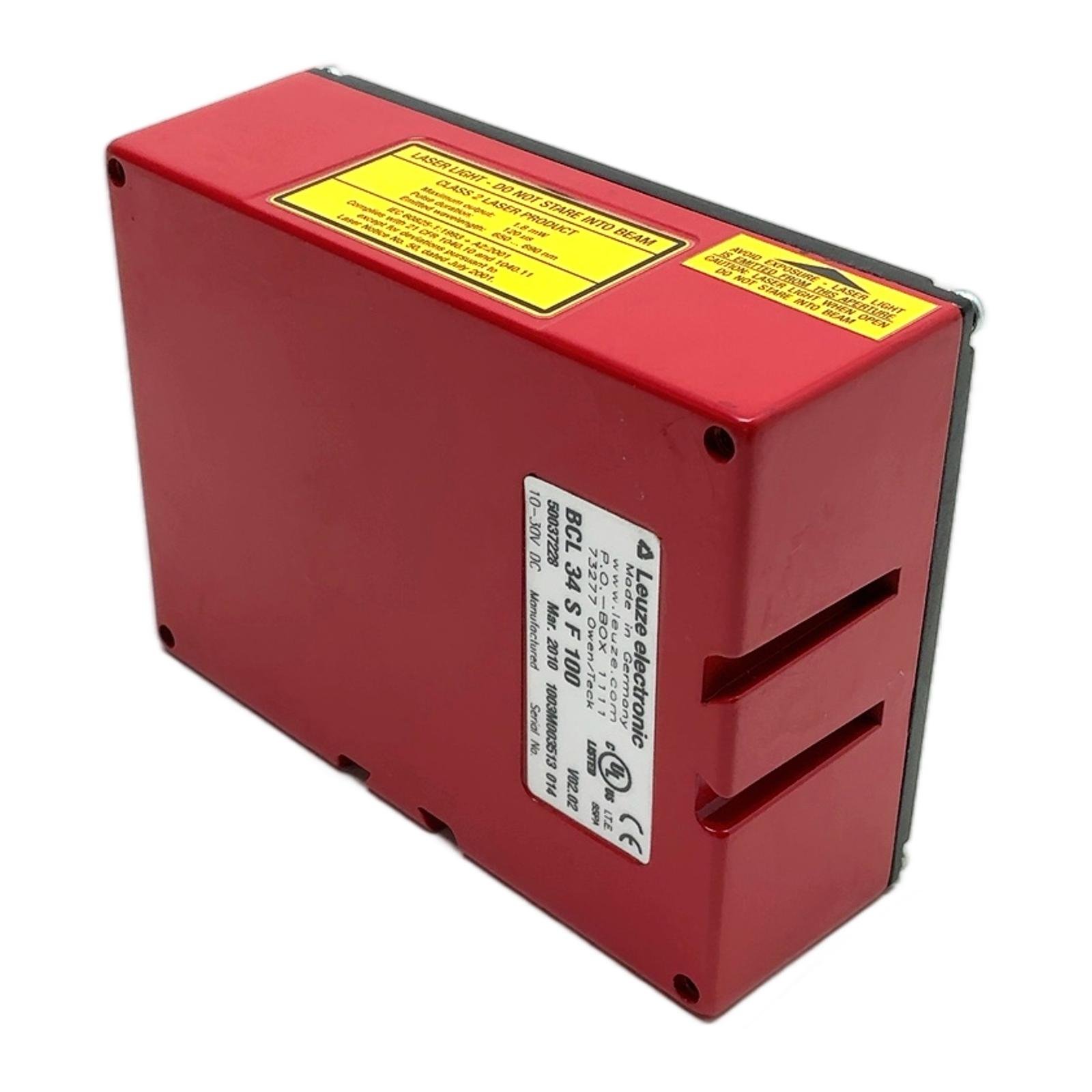

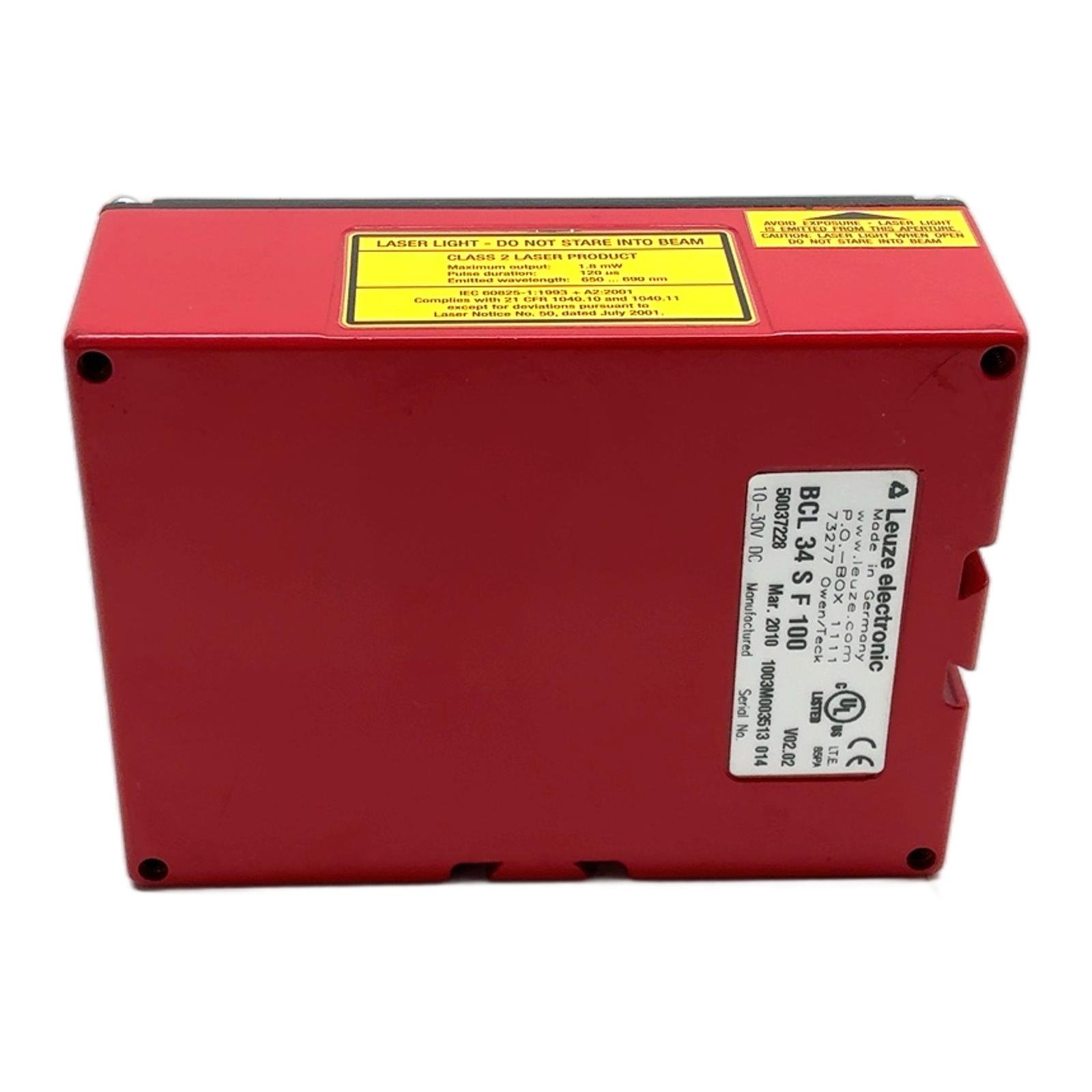

Leuze BCL 34 S F 100 Barcode Scanner Description The Leuze BCL 34 S F 100 is a high-performance stationary barcode reader designed for industrial applications. Known for its reliability and durability, this scanner is an excellent choice for automated identification tasks in logistics, material handling, and manufacturing. It operates on a wide voltage range of 10-30V DC and features a D-Sub connector for communication. Specifications Manufacturer: Leuze Model: BCL 34 S F 100 Part Number: 50037228 Supply Voltage: 10-30V DC Light Source: Laser, Red (650 nm – 690 nm) Laser Class: 2, IEC/EN 60825-1:2014 Connection: D-Sub, 15-pin Lifecycle Status: Obsolete Label Info Serial No: 1003M003513 014 Version: V02.02 Manufactured: March 2010 Application Ideal for integration into conveyor belts, sorting systems, and automated storage and retrieval systems (AS/RS) for reliable tracking of goods. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned scanner, you are saving approximately 20 kg of CO2 emissions compared to a new product. This is equivalent to the carbon absorption of a mature tree over a year. Availability This unit is a legacy component but is available from our stock. Order now from profideals for expert support and fast delivery. FAQ What communication protocols does the BCL 34 S F 100 support via its D-Sub connector?The BCL 34 series typically supports RS-232 and RS-422/485 serial communication protocols. The exact pinout and configuration should be verified with the official user manual for this specific model. Is this scanner suitable for reading 2D codes like QR or Data Matrix?No, the BCL 34 S F 100 is a laser-based barcode scanner designed specifically for reading 1D linear barcodes. For 2D codes, you would need an image-based code reader, such as a model from Leuze’s DCR series. Can the scanning parameters, such as focus and read rate, be configured on this device?Yes, configuration is typically done using Leuze’s configuration software via the serial interface. This allows for adjustments to match specific application requirements, such as barcode density and conveyor speed. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
