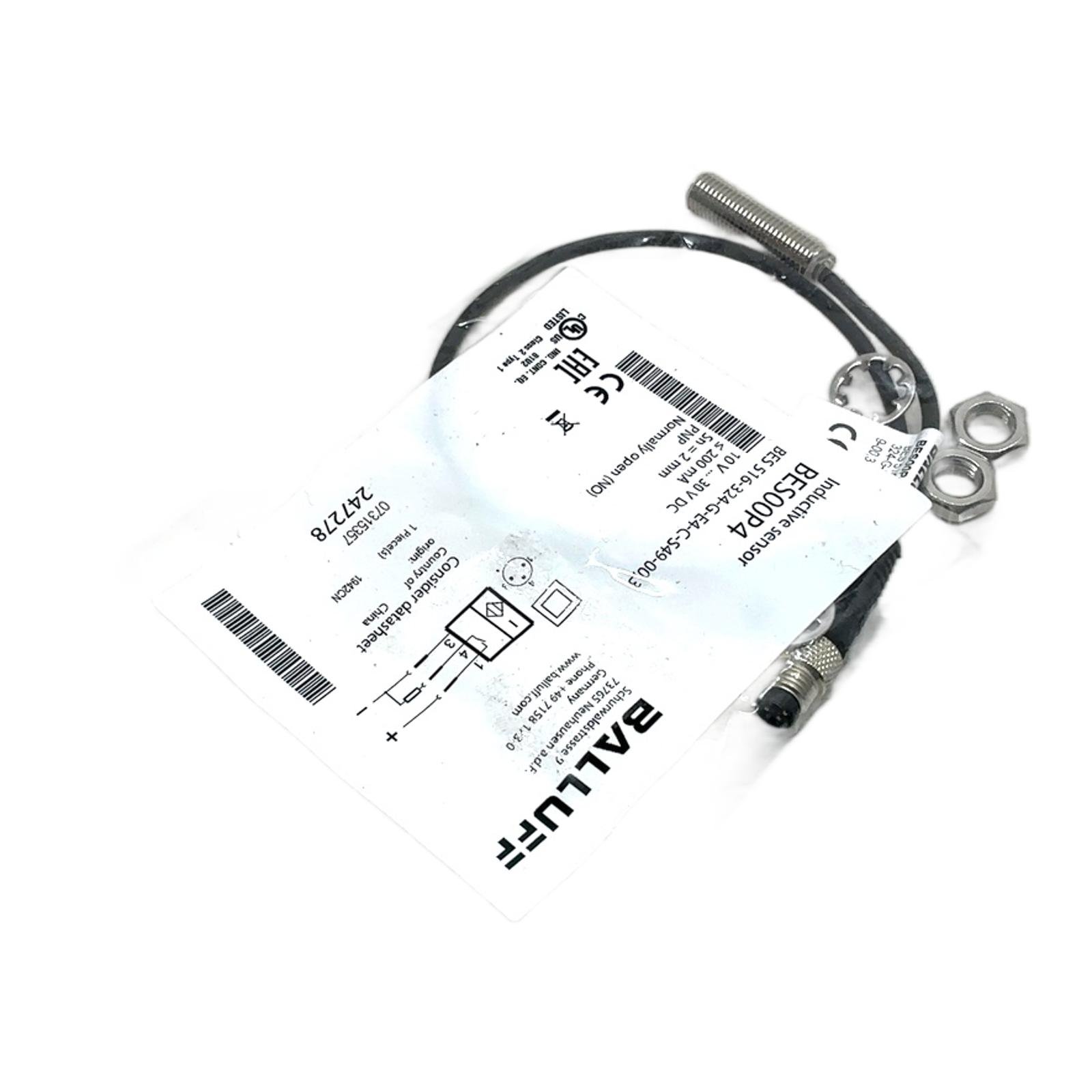

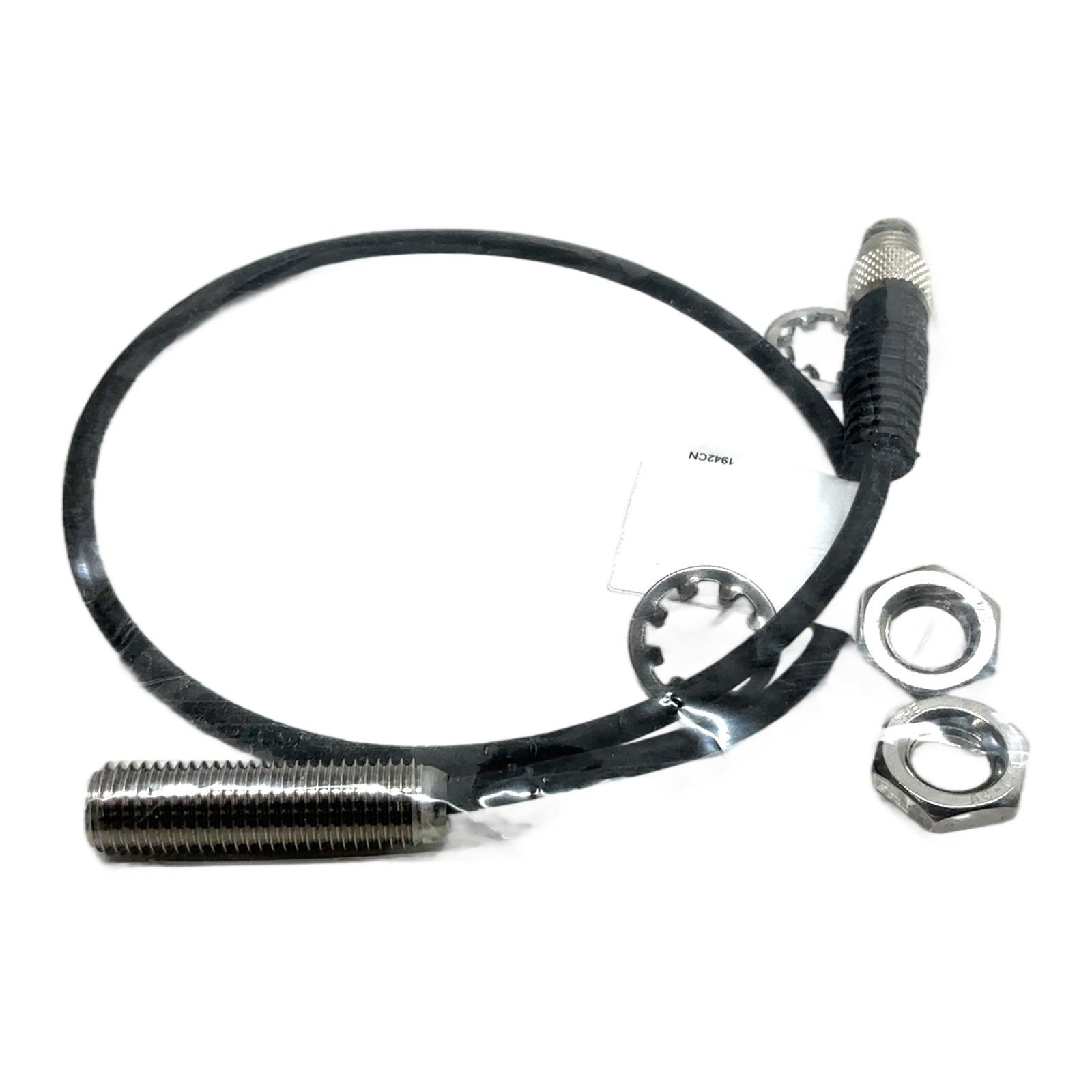

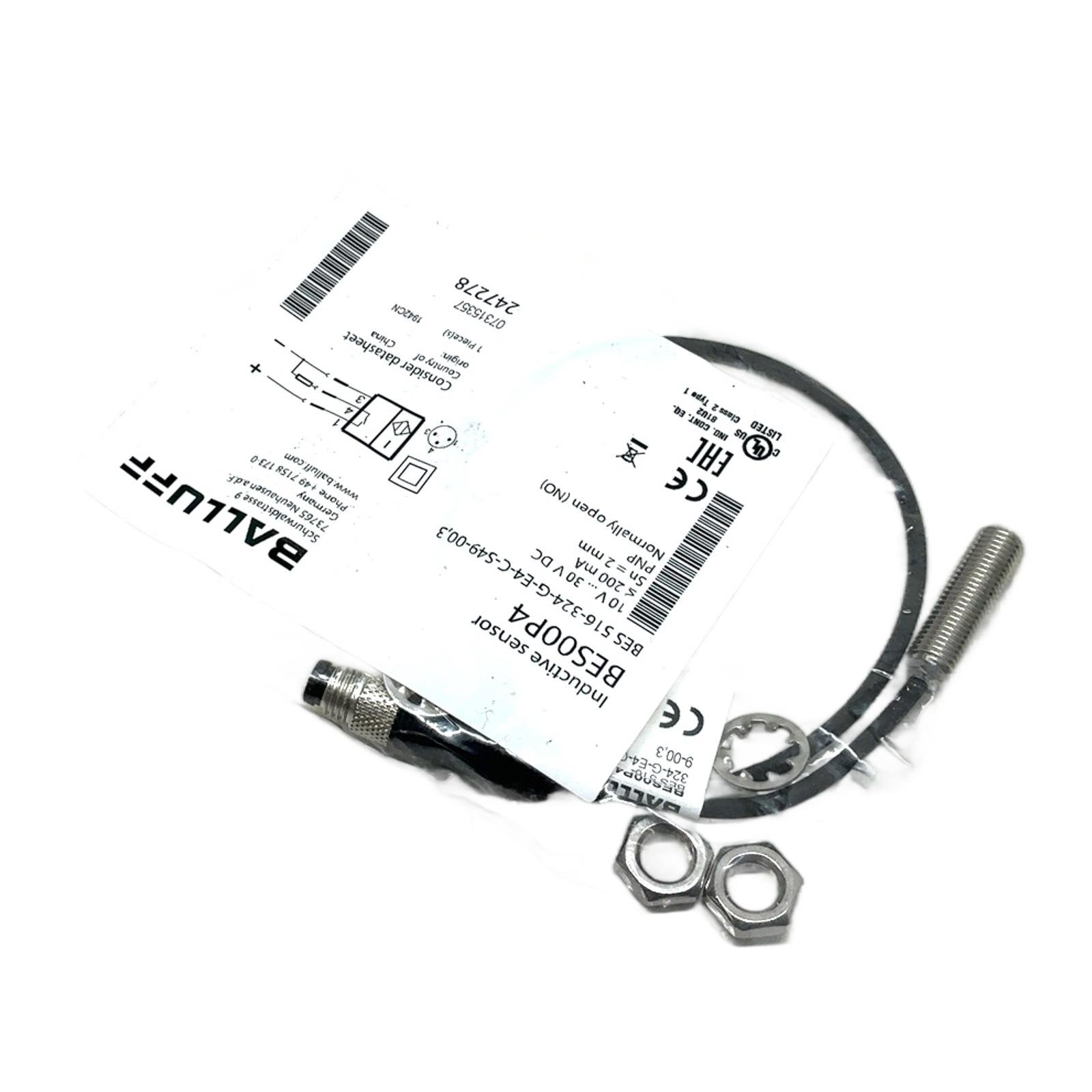

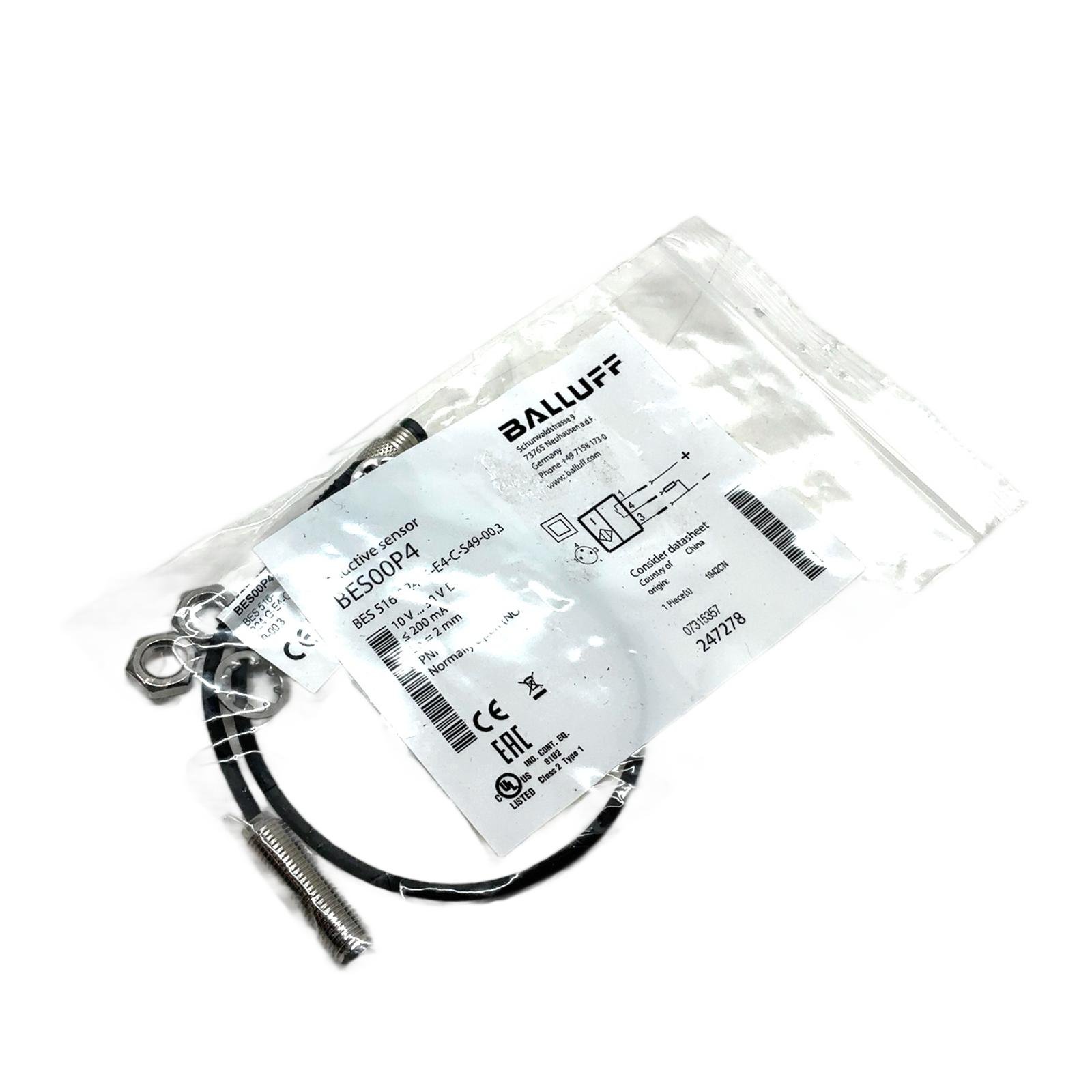

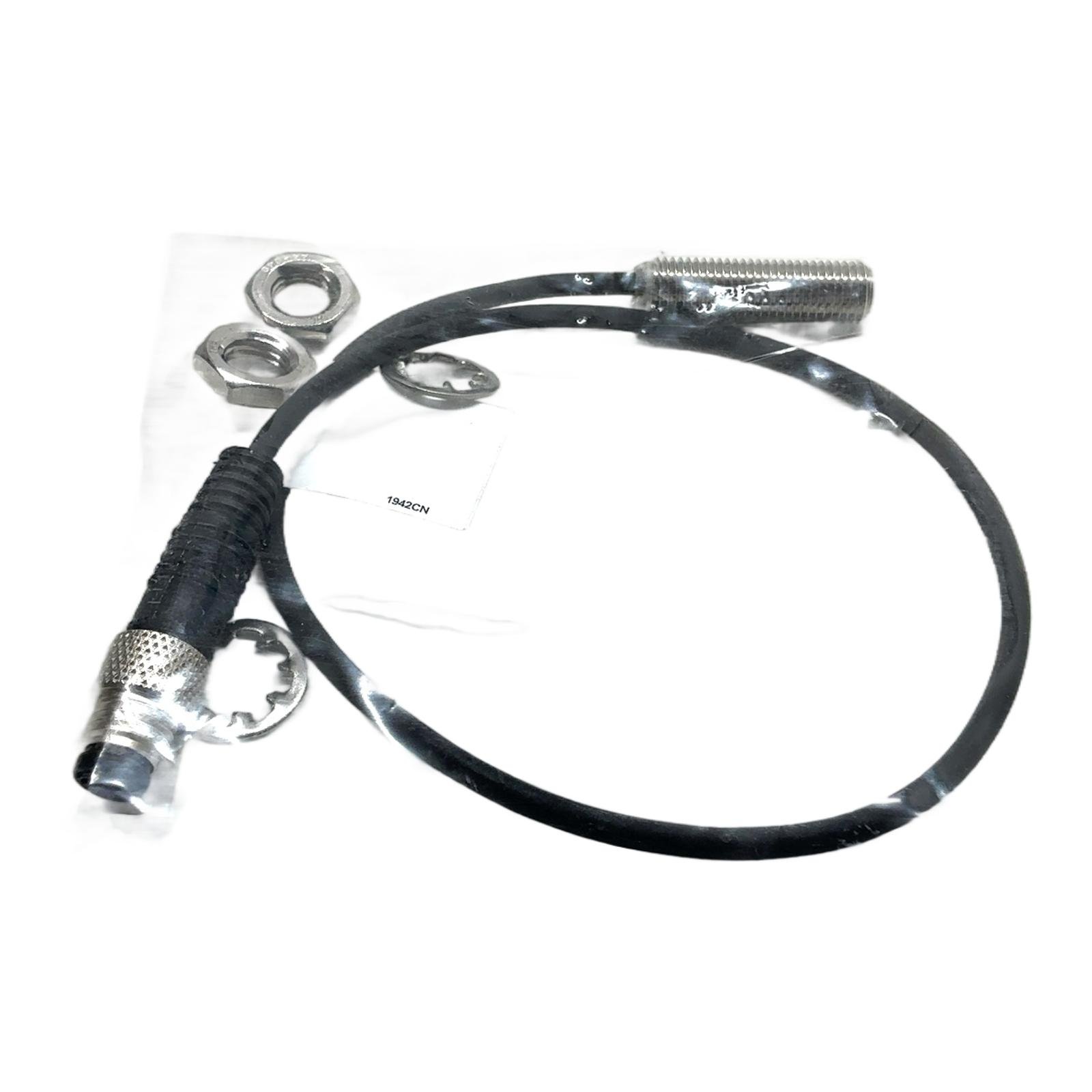

BALLUFF BES 516-324-G-E4-C-S49-00,3 247278
BALLUFF BES 516-324-G-E4-C-S49-00,3 247278
€ 27,95
2 op voorraad
2 op voorraad
Betaalmethode:
Specificatie
| Gewicht | 2,00 kg |
|---|---|
| Packing Quantity |
1 Unit(s) |
| Unit of Measure |
Unit(s) |
| Brand |
BALLUFF |
| Category |
Sensors |
| Description |
Inductive Proximity Sensor |
| MPN |
BES 516-324-G-E4-C-S49-00,3 247278 |
| Other Notations |
BES 516-324-G-E4-C-S49-00,3 247278 ,BES 516324GE4CS4900,3 247278 ,BES516-324-G-E4-C-S49-00,3247278 ,BES516324GE4CS4900,3247278 |
| Fabr. Art. Nr. |
BES 516324GE4CS4900,3 247278 |
- Ophalen in ons magazijn
Roosendaal
Vandaag
- Standaard levering
Nederland
België
1-2 dagen
1-2 dagen
Omschrijving
Balluff Inductive Sensor with M12 ConnectorDescriptionThe Balluff BES 516-324-G-E4-C-S49-00,3 is a high-quality inductive proximity sensor designed for non-contact detection of metallic objects in industrial automation. Its standard M12 threaded housing allows for easy and flexible mounting. This sensor provides a reliable PNP normally open output and is built to withstand harsh industrial environments.SpecificationsManufacturer: BalluffPart Number: BES 516-324-G-E4-C-S49-00,3Article Number: BES00P4Order Code: 247278Housing: M12 x 1Sensing Range (Sn): 2 mmInstallation Type: Flush mountableOperating Voltage: 10 to 30V DCSwitching Output: PNP, Normally Open (NO)Rated Operating Current: 200 mAConnection: 0.3m cable with M12 male connector, 4-pin, A-codedHousing Material: Brass, nickel-platedIP Rating: IP68Label InfoInductive sensorBES00P410 V… 30 V DCSn = 2 mmPNP Normally open (NO)ApplicationThis sensor is ideal for applications in factory automation, packaging machinery, assembly lines, and material handling systems where precise position sensing of metal parts is required.Country of OriginChinaCO2 ImpactBy choosing this refurbished or surplus sensor, you are contributing to a circular economy and avoiding 2.0 kg of CO2 emissions associated with the production of a new one. This saving is equivalent to the emissions from driving a standard car for 10 kilometers.AvailabilityThis item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery.FAQQuestion?What is the IP rating of this sensor?This sensor has an IP68 rating, which means it is fully protected against dust ingress and can withstand long periods of immersion under pressure, making it suitable for washdown applications.Question?Is this sensor flush-mountable?Yes, the BES 516-324-G-E4-C-S49-00,3 is designed for flush mounting, allowing it to be installed level with the mounting surface without affecting its sensing performance.Question?What is the maximum switching frequency of this sensor?The datasheet specifies a maximum switching frequency of 1500 Hz, enabling it to detect fast-moving objects reliably.profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.Last Update: March 13, 2026
AKA Zeskantbout DIN 931 M10x110 2GBT 10110 Elzn (50pcs)
Op voorraad
| Gewicht | 5,00 kg |
|---|---|
| Packing Quantity |
50 Unit(s) |
| Unit of Measure |
Unit(s) |
| Brand |
AKA |
| Category |
Hardware |
| Description |
Hexagon Steel Bolts |
| MPN |
Zeskantbout DIN 931 M10x110 2GBT 10110 Elzn (50pcs) |
| Other Notations |
Zeskantbout DIN 931 M10x110 2GBT 10110 Elzn (50pcs) ,ZeskantboutDIN931M10x1102GBT10110Elzn(50pcs) |
| Fabr. Art. Nr. |
Zeskantbout DIN 931 M10x110 2GBT 10110 Elzn (50pcs) |
PHANTOM 82.832.0700 spantang ER32 15mm 7mm DIN 6499-B
Op voorraad
| Gewicht | 2,00 kg |
|---|---|
| Packing Quantity |
1 Unit(s) |
| Unit of Measure |
Unit(s) |
| Brand |
PHANTOM |
| Category |
Abrasive and Cutting Tools |
| Description |
Tool Holder Collet |
| MPN |
82.832.0700 spantang ER32 15mm 7mm DIN 6499-B |
| Other Notations |
82.832 ,82.832.0700 spantang ER32 15mm 7mm DIN 6499-B ,82.832.0700spantangER3215mm7mmDIN6499-B ,82.832.0700spantangER3215mm7mmDIN6499B |
| Fabr. Art. Nr. |
828320700 spantang ER32 15mm 7mm DIN 6499B |
