TELEMECANIQUE ATV71HD37N4

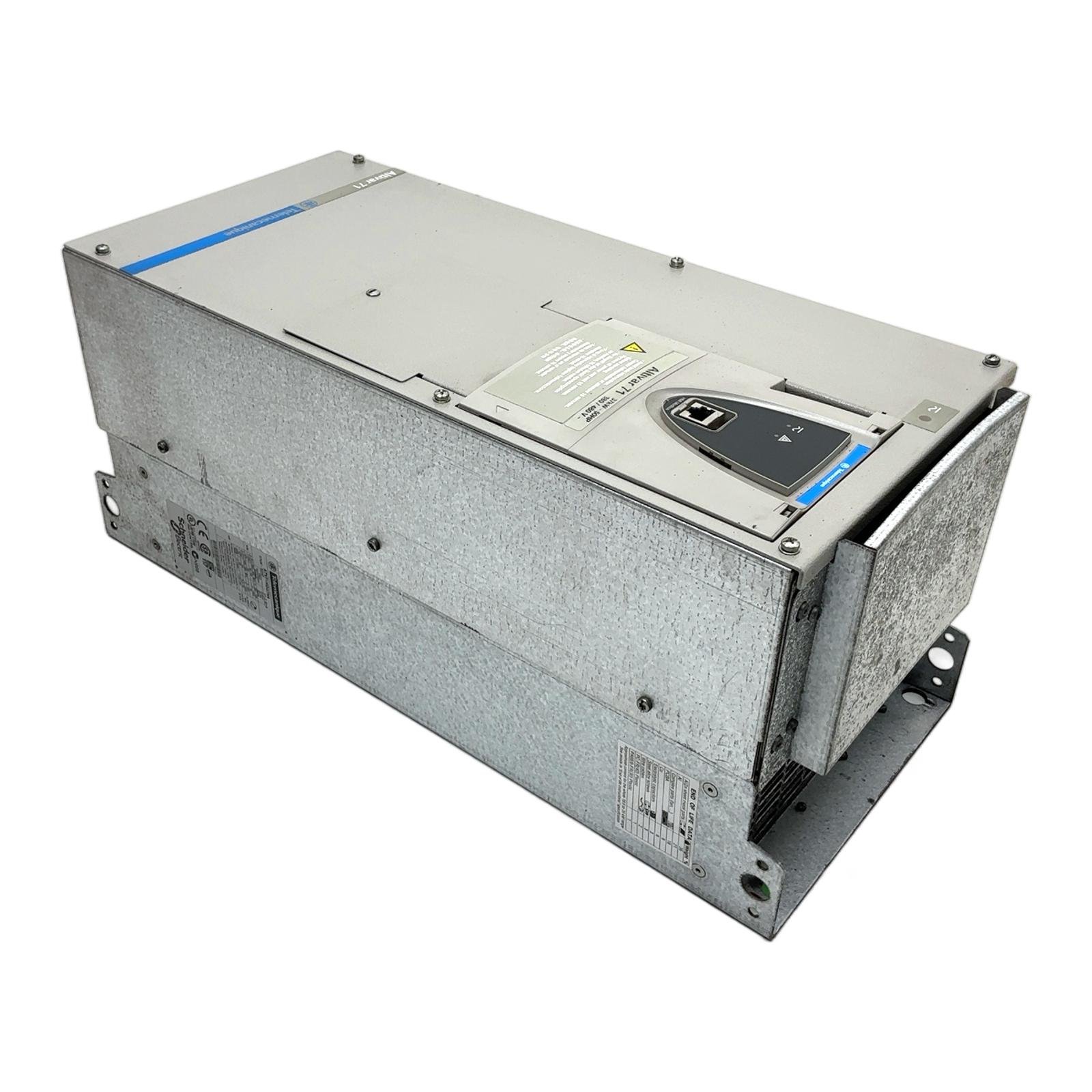

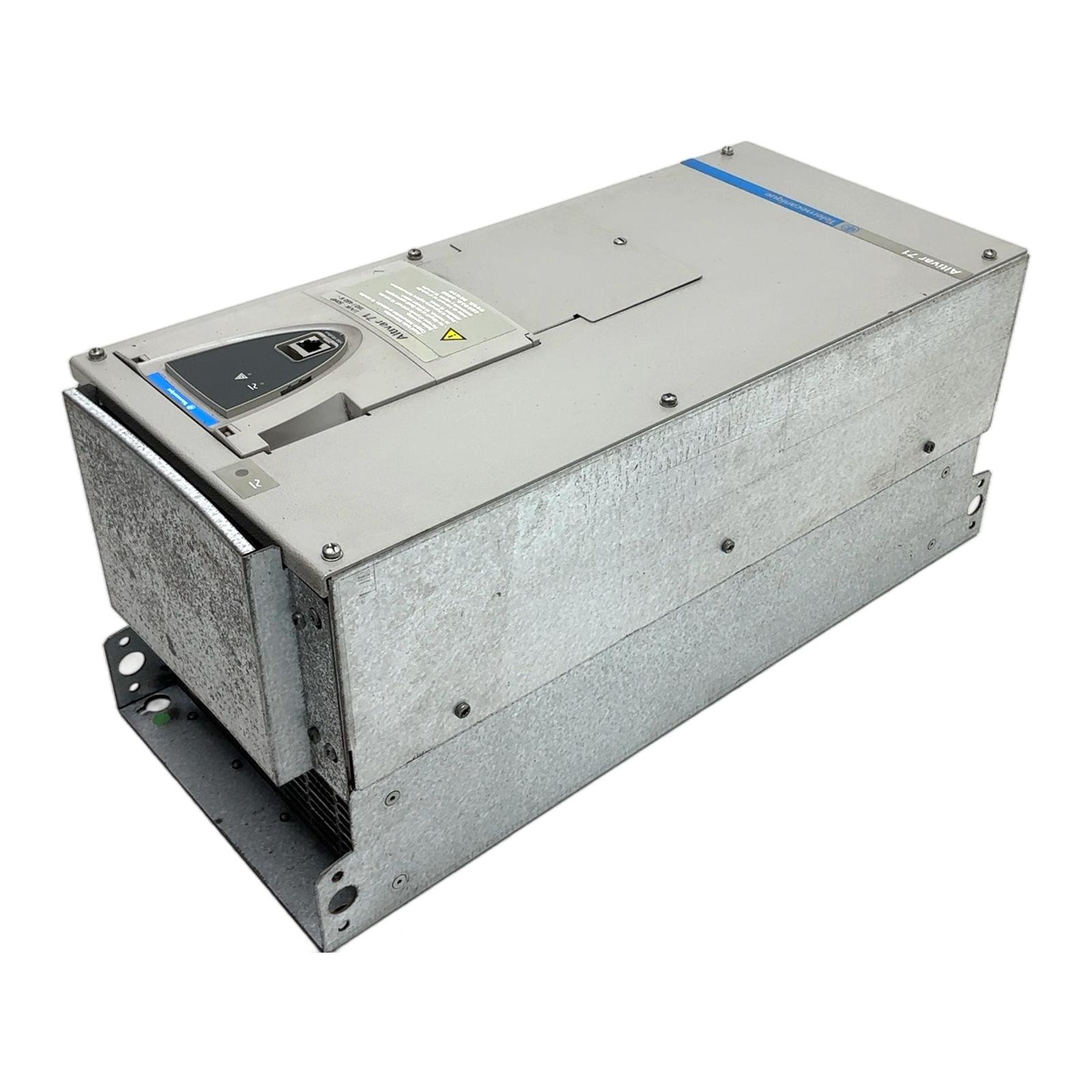

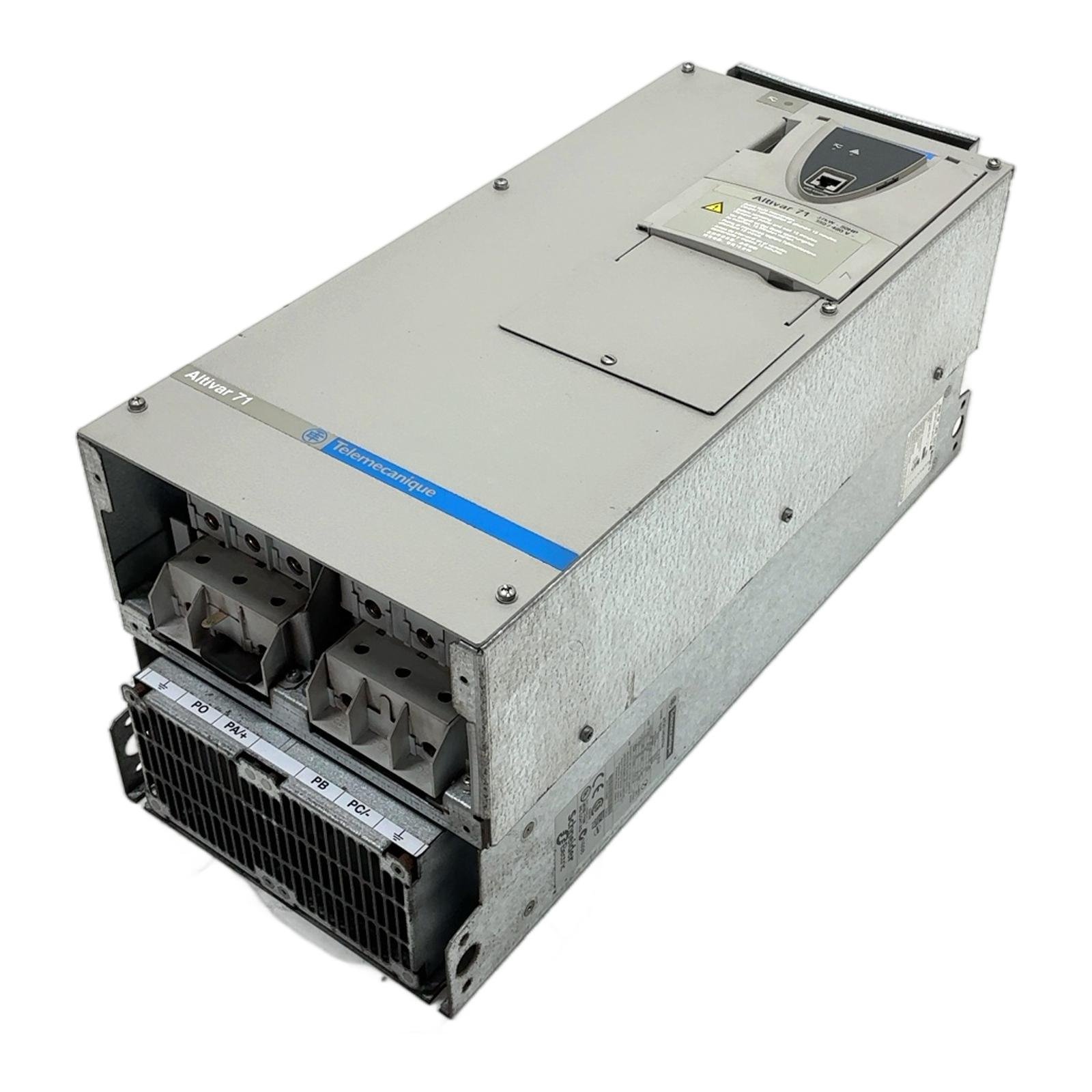

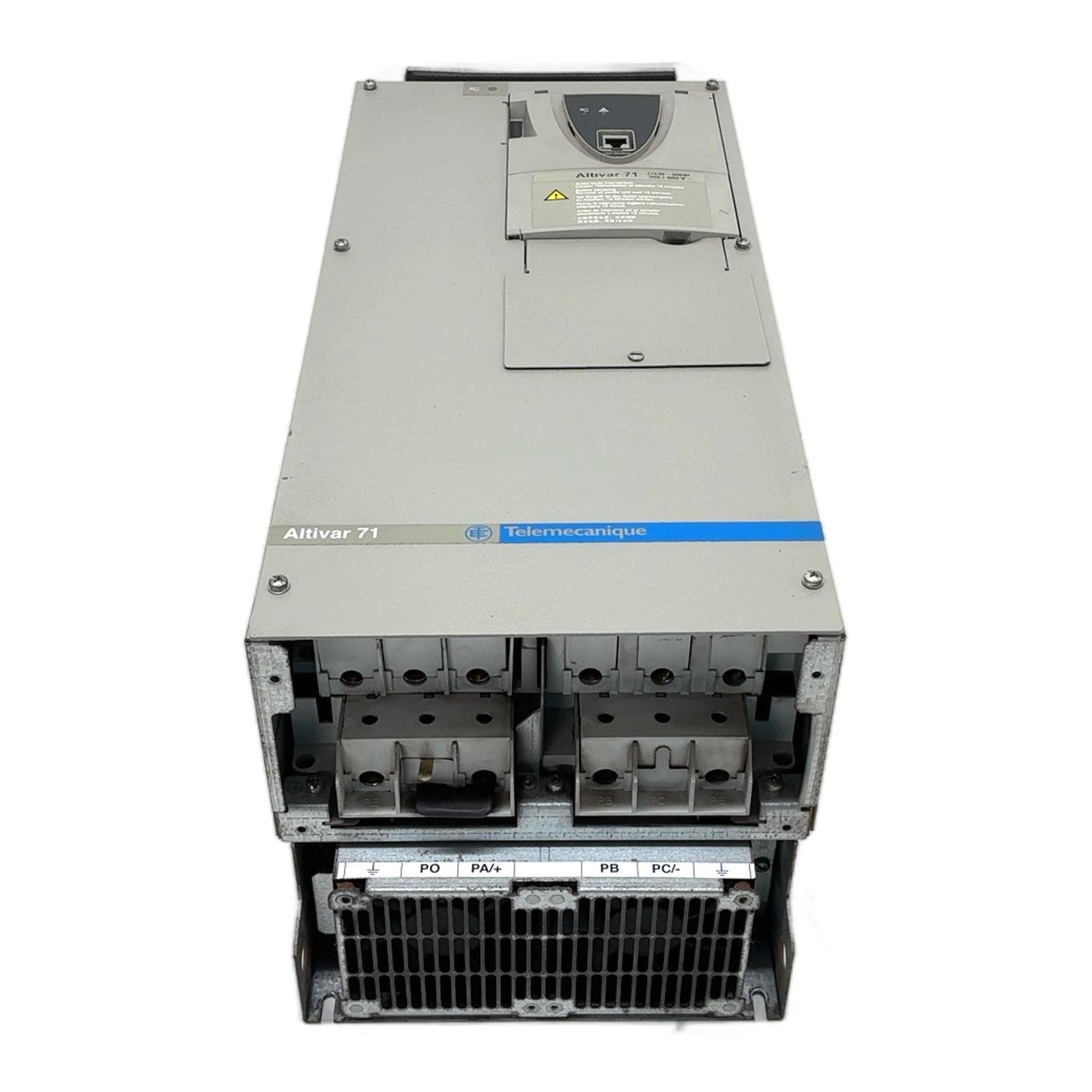

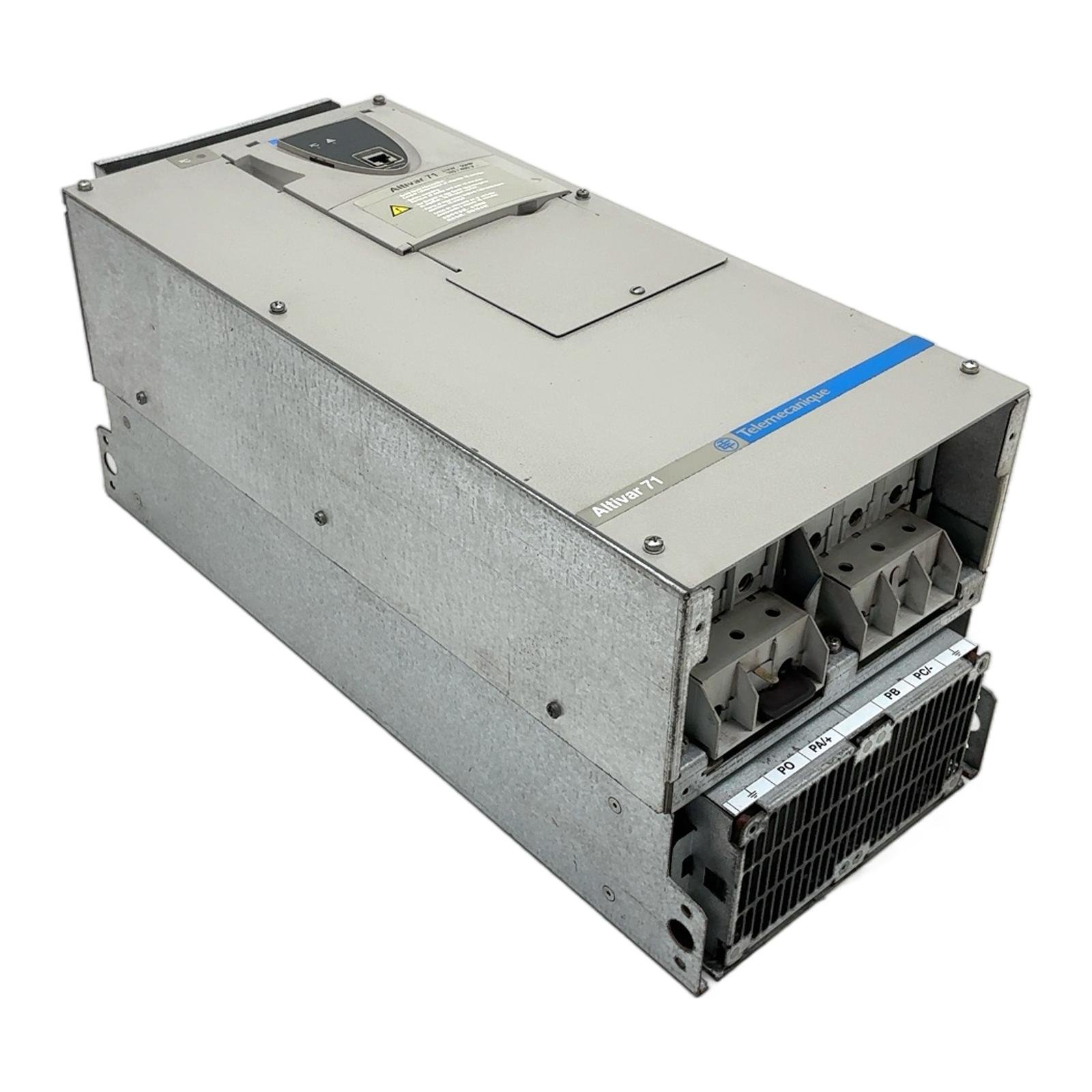

Telemecanique Altivar 71 Variable Frequency Drive Description The Telemecanique ATV71HD37N4 is a high-performance frequency inverter from the Altivar 71 range, designed for three-phase synchronous and asynchronous motors. With a power rating of 37 kW (50 HP), it is suited for demanding applications in various industries, including material handling, processing, and textiles. Its advanced flux vector control provides optimal performance and torque control. As an obsolete part, it is an essential component for maintaining legacy systems. Specifications Manufacturer: Telemecanique (Schneider Electric) Model: Altivar 71 Type Number: ATV71HD37N4 Power Rating: 37 kW / 50 HP Input Voltage: 380…480 V AC, 3-Phase Input Frequency: 50/60 Hz Output Current: 79 A Firmware Version: V1.2 IE18 Integrated Protocols: CANopen, Modbus Label Info Serial Number: 6W0727000890 UL Listed: 170M IND.CONT.EQ. Application This drive is commonly used for complex, constant torque applications such as conveyors, mixers, extruders, and industrial machinery that require precise speed and torque regulation. Country of Origin Made in France. CO2 Impact Reusing this product prevents the emission of approximately 536 kg of CO2, which is equivalent to the manufacturing footprint of a new unit. Choosing used parts is a sustainable choice for your business and the environment. Availability This item is a tested, used product in excellent working condition. Available for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the main difference between the Altivar 71 and its successor, the Altivar Process ATV900 series?The ATV900 series offers significant improvements, including enhanced energy efficiency, built-in Ethernet connectivity for IoT integration, advanced real-time intelligence, and more sophisticated motor control algorithms compared to the robust but older ATV71 technology. Can this ATV71HD37N4 drive be used in a single-phase input application?No. The ‘N4’ suffix in the model number specifically indicates a three-phase input voltage range of 380-480V. Using it with a single-phase supply would damage the drive or cause it to fault. What communication protocols are natively supported by the Altivar 71, and what options are available for expansion?The Altivar 71 natively supports CANopen and Modbus RTU protocols. Additional communication capabilities can be added via optional expansion cards, including protocols like EtherNet/IP, Modbus TCP, Profibus DP, and DeviceNet. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
